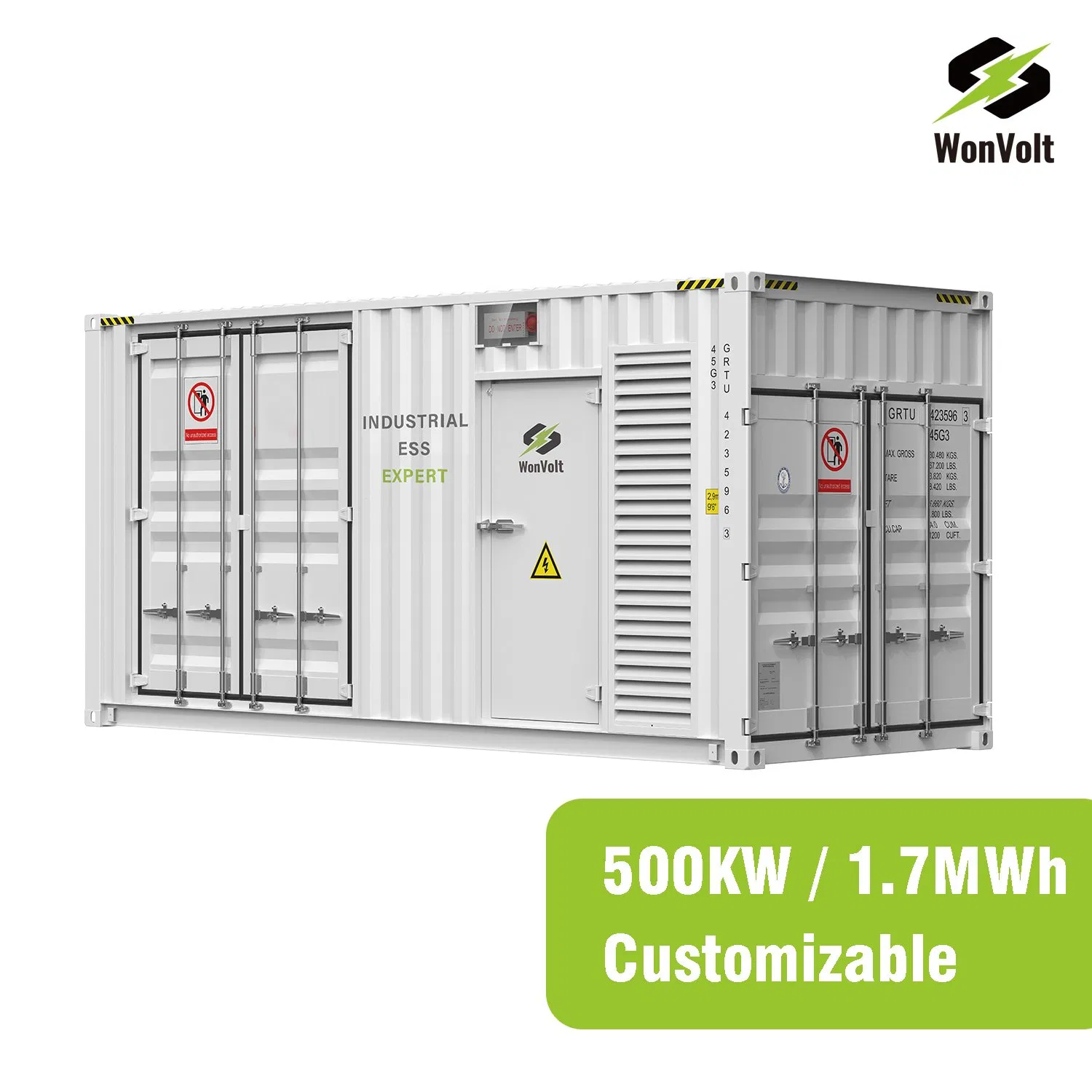

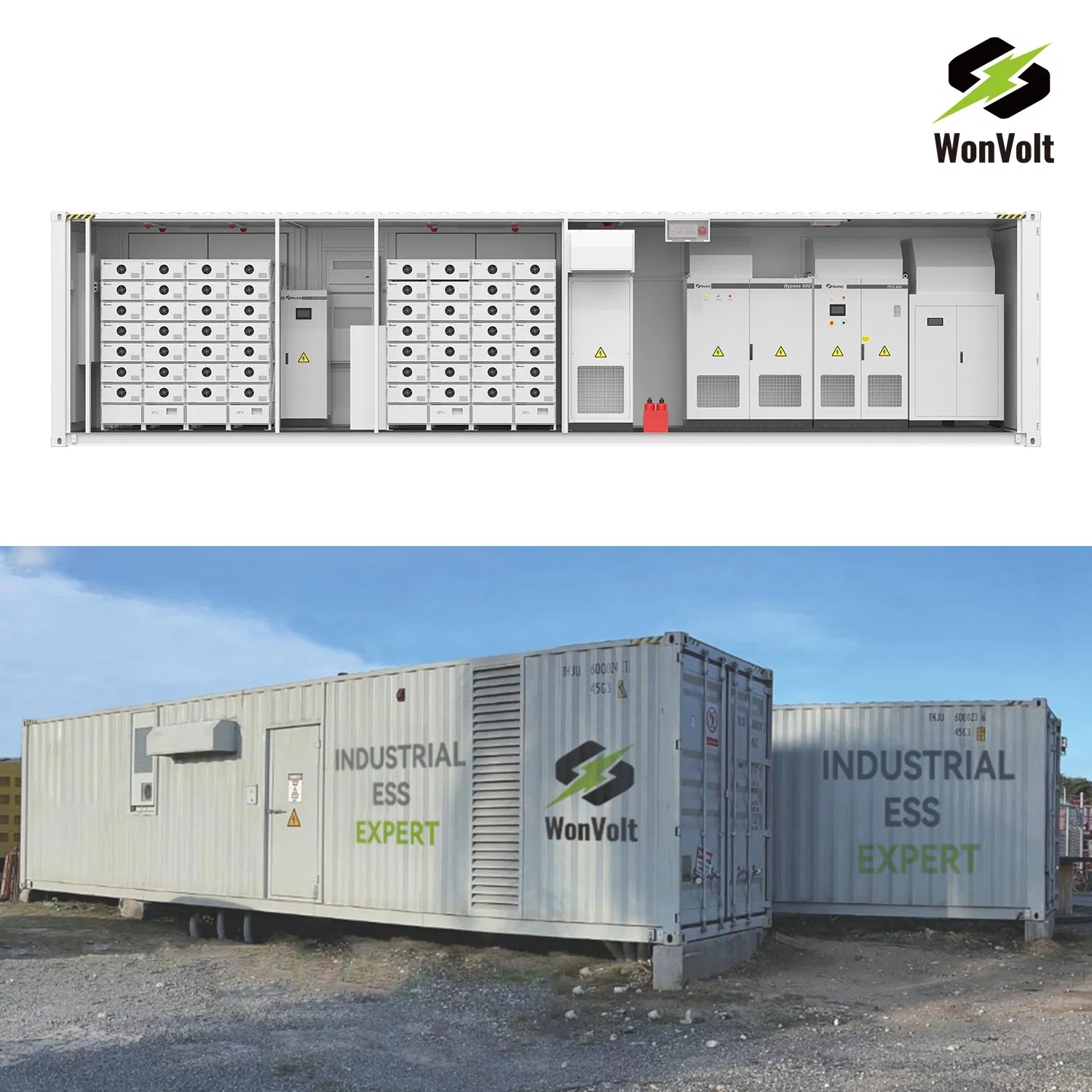

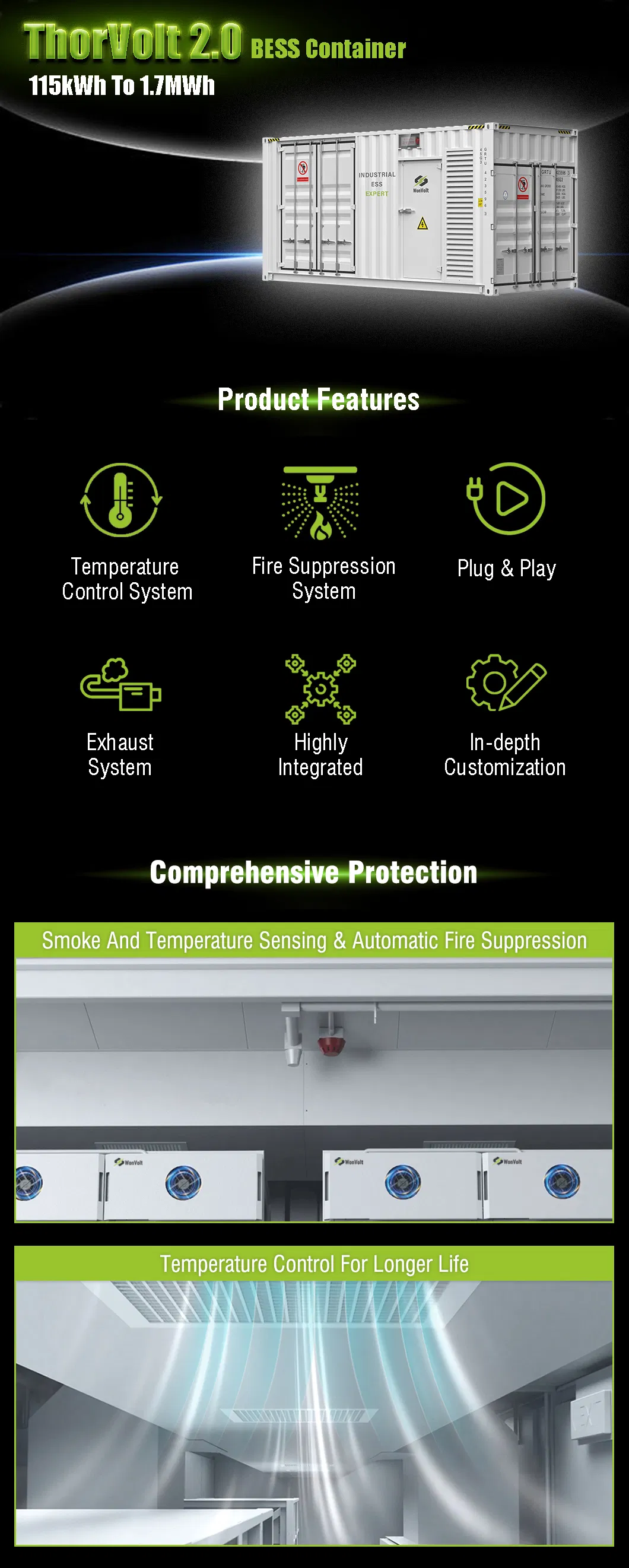

| BESS Container Model | ThorVolt 2.0 | ZeusVolt 2.0 |
|---|---|---|
| Power Converter Compatibility | ||
| Rate power | 300KW | 500KW |
| AC voltage | Rate: 380V/400V, Range: 360V~440V | |
| Compatible Battery System | ||
| Battery Capacity Range | 387~802.2kWh | 602.1~1720kWh |
| Battery Type | LiFePO4 | |
| Battery Voltage Range | 352V~600VDC | 600V-900VDC |
| C rate | 0.5C,1C(Opt) | |
| PV System Connection | ||
| Max. PV power | 450KWp | 500KWp |
| PV MPPT Voltage Range | 480V~800V | 480V~850V |
| General Data | ||
| Size (W×H×D) | 6058×2591×2438mm / 20*8.6*8ft | 12192×2591×2438mm / 40*8.6*8ft |
| Max. Weight | 14743kg | 24700Kg |
| Noise | 70dB | |
| Degree Of Protection | IP54 | |
| Max Elevation | 6000m (derate over 3000m) | |
| Operating Ambient Temperature | -20°C to 50°C (De-rating over 45°C) | |
| Humidity | 0~95% (No condensing) | |
| Cooling | Forced air cooling for power electronics. Air conditioned for battery system with heater and dehumidifier | |
| FIRE Safety | FM200 (HFC-227ea) or ABC | |
| Other | ||
| AC Connection | 3-Phase 4-wire+PE at AC connection | |
| Communication | RS485, CAN, Ethernet / MODBUS TCP/IP | |
| Remark: Due to space limitations, only 2 solutions are shown here. Please inquire for larger or smaller configurations. | ||
