Basic Info.
Model NO.
BATTERY SYSTEM + PCS
Certification
ISO9001-2000, ISO9001, CCC
Usage
Distribution Transformer, Three-Phase Transformer
Frequency Characteristics
Power Frequency

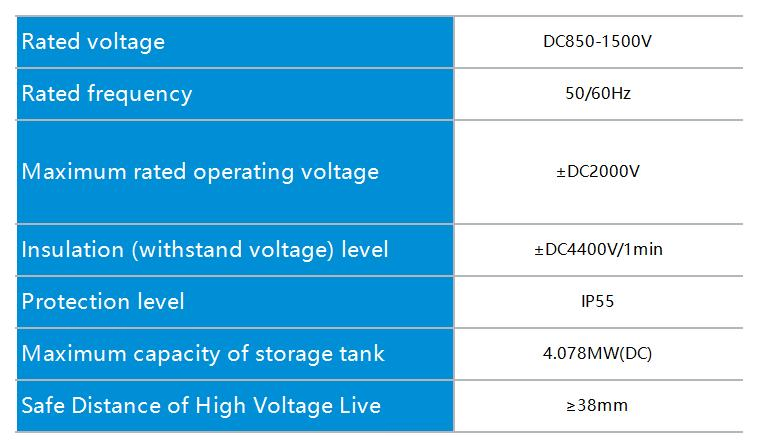

Rated Voltage
DC 850-1500V
Maximum Rated Operating Voltage
+DC 2000V
Insulation Level
± DC4400V/1min
Maximum Capacity of Storage Tank
4.078MW(DC)
Safe Distance of High Voltage Live
Z38mm
Transport Package
Wooden Pallets/ Wooden Frames/ Wooden Boxes
Production Capacity
500000
Product Description

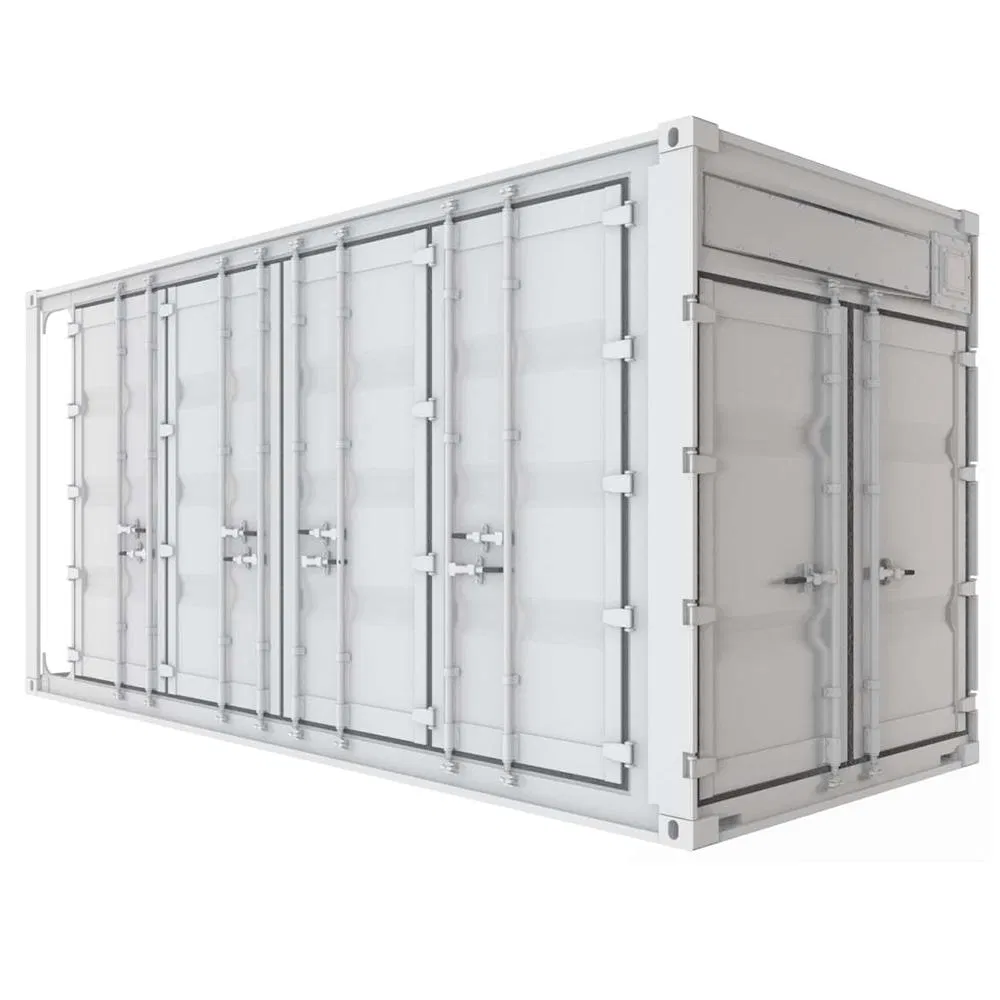

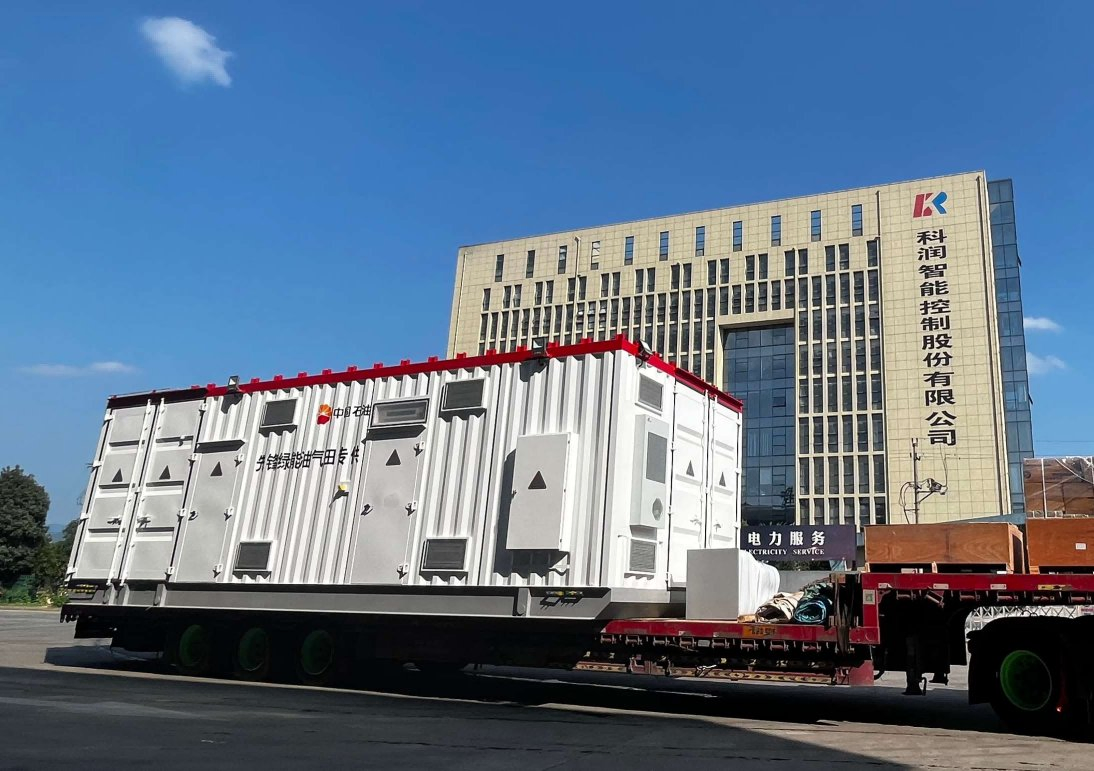

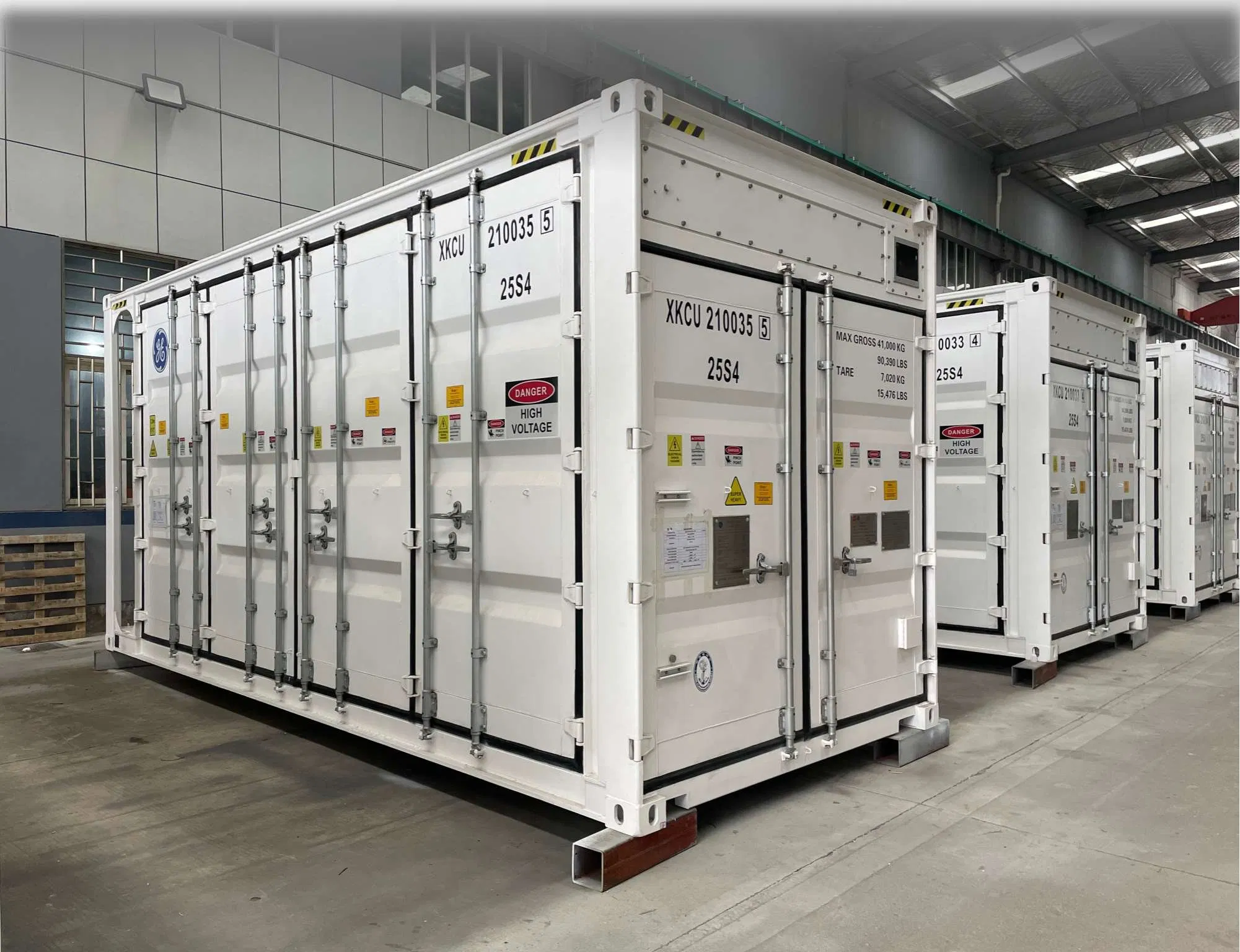

Prefabricated Containerized Battery Energy Storage System
Technical Description:
- Small size: 20 feet ISO international standard container (6058 length * 2438 width * 2896 height mm).
- Rated voltage: DC850-1500V.
- Maximum working voltage: DC2000V.
- Busbar power frequency (1min) withstand voltage: DC4400V.
- Frequency: 50/60HZ.
- Protection level: IP55.
- Maximum capacity: 4.078MWh (DC).
- Long discharge time: 3h (hours).
- Maximum output current: 1600A.
- Maximum total weight: 41 tons.
- High electrical safety performance: safety distance 38mm.
- The charging and discharging process of the energy storage battery realizes intelligent control.
- Adaptable ambient temperature: -45°C - +60°C.
- The box has good thermal insulation effect (double insulation process); it has double-sided doors for easy maintenance; the air conditioner adopts a special cooling duct; the box material is made of high-strength weather-resistant steel (SPA-H).

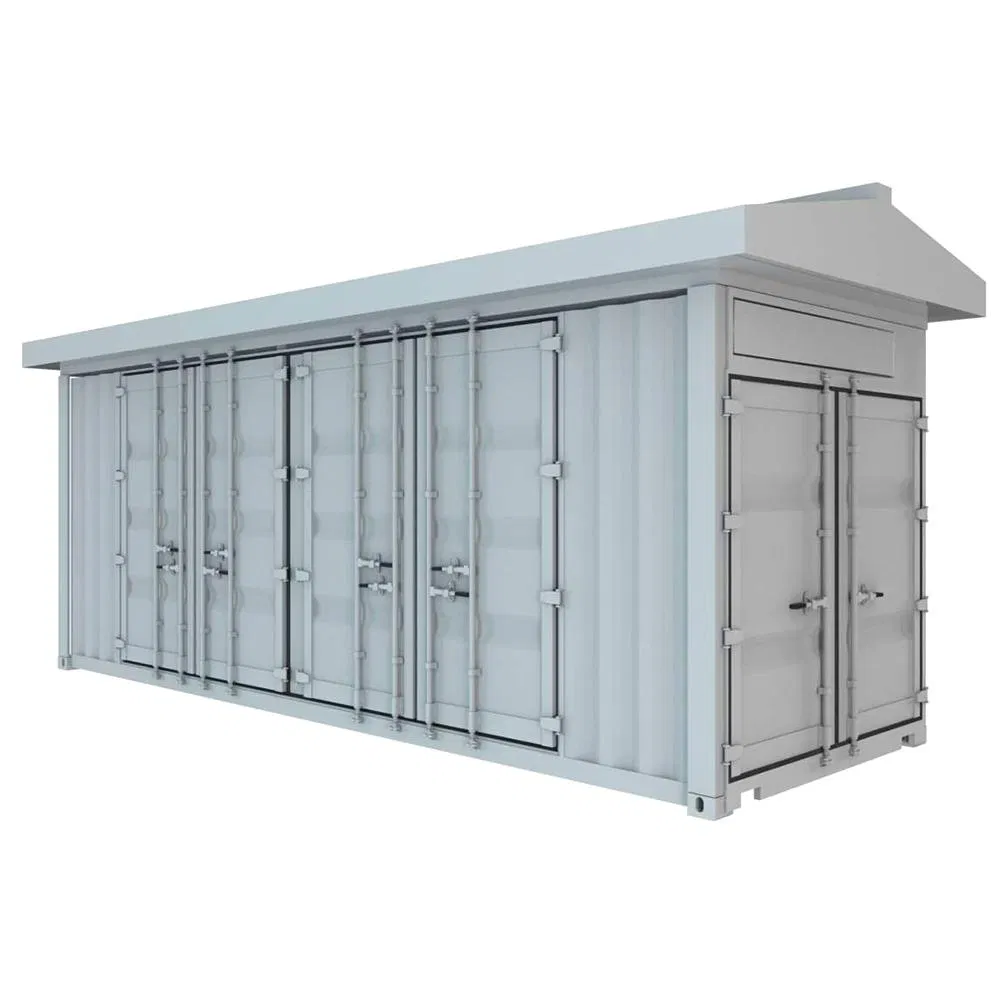

System Transformers & Container Structure
Technical Description:
- Voltage level: 3.6kV ~ 40.5kV.
- Maximum capacity of transformer: 6300kVA.
- Rated frequency: 50Hz.
- Protection level: IP55.
- Structure type: cold plate welding type, container type.
- Applicable to: power transformation and distribution of new energy power generation systems, outdoor power distribution systems and other projects.
- Shell material technology: cold plate spray painting, container shell, aluminum-zinc coated plate anti-corrosion wooden strips, etc.
Technical Drawings & Details
Product Advantages
- Optimized Consistency: Focus factory concepts are utilized, leading to extensive experience in specific products and delivering a high level of consistency in design, manufacture, and testing.
- Global Design Platform: Distribution transformer manufacturing utilizes a common design platform to ensure best-in-class performance, consistency, and repeatability.
- Strict Quality Standards: Advanced manufacturing and quality control processes ensure that every transformer meets the most stringent international standards and project requirements.
- Expert Engineering Support: Backed by engineers with over 40 years of industry experience in international projects, providing precise product analysis and customized power distribution solutions.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional transformer manufacturer with more than 20 years of experience, supporting OEM & ODM services.
Which markets do you mostly export to?
We export to more than 20 countries across South America, North America, Europe, the Middle East, Africa, and other regions.
What certificates and standards do you have?
We hold ISO9001-2008, OHSAS 18001:2007, and ISO4001:2004L certificates. Our products comply with IEC, ANSI, KEMA, and GOST standards.
How long is your delivery time?
Once the specifications and plans are finalized, we typically complete production and dispatch within 20 days, depending primarily on the order volume.
What is your standard packaging?
Our standard packaging is divided into three main options: wooden pallets, wooden frames, and wooden boxes. Customized packaging options are also available depending on requirements.
What currencies and payment methods do you support?
We accept USD and CNY currencies. Supported payment methods include T/T and L/C.
