Hitek 100kw 150kw 250 Kw 500kw All in One Ess Containerized Solar Price Battery Energy Storage System Container Lithium Ion Battery 500kwh

1 / 5

Hitek 100kw 150kw 250 Kw 500kw All in One Ess Containerized Solar Price Battery Energy Storage System Container Lithium Ion Battery 500kwh

Send Inquiry

Product Description

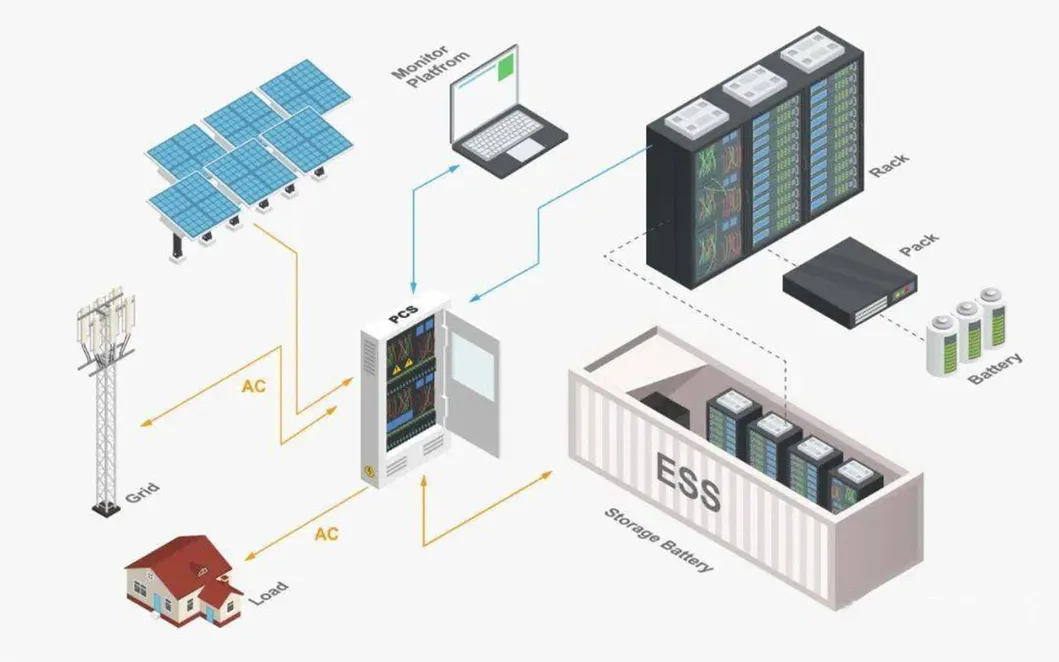

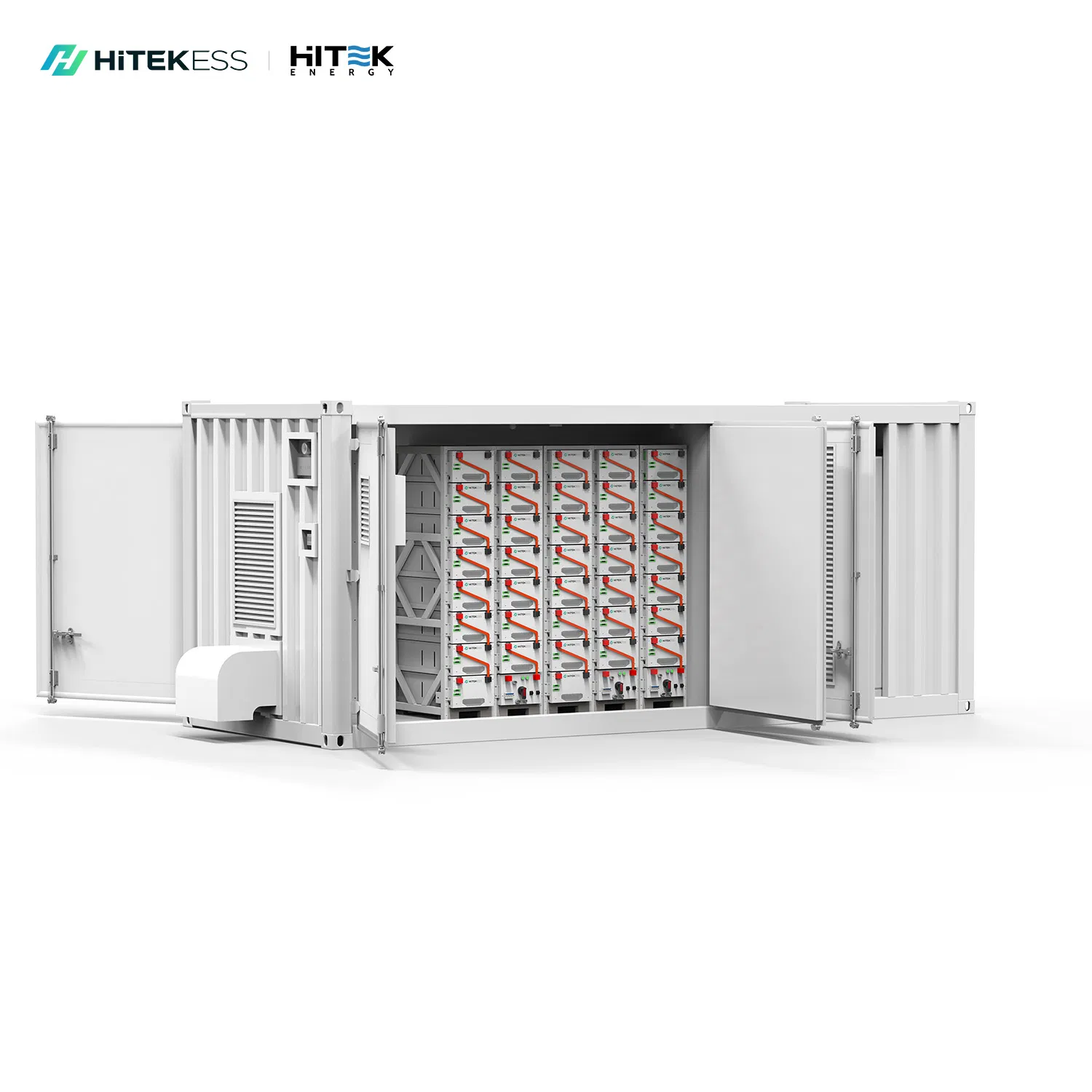

Containerized Solar Energy Storage System

Features of Container Energy Storage System

Working Mode: Support Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving), Offgrid Mode, and Generator Connection (Optional).
BMS Features: Comprehensive Battery Status Monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing Management, Protection Alarms, and Communication).
PCS Features: Engineered with a wide range of DC input voltage, optimized for indoor/outdoor installation, and features exceptionally short conversion times for full power switching from charge to discharge.
Integrated Protection: Advanced Fire Protection System built-in.
Climate Control: Dedicated integrated Air Conditioning System to maintain optimal battery operational temperatures.

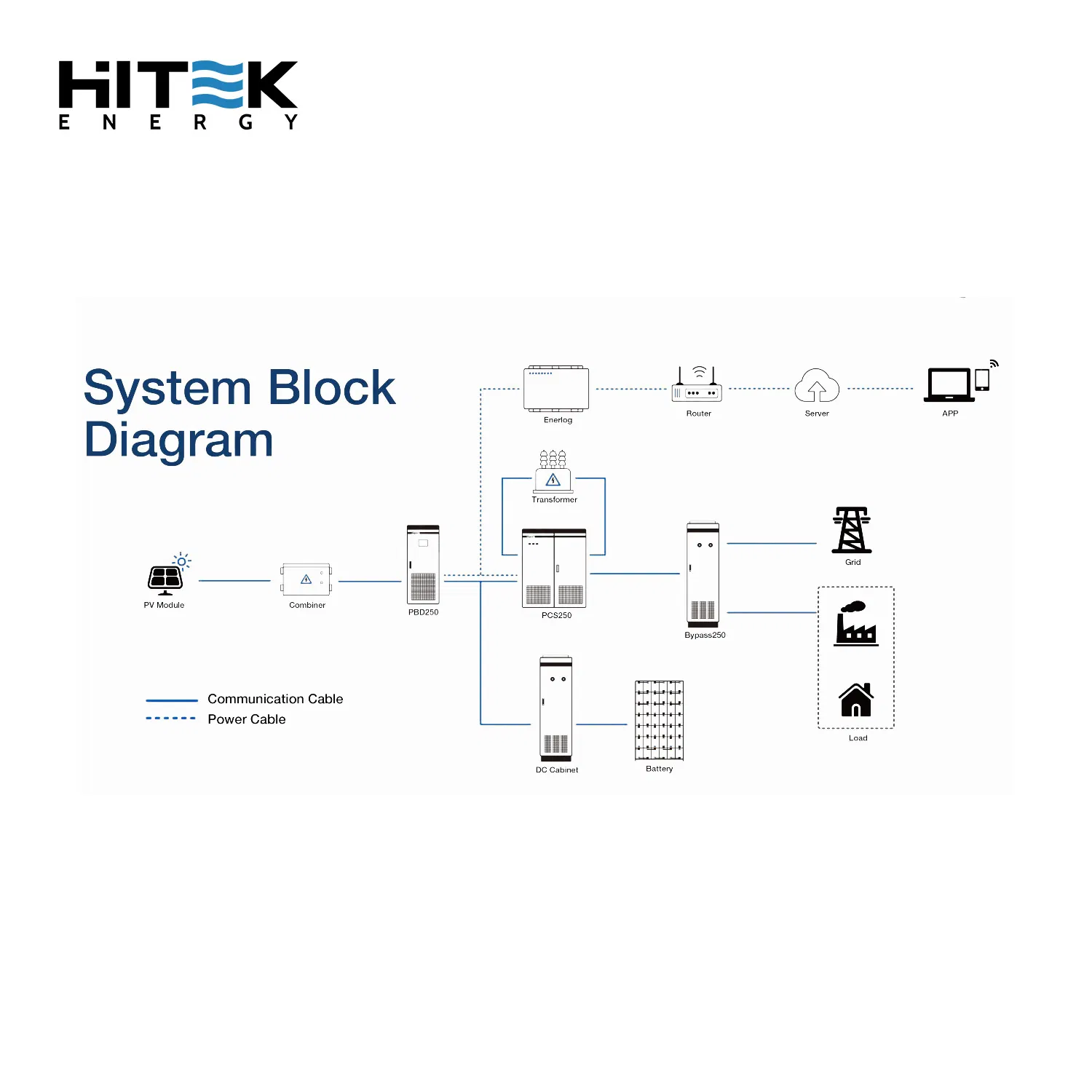

System Configuration

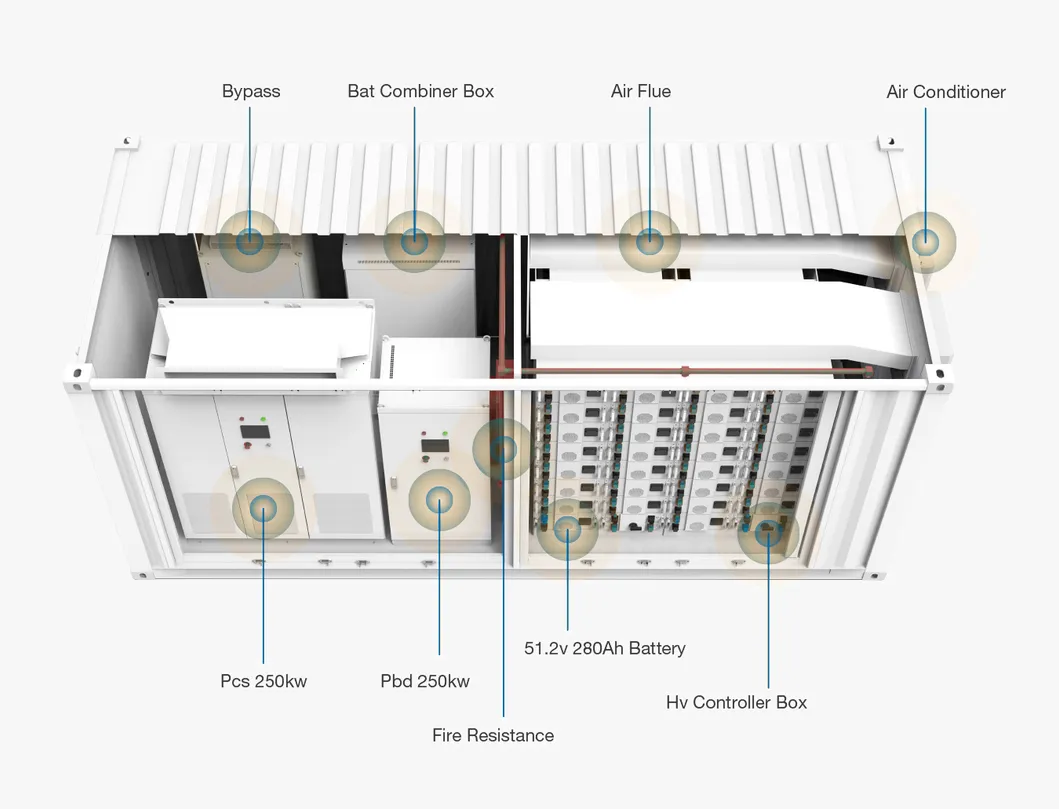

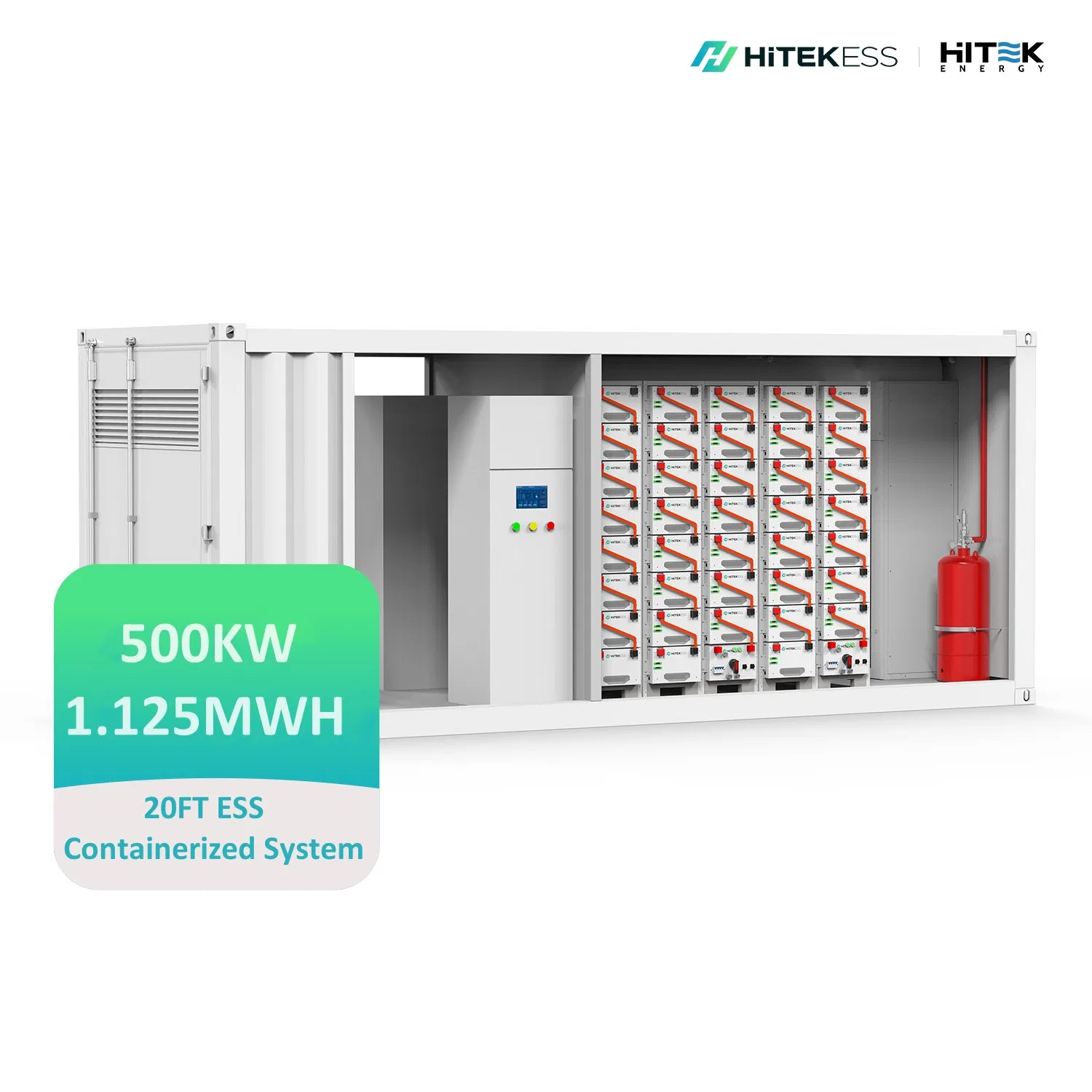

20FT ESS Lithium Energy Storage Container System
Item	Description	Quantity (pcs)	Remarks
PV Solar Panel	HT560M-72H	480	12 pieces/string; A total of 40 strings; 268.8kWp total capacity
Battery 573.44KWH Backup (458.75KWH @ 80% DOD)	Combiner Box 1500V-1500A	1	For combination of multiple battery racks
	280Ah Lithium Battery Module	40	Battery with BMU module 51.2V 280AH (Capacity 14.3kWh)
	Controller 1500V 300A	4	High Voltage Controller Box
PV-Combiner Box	8 Inputs 1 Output	5	For combination of multiple PV module strings
PBD250	—	1	250kW solar charge controller
PCS250	—	1	250kW battery inverter
Bypass 250	—	1	Switch between on-grid and off-grid
EnerLog	—	1	Monitoring datalogger
20FT Container	—	1	IP54 Outdoor container with lighting, fire-resistance system, battery rack, and air conditioner

This product parameters are customizable and can be configured to meet specific utility, commercial, or project-based needs.

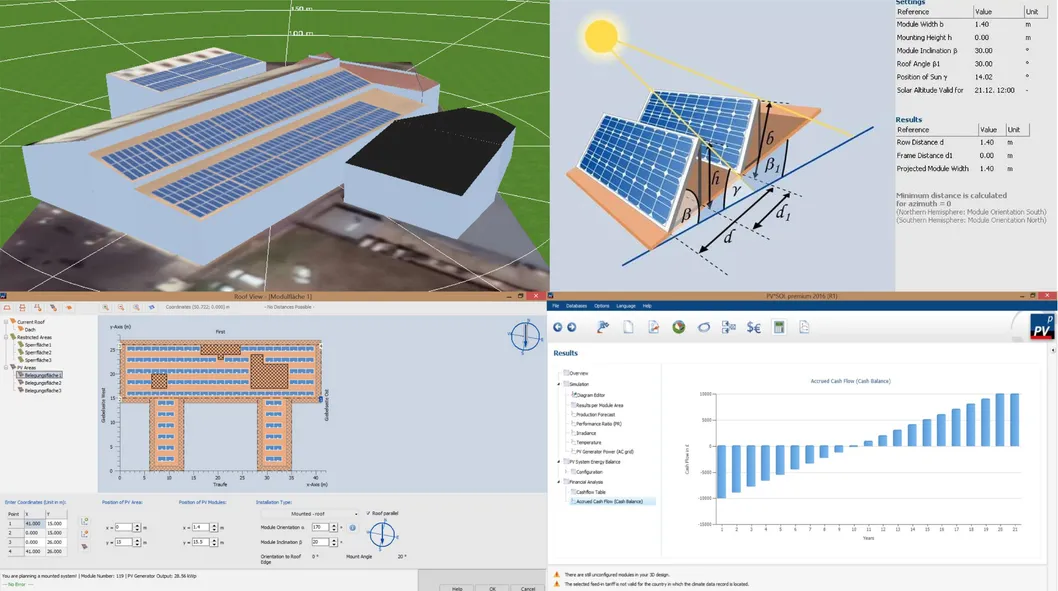

Complete Technical Support

Component Parameters

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Open Circuit Voltage (Voc): 49.84V
Short Circuit Current (Isc): 14.14A
Max Power Voltage (Vmp): 41.08V
Max Power Current (Imp): 13.64A
Dimensions: 2279 * 1134 * 35 mm
Weight: 28kg ± 3%

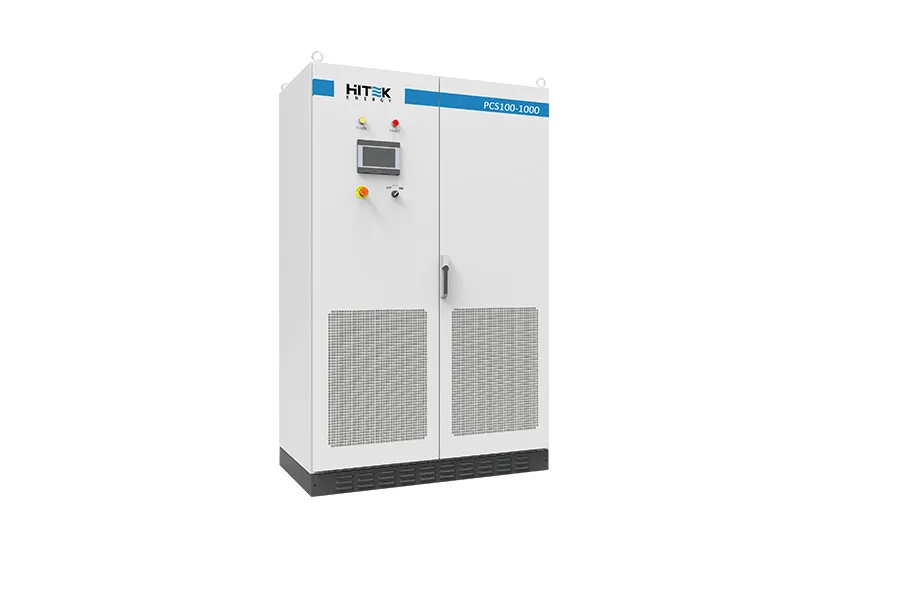

PCS 100-1000KW Inverter

Bidirectional battery inverter (500KW configuration). Supports standalone operation or combined with solar chargers and accessories. Scalable via multi-unit paralleling. Programmable working modes, DG remote control, and LCD touchscreen.

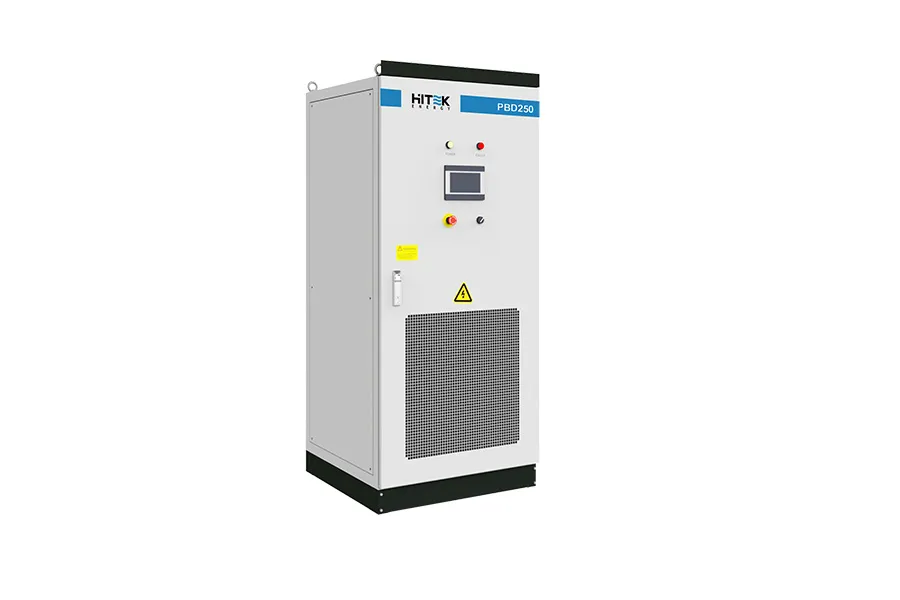

PBD 250KW Controller

1000V DC-to-DC solar charge controller designed for large-scale projects.

Supports multi-unit paralleling
Up to 5 MPPTs
Modular, transformerless design

Bypass 100-1000KW Cabinet

Bypass cabinet coordinates bidirectional battery inverters and PV inverters to perform reliable, seamless transfers between on-grid and off-grid modes automatically.

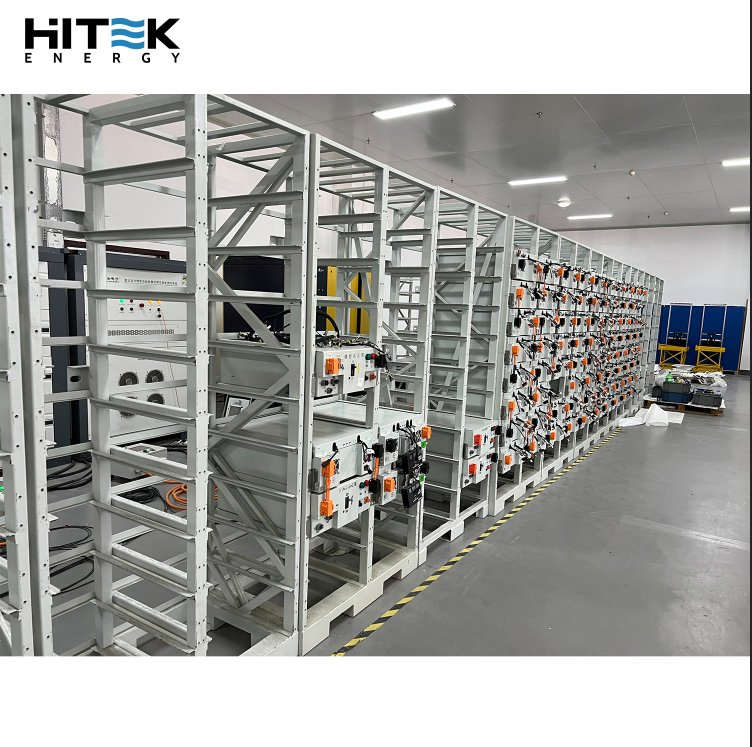

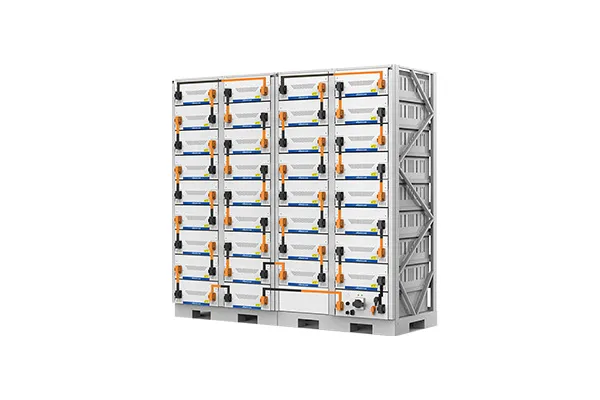

Storage Battery Bank

Standard energy storage module utilizing 40 individual cells. Module Capacity: 14.3kWh
Nominal Voltage: 51.2V
Total Pack Capacity: 458kWh @ 80% DOD.

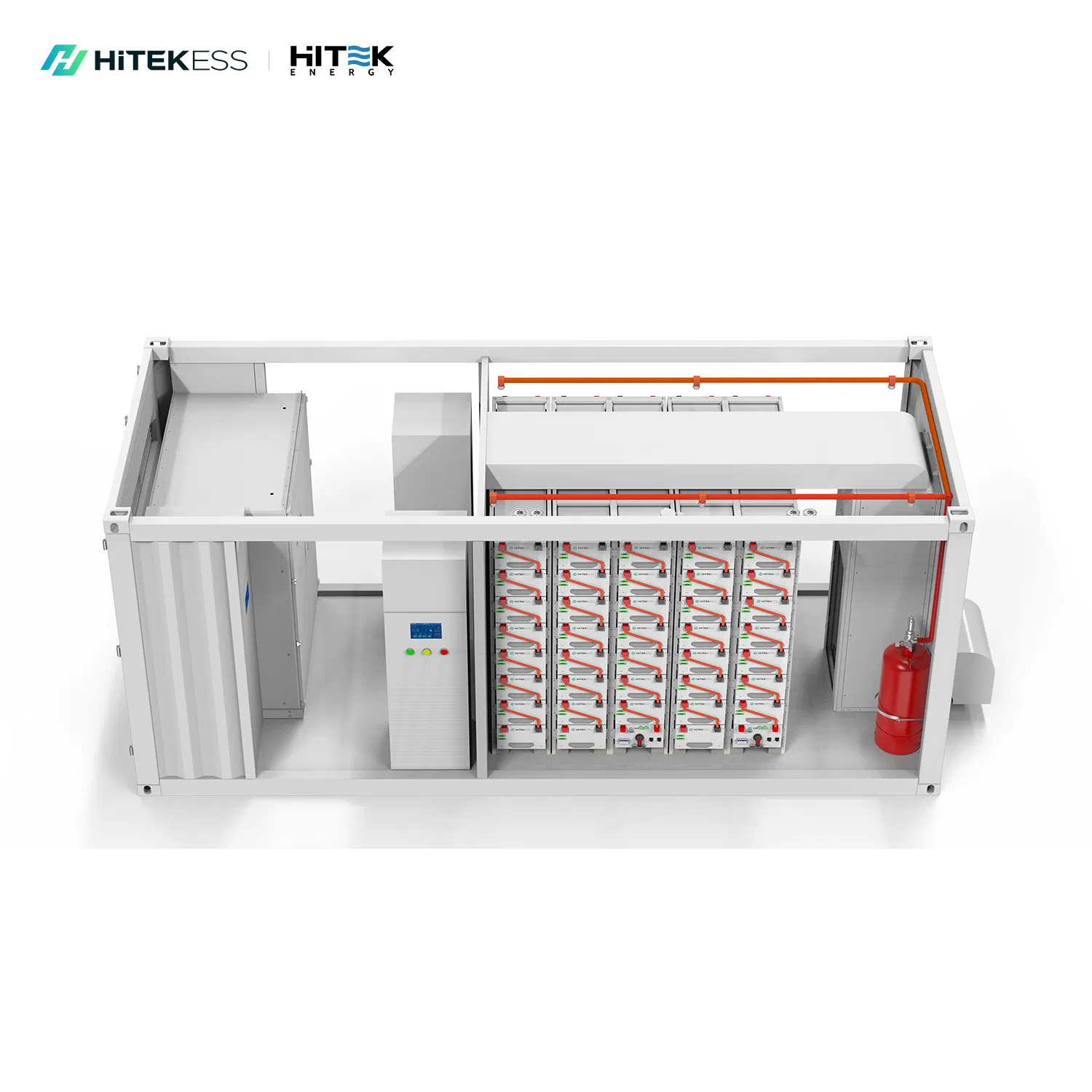

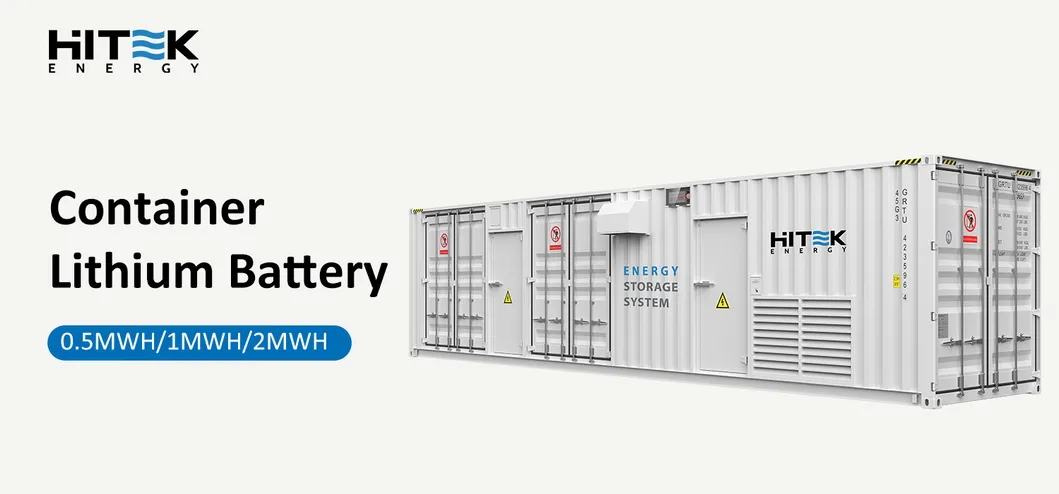

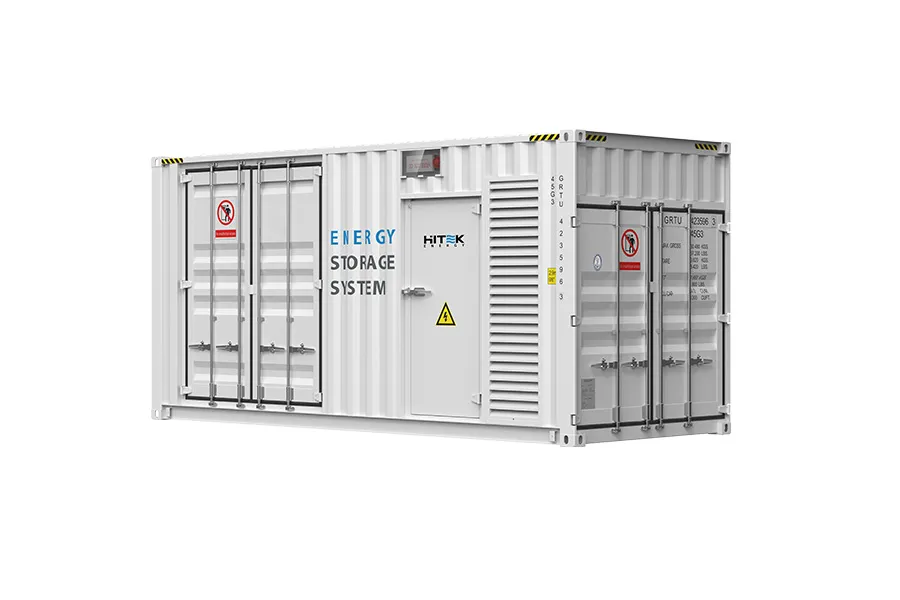

ESS Lithium Battery Container

All-in-one containerized energy storage system (BESS) suited for utility-scale energy storage. Integrates thermal management, fire safety, and system layout design.

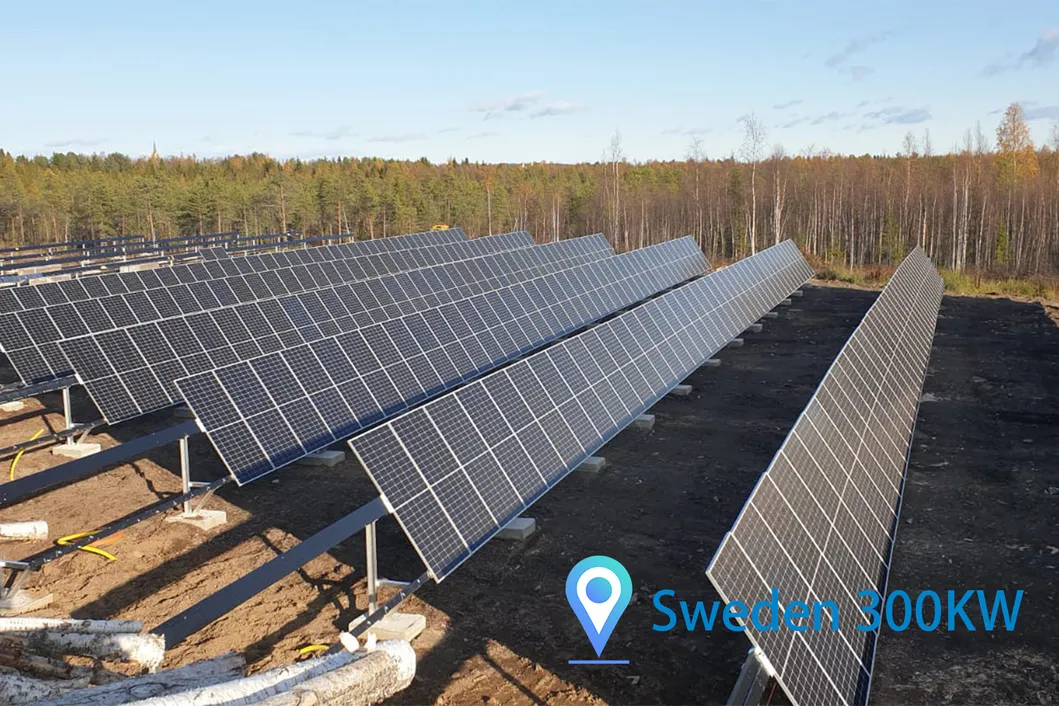

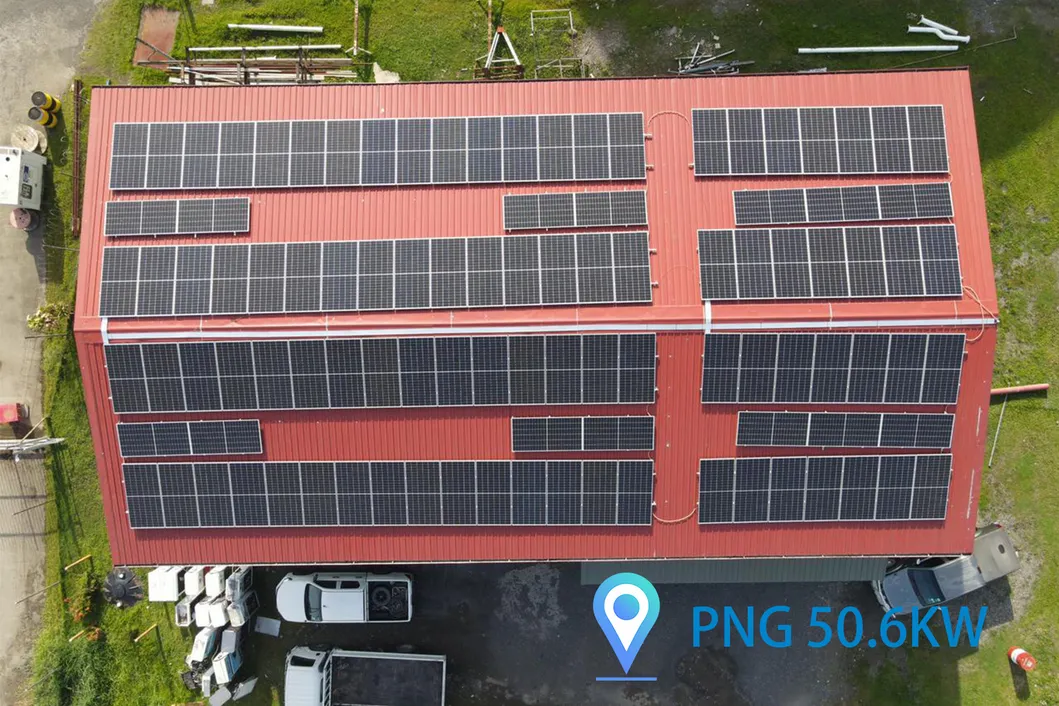

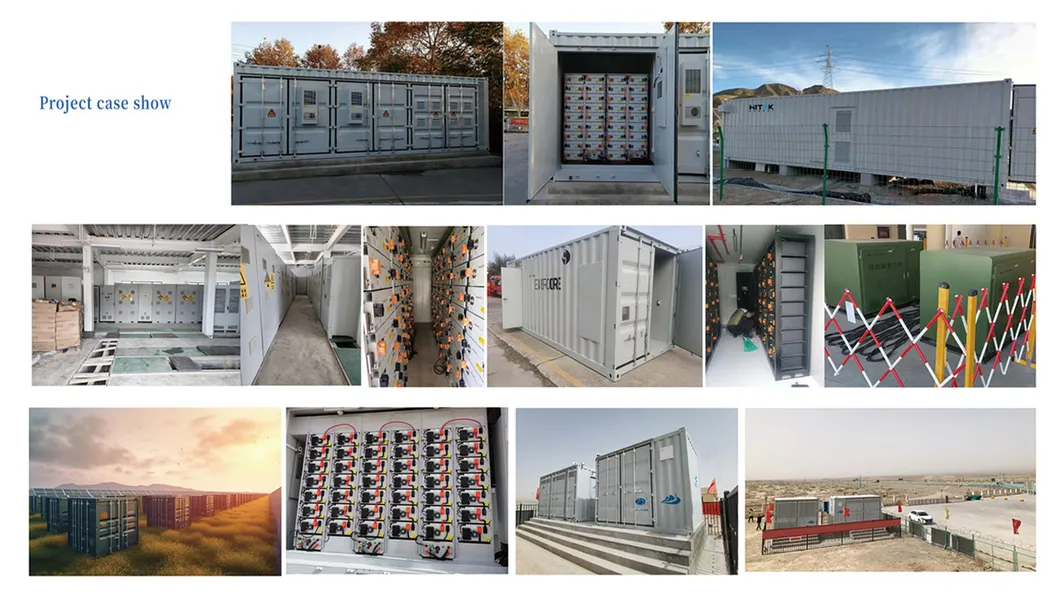

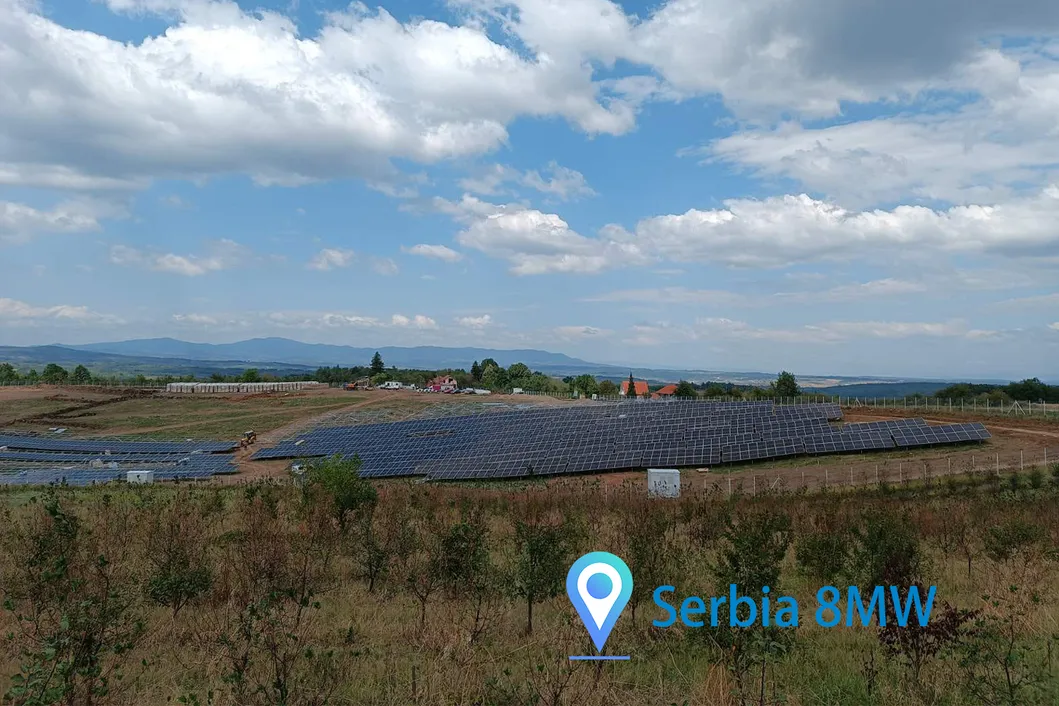

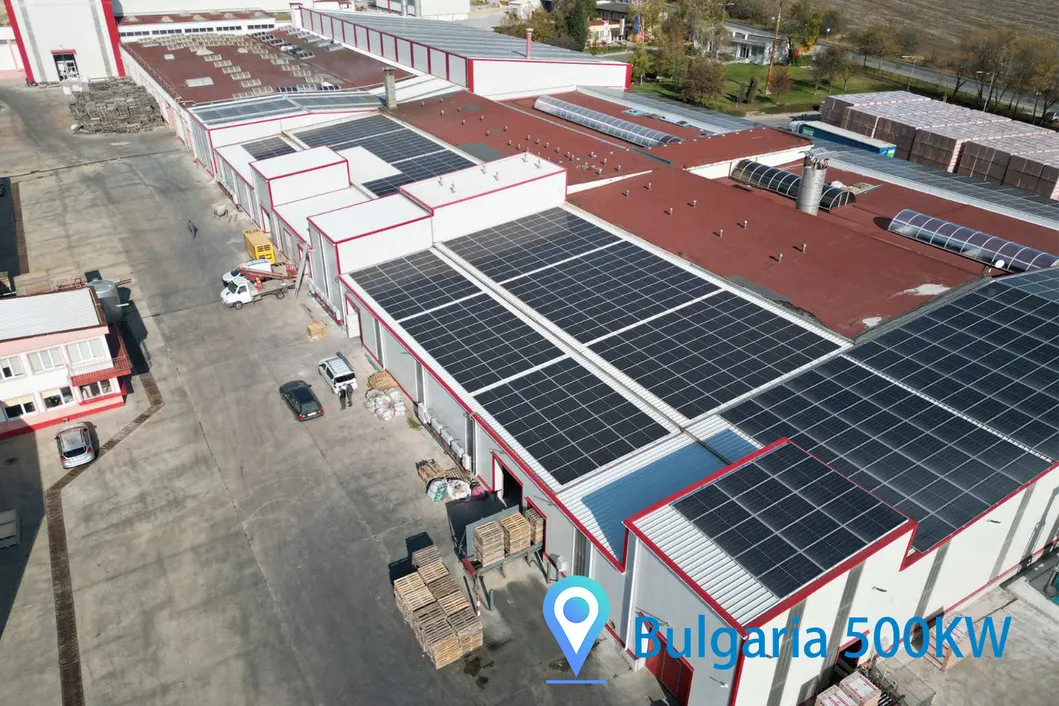

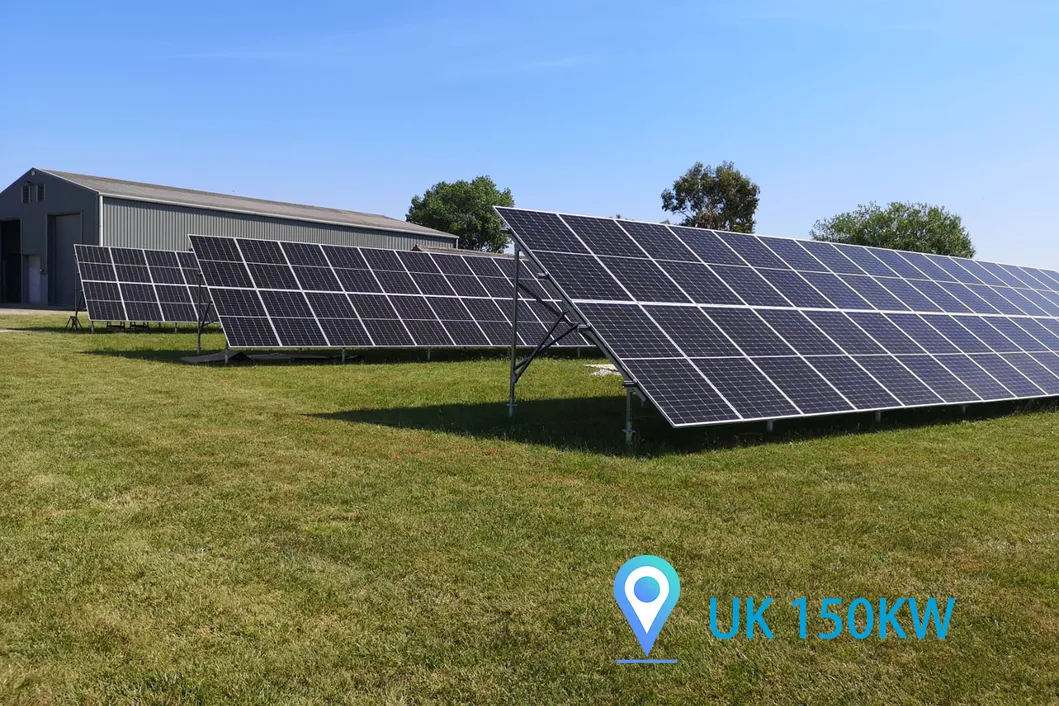

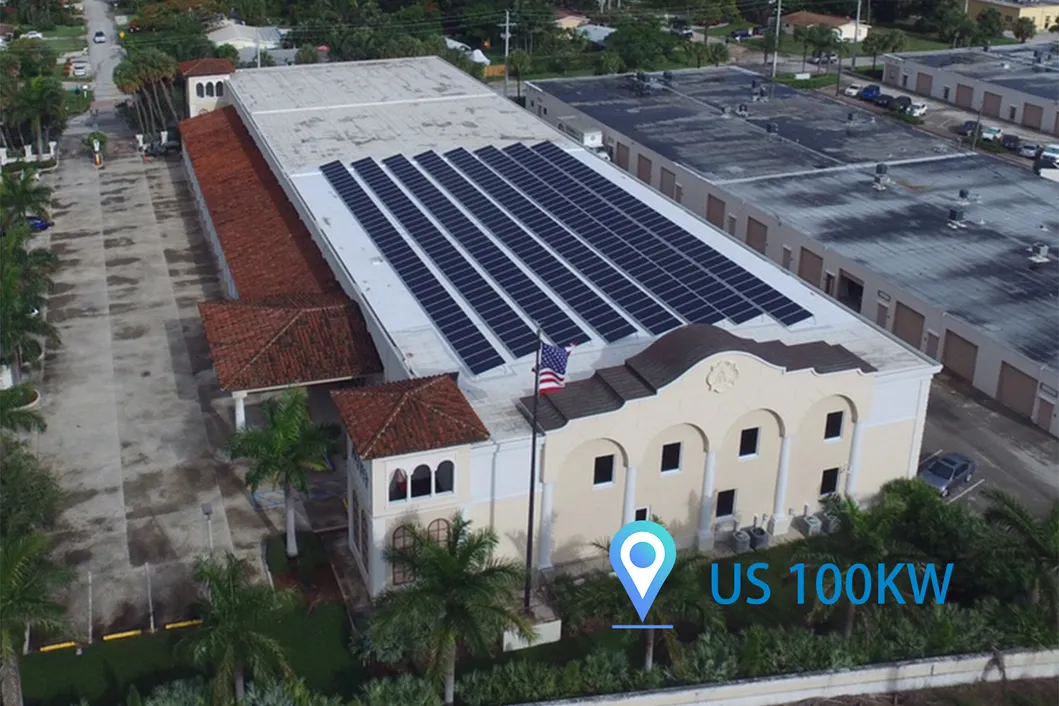

Global Projects Reference

Our Key Advantages

Key Product Highlights & Advantages Diagram

Related Products

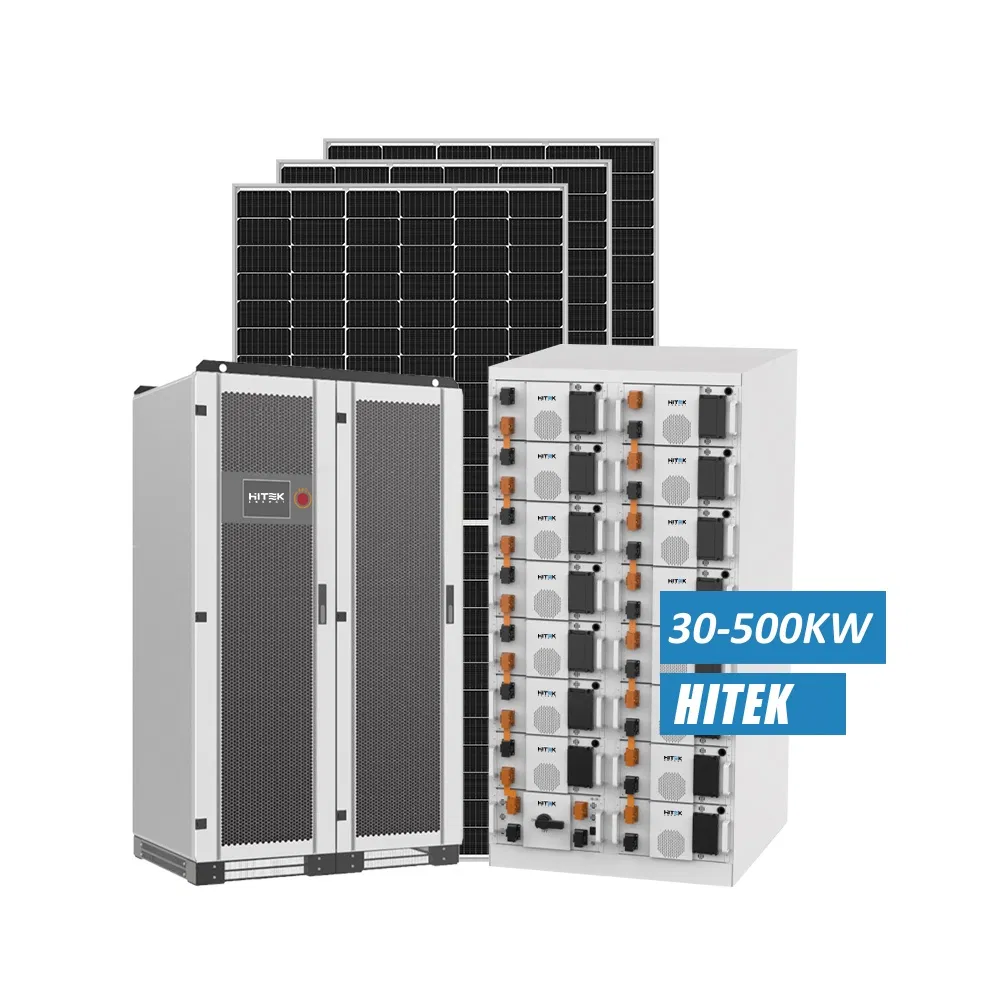

On Grid Tie Industrial Solar Energy System

Frequently Asked Questions (FAQ)

What is the total capacity of the 20FT BESS Container?

The standard backup configuration has a total capacity of 573.44kWh. At an 80% Depth of Discharge (DOD), it provides 458.75kWh of usable backup energy.

Does the system support off-grid operations?

Yes. The energy storage containerized system features an automatic Bypass switch (e.g., Bypass 250) that supports seamless transfers between On-grid and Off-grid modes. It can also interface with external generators.

How is safety managed inside the battery container?

Safety is ensured through an integrated 3-layer protection system: an advanced Battery Management System (BMS) for real-time cell status monitoring, an industrial climate control/air conditioner system, and a dedicated fire protection system.

Can the system power rating be scaled?

Yes. The configuration is modular. Multiple PCS (Power Conversion System) units and PBD solar charge controllers can be connected in parallel to support higher power requirements.

Are the solar panels included in the standard layout?

Yes, the configuration list includes 480 high-efficiency 560Wp PERC Monocrystalline Solar Panels, outputting approximately 268.8kWp under standard conditions.

Is the containerized system rated for outdoor installations?

Yes, the storage system container is rated at IP54, protecting internal electronics from dust, moisture, and extreme environmental elements, making it suitable for outdoor industrial settings.
