Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Support high discharge power. IP54, natural cooling, wide temperature range: -20ºC to 55ºC.

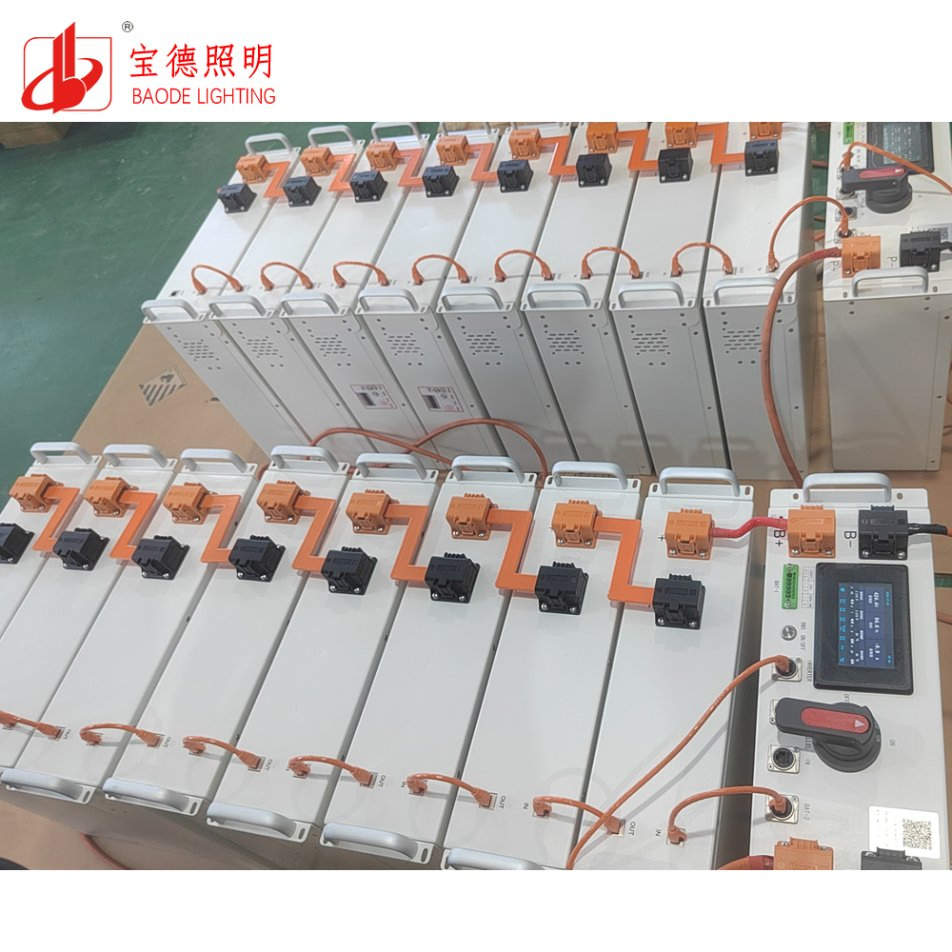

Modular design, easy to expand, suited to residential and commercial applications for increasing the self-consumption ratio.
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
Use environmental protection materials, the whole module non-toxic, pollution-free.
| Parameter Name | Specifications | |
|---|---|---|
| Rated Output Power | 2.5MWh (0.5C) | |
| Rated Capacity | 3.2V 280Ah / 314Ah Cell, 51.2V 280Ah / 314Ah Model | |
| AC Phases | Three-phase Four-wire | |
| AM-FM Mode | Rated Voltage | 380V |
| Voltage Range | 380±15%V | |
| Rated Frequency | 50Hz | |
| Frequency Range | 47.5 - 51.5Hz | |
| Total Current Waveform | <5% | |
| Distortion Rate (THD) | <5% | |
| Output Power Factor | ≥0.99 | |
| Off-Grid Operation Mode | Rated Voltage | 380V |
| Voltage Accuracy | <±3% | |
| Output Voltage Distortion | <5% | |
| Rated Output Frequency | 50±2%Hz | |
| Voltage Transition Range | <10% | |
| Withstand Three-phase Load Imbalance | 100% | |
| On-Grid Operation Mode | Rated Voltage | 400V |
| Voltage Range Allowed | 380±15%V | |
| Frequency Range | 47.5 - 51.5Hz | |
| Power Factor | ≥0.99 (Absolute Value) | |
| Noise | <70dB | |
| IP Grade | IP54 | |
| Internal Communication | Ethernet | |

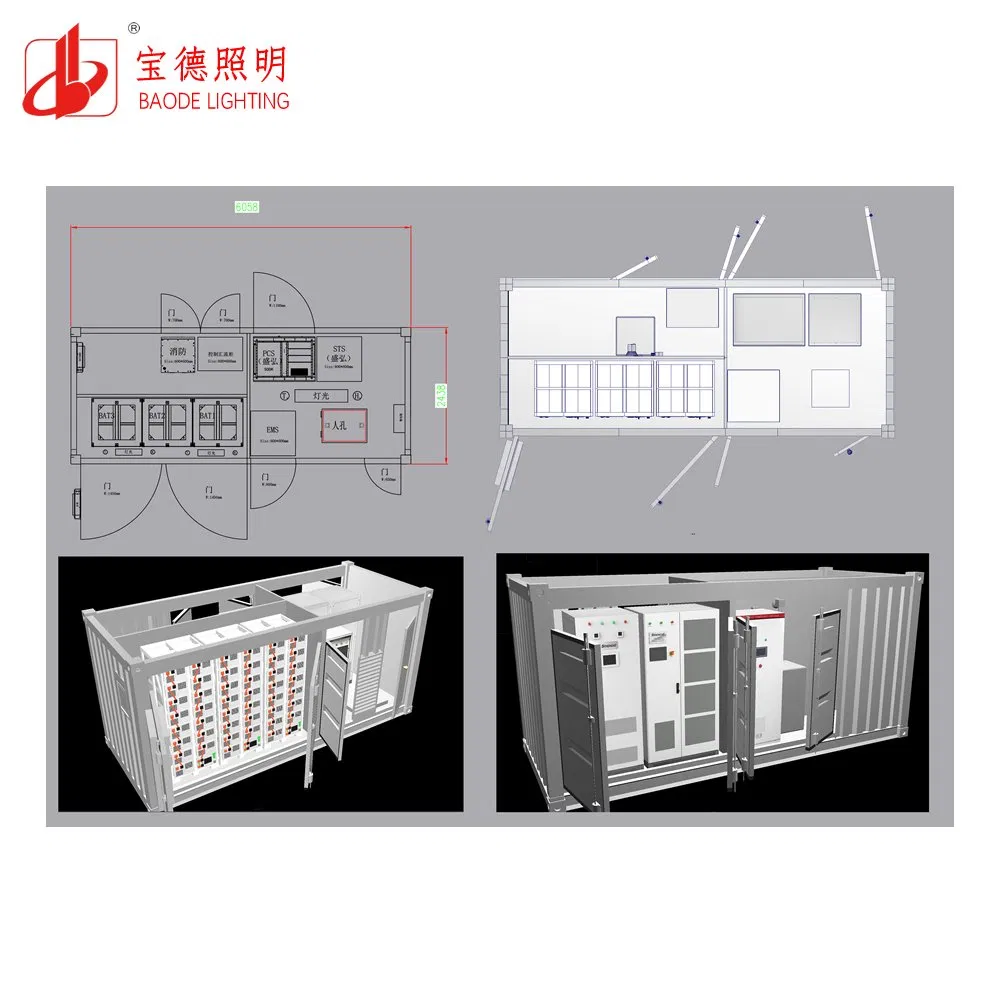

| Customized Container | Fire Extinguisher / Lighting System / Air Cooling (Water Cooling System Optional / Anti-fire Layer etc.) | |

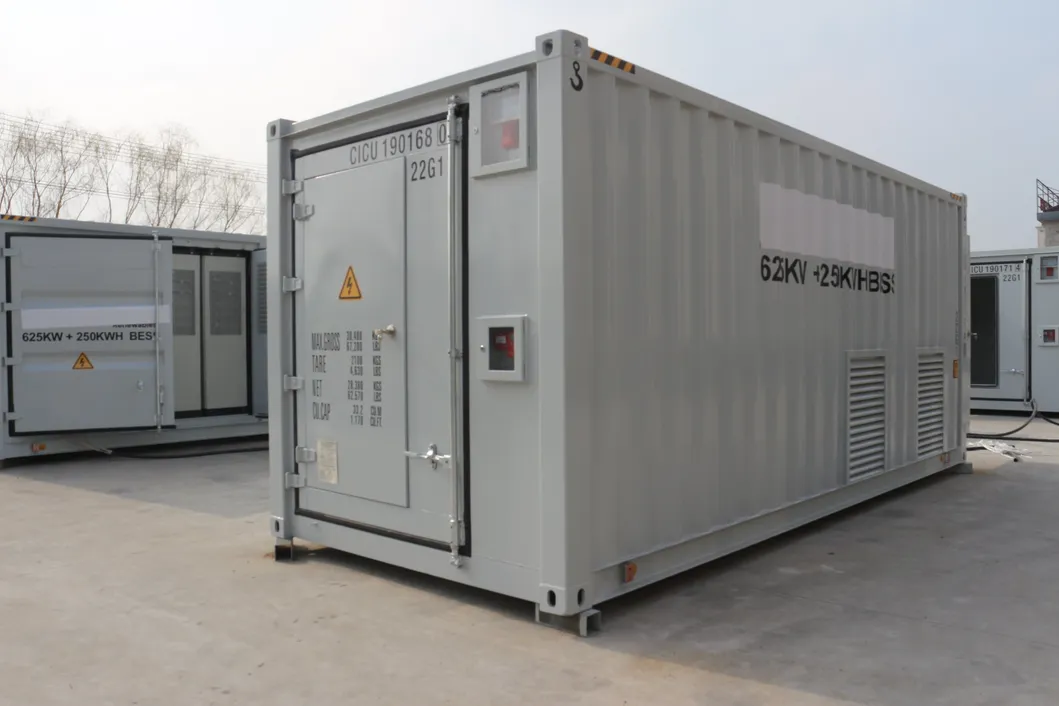

| Dimension | 20HQ | |
| Weight | ~30 TON | |
| Cooling Method | Air Cooling / Liquid Cooling | |
| Certification | CE / MSDS / UN38.3 / UL / IEC62619 / VDE4110 | |
