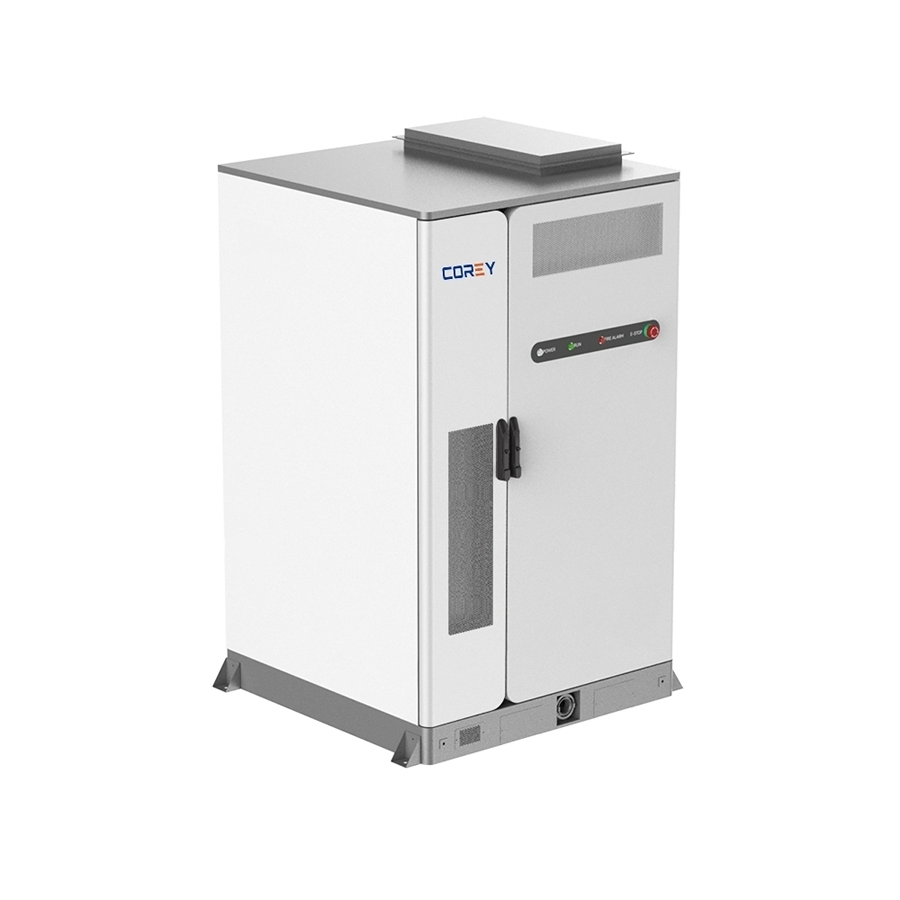

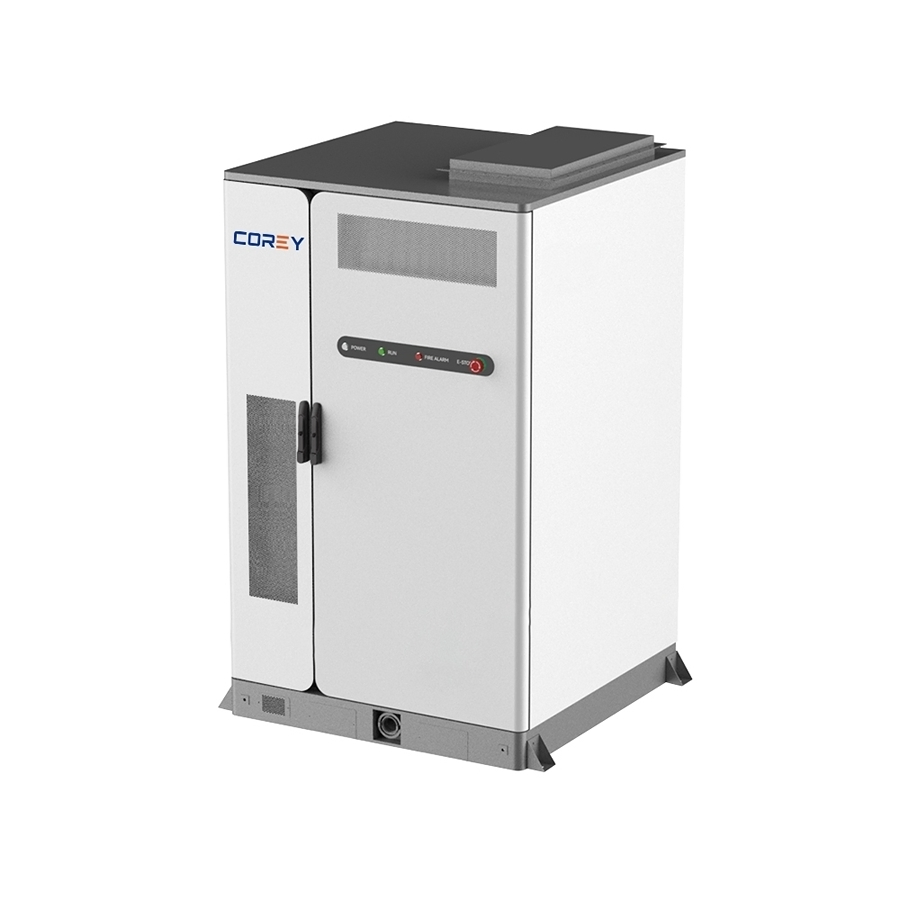

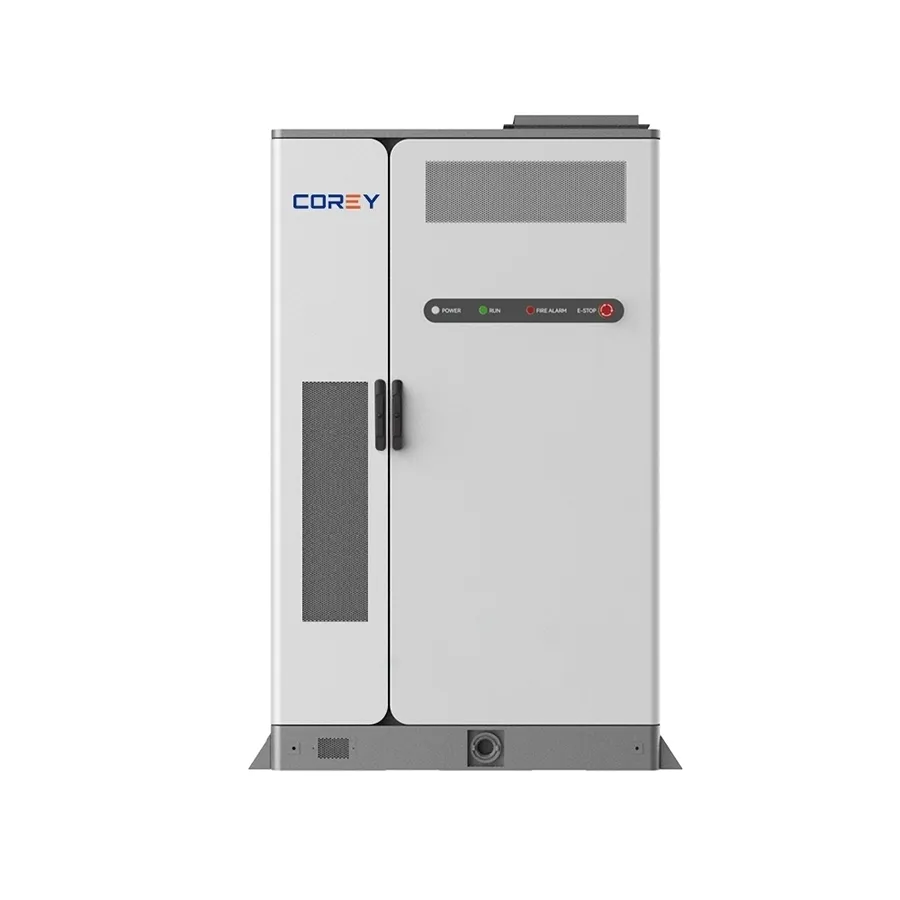

The industrial and commercial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. The divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.
| Product Model | 215CE | |
| System Parameters | ||
| Battery Cell | LFP (LiFePO4) 3.2V 280Ah | |
| System Capacity | 215kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+PE | |
| Communication Interface | CAN / RS485 / Ethernet / 4G | |
| Communication Standard | Modbus TCP, Modbus RTU, CAN2.0, IEC61850, IEC104 | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting System | Aerosol (pack-level + cluster-level) + Water Fire Protection (cabinet-level) | |
| Operating Altitude | 4000m (>2000m, derating operated) | |
| Operating Temperature | 0ºC~50ºC (charge), -20ºC~50ºC (discharge), 25ºC±2ºC (optimum) | |
| Relative Humidity | 5%~95% RH | |
| Protection Level | IP54 | |
| Anti-corrosion Level | C4 | |
| Noise | ≤75dB | |
| Weight | 2600kg ± 50kg | |

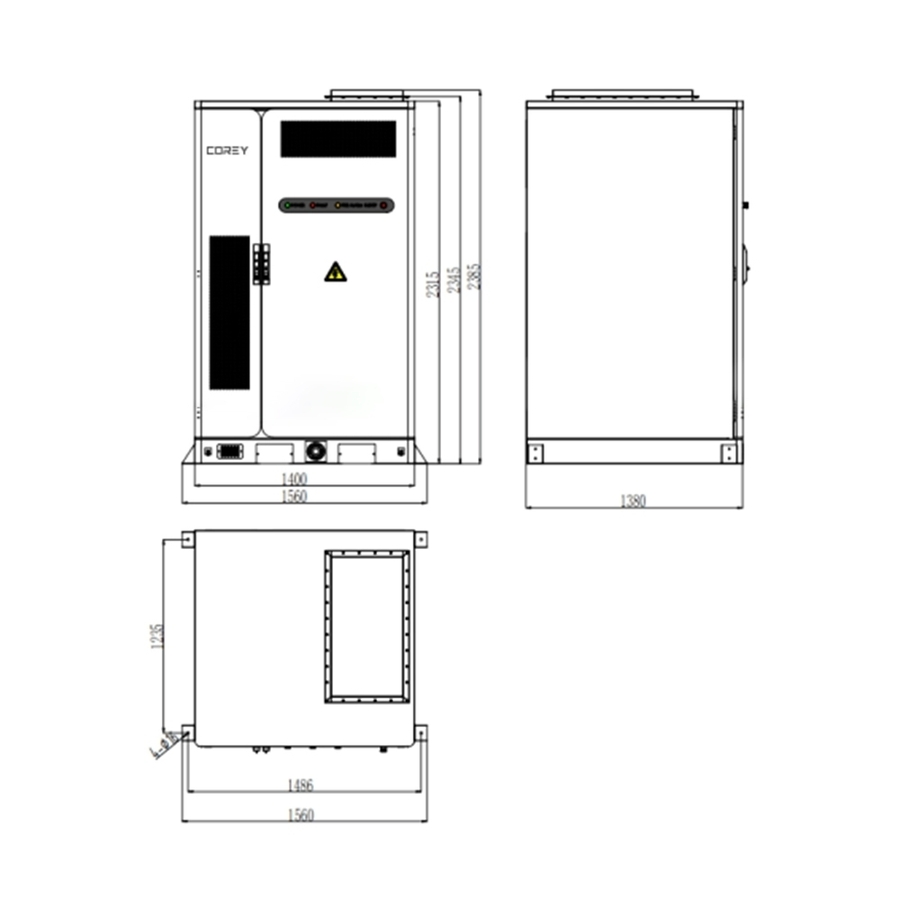

| Dimensions | L1560mm * D1380mm * H2385mm | |
| AC Side parameters | ||
| Rated Voltage | 230V / 400V (±15%) | |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Power Factor | ≥0.99 (-1~1) | |
| DC Component | <0.5% | |
| THDi | <2% (rated power) | |
| THDu | <3% (off-grid, linear load) | |
| Charge-Discharge Conversion Time | <100ms | |
| Auto On/Off Grid Switching Time | 20ms (optional) | |
| Anti-backflow | Optional | |
| Overload Capability | 1.1 times for long-term | |
| DC Side parameters | ||
| Series-parallel Number | 1P240S | |
| Rated Voltage | 768V | |
| Voltage Range | 682V~864V | |
| Maximum Current | 170A | |
| Discharge Depth | 95% DOD | |
| Certifications | ||
| Standards & Compliance | CQC, LVRT/HVRT, EN62477, EN 61000, EN 50549-2, UN38.3, EN62619, VDE 4105, VDE 0126-1-1, XPC15-712-3, UTE C15-712-1, VFR2019 | |
