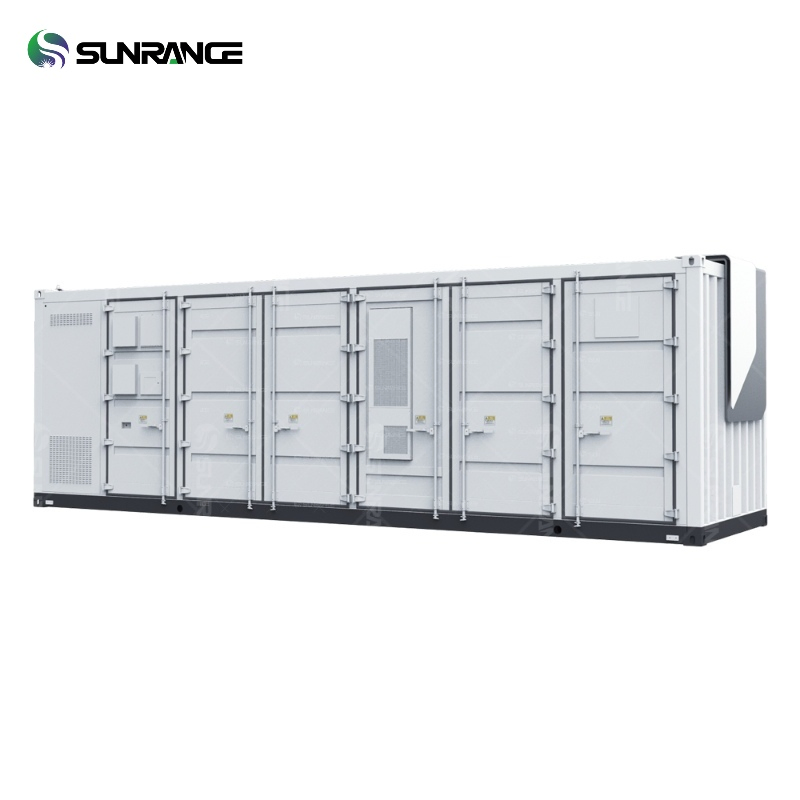

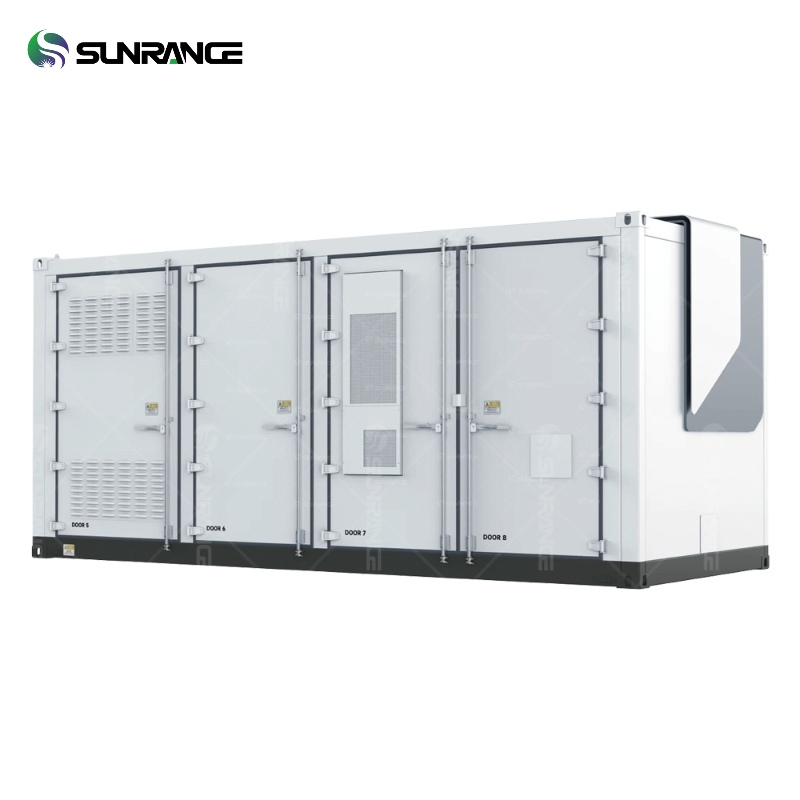

Sunrange Containerized C&I Energy Storage System Container Outdoor 1mwh 2mwh PCS Inverter Certificates for IEC 62933 IEC62619

1 / 5

Sunrange Containerized C&I Energy Storage System Container Outdoor 1mwh 2mwh PCS Inverter Certificates for IEC 62933 IEC62619

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

Basic Information

Model NO. SR-500KW/1000KWH-CON

Nominal Voltage Customize

Warranty 5-10 Years

Nominal Capacity 500kwh, 1mwh, 2mwh, 3mwh, 4mwh

Cycle Life 8000 cycles

Battery Type LiFePO4/Lithium Battery

BMS Integrated Battery Management System

Dod 0.5/1c@90%

Certification ISO, CB, CE, Un3536

Application Home, Industrial, Commercial

Condition New

Pre-Sales Project Design Yes

Technical Support Yes

Rechargeable Yes

Enerlog Monitoring Datalogger

Transport Package Customized Package

Specification Customize

Production Capacity 50000 Piece/Year

Product Description

Containerized C&I Energy Storage System Container Outdoor 1mwh 2mwh PCS Inverter Certificates for IEC 62933 IEC62619

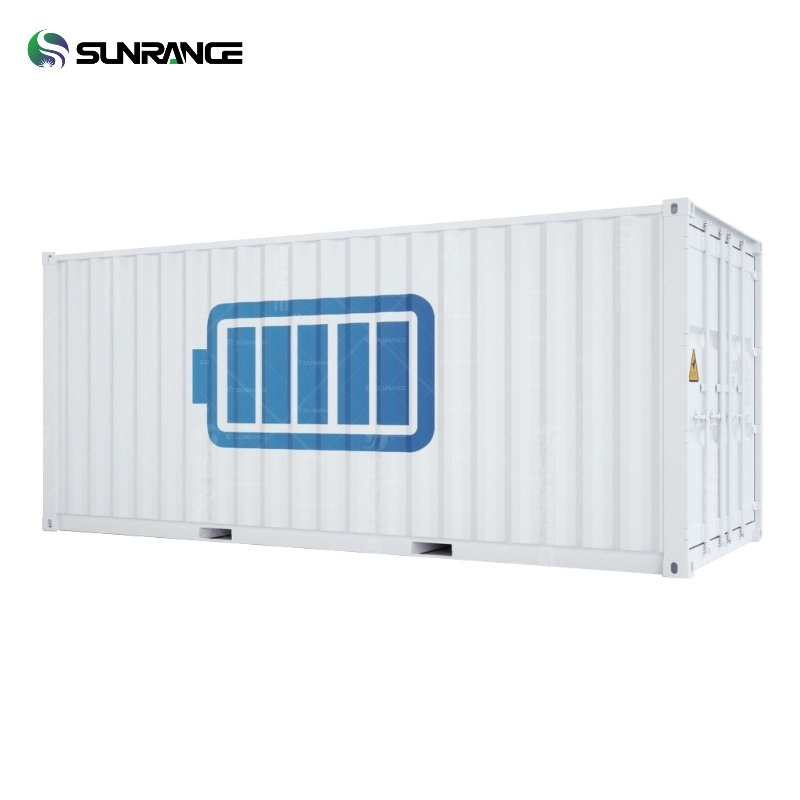

20FT/40FT Container Energy Storage System
Rated output power		500KW/1000KW/2000KW
Rated capacity		1000KWH/2000KWH/4000KWH
AC Phases		Three-phase Four-wire
Grid discharge mode	Rated voltage	380V
	Voltage range	380±15%V
	Rated frequency	50Hz
	Frequency range	47.5~51.5Hz
	Total current waveform distortion rate(THD)	<5%
	Output power factor	≥0.99
Isolated network operation mode	Rated voltage	380V
	Voltage accuracy	<±3%
	Output voltage distortion	<5%
	Rated output frequency	50±2%Hz
	Voltage transition range	<10%
	Can withstand three-phase load imbalance	100%
Grid-connected charging operation mode	Rated voltage	400V
	Voltage range is allowed	380±15%V
	Frequency range	47.5~51.5HZ
	Power factor	≥0.99(absolute value)
Noise		<70dB
IP GRADE		IP54
External communication		Ethernet
Dimension		12192mm(L)2438mm( W)2591mm(H)
Weight		22 Ton

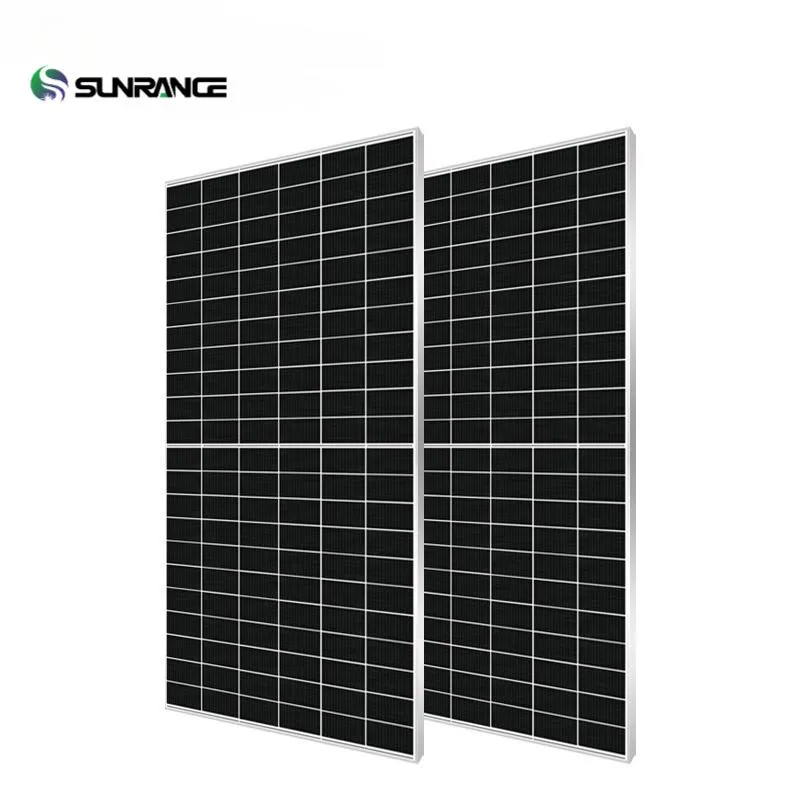

PV Modules

Mono/Poly/flexible/black etc all types Panels. High efficiency power up to 400/500/600/700W Half Cell/Bifacial Solar PV Modules; All certificates listed with more than 30 years life and warranty: PID Resistant, High salt and ammonia resistance.

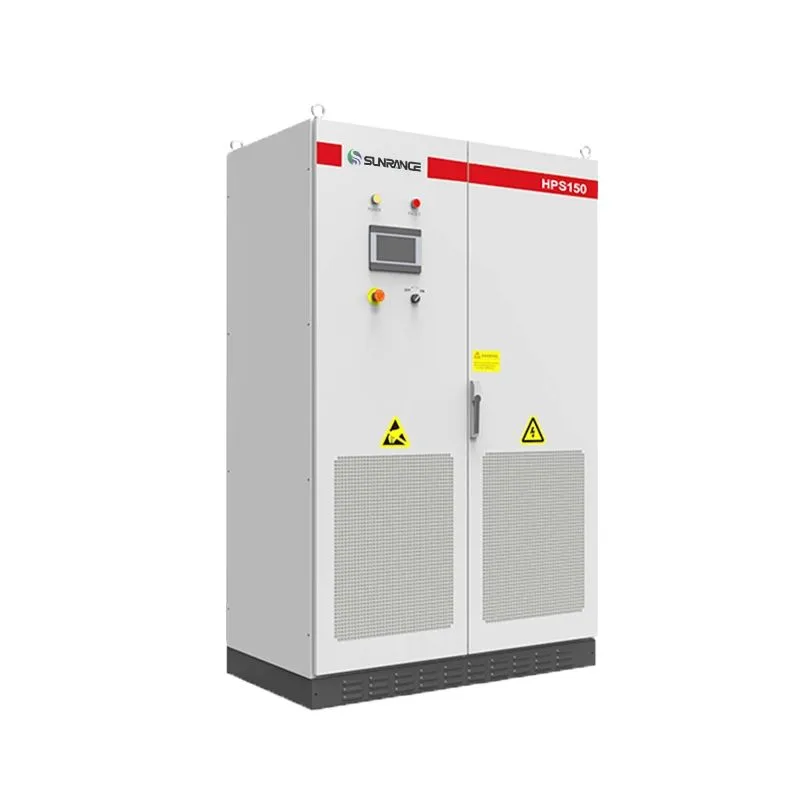

Hybrid Energy Storage Inverter

Automatic Switch to charge loads, batteries or from Grid backup with priority setting function; Lithium Battery and GEL storage battery compatible with almost all types of inverters; Comprehensive WiFi monitor for electricity production and consumption data, to check your investment payment on time.

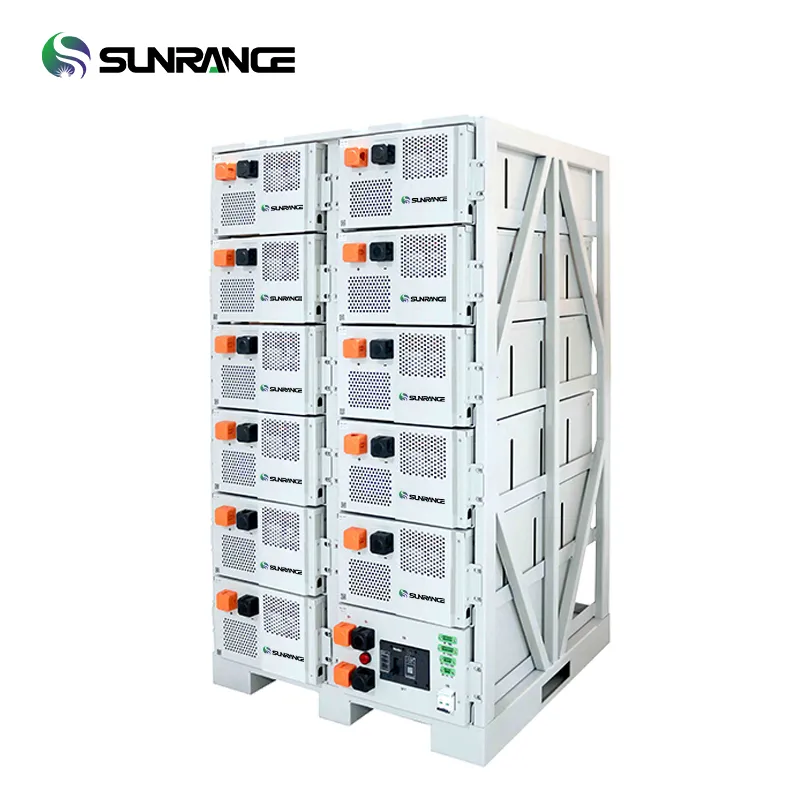

Solar Lithium Battery Packs

Lithium and Storage Batteries Optional; 100Ah/150Ah/200Ah/280Ah/314Ah, with 100kwh/300kwh/500kwh/1mwh/2mwh/3mwh capacity; BMS Communication matched with almost all types of hybrid energy inverters; Installation is convenient with cable, rack etc accessories ready in package.

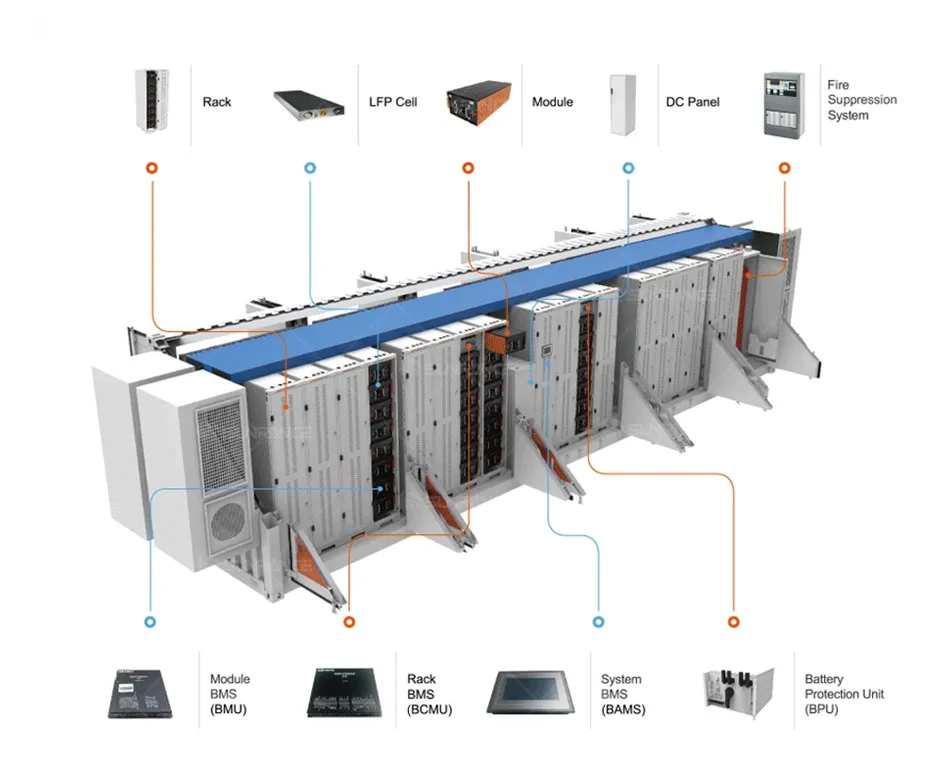

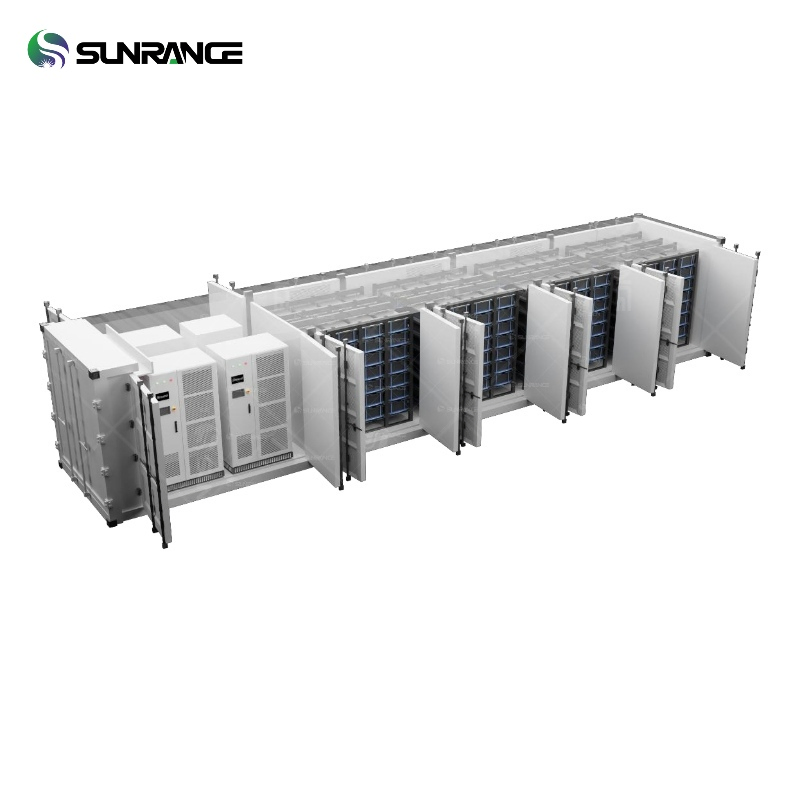

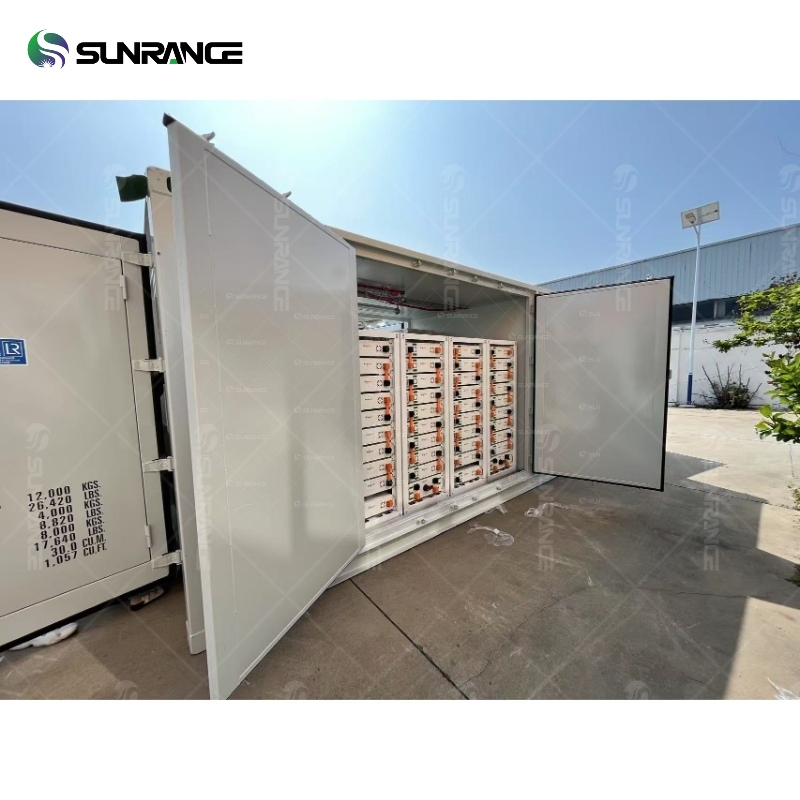

Outdoor Container

The solar container includes lighting, access control, fire protection, and air conditioning. 20FT can hold around 1000kwh battery, inverter combiner box or PCS, 40FT can hold 1800kwh~3000kwh battery and other equipment. Can be placed indoors or outdoors, with heat insulation function.

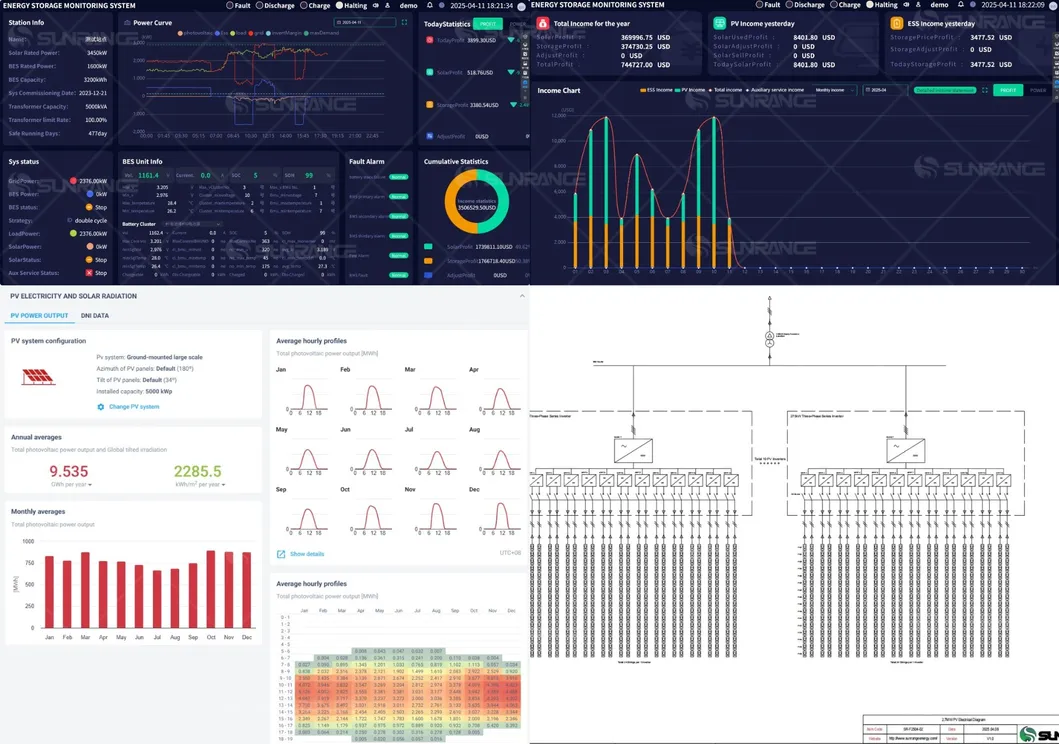

Complete Technical Support

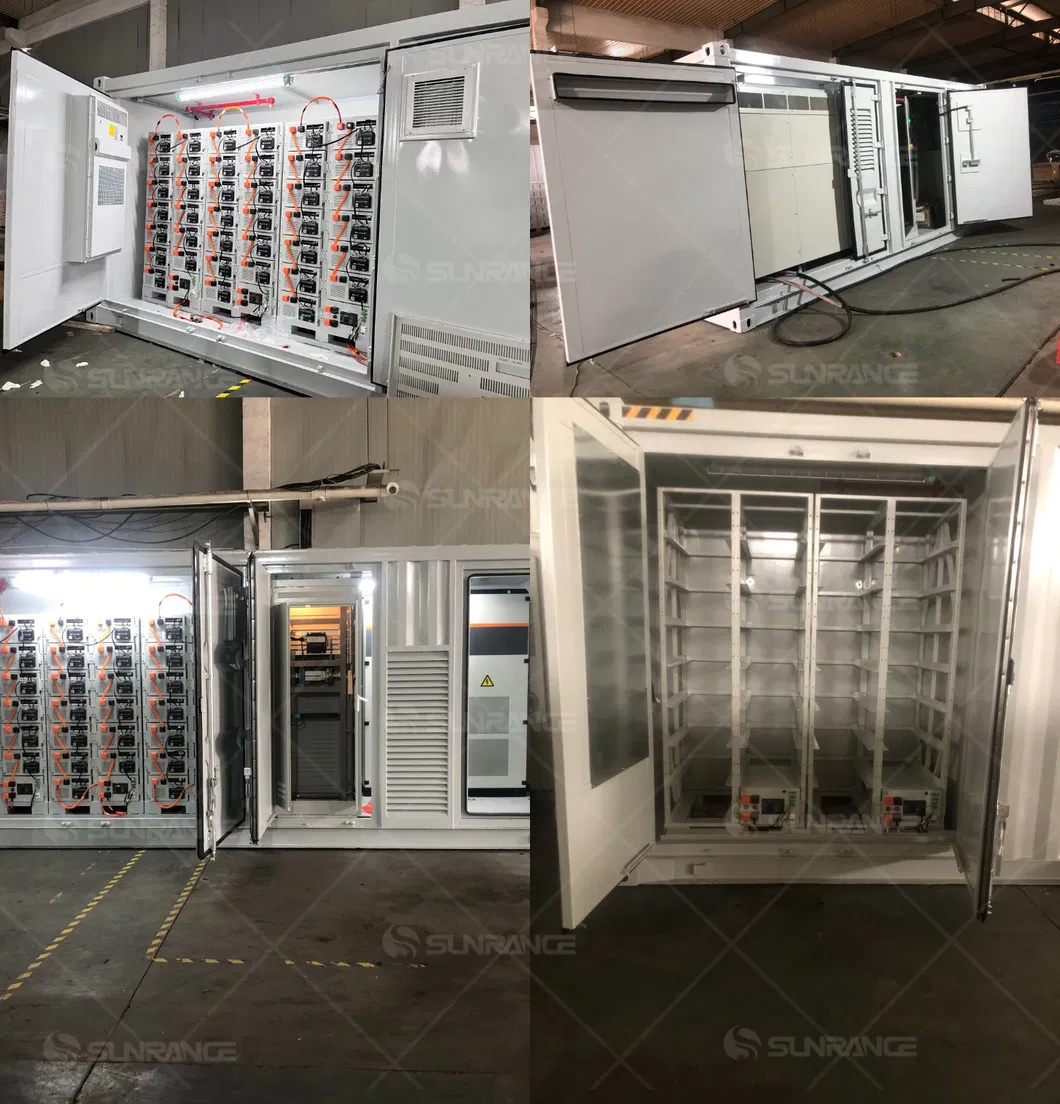

Packaging & Shipping

Certifications

Frequently Asked Questions

What is the battery cell technology and cycle life of this system?

The system utilizes premium LiFePO4 (Lithium Iron Phosphate) battery chemistry, which is widely recognized for its safety and durability. It offers a long cycle life of up to 8,000 cycles.

What standard container sizes and capacities are available?

Standard options include 20FT and 40FT outdoor configurations. The nominal capacities scale through 500kWh, 1MWh, 2MWh, 3MWh, and 4MWh setups, which can be custom tailored to meet specific industrial or commercial energy storage needs.

Are safety features like fire protection and thermal control built-in?

Yes. The outdoor containers are fully integrated solutions equipped with robust safety controls including dedicated HVAC air conditioning units for thermal stability, automatic fire protection systems, smart access control, and internal lighting.

What certifications do these energy storage containers meet?

The systems are fully certified according to recognized international compliance frameworks including ISO standards, CB schemes, CE markings, and UN3536 testing requirements for safe transport and deployment of lithium batteries.

Can the system support grid-connected and isolated operation?

Yes. The hybrid system seamlessly supports grid-connected charging, grid-discharge mode, as well as isolated network (off-grid) operation mode with automatic transitions depending on system configurations and priority settings.
