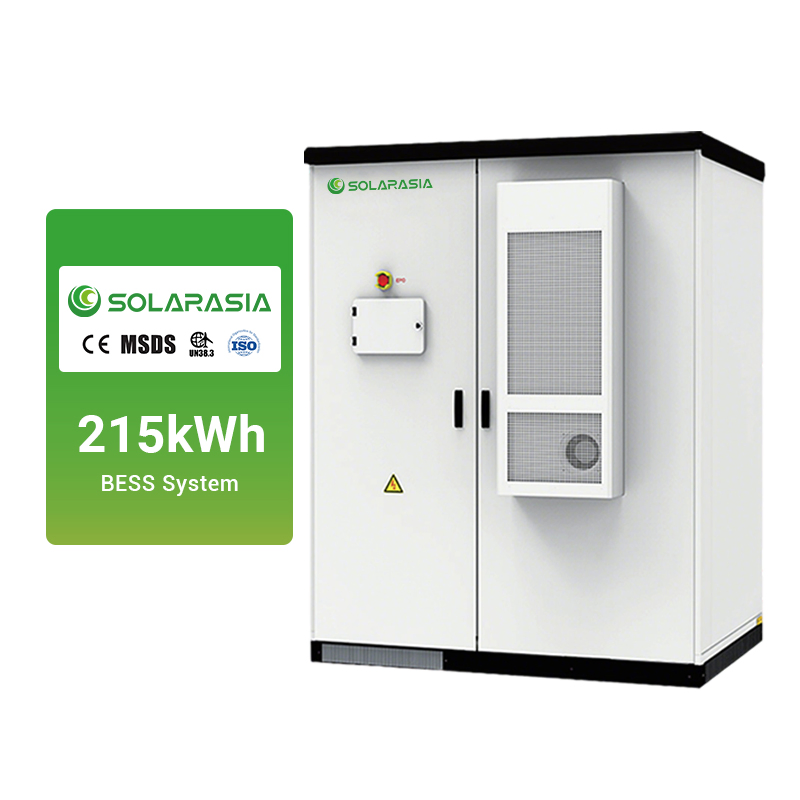

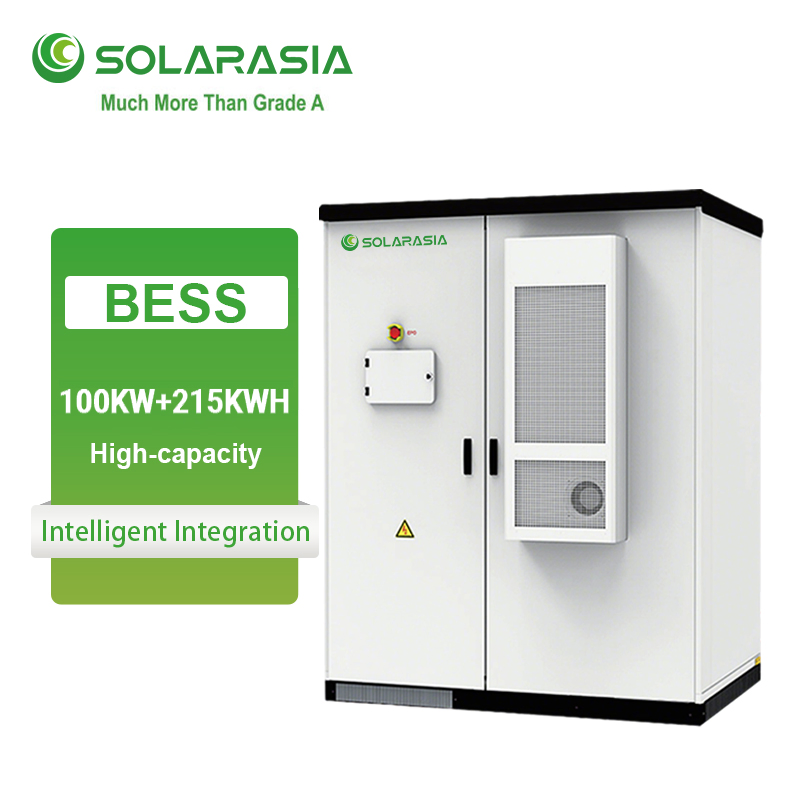

| MODEL | TG-eBank-215FS2 |
|---|---|
| Battery Specification | |
| Battery type | LFP |
| Cell capacity | 3.2V/280Ah |
| PACK config | 1P20S |
| PACK Qty | 12 |

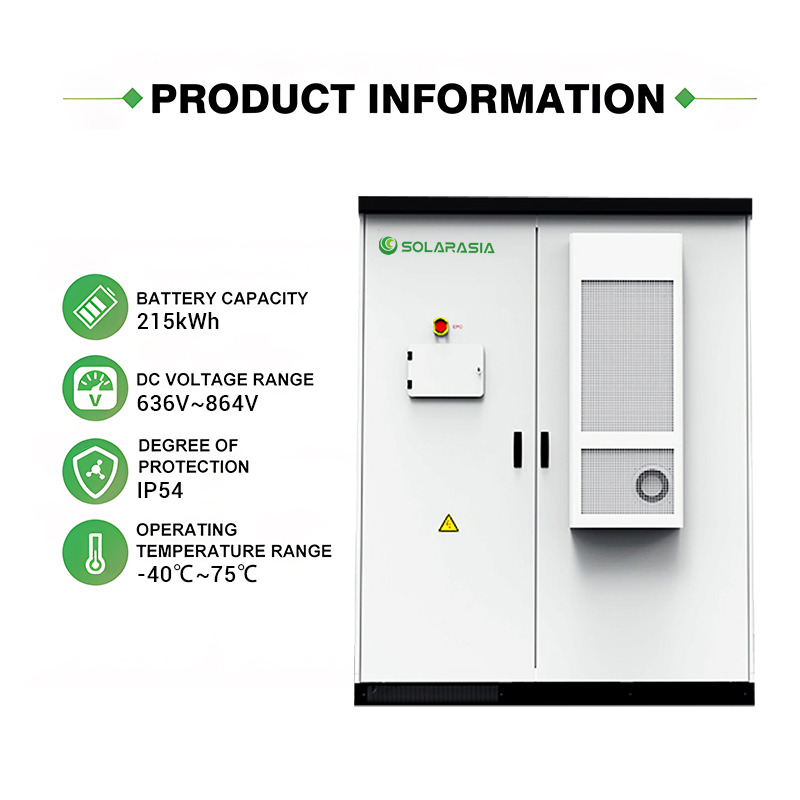

| Rated capacity | 215kWh |
| Rated voltage | 768V |
| Voltage range | 636-864Vdc |
| Charge/Discharge rate | 0.5C Rated |
| DOD | 95% |
| Cooling system | Air Cooling |
| Fire fighting system | Two Level Protection, Standard: AerosolHFC-227ea, Optional: PERFLUORO |
| AC Specifications | |
| Rated voltage | 400Vac |
| Voltage range | 230/400Vac |
| Frequency range | 50/60+2.5Hz (50/60Hz self-adaption) |
| Grid system | 3P+N+PE |
| Isolation transformer Rated power | No |
| Peak power | 110kW |
| Rated current | 144A |
| Over load capacity | <110% Continues Running <120% 1Min |
| Power factor | -0.99~+0.99 |
| On grid THDI/THDV(Off grid) | <3%, Full load |
| STS module power capacity | 200kW |
| Transfer time(On-off Grid) | <20ms |
| PV Specification | |
| Max. PV input voltage | 1000V |
| Max. PV input power | 110kW |
| No. of MPPT/String per MPPT | 2/1 |
| MPPT voltage range | 350-1000V |
| MPPT current | 200A (100A/100A) |
| MPPT efficiency | 99% |
| Noise | <70 dB |
