Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.
Core Advantages
General Specification
1500V
750V
Battery Type
LFP 100Ah
Battery Energy Capacity (kWh)
532.48
Nominal Voltage (V)
1331.2
665.6
Battery Voltage Range (V)
1164.8~1497.6
582.4~748.8
Max.CP-rate
0.5CP

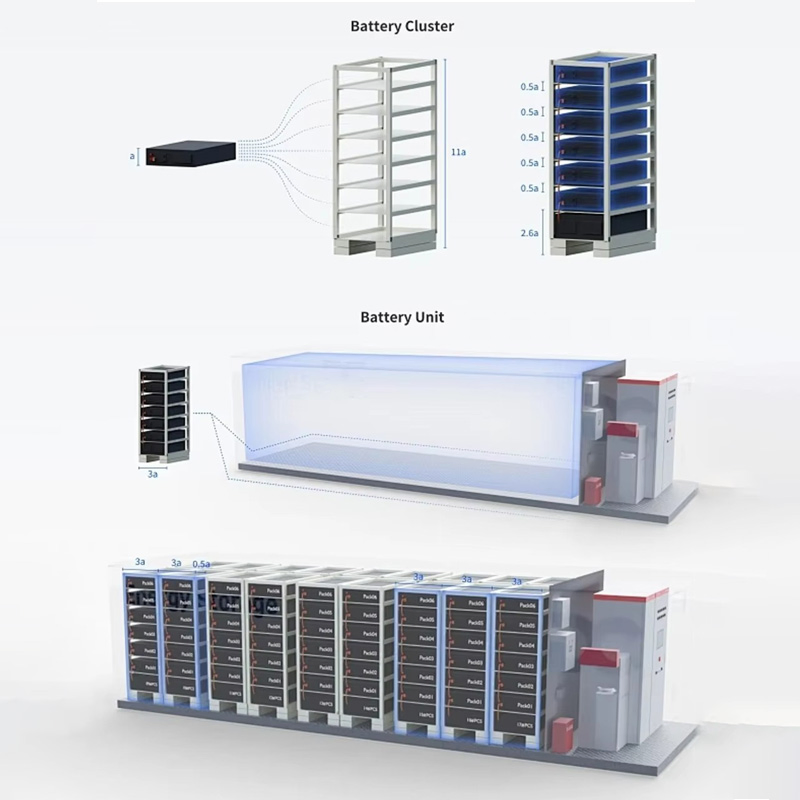

Module Configuration
2P16S*26S*2P
2P16S*13S*4P
Dimension (WxHxD) (mm)
2200*2443*1400
Weight (kg)
6000
Max. Support Parallel Number
8
4
Audible Noise (dBA)
75
Operating Ambient Temperature
-30~55°C
Cooling Mode
HVAC
Protection Class
IP54
Anti Corrosion Level
C4
Operating Humidity
0~95% (no condensation)
Fire Suppression
Aerosol
Altitude (m)
≤3000m
Communication Protocol
Modbus TCP
Combiner Cabinet
Max. DC Voltage (V)
1,500
DC Current (A)
914*2
DC Branch
2
Dimension (W*H*D, mm)
1800*2443*1000
Weight (kg/unit)
1200
IP Rating
IP55
Certification
Safety
IEC62619,UL1973, UL9540A
Transportation
UN38.3
EMC
EMC,FCC
Our Products
Features

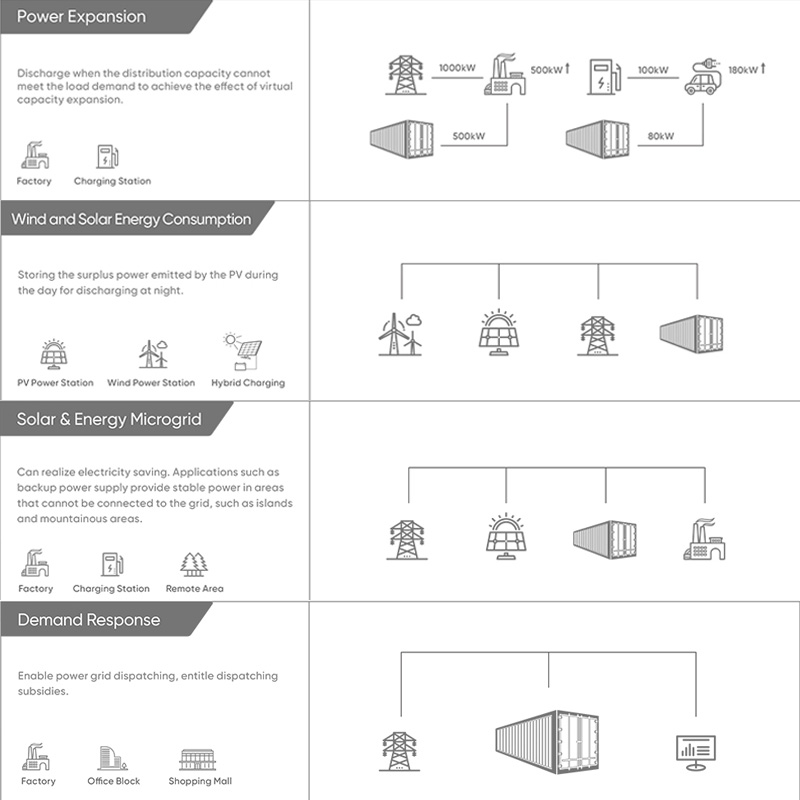

Application Scope
Packing & Delivery

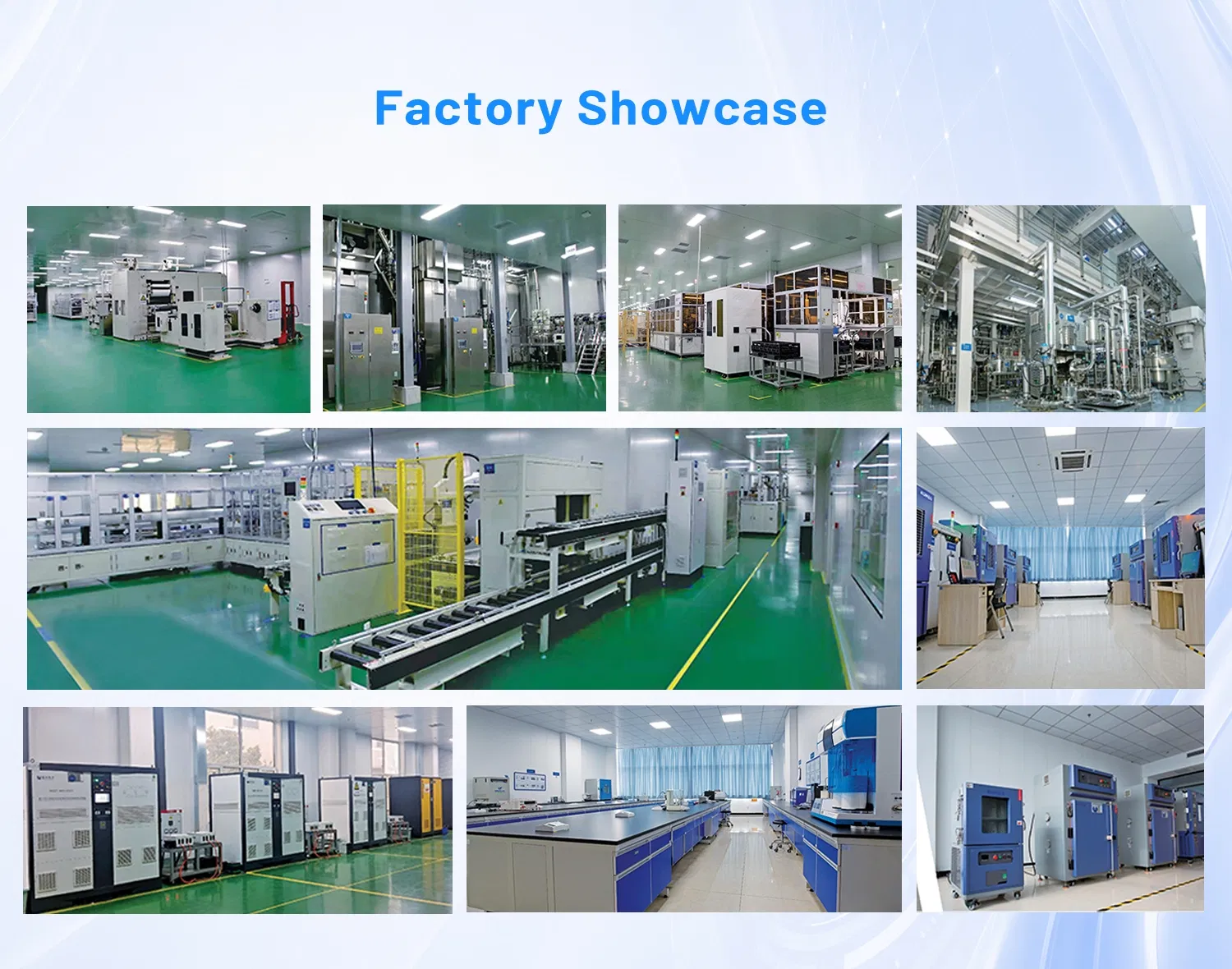

Factory Display
Certifications
Company Profile
Frequently Asked Questions
What are the main advantages of LFP battery cells in energy storage containers?
Lithium Iron Phosphate (LFP) battery cells offer high energy density, extreme thermal stability, safe operation, and an ultra-long service life. They are highly reliable for multi-scenario applications, ranging from portable units to industrial, large-scale battery energy storage systems (BESS).
What is the difference between the 1500V and 750V system configurations?
The 1500V configuration is optimized for high-voltage and larger-scale storage capacity requirements with a module setup of 2P16S*26S*2P. The 750V configuration is tailored for medium-scale requirements, offering a modular setup of 2P16S*13S*4P. Both options ensure flexible integration based on power demands.
How does the integrated cooling system keep the container at a safe temperature?
The container is equipped with an advanced HVAC (Heating, Ventilation, and Air Conditioning) cooling system. This enables the battery unit to operate safely and efficiently within an ambient temperature range of -30°C to 55°C.
What type of fire safety protection is included in the BESS container?
For maximum protection, the battery energy storage containers feature an integrated Aerosol fire suppression system. This system detects anomalies and suppresses fires quickly to prevent thermal runaway.
What communication protocols and safety certifications does the system support?
The system supports the Modbus TCP protocol for seamless communication. For safety and performance compliance, the storage containers are certified under IEC62619, UL1973, and UL9540A, with UN38.3 compliance for shipping safety.
