| Technical Parameters | ||
|---|---|---|
| BATTERY SIDE | ||

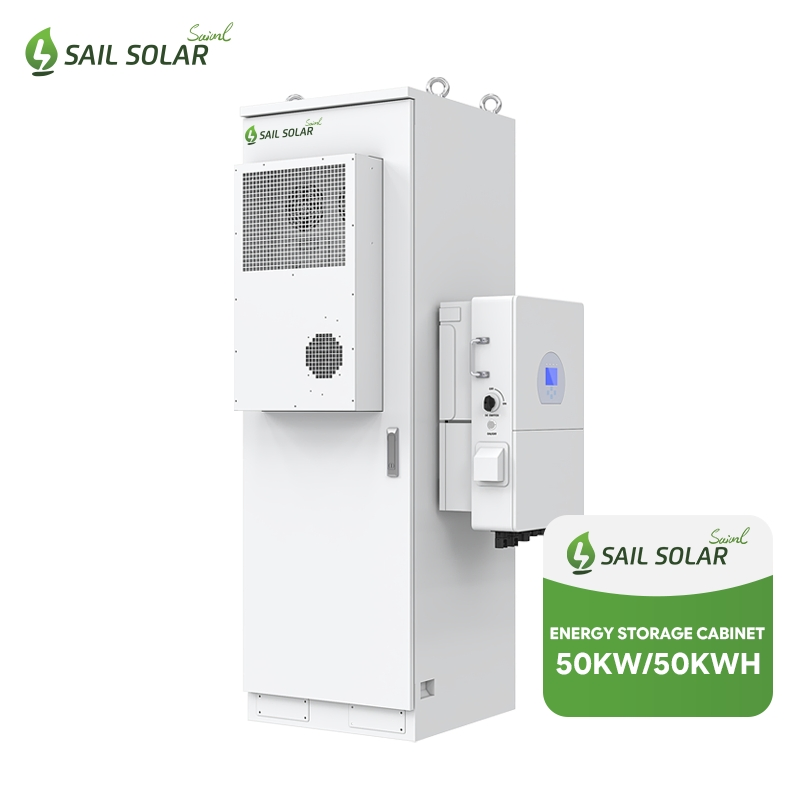

| Model number | BESS-I50 | |
| BATTERY PARAMETERS | ||
| Battery cell | LFP100Ah | |
| Battery pack | 51.2V 100Ah | |
| Rated voltage (V) | 512V (10 module series) | |
| Rated energy (kWh) | 50kWh | |
| Voltage range (V) | 448~576 | |
| INVERTER PARAMETERS | ||
| Inverter brand | Deye | |
| Grid type | Three-Phase four-Wire | |
| Rated charging & discharging power (kW) | 50 | |
| Rated grid voltage (V) | AC380 | |
| Applicable grid frequency (Hz) | 50 | |
| Rated current (A) | 76 | |
| Total distortion rate of current harmonics | <3% | |
| Power factor range | 1 (Ahead of schedule) ~ 1 (Lag) | |
| BASIC PARAMETERS | ||
| Max Accessible PV Power (kW) | 120 | |
| PV Power (kW) | 600 | |
| Startup Voltage (V) | 250 | |
| MPPT Voltage Range (V) | 200V~850V | |
| Max Input Current (A) | 50A+50A+50A+50A | |
| Max Short-Circuit Current (A) | 60A+60A+60A+60A | |
| MPPT Quantity/Max String Count | 2/4 | |
| PHYSICAL & ENVIRONMENTAL | ||
| Dimensions (W*D*H) (mm) | 780*640*2000 | |
| Weight (t) | 625 | |
| Operating Temperature Range | -10~50℃ | |
| Max Operating Altitude (m) | <2000 | |
| Protection Class | IP54 | |
| Cooling Method | Intelligent Air Cooling | |
| System efficiency | ≥90% | |
| Fire protection system | Integrated | |
| Relative humidity | 0~95% | |
| Noise | ≤75dB | |
