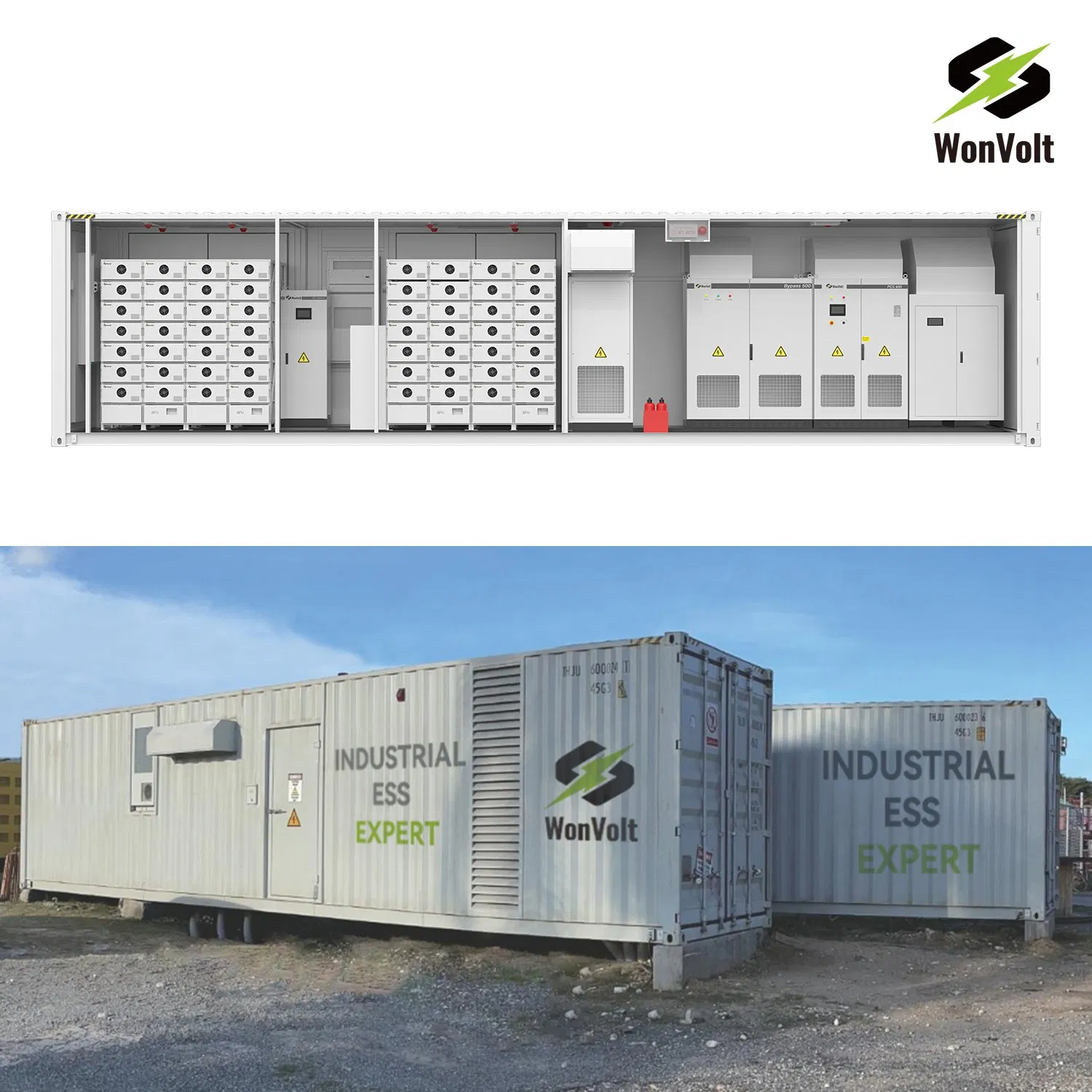

Overview & Basic Info
Model NO.
WV-ZeusVolt 2.0
Nominal Voltage
400V
Warranty
10 Years
Nominal Capacity
2mwh
Cycle Life
8000 Cycles
20FT Size (W*H*D)
6058*2591*2438mm
40FT Size (W*H*D)
12192*2591*2438mm
Cooling
Air Conditioning or Liquid Cooling
Safety
Automatic Fire Suppression
Solar Panel
with or Without Panels Optional
MPPT
250kw 500kw or Without

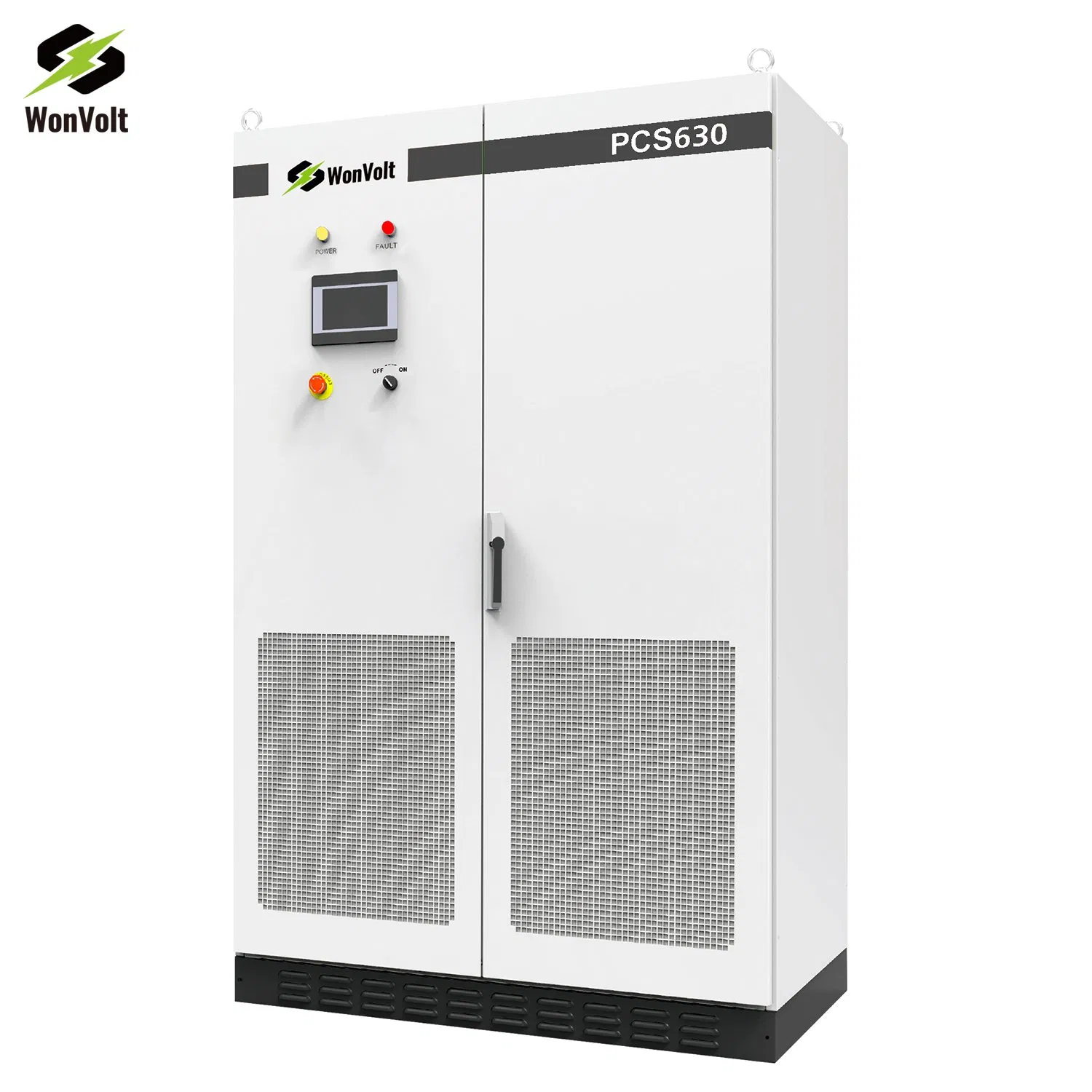

PCS
500kw Bidirectional Inverter
Hybrid Inverter
500kw or Battery Charger
Bypass
with or Without Optional
ATS
500kw or Without
Connect Grid
Yes
Charging by Dg
Yes
Transport Package
Container
Specification
LFP Battery
Trademark
OEM / ODM
Origin
China
HS Code
8501723000
Production Capacity
2gw/Year

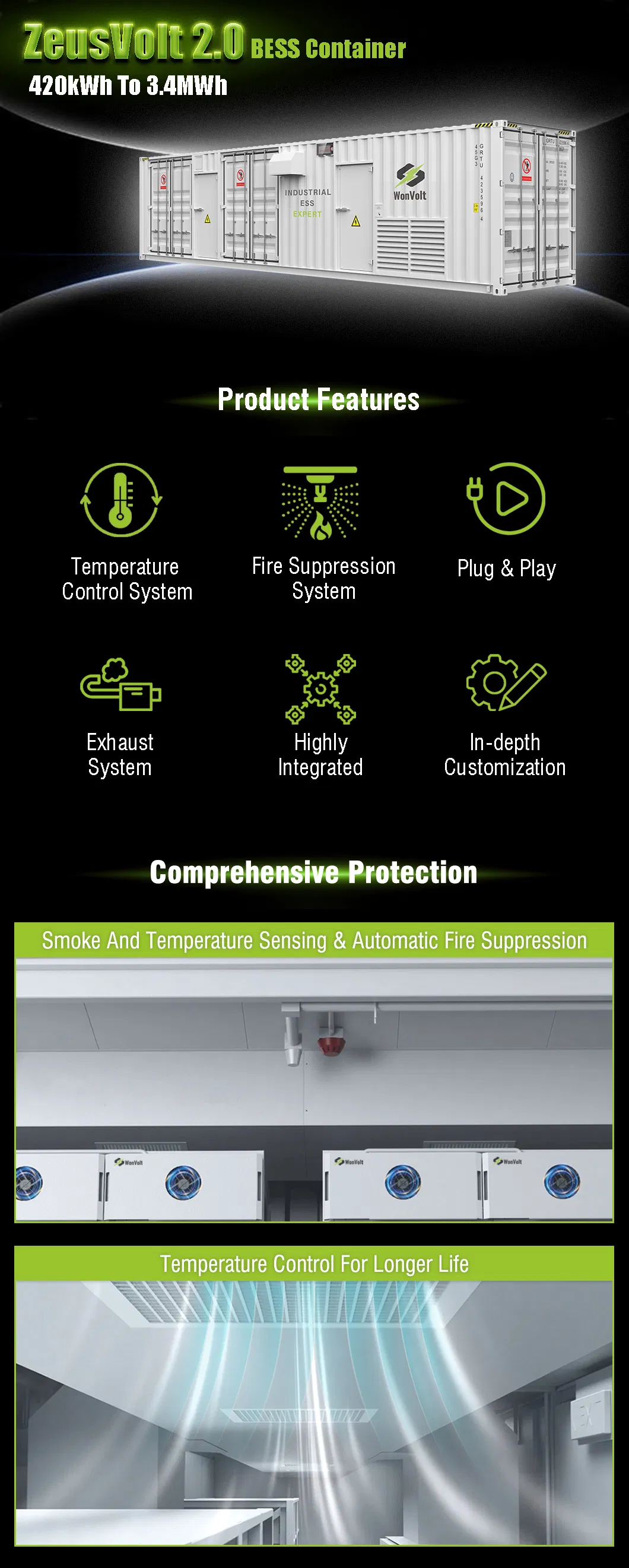

Product Description

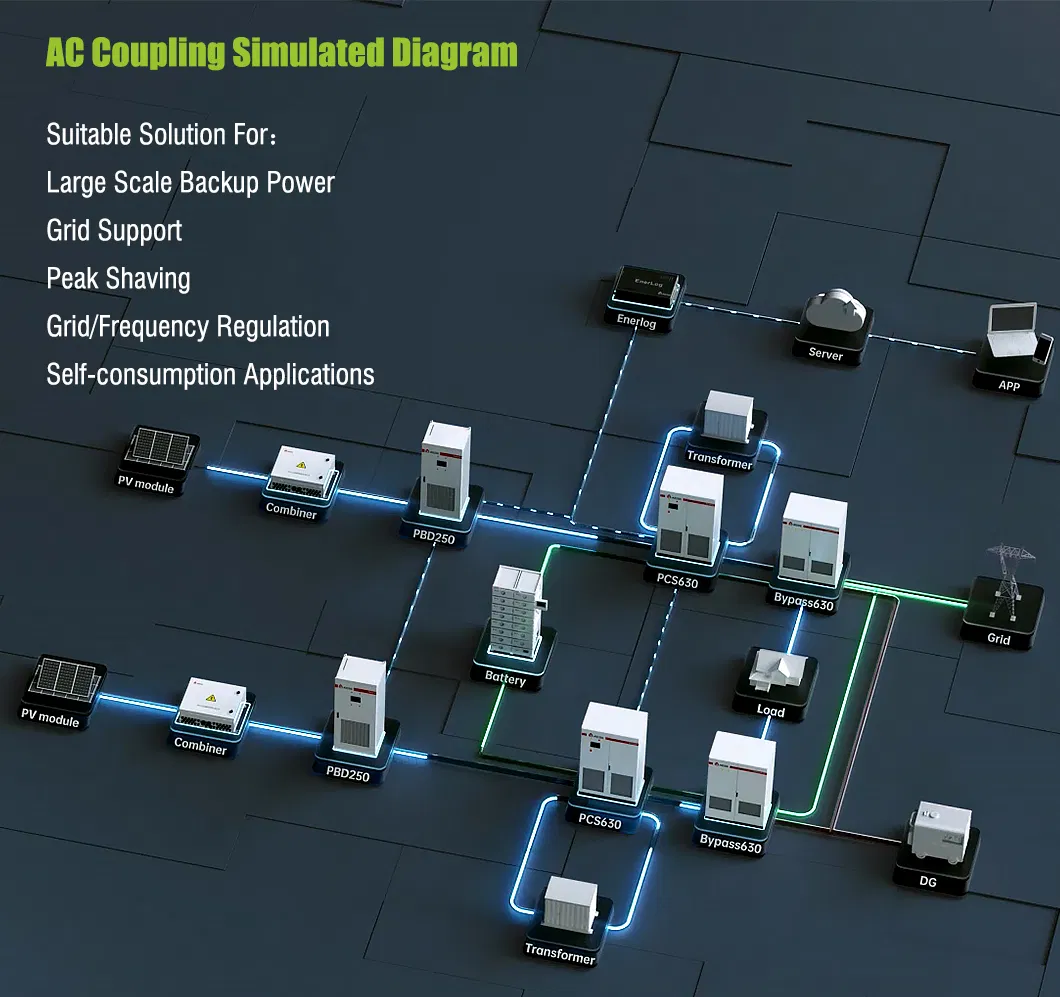

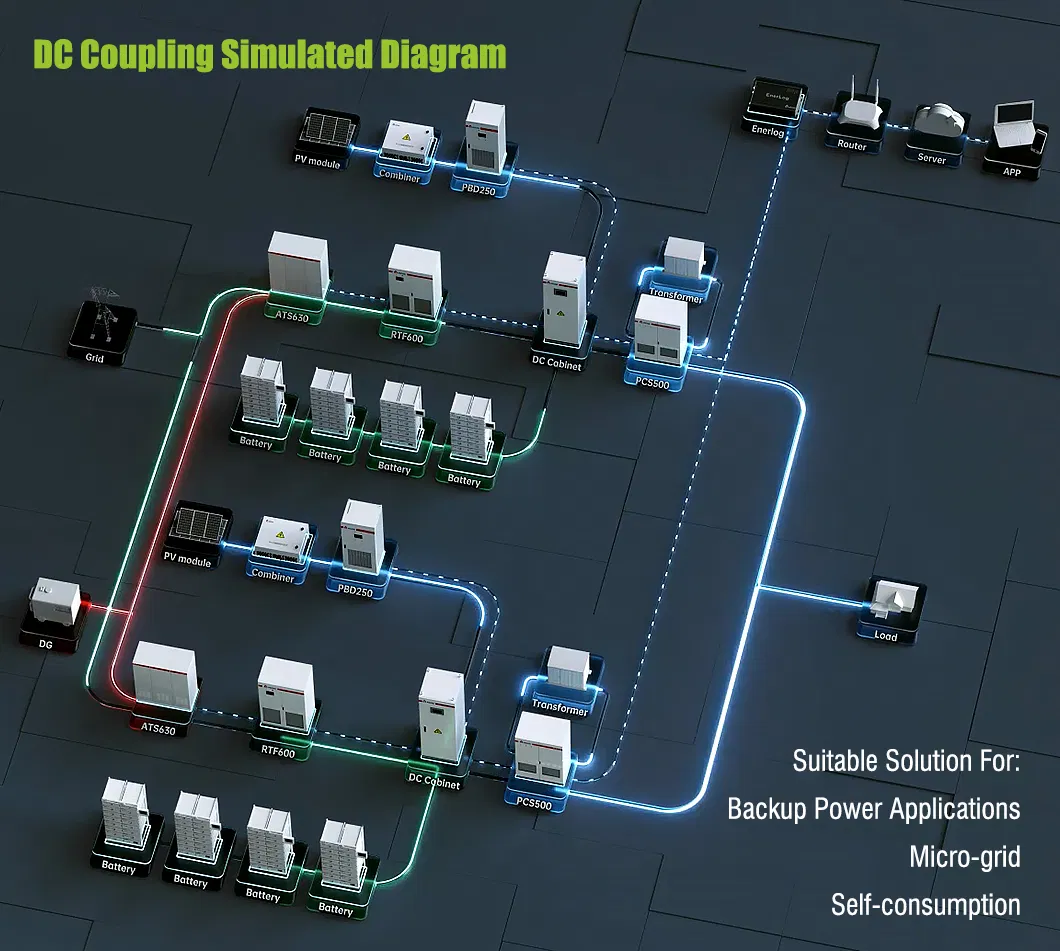

System Simulated Diagram
Product Parameters
| BESS Container Model |
ThorVolt 2.0 |
ZeusVolt 2.0 |
| Power Converter Compatibility |
| Rate power |
500KW |
1000KW |
| AC voltage |
Rate: 380V/400V, Range: 360V~440V |
| Compatible Battery System |
| Battery Capacity Range |
1MWH |
2MWH |
| Battery Type |
LiFePO4 |
| Battery Voltage Range |
352V~600VDC |
600V-900VDC |
| C rate |
0.5C, 1C (Optional) |
| PV System Connection |
| Max. PV power |
450KWp optional |
500KWp optional |
| PV MPPT Voltage Range |
480V~800V |
480V~850V |
| General Data |
| Size (W×H×D) |
6058×2591×2438mm / 20*8.6*8ft |
12192×2591×2438mm / 40*8.6*8ft |
| Max. Weight |
14743kg |
24700Kg |
| Noise |
70dB |
| Degree Of Protection |
IP54 |
| Max Elevation |
6000m (derate over 3000m) |
| Operating Ambient Temperature |
-20°C to 50°C (De-rating over 45°C) |
| Humidity |
0~95% (No condensing) |
| Cooling |
Forced air cooling for power electronics. Air conditioned for battery system with heater and dehumidifier |
| FIRE Safety |
FM200 (HFC-227ea) or ABC |
| Other Data |
| AC Connection |
3-Phase 4-wire+PE at AC connection |
| Communication |
RS485, CAN, Ethernet / MODBUS TCP/IP |
Because of limited space, the above proposal is just for your reference. We have liquid cooling BESS outdoor battery storage system all-in-one cabinets, like 215kwh, 230kwh and bigger, with solar panel or without pv panels optional, providing a one-stop solution. If you want to know more and detailed solutions, just send requests directly. We will reply as soon as we receive your solar products requests.
15-30KW Hybrid System
50KW-80KW Hybrid Storage System
100KW-300KW Energy Storage System
100KW-MW On Grid System

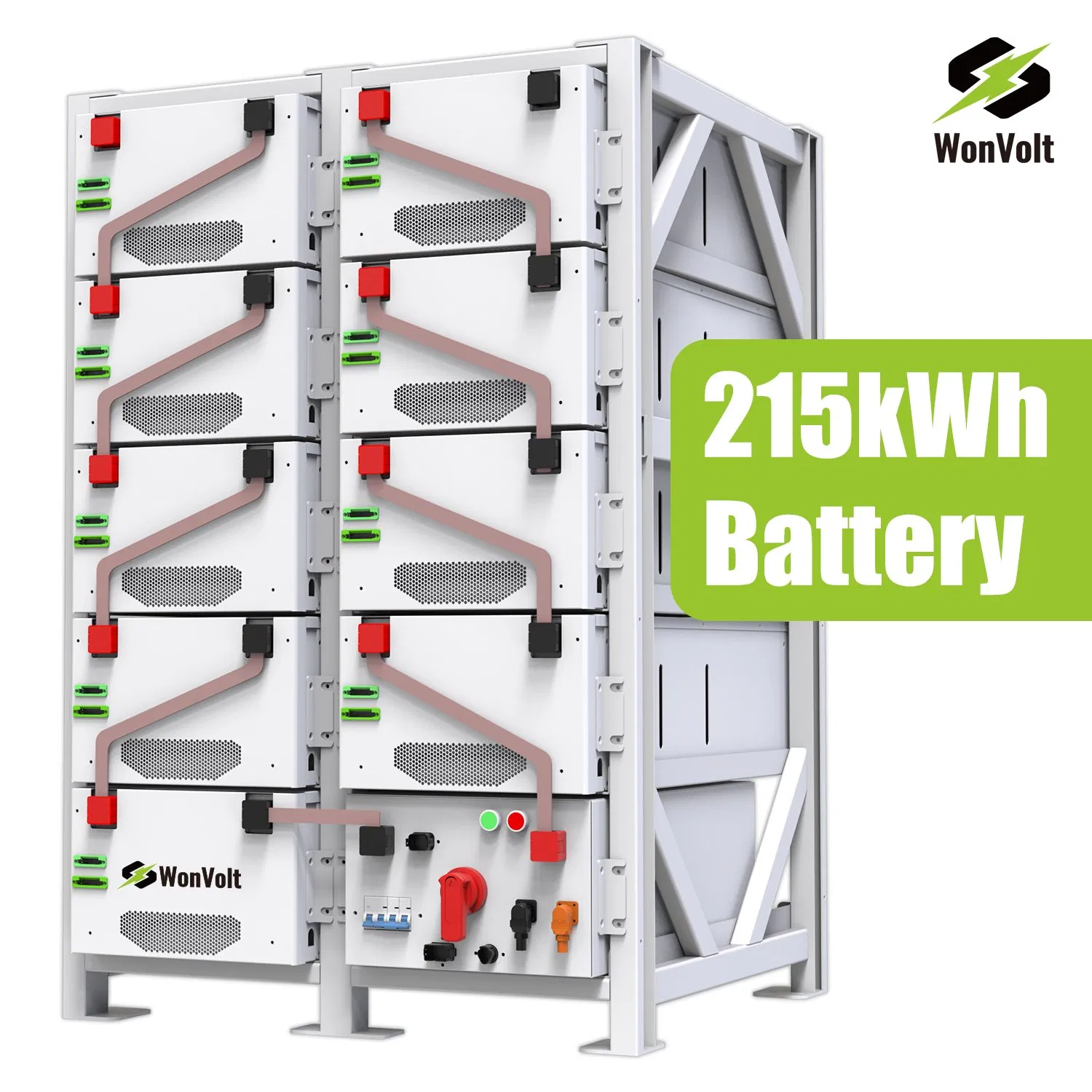

230KWH Liquid Cooling Battery Storage
Off Grid 5KW-30KW Solar System
5KWH 10KWH 15KWH 48V 51.2V Lithium Battery

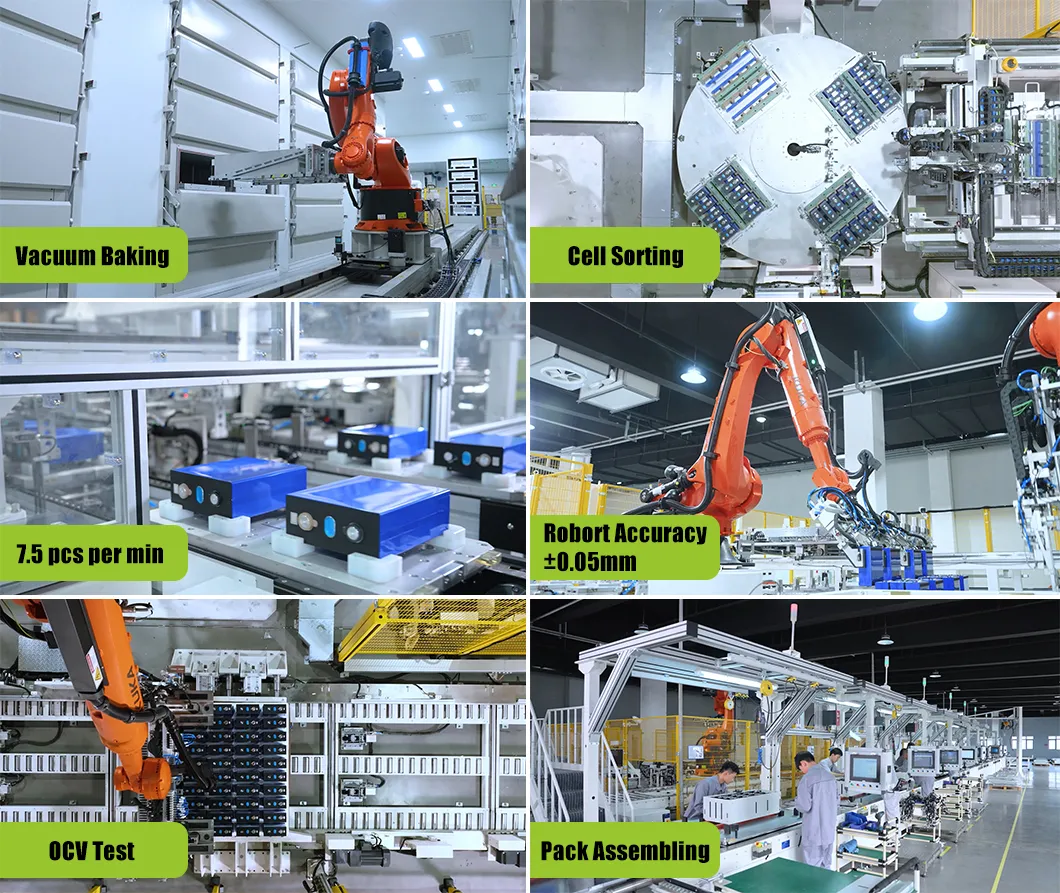

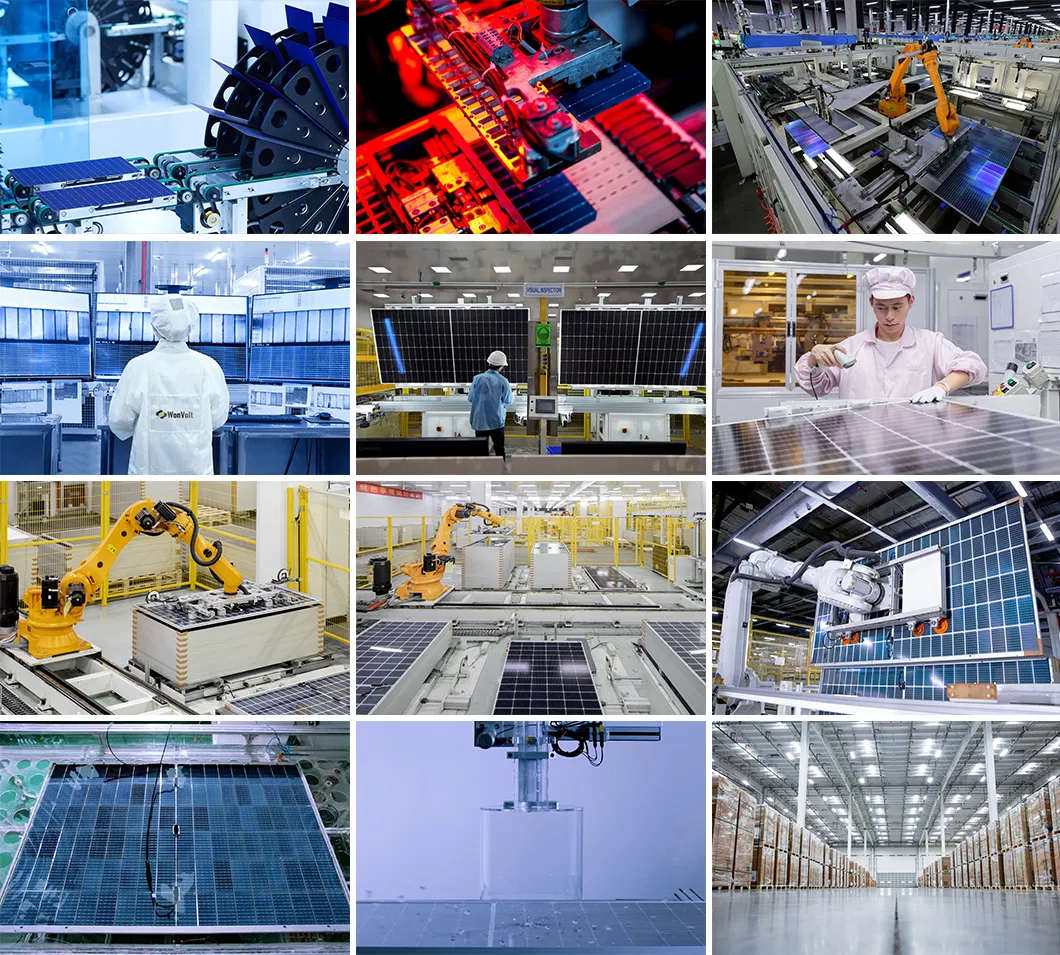

Factory Overview

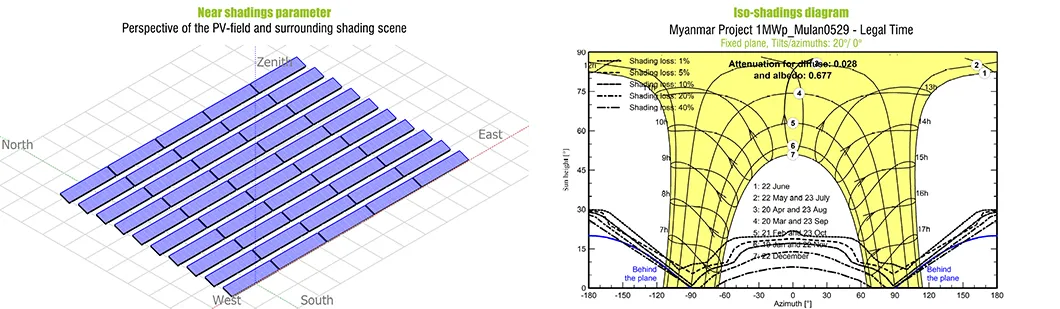

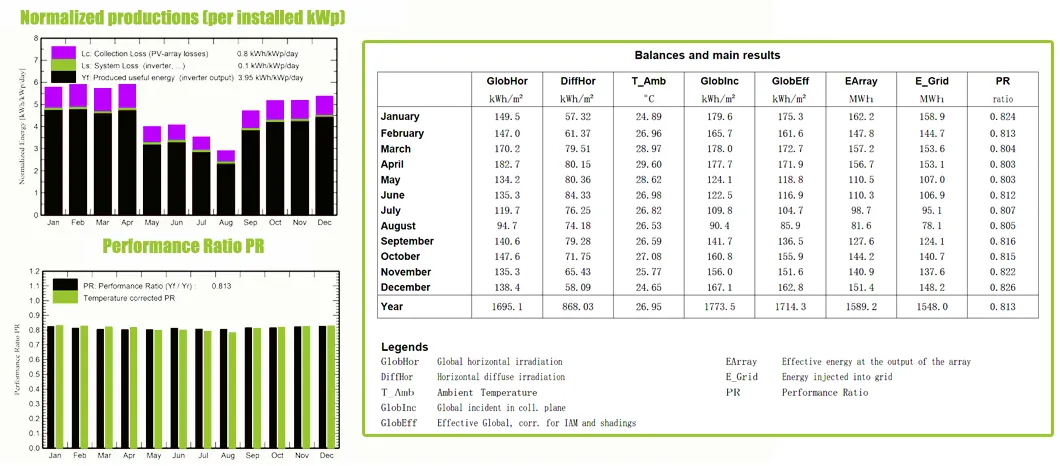

Technical Support
Reference Projects
Frequently Asked Questions
What is the lifespan and cycle counts of this energy storage system?
The system utilizes premium LiFePO4 (LFP) technology, which delivers an exceptional cycle life of up to 8,000 cycles at standard operating parameters. This ensures long-term operational durability and a solid return on investment over its 10-year warranty period.
How does the cooling system work in these storage containers?
Depending on your specific climate and project needs, we offer both HVAC (Forced Air Conditioning) and high-efficiency Liquid Cooling systems. The electronics compartment features forced air cooling, while the battery compartment is fully climate-controlled with integrated heating and dehumidification.
Can the container system be integrated with solar arrays and diesel generators?
Yes, absolutely. The system is designed with multiple interface compatibilities, support for MPPT (250kw/500kw or without), diesel generator (DG) input charging, and grid-tied operations. It enables flexible off-grid, hybrid, and on-grid energy management.
What safety mechanisms are built into the design?
Safety is our absolute priority. Each container is configured with an automatic fire suppression system, featuring FM200 (HFC-227ea) or ABC dry chemical agents. Additionally, the IP54 rated enclosure provides superior dust and water protection, complete with thermal runaway monitoring systems.
Can I get a custom capacity or size for my project?

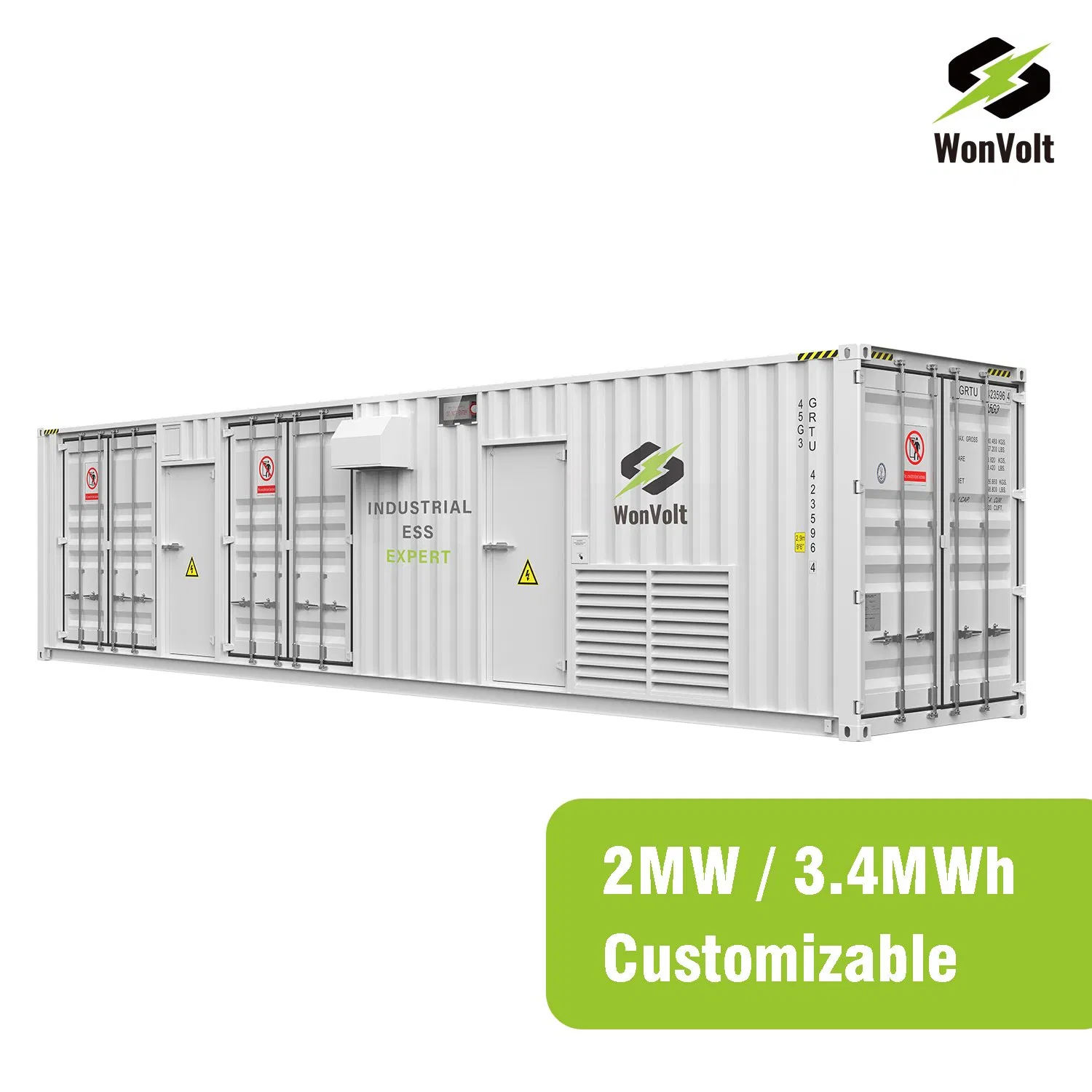

Yes, while our standard configurations include the 1MWH (ThorVolt 2.0 in a 20ft container) and the 2MWH (ZeusVolt 2.0 in a 40ft container), we provide fully customized capacities ranging from smaller outdoor cabinets (215kWh / 230kWh) to larger multi-megawatt configurations. Contact our support team for details.
