| Outdoor All -In -One Cabinet ESS Specifications | |
|---|---|
| Model number | BESS-I100 |
| Type | Battery: 112.53kWh/100.35kWh / Inverter: 30~50kw |
| Battery cell | LFP314Ah |

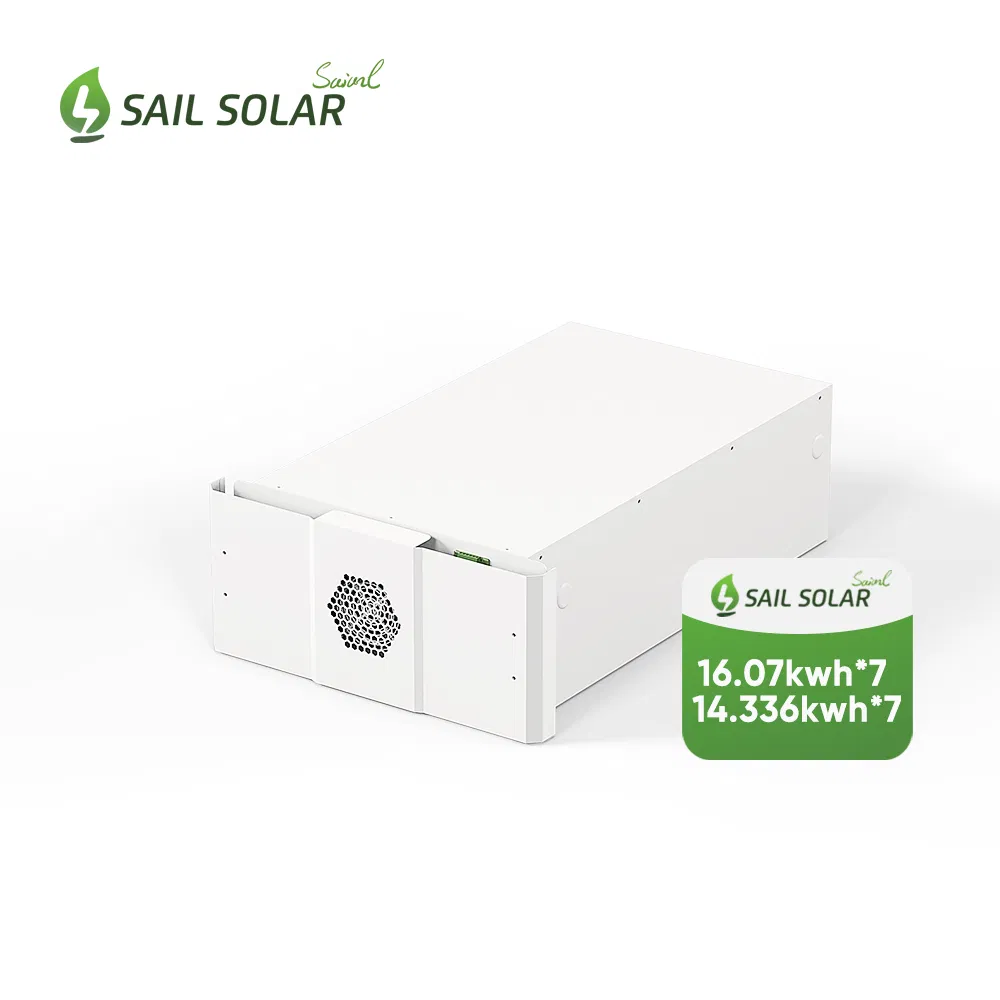

| Battery pack | 51.2V 314Ah |
| Rated voltage (V) | 358.4V (7 modules in series) |
| Rated energy (kwh) | 112.53kWh / 100.35kWh |
| Inverter | Solis or Deye |
| Rated grid voltage (V) | 380V |
| Size: W*D*H (mm) | 1200*803*2375 |
| Weight (kg) | 1300 |
| Protection level | IP54 |
| Cooling method | Air cooling (refrigeration, ventilation, heating) |
| Fire protection system | Integrated |
| Communication | RS485, CAN |

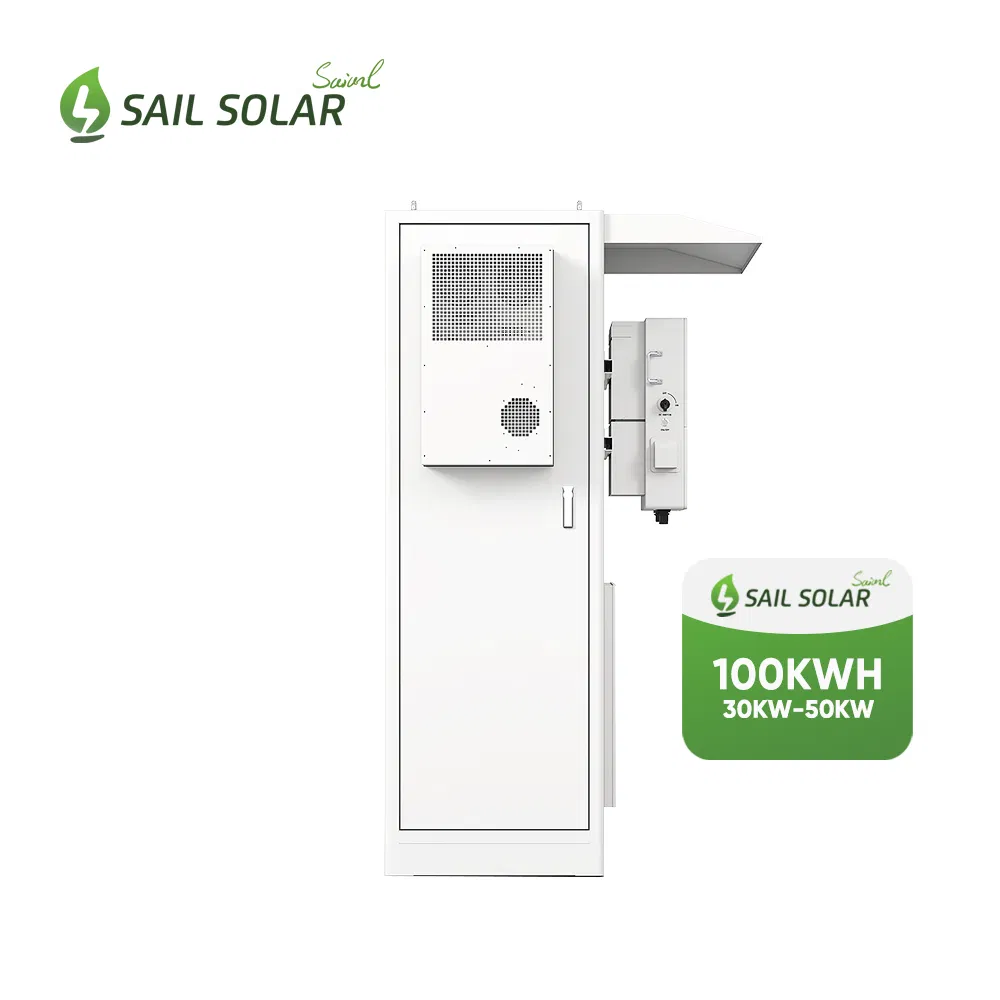

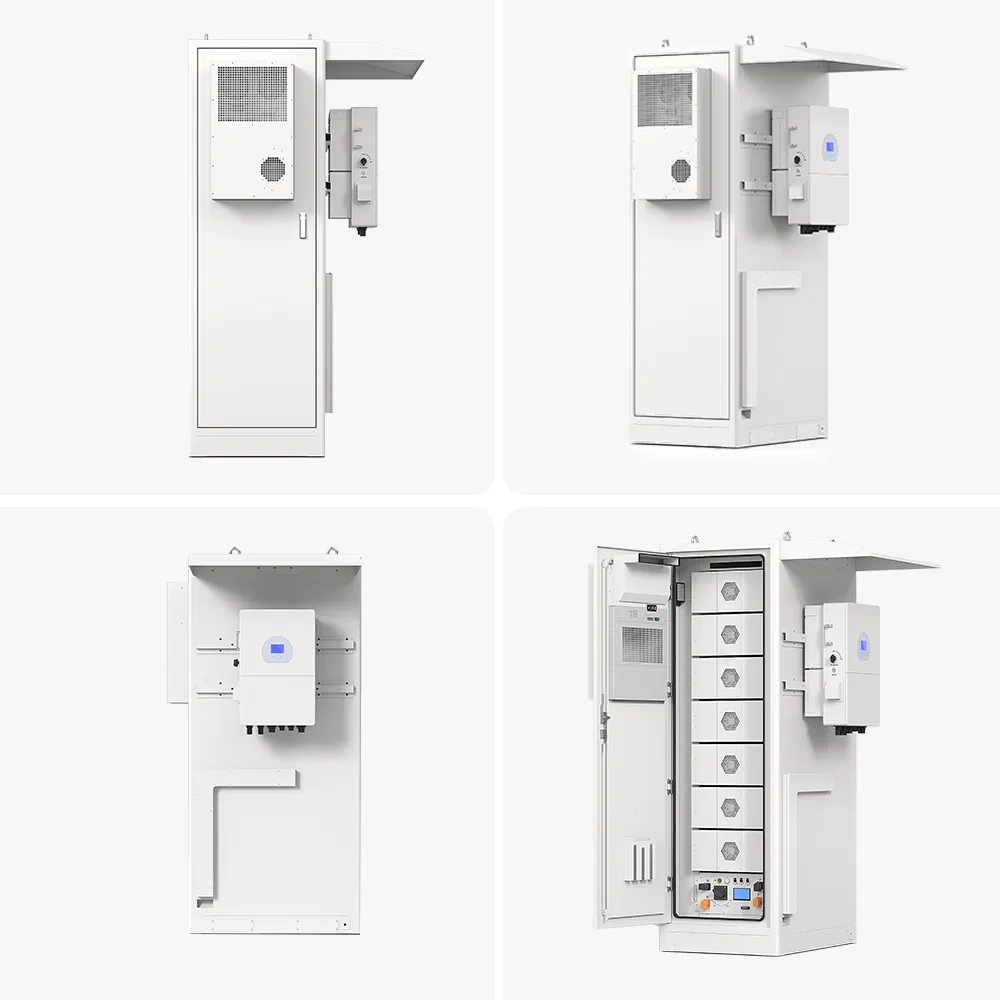

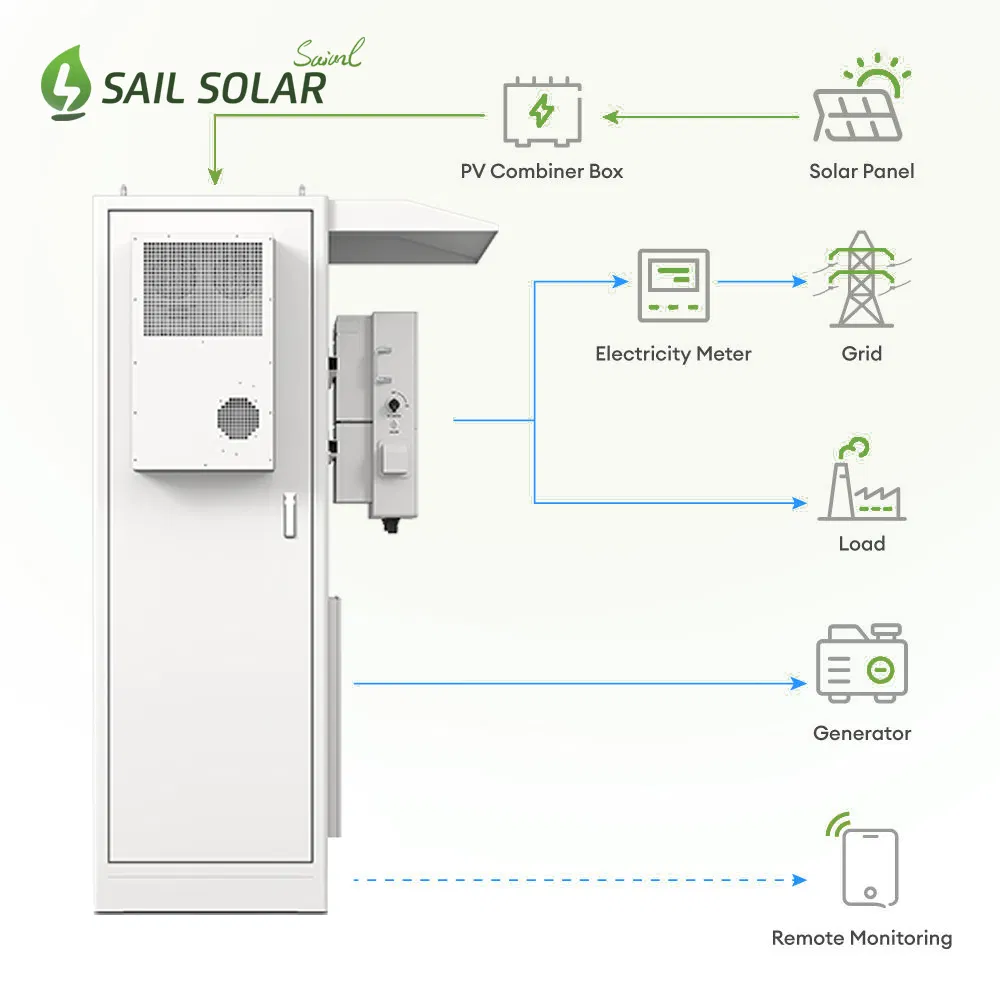

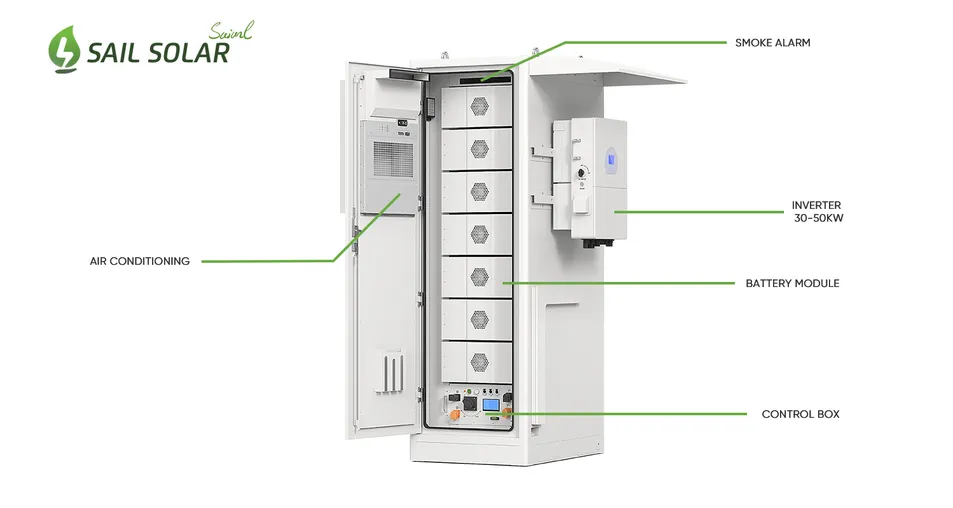

Outdoor Installation Cabinet: Indepth collaboration of lithium battery and inverter integrated together in a single cabinet. Highly convenient and designed specifically for outdoor installation scenarios.

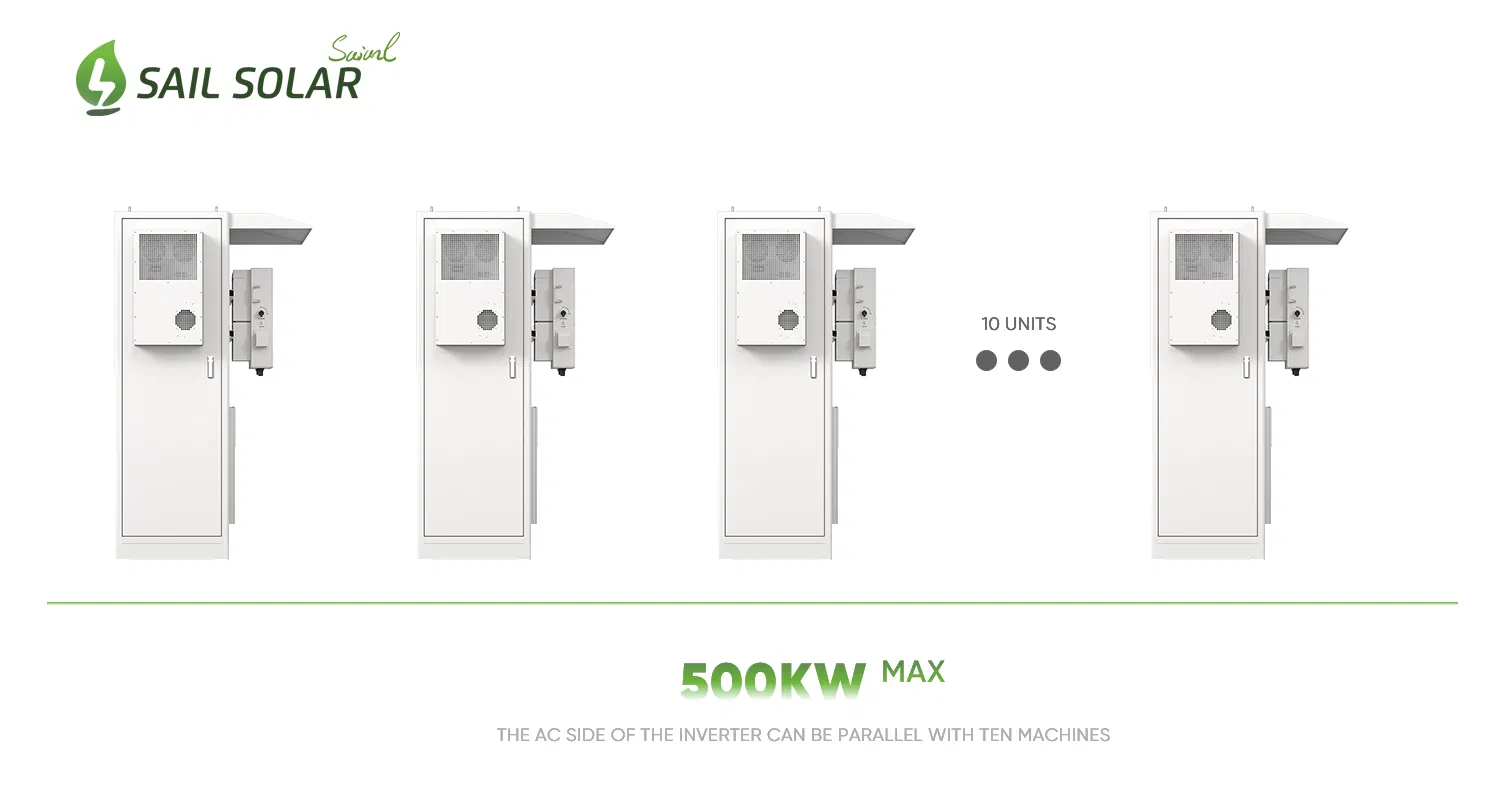

Parallel Operation Capability: Supports up to 10 sets in parallel connection. Delivers a maximum AC output of 500KW and a maximum battery capacity of 1125Kwh.

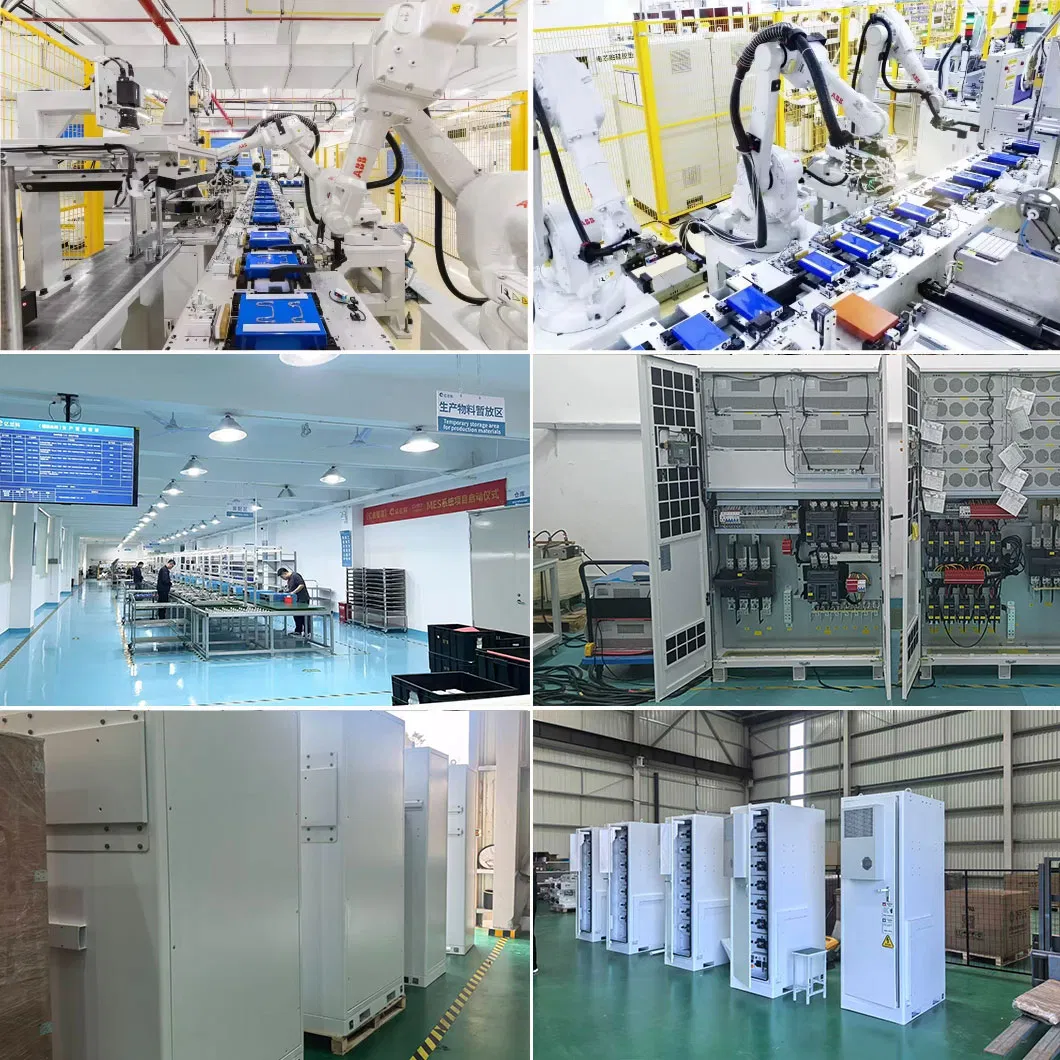

Our manufacturing unit has developed an industry-leading intelligent production system, constantly driving innovation in equipment and technology with the independent R&D of a top-notch technical team.
With world-class production automation, intelligence, and high production efficiency, we have built an efficient intelligent factory employing advanced new technologies such as AI, image recognition, machine learning, predictive algorithms, and 5G network integration.
Our energy storage solutions have successfully passed rigorous international standards and testing protocols, obtaining certifications such as IEC62619, IEC/EN60730, UL1973, and CE-EMC.
We actively participate in more than 20 prominent global exhibitions every year. Our footprint spans across major regions including Asia, Europe, and the Americas, showcasing state-of-the-art energy storage technology to partners worldwide.

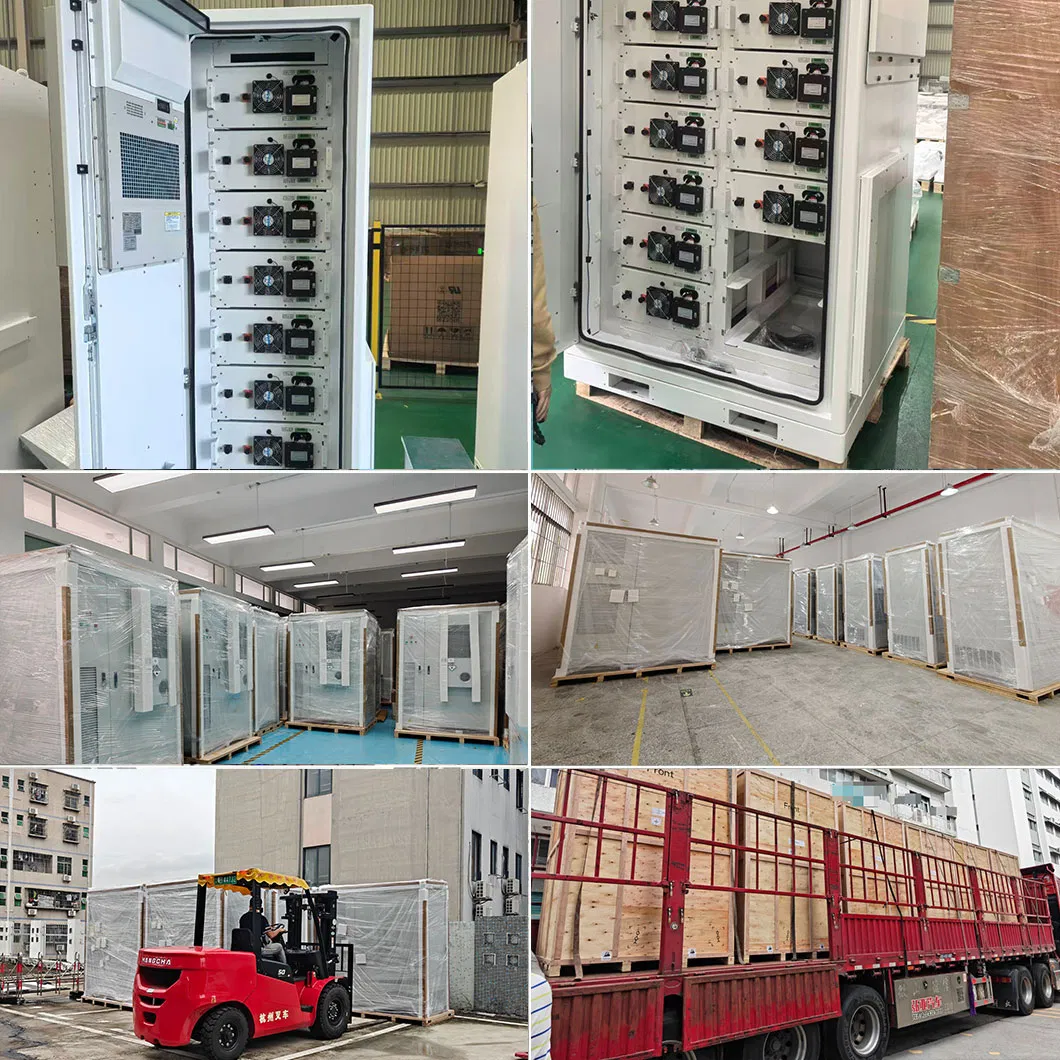

All products are packaged securely using export-standard wooden pallets and robust carton wraps to ensure damage-free transit. We employ advanced logistics tracking to handle heavy machinery shipments globally.
We supply industry and commerce energy storage systems. Air-cooling and Liquid-cooling types are both optional to suit your specific installation requirements.
The BESS-I100 uses high-performance Lithium Iron Phosphate (LiFePO4 / LFP) battery cells, known for superior thermal stability, safety, and lifespan compared to other chemistries.
Yes, the system supports parallel connections of up to 10 sets. This allows for a maximum AC output of 500KW and a maximum battery capacity expansion up to 1125Kwh.
The cabinet comes with an IP54 protection rating, making it highly resistant to dust and water splashes. It features an integrated air cooling system that handles refrigeration, ventilation, and heating for outdoor operations.
The high-voltage lithium battery pack supports more than 8000 cycles, providing long-term reliability for industrial and commercial energy storage applications.
The system components and modules have successfully passed international compliance certifications including IEC62619, IEC/EN60730, UL1973, CE, TUV, and CE-EMC testing.
Both Air-cooling and Liquid-cooling options are available to meet different requirements. The outdoor cabinet also includes an integrated fire protection system for enhanced safety.
