Product Description

Overview / Basic Info

Model NO.

ATESSOT100-215KWH

Nominal Capacity

100~215kwh

Cycle Life

More Than 6000 Cycles

Total Weight

1.25t

Degree of Protection

IP54

Battery Type

Lithium Iron Phosphate

Cooling

Air Conditioning Air Cooling

Application Scenario

Outdoor

Designed Life

More Than 10 Years

Certification

IEC62619, IEC61000, Un38.3, MSDS

Outdoor Energy Cabinet

50kw 100kw 150kw 200kw 500kw Ess Outdoor Cabinet

Battery Weight

110 Kg

Battery Dimension (WxDxH)

435 X 800 X 235 mm

Max Current

140 a

Battery Module Capacity

14.336 Kwh

Rated Voltage

51.2 V

Connection Mode

3p3l/3p4l

Defensive Function

Overcurrent Protection

Transport Package

Pallet

Specification

1350*1050*2080mm

Trademark

OEM

Origin

China

HS Code

8507600090

Production Capacity

1000kwh Per Day

Product Description

Premium Bess Container with Fire Safety and Climate Control

Distributed air-cooled outdoor cabinet is an energy storage system used in industry and commerce widely. It can store electricity converted from solar energy, wind energy and other renewable energy sources. It adopts air/liquid cooling technology, which is cost-effective and easy to maintain and repair.

Product Parameters

INTELLIGENT ENERGY STORAGE SYSTEM
Model	ATESSOT50-100KWH	ATESSOT100-200KWH
System Data
Dimension (WxDxH)	1500x1100x2080 mm	1760x1100x2080 mm
Weight (including battery)	1.25 t	2.05 t
Weight (excluding battery)	0.35 t
Degree of Protection	IP54	IP54
Rated Power	30/50 KW	80/100 KW
DC-side Voltage Range	560~850 V	615~900 V
AC-side Voltage Range	320~460 V	320~460 V
Connection Mode	3P3L/3P4L
System Capacity	100.352 KWH(MAX)	200.7 KWH
Battery Type	Lithium Iron Phosphate
Cooling	Air conditioning air cooling
Application Scenario	Outdoor
Temperature Range	-25°C~ +50°C
Designed Life	More than 10 years
Battery Pack Data
Weight	110 kg
Dimension (WxDxH)	435x800x235 mm
Max Current	140 A
Battery Module Capacity	14.336 KWH
Rated Voltage	51.2 V
Cycle Times	≥6000 @25°C
Certification	IEC62619, IEC61000, UN38.3, MSDS

Product Performance Advantages

Configuration A

Battery Pack Capacity: 14.336 KWH

System Capacity: 100.352 KWH

AC Power: 30/50 KW

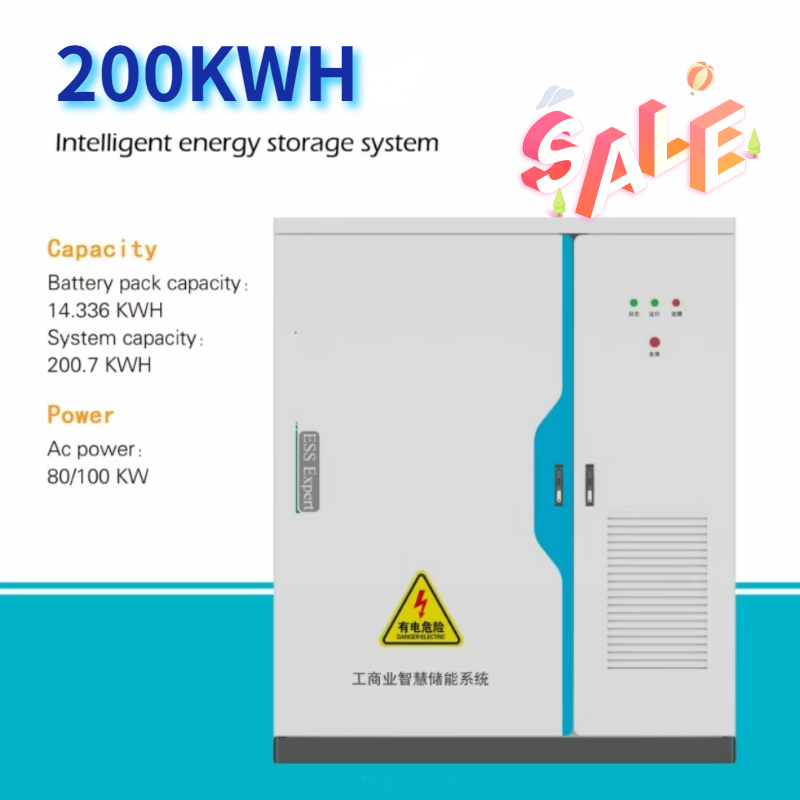

Configuration B

Battery Pack Capacity: 14.336 KWH

System Capacity: 200.7 KWH

AC Power: 80/100 KW

Key System Advantages

🔸 Building block design
🔸 Flexible arrangement
🔸 Hierarchical management of battery system
🔸 Real-time monitoring
🔸 Double-layer insulation design
🔸 Multiple intelligent security system
🔸 Real-time monitoring of smoke and temperature
🔸 Multi-point real-time monitoring of BMS and EMS
🔸 Professional design team

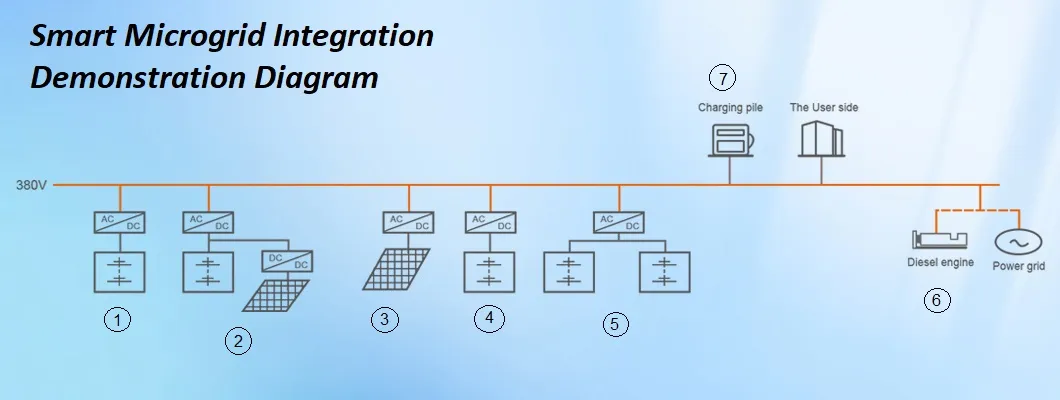

Display Introduction:

Energy storage outdoor integrated cabinet: 100KW/232.96KWH Liquid Cooling Technology (Operation logic: peak load shifting)
Outdoor Integrated Storage Cabinet: 100KW/200KWH Air Cooling Technology (Operation logic: Solar storage and charging, ON-grid and OFF-grid switching)
Solar photovoltaic grid-connected power generation system: 50KW (Operation logic: ON-grid Generation)
Outdoor Integrated Storage Cabinet: 100KW/200KWH Air Cooling Technology (Operation logic: peak load shifting)
Container Energy Storage System: 250KW/460.8KWH Air Cooling Technology (Operation logic: peak load shifting)
Diesel generator sets: 400KW
Charging pile module: 2*40KW + 6*5KW

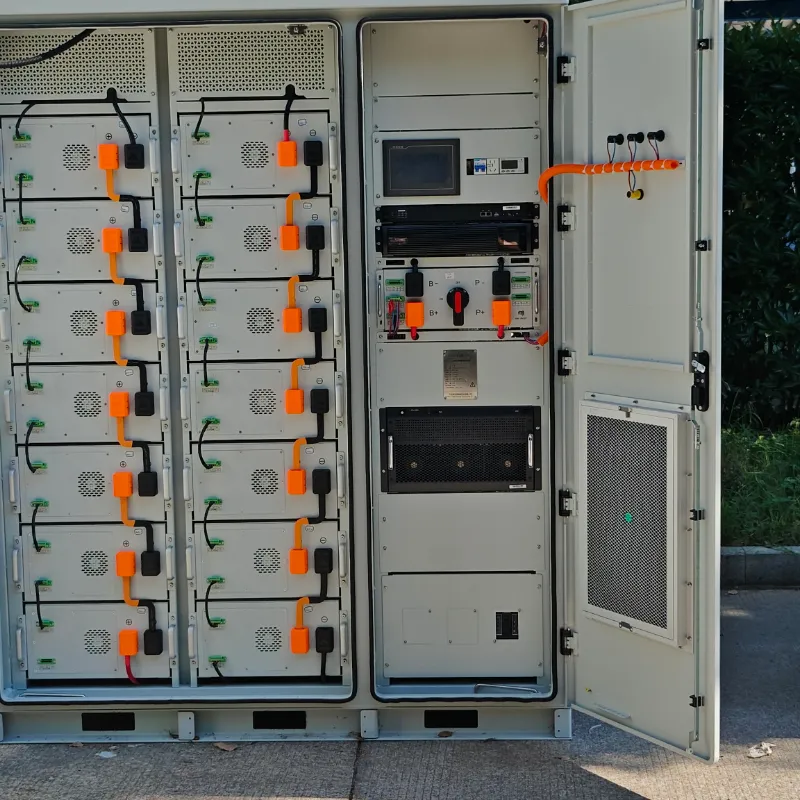

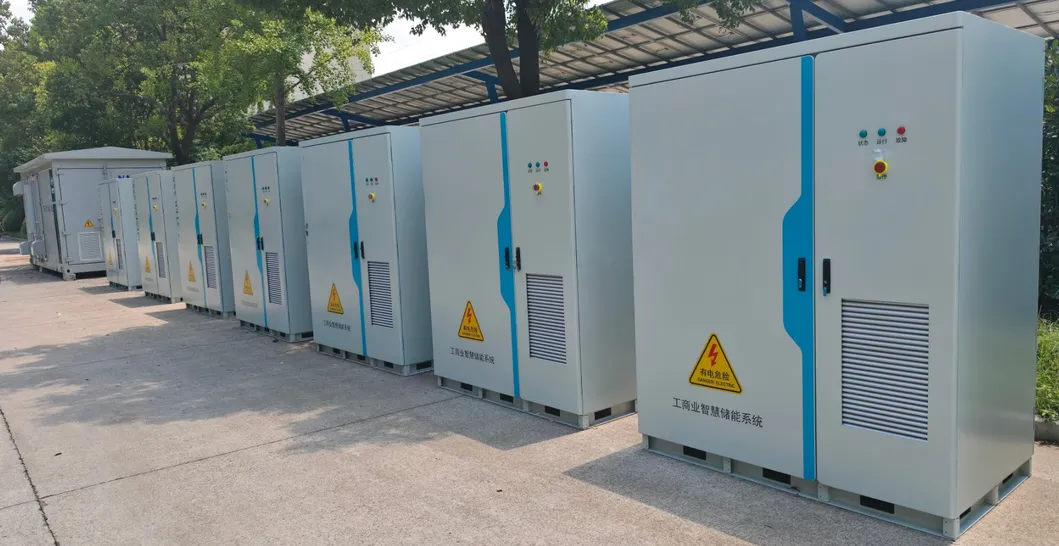

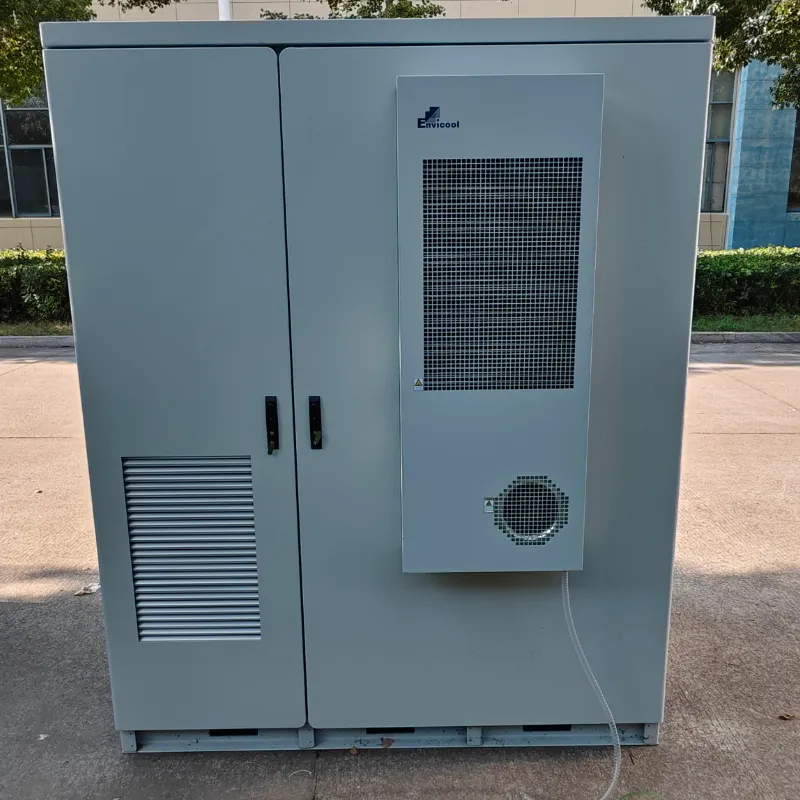

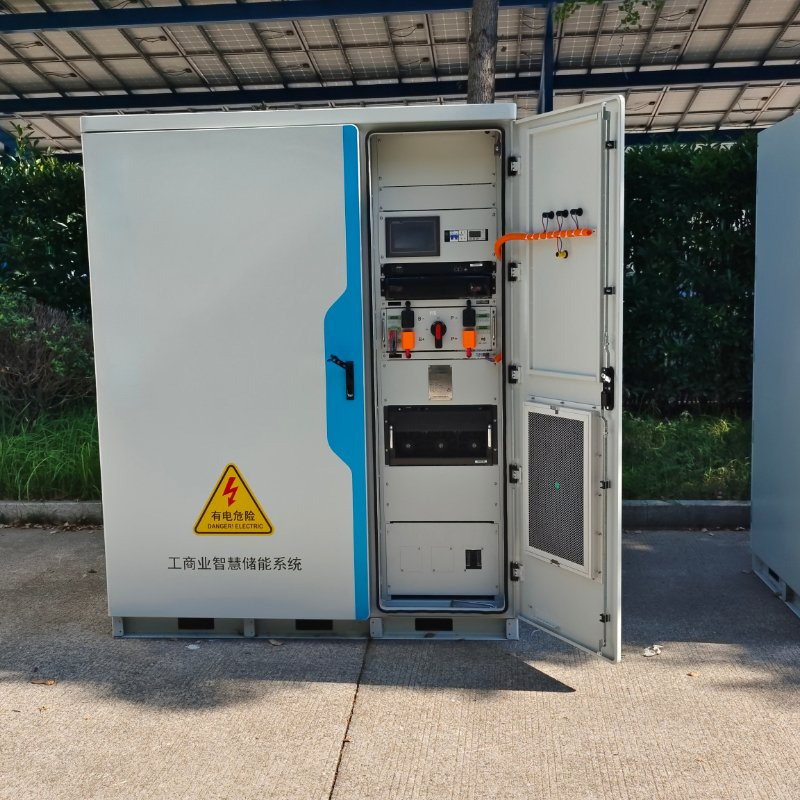

Detailed Photos

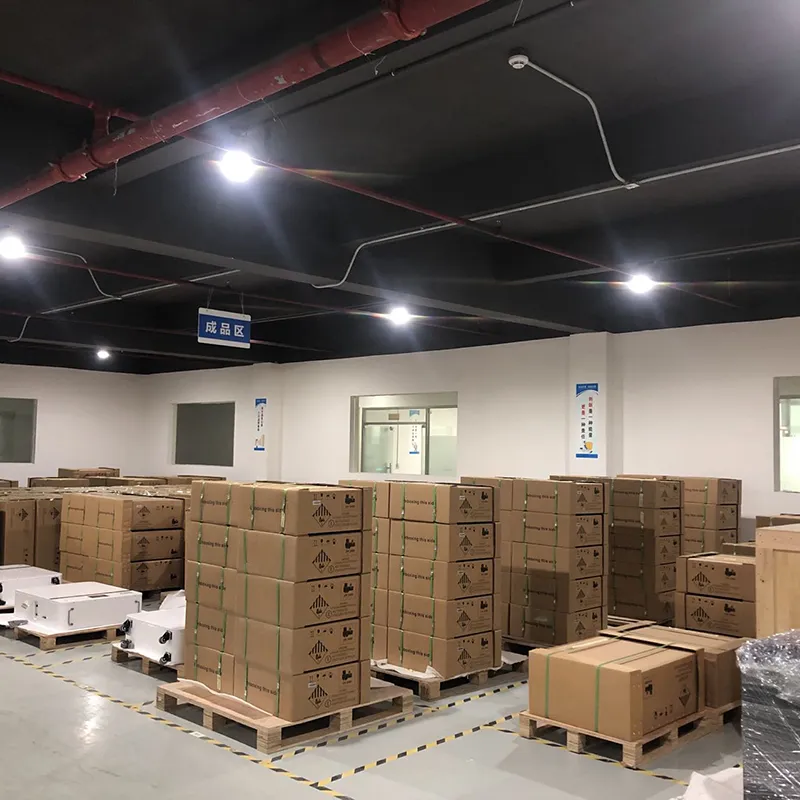

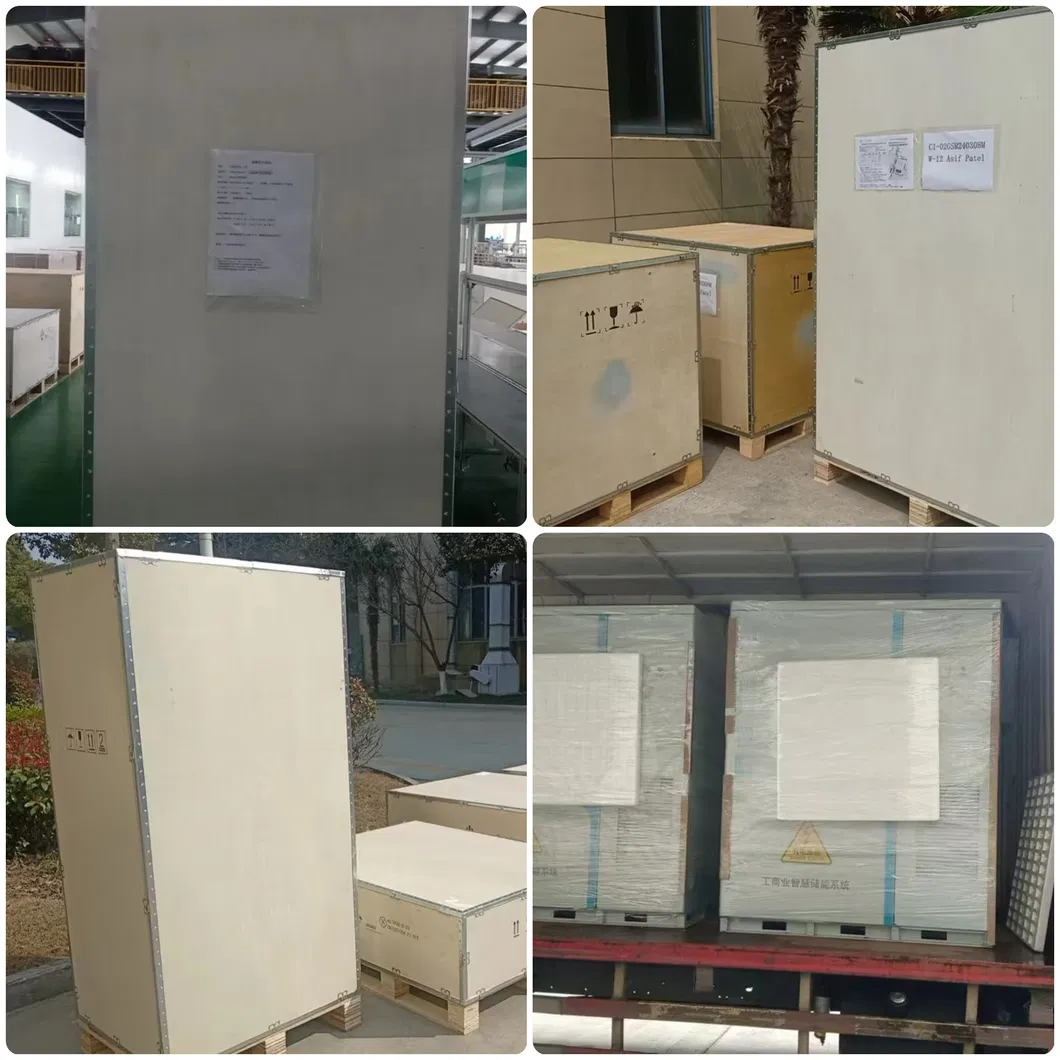

Packaging & Shipping

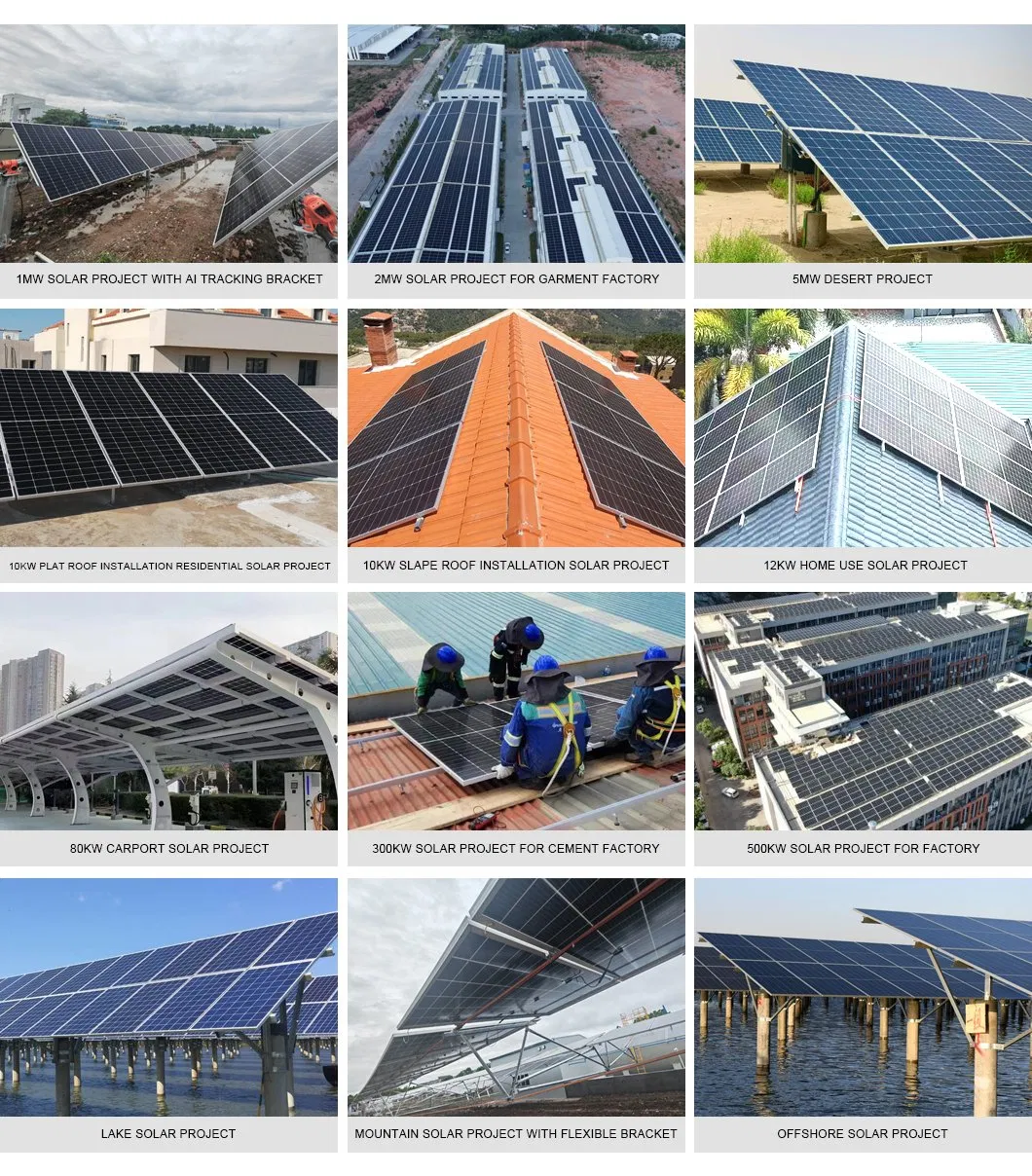

Project Case

Certifications

Frequently Asked Questions (FAQ)

What is the battery type and nominal capacity range of this energy cabinet?

The system utilizes Lithium Iron Phosphate (LiFePO4) batteries, offering a nominal capacity range from 100kWh to 215kWh depending on configuration requirements.

What cooling technology is integrated into the outdoor energy cabinet?

The system supports both liquid cooling and air conditioning air cooling technologies, designed to maintain optimal operating temperatures under outdoor conditions.

What is the cycle life and design life of the system?

The battery module is rated for more than 6000 cycles (at 25°C) and features an overall system design life of more than 10 years.

What kind of defensive and safety monitoring features are implemented?

It includes overcurrent protection, real-time smoke and temperature monitoring, a double-layer insulation design, and multi-point real-time tracking through BMS and EMS systems.

Which connection modes and power ratings are available?

The system supports 3P3L and 3P4L connection modes. Rated power choices include 30/50 KW and 80/100 KW variants depending on the model.

What compliance and safety certifications does the system meet?

The product is certified under global standards, including IEC62619, IEC61000, UN38.3, and MSDS safety guidelines.
