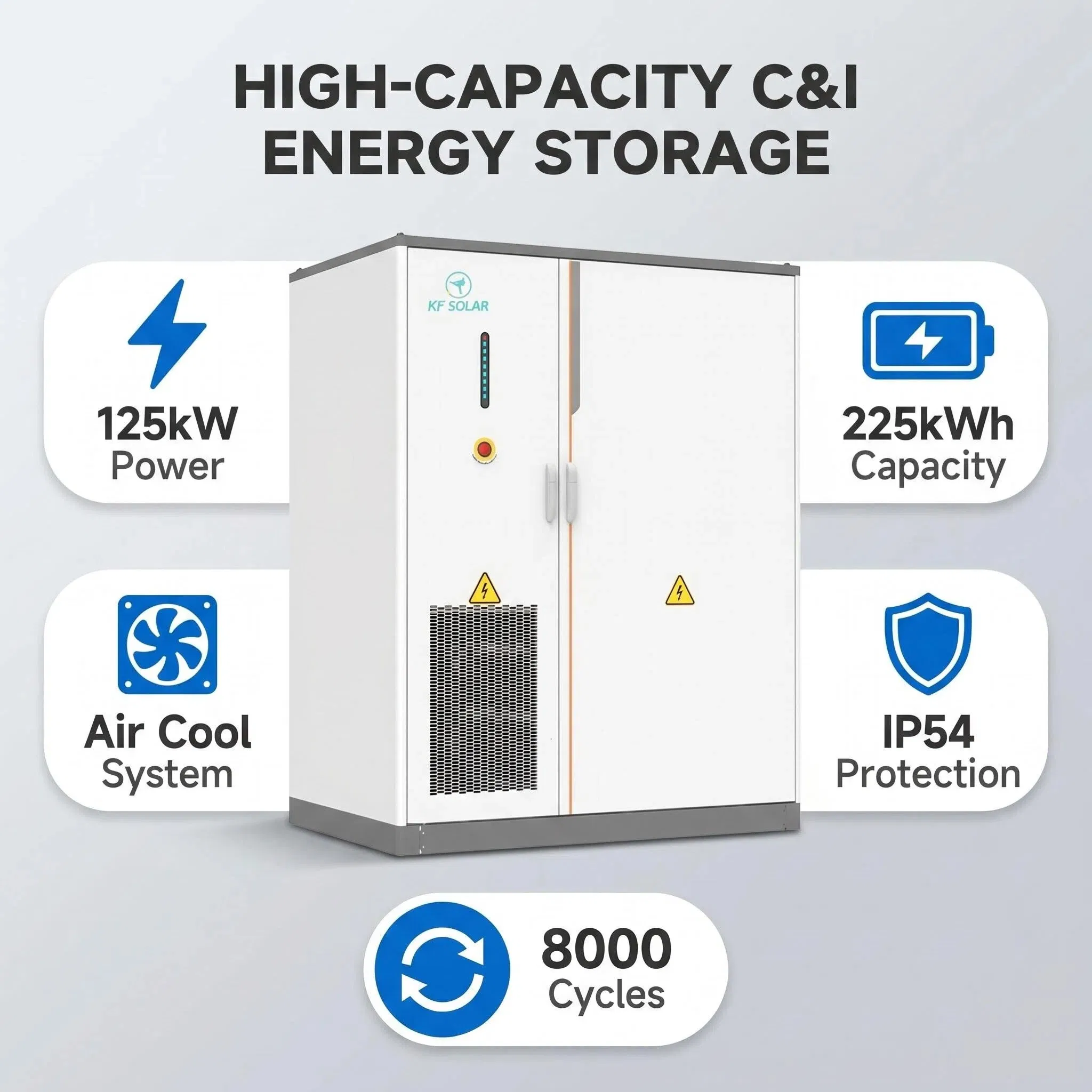

| Technical Parameters | |||
|---|---|---|---|
| Battery Type | LiFePO4 | Grid Connection | Offgrid, Ongrid |
| Cooling | Air Cooling | Protection Class | IP54 |
| Communication Port | RS485 | Dimension (L*W*H) | 1600*1050*2050mm / 1050*1050*2350mm |
| Weight | 2400kG | Cell Type | LFP 314Ah |
| Battery Capacity | 225kWh | Depth of Discharge | 100% DOD |
| Max Input Branches | 2 Channels (Optional 2 Photovoltaic MPPT Controllers) | Rated Current | 200A |
| Operating Temp. | -30~55℃ | Battery Voltage Range | 627V~806V |
| Charge/Discharge Rate | ≤0.5C | Rated Voltage | 716.8V |

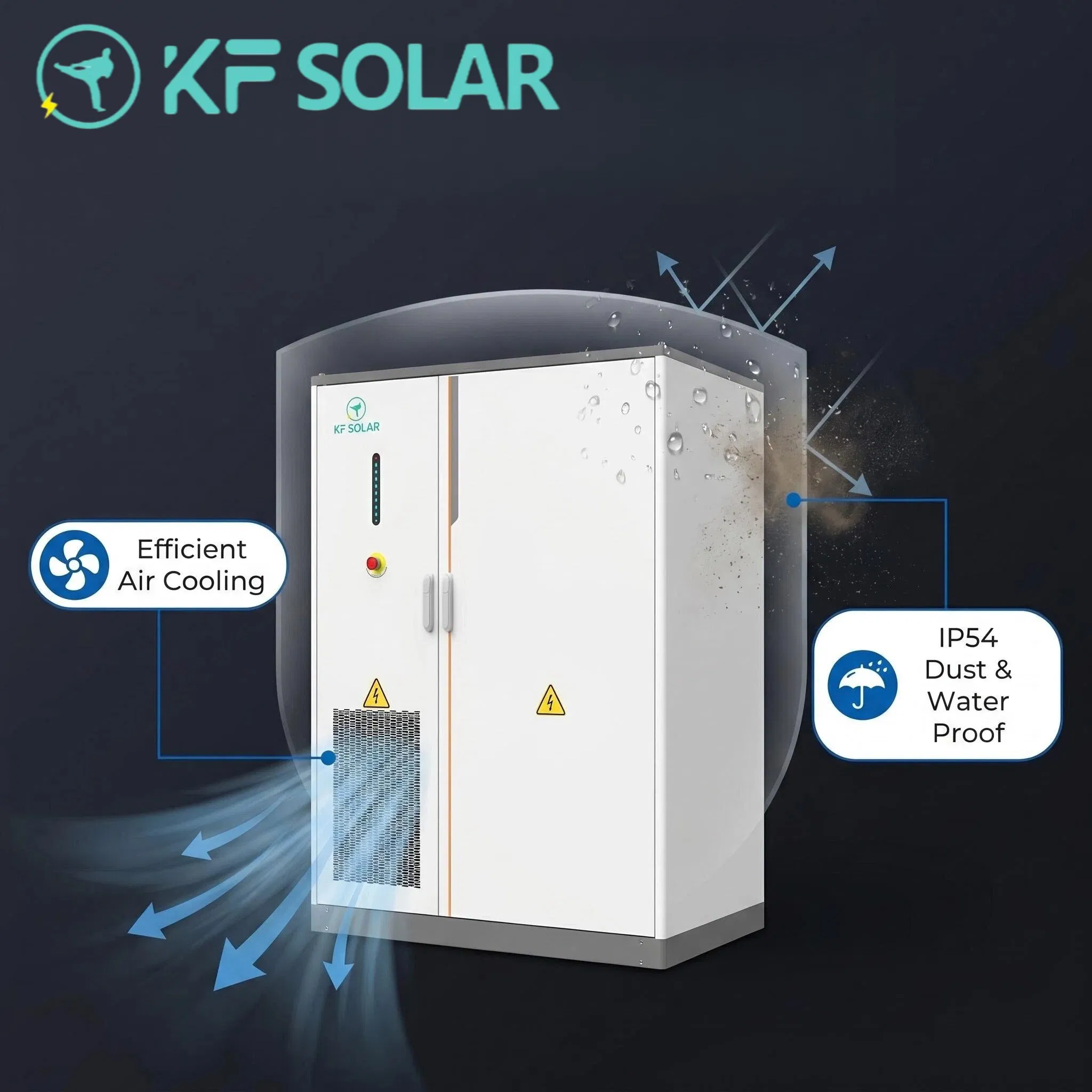

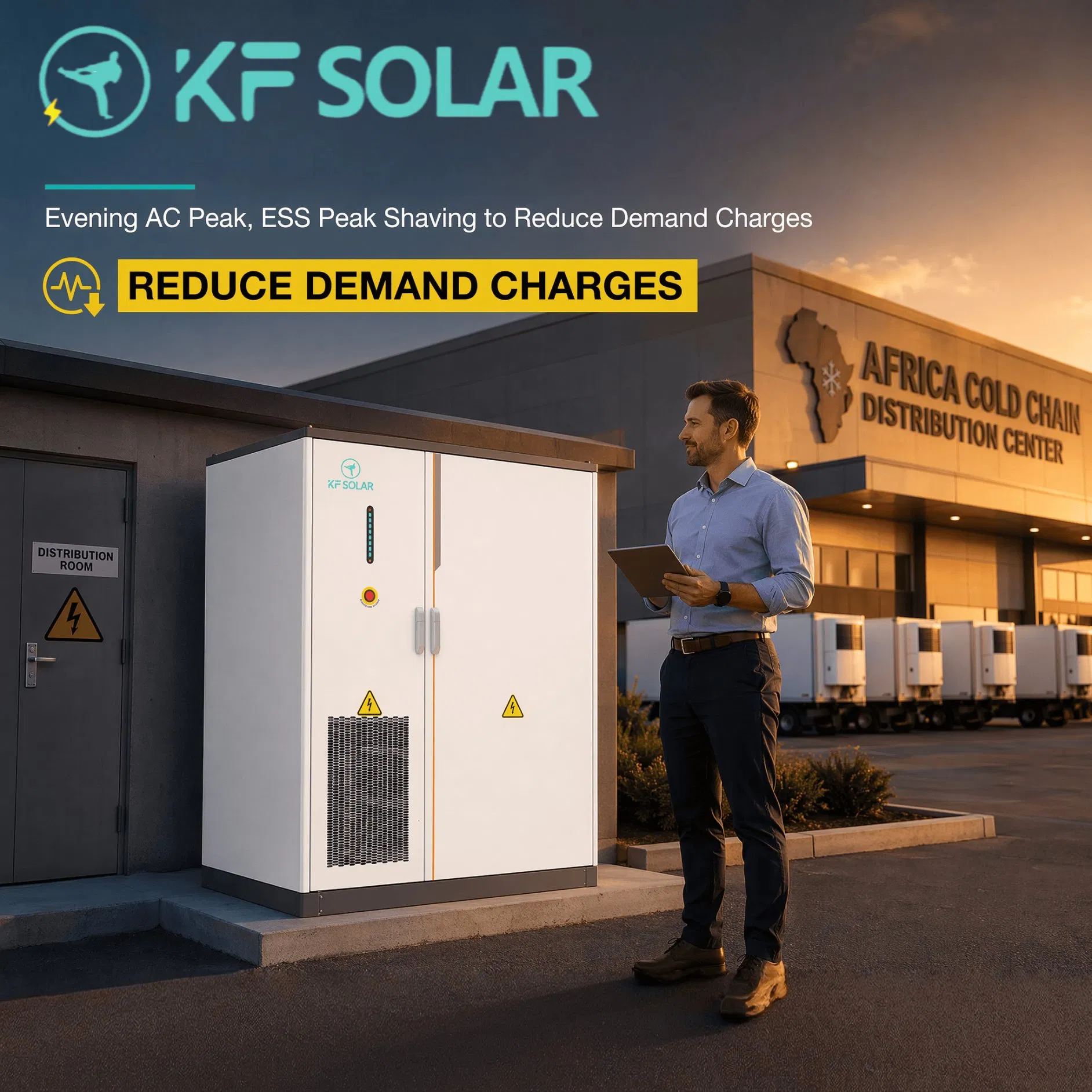

IP54 Rated Protection: Engineered for harsh outdoor environments, providing robust protection against dust and water splashes. Perfect for farms, factories, and remote microgrids.
Extreme Climate Adaptation: Operating temperature range from -30°C to 55°C, supported by an intelligent air-cooling system to ensure continuous performance in any weather.
Seamless Integration: Standard RS485 communication ports for easy synchronization with existing EMS (Energy Management Systems) and major inverter brands.

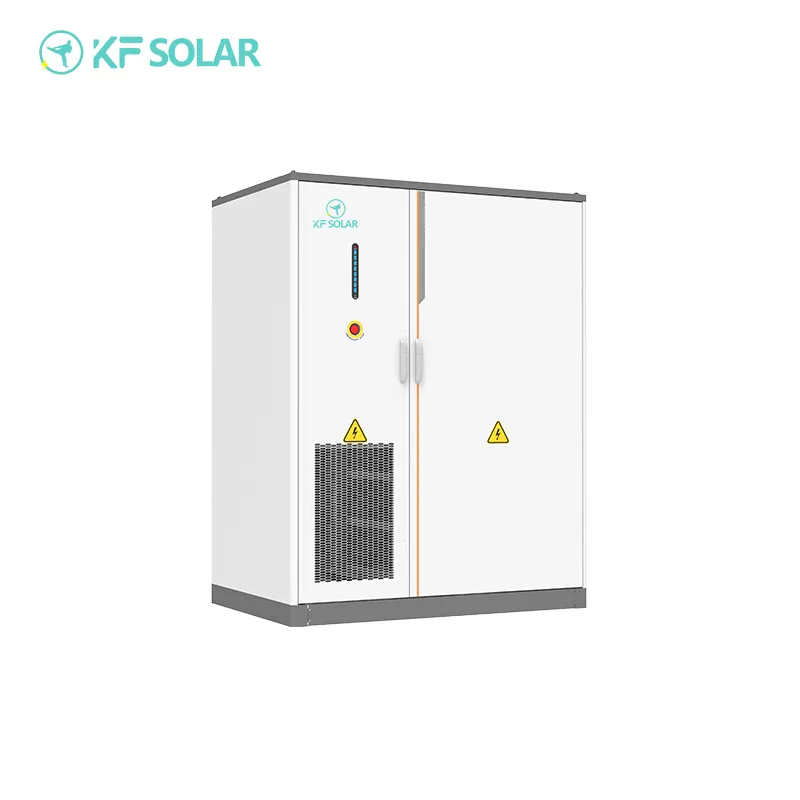

Professional Enclosure: A robust 2400kg cabinet designed for easy transport via forklift and rapid on-site deployment.
The system supports an energy configuration capacity range from 100kWh up to 500kWh, with a power configuration range between 100kW and 250kW to suit various commercial and industrial demands.

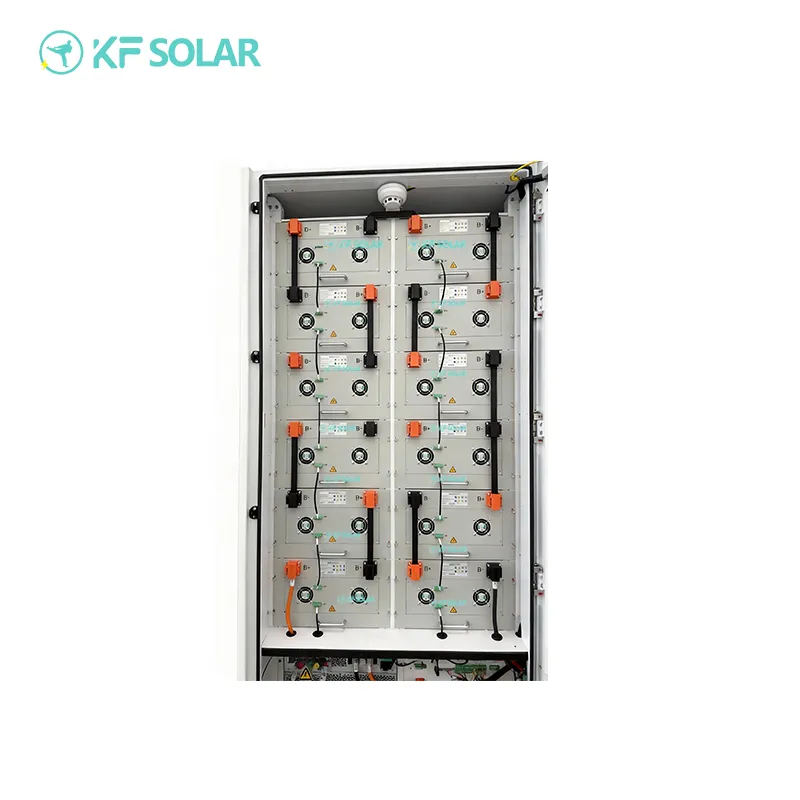

It utilizes high-performance LiFePO4 (LFP) 314Ah lithium cells, offering exceptional safety, stability, and high energy density.
Yes, the system is designed to operate in extreme weather environments ranging from -30°C to 55°C. It features an integrated smart air-cooling system to maintain ideal internal operating temperatures.
The enclosure holds an IP54 protection class rating, making it highly robust against dust and water splashes. It is ideal for outdoor installations including factories, farms, and remote microgrids.
The battery cells support up to 8000 cycles at an 80% Depth of Discharge (DOD), ensuring long-term utility and exceptional return on investment.
Yes, it features a standard RS485 communication port, allowing for seamless integration with existing Energy Management Systems (EMS) and major global inverter brands.
