| Model NO. | Orion-1500-372 |
| Nominal Capacity | 372.736kwh |
| Cycle Life | 6000 |
| Voltage Range | 1206.4V~1456V |
| Operating Humidity | 0~90%Rh |
| Cooling System | Liquid Cooling |
| Production Process | Laser Welding |
| Communication Method | Can/RS485/Dry Contact |
| Cell Type | LFP280 |
| Transport Package | Wooden Case Packing |
| Specification | 1300+-5mm*1300+-5mm*2300+-5mm |
| Origin | China |
| HS Code | 33039639 |
| Production Capacity | 500000 |
| Package Size | 1300.00cm * 1300.00cm * 2300.00cm |
| Package Gross Weight | 816.000kg |

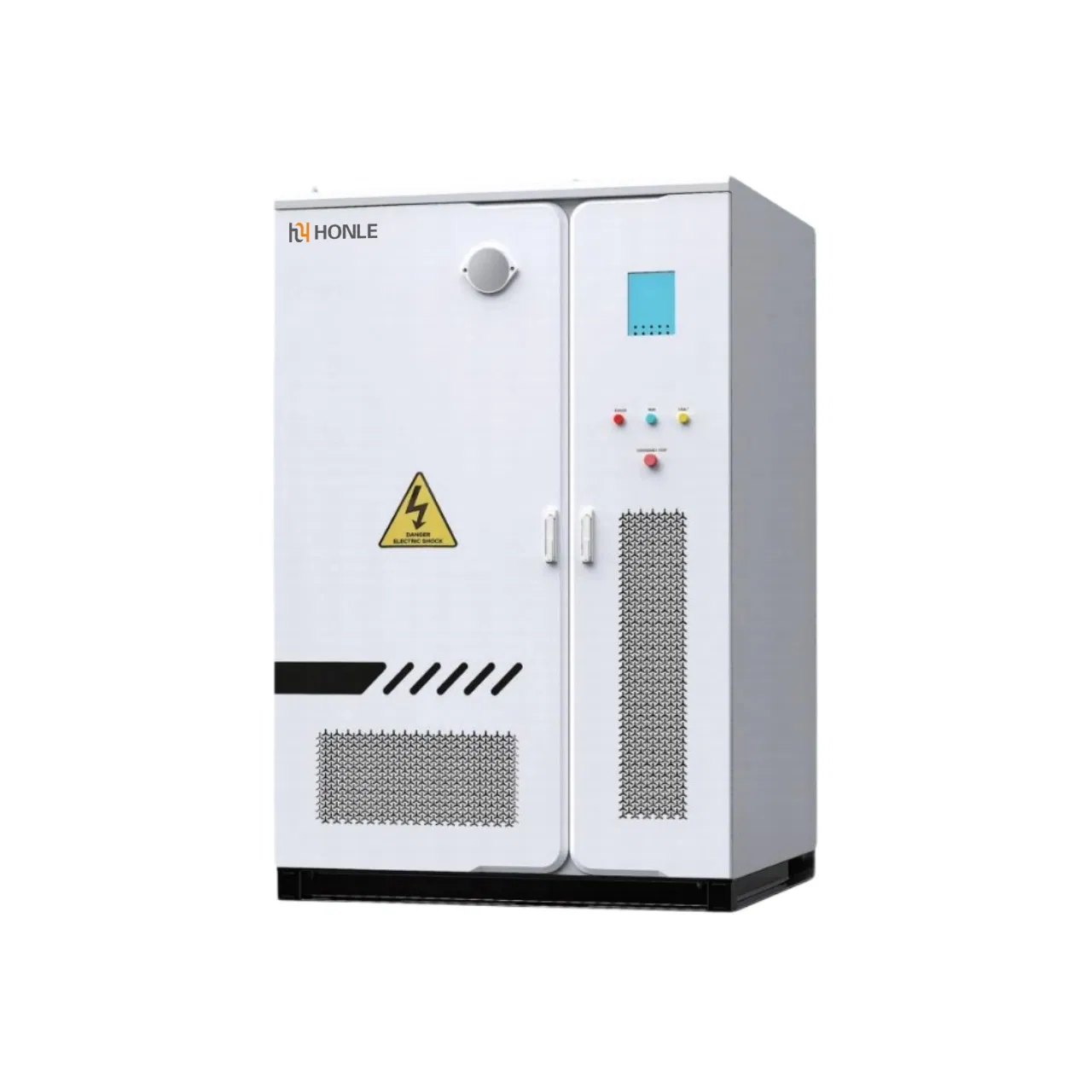

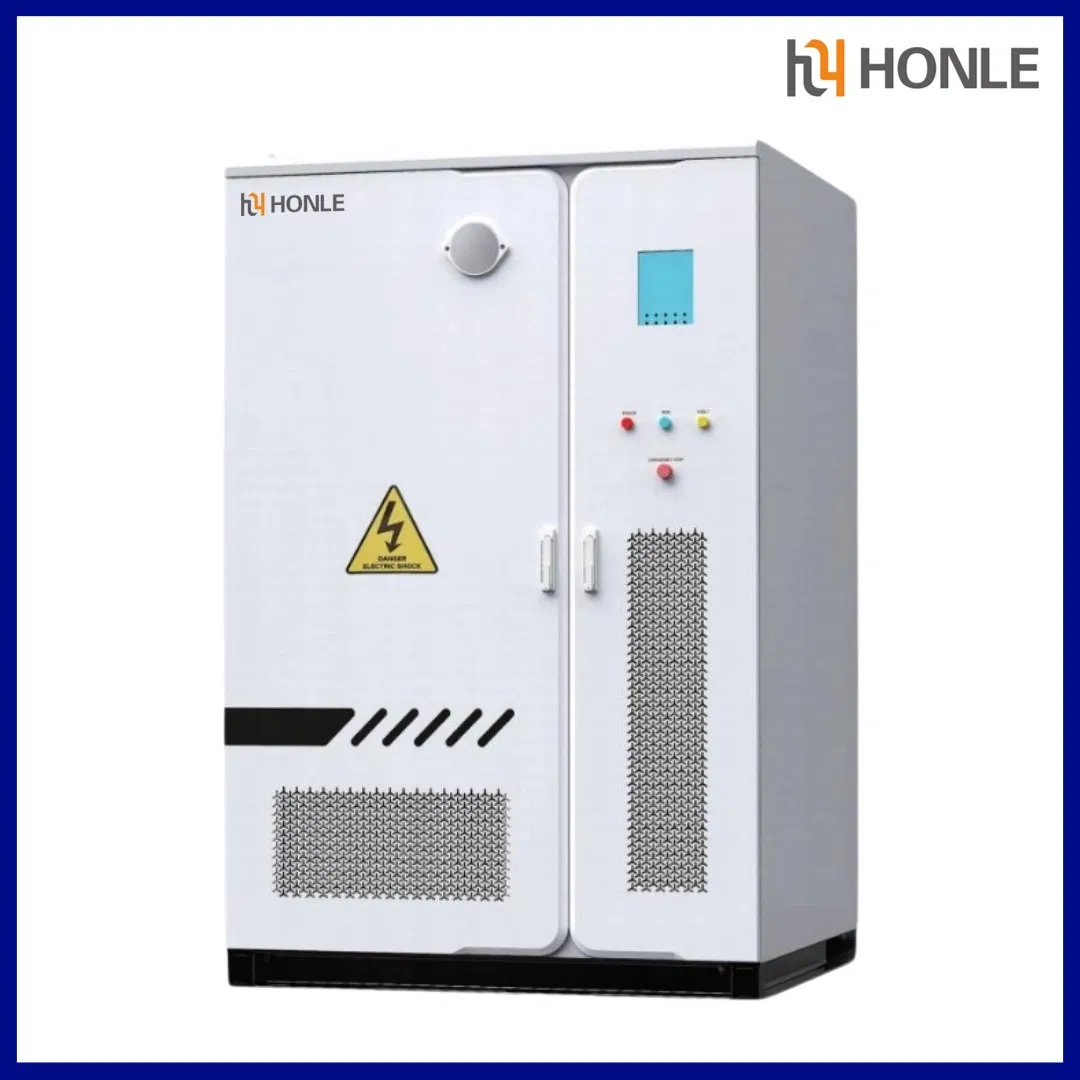

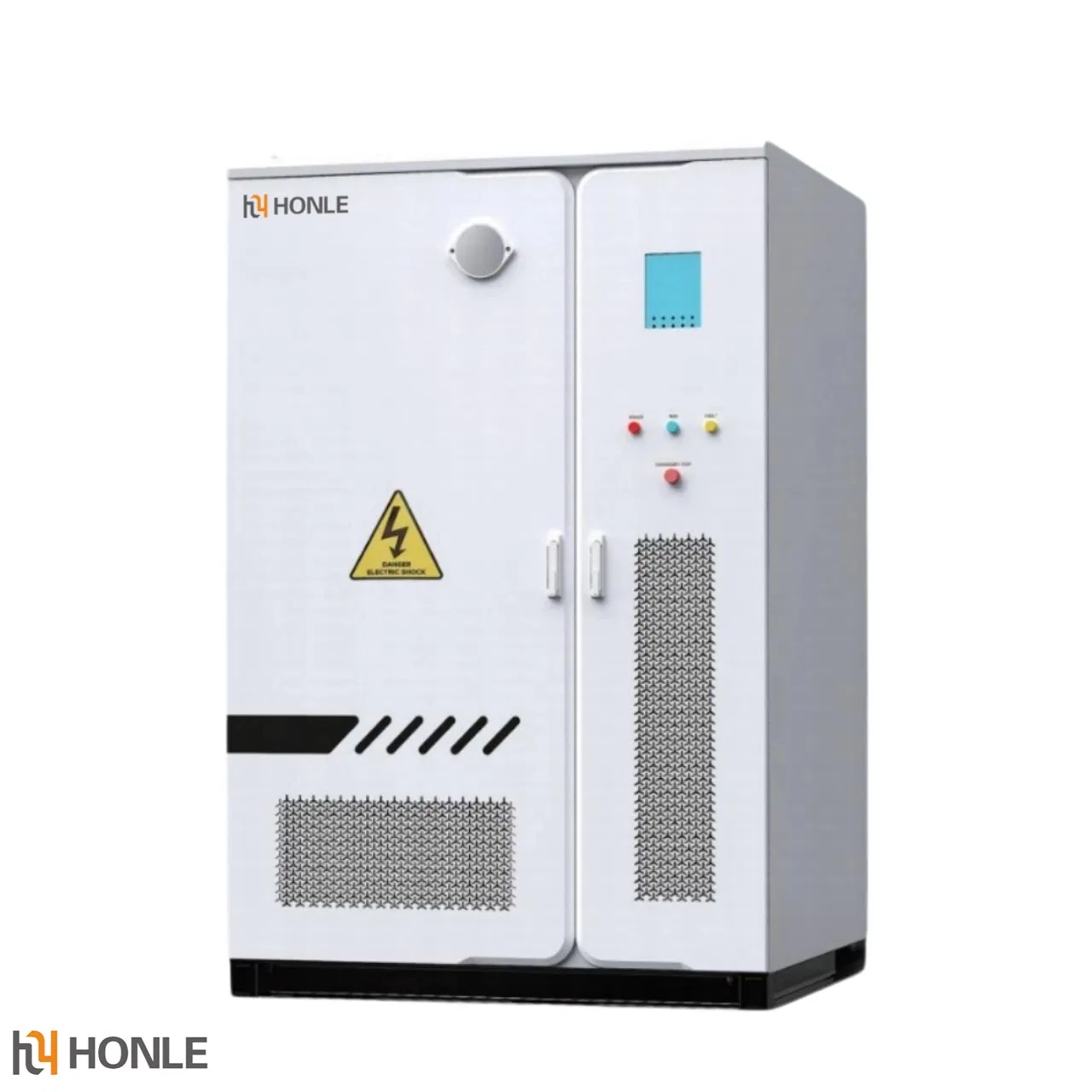

Our latest Energy Storage Cabinet is designed for both on-grid and off-grid applications, combining advanced LFP (LiFePO4) battery technology with intelligent EMS protection for maximum performance, safety, and durability - perfect for commercial, industrial, and residential energy systems.

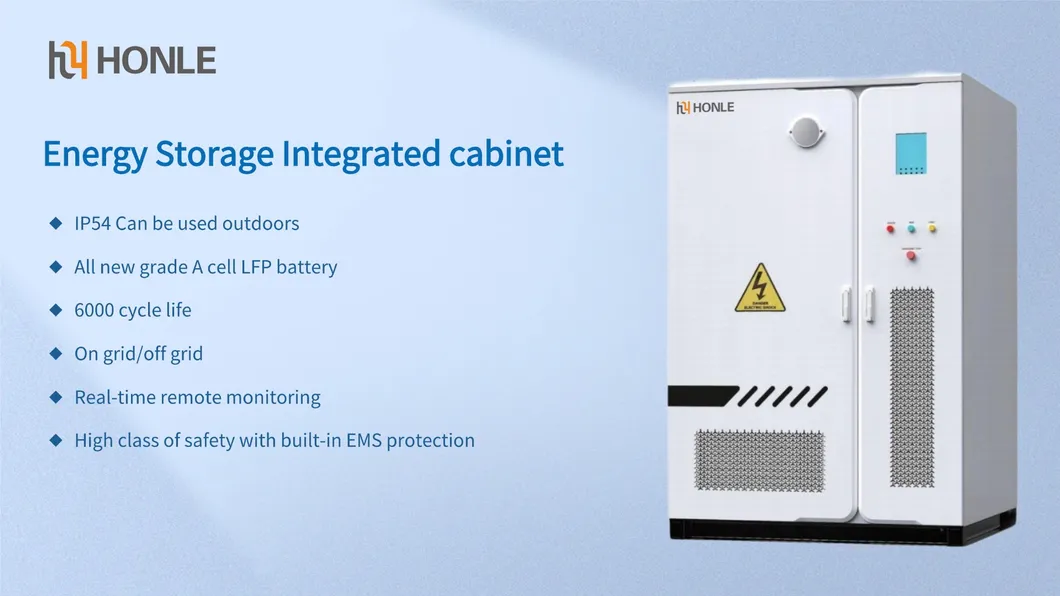

With IP54-rated protection, this cabinet is engineered to withstand dust and water exposure, ensuring stable operation even in challenging outdoor environments.
Equipped with brand-new Grade A LiFePO4 cells, ensuring higher energy density, longer lifespan, and superior safety performance.
Experience lasting reliability with up to 6000 charge/discharge cycles, maintaining excellent performance over years of continuous use.

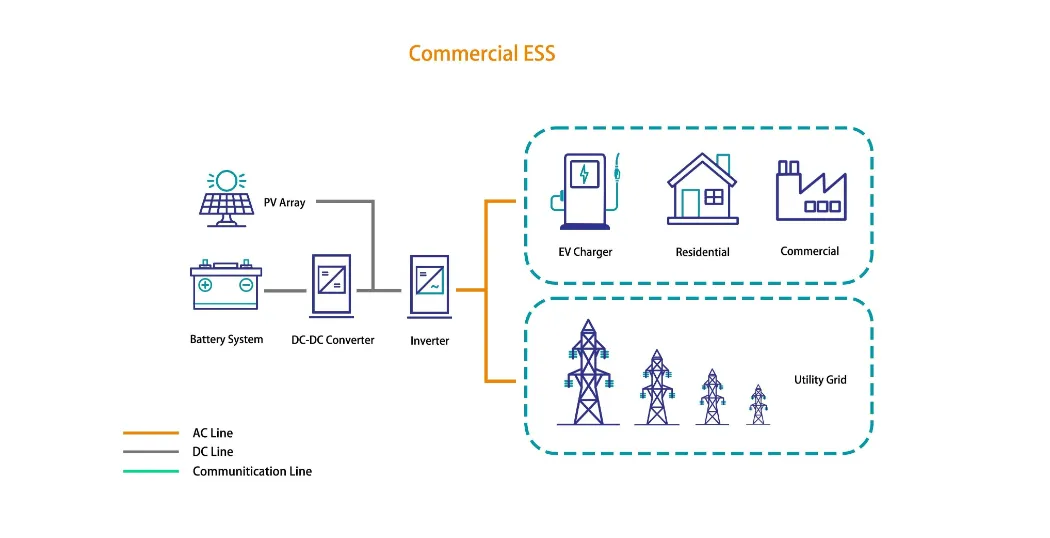

Seamlessly switch between on-grid and off-grid modes, providing stable energy supply whether connected to the grid or operating independently.
Stay in control anytime, anywhere - access real-time system data and performance insights through intelligent monitoring software.
Integrated Energy Management System (EMS) ensures optimized energy flow, automatic fault detection, and multiple layers of protection for safe and efficient operation.
| Model | SMP-NU005 | SMP-NU006 | SMP-NU007 | |
|---|---|---|---|---|
| Battery | ||||
| Type | 358.4V314Ah | 768V314Ah | 832V314Ah | |
| Rated Energy | 112kWh | 241kWh | 261kWh | |
| Working Voltage Range | 313.6~403.2V | 672~864V | 728~936V | |
| BMS Communication | Ethernet/RS485/CAN | Ethernet/RS485/CAN | Ethernet/RS485/CAN | |
| PCS | ||||
| AC Side | AC Rated Power | 50kW | 125kW | |
| Max Power | 60kW | 150kW(1min) | ||
| Max Current | 86A | 216A | ||
| Rated Voltage | 380V/400V | |||
| Rated Frequency | 50/60Hz | |||
| DC Side | Max Input Voltage | 850V | 950V | 950V |
| Max Current | 100A | 157A | ||
| MPPT(optional) | ||||
| Low Voltage Side | Rated Power | 65kW | 120kW | |
| Max Current | 36+36+36+36A | 60+60A | ||
| MPPT Voltage Range | 200~850V | 200~950V | ||
| General Parameters | ||||
| Product Dimension of the Cabinet | 1086*2058*1110mm | 1500*2306*1539mm | 1450*2258*1345mm | |
| IP Rating | IP54 | |||
| Working Temperature | -20~55ºC | |||
| Cooling | Air-cooled | Air-cooled | Liquid-cooled | |
| Security Certification | CE/UN38.3 | |||
| Net Weight | 1050kg | 3000kg | 3000kg | |
| 40HQ Container | 20 pcs | 8 pcs | 8 pcs | |

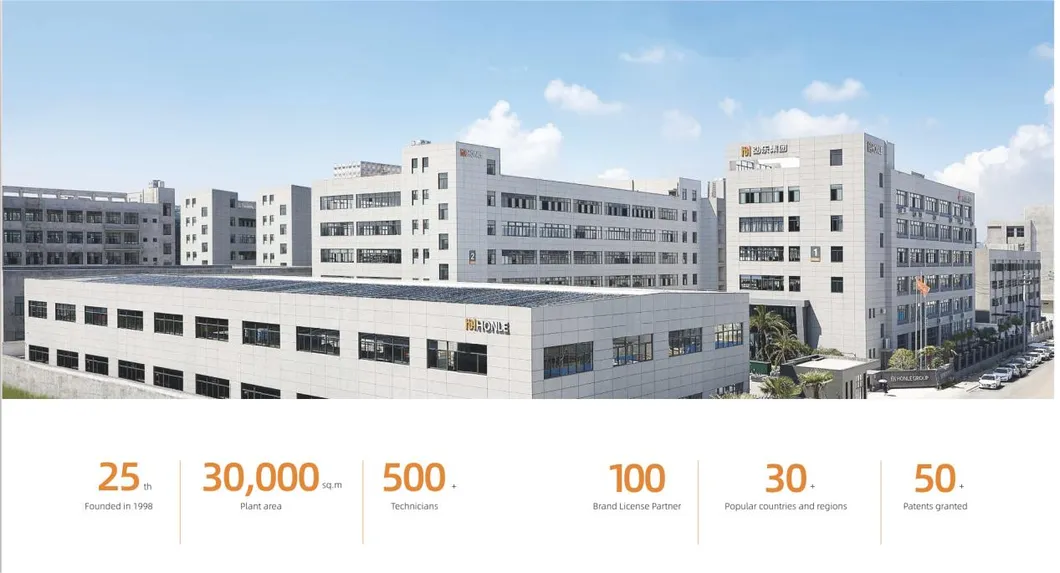

Located in Zhejiang China, our group is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in the electric and new energy industry, we have established branches and offices globally. With stable products and services, we are solidifying our reputation as a renowned supplier worldwide.
Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. Our new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
We have established more than 100 agents in China, and set up overseas branches. At the same time, offices and general agents have been established in more than 30 countries and regions globally.

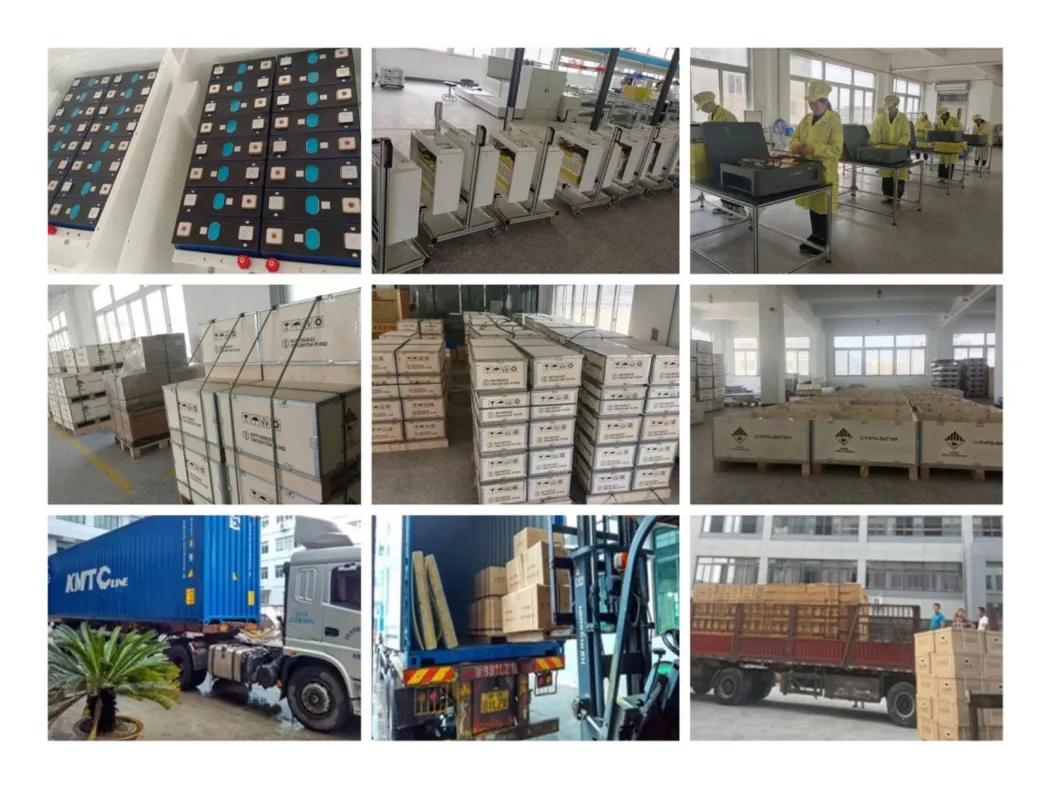

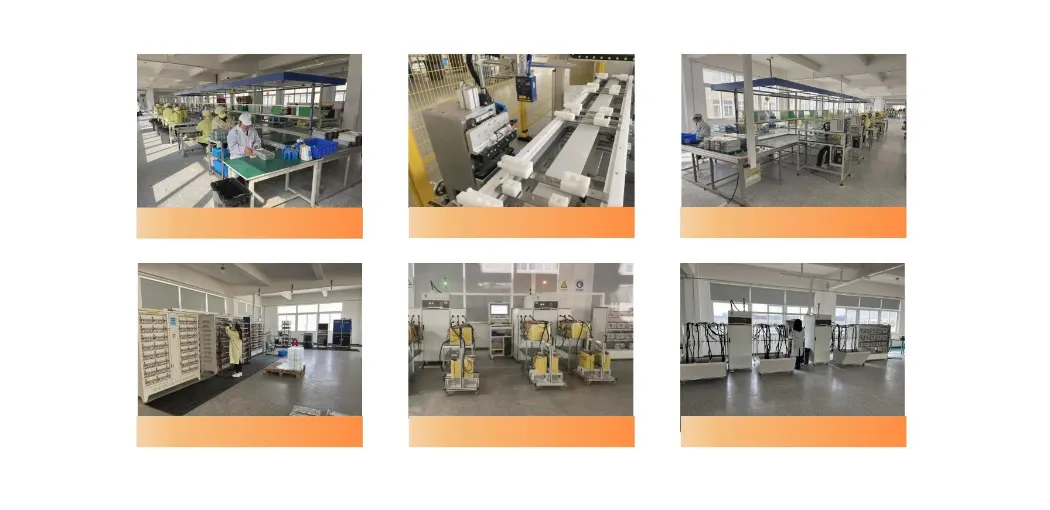

As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high-level testing machines and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets strict quality standards.
Yes. In general, MOQ is 1 set.
We are a manufacturer specializing in lithium-ion batteries.
For the large capacity, we can deliver around 25 days. It depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Yes, we can provide free OEM Service and ODM Service. We can design the packaging and logo according to your requirements.
Yes, all our products have been tested before delivery.
We have more than 20 years of manufacturing experience. We invest greatly in R&D to ensure reliable, stable, and technically advanced battery energy storage systems.
