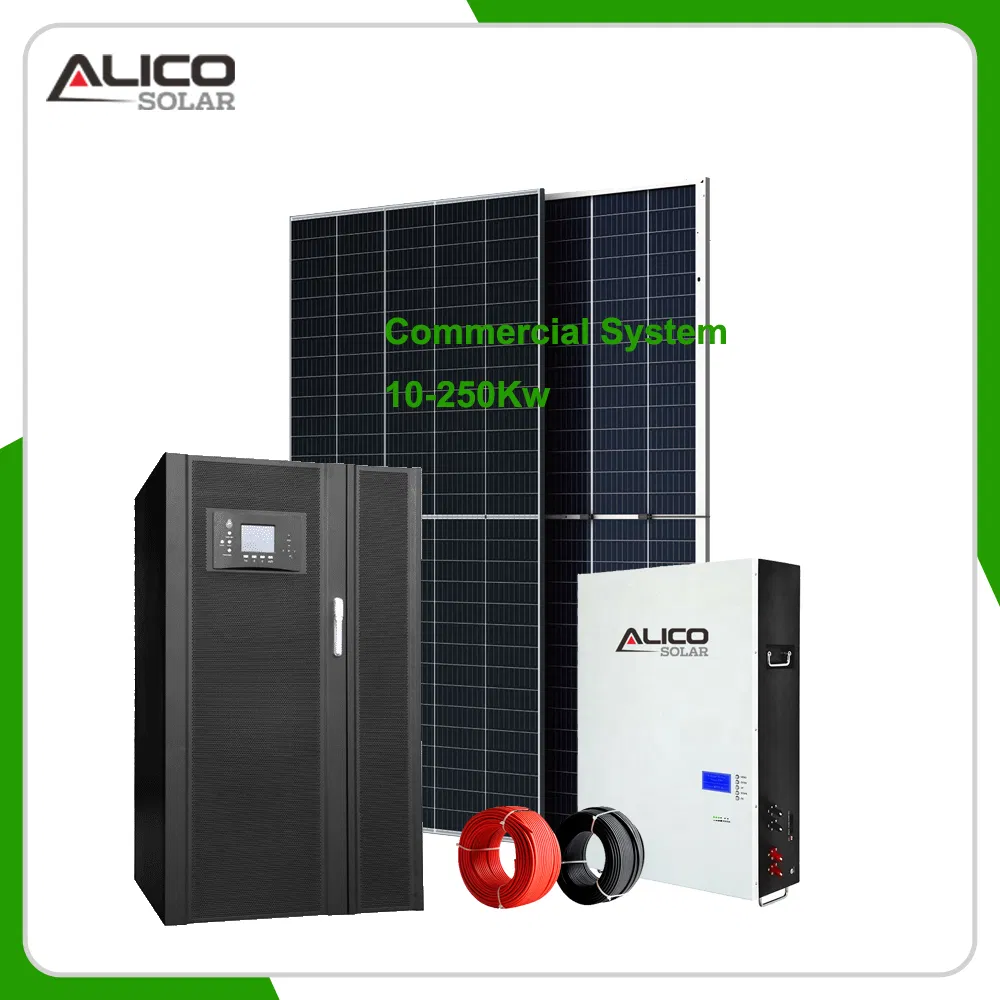

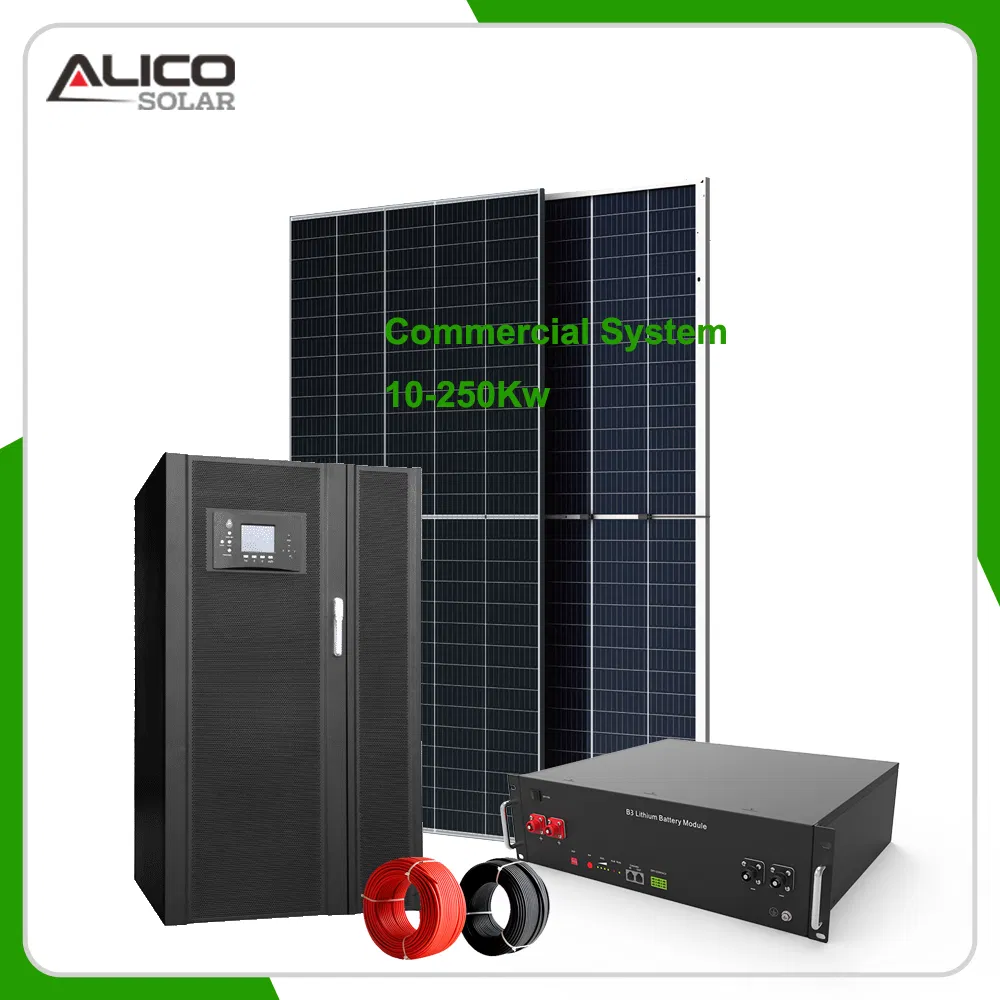

Flexible Photovoltaic Industrial Solar Energy System 20kw 50kw 100kw 200kw 500kw with Battery Energy Storage Containerized Support Project

1 / 5

Flexible Photovoltaic Industrial Solar Energy System 20kw 50kw 100kw 200kw 500kw with Battery Energy Storage Containerized Support Project

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Product Parameters

On Grid System Configuration

Projects Shown

Basic Info.

Model NO. 500KW-SYSTEM

Condition New

Certification ISO, CE

Application Home, Industrial, Commercial

Specification Normal, OEM

Mounting Support Roof or Ground Solar Mount Bracket

Solar Inverter Grid-Tied & Hybrid Inverter

System Type 500kw Solar System

Battery Bank Gel or Lithium

Transport Package Carton/Wooden Box

HS Code 85414020

Production Capacity 1.2 Gw/Year

Product Parameters

Name	500KW On & Off & Hybrid Solar System Description	Quantity
Solar Panel	Mono 550Watt PV Module	910 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On-Grid Inverter	500KW Three Phase	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	6 mm2	8000 Meters
MC4 Connector	6 mm2 1000VDC	20 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	10 Set
Off-grid Inverter	500KW Three Phase	1 Sets
Hybrid Inverter	500KW Three Phase	1 Sets
Battery bank	Gel batteries or OPZV batteries or Lithium batteries	Few sets

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

On Grid System Configuration

1. Solar Panel
2. Hybrid Inverter
3. Switch Box
4. Power Meter

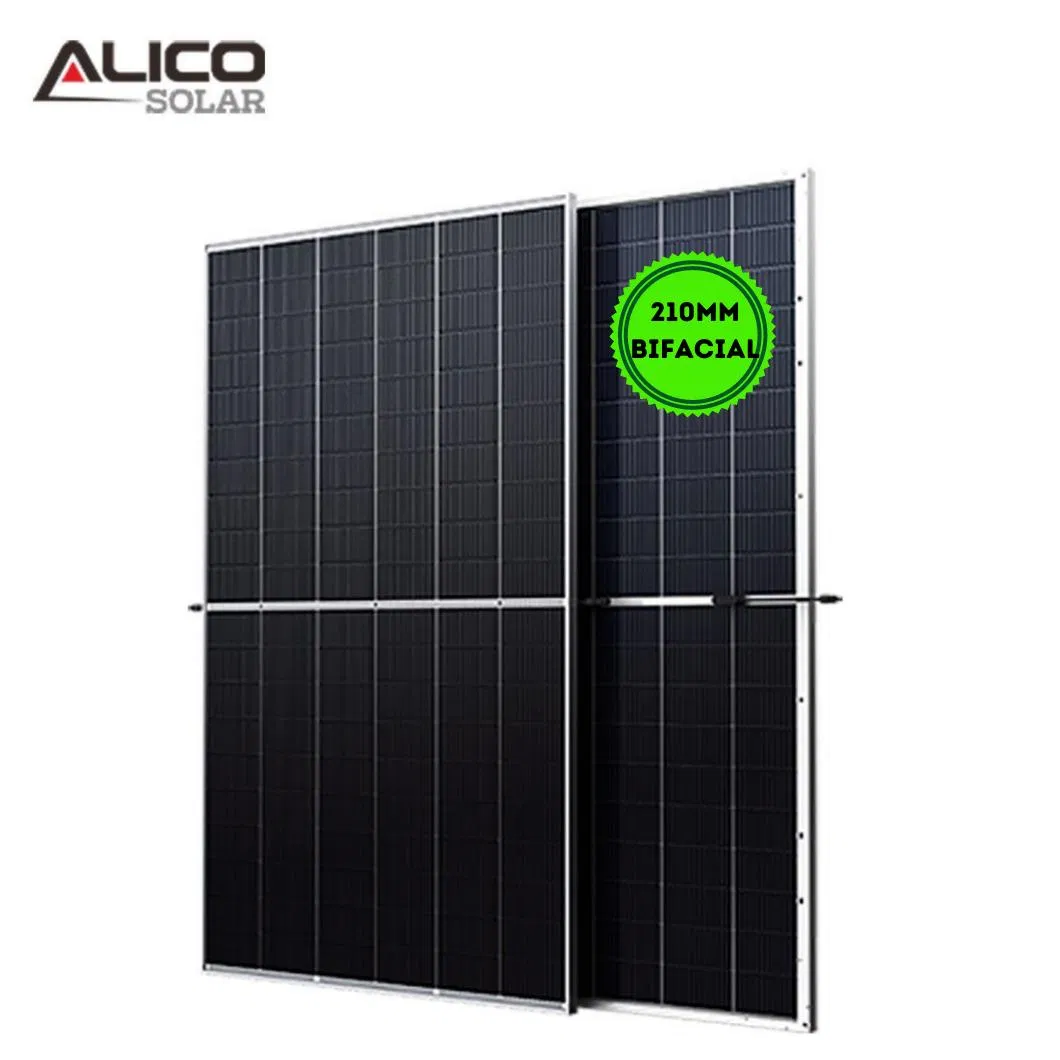

Mono Solar Panels

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

On-Grid Inverter

Max. DC Input Power: 1000KW*2
Max. DC Input Voltage: 1200V
MPPT Voltage Range: 90-1000V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380V; 400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

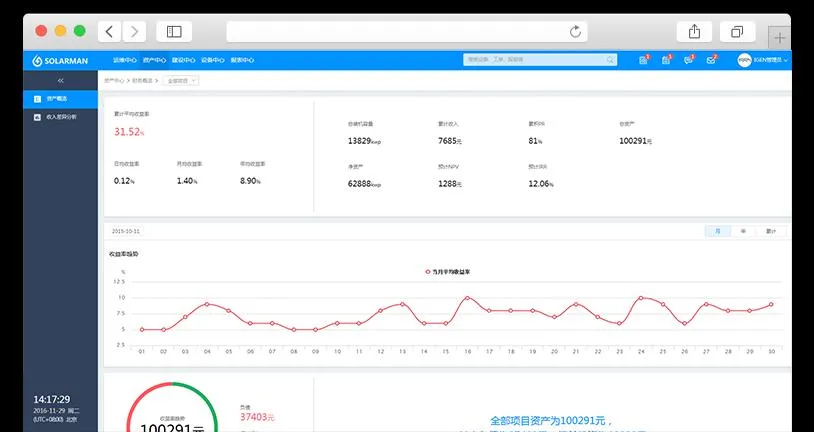

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan or GPRS.
App Available for PC, IOS & Android

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

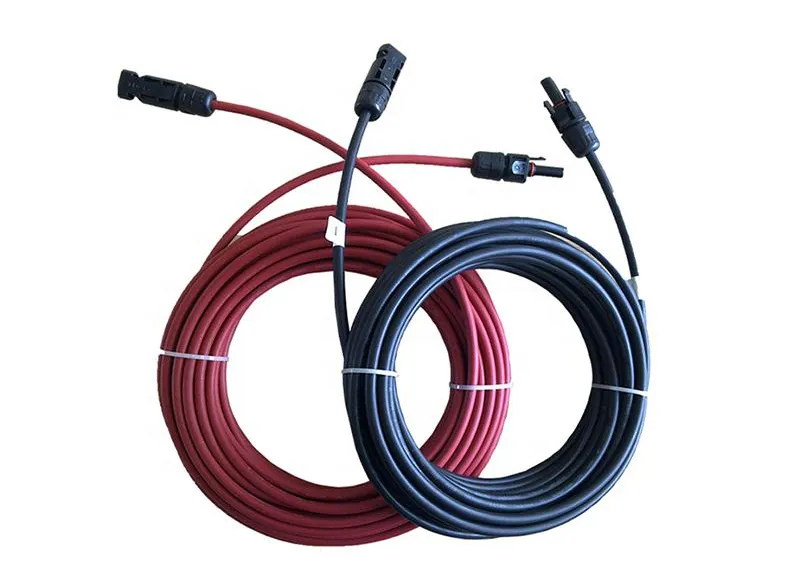

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤ 25 Years

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

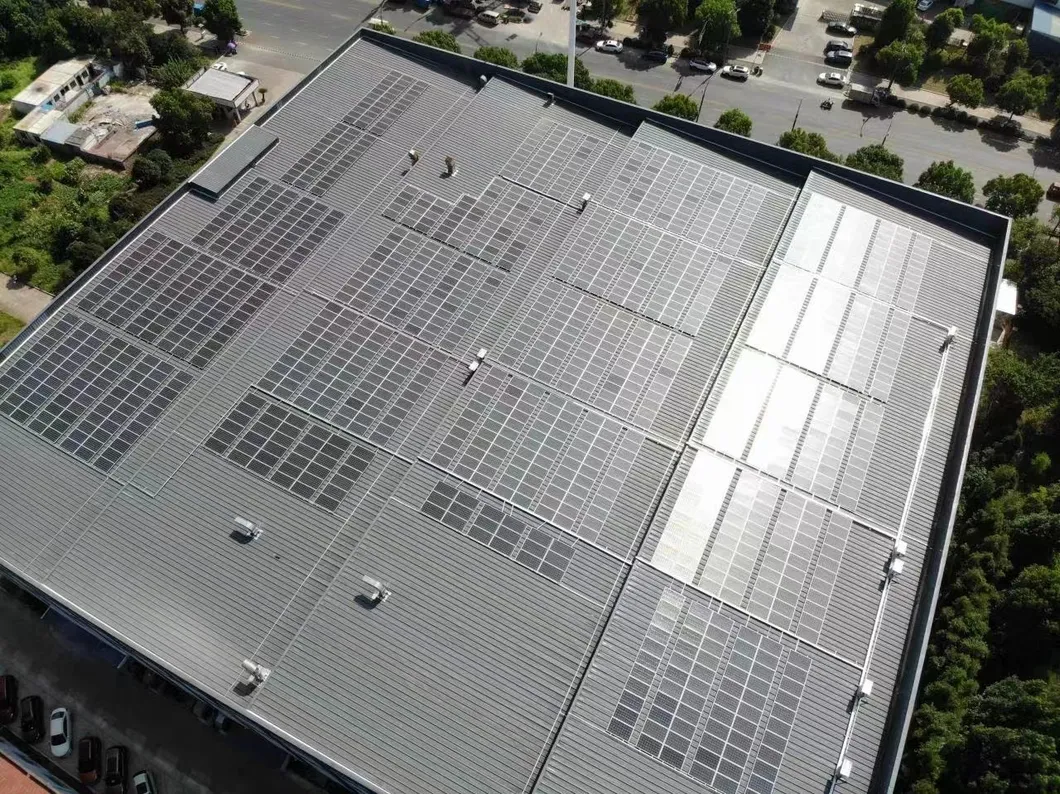

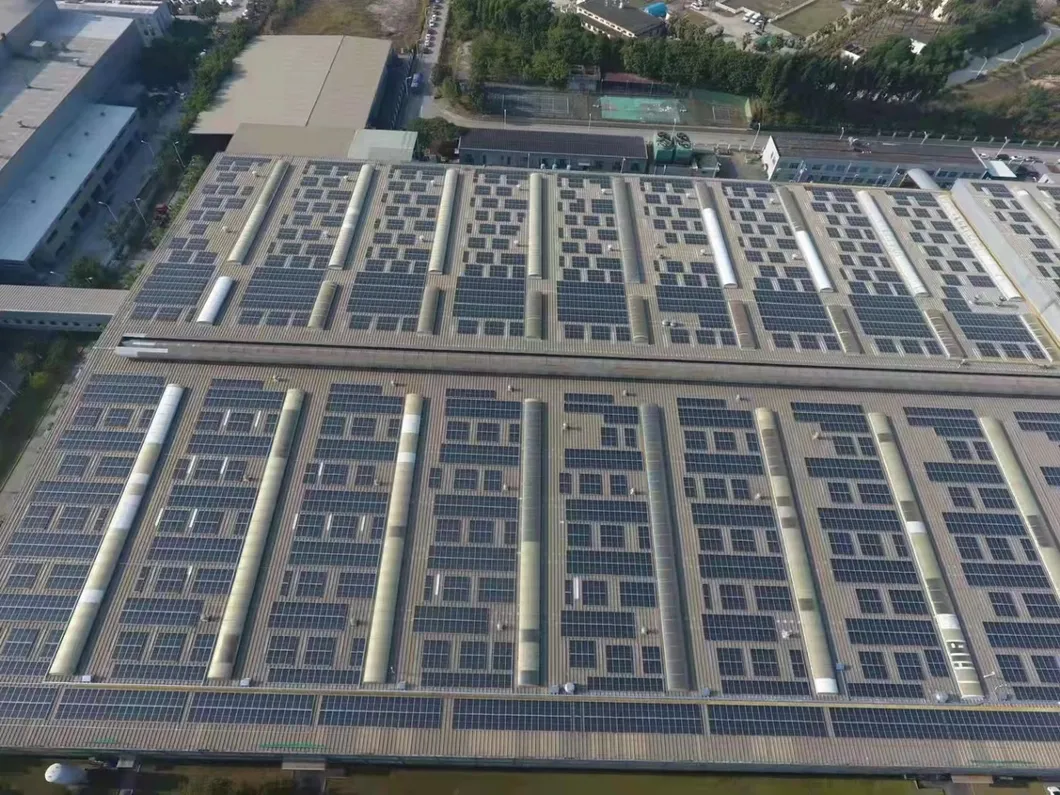

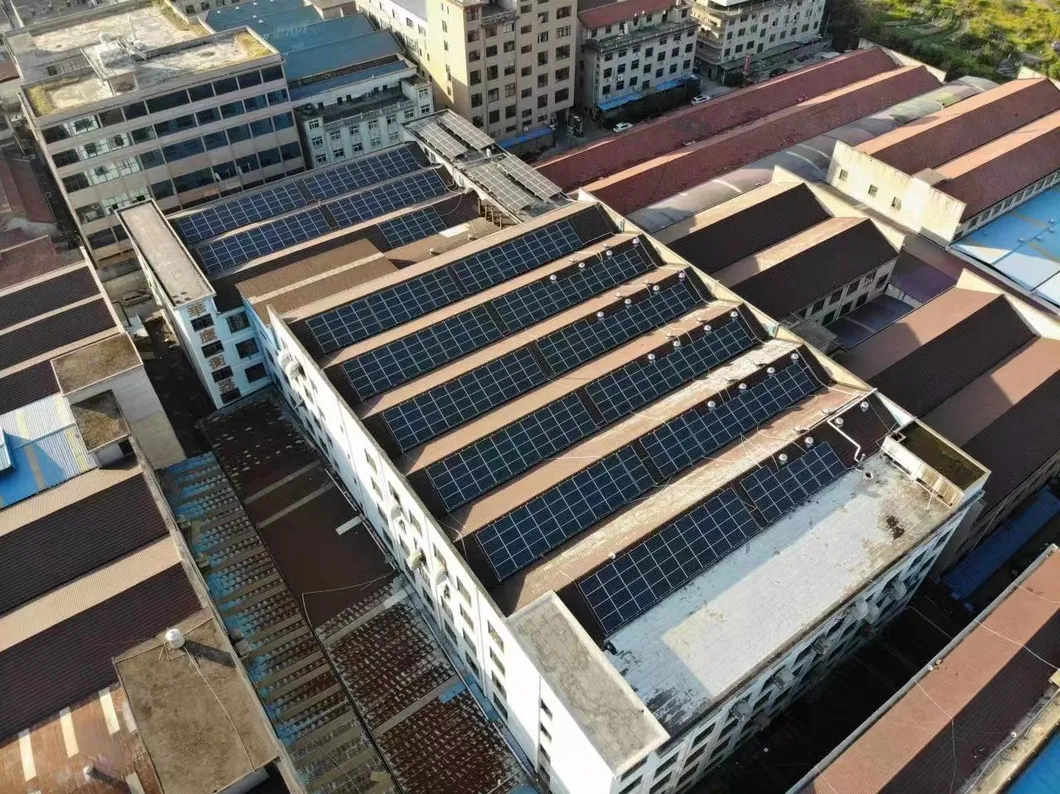

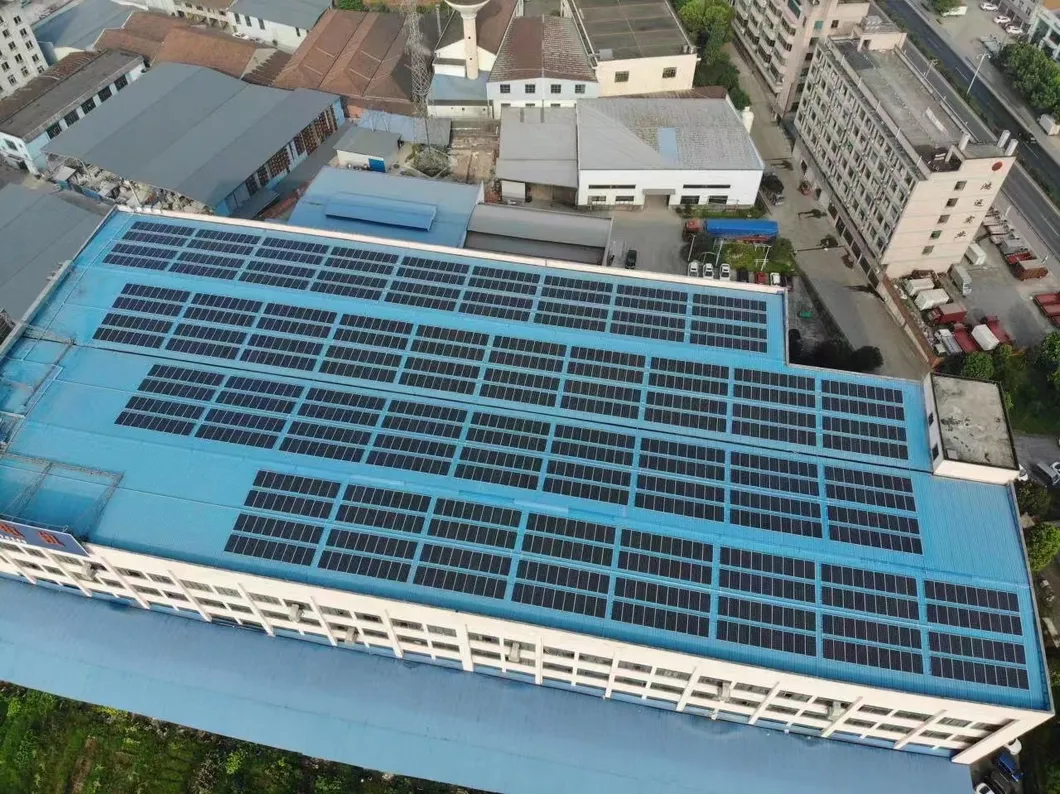

Projects Shown

Frequently Asked Questions

What components are included in this 500KW solar energy system?

The system consists of 910 pieces of Mono 550W Solar Panels, a 500KW Inverter (compatible with On-Grid, Off-Grid, or Hybrid configuration), DC/AC disconnect switches, 8000 meters of DC cable, MC4 connectors, a pitched roof mounting system, and a dedicated set of installation tools.

What types of inverters can be used with this system setup?

This system supports On-Grid, Off-Grid, or Hybrid inverters depending on your installation requirements, allowing you to feed electricity back to the grid or store it for off-grid operation.

Can the system's remote monitoring features be accessed on mobile devices?

Yes, the remote monitoring system includes a data logging stick that transmits system output data via Wi-Fi, LAN, or GPRS. An application is available for PC, iOS, and Android to check your system from anywhere.

What is the expected warranty and lifespan of the solar panels?

The Mono Solar Panels feature Tier 1 standards, offering a 12-year quality warranty and a 30-year power performance warranty.

Is the mounting system customizable for ground mounting?

The standard kit includes a pitched roof mounting system. However, ground mounting and customized roof configurations are also available depending on site requirements.

What battery options are supported in the hybrid configuration?

The hybrid configuration is compatible with Gel, OPZV, and Lithium batteries to provide optimal energy storage flexibility.
