| Parameter | Specification |
|---|---|

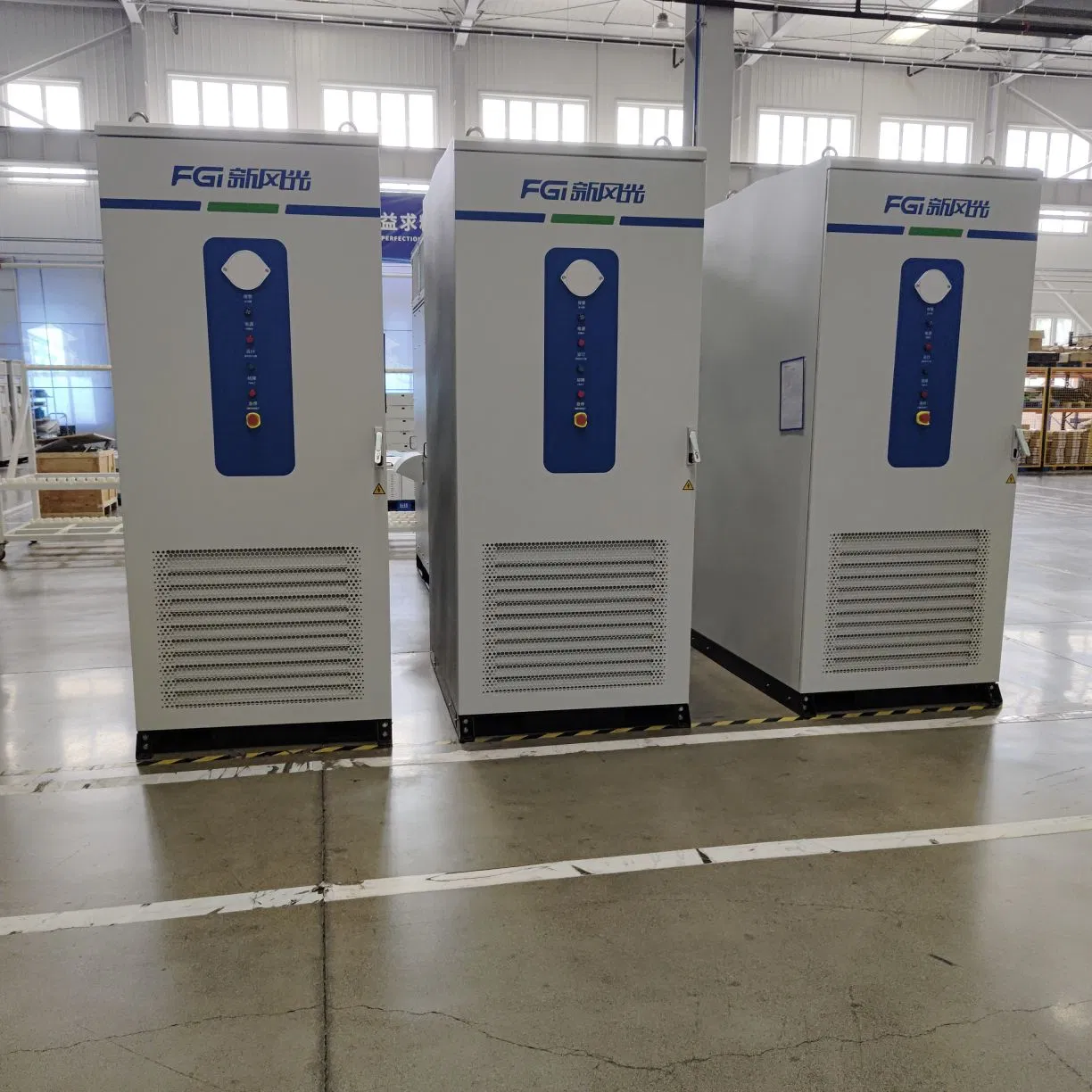

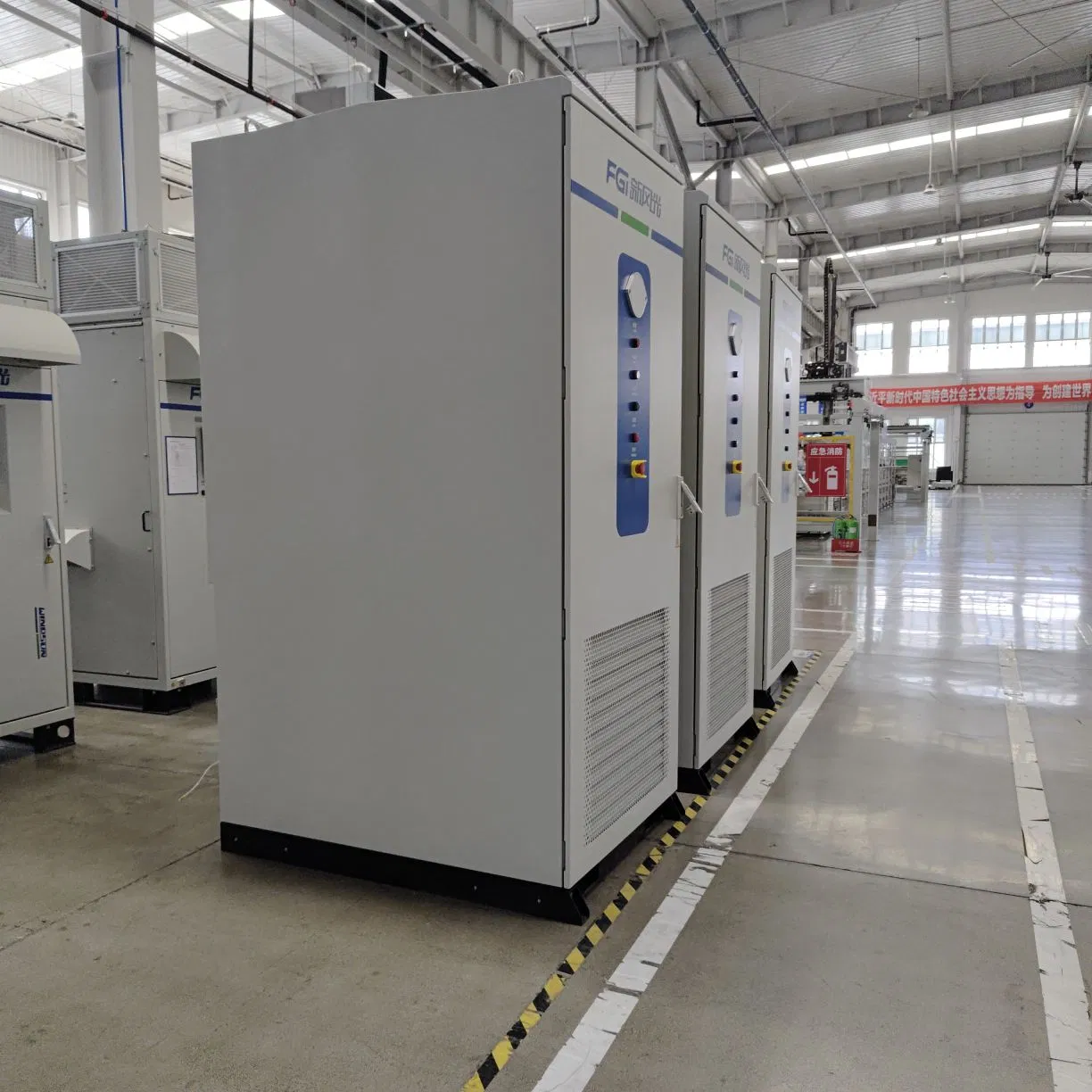

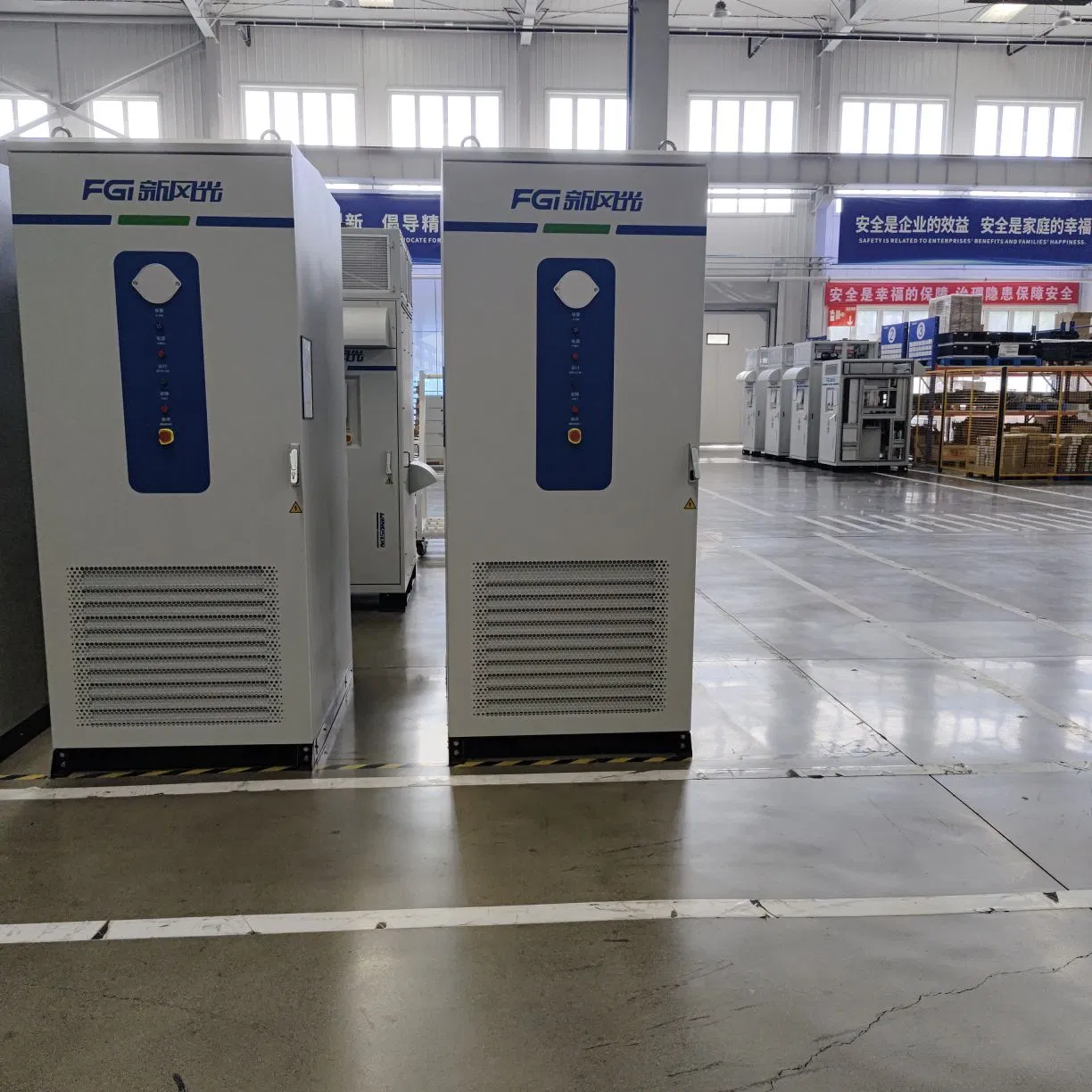

| System Rating (Single Cabinet) | 125 kW / 261 kWh |
| Max. Parallel Configuration | 10 units per group (Total: 1250 kW / 2610 kWh) |

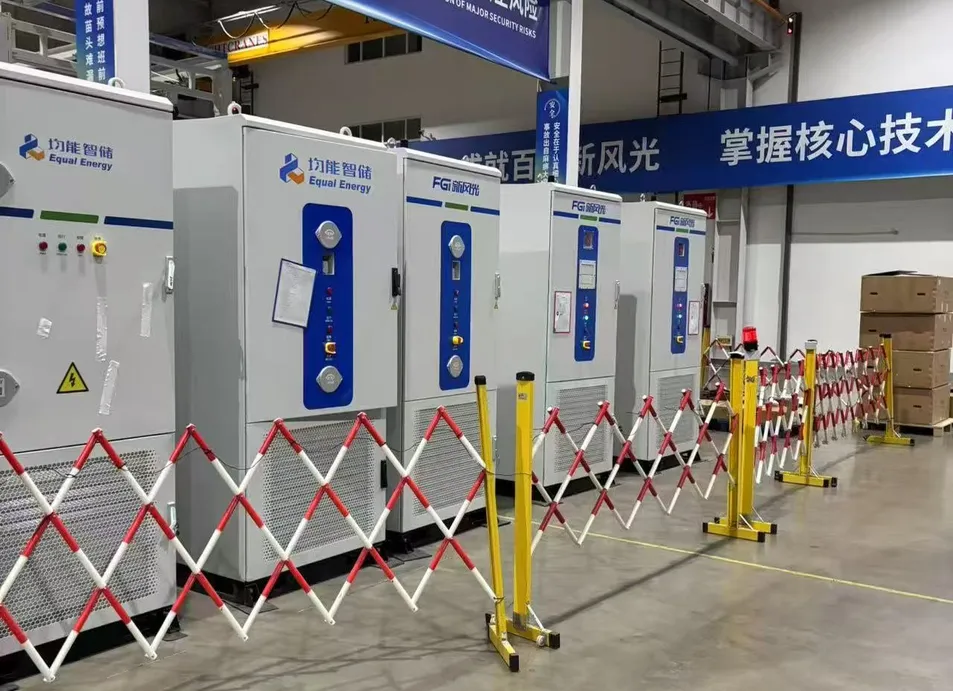

| Cooling Method | Liquid cooling (DC side), Air cooling (AC side) |
| Cycle Life | 6,000 cycles (@25℃, 0.5P, 90% DOD, 70% EOL) |
| Max. System Efficiency | ≥ 88% (@ 0.5P) |
| Dimensions (W × D × H) | 1000 × 1300 × 2400 mm |
| Weight | 2.8 Tons |
| Protection Class | System: IP55 / Battery Pack: IP67 / PCS: IP20 |
| Corrosion Resistance | C4-M |
| Noise Level | < 70 dB |
| Operating Temperature | -20℃~ 50℃ (Derating above 45℃) |
| Storage Temperature | -20℃~ 55℃ |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Operating Altitude | ≤ 2000 m |
| Fire Protection System | Pack & Cabin level aerosol extinguishing, Ventilation, Sound & Light Alarm, Water firefighting interface |
| Detectors | Temperature, Smoke, H2 (Hydrogen) |
| Communication Protocol | Modbus TCP/RTU, IEC104, MQTT |

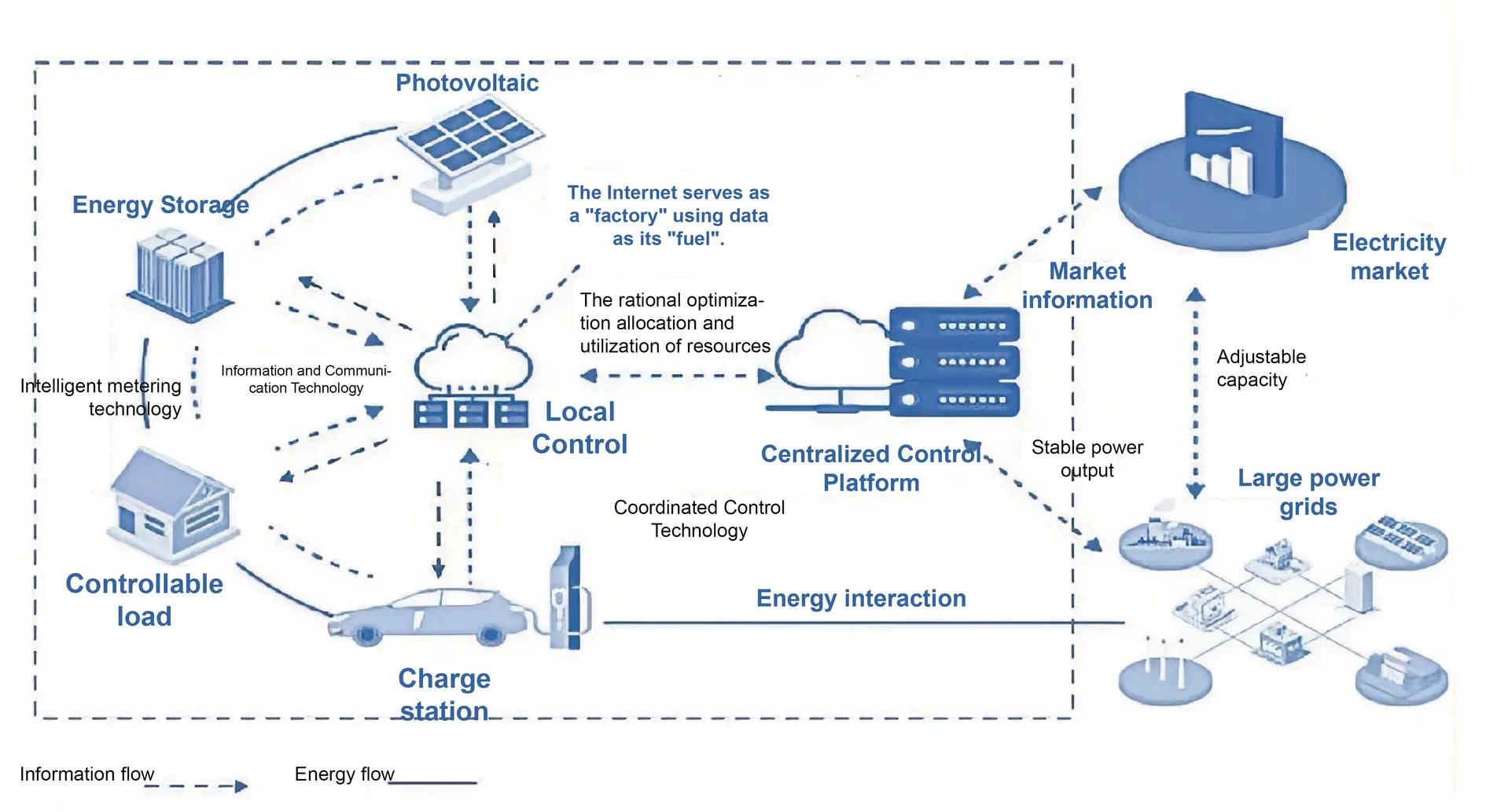

| Operation Modes | Peak shaving & Valley filling, Demand Control, Load Following, Anti-backflow |
| AC Grid-connected | |
| Rated AC Power (kW) | 125 |
| Overload Capacity (kW) | 138 |
| Wiring Method | 3P+N+PE |
| Allowable Grid Voltage Range (Vac) | 400 (-15% ~ +15%) |
| Allowable Grid Frequency Range (Hz) | 50/60 (-2.5 ~ +2.5) |
| Power Factor | -0.99 ~ +0.99 |
| Maximum Conversion Efficiency | ≥98.5% |
| Unbalanced Load Capacity | 100% |
| AC Off-grid | |
| AC Off-grid Voltage (V) | 400 (-15% ~ +15%) |
| AC Off-grid Frequency (Hz) | 50 Hz |
| Off-grid Output Voltage Distortion Rate | ≤3% |
| DC Side | |

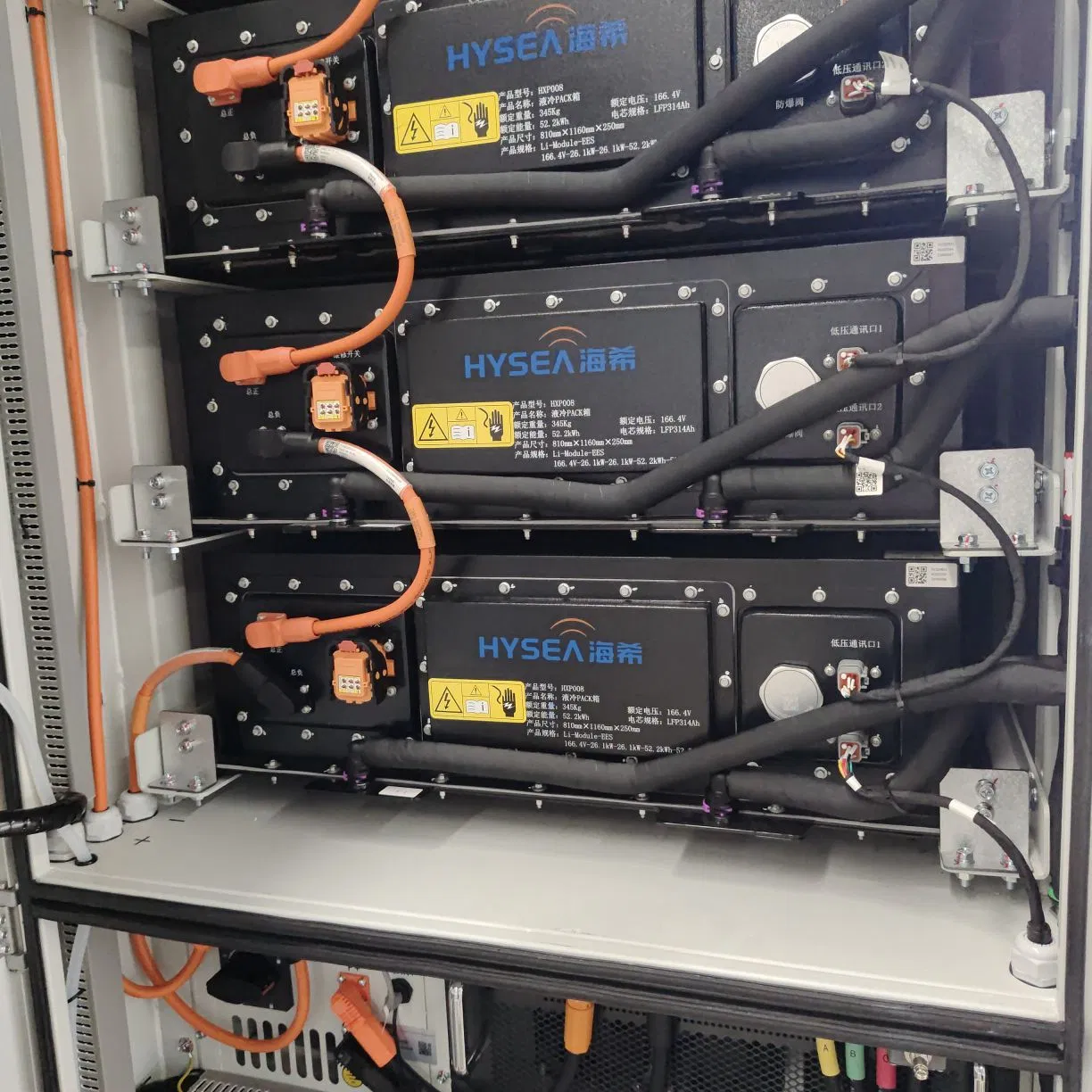

| Battery Type | Lithium Iron Phosphate |
| Combination | 1P260S |
| Rated Capacity (Ah) | 314 |
| Rated Energy (kWh) | 261.248 |
| Rated Voltage (V) | 832 |
| Rated Charge and Discharge Rate | 0.5P |
| Operating Voltage Range (V) | 728 ~ 936 (Cell: 2.8 ~ 3.6) |
