1MW 3MW 5MW Solar Power Storage off Grid Batteries
BMS System
Customized
Battery Type
Lithium Ion Battery Cell
Cycle Life
>6000 Cycles
OEM/ODM
Acceptable
Rated Output Voltage
315VAC/400VAC
Output Wiring
Three-Phase Four-Wire/ The-Phase Five-Wire
LCD Display
Yes
Transport Package
Container
Origin
China
HS Code
8543709990
Production Capacity
10 Set/Sets Per Month
Product Description

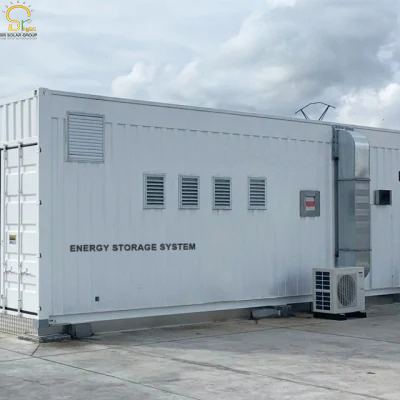

The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client's application.
Product Description for Energy Storage System
Features of Energy Storage Container Energy Storage System

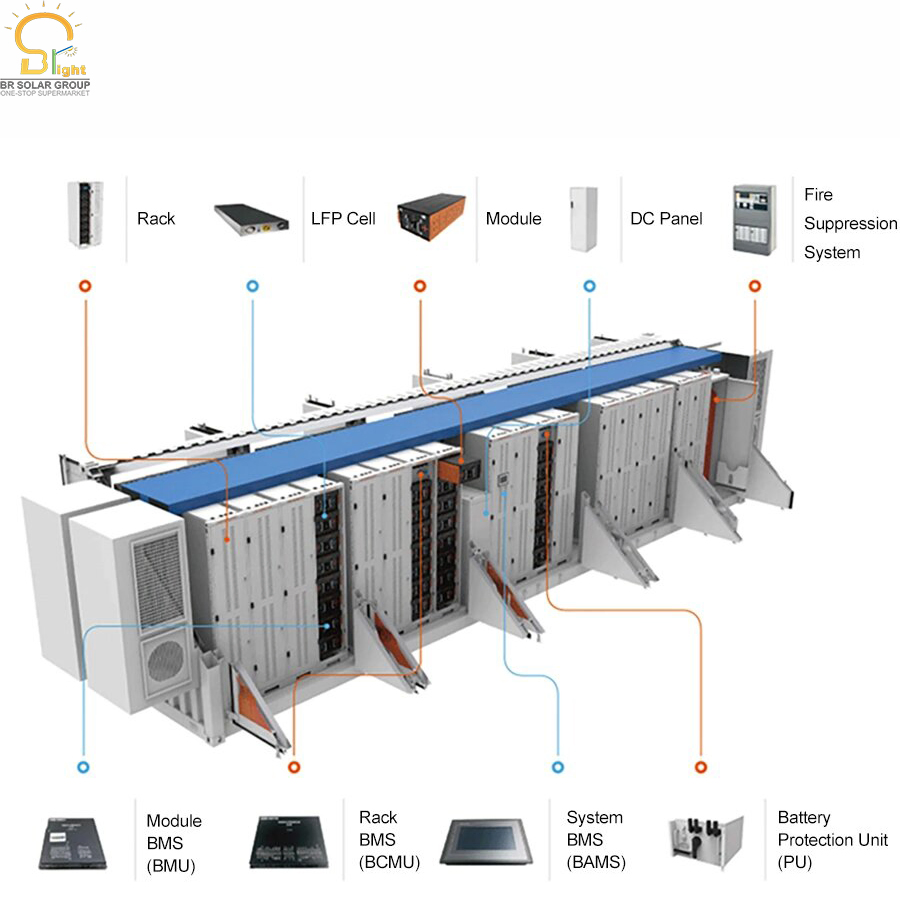

1. High degree of system integration, integrated battery management system, PCS, temperature control system, fire control system, access control system, data monitoring system, AC and DC power distribution, lighting system, etc.
2. Customizable design to meet different customer needs.
3. Third-level BMS system architecture, safe and reliable.
4. The charging mode includes pre-charging, constant-current charging, uniform charging and floating charging.
5. The energy storage system has perfect functions of communication, monitoring, management, control, early warning and protection. It operates continuously and safely for a long time. It can detect the running state of the system through the upper computer. It has abundant data analysis ability and emergency power supply function.

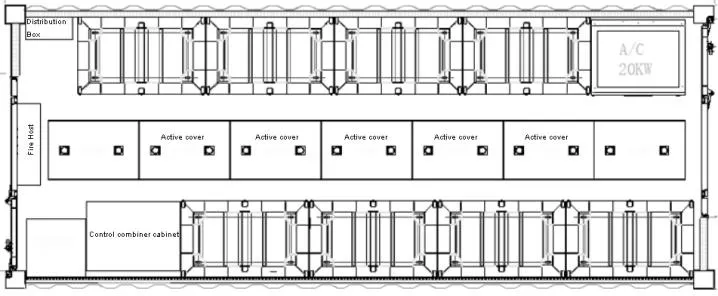

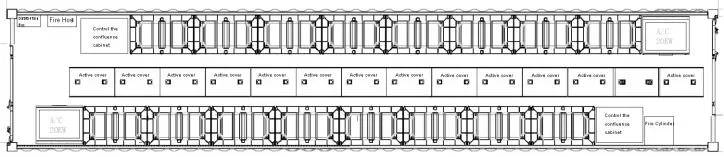

20ft Energy Storage Integrated Warehouse
NO.
Name
1000V
1
Container Size
6058mm(L)×2438mm(W)×2896mm(H)
2
Charge and Discharge Rate
0.5C
1C
2

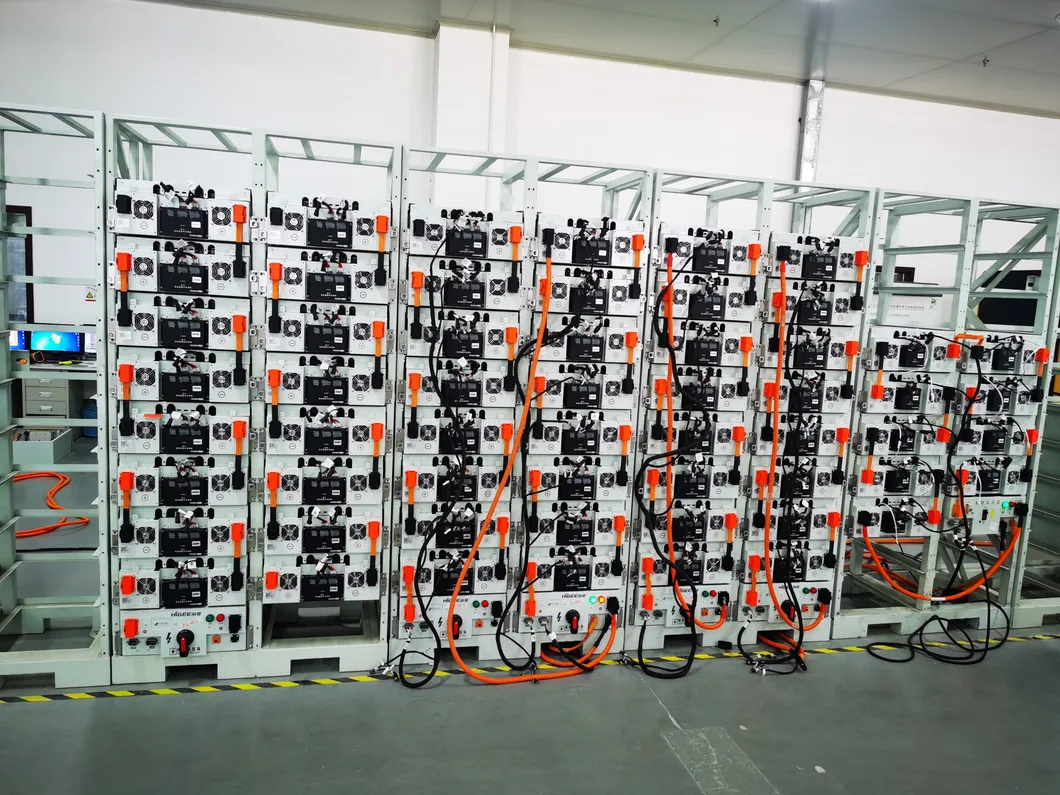

Battery Cluster
38240 Battery Cluster*8
76120 Battery Cluster*14
3
Nominal Voltage
729.6V
691.2V
4
Rated charge and discharge power
630kW*1
500kW*2
5
Maximum stored power
1400kWh
1161kWh
40ft Energy Storage Integrated Warehouse
NO.
Name
1000V
1500V
1
Container Size
12192mm(L)×2438mm(W)×2896mm(H)
2
Charge and discharge rate
0.5C
1C
0.5C
1C
2
Battery Cluster
38240 Battery Cluster*16
76120 Battery Cluster*28
38240 High Voltage Version Battery Cluster*8
76120 High voltage Version Battery Cluster*16
3
Nominal Voltage
729.6V
691.2V
1305.6V
1305.6V
4
Rated charge and discharge power
630kW*2
500kW*4
1250kW*1
1250kW*2
5
Maximum Stored Power
2800kWh
2322kWh
2506kWH
2506kWH
Product Parameters for 1MW/2.5MWH Energy Storage System for your reference: Customized service is available
1MW/2.5MWH Energy Storage System
Rated output power
1000KW
Rated capacity
2500KWH
AC Phases
Three-phase Four-wire
Grid discharge mode
Rated voltage
380V
Voltage range
380±15%V
Rated frequency
50Hz
Frequency range
47.5~51.5Hz
Total current waveform distortion rate(THD)
<5%
Output power factor
≥0.99
Isolated network operation mode
Rated voltage
380V
Voltage accuracy
<±3%
Output voltage distortion
<5%
Rated output frequency
50±2%Hz
Voltage transition range
<10%
Can withstand three-phase load imbalance
100%
Grid-connected charging operation mode
Rated voltage
400V
Voltage range is allowed
380±15%V
Frequency range
47.5~51.5HZ
Power factor
≥0.99(absolute value)
Noise
<70dB
IP GRADE
IP54
External communication
Ethernet
Dimension
12192mm(L)*2438mm( W)*2591mm(H)
Weight
22 Ton

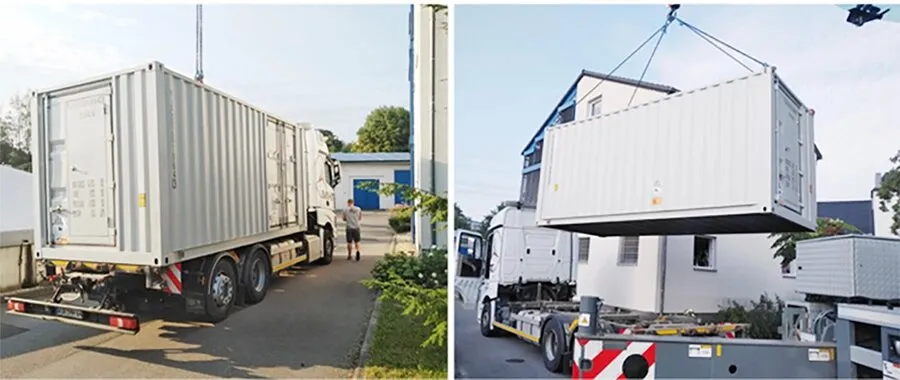

Packing & Shipping

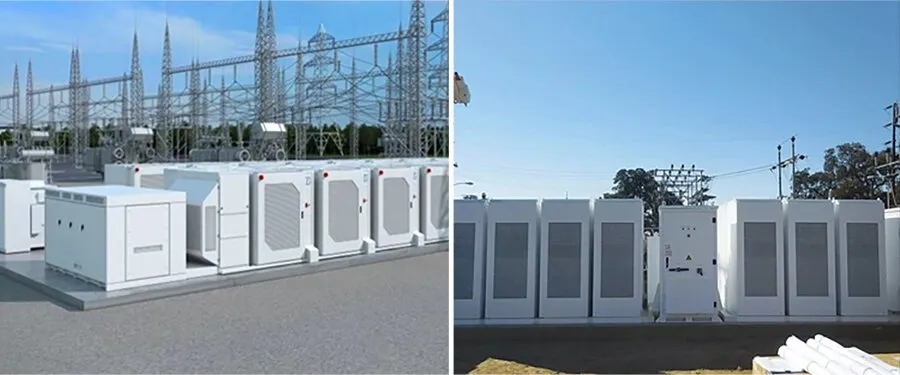

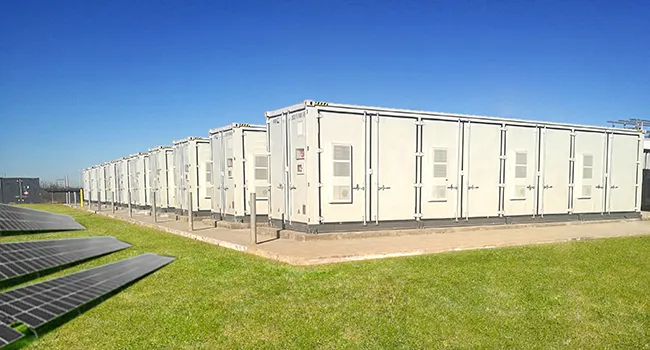

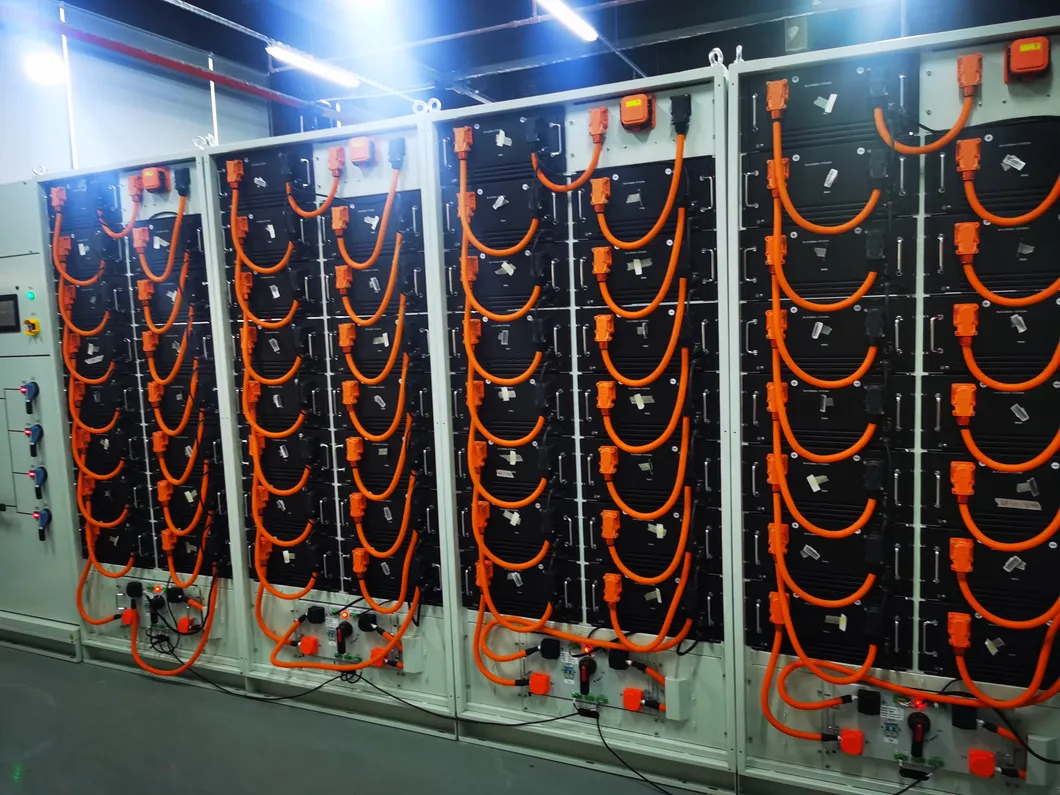

Our Projects

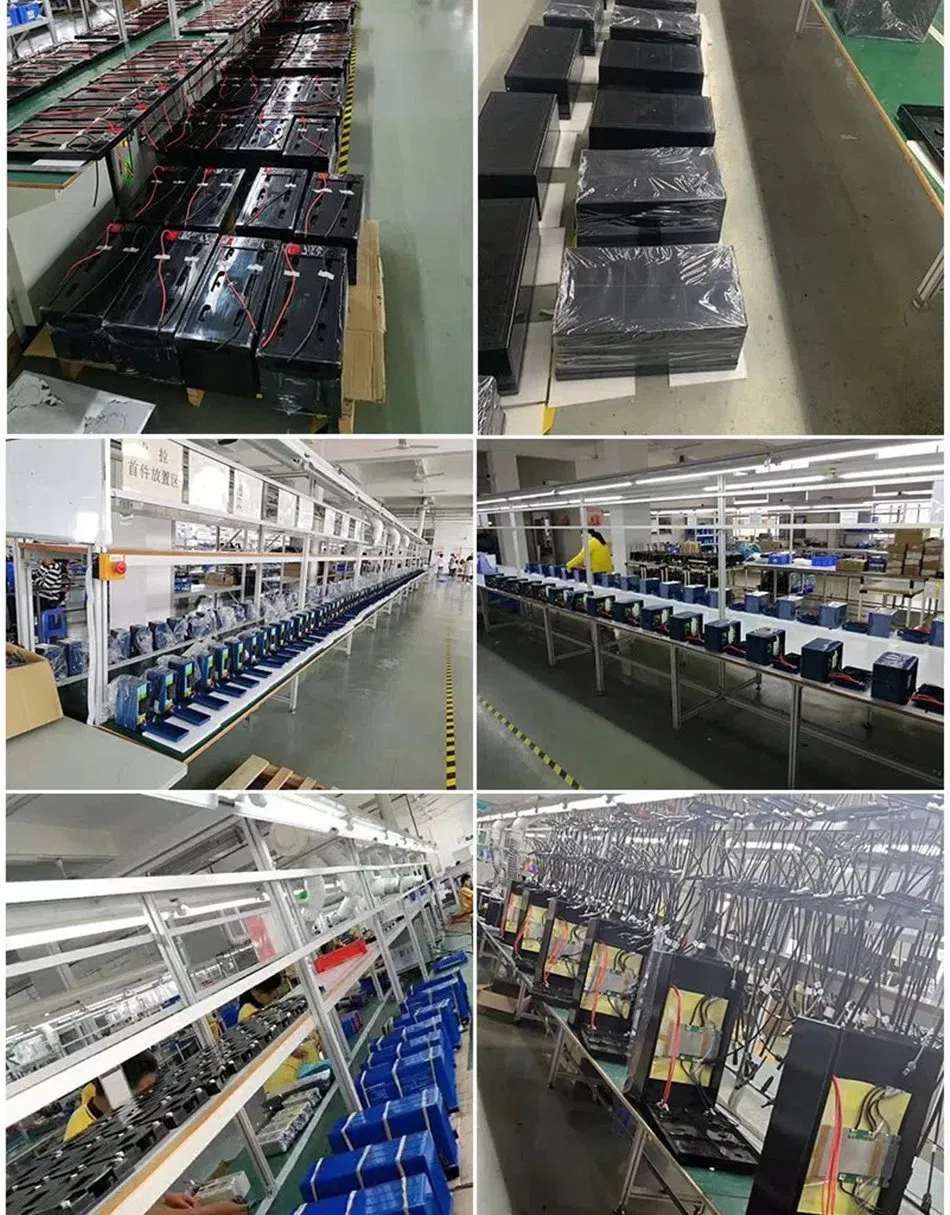

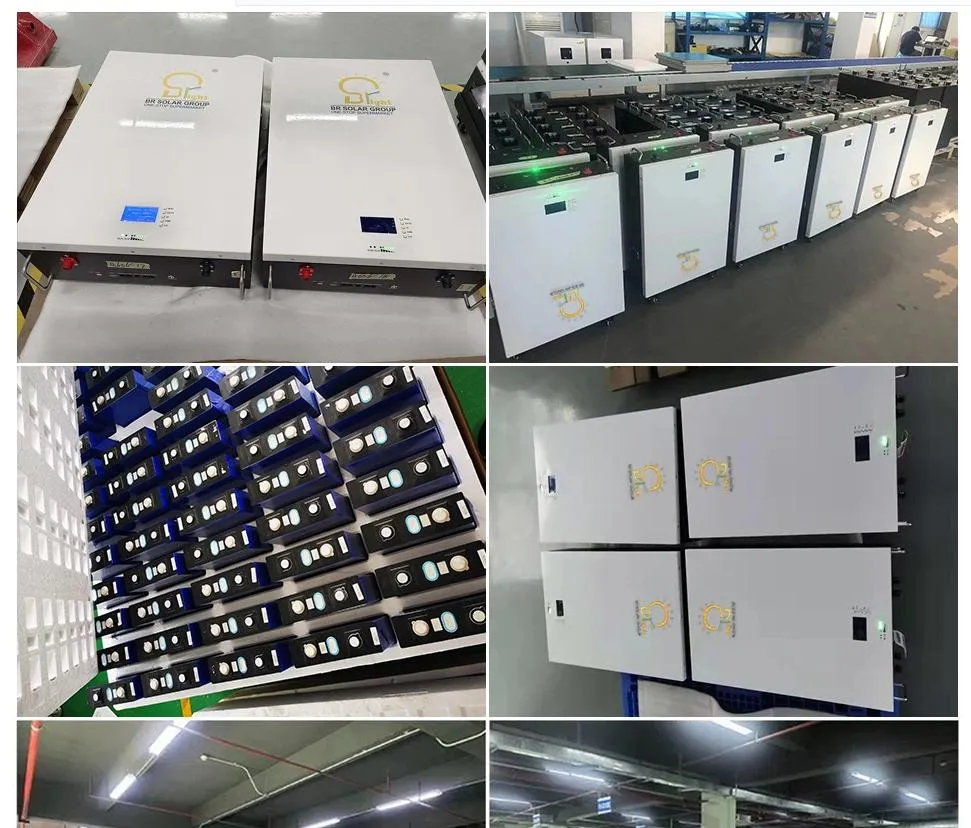

Our Factory

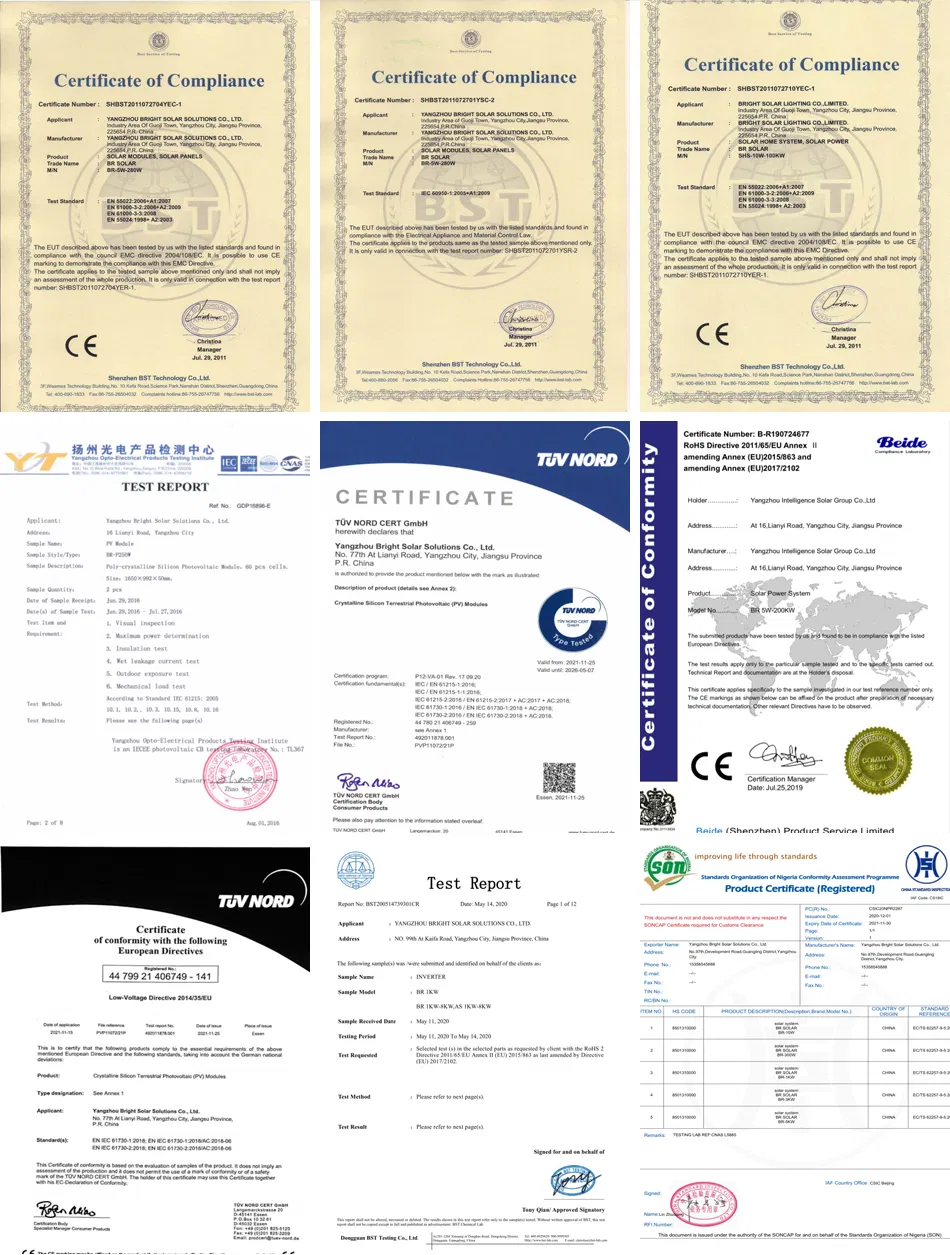

Certificates
A Billion Ways Go Green, Welcome to your inquiry.
Frequently Asked Questions
Q1: What are the main applications of this Energy Storage System (BESS)?

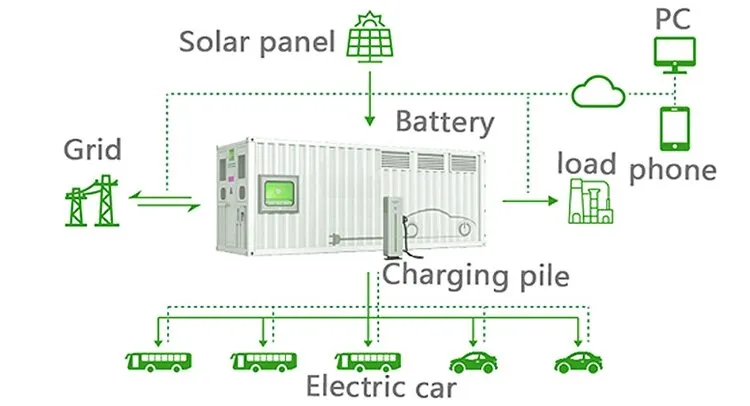

This containerized system is designed for large-scale industrial and commercial applications, peak shaving, microgrids, grid frequency regulation, and emergency backup power configurations.
Q2: What type of batteries are used in these system containers?
The system utilizes high-performance Lithium Ion Battery Cells featuring a long service life of over 6,000 cycles, offering stable energy density and maximum safety.
Q3: Can the battery system container be customized?

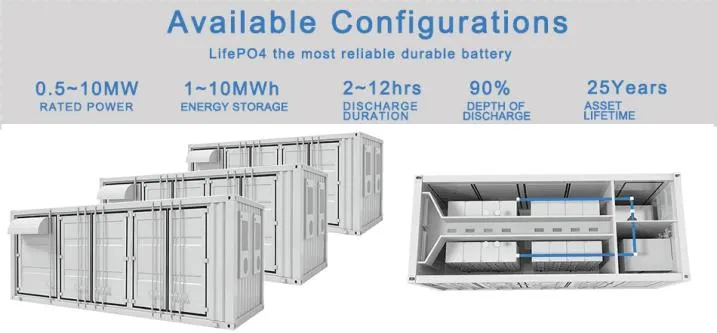

Yes. The container layouts (available in 20ft and 40ft structures) and the power/capacity systems are modularly designed and can be customized to match your specific requirements.
Q4: What protective measures are integrated into the container?
It features a highly integrated safety architecture including a three-level Battery Management System (BMS), localized temperature control systems, fire control systems, access control, and complete monitoring systems.
Q5: How can users monitor the real-time status of the ESS?
The system comes equipped with WiFi/GPRS communication devices and supports Ethernet interface connectivity. Users can easily monitor operations, view alerts, and perform data analysis via upper computer software.
Q6: What charging and discharging modes are supported?
The container system supports pre-charging, constant-current charging, uniform charging, and floating charging, providing efficient operation under varied grid and solar input loads.
