Product Description

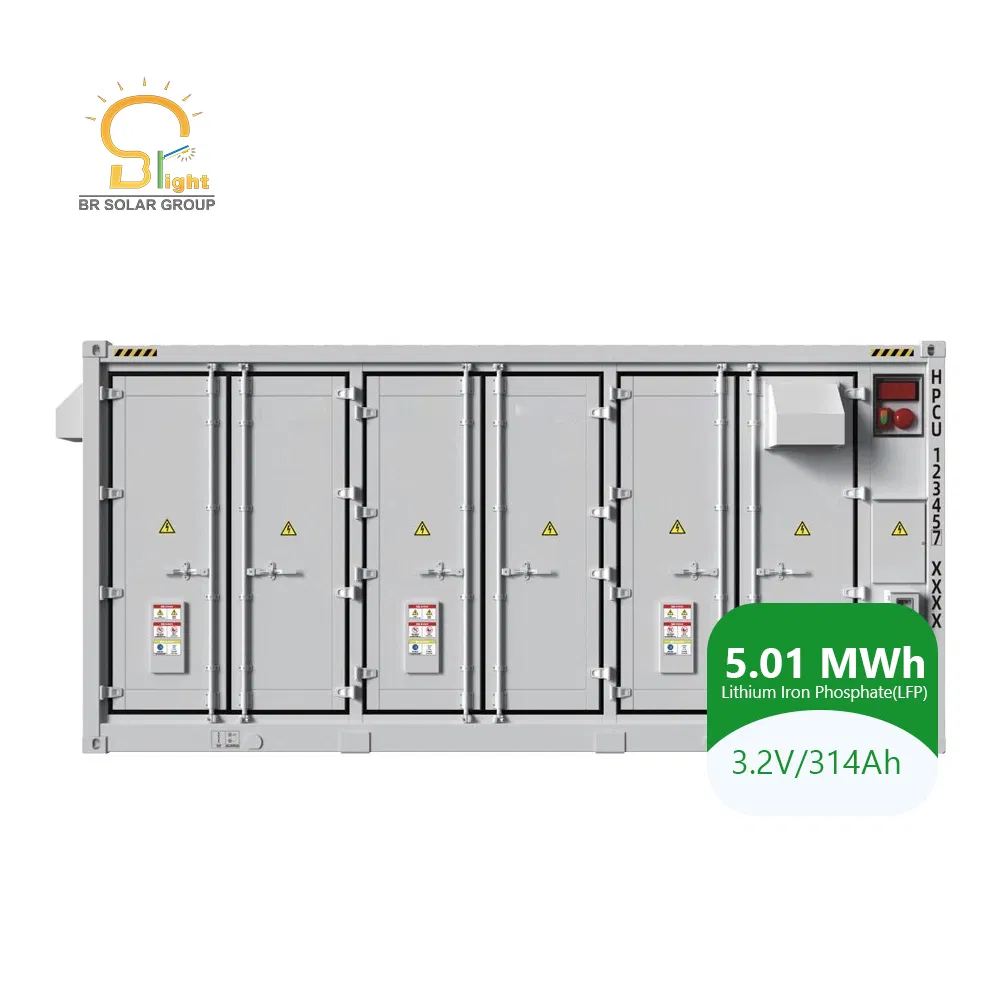

100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System

High Rated Capacity

Delivers a powerful 5.01 MWh energy capability utilizing advanced configurations.

LFP Cell Technology

Equipped with highly stable 3.2V/314Ah Lithium Iron Phosphate cells.

Comprehensive Safety

Equipped with deflagration venting, gas-based suppression, and water sprinklers.

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V

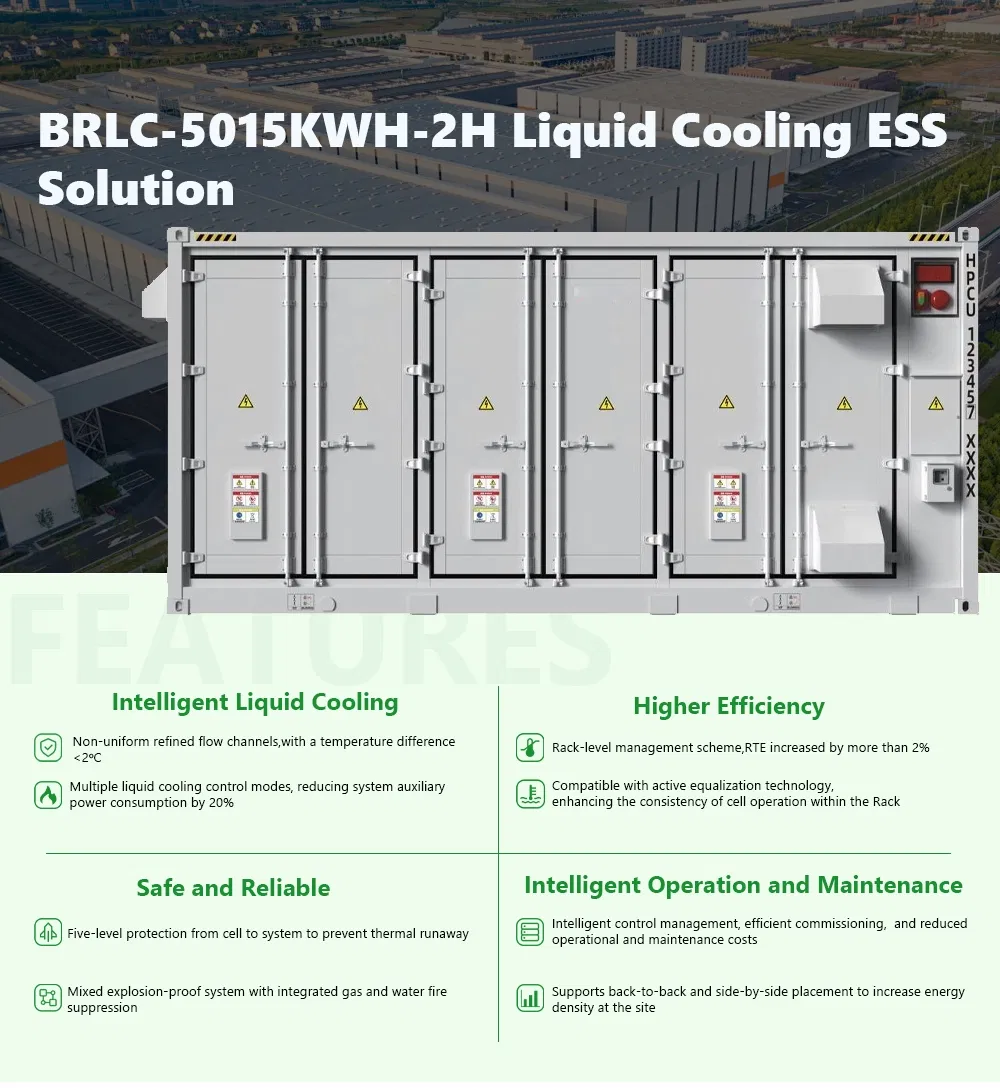

Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Storage temperature	−20~45ºC
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interface	Ethernet/CAN/RS485

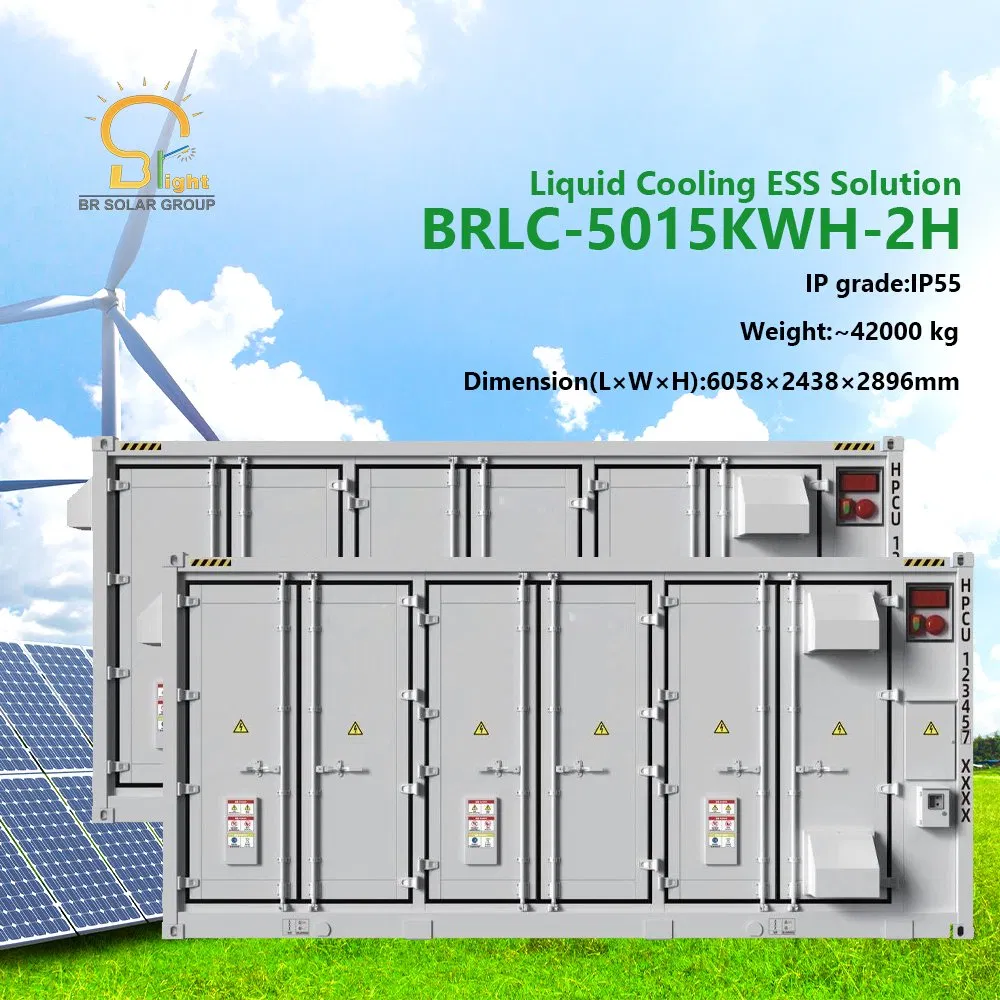

Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

Frequently Asked Questions

What battery cell technology does this system utilize? +

The containerized energy storage system uses high-performance Lithium Iron Phosphate (LFP) cells, configuration 3.2V/314Ah, ensuring superior reliability and cycle longevity.

What is the capacity and operating voltage of the system? +

It features a rated capacity of 5.01 MWh with a rated operating voltage of 1331.2V and a voltage range between 1164.8V and 1497.6V.

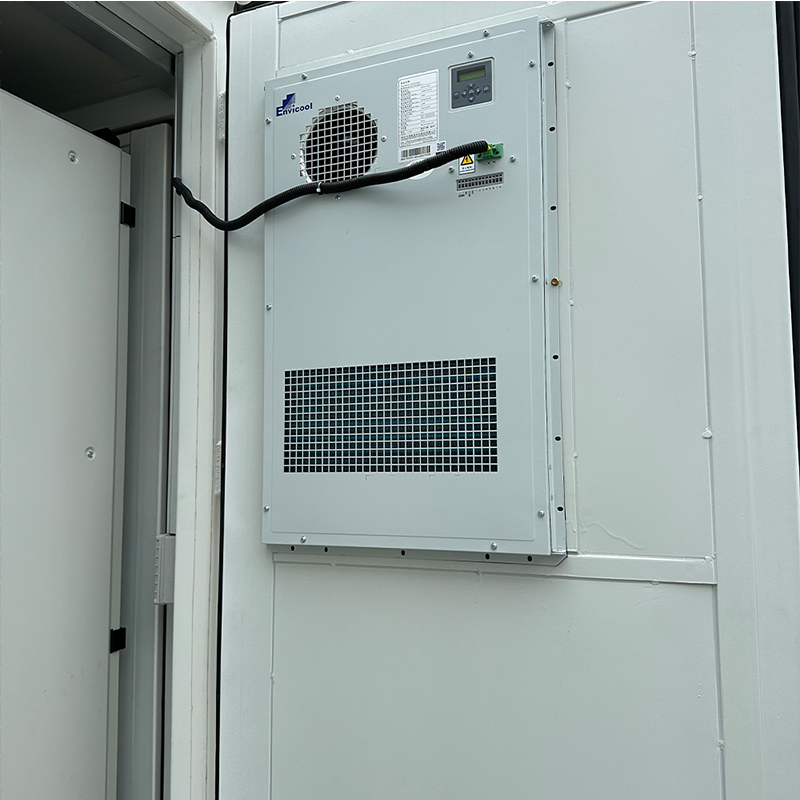

How does the thermal management system work? +

The system relies on an active Liquid Cooling method, allowing it to maintain optimal operating temperatures under varying loads and ambient conditions ranging from -30ºC to 50ºC.

What safety and fire protection features are integrated? +

Safety is ensured via a multi-level setup including temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and a water sprinkler system.

What are the environmental ratings and structural dimensions? +

It is built to IP55 standards, with an optional C4/C5 corrosion-proof rating. Dimensions are 6058×2438×2896mm with a total system weight of approximately 42,000 kg, built to withstand altitudes up to 3000m.

Which communication interfaces are available for system connection? +

The unit supports Ethernet, CAN, and RS485 interfaces for seamless connection to SCADA or external EMS systems.
