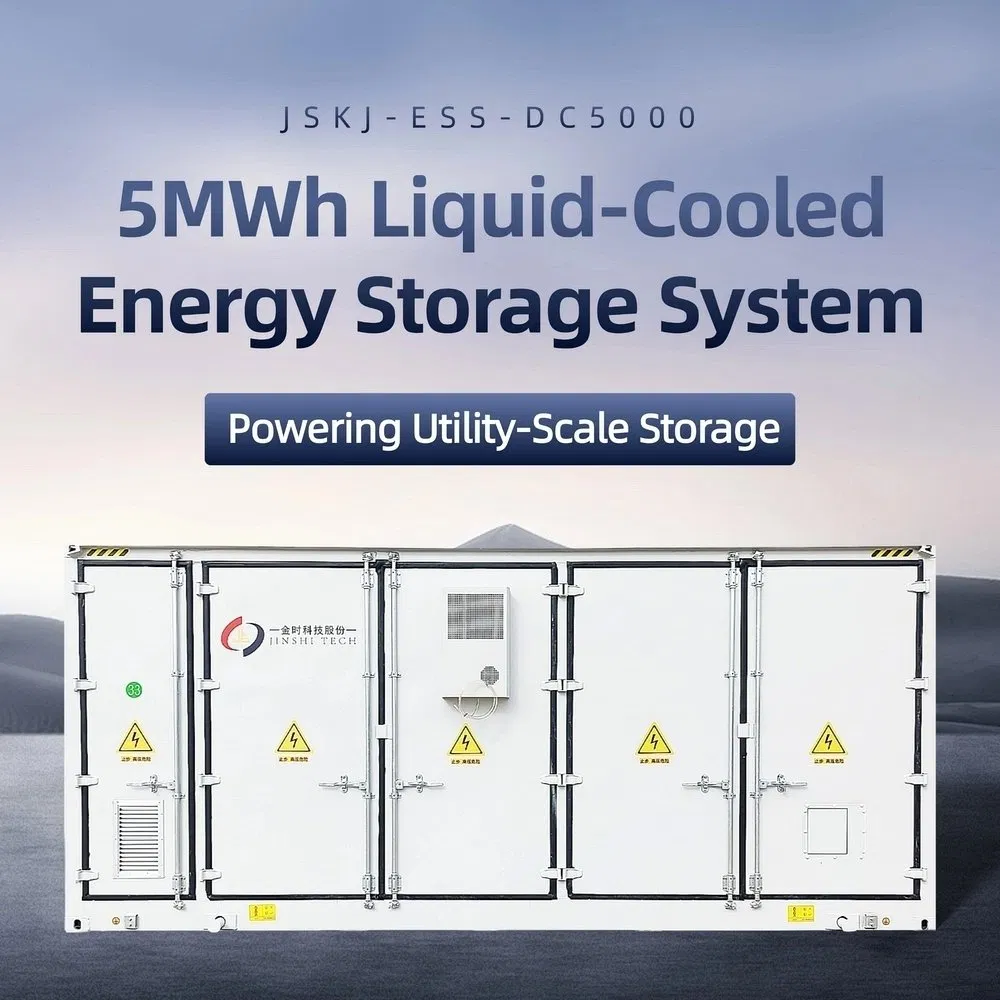

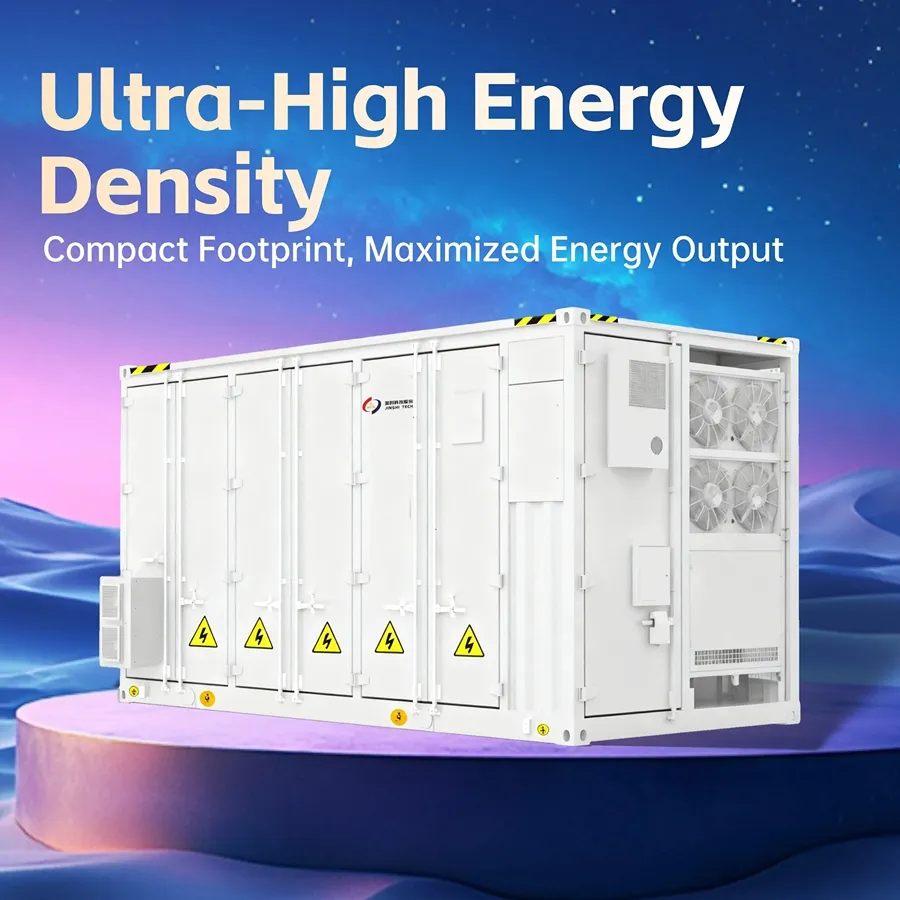

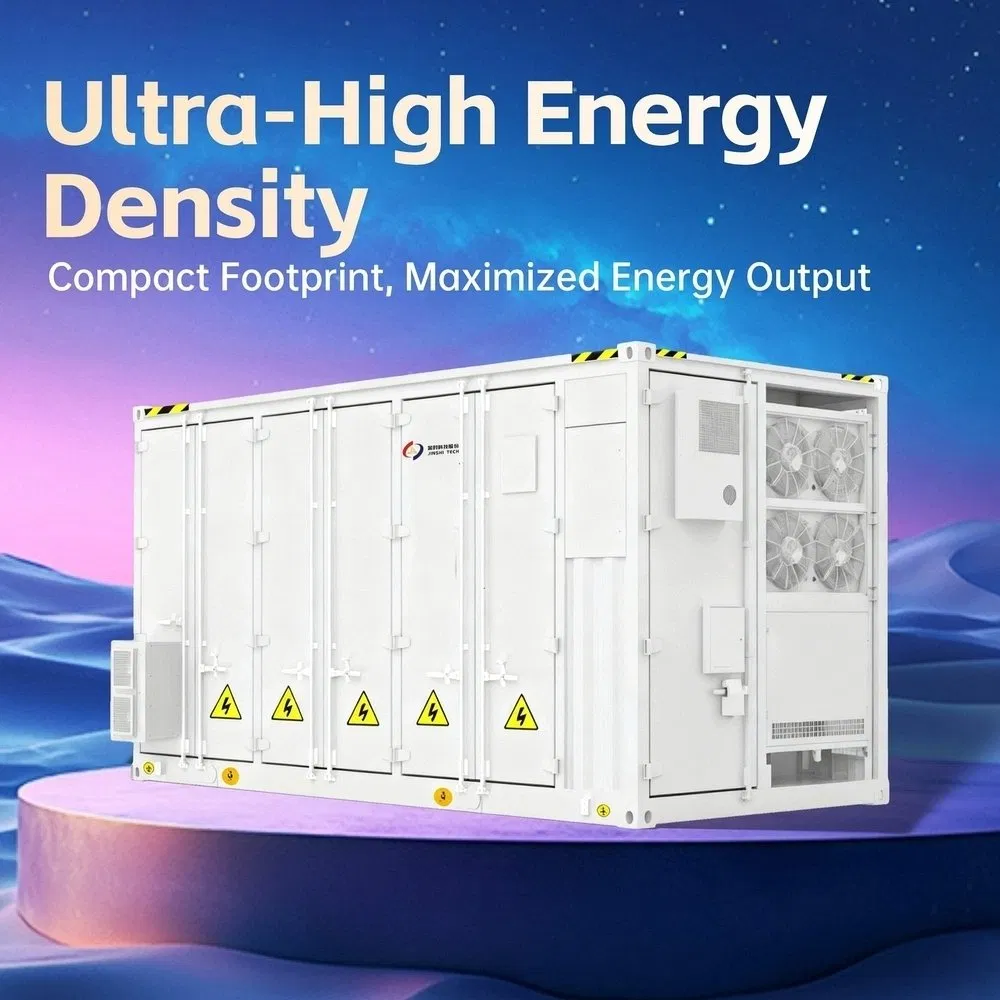

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.
PRODUCT FEATURES
24/7 BMS Monitoring
High-Frequency Regulation Compatibility
Supports Fire Suppression Agents: NOVEC 1230, Liquid Nitrogen
Original Three-Level Fusing + Targeted Explosion Discharge Design
Supporting Perfluorohexanone and Liquid Nitrogen
Multi-Cabinet Parallel Connection for Easy Scalability
Product Parameters

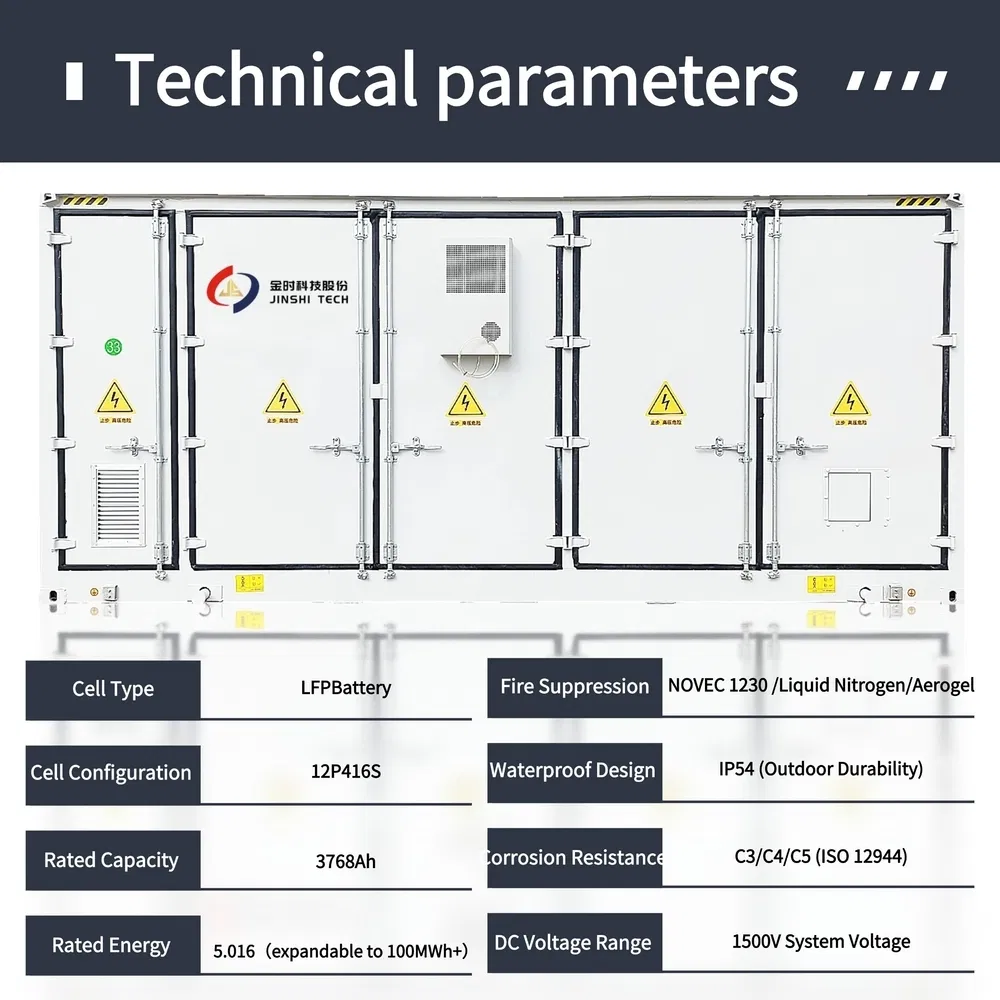

TECHNICAL PARAMETERS
Cell Type
LFPBattery
Cell Configuration
12P416S
Rated Capacity
3768Ah
Rated Energy
Expandable To 100MWh+
Rated Voltage
1331.2V
Charge/Discharge Rate
0.5P
Operating Voltage Range
1164.8-1497.6V
Standard Charge/Discharge Current
1884A/1884A
Cooling Method
Liquid + Air Cooling Dual Thermal Management
Fire Detection
Temp, CO, Smoke Sensors
Corrosion Resistance
C3/C4/C5 (ISO 12944)
System Architecture
Triple Fire Protection + Triple BMS
Waterproof Design
IP54 (Outdoor Durability)
Application Scenarios
Inland, Plateau, Coastal
DC Voltage Range
1500V System Voltage

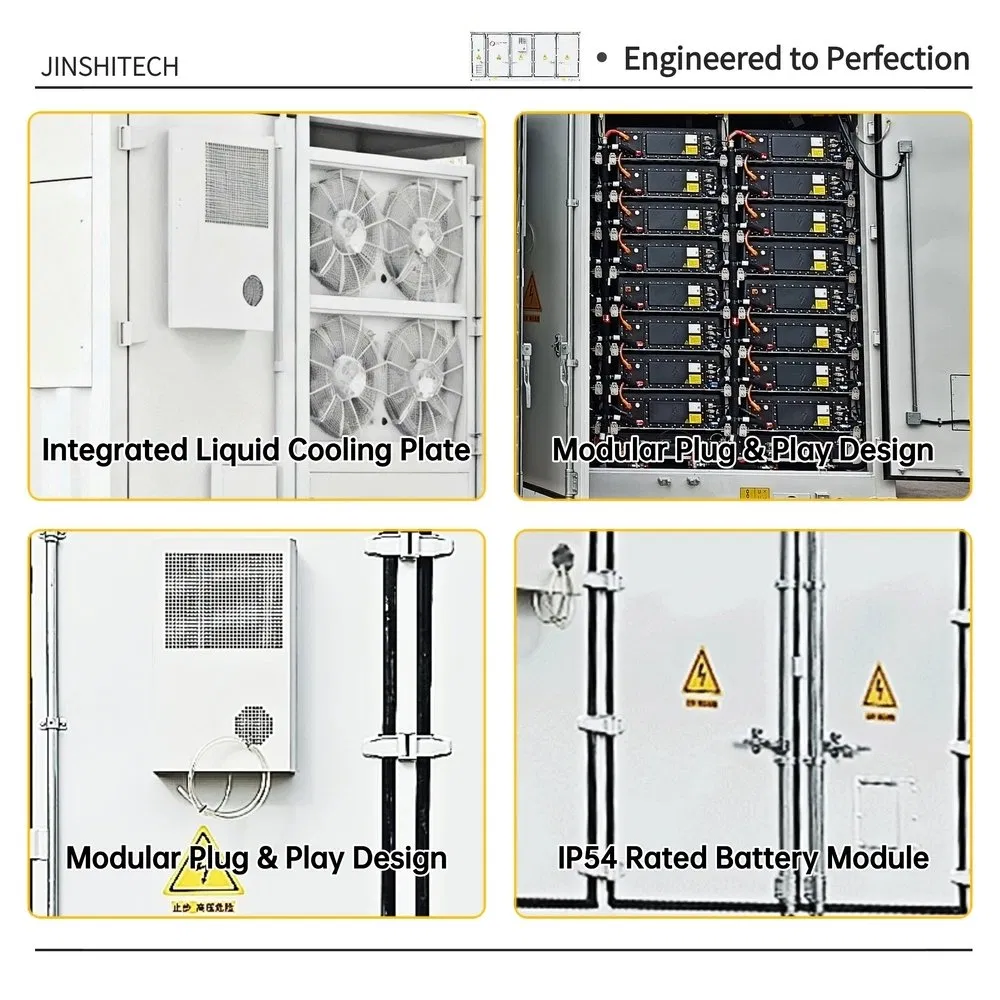

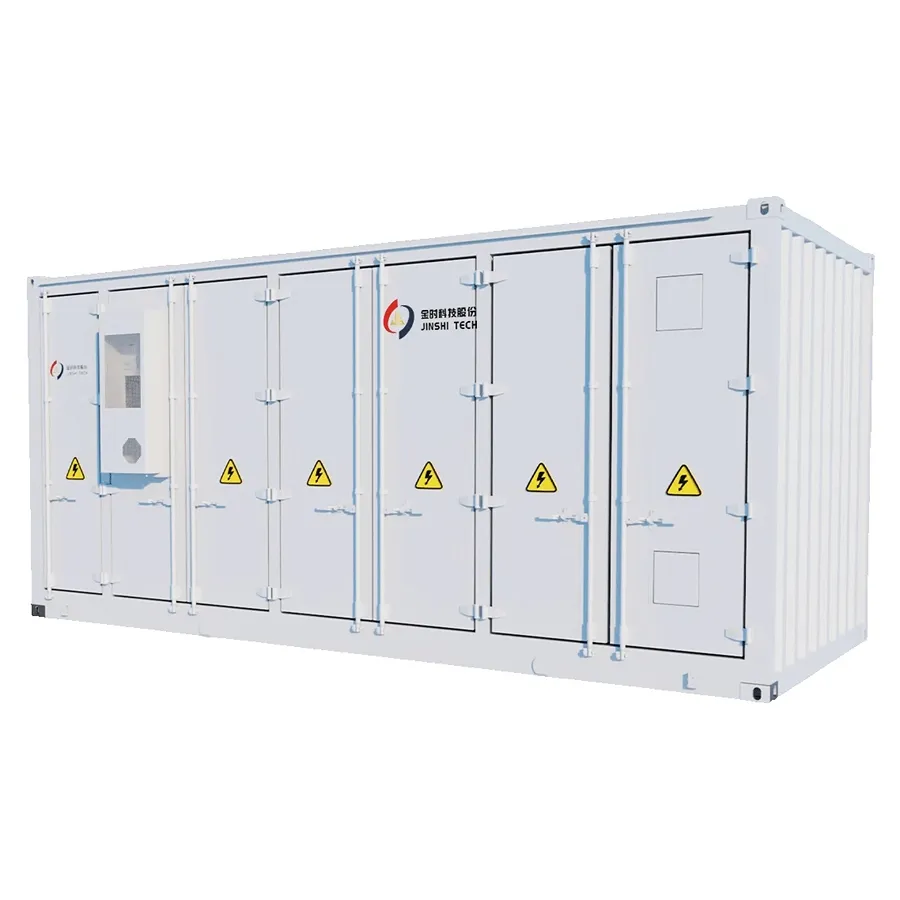

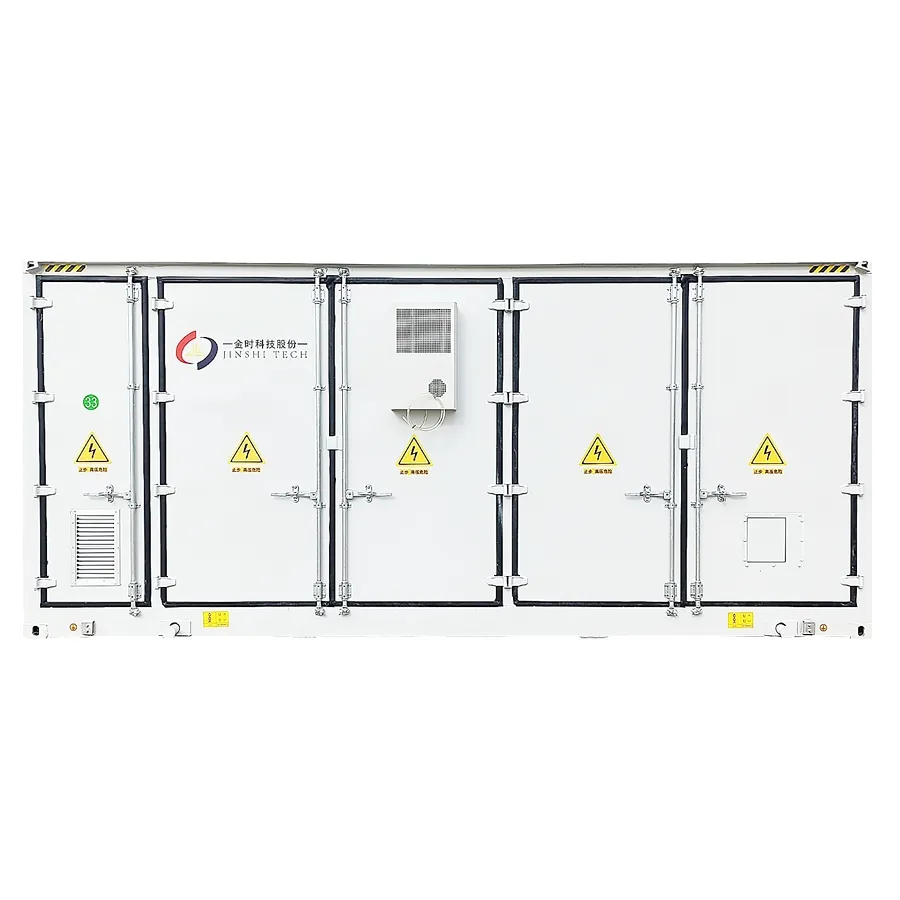

Detailed Photos
Triple-Layer Fire Protection
Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents
Comprehensive Monitoring
24/7 BMS (Battery Management System) with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation
Robust Environmental Protection
IP54 waterproof rating for outdoor durability; C3/C4/C5 corrosion resistance (ISO 12944) suitable for inland, plateau, and coastal applications
High-Frequency Regulation Compatibility
Optimized for rapid response grid services with a 1500V DC system voltage for enhanced efficiency
Plug-and-Play Integration
Containerized design with standardized interfaces for quick deployment and commissioning
FAQ

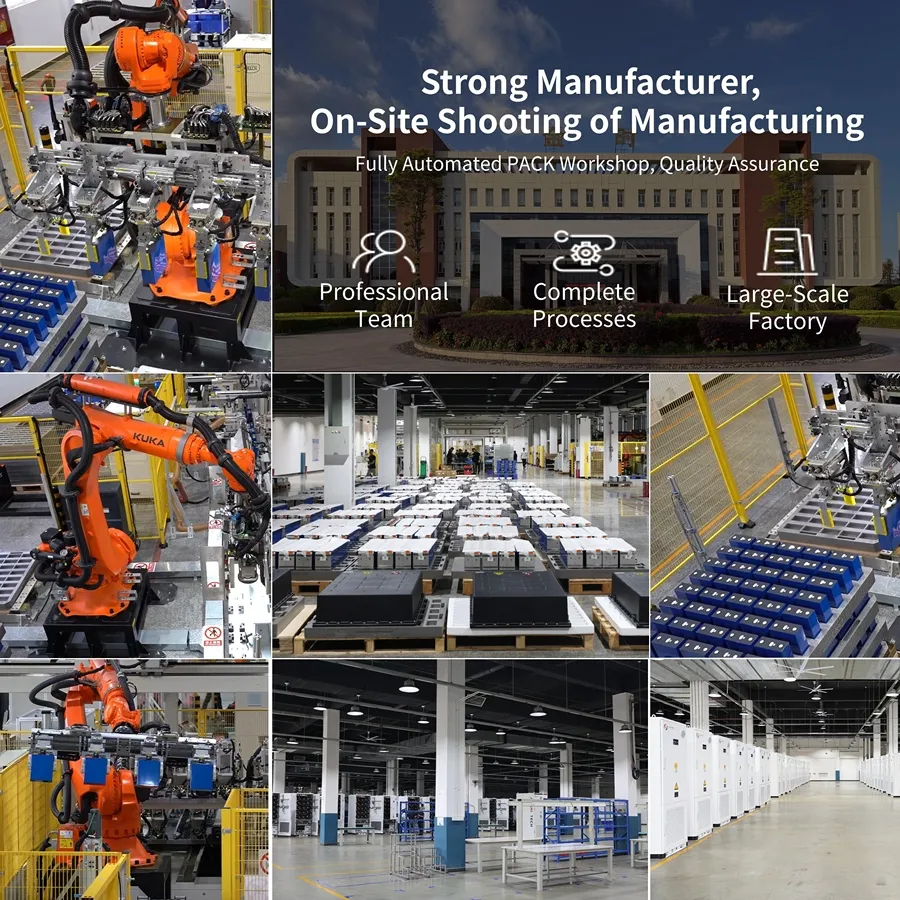

Q1: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade.
Q2: Can I add my LOGO to the product?
A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
Q3: What payment methods do you support?
A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.
Q4: What are your modes of transportation?
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
Q5: How can I get an accurate quotation?
A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
