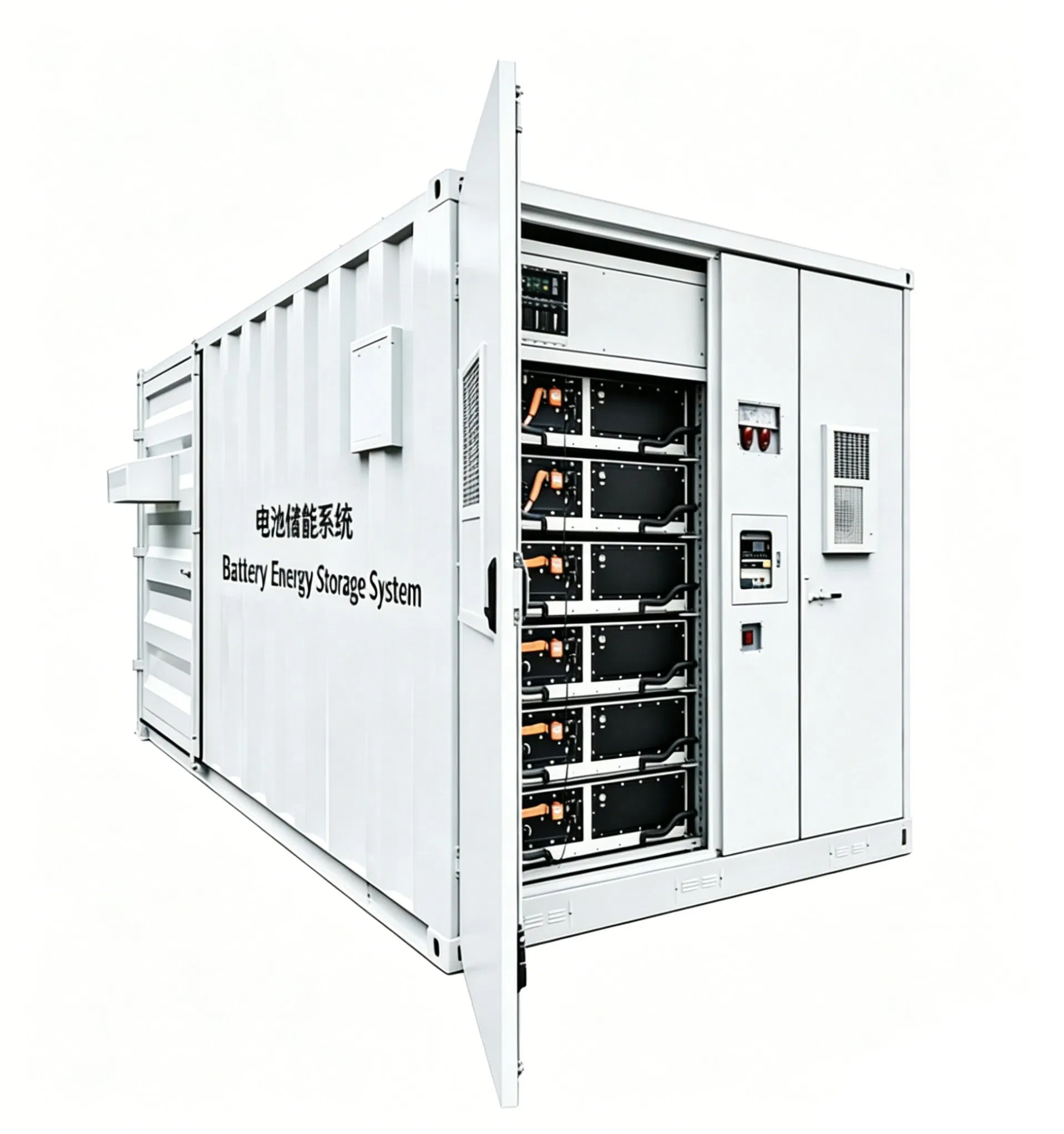

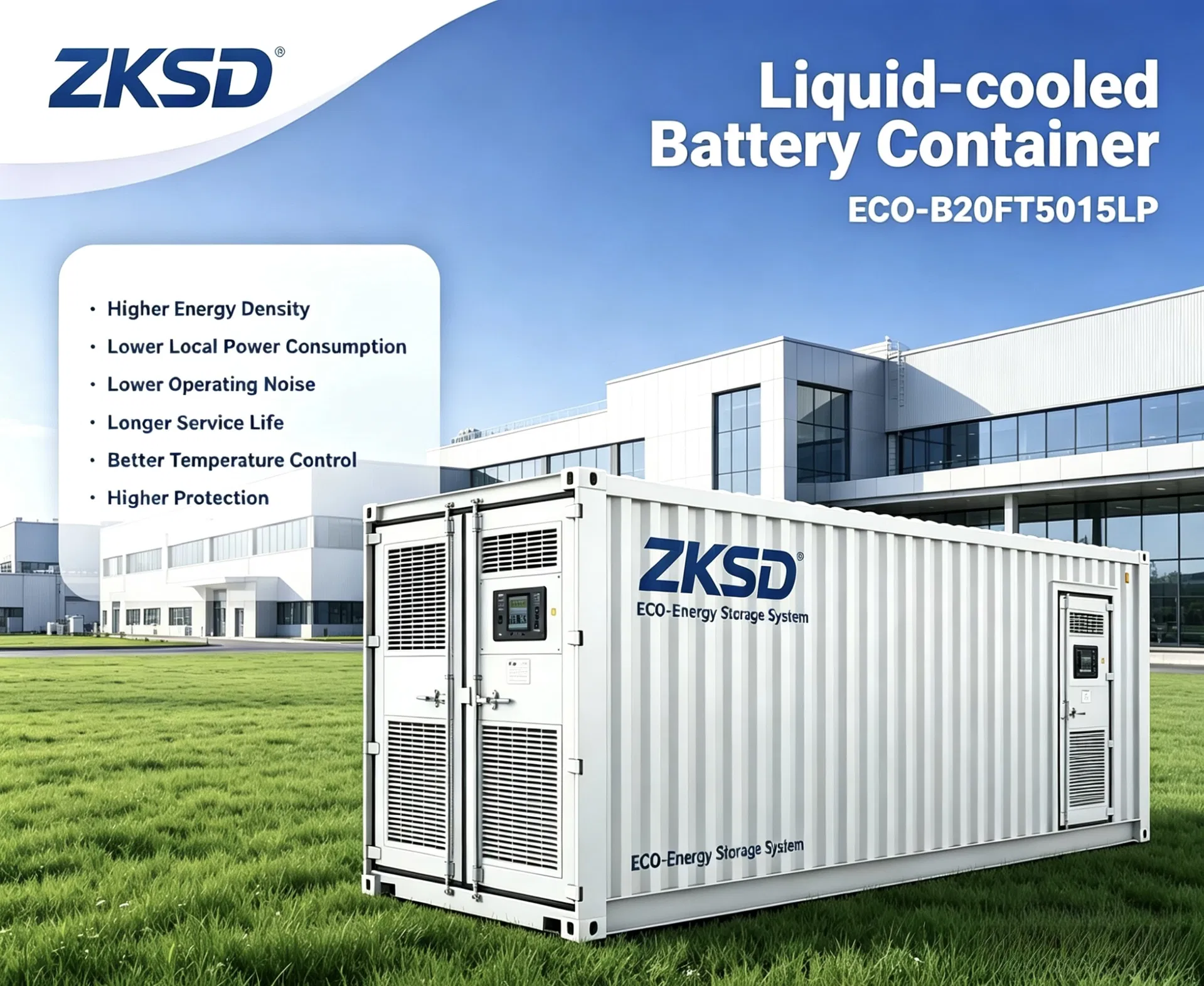

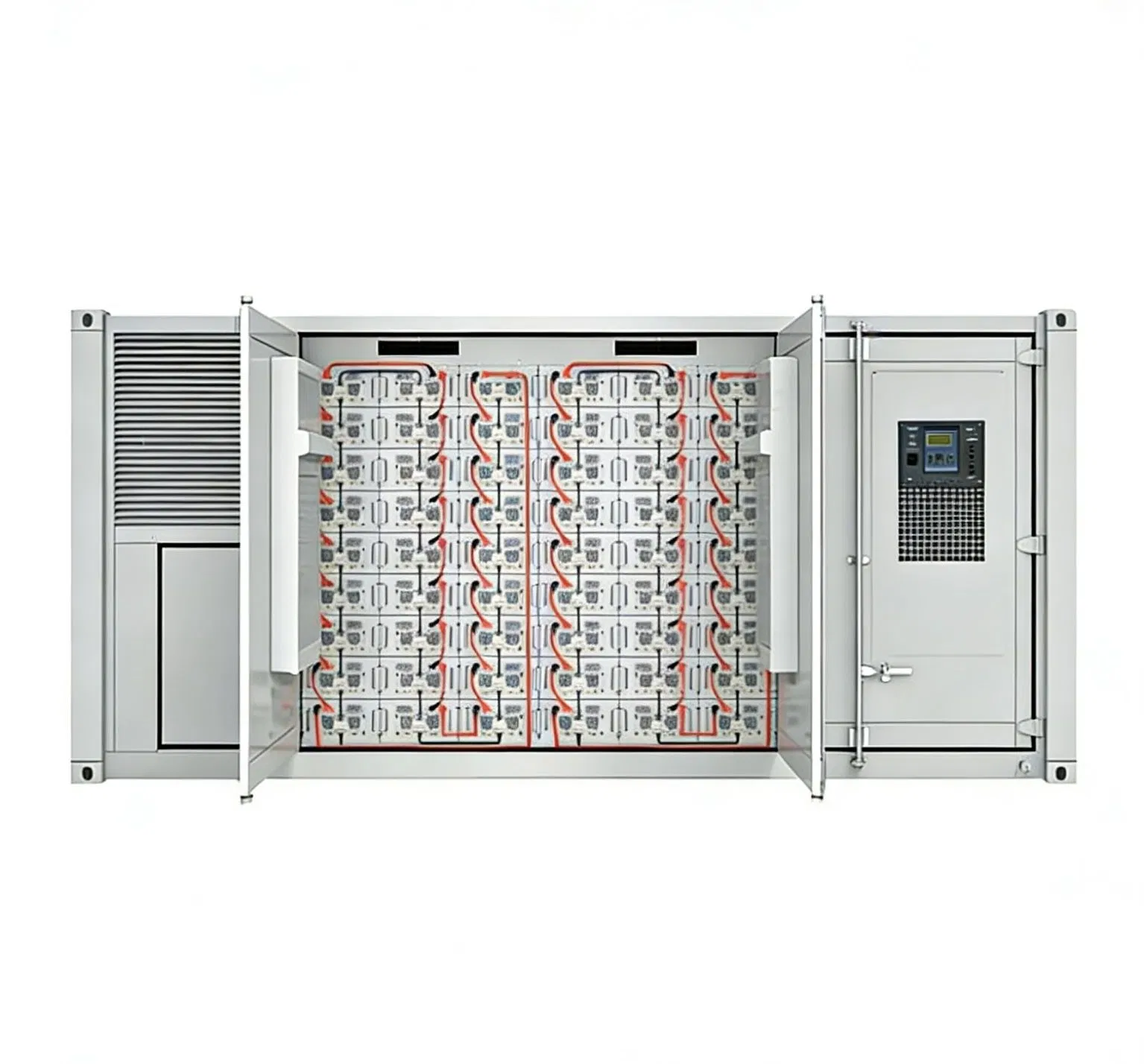

5000KWh Containerized Energy Storage System Product Description
Introducing our 5000KWh high-capacity containerized energy storage system, a cutting-edge solution designed for industrial, commercial, and utility-scale energy needs. As a professional energy storage manufacturer with a large-scale production base in China, we deliver reliable, customizable, and cost-effective energy storage solutions that empower businesses to achieve energy independence, reduce electricity costs, and ensure stable power supply.

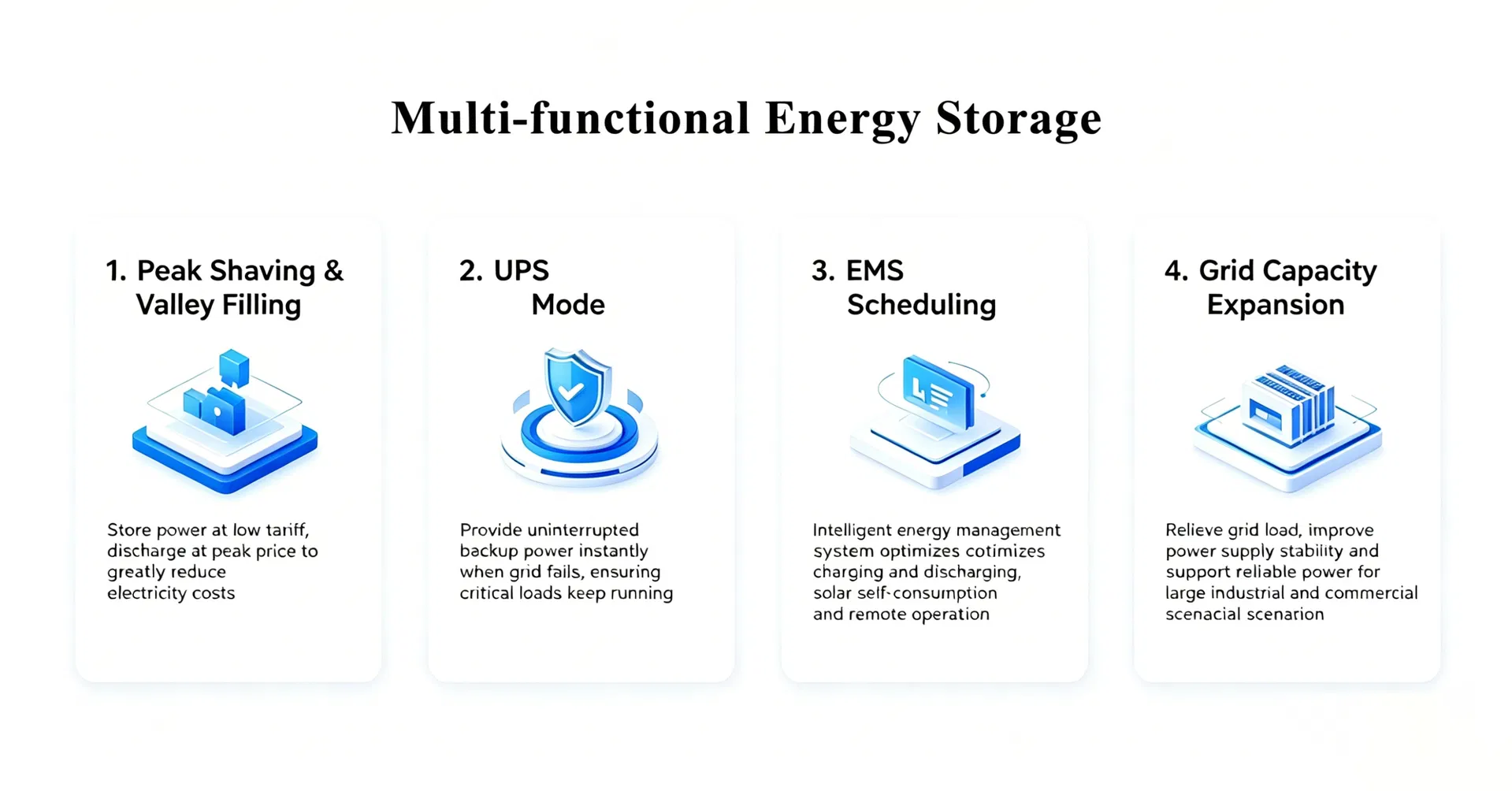

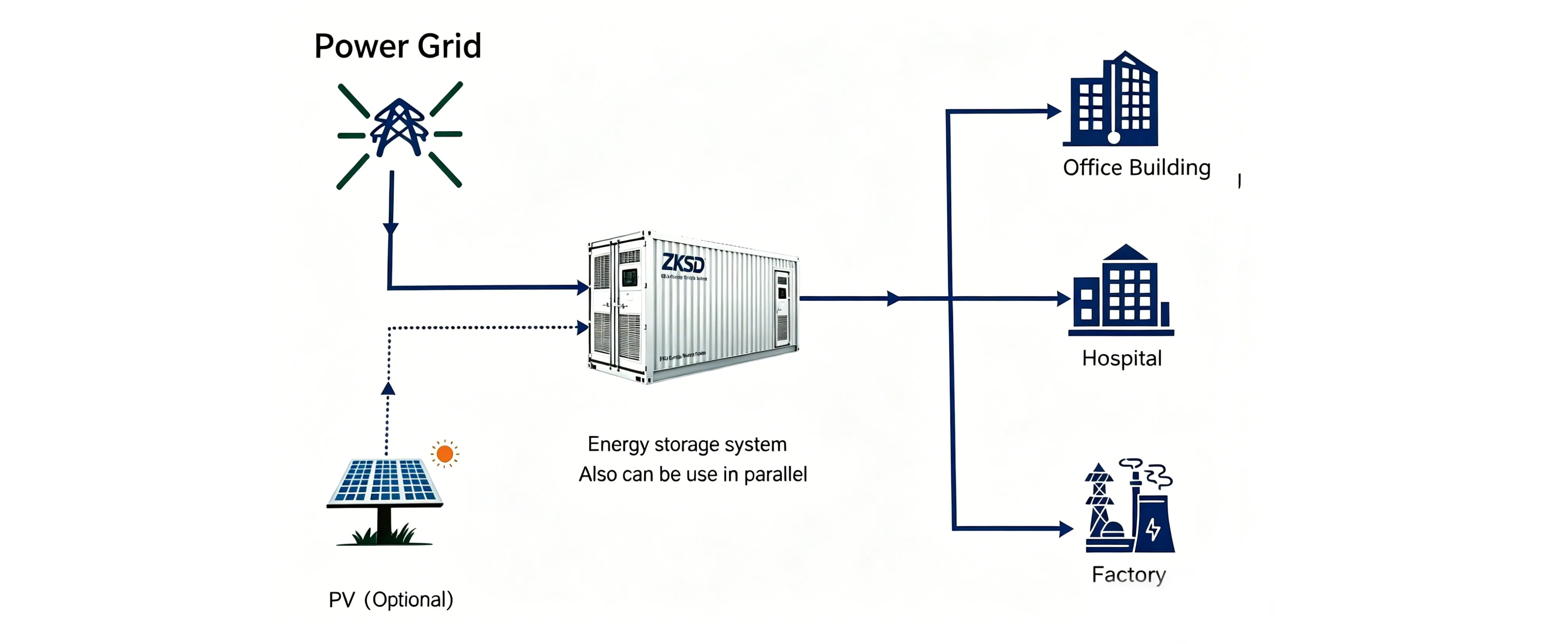

Three Working Modes
1. On-Grid
Grid-tied solar storage system connects to the public grid, stores solar power for peak shaving, cuts electricity bills, and supports feeding excess energy back to the grid.
2. Off-Grid
Off-grid solar storage system runs independently without grid access, providing 24/7 stable power for remote areas, islands and off-grid sites.
3. Hybrid
Hybrid solar storage combines on-grid and off-grid functions, intelligently switches modes, ensures backup power during outages, and maximizes solar self-consumption.
System Parameters
Model
1044kWh-500kW
1720kWh-800kW
2610kWh-1250kW
5015kWh-2500kW
Battery Data
Cell Type
LFP (LiFePO4) 3.2V 314Ah
LFP (LiFePO4) 3.2V 280Ah
LFP (LiFePO4) 3.2V 314Ah
LFP (LiFePO4) 3.2V 314Ah
Cell Brand
CALB/GP/GFL/HIGEE/EVE/REPT/CORNEX
System Capacity
1044kWh
1720kWh
2610kWh
5015kWh
Rated Power
500kW
800kW
1250kW
2500kW
Cell Life Cycle
>8,000 cycles @ 0.5C/0.5C, 25°C
Nominal Voltage
832V
768V
832V
1331.2V
Operating Voltage Range
748V-915V
691V-844V
748V-915V
1198V-1464V
Operating Temp. Range
-25℃ to 55℃
Communication
CAN/RS485/Ethernet/4G
Communication Standard
Modbus TCP, Modbus RTU, CAN2.0, IEC61850, IEC104
AC Data
Rated AC Power
500kW
800kW
1250kW
2500kW
Max. PV Power
500kW
800kW
1250kW
2500kW
Rated AC Voltage
220V/380V/400V/480V
Rated Frequency
50/60Hz
Isolation Method
3 Phase 4 Line Transformer
General Data

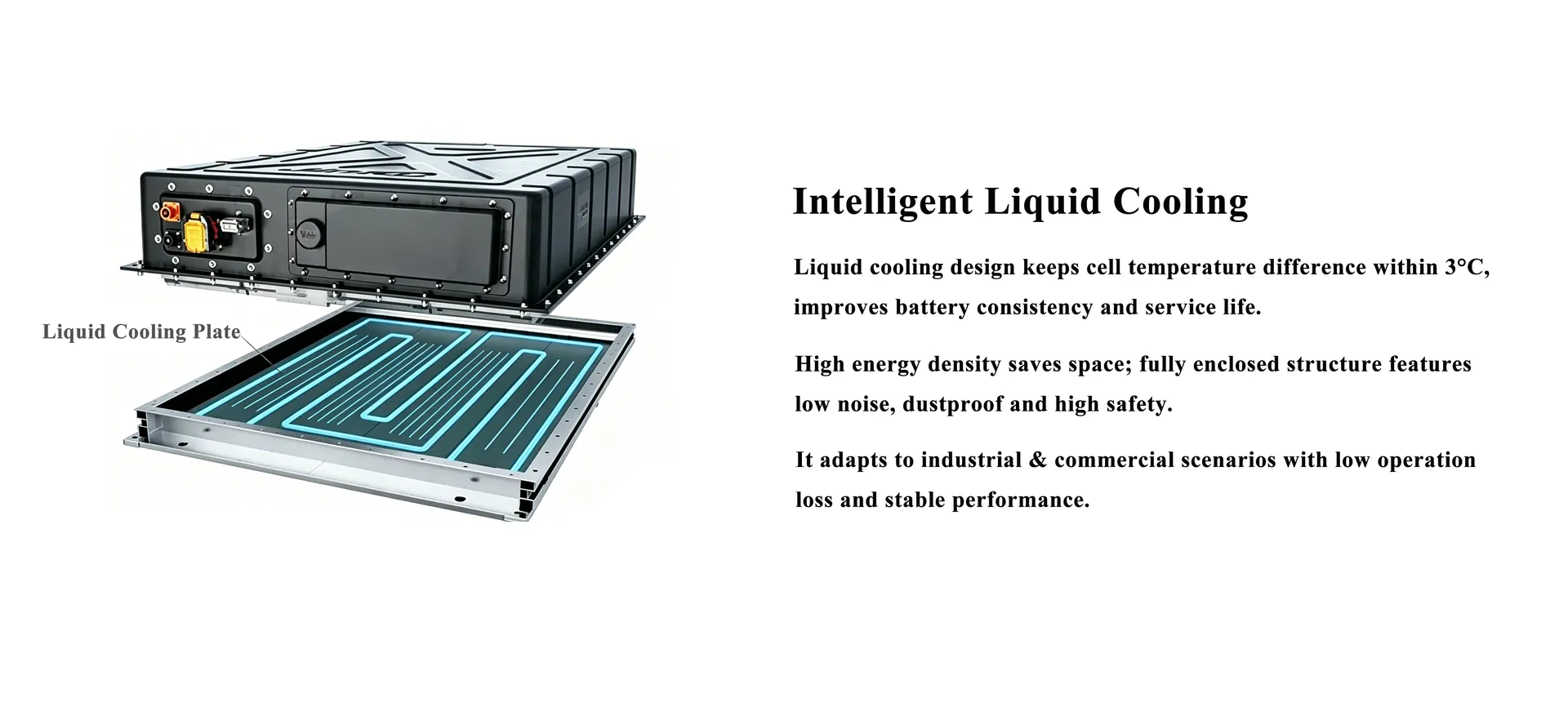

Cooling Method
Intelligent Liquid Cooling
Fire Fighting
Aerosol (pack-level + cluster-level) + Water Fire Protection (cabinet-level)
Operating Altitude
4000m (>2000m, derating operated)
Relative Humidity
5% ~ 95% RH
Protection Level
IP54
Anti-corrosion Level
C4
Noise
≤75dB
Weight
11T
17T
23T
35T
Size
6050*2438*2400mm
6050*2438*2400mm
6050*2438*2400mm
6050*2438*2400mm
OEM & ODM Services
We provide comprehensive OEM & ODM services to support your business growth in the energy storage market.
OEM (Original Equipment Manufacturing): We manufacture energy storage cabinets strictly in accordance with your technical specifications, brand requirements and quality standards. You get reliable, cost-effective products under your own brand, leveraging our mature production lines, Grade A components and strict quality control systems.
ODM (Original Design Manufacturing): Our experienced R&D and engineering team will partner with you from concept to finished product. We offer full custom design, engineering optimization, prototype testing and mass production services, helping you launch differentiated energy storage solutions tailored to your market and customer needs.
From standard OEM orders to fully customized ODM projects, we ensure consistent quality, on-time delivery and dedicated technical support at every stage.

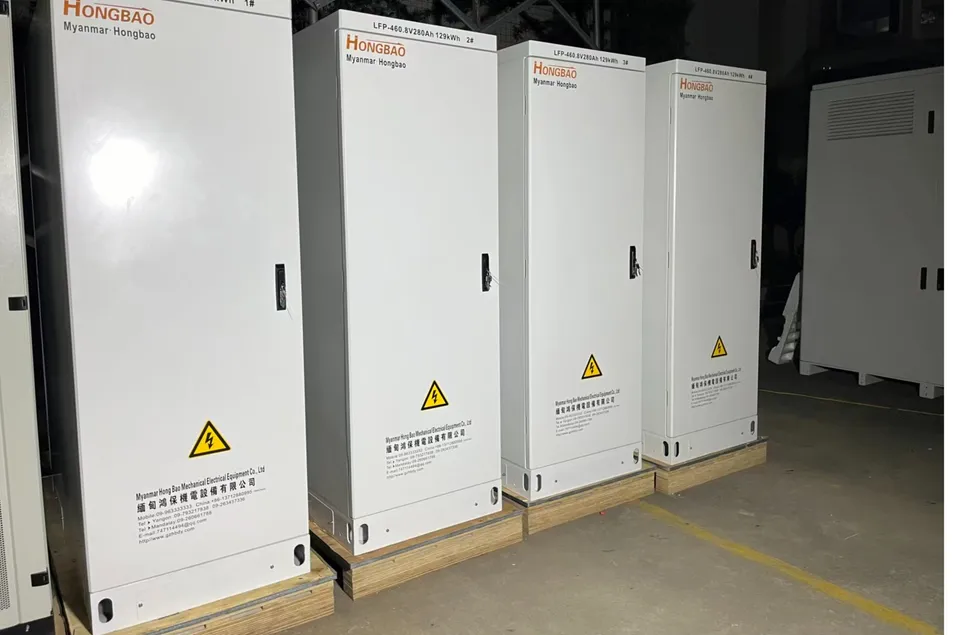

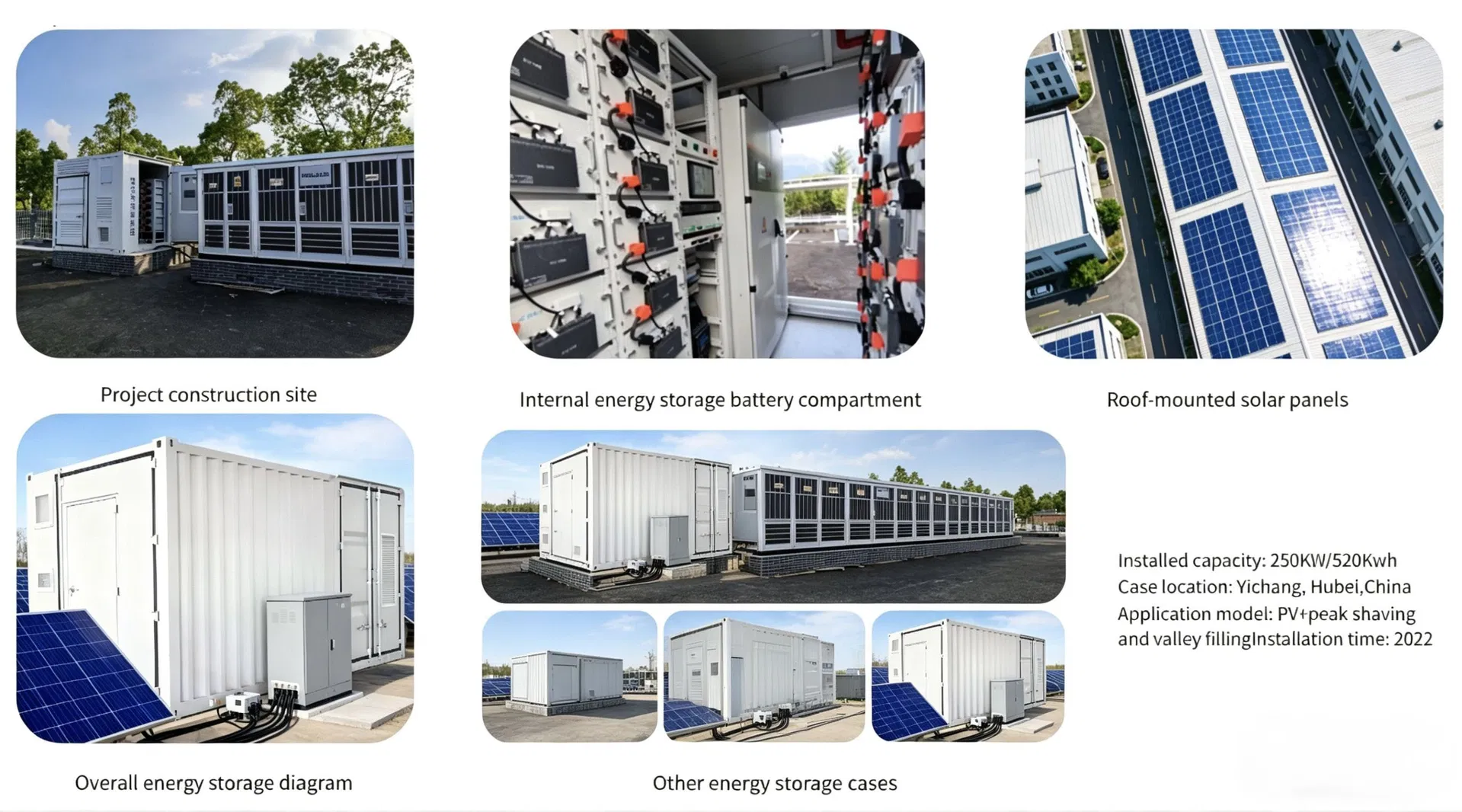

Previous Projects
Certifications

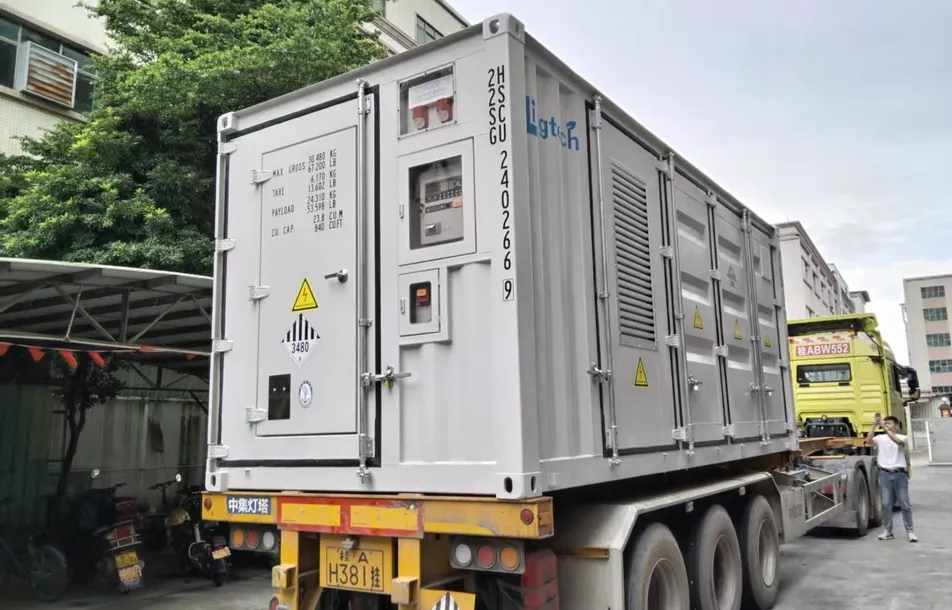

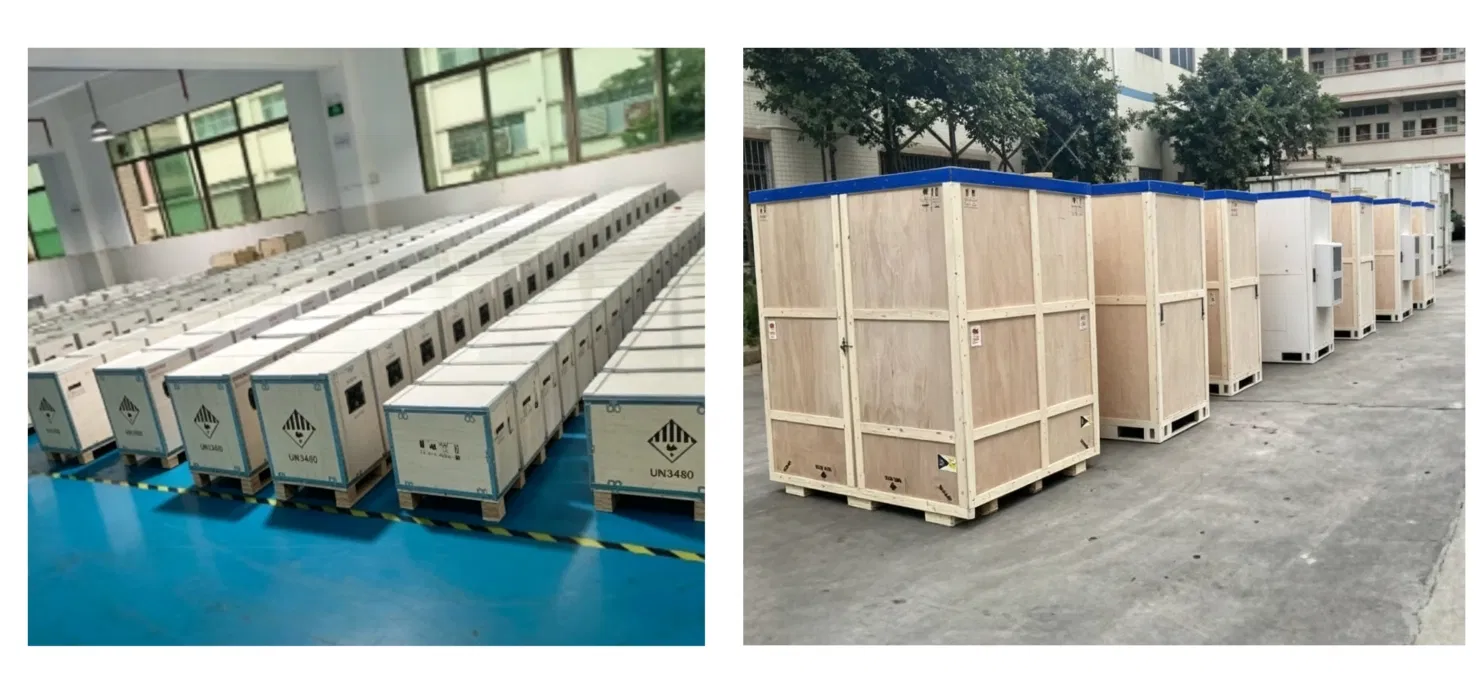

Packaging & Shipping

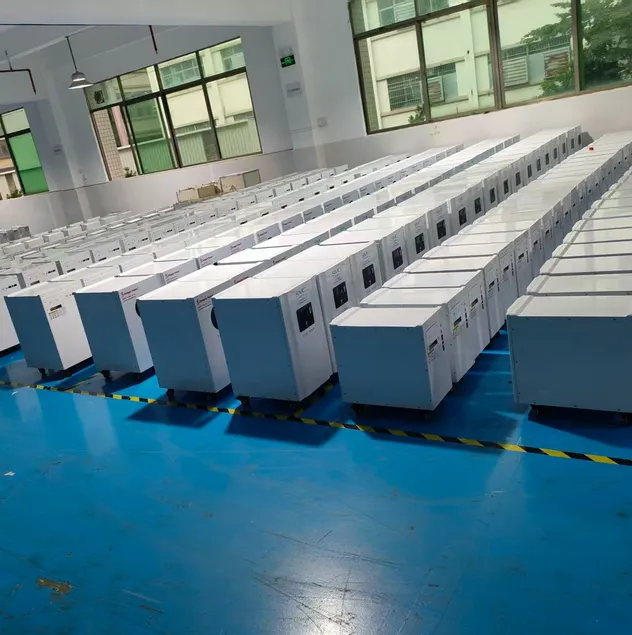

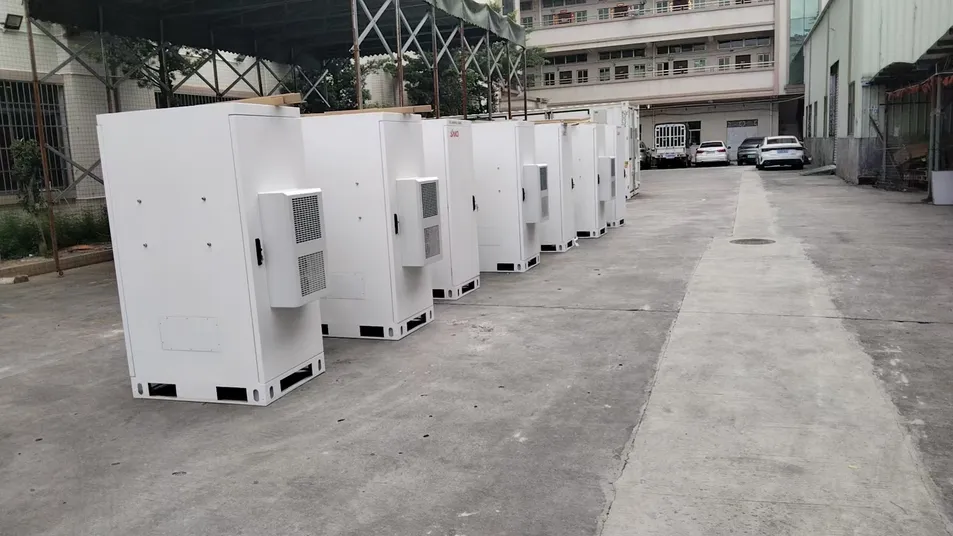

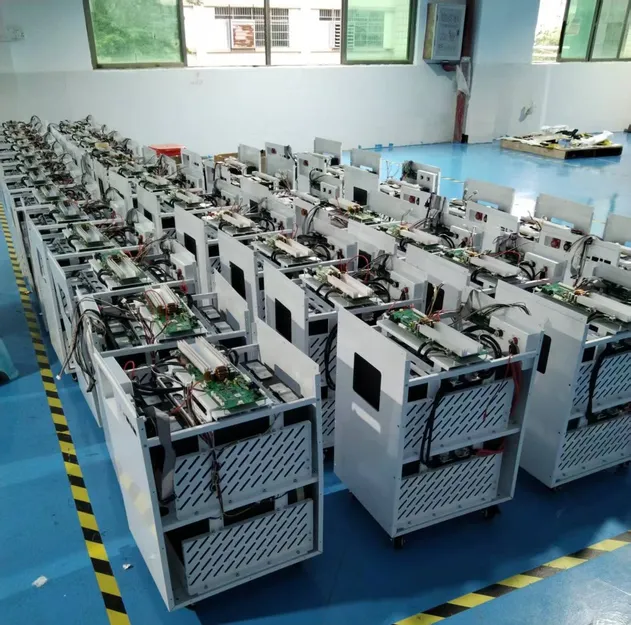

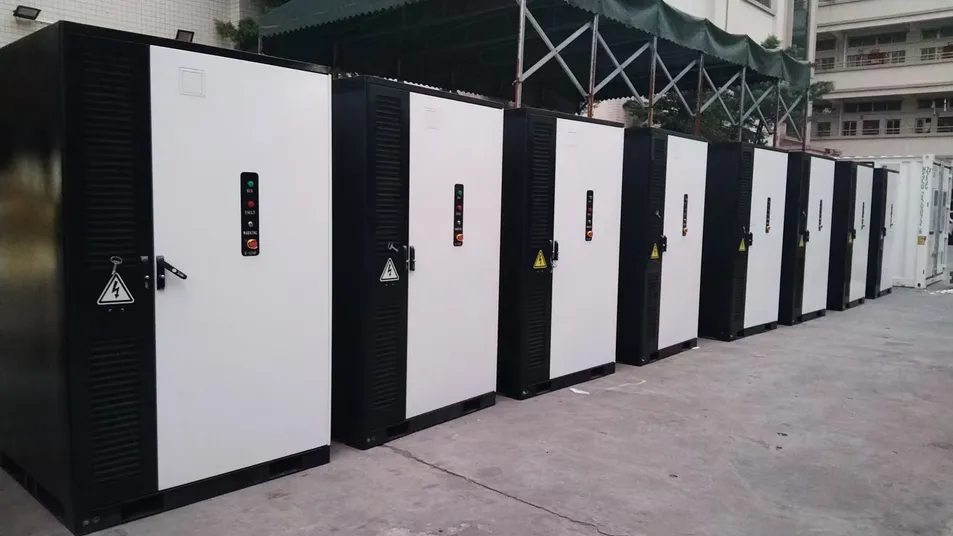

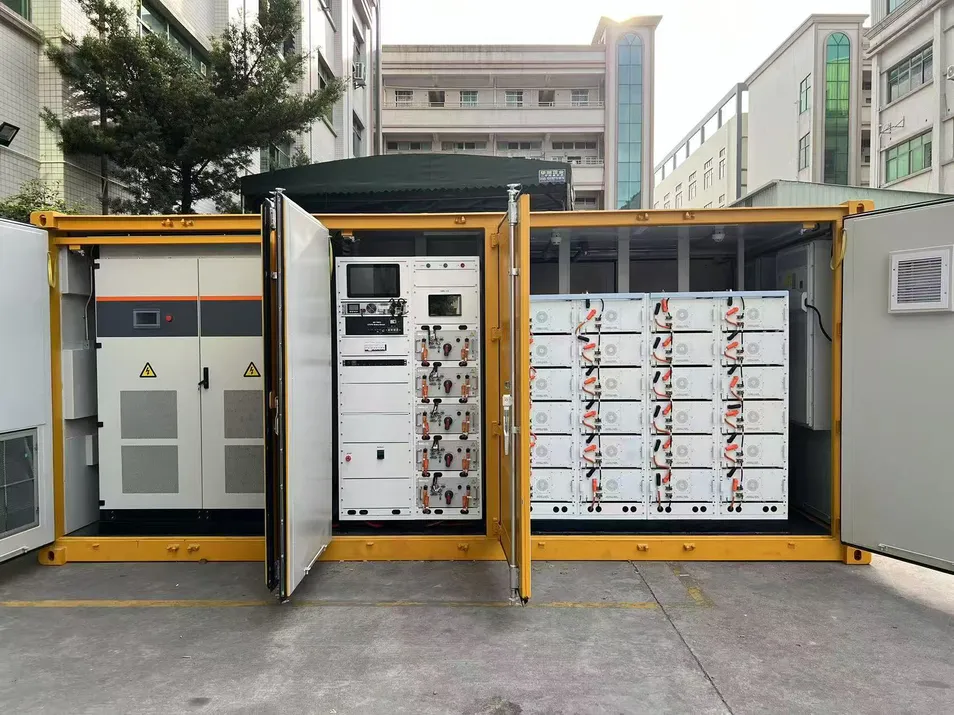

Our Factory
Frequently Asked Questions
What is the lead time for orders?
Standard models typically ship within 20–30 days. For customized units or bespoke configurations, the required lead time is 40–55 days.
Do you provide after-sales service overseas?
Yes, we have established partnerships with professional service centers in key international regions to ensure you receive efficient and localized technical support and maintenance.
Can I customize the capacity and dimensions of the energy storage system?
Absolutely! We specialize in tailored designs. We can adjust the containerized system capacity, layout, dimensions, and integration options to perfectly match your site specifications.
What documents do you provide for export shipping?
We handle the documentation diligently. We provide a complete export package including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and all relevant battery test reports.
How do I place an order?
Please submit an inquiry directly through our website contact portal. Our team will review your specifications, deliver a detailed quotation, and walk you through confirming the purchase order (PO).
What quality and safety certifications does the system carry?
Our containerized BESS has been rigorously tested and holds multiple international certifications including ISO, CB, CE, TUV, UN38.3, and EN50549 compliance, ensuring safety and standard grid connection capability.
