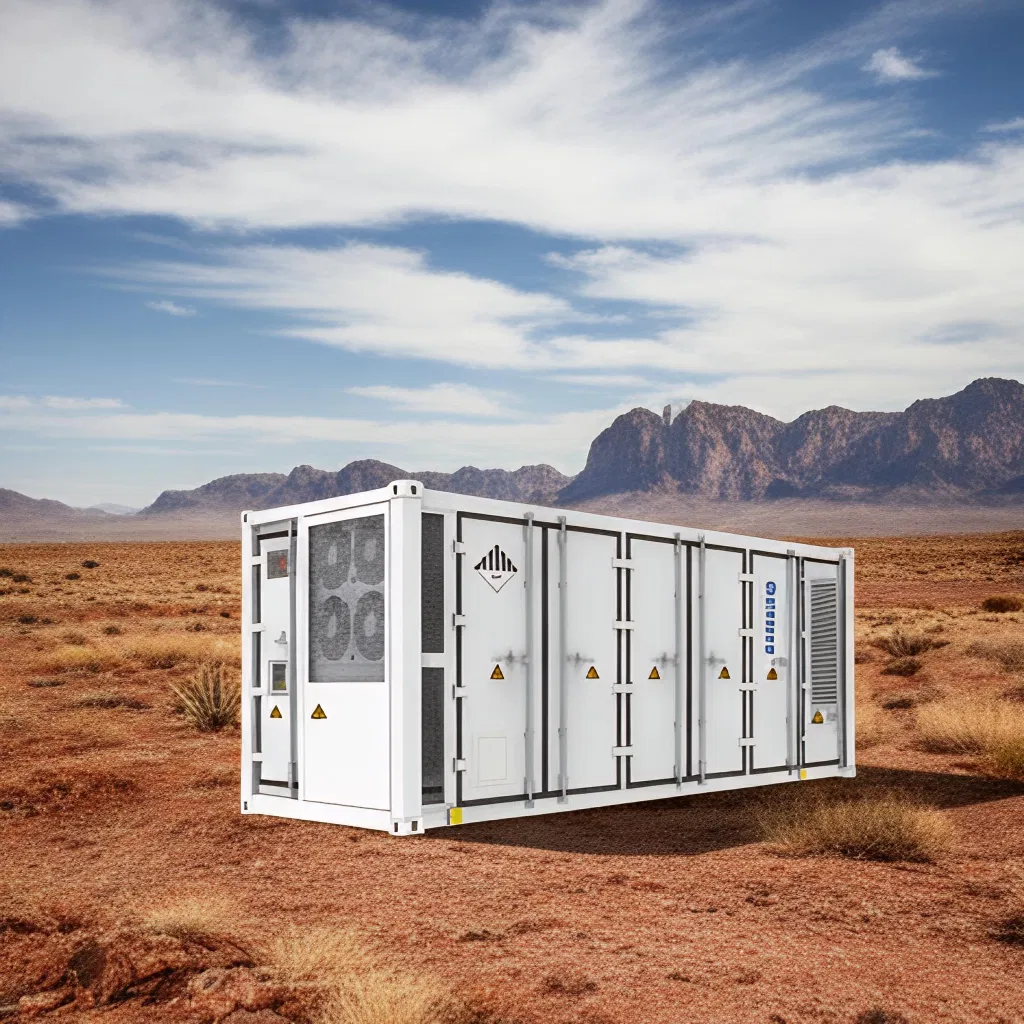

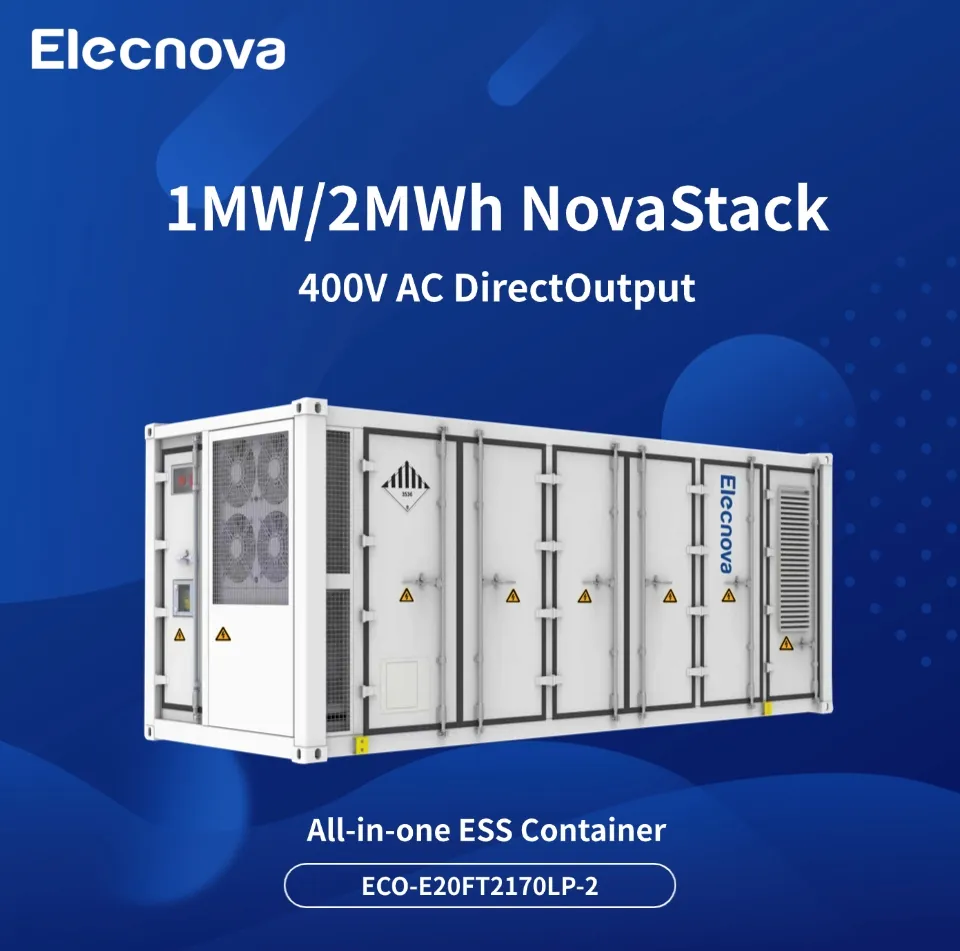

Our innovative 400 V all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components. The highly integrated system, combined with high-quality 314 Ah battery cells, delivers higher energy density in a compact footprint. Its efficient hybrid cooling system ensures stable operation, keeping cell temperature differences within 3 ºC. Designed in a standard 20 ft container, the solution allows easy transportation, rapid installation, and flexible deployment, making it suitable for a wide range of commercial, industrial, and utility-scale energy storage applications.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh / 1P48S |
| System Configuration | 2170 kWh / 9P240S |
| Rated DC Voltage | 768 V |
| DC Voltage Range | 672 ~ 864 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
|---|---|
| Rated Output Power | 1000 kW |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/ -1 ~ +1 |
| THDi | ≤3% |
| DC Ratio | <0.5% Ipn |
| General Specifications | |
|---|---|
| Max. Round Trip Efficiency | 89% |
| Cycle Life | ≥ 8,000 cycles |
| Fire Suppression System | Aerosol system + Water spray system |
| Cooling Method | Liquid cooling + Forced air cooling |
| Operating Temperature Range | -25ºC~55ºC (Derating after 45ºC) |
| Altitude Limit | 3000m (Derating above 2000m) |
| Weight | 28 t |
| Certifications & Standards | UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC62933-5-2 |

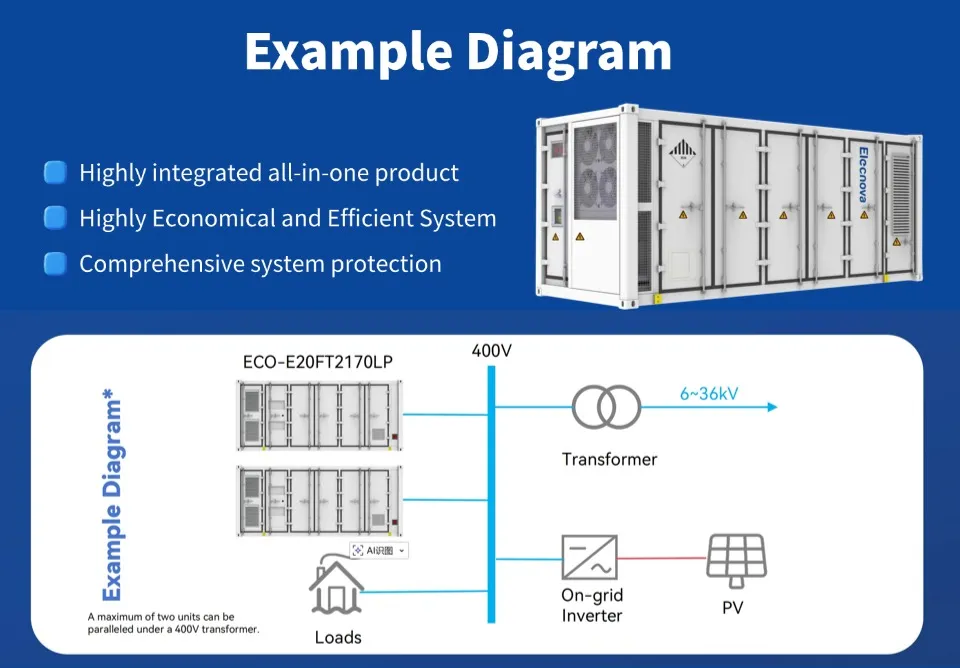

This diagram illustrates the system architecture and key benefits of the ECO-E20FT2170LP energy storage solution.

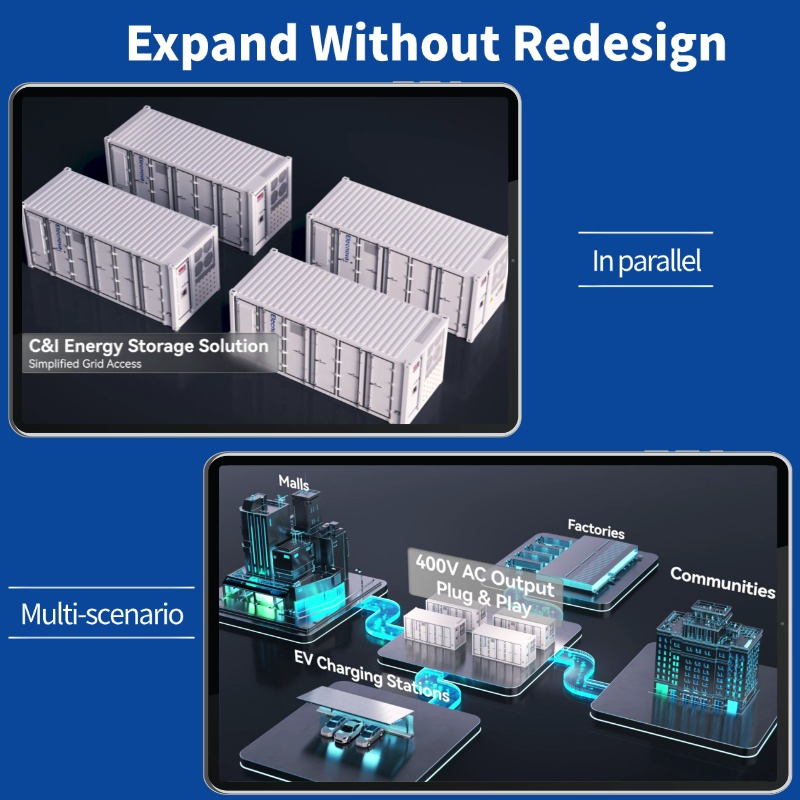

Integrated 400V AC output connects to 6~36kV transformer for grid integration. Supports on-grid inverter, PV, and loads.
Robust performance under extreme conditions: -25°C to +55°C temperature range, up to 3000m altitude.
Successfully tested under ANSI/CAN/UL 9540A:2025 (Unit Level) with test report issued by TÜV SÜD.

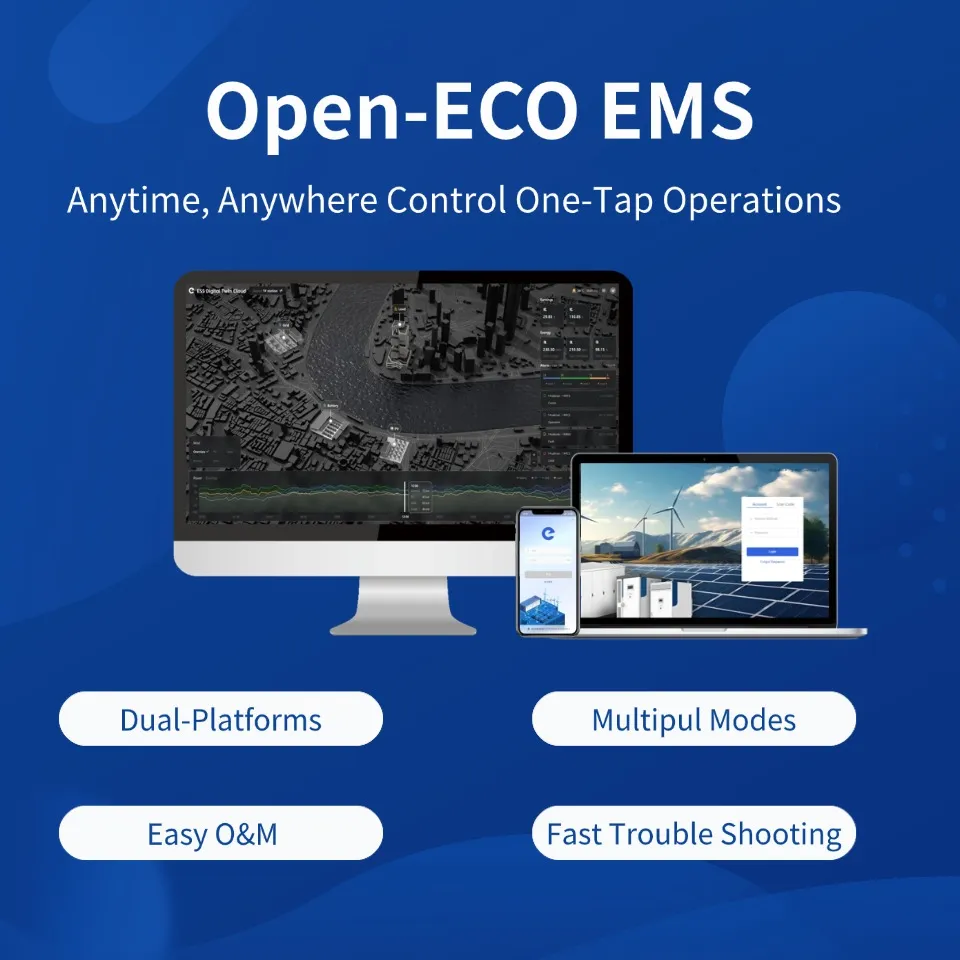

Anytime, anywhere control via web & mobile platforms. Includes multiple operation modes and quick troubleshooting diagnostics.
3-level system: Level 1 AI chatbot assistant, Level 2 engineering support in < 4 hours, Level 3 field deployment within < 72 hours.

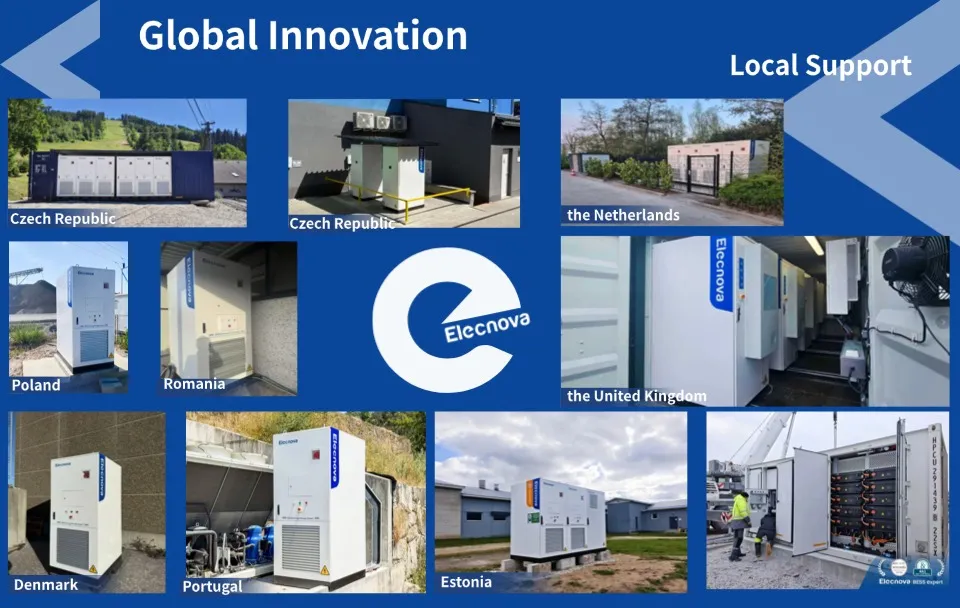

Our energy storage solutions are deployed globally, combining worldwide engineering expertise with localized support to meet the unique grid compliance requirements of each region.
Featured Active Markets: Czech Republic, Netherlands, Poland, Romania, United Kingdom, Denmark, Portugal, Estonia, and more.
With 28 years of industry experience, we are a leading player in the energy storage sector. We dedicate 10% of our revenue to R&D, ensuring continuous technological advancement. Moreover, our 15% Enterprise rating in EcoVadis reflects our strong commitment to environmental, social, and governance (ESG) standards.

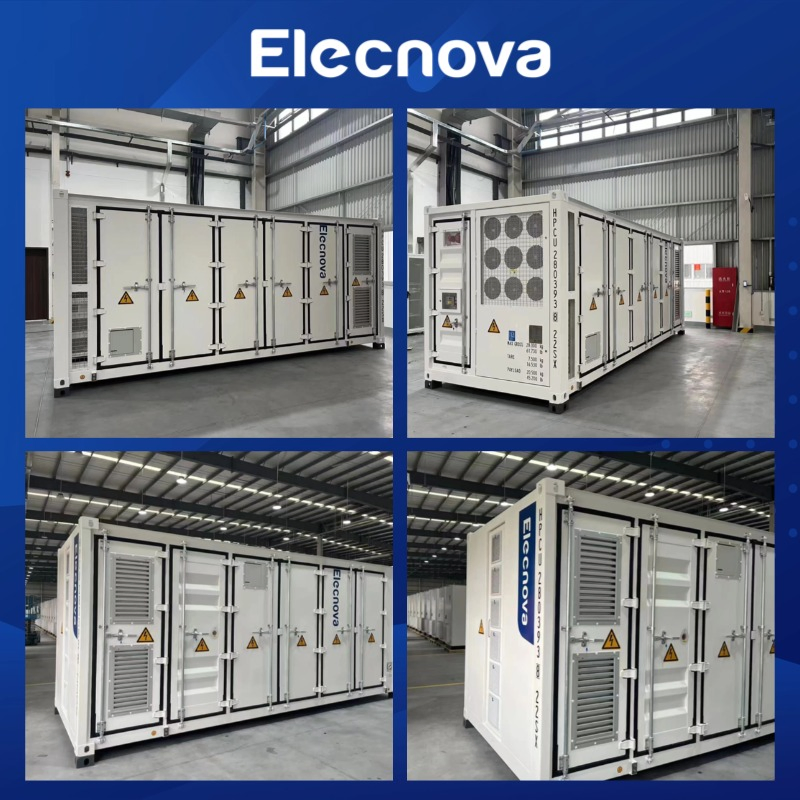

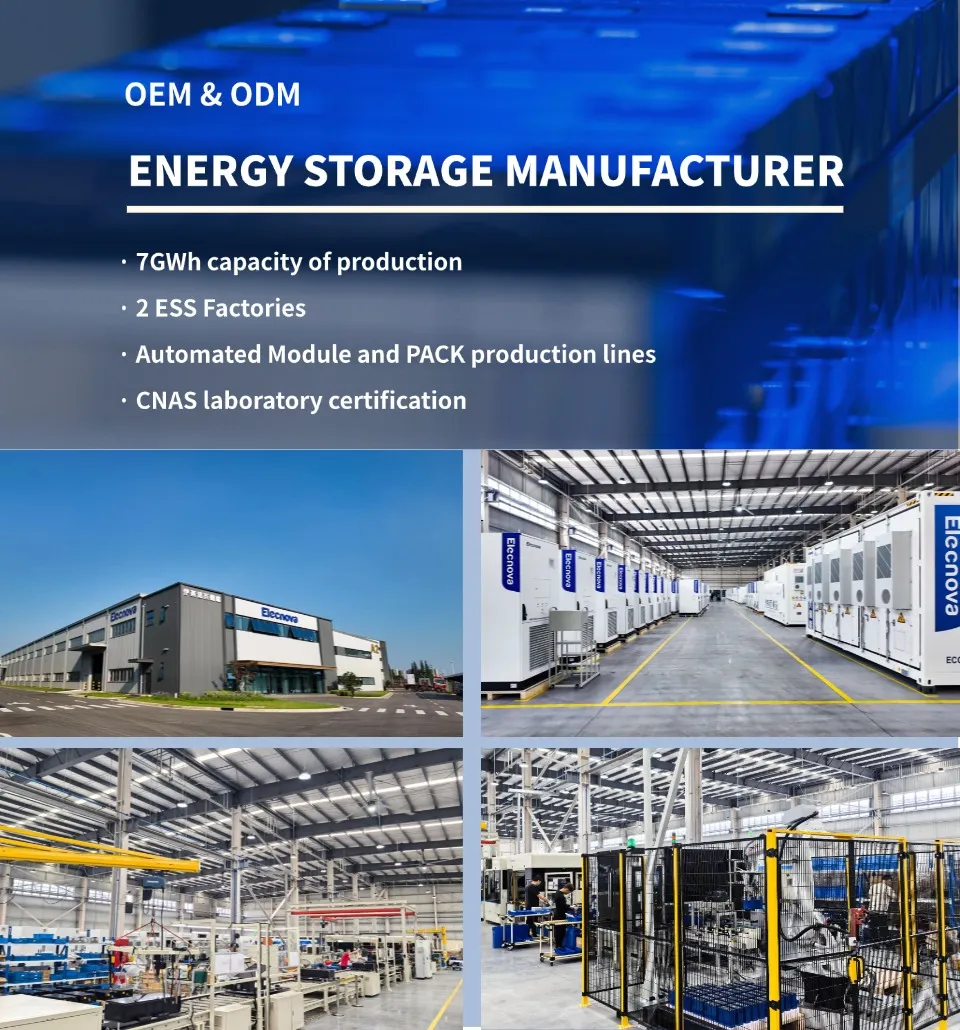

Operating 2 advanced ESS production factories equipped with automated module assembly and PACK production lines.
Guarantees rigorous quality control, reliability testing, and top-tier compliance verification at every stage.

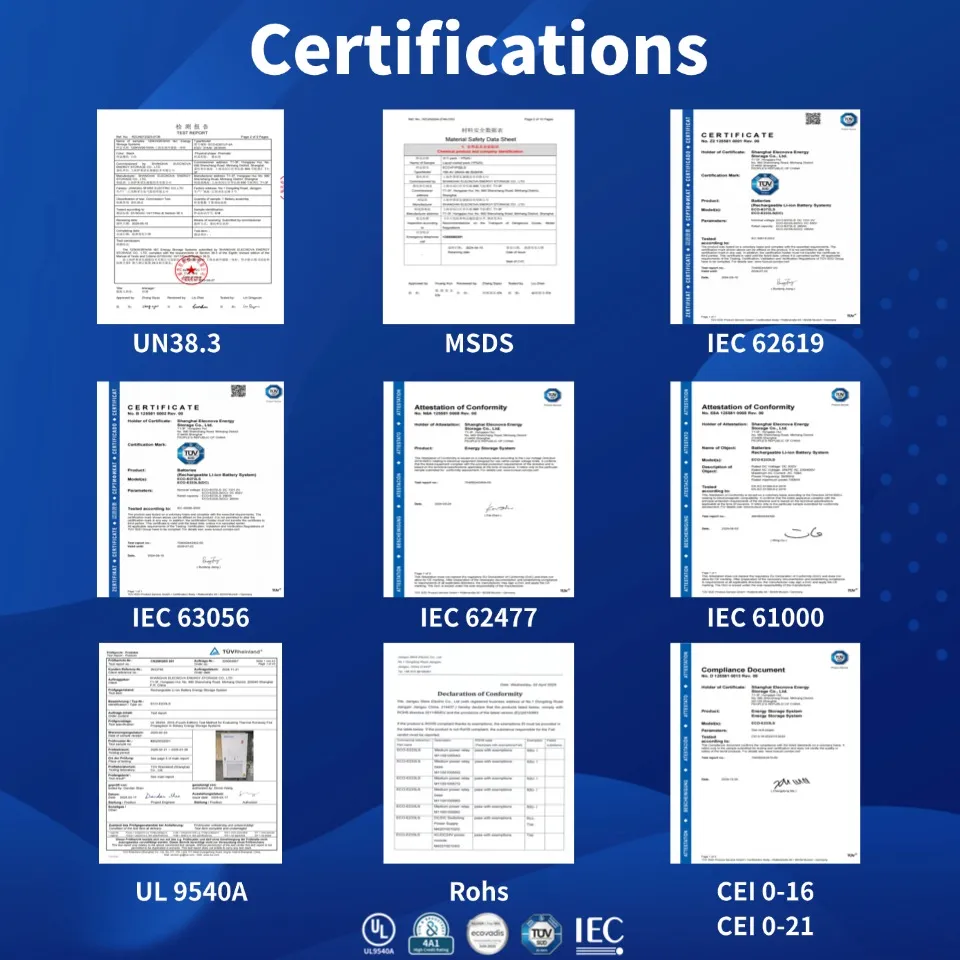

Our energy storage solutions are backed by an extensive list of international certifications, complying with standards in more than 25 countries across Europe, Africa, and beyond (including EN Standards, Germany, UK, Italy, South Africa, Belgium, Sweden, France, Australia, and more).

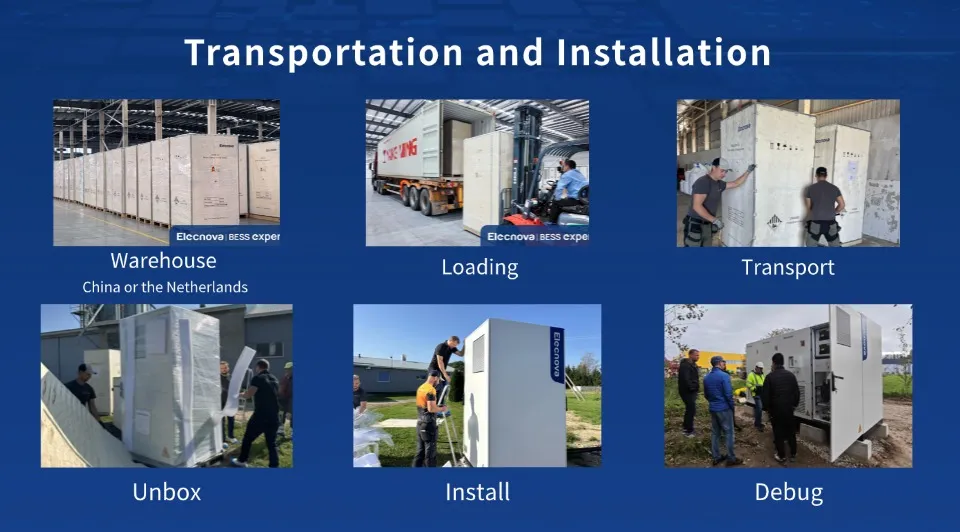

A systematic and professional logistics and implementation workflow ensures your BESS (Battery Energy Storage System) is deployed safely and efficiently from the warehouse to the grid connection.
Professional warehouse storage ready for timely dispatch.
Strict protocols using specialized forklifts.
Logistics network delivery to global sites.
Detailed inspection on-site before setup.
Rigorous installation aligning with best practices.
Optimization testing for final commissioning.
Our systems are regularly displayed at key energy exhibitions such as Intersolar Europe, SNEC Shanghai, Middle East Energy, and Solar & Storage Live across the UK, Italy, Vietnam, and the Philippines.
