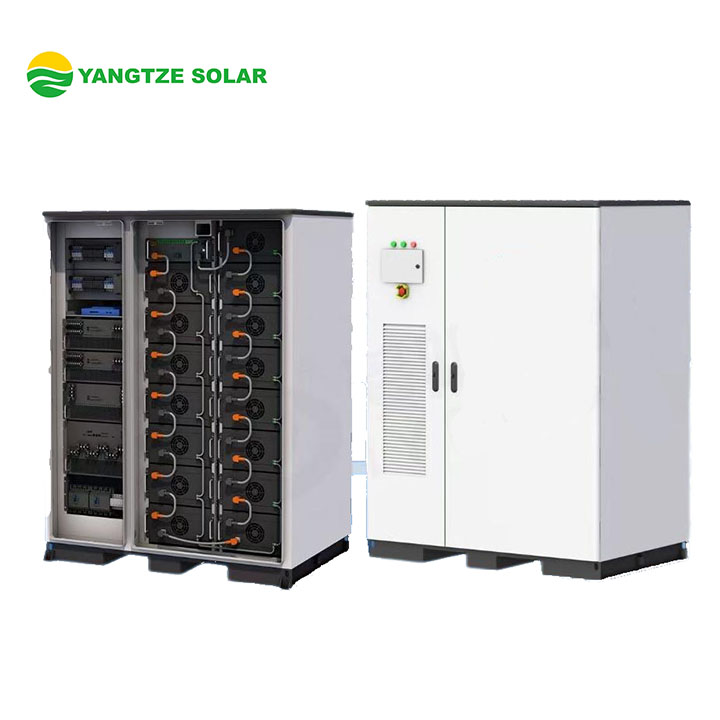

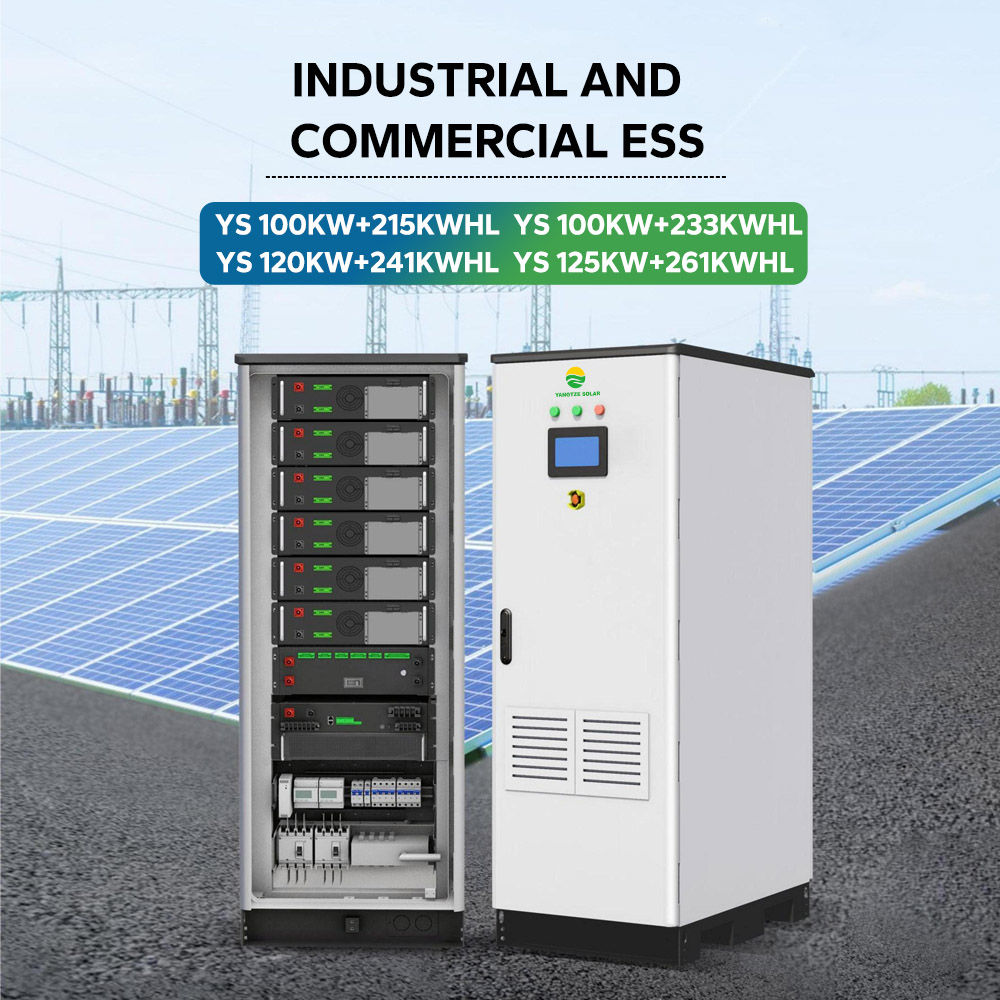

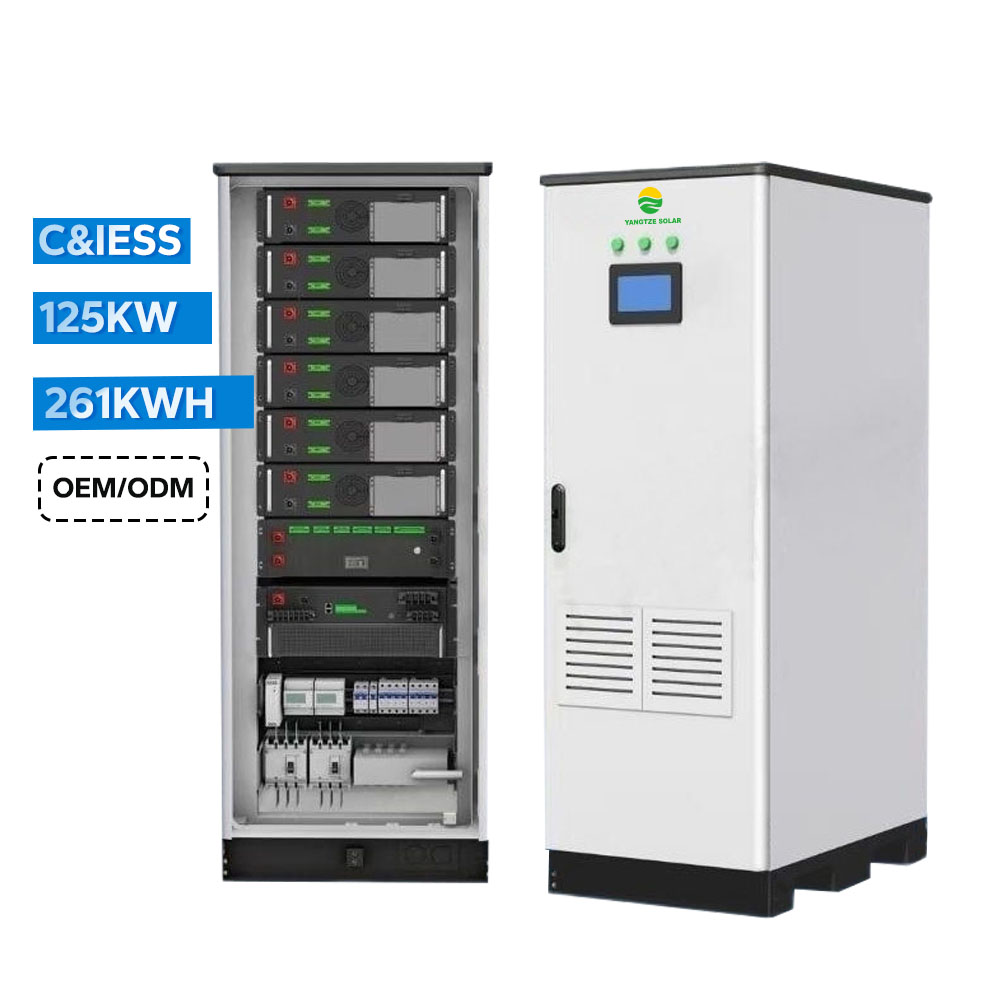

| Model | YS 100KW+215KWHL | YS 100KW +233KWHL | YS 120KW +241KWHL | MPS0500 | YS 125KW +261KWHL |
|---|---|---|---|---|---|
| Battery Specification | |||||
| Nominal Voltage | 768V | 832V | 768V | 550V | 832V |
| Operating Voltage Range | 672-876V | 728-949V | 672-876V | 500V | 728-949V |
| Cell Rated Capacity | 280Ah | 280Ah | 314Ah | 722Ah | 314Ah |
| Rated Capacity | 215.04kWh | 232.96kWh | 241.15kWh | - | 261.248kWh |
| AC Output (Grid Side) | |||||
| Rated Output Power | 100kW | 100kW | 120kW | 550kW | 125kW |
| Rated Grid Voltage | 3/N/PE, 230/400V | ||||
| Rated Grid Frequency | 50/60Hz | ||||
| Power Factor | >0.99 | ||||
| Adjustable Power Factor Range | 0.9 leading ~ 0.9 lagging | ||||
| General Data | |||||
| Ingress Protection | IP54 | ||||
| Cooling Method | Battery compartment (Liquid cooling), Electrical compartment (Air cooling) | ||||
| Fire Protection System | Aerosol, Perfluorohexanone | ||||
| Communication Method | RS485, CAN | ||||
| Operating Temperature | -20~+50℃ | ||||
