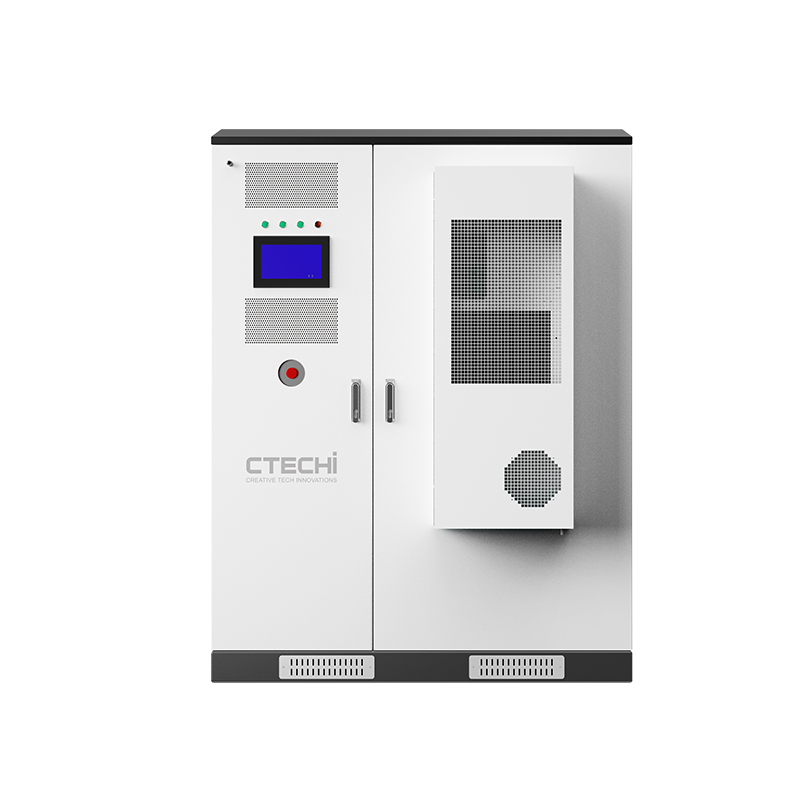

Zeno Electric
1 / 5

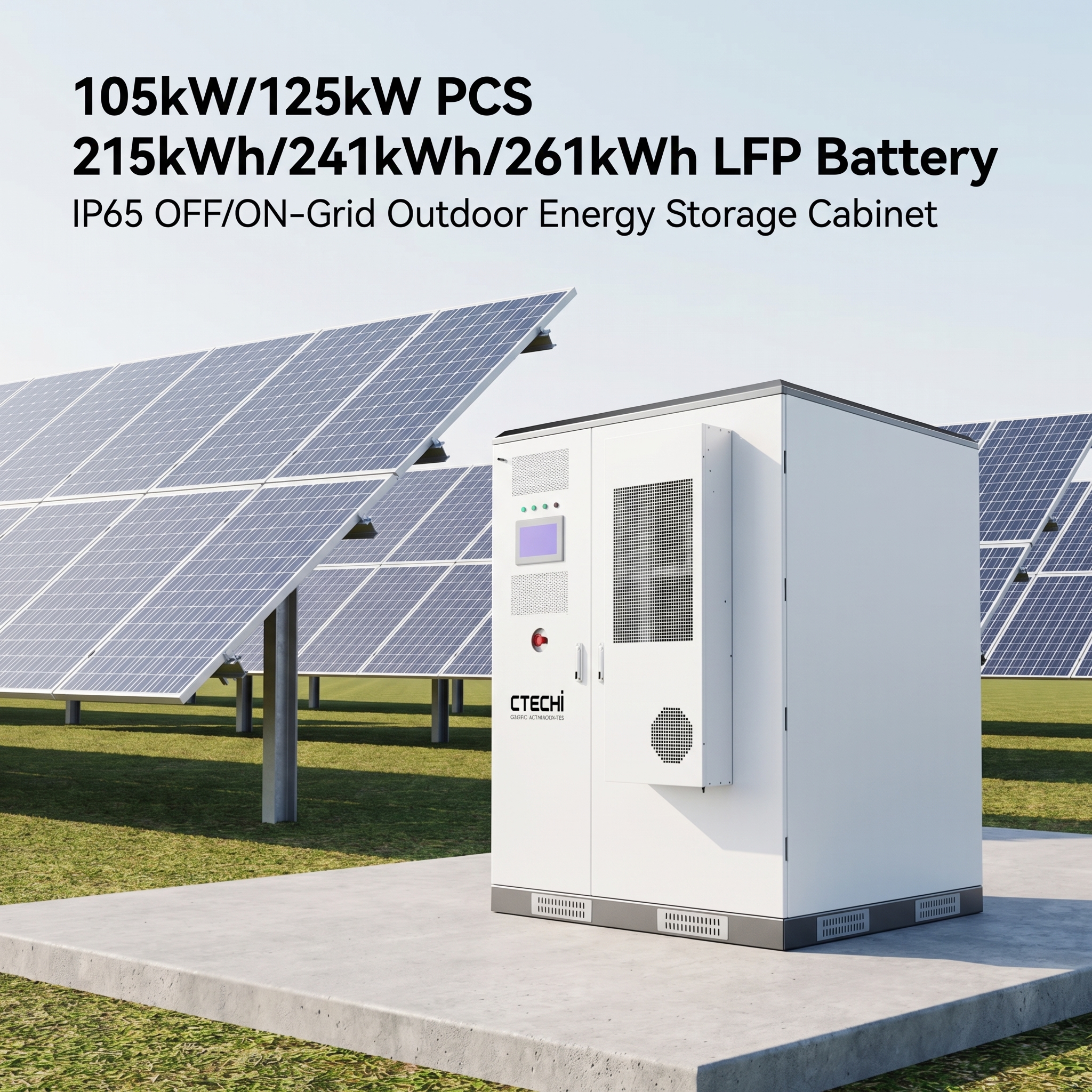

| Battery Capacity | 100-241kWh |
| PCS Compatibility | |
| Max PCS Units | 3 |
| AC Power Range |
30kW (400 or 480Vac & 350-750Vdc)*n units (n=1,2,3) 15kW (400 or 480Vac & 150-350Vdc)*n units (n=1,2,3) |
| DCDC Charger Compatibility | |
| Max DCDC Units | 3 |
| PV Input Power | 45kW *n units (n=1, 2, 3) |
| PV Input Voltage Range | 200V-810V |
| Battery Compatibility | |
| Battery String Voltage Range | 150-750Vdc |
| Auto-switch Compatibility | |
| Switching Time |
Active Switching: Seamless Passive Switching: 30ms |

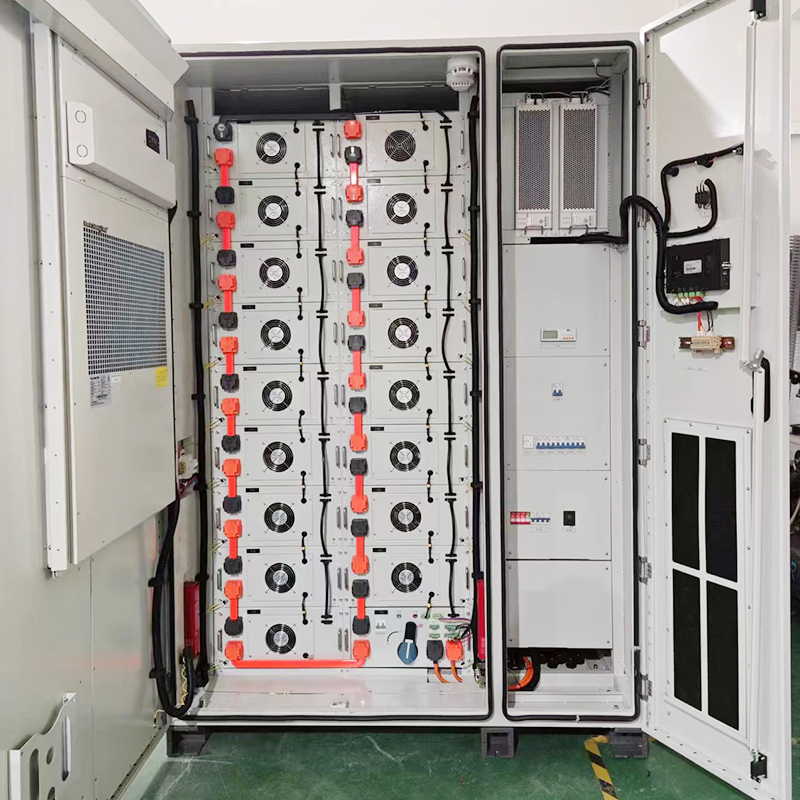

| Physical | |
| Cooling |
Forced air cooling for power electronics 5kW Air-conditioned for battery system (pre-installed) |
| Ingress Protection | IP54 |
| Max Elevation | 3000m/10000feet (> 3000m/10000feet derating) |
| Operating Ambient Temperature | -30°C ~ 55°C (Derate under 45°C) |
| Humidity | 0~95% (Non-condensing) |
| Size (W×H×D) | W2100*D1200*H2350 / W82.7*D47.2*H92.5 in |
| Weight | 750KG (W/O Battery) |
| Optional Components | |
| FFS | heptafluoropropane, Fire detector |
| Built-in Transformer | 400V/400V AC and 480V/480V AC, 100kVA |
| Built-in Gateway | For Peak-shaving, demand charge management or back-up power supply. |
| Auxiliary Power |
220V single phase built-in, up to 5kW transformer 120V built-in, up to 3kW |
| Salt Spray Prevention | Optional Salt spray prevention version with special coating and filter |
We are an energy storage expert with 21 years’ experience in the battery industry. We offer one-stop battery solutions as well as ODM, OEM, and SKD services, focusing on the R&D and manufacturing of a wide range of batteries, including energy storage systems, motive power batteries and digital & consumer batteries, such as Telecom Base Stations, AGV, RV, E-Forklift, E-Sweeper, Golf Carts, Golf Trolley, Gardening Machine, Boats, Cleaning Machine, Solar Energy Storage, Consumer Batteries and so on.

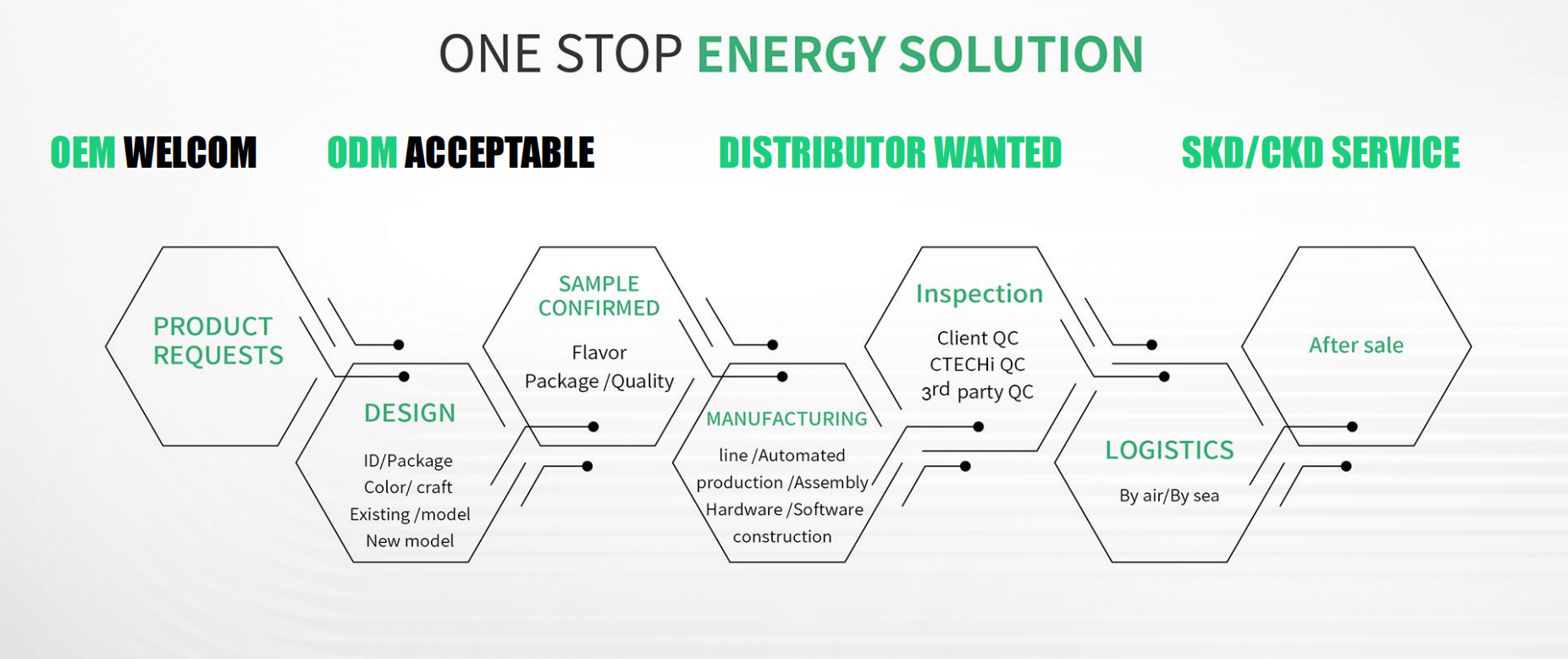

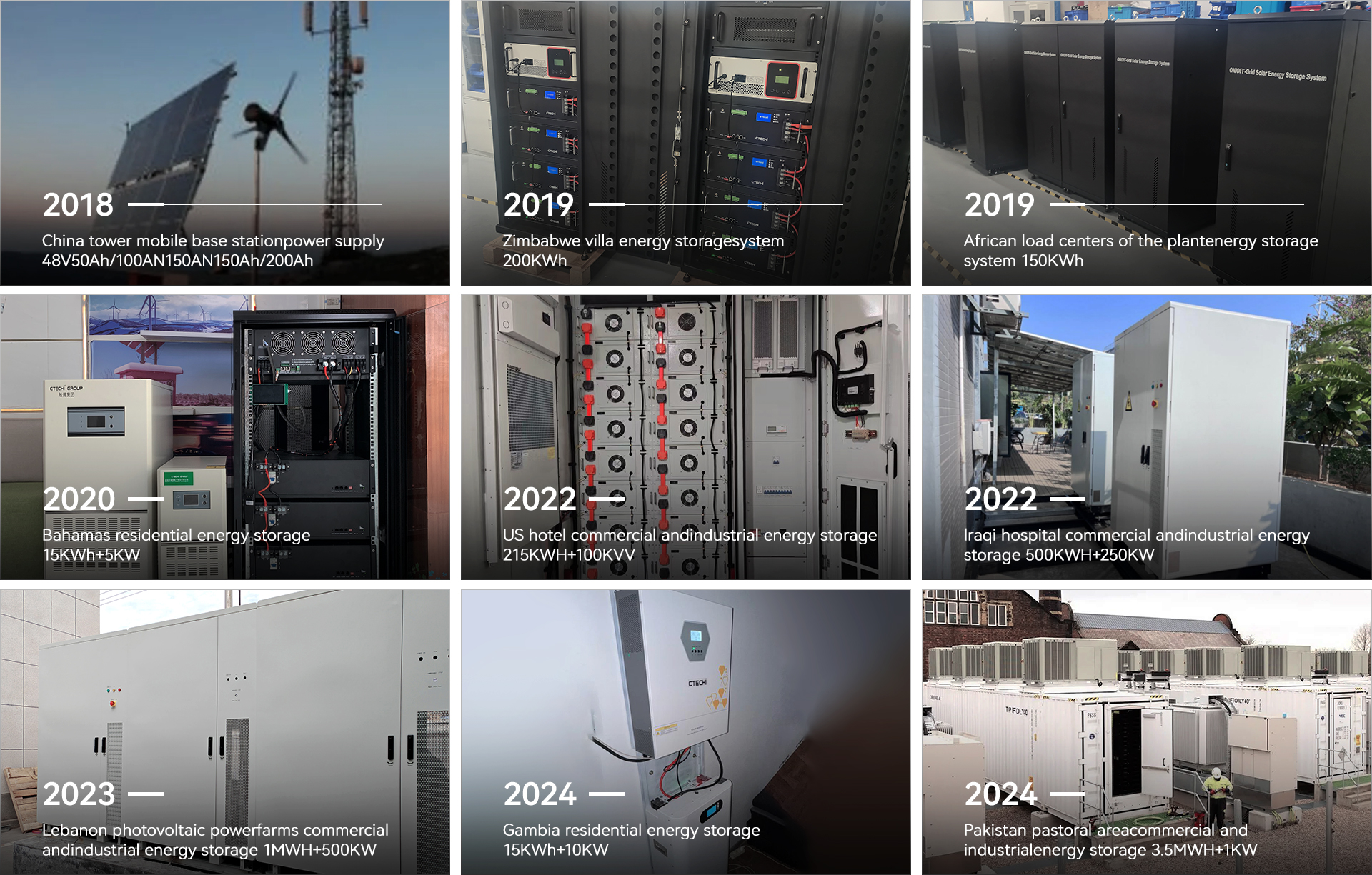

We have accumulated rich experiences on the energy storage solution through more than 30,000 customized cases, which enables us to provide tailored solutions and prompt responses to our clients' diverse needs. Whether you require small-quantity orders or full-service packages that includes shipping, certification and freight, we are committed to meeting your specific requirements.

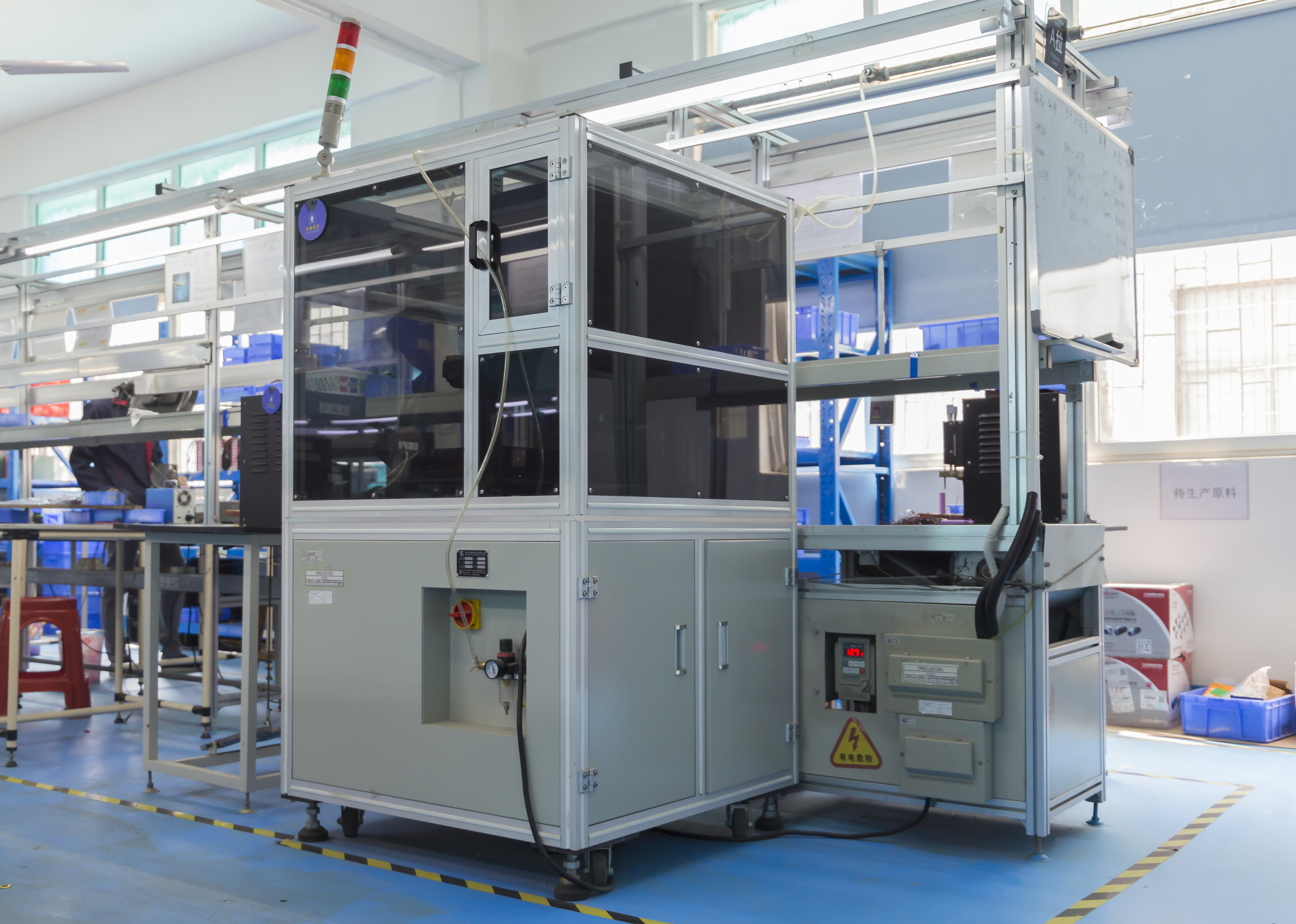

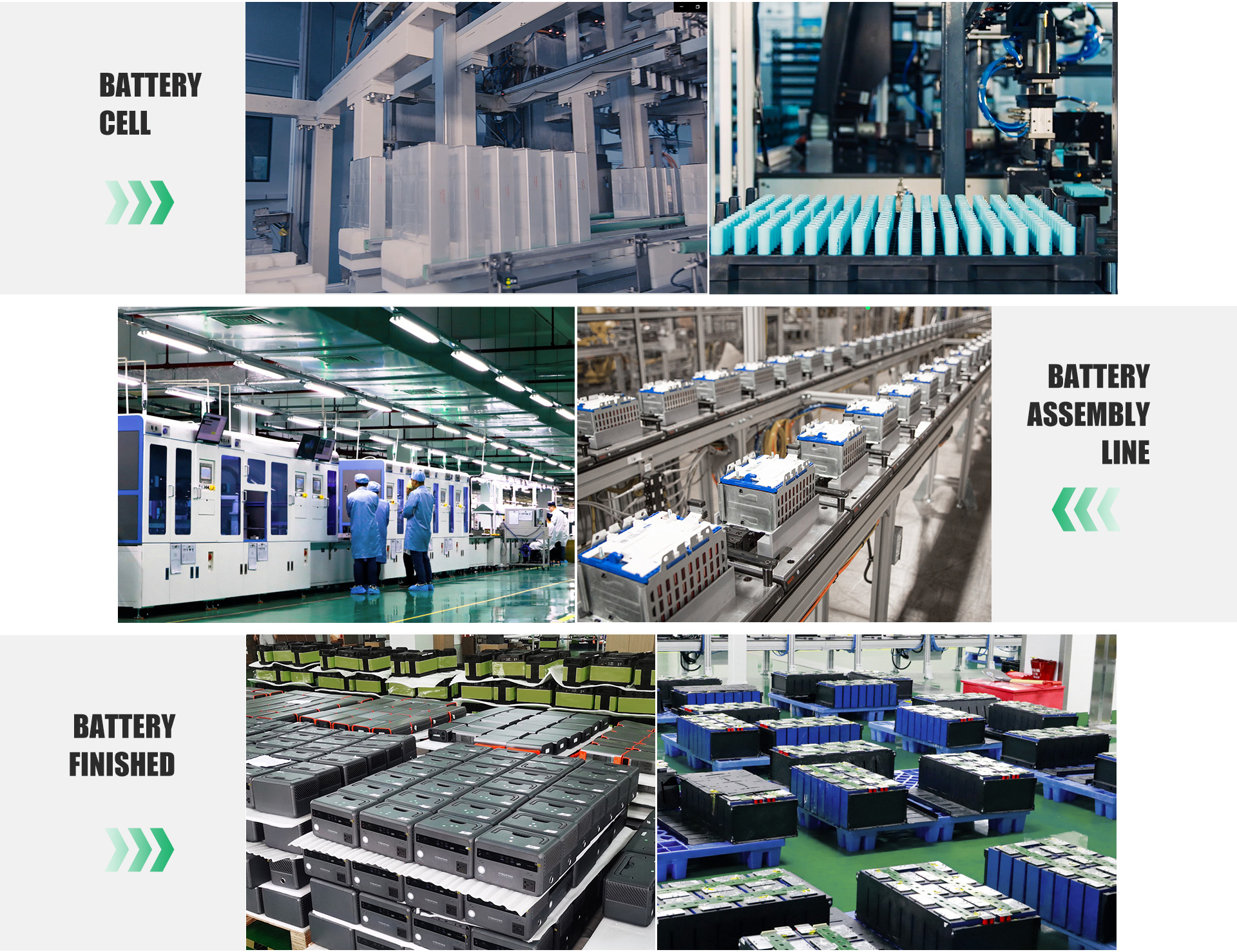

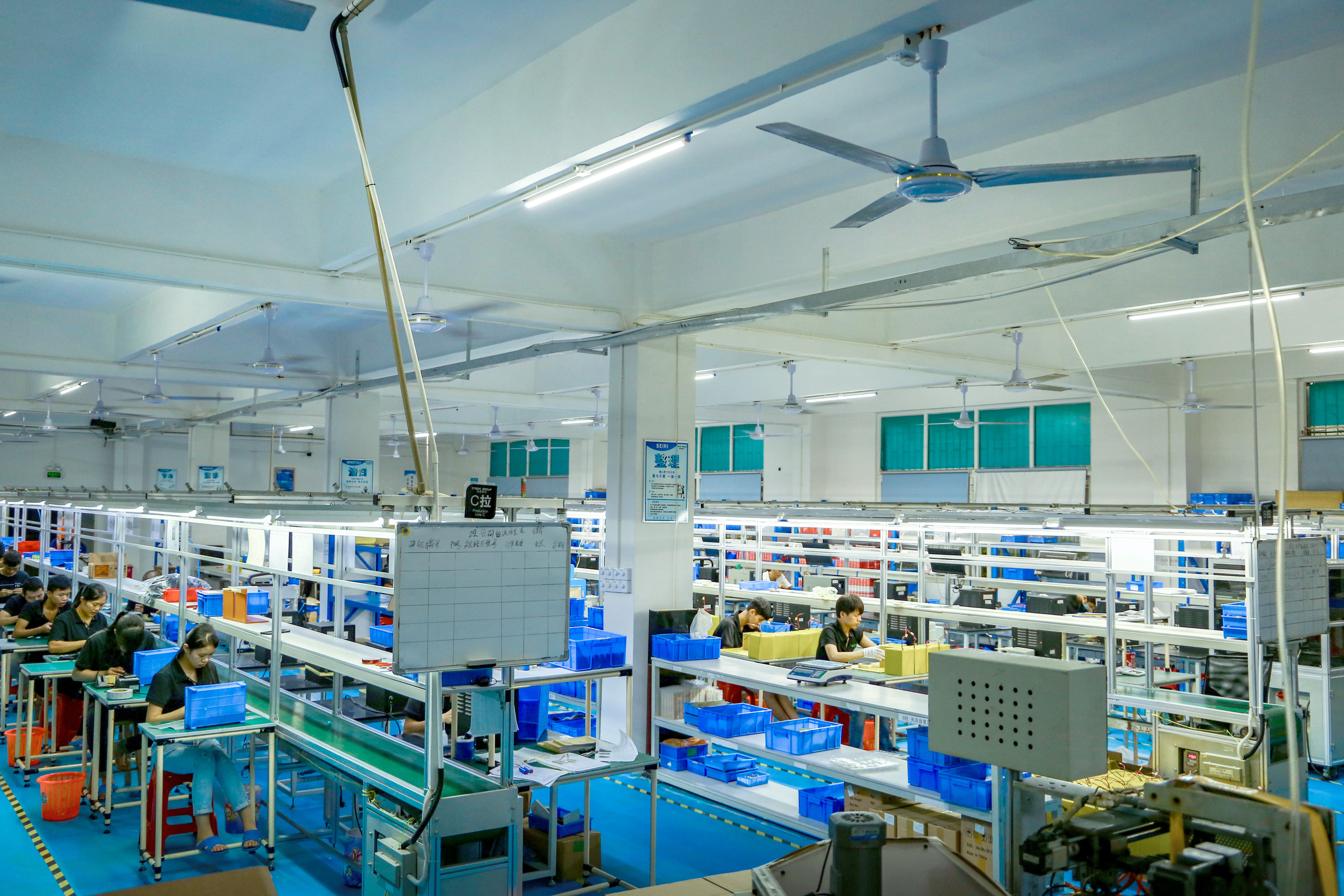

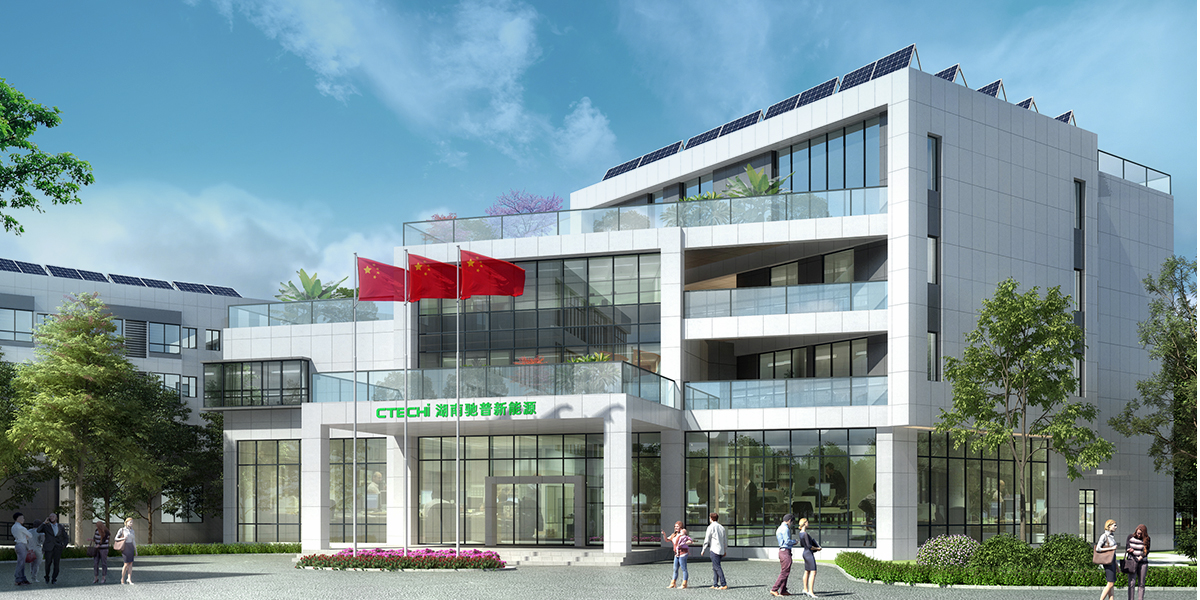

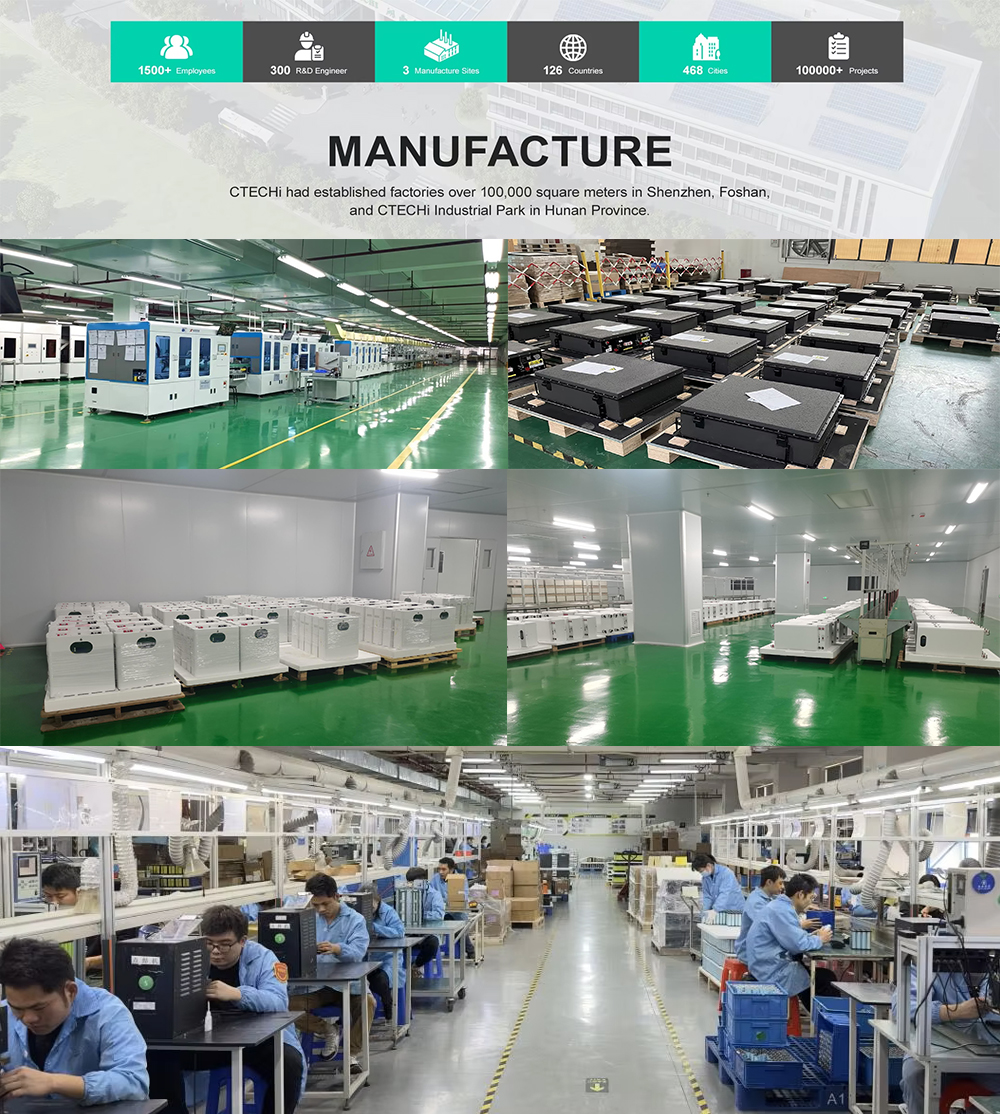

With state-of-the-art facilities covering an area of 100,000+ square meters, we are committed to rigorous product production, strict quality control, precise testing and recognized international certification to ensure the high quality of products.
