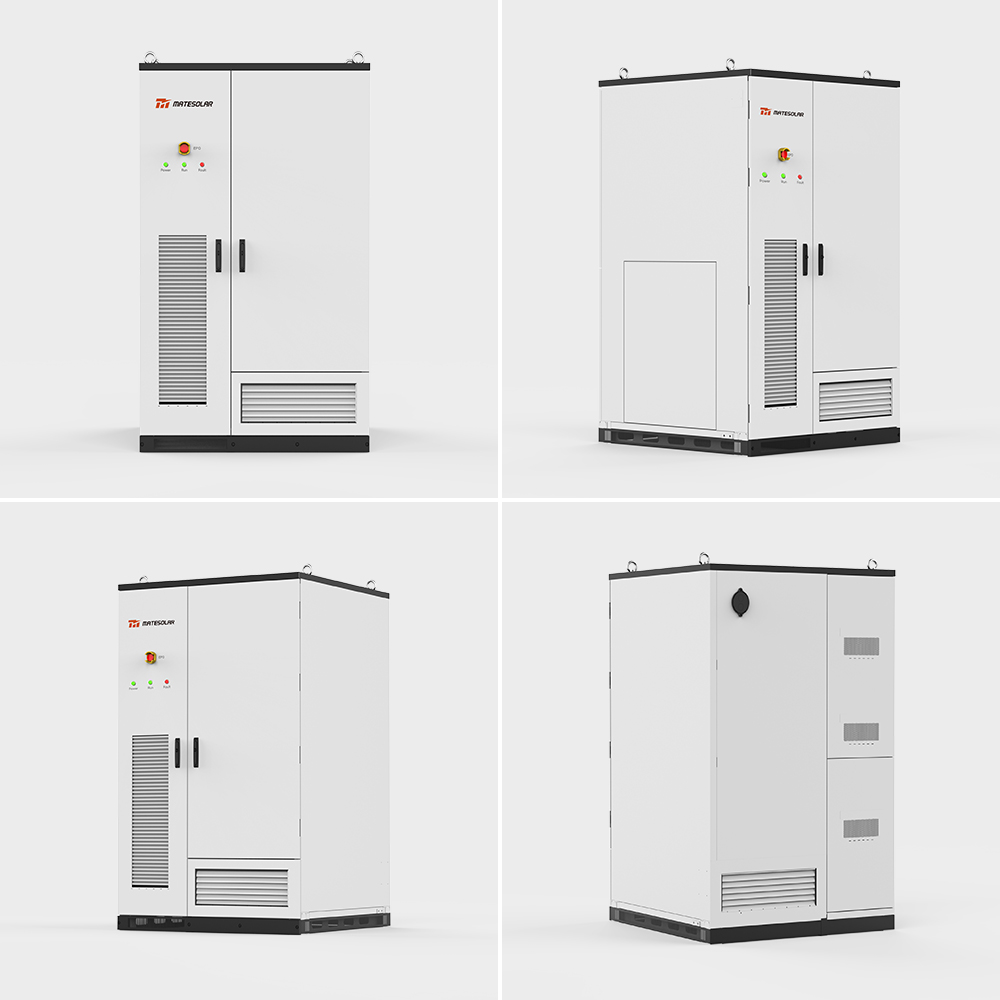

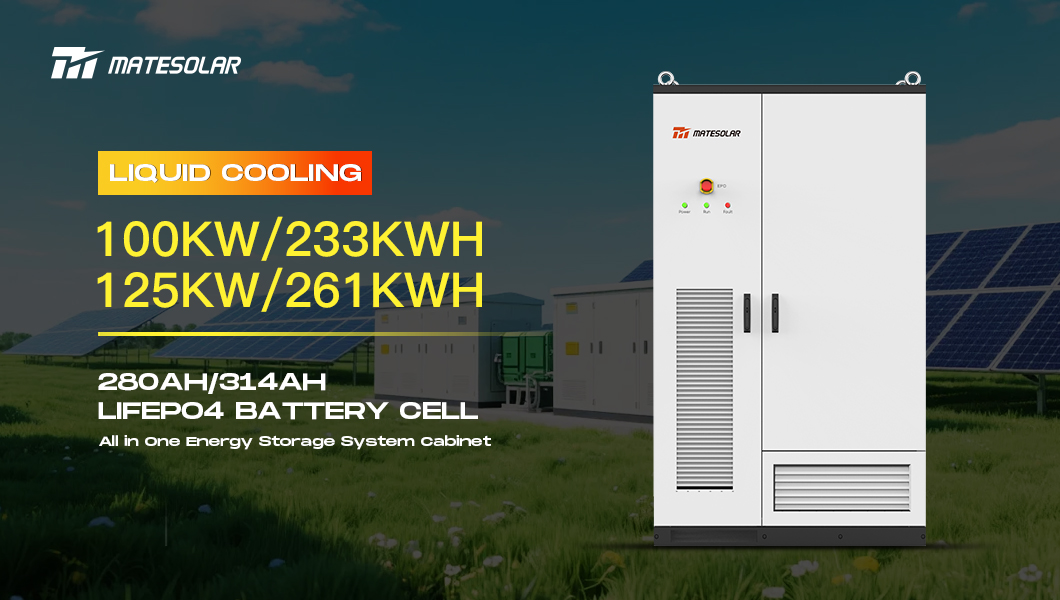

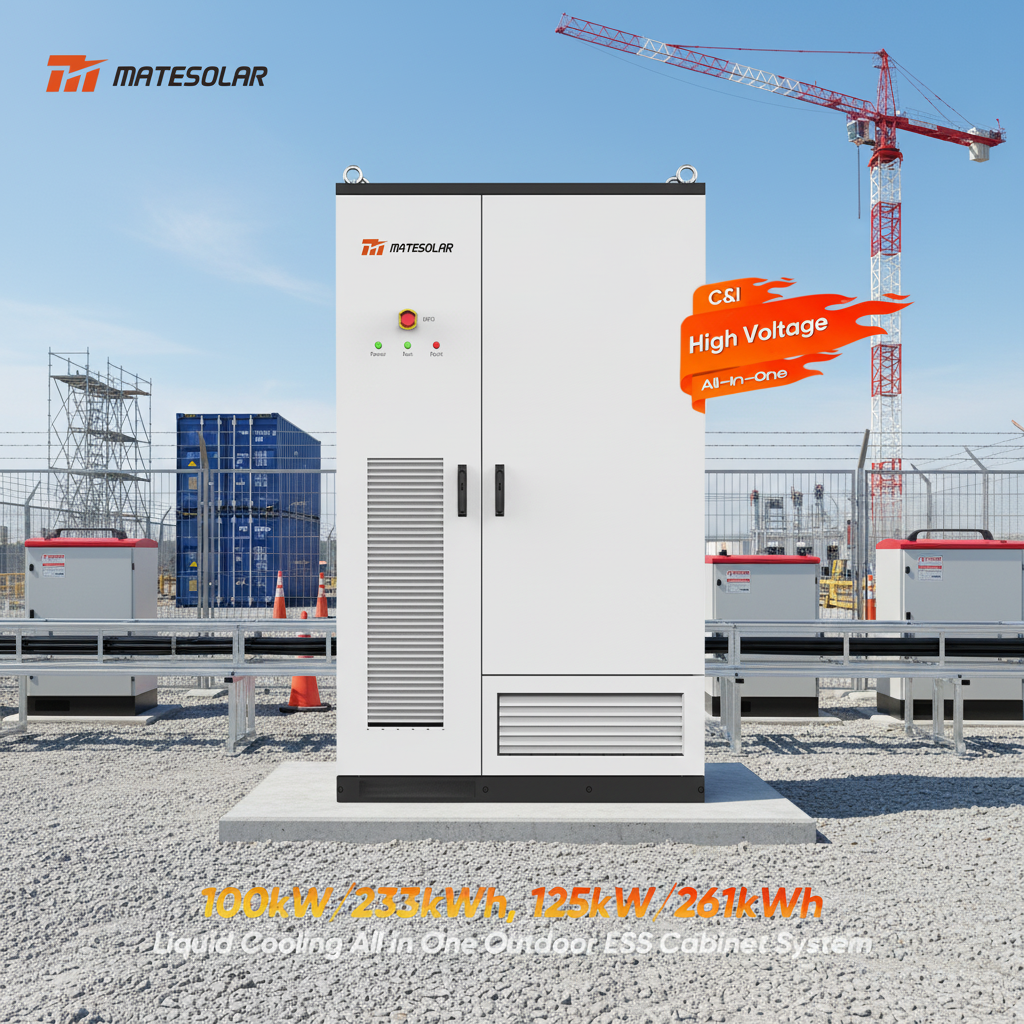

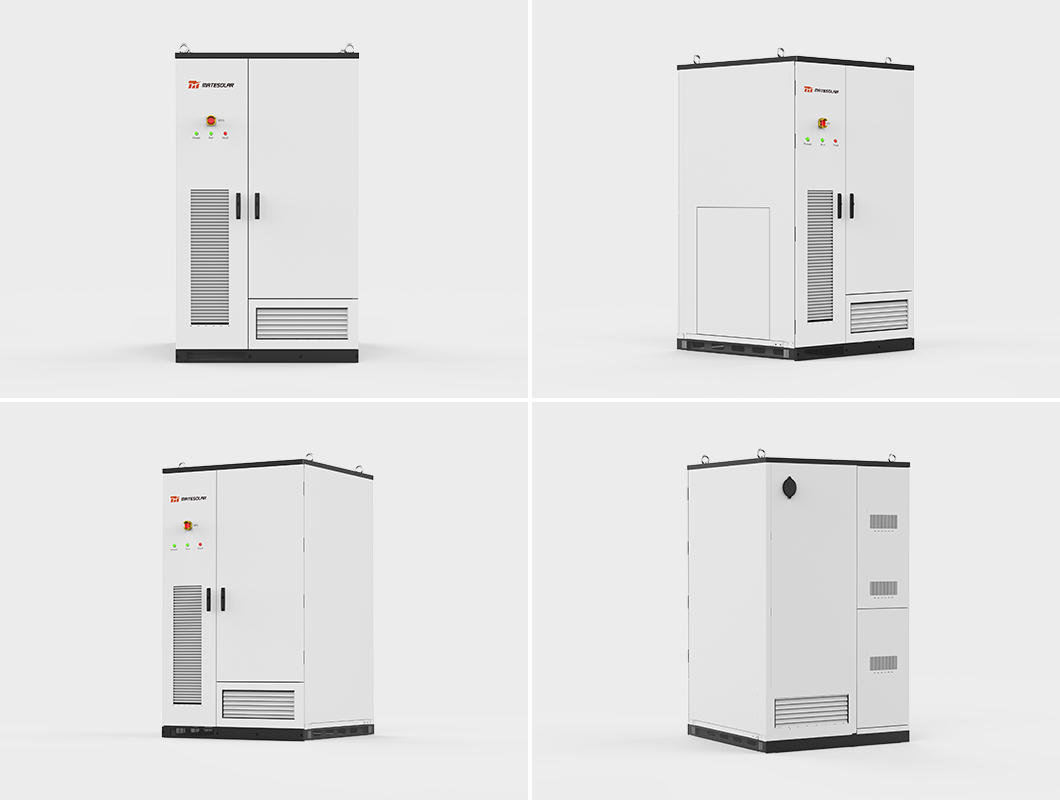

These two liquid-cooled energy storage cabinets are standardized products designed for industrial and commercial energy storage scenarios, covering different power and capacity requirements. Their core design revolves around high safety, long lifespan, and efficient thermal management.

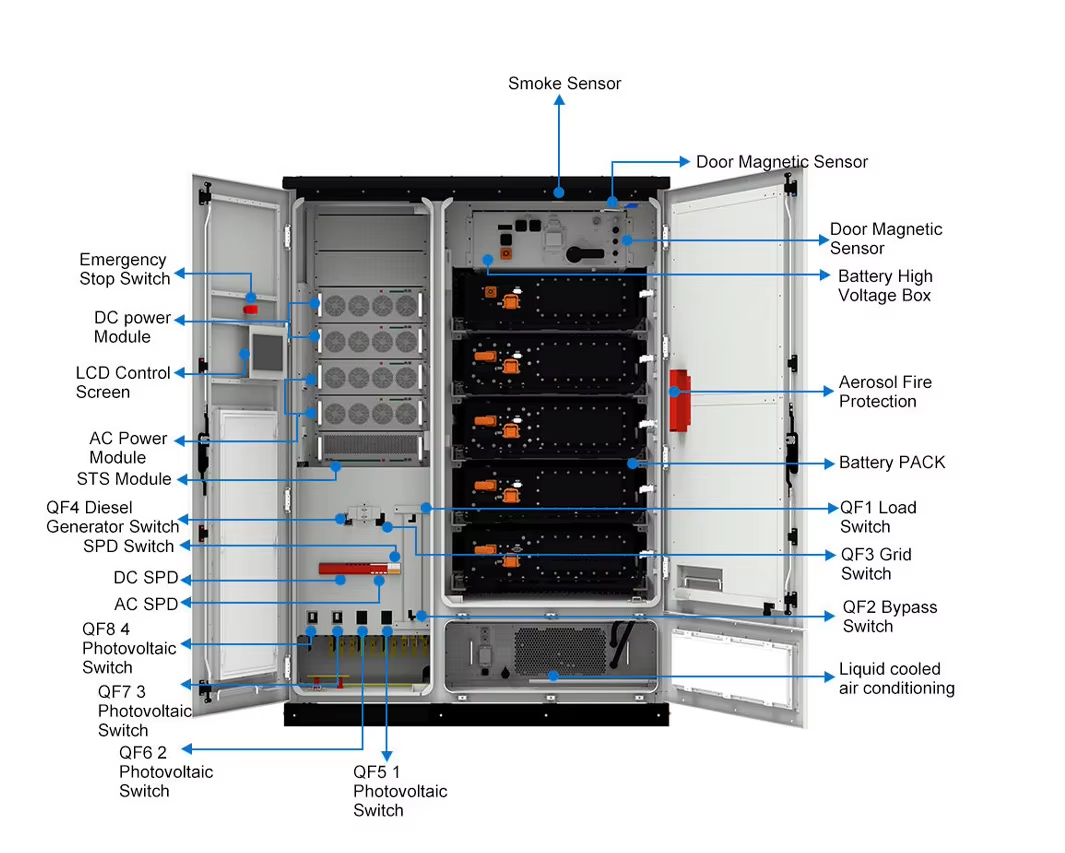

Highly integrated design including battery pack, liquid cooling, BMS, PCS, and fire protection in less than 1.5 square meters.
Upgraded energy density using 280Ah or 314Ah high-capacity cells, supporting seamless grid-connected and off-grid switching.
| Model Parameters | 100kW/233kWh | 125kW/261kWh |
|---|---|---|
| Battery Parameters | ||
| Rated Capacity | 232kWh | 261kWh |
| Rated Voltage | 832V | |
| Cell Type | LFP (Lithium Iron Phosphate) | |
| Cell Capacity | 280Ah | 314Ah |
| AC Parameters | ||
| Rated AC Power | 100kW | 125kW |
| Rated AC Voltage | 400V (3W+N+PE) | |
| System Efficiency | > 90% | |
| General Parameters | ||
| Protection Level | IP55 | |
| Cooling Mode | Intelligent liquid-cooled | |
| Dimensions (W*D*H) | 1600*1350*2300mm | |
| Weight (approx.) | 3180kg | 3330kg |
Common Technological Advantages: Both products feature a liquid cooling solution that controls cell temperature differences within 3℃, extending cycle life to over 6000 cycles. They support a 1C charge/discharge rate and come standard with a cloud monitoring platform for real-time tracking of over 200 data points.

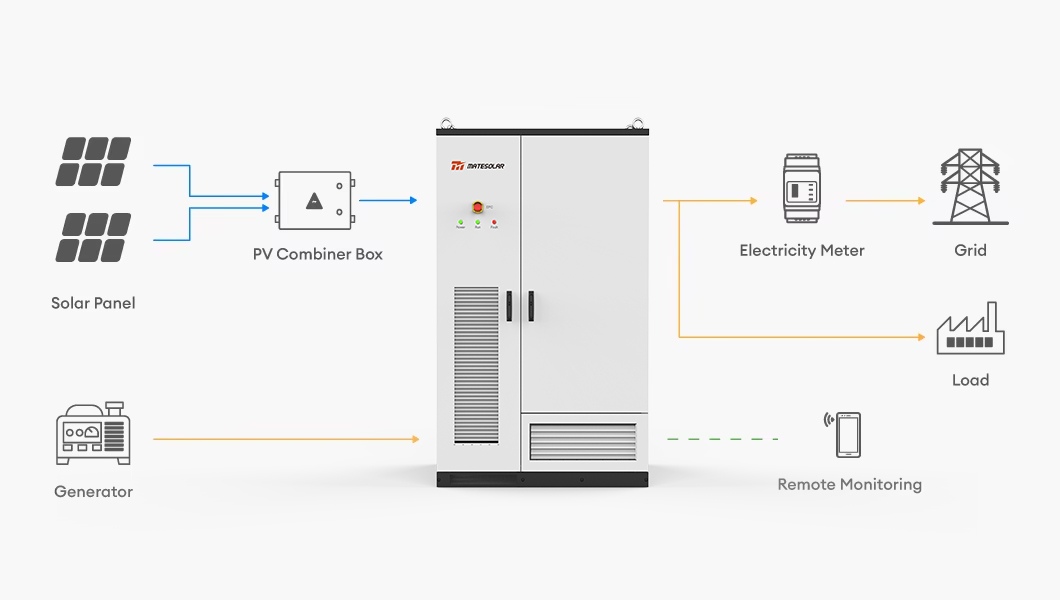

C&I PCS and BESS solutions help achieve peak shaving, PV self-consumption, and microgrid backup power.
Founded in 2002, our enterprise specializes in the photovoltaic (PV) field, providing high-quality clean energy products globally. Our portfolio includes solar modules, inverters, lithium batteries, and containerized energy storage systems. All products meet ISO 9001:2015 and ISO 14001:2015 standards, ensuring excellent adaptability to extreme environments across North America, Europe, and Africa.
