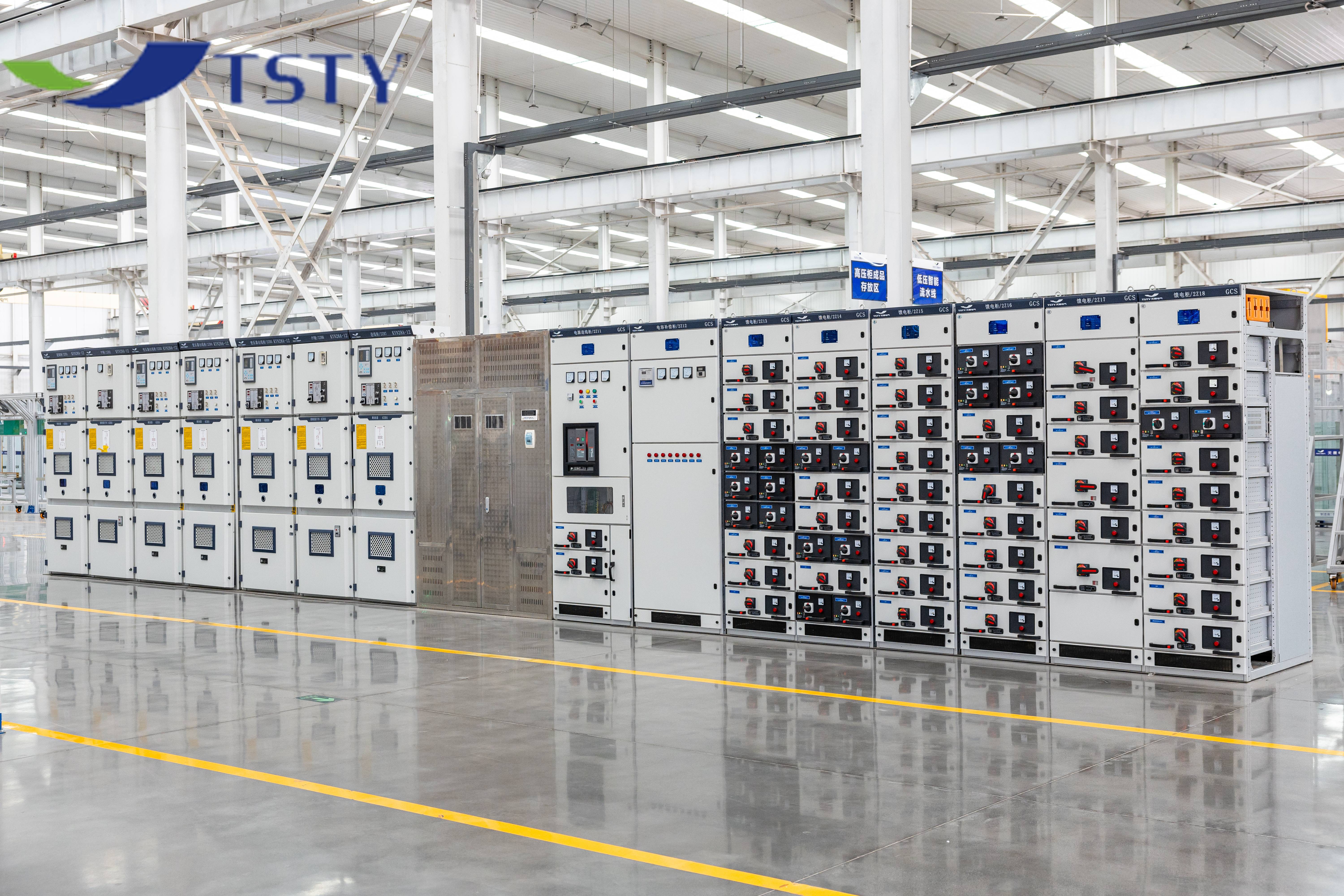

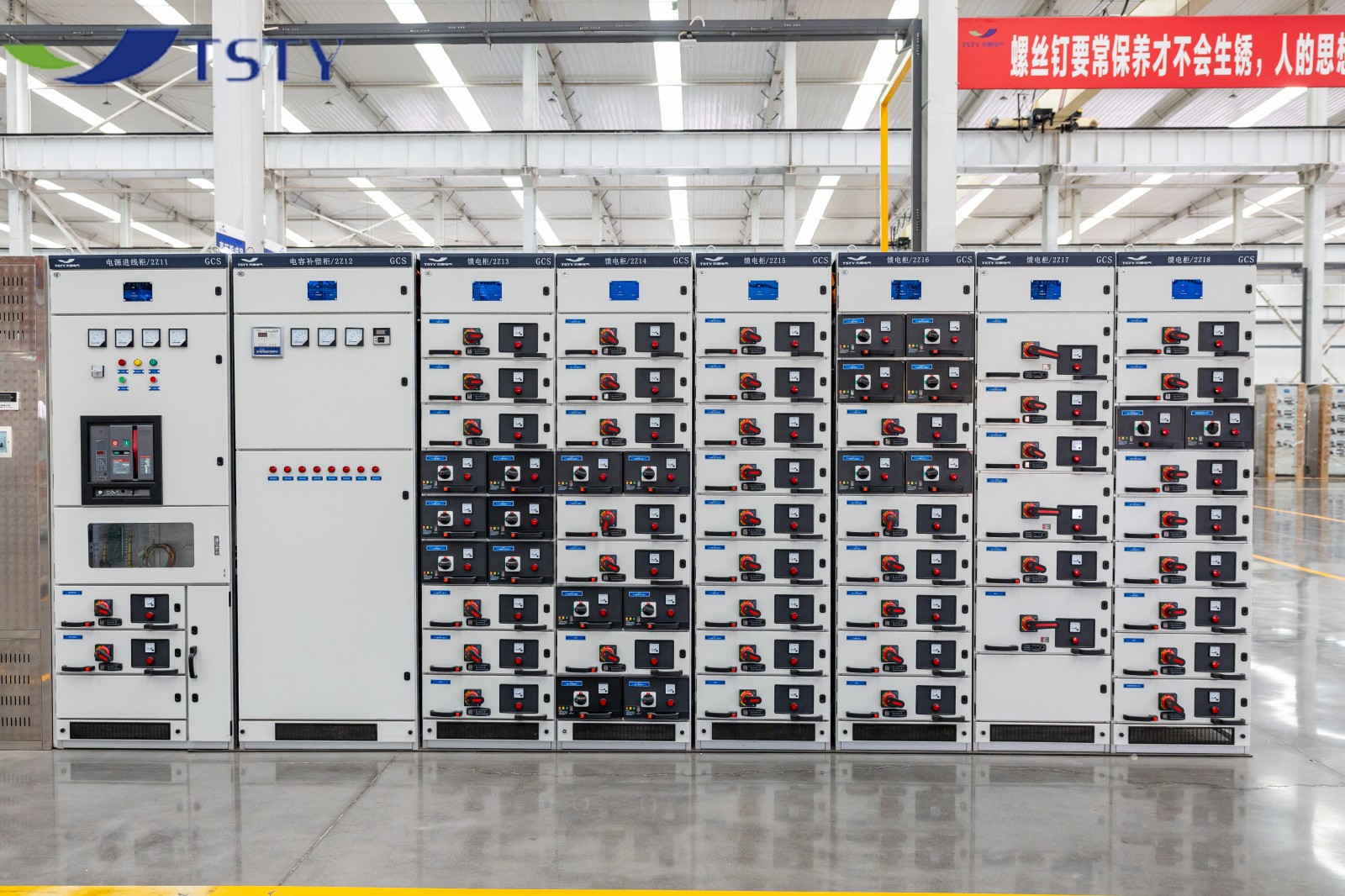

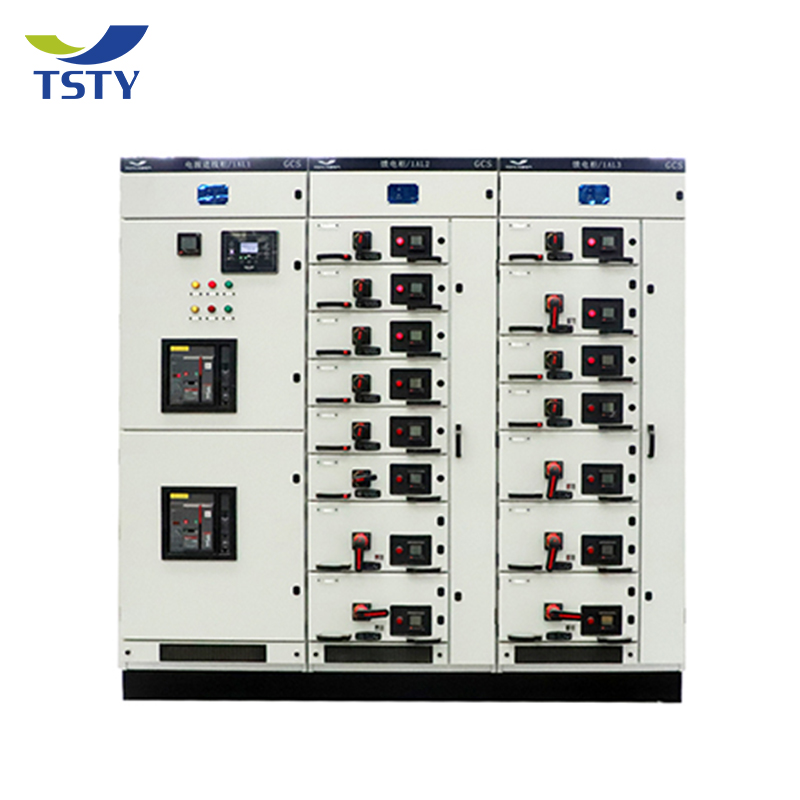

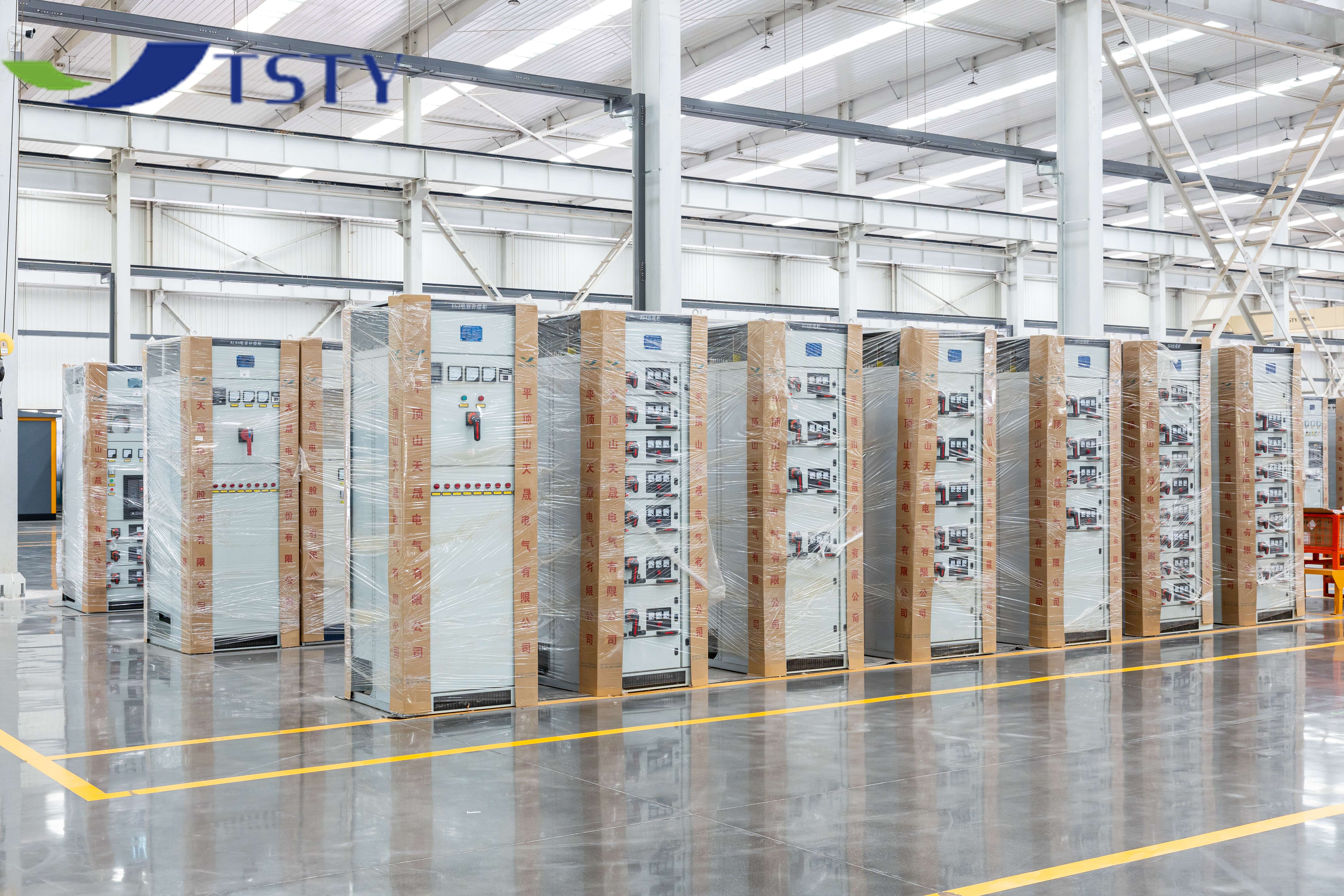

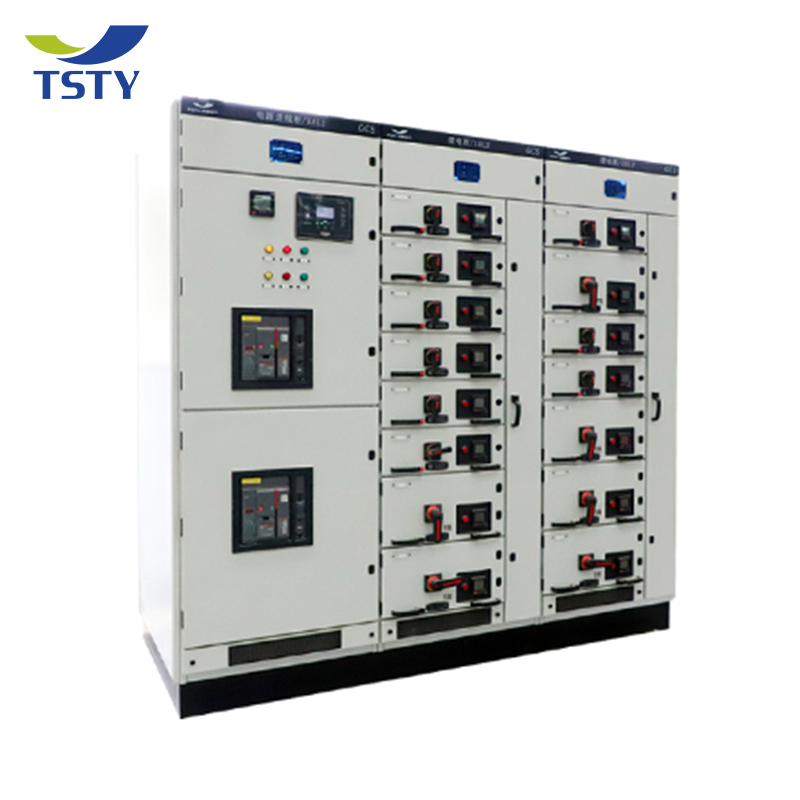

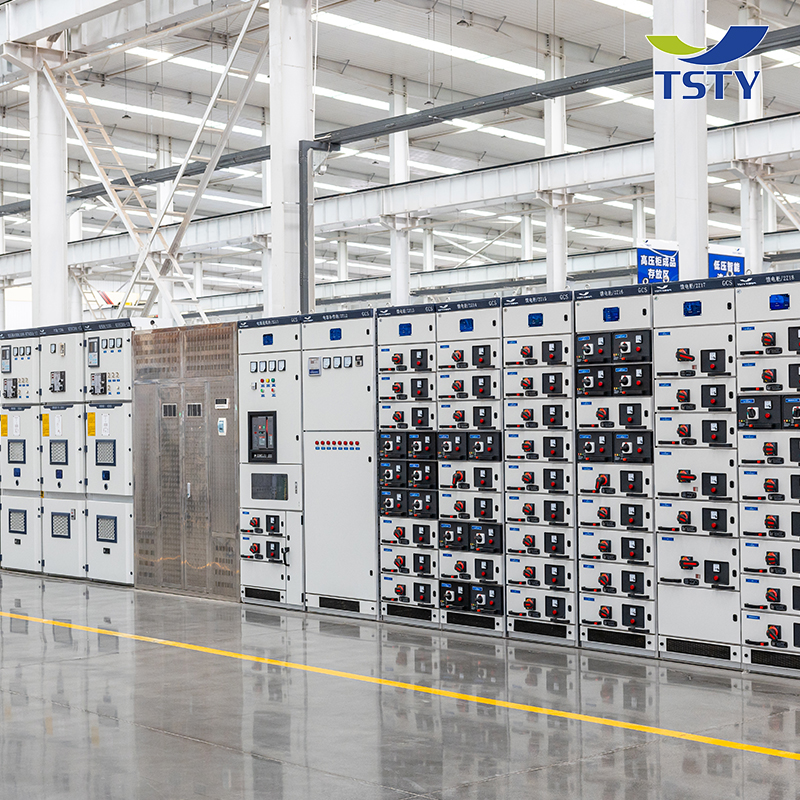

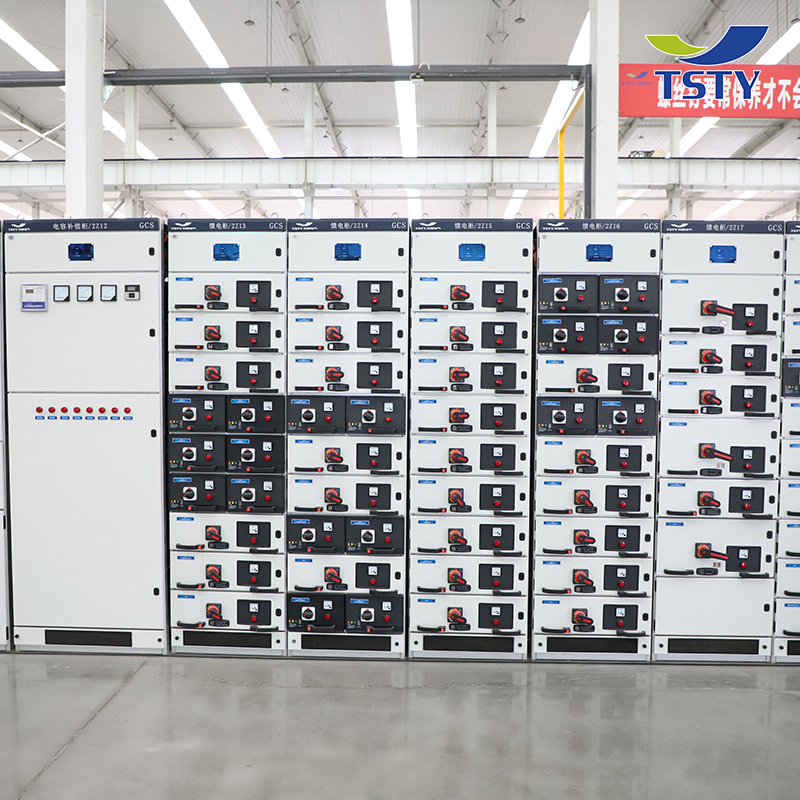

GCS low-voltage switchgear is a drawer-type low-voltage distribution cabinet widely used in industry, commerce and power systems.
The core advantages of GCS low-voltage cabinets are modularity, easy maintenance and high scalability. They are especially suitable for scenarios with high requirements for power distribution continuity, flexibility and intelligence.
Its cost-effectiveness is between the economical GGD cabinet and the high-end MNS cabinet, and it is one of the mainstream choices in industrial power distribution systems.
| Cabinet Dimension Options | |
|---|---|
| Height (mm) | 2000 |
| Width (mm) | 400 / 600 / 800 / 1000 |
| Depth (mm) |
For Width 400: 800 / 1000 For Width 600: 800 / 1000 / 600 For Width 800: 800 / 1000 / 600 For Width 1000: 800 / 1000 |
| Parameter Name | Technical Value |
|---|---|
| Rated Voltage of Main Circuit | AC 380/400/600 V |
| Rated voltage of auxiliary circuit (V) | AC 220, 380(400) / DC 110, 220 |
| Rated phase (Hz) | 50(60) |
| Rated insulation voltage (V) | 600(1000) |
| Rated current (A) - Horizontal bus | ≤4000 |
| Rated current (A) - Vertical bus (MCC) | 1000 |
| Busbar rated short-time withstand current (kA/1s) | 50, 80 |
| Busbar rated peak withstand current (kA/0.1s) | 105 / 176 |
| Power frequency test voltage (V/1min) - Main circuit | 2500 |
| Power frequency test voltage (V/1min) - Auxiliary circuit | 1760 |
| Busbar (Three-phase four-wire system) | A.B.C.PEN |
| Busbar (Three-phase five-wire system) | A.B.C.PE.N |
| Protection level | IP30, IP40 |

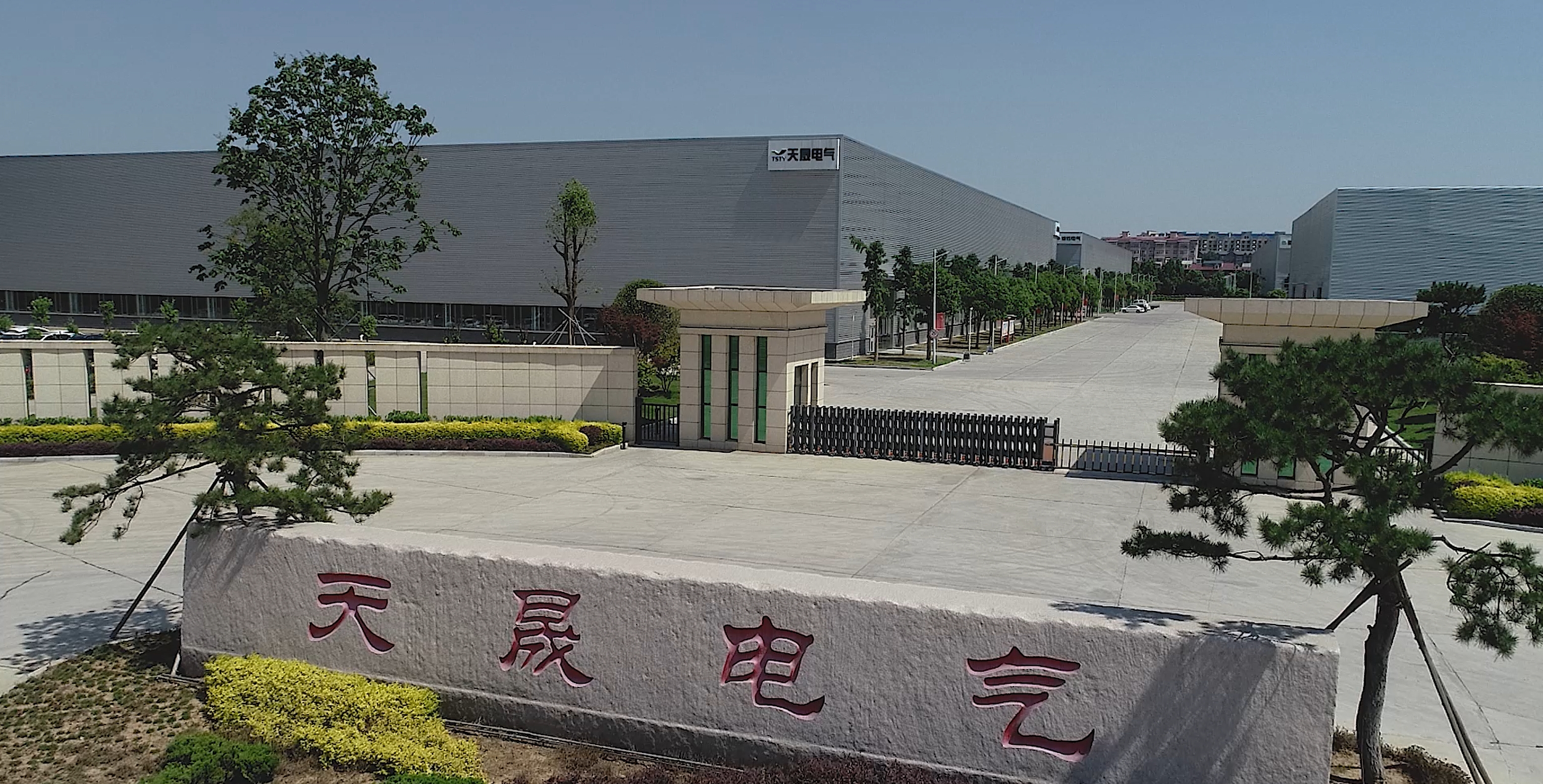

Established in 1995 with a construction area of 250,000 square meters, over 500 employees, and more than 158 invention patents. The manufacturing power products cover 6kv, 11kv, 22kv, 35kv power transformers, distribution transformers, substation transformers, high and low voltage switchgear, wind power, and photovoltaic power generation equipment.

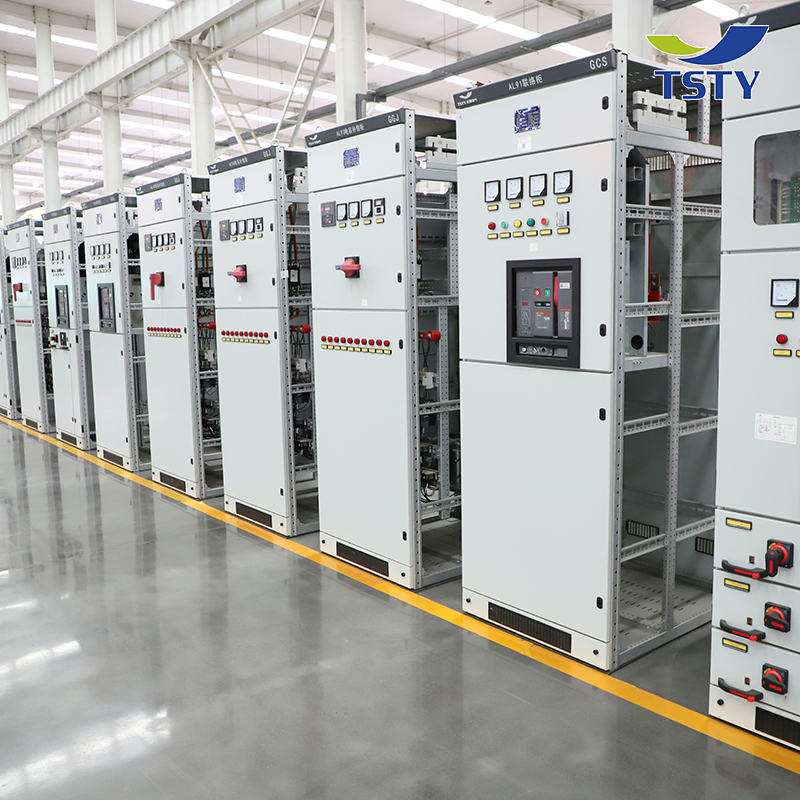

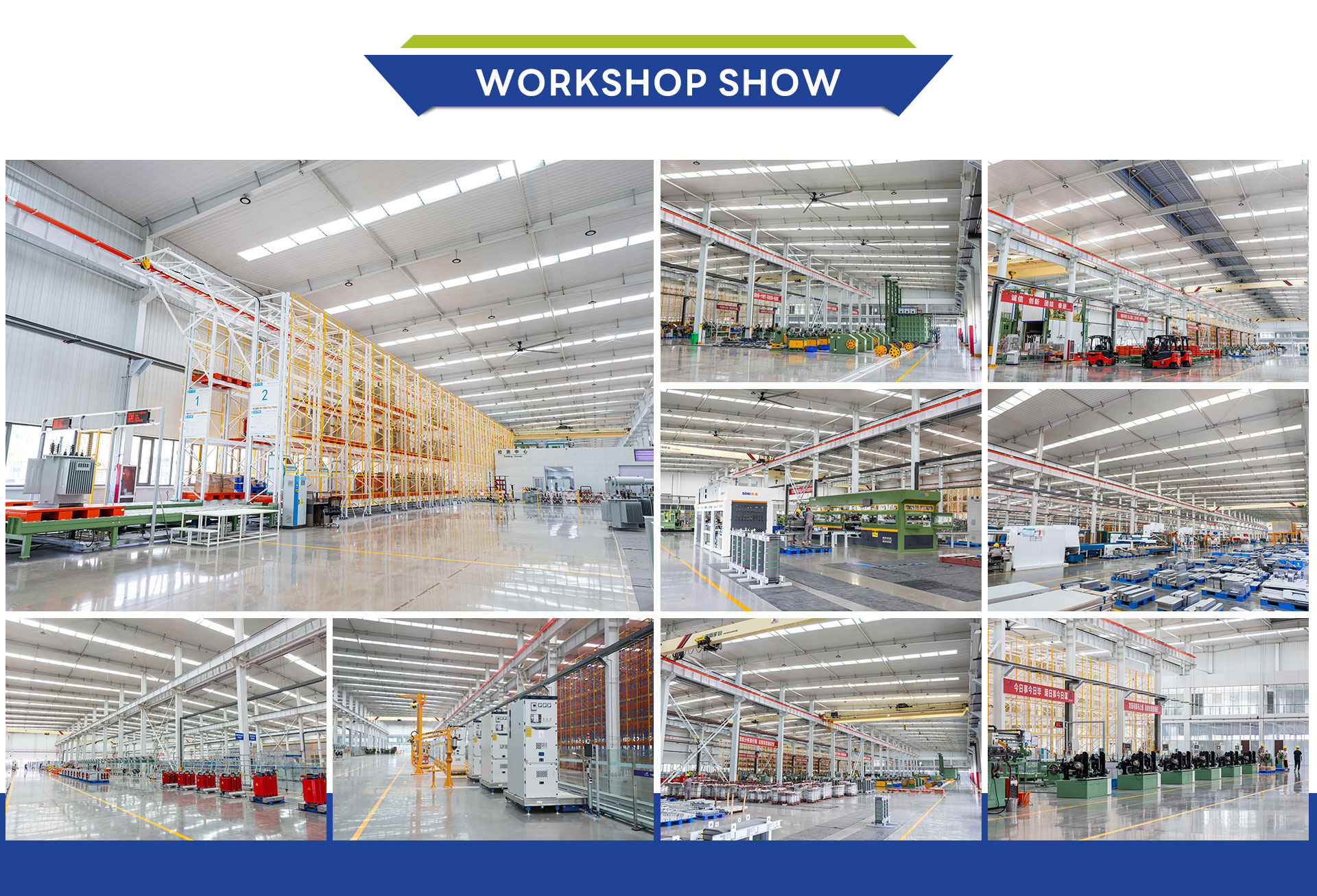

Every link of the workshop adopts advanced domestic automation and intelligent equipment. Smart warehouse WMS, smart RGV/AGV trolleys, MES production management system and 5G communication technology realize real-time seamless transmission of the whole process data and control system, showcasing automation, process standards, and intelligence.

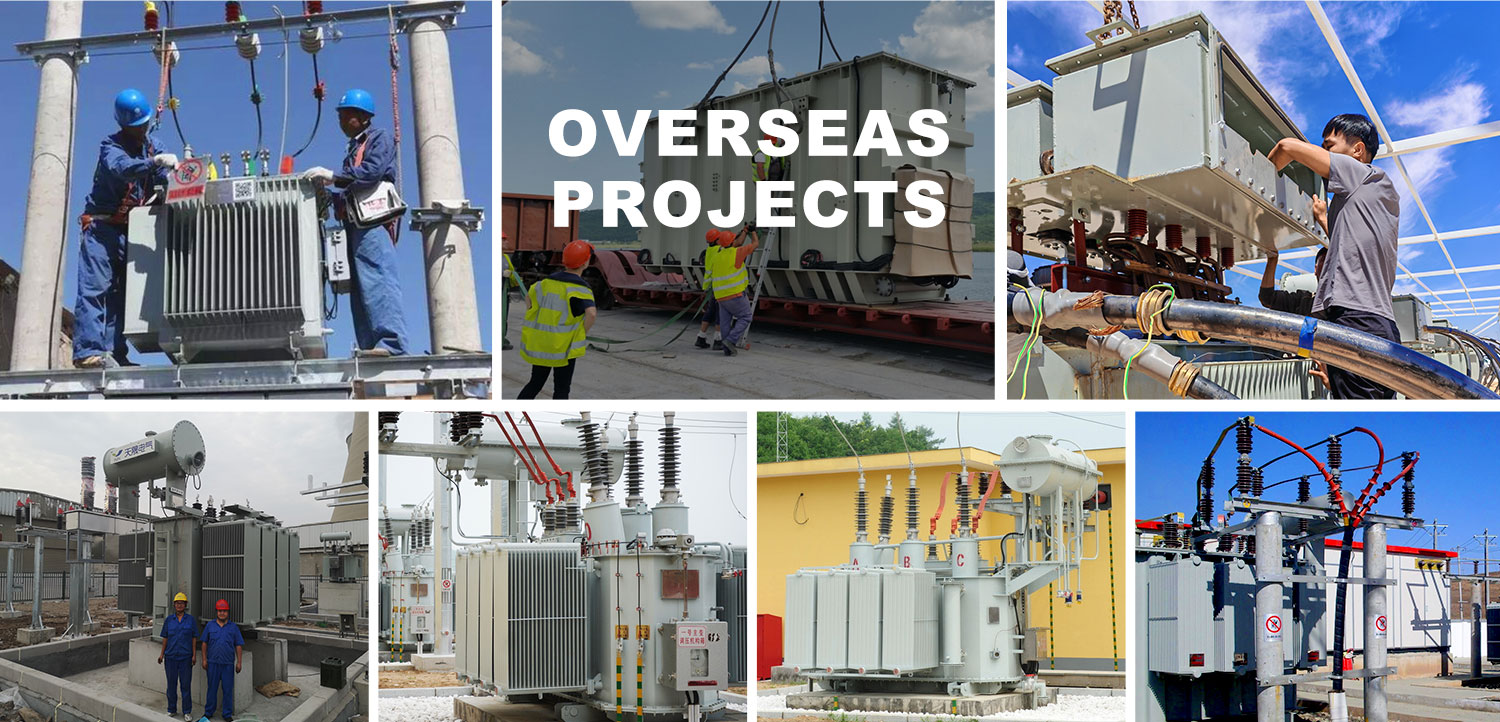

The factory has passed ISO9001, IEC, SGS, Intertek, CCC, CE, BV, and GOST certifications. The products have been successfully sold to more than 80 countries, including Indonesia, Chile, Netherlands, Hungary, England, Philippines, Pakistan, Bangladesh, South Africa, Zambia, Tanzania, Saudi Arabia, UAE, Mexico and other countries.
Adhering to the core strategic deployment of "Let green electricity change the world", a win-win situation for power equipment and environmental protection is achieved.
