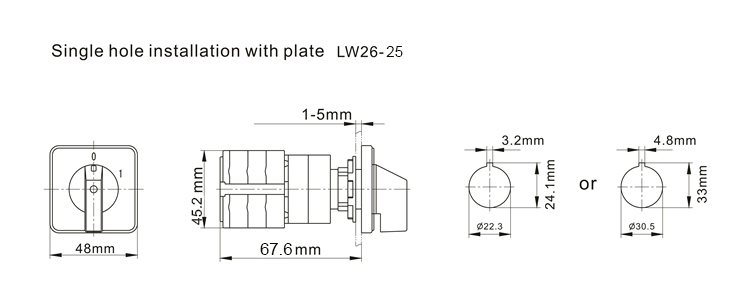

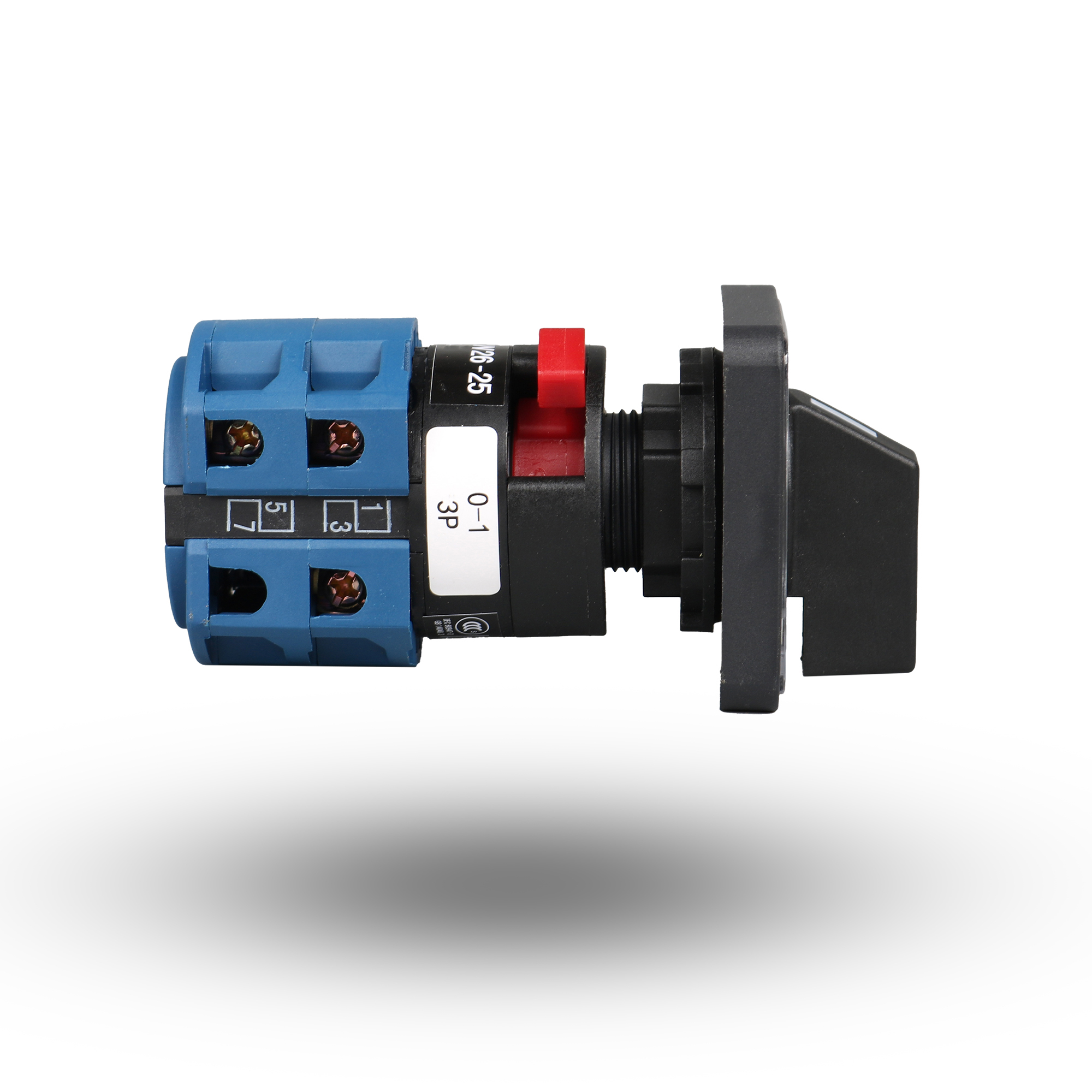

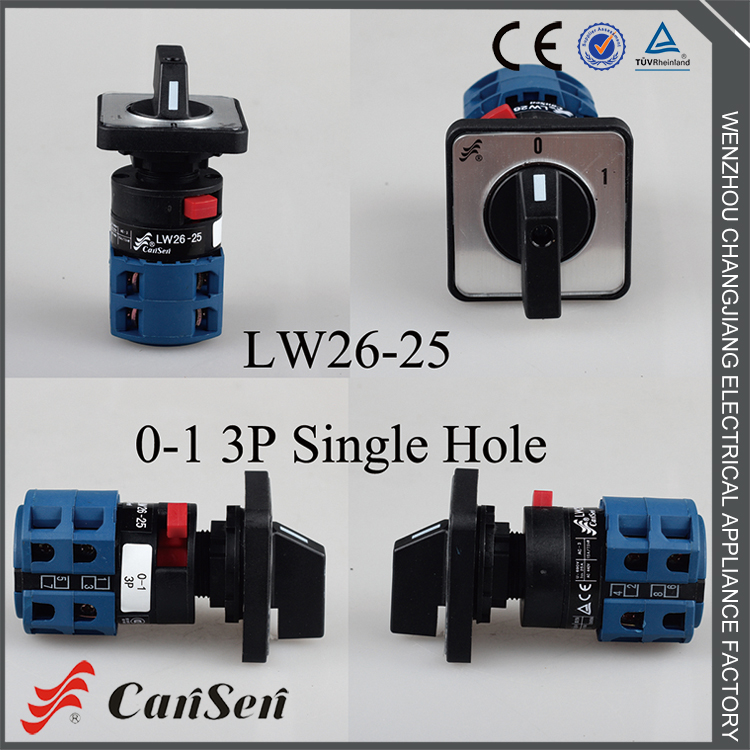

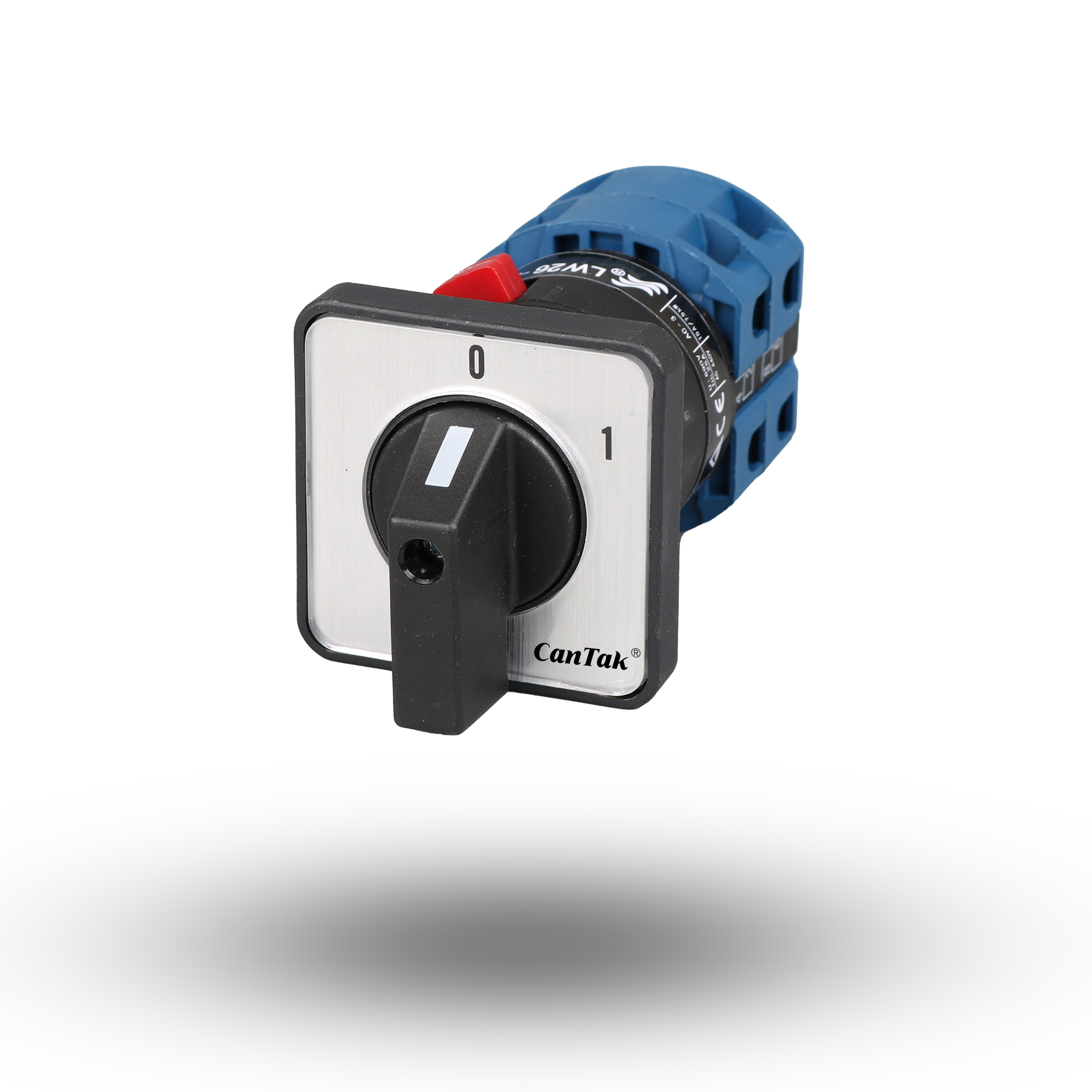

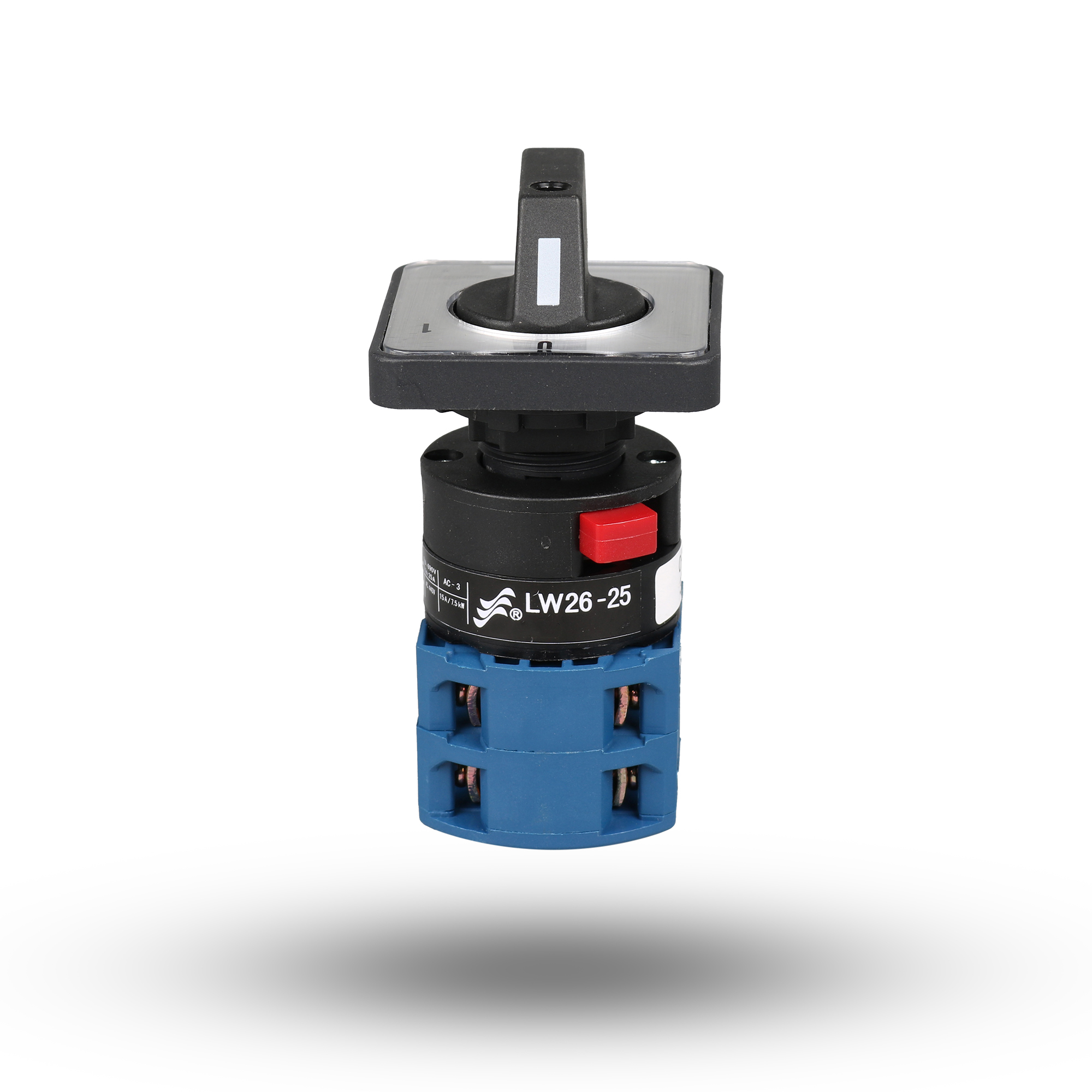

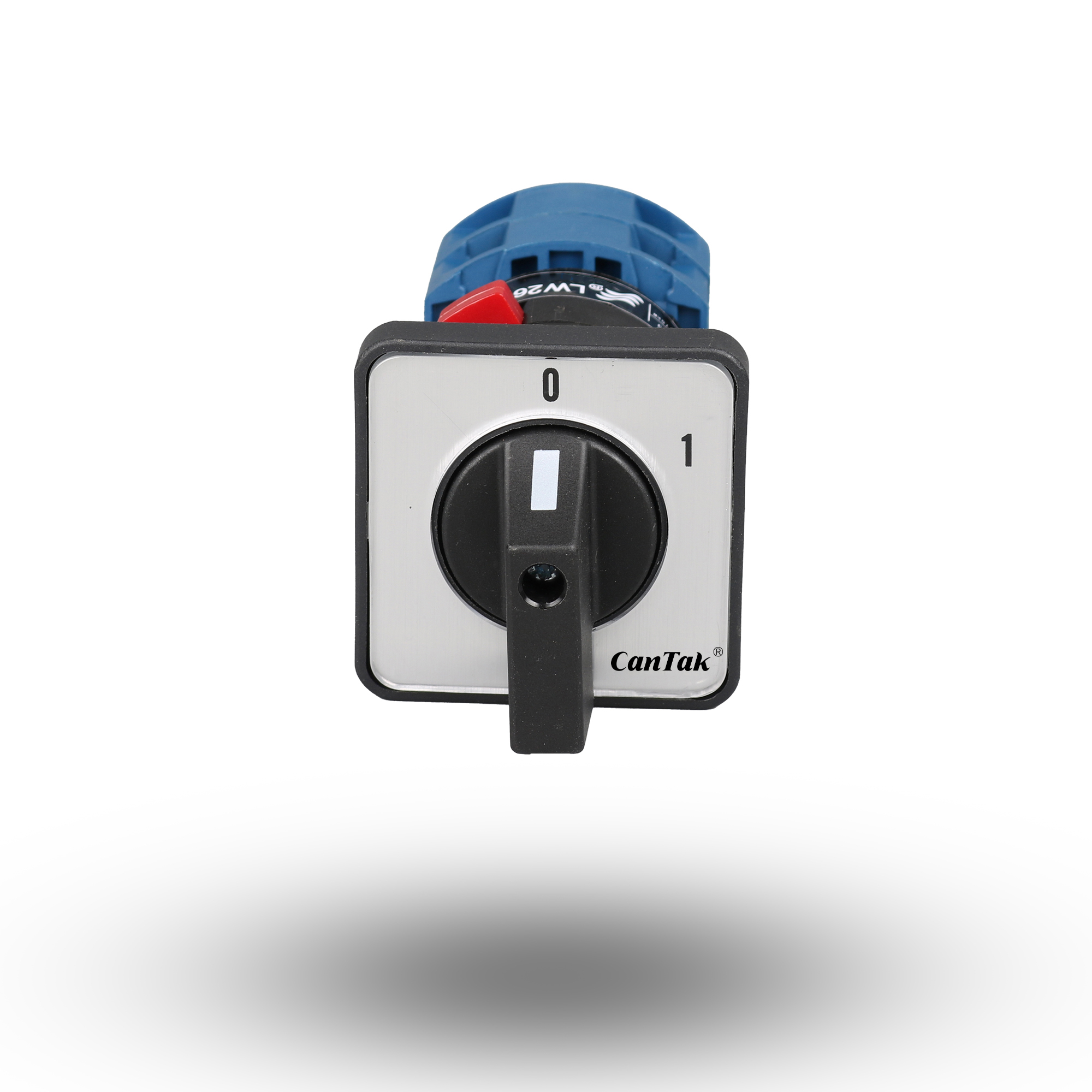

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits. It is designed for breaking and closing, and change-over of circuits under infrequent manual operation.
Typical applications include: control switches for 3 phase motors, control switchgears, instrument control switches, and change-over switches for machinery and welding machines.

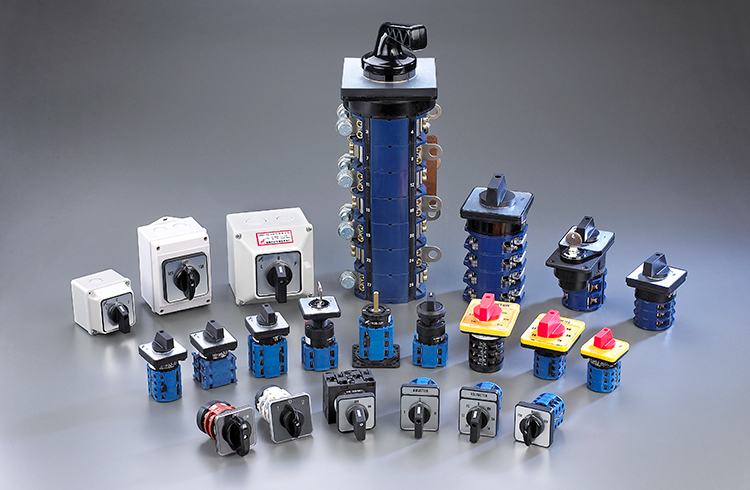

The series complies with GB 14048.3, GB 14048.5, IEC 60947-3, and IEC 60947-5-1. The LW26 series features 10 current ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A, and 315A. They are designed for multiple functions and a wide variety of applications.
The LW26-10, LW26-20, LW26-25, LW26-32F, LW26-40F, and LW-60F models feature finger protection terminals. The LW26 series rotary switches serve as excellent substitutes for LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10, and HZ12.

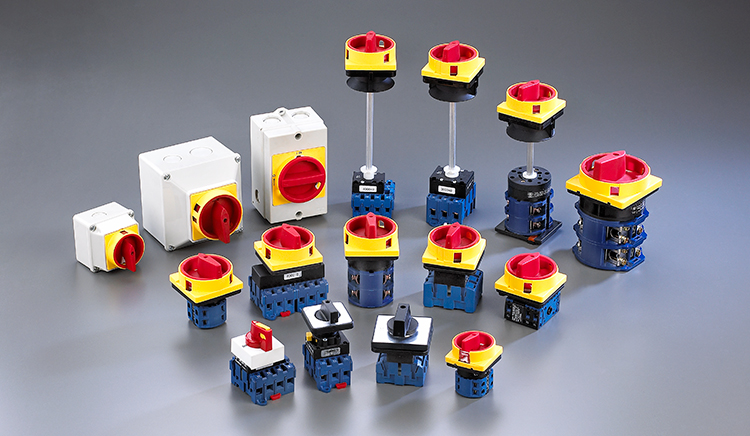

The LW26 series rotary switch offers two derivative types: the LW26GS Pad-lock type and the LW26S Key-lock type. Both are applicable in circuits where physical control is required. Protective boxes (IP65) can also be equipped for models ranging from 20A to 250A.
2. Working Conditions
Ambient temperature must not exceed 40℃, and the average temperature measured over a period of 24 hours must not exceed 35℃.
Ambient temperature should not be below -25℃.
Should not be installed above 2000m above sea level.
Humidity should not exceed 50% when the ambient temperature is 40℃; higher humidity is permitted at lower temperatures.
3. Installation Conditions
A clean environment is required.
Please follow the provided manual.
4. Order Procedure

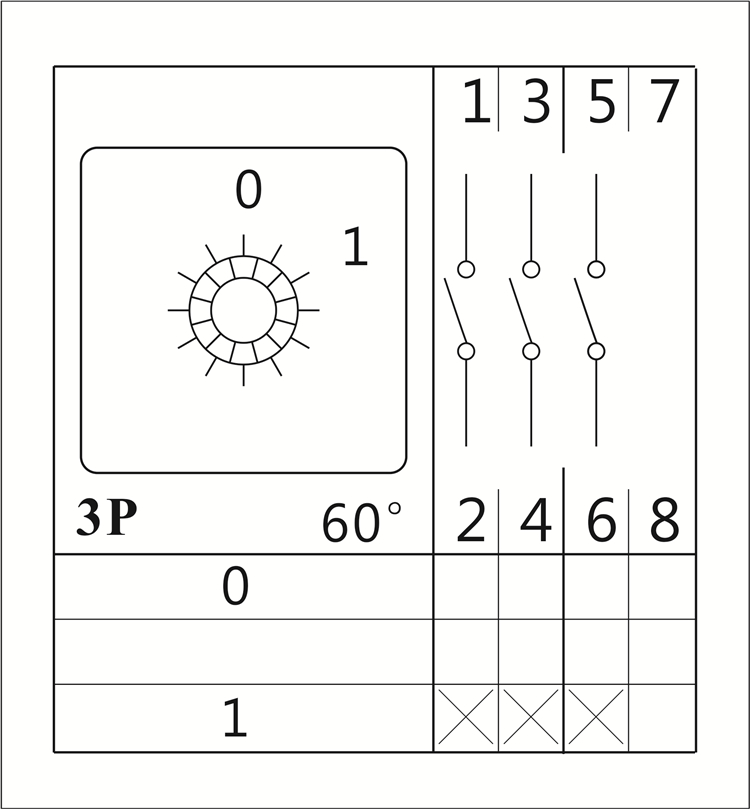

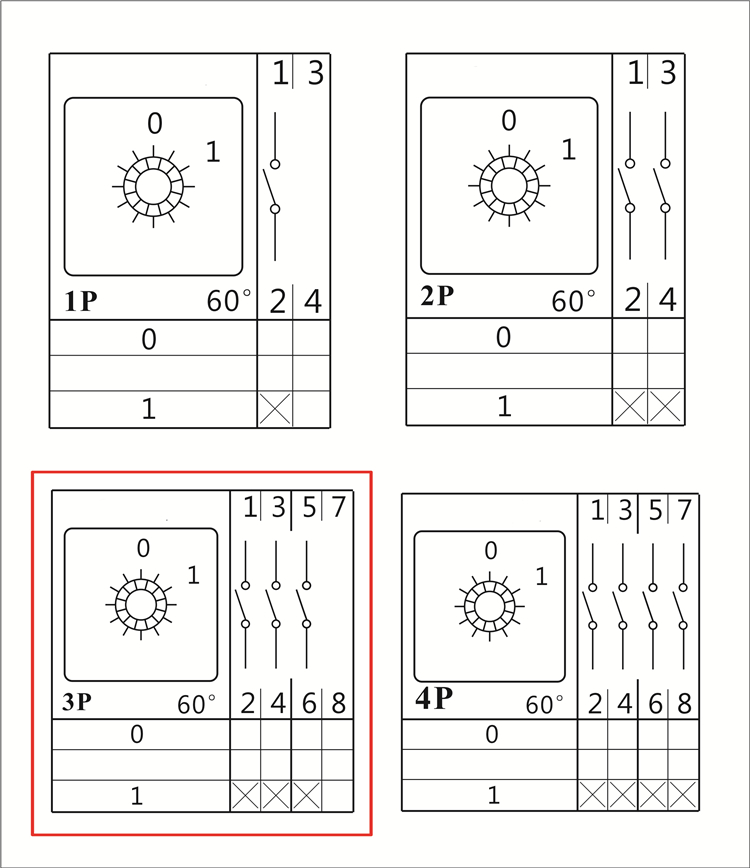

When placing an order, please specify the contact diagram of the product you require. The LW26 series rotary switches feature similar contact diagrams to other rotary switches such as LW2D, LW5D, LW6D, LW8D, LW12, LW15, HZ5D, and HZ25D. Reference to the General Contact Diagram for Rotary Switches will assist you in specifying the correct layout.
Additionally, please specify the current rating, mounting plate, handle type, color, and quantity.
For instance: When ordering 20A, rotary angle 60°, character code C, contact diagram code 5391, M1 plate, black R handle, 20 units. The order can be written as: LW26-20.6C5391/2A11R(M1R) 20 units.
Due to continuous technical updates, the specifications in the catalogue are subject to change without prior notice.
Frequently Asked Questions
What kind of certificates do these rotary switches have?
The LW26 series switches hold TUV, CE, UL, RoHS, and CCC certificates. The LW30 series has CE, CB, RoHS, and CCC. The LW31 series holds CE, RoHS, and CCC. The LW40 and KDHc series are certified under CCC.
Which global markets are these goods exported to?
These products are regularly supplied to Germany, the USA, the UK, Korea, Australia, as well as many other major European and American countries.
What is the annual production capacity for these switches?
The annual production output is approximately 5,000,000 pieces of switches, marking it as one of the largest manufacturer and seller setups in China.
What is the background and experience of the manufacturing facility?
The manufacturing facility operates with more than 30 years of professional manufacturing experience, occupying an area of over 20,000 square meters with a workforce of 300 workers.
What are the typical applications of the LW26 series rotary switches?
Typical applications include control switches for 3-phase motors, general control switchgear, instrument control switches, and change-over switches for machinery and welding equipment.
What are the ambient operating temperature limits?
The ambient temperature must not exceed 40℃, with a 24-hour average limit of 35℃. The minimum allowable operating temperature is -25℃.
