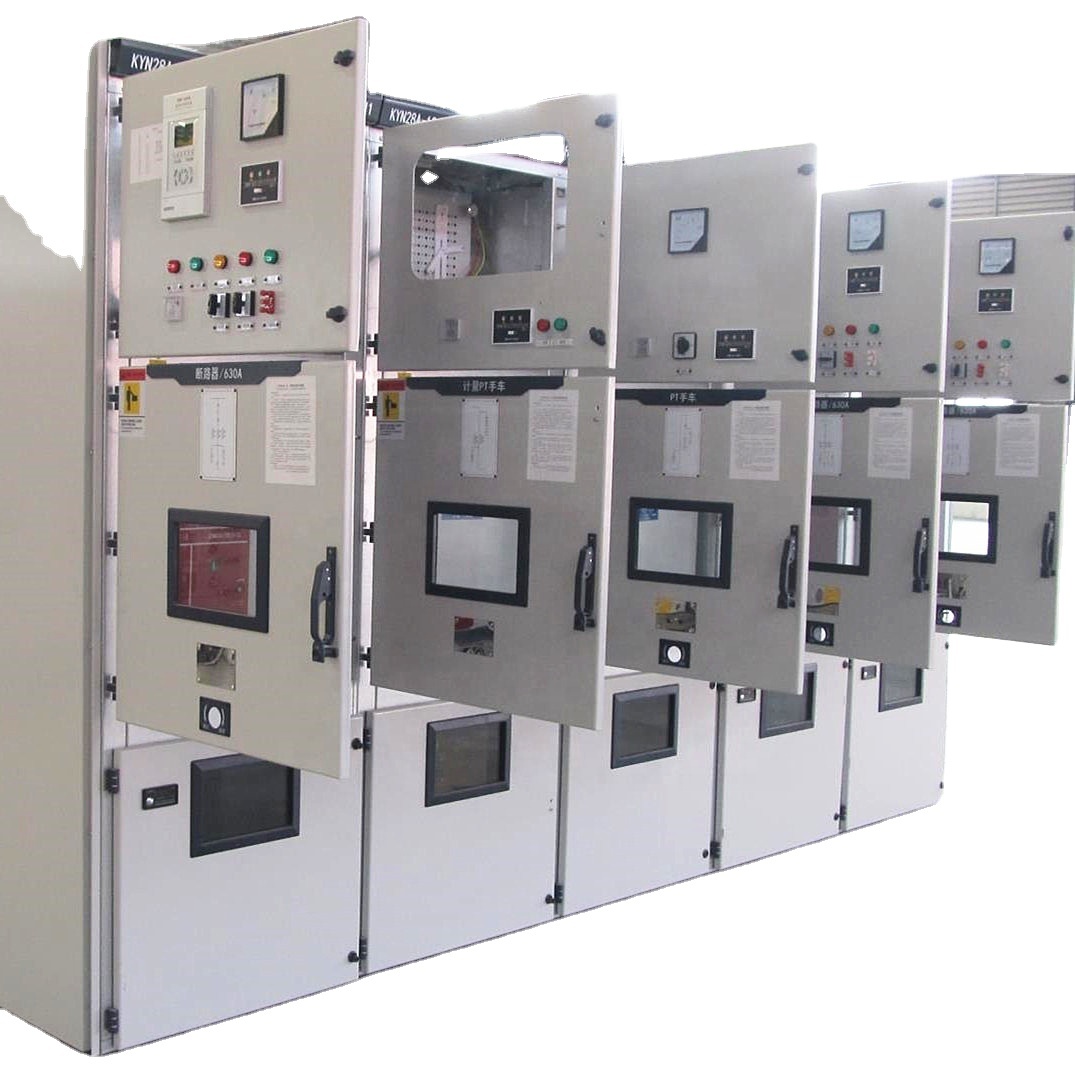

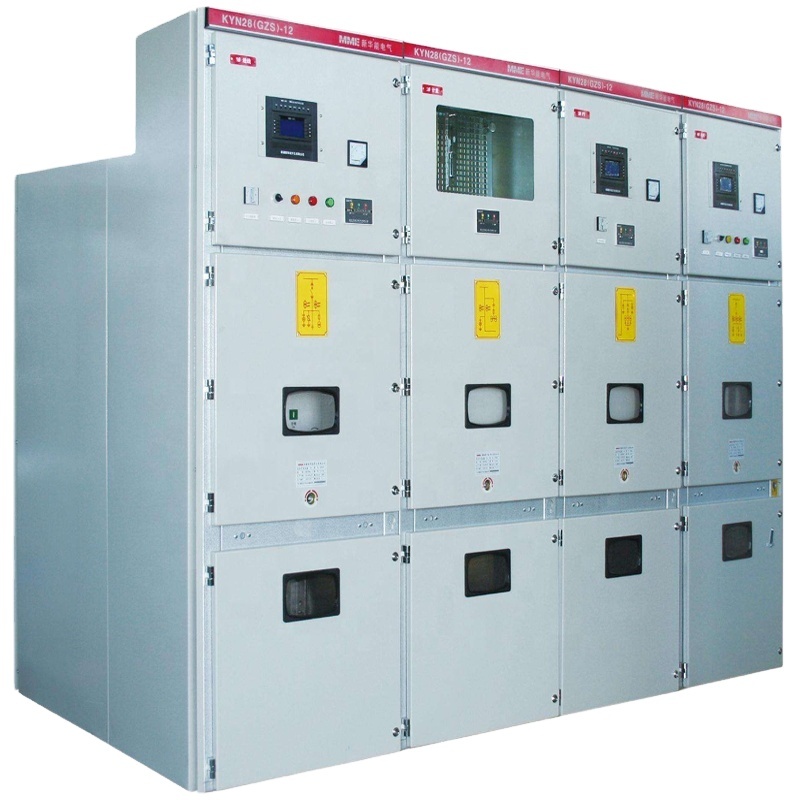

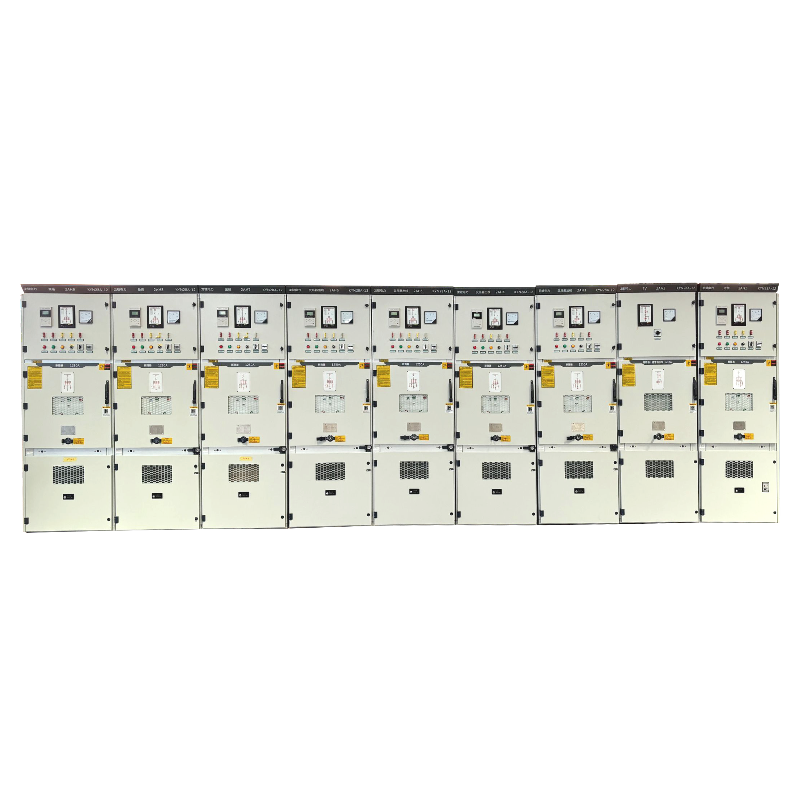

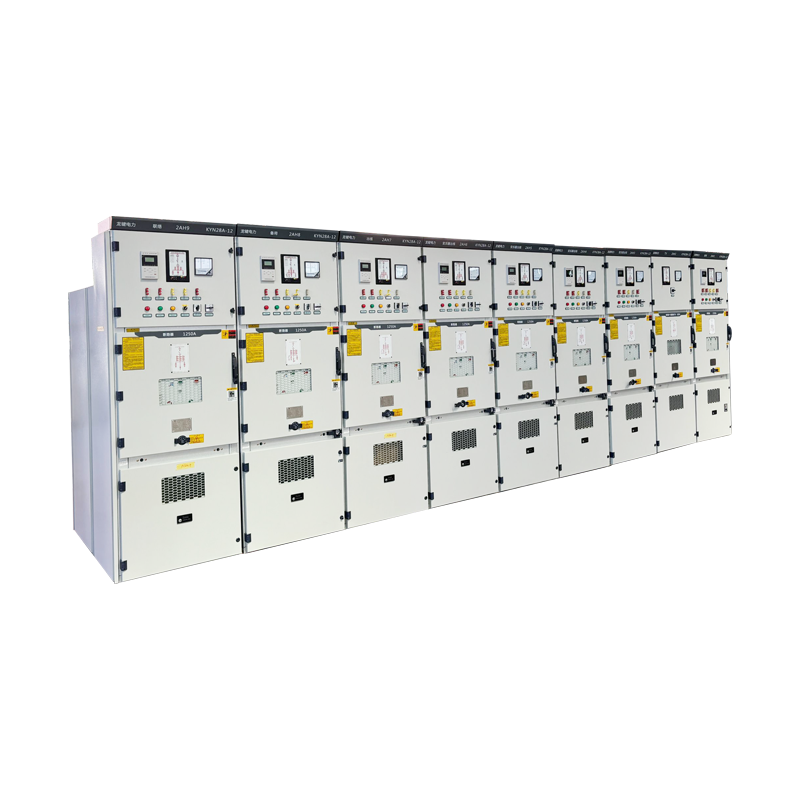

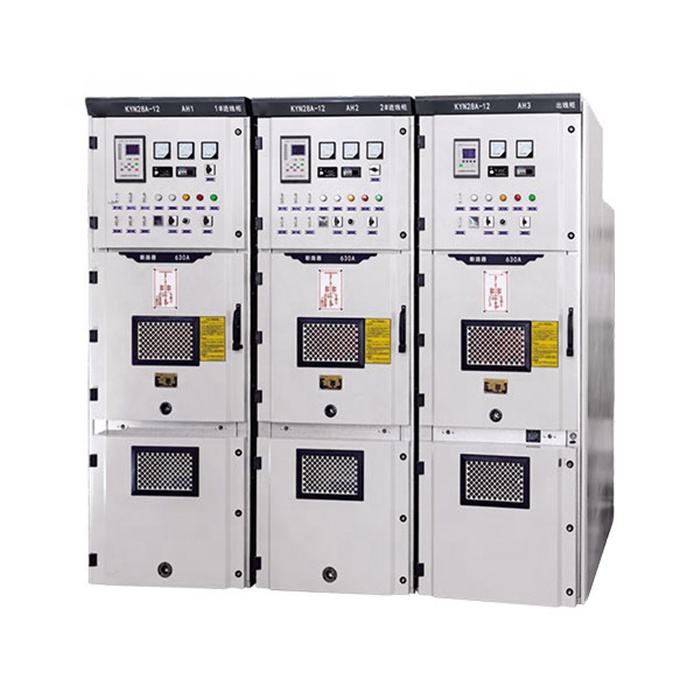

High Voltage Three Phase Energy Saving Switchgear Electric Cabinet Electrical Distribution Box Panel Board Power Distribution
The High and low voltage switchgear is a device connected to high voltage or low voltage cable. General power supply bureaus and substations use high-voltage cabinets, and through the power transformer for step down to low-voltage cabinets, then through low-voltage cabinets to each power distribution box.
It is an electrical equipment assembled of some switchgear, circuit breakers, protection devices and circuit breakers. The outside line firstly enters to the main control switch in the cabinet, and then enters to the sub-control switch. Each branch is set according to its needs such as the instrument, automatic control, motor magnetic switch, various AC contactors, high voltage bus, high voltage room and low voltage room switch cabinet, etc.
Product Display & Components
Frequently Asked Questions
What is high and low voltage switchgear?
High and low voltage switchgear is an electrical device connected to either high or low-voltage cables. It serves to assemble switchgear, circuit breakers, and protection devices to manage, protect, and distribute electric power safely.
How does power distribute through high and low voltage cabinets?
Typically, power substations use high-voltage cabinets to receive external high-voltage electricity, which is then stepped down through a power transformer into low-voltage cabinets. From the low-voltage cabinets, power is safely routed to individual power distribution boxes.
What are the main components housed inside these switchgear cabinets?
The switchgear cabinets assemble critical electrical components including main and sub-control switches, circuit breakers, protective systems, instruments, automatic controllers, motor magnetic switches, AC contactors, and high/low voltage buses.
How is the circuit pathway designed inside the switchgear?
The external line first connects to the main control switch inside the cabinet, which then feeds into various sub-control switches. Each sub-branch is customized with components like automatic controls and contactors to meet specific power delivery demands.
What applications require high and low voltage switchgears?
These switchgears are essential for power distribution networks, industrial production plants, power supply bureaus, substations, and large commercial facilities where reliable voltage management and circuit protection are required.
