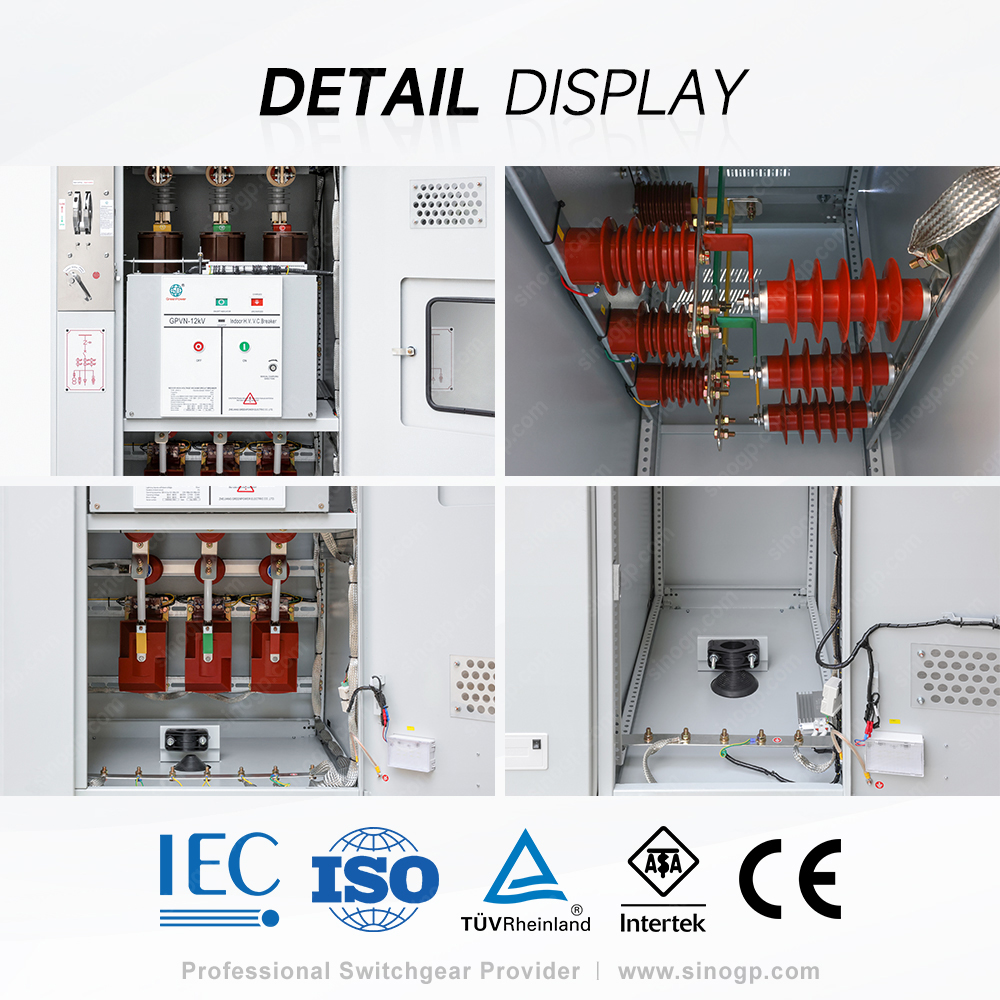

Air Insulated Switchgear Detail 1
Air Insulated Switchgear Detail 2

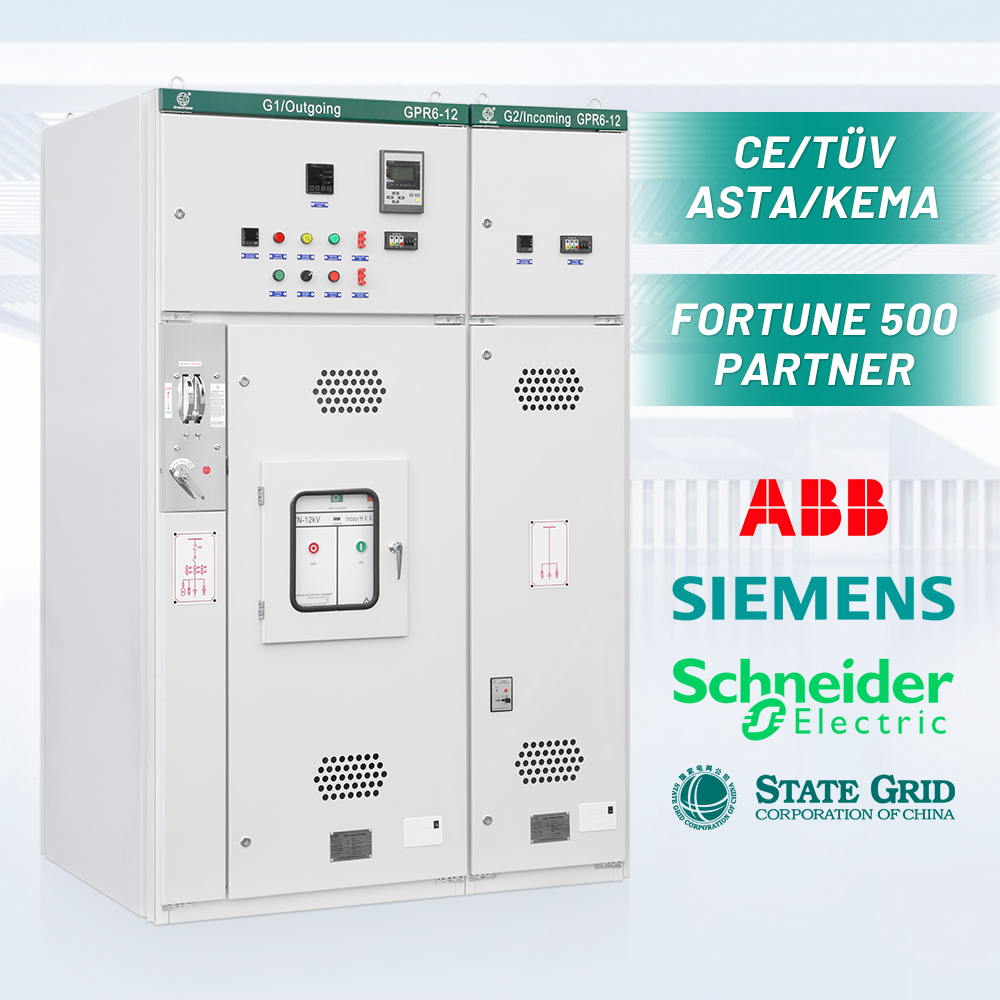

GPR6-12(24) Air Insulated Ring Main Unit Switchgear

The GPR6-12 series of the air insulated switchgear consists of two parts. The first part is the box-type fixed metal closed switchgear, and the second part is the air insulated load switchgear (or the half-insulated switchgear).

The GPR6-12 series of the air insulated switchgear is suitable for small and medium-sized power stations, industrial factories, commercial buildings and other places, providing a strong guarantee for the modern power system.

✓ Leading International Technology: Integrates high voltage switchgear, power distribution devices, and protection functions.
✓ Compact Structure: Designed for space-saving installation and efficient layout configurations.
✓ Flexible & Safe Operation: Delivers flexible operational control combined with highly safe and reliable performance.
Switchgear Component 1
Switchgear Component 2
Switchgear Component 3
Switchgear Component 4
Switchgear Component 5
Switchgear Component 6
Switchgear Component 7
Switchgear Component 8
Switchgear Component 9

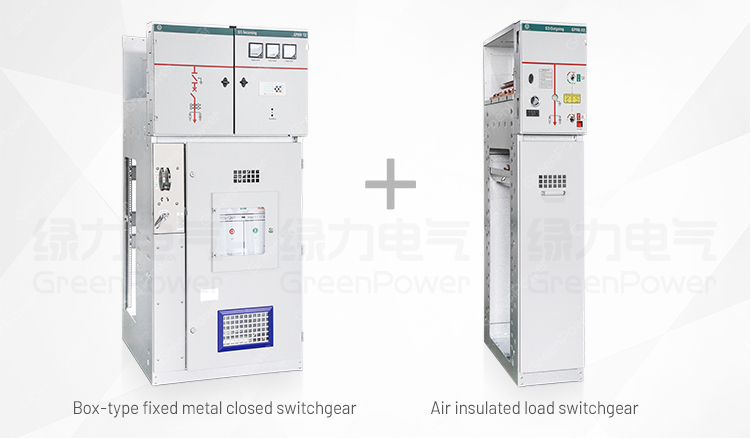

Box-type fixed metal closed switchgear product shape and structure

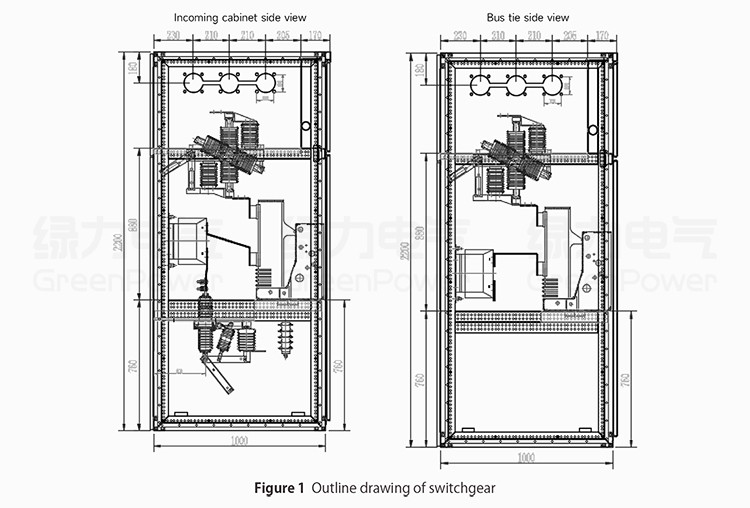

Box-type structure diagram

Air insulated load switchgear appearance and structure

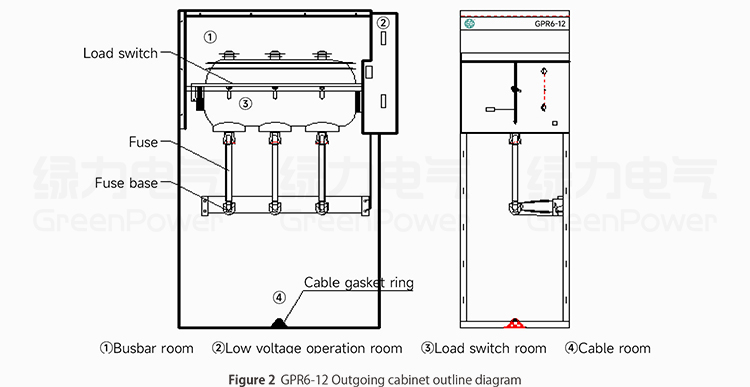

Air insulated load switchgear appearance

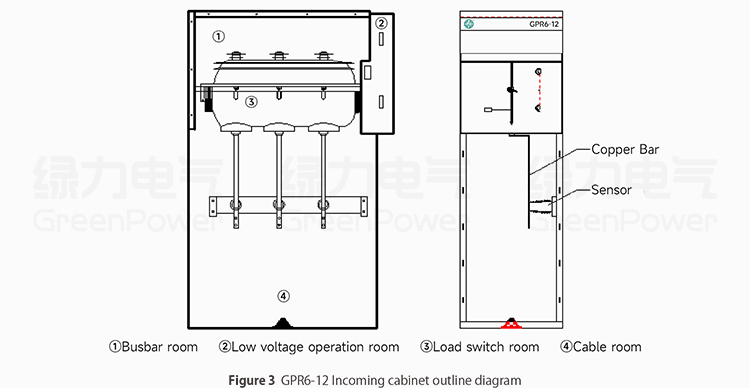

Air insulated load switchgear structure

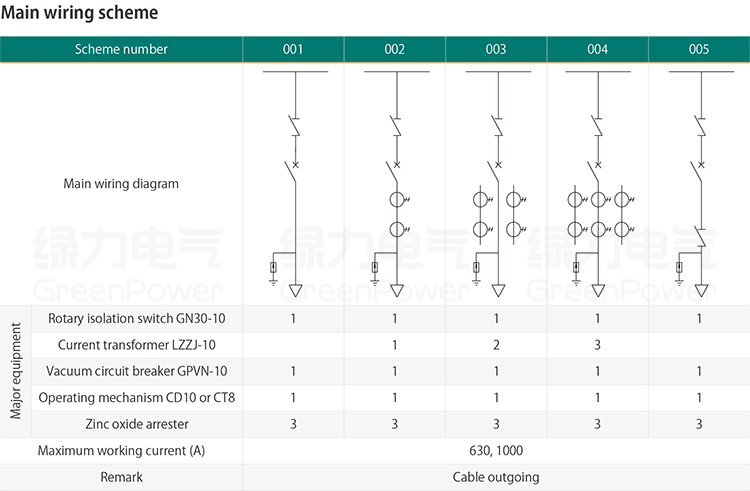

Technical parameter indicator diagram

Technical Parameters

Item Unit Data
Rated voltage kV 12, 24
Rated current A 630~2500
Rated closing current kA 630, 1000, 1000, 2000, 2500
Thermal stabilization time s 4
Protection level - IP2X
Busbar system - Single busbar
Operation method - Electromagnetic type, Spring energy storage type
Technical setup display
Installation view 1
Installation view 2
Installation view 3

Frequently Asked Questions

What are the main components of the GPR6-12(24) Ring Main Unit Switchgear?
The GPR6-12 series consists of two main parts: a box-type fixed metal closed switchgear and an air insulated load switchgear (or half-insulated switchgear). It functions as an intelligent integrated system of high voltage switchgear, power distribution devices, and protection functions.
What is the rated voltage range for this air-insulated switchgear?
The GPR6-12 series switchgear is rated for voltage levels of 12kV and 24kV, making it suitable for a wide range of medium voltage electrical distribution systems.
Where is the GPR6-12 series switchgear typically installed?
This equipment is highly suitable for small and medium-sized power stations, industrial factories, commercial and residential buildings, and modern municipal power systems that require high safety and compact configuration.
What operation methods are supported?
The GPR6-12 series offers flexible control options, supporting both Electromagnetic operations and Spring energy storage operating mechanisms to meet different automation needs.
What is the protection level of the GPR6-12 switchgear cabinet?
The standard protection rating is IP2X, providing safe encapsulation and contact protection during standard operational procedures.
How does the single busbar system benefit power distribution?
The single busbar design optimizes physical space, simplifies wiring and system layout, and ensures maintenance operations are straightforward while maintaining stable power flow control.
