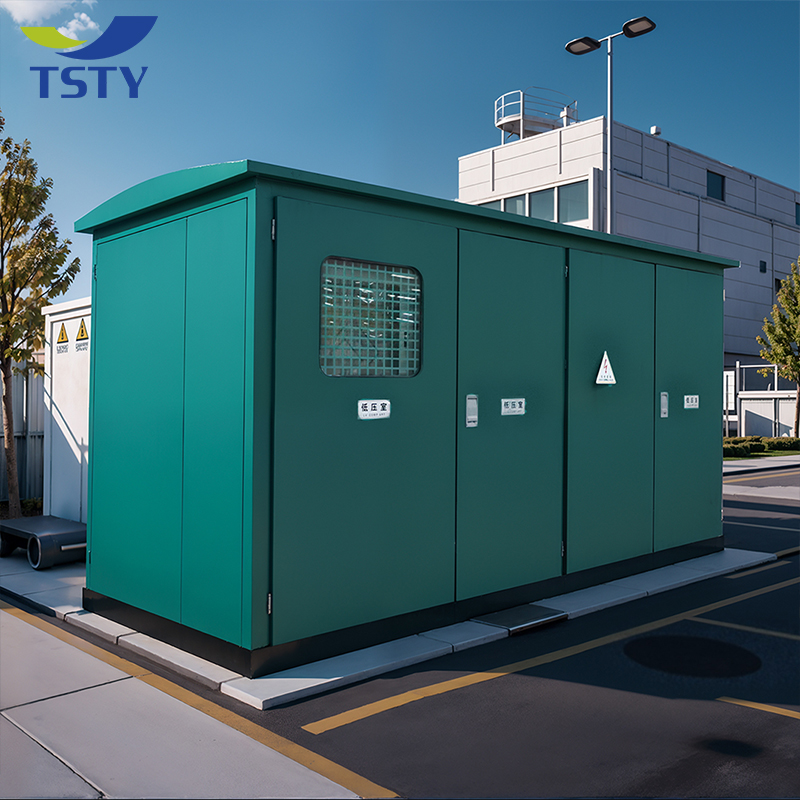

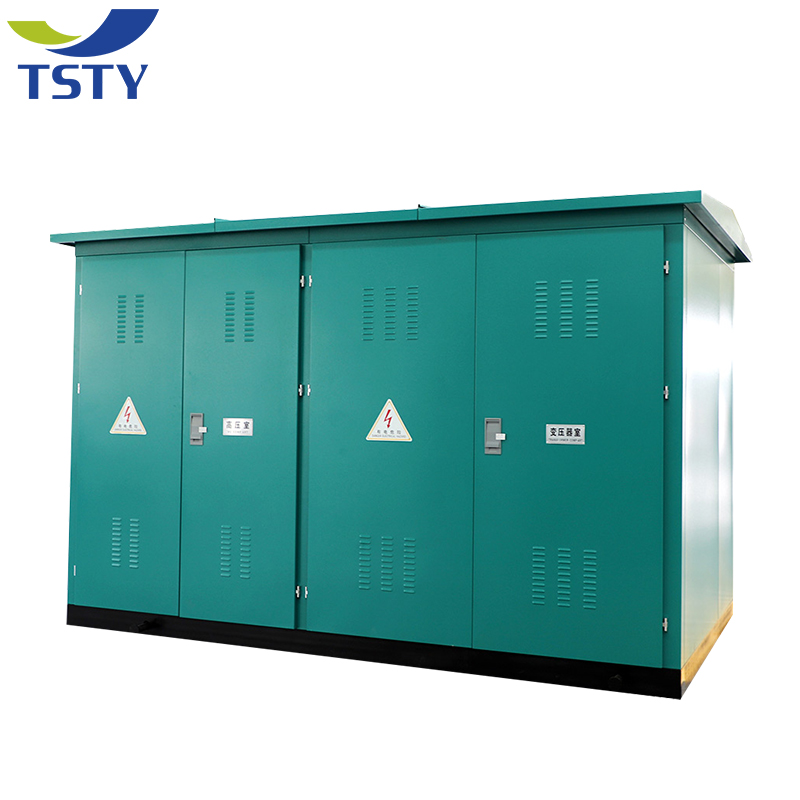

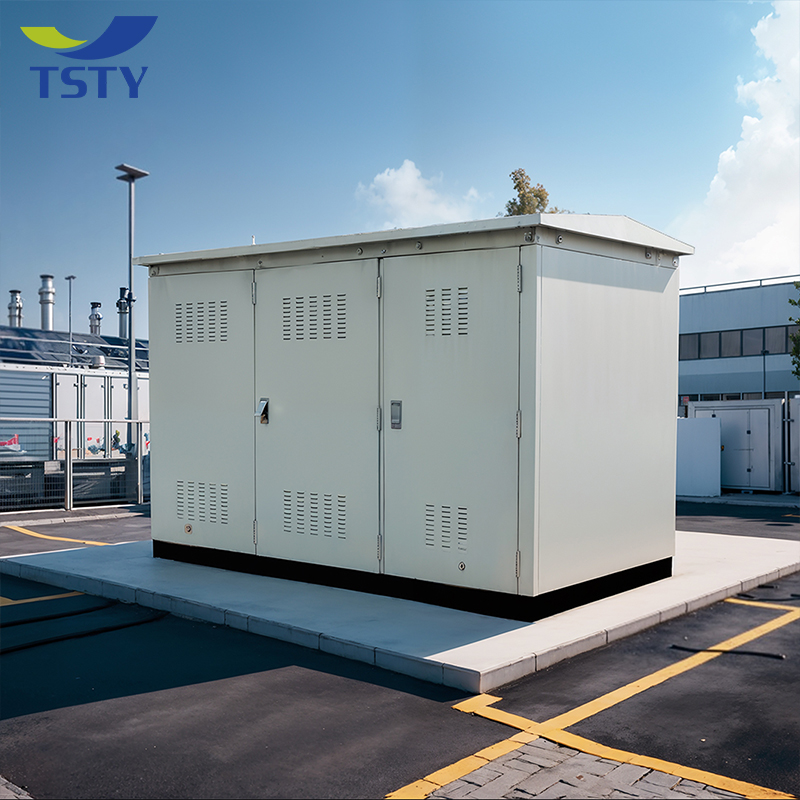

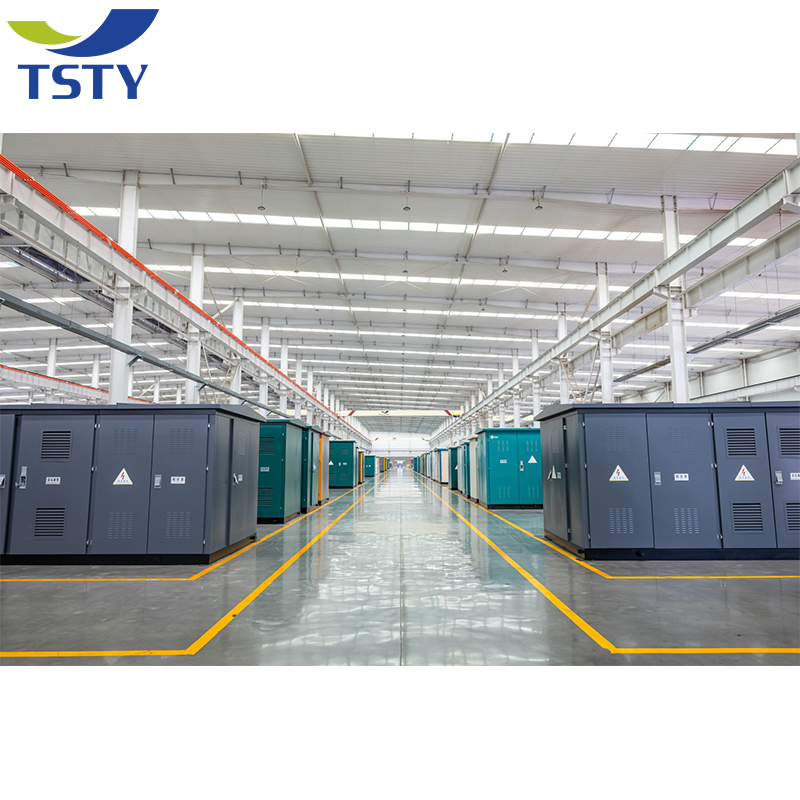

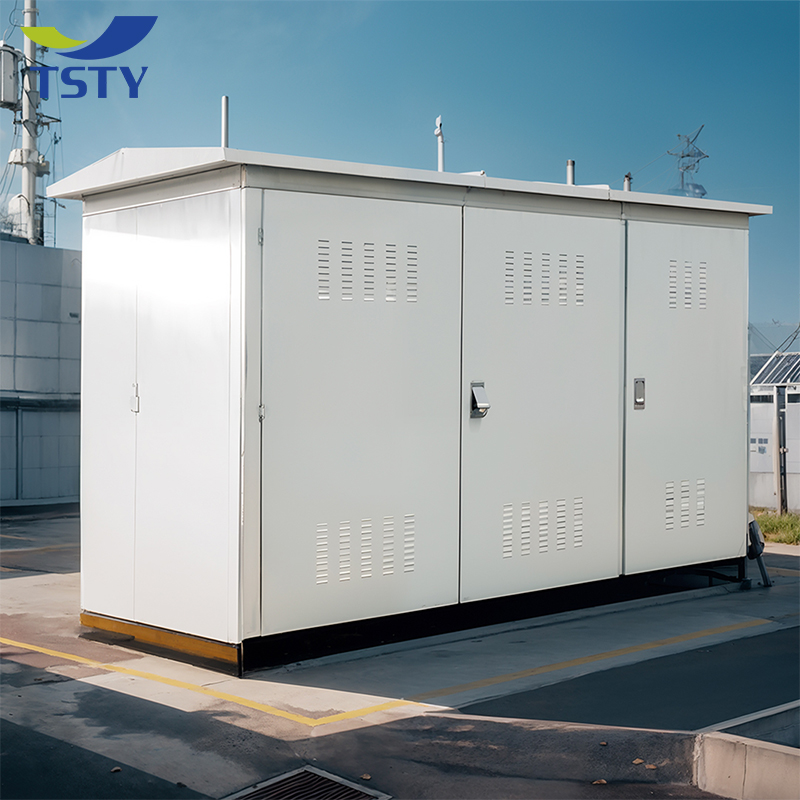

1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1 / 5
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation
1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

Send Inquiry

Product Description

Products Description

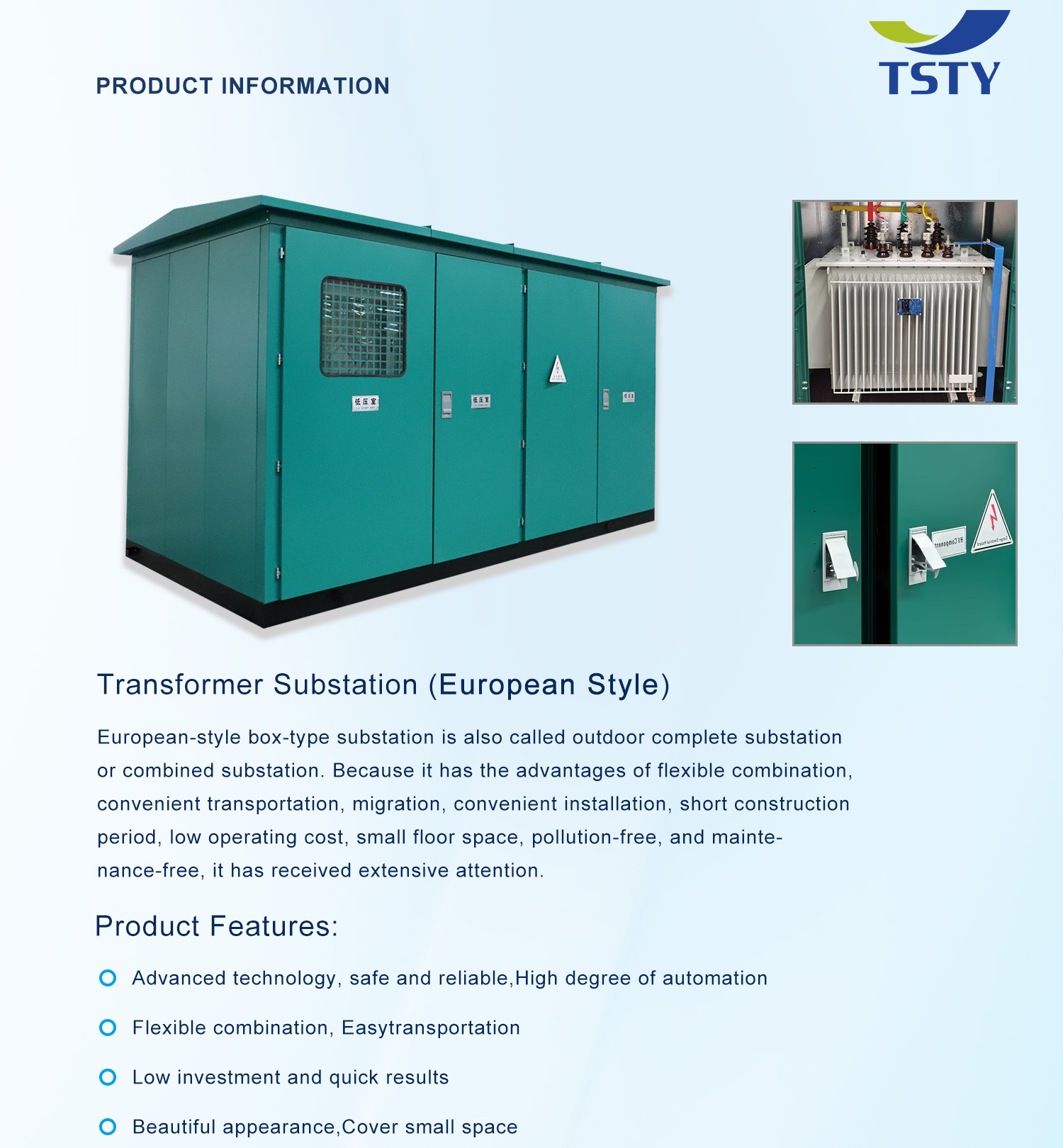

Product Image 1
Product Image 2
Parameter Table
Rated voltage HV: 6/10KV, LV: 0.4KV
Capacity range 30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000KVA
Frequency 50Hz
Phase Single-phase and 3-phase
Vector group Dyn 11, Yyn0
Impedance voltage According to national standard operation environment
The cellar loss Reaching national standards operation environment
Enclosure protection level IP68
Noise level ≤ 55dB
Rated Capacity (KVA) No-load Loss (W) On-load Loss (75°) (W) No-load Current (%) Short Circuit Impedance (%)
30 91 600 0.63 4.0
50 119 870 0.60 4.0
63 140 1040 0.57 4.0
80 168 1250 0.54 4.0
100 203 1500 0.48 4.0
125 238 1800 0.45 4.0
160 280 2200 0.42 4.0
200 336 2600 0.39 4.0
250 392 3050 0.36 4.0
315 469 3650 0.33 4.0
400 560 4300 0.30 4.0
500 672 5100 0.30 4.0
630 810 6200 0.27 4.5
800 980 7500 0.24 4.5
1000 1150 10300 0.21 4.5
1250 1360 12000 0.18 4.5
1600 1640 14500 0.18 5.5
2000 1960 17820 0.30 5.5
2500 2310 20700 0.25 5.5

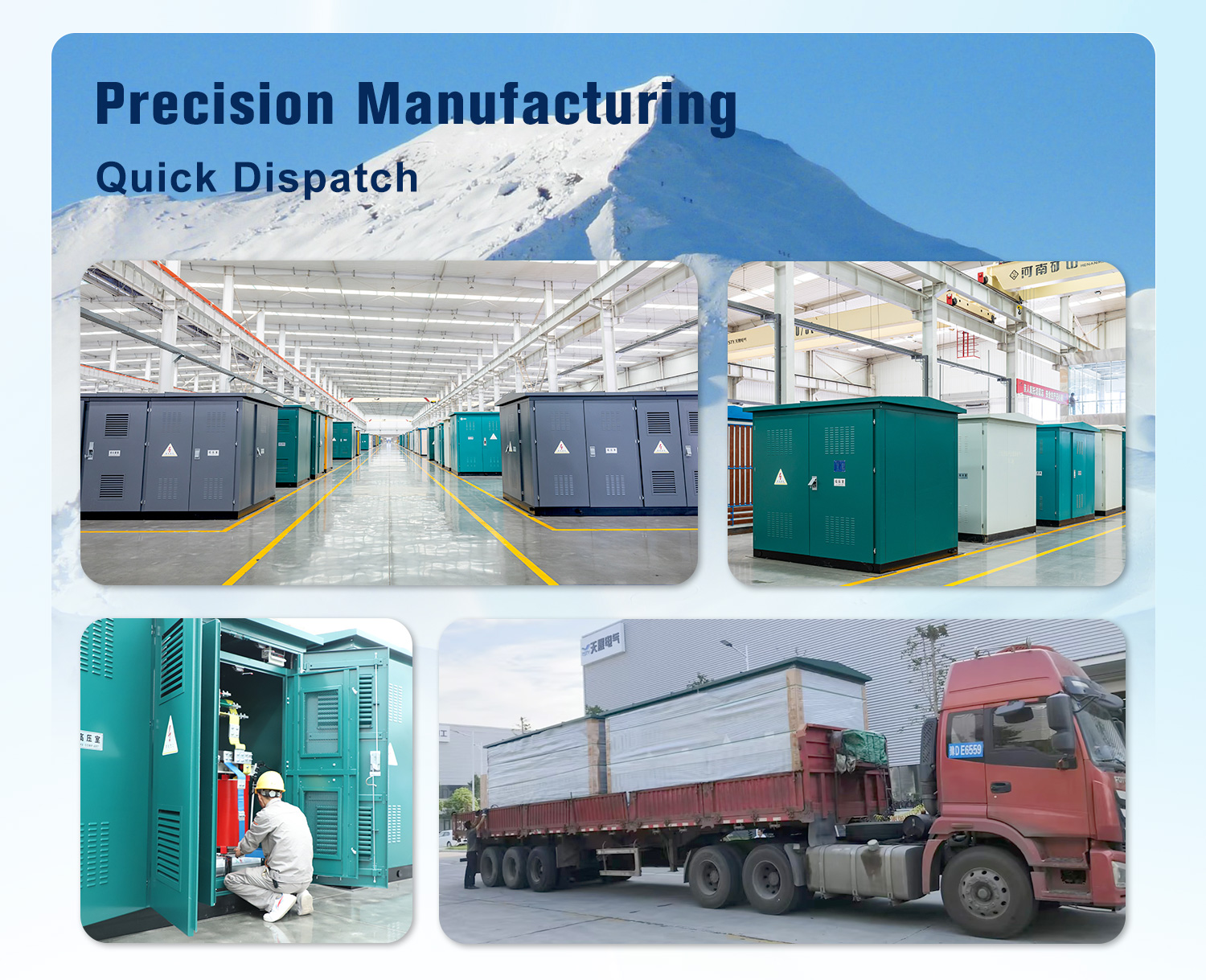

Production Detail 1

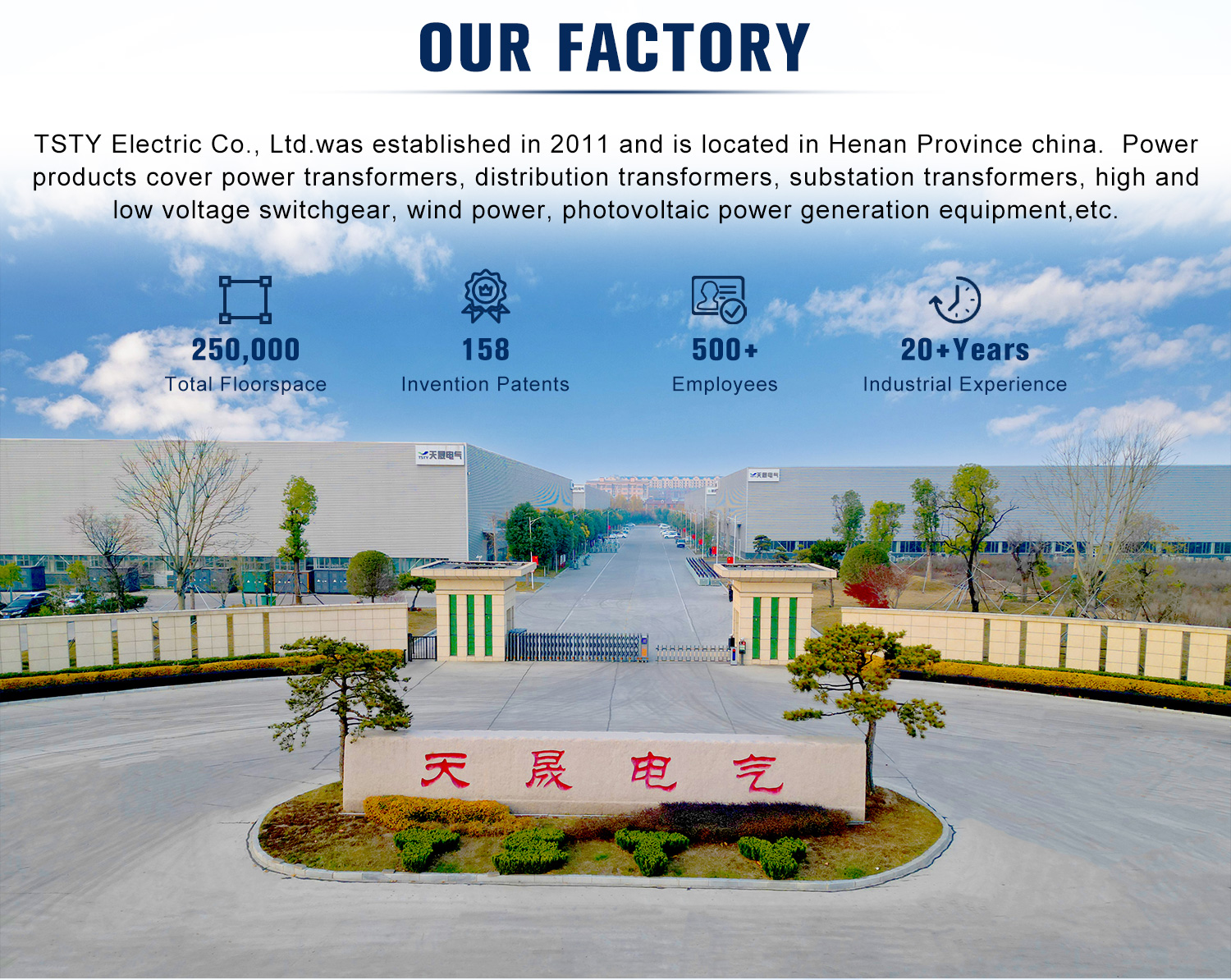

Production Detail 2
Production Detail 3
Production Detail 4
Production Detail 5

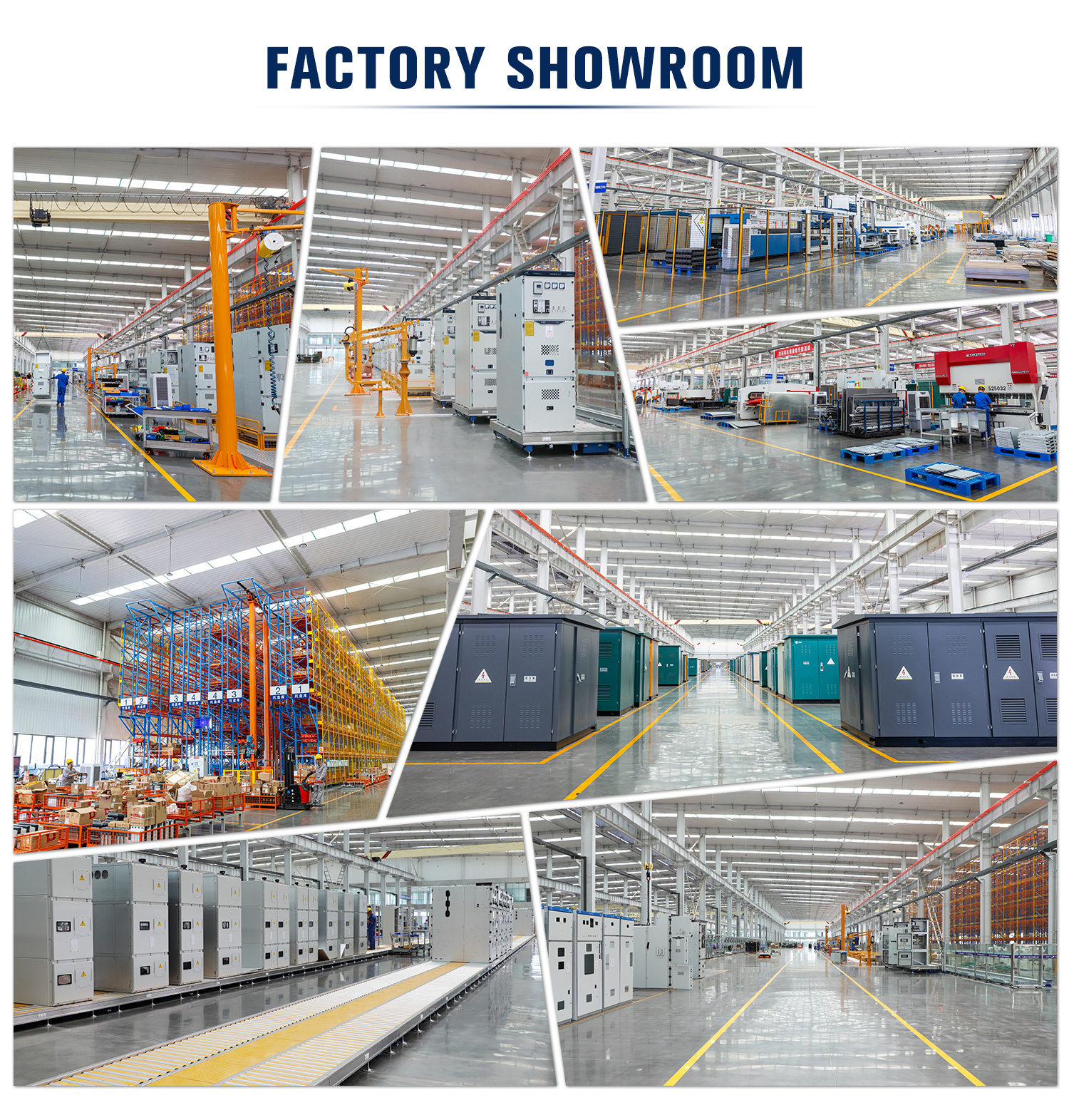

Production Detail 6
Production Detail 7
Production Detail 8

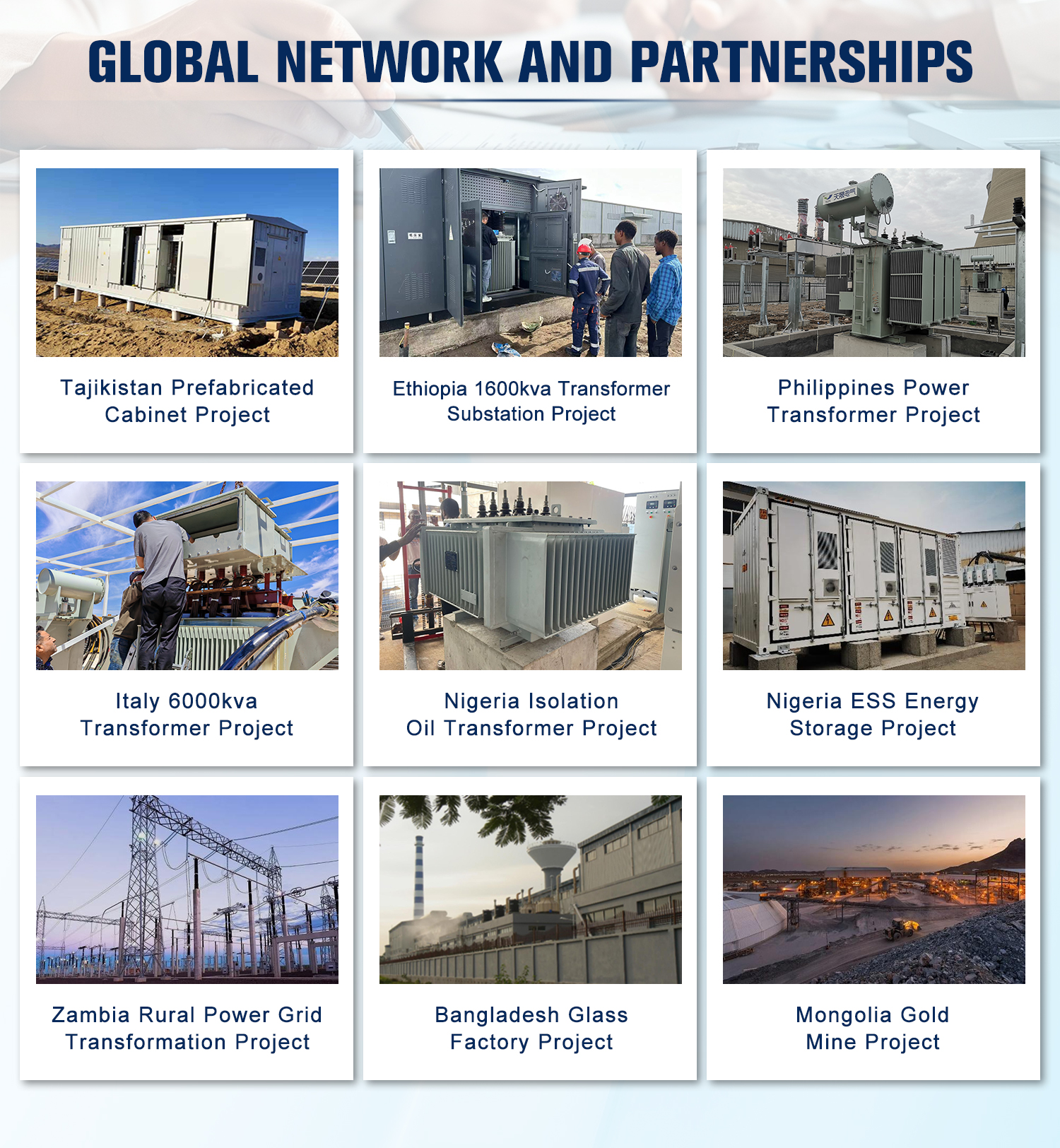

Production Detail 9
Production Detail 10
FAQ
What are your major products?
Our major products include oil immersed transformers, dry type transformers, transformer substations, and high & low voltage switchgear.
Can your products be customized?
Yes. Considering the differences in voltage, frequency, and other unique requirements across countries and regions, our products can be customized to meet your specific needs.
When can I get the price?
We usually provide a quotation within 24 hours after receiving your detailed inquiry.
What about the lead or shipping time?
The lead time depends on the quantity ordered. Generally, it takes within 15 days upon receipt of the advance payment. Shipping costs vary depending on the delivery port.
Do you offer a guarantee for the products?
Yes, we offer at least one year of guarantee for all of our transformers.
What are your advantages?
With 15 years of experience, we provide advanced production equipment, stable quality, fast delivery, and prompt, professional services. We can also provide free spare parts.
