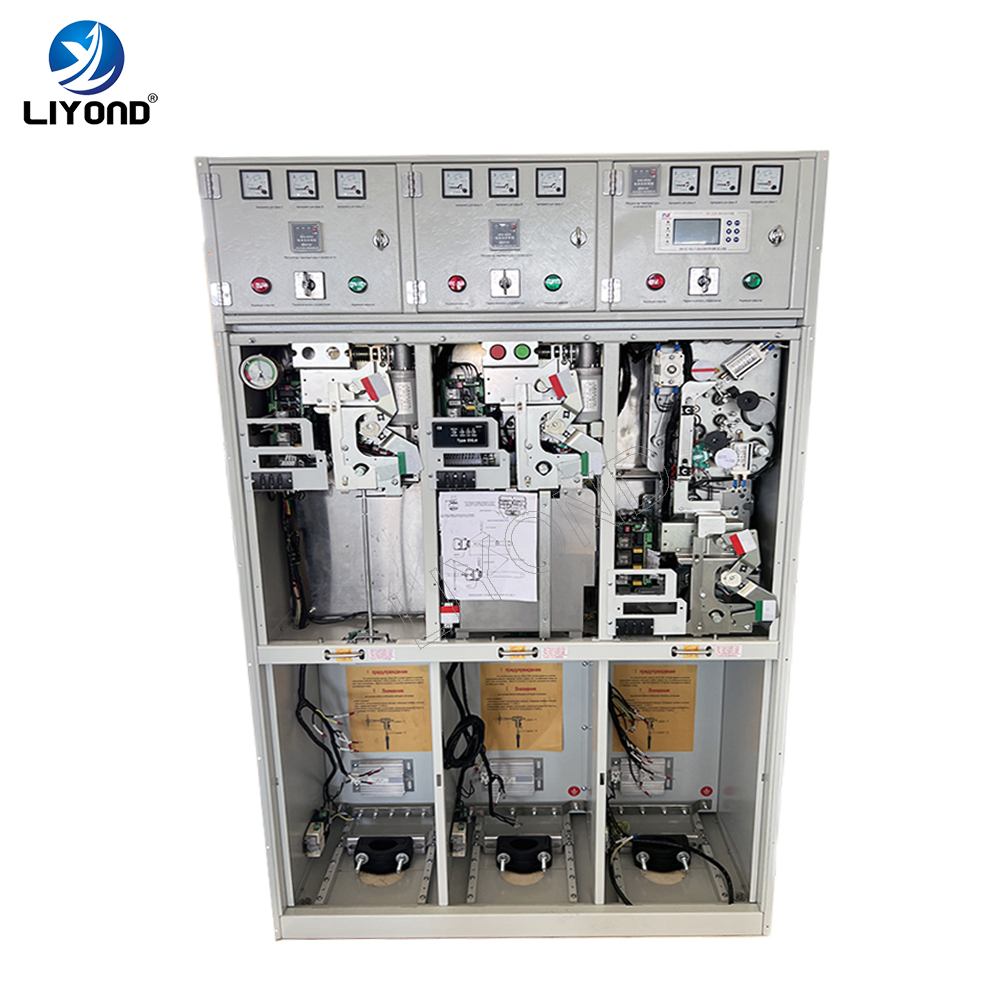

Liyond 12kV 24kV Industrial AIS Switch Cabinet CVV CFCC Expandable SF6 Gas-Insulated Metal-Enclosed Switchgear

1 / 5

Liyond 12kV 24kV Industrial AIS Switch Cabinet CVV CFCC Expandable SF6 Gas-Insulated Metal-Enclosed Switchgear

Send Inquiry

Product Description

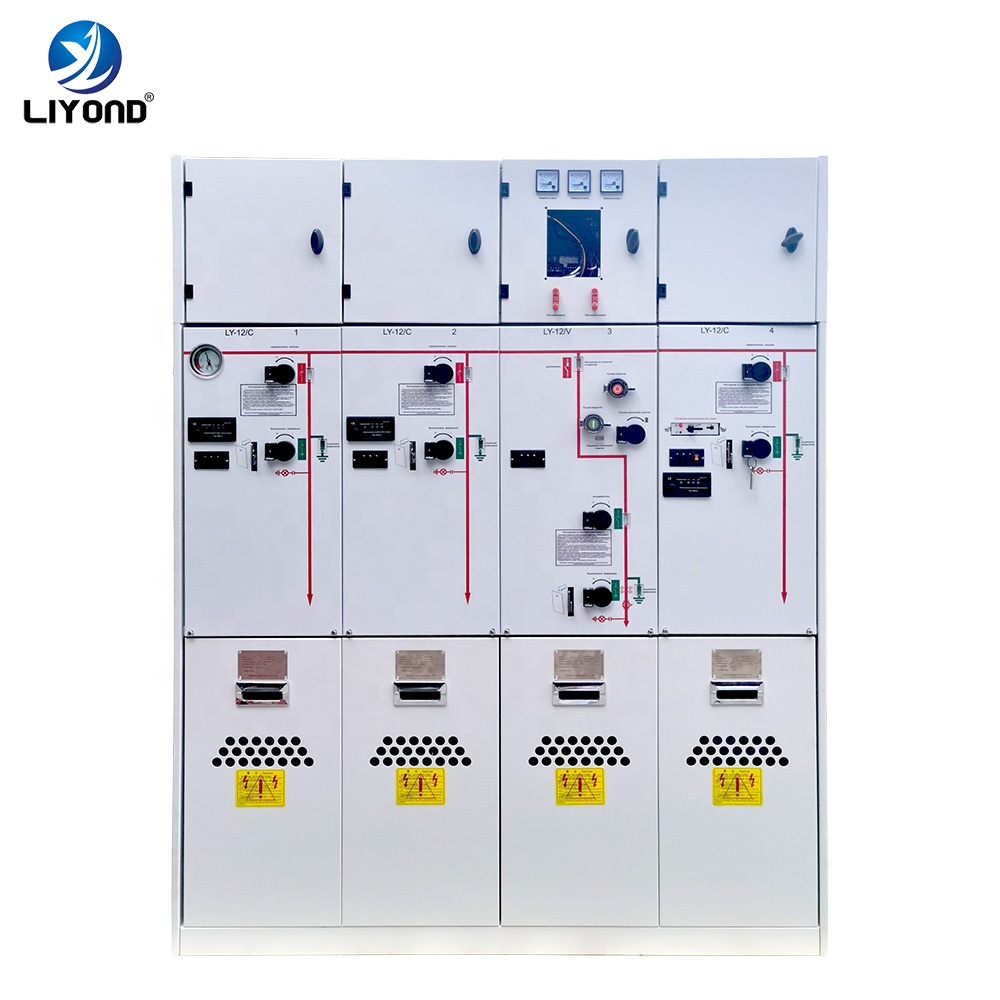

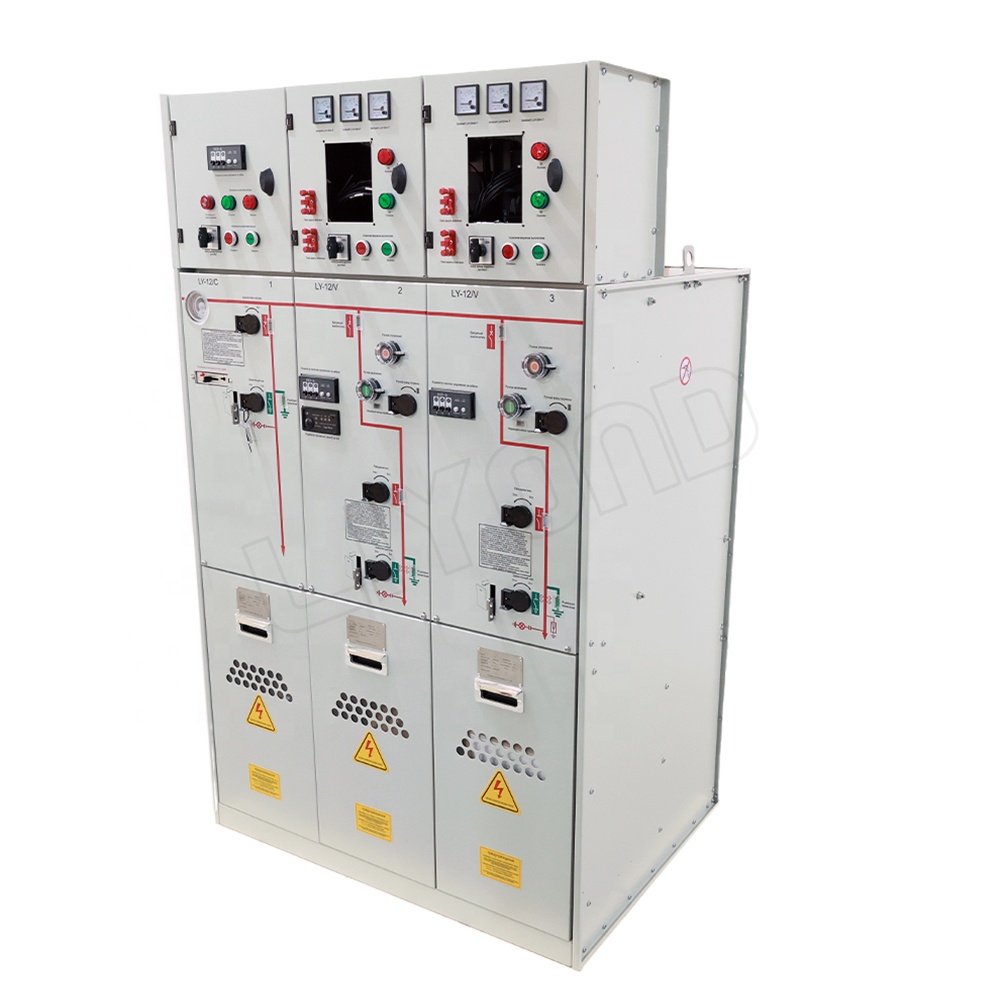

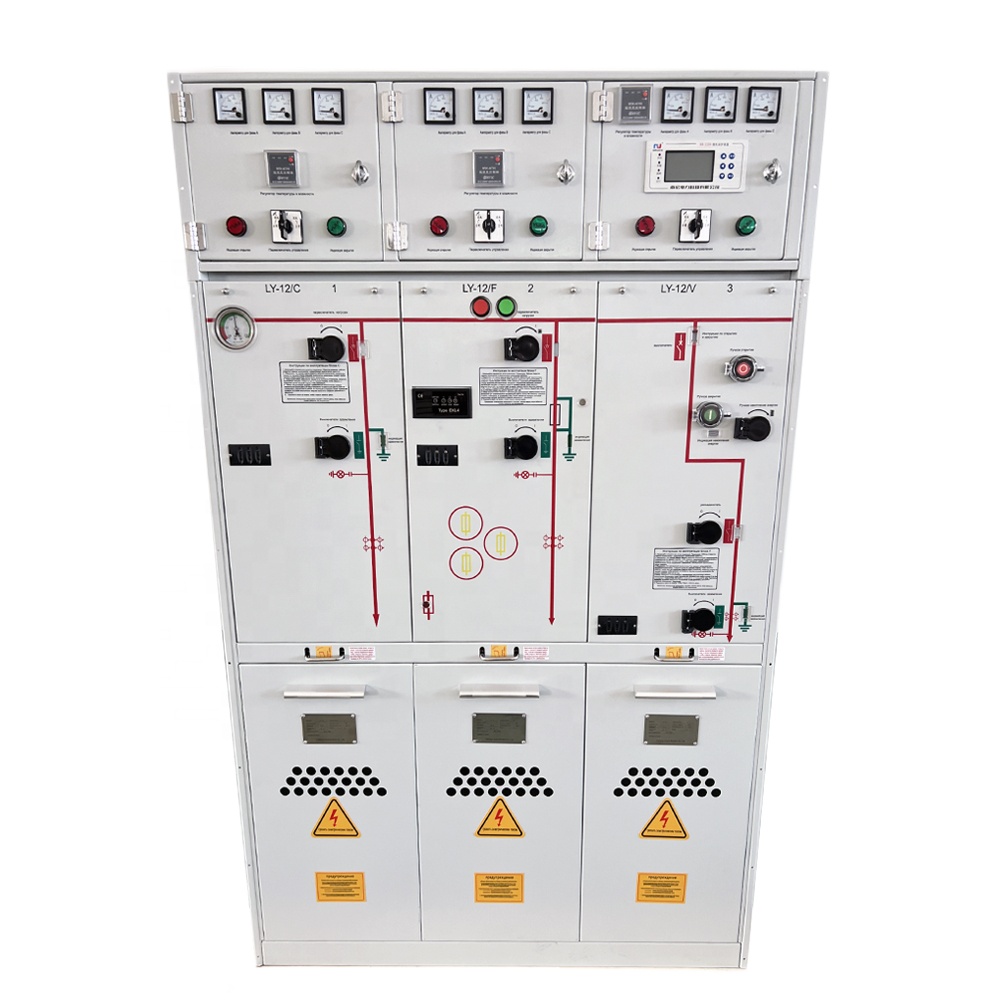

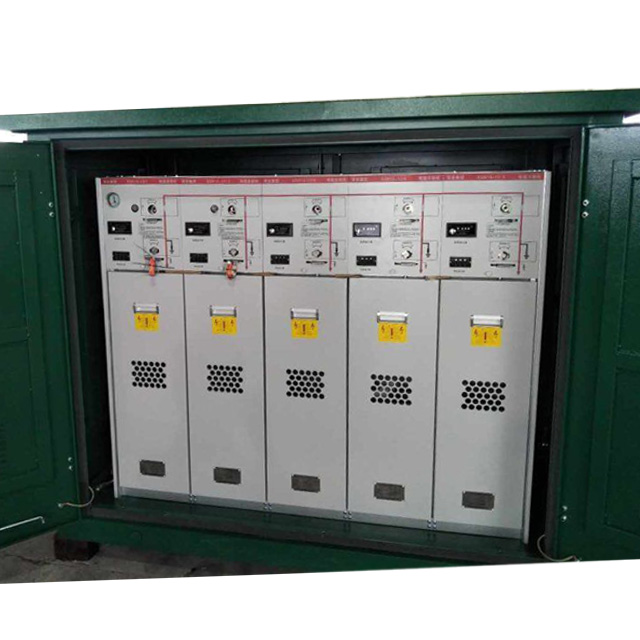

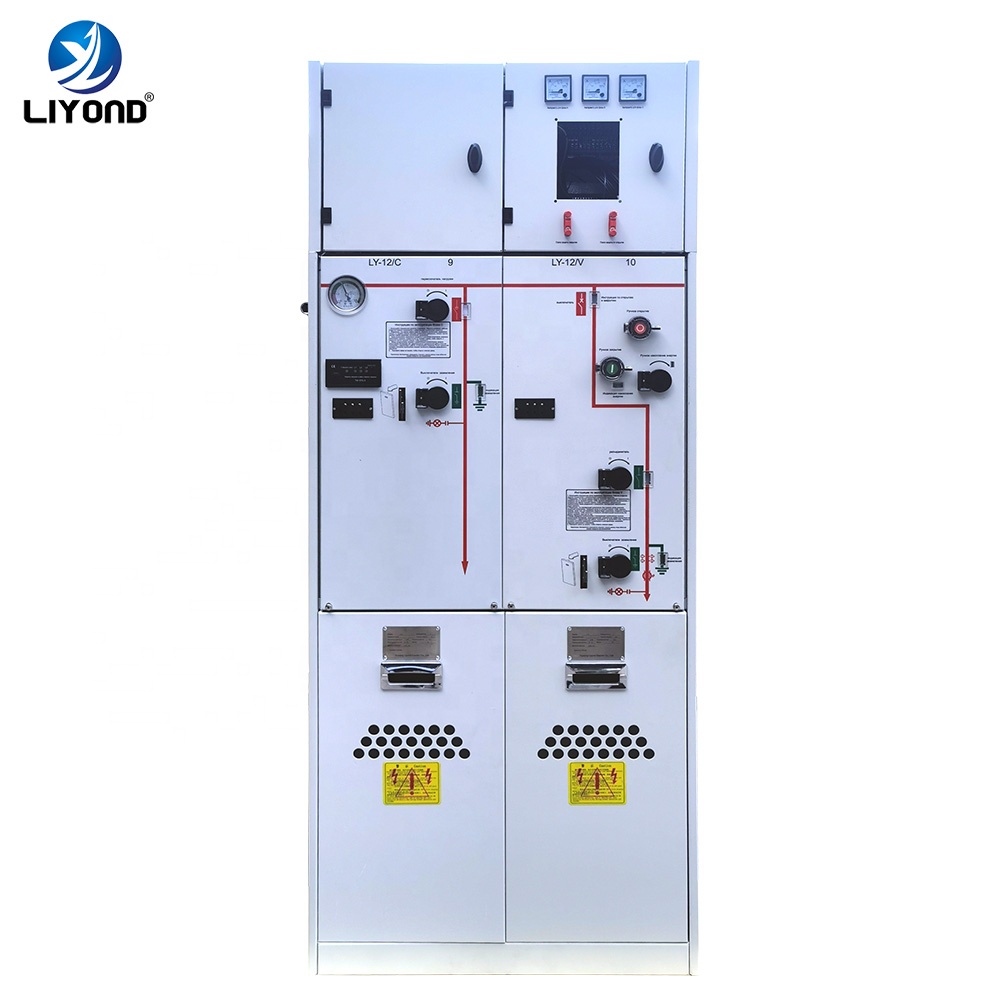

Product Display

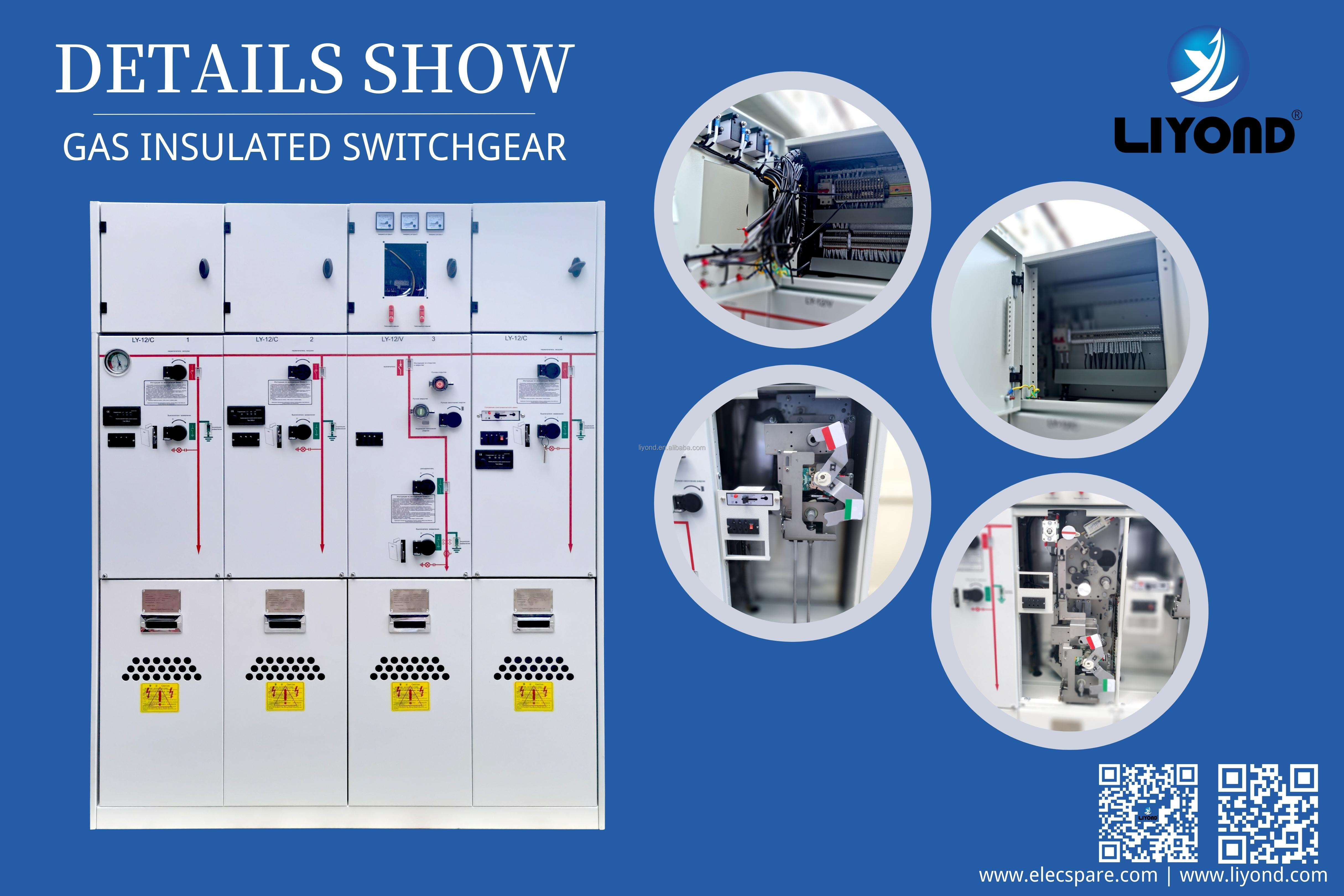

12kV 24kV Industrial AIS Switch Cabinet CVV CFCC Expandable SF6 Gas-Insulated Metal-Enclosed Switchgear

12kV & 24kV AIS Switch Cabinet Expandable SF6 Gas-Insulated Metal-Enclosed Switchgear for Power Transmission

Main Features

It uses SF6 gas as extinguishing arc and insulation medium.
It is a completely sealed and insulation system with a stainless steel tank containing all the live parts and switching functions. A sealed steel tank filled with 1.4bar SF6 gas can reach IP67 protection level. The whole switchgear device is with constant atmospheric conditions which ensures a high level of reliability as well as personnel safety and a virtually maintenance-free system.
The switchgear has reliable safety pressure relief arrangement, which ensures the personnel safety even under extreme conditions.
It has fixed unit combination and extendible unit combination.
The inlet and outlet are normally designed in the front side of the switchgear, but it can be provided with side outlet or side extension.
It is easy to install and suitable in narrow place in bad environment condition.
It can be supplied with motor, remote control and monitoring unit based on the customer’s request.

Normal Ambient Condition

Ambient air temperature is not exceeding 40 degree Celsius, the average value in 24 hours is not exceeding 35 degree Celsius, the lowest air temperature is not exceeding below 40 degree Celsius;
Altitude ≤ 2000m;
Humidity: Relative humidity daily average value is not exceeding 95%, monthly average value is not exceeding 90%;
Water vapor pressure: daily average value is not exceeding 2.2KPA, monthly average value is not exceeding 1.8KPA;
Intensity: not over 8 degree, horizontal acceleration ≤ 0.4g, vertical acceleration ≤ 0.5g;
Special service conditions: the user should consult with the manufacturer when the switchgear is not under normal service conditions.

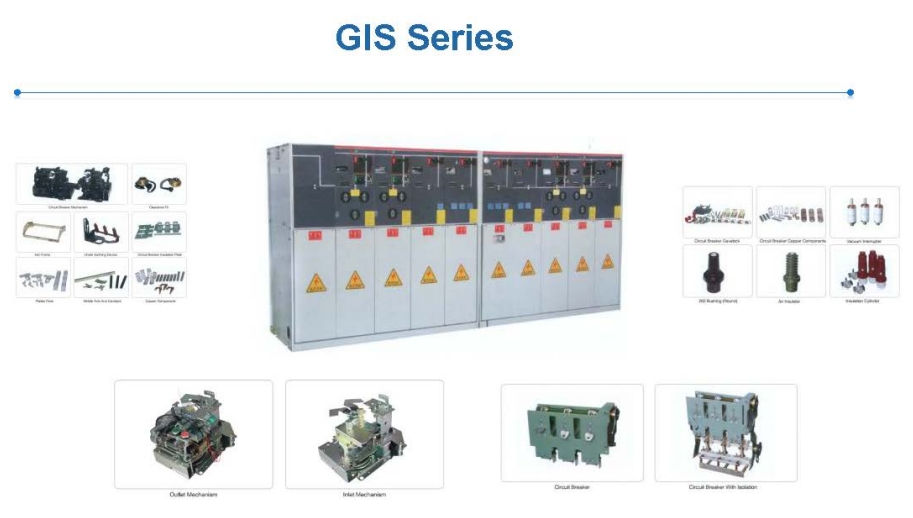

Optional Accessories

Technical Drawing

Hot Products

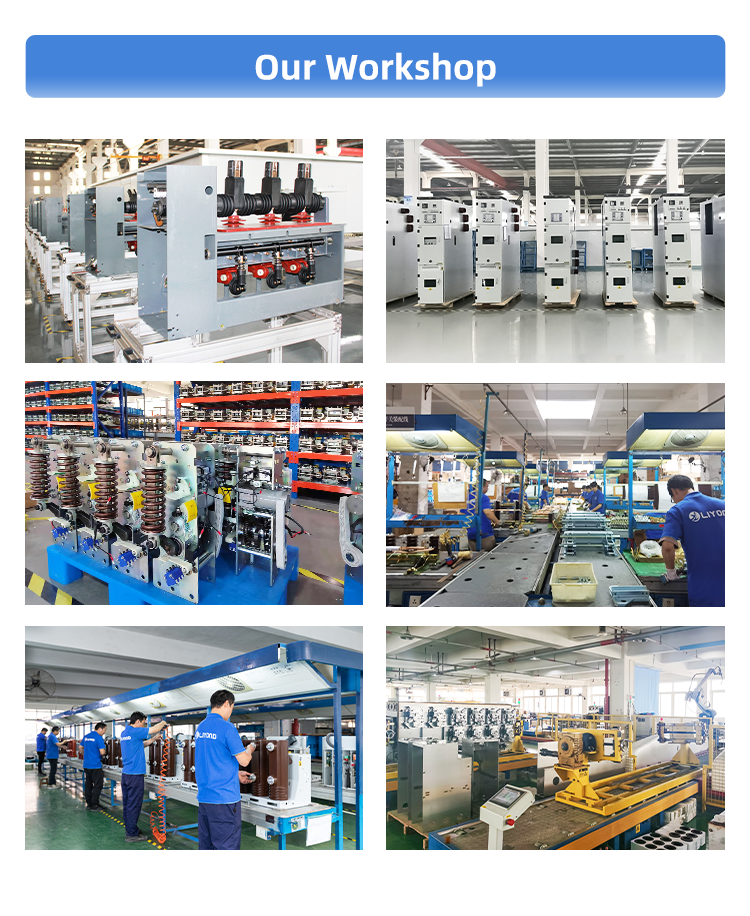

Manufacturing & Facility Overview

Frequently Asked Questions

Q Can I get a sample before the bulk order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q Do you accept product customization?

Yes, of course. Please provide specific drawings or parameters, and we will quote you after evaluation.

Q What is the lead time for orders?

The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.

Q What are your accepted Trade Terms?

We accept EXW, FOB, CIF, FCA, and other standard international trade terms.

Q What payment methods do you support?

We accept T/T, Western Union, Paypal, and irrevocable L/C at sight, etc.

Q How do you resolve post-sales quality issues?

Simply take photos of the quality problems and send them to us. After checking and confirmation, we will provide a satisfactory solution within 3 days.

Any inquiries or requests, please feel free to contact us!
