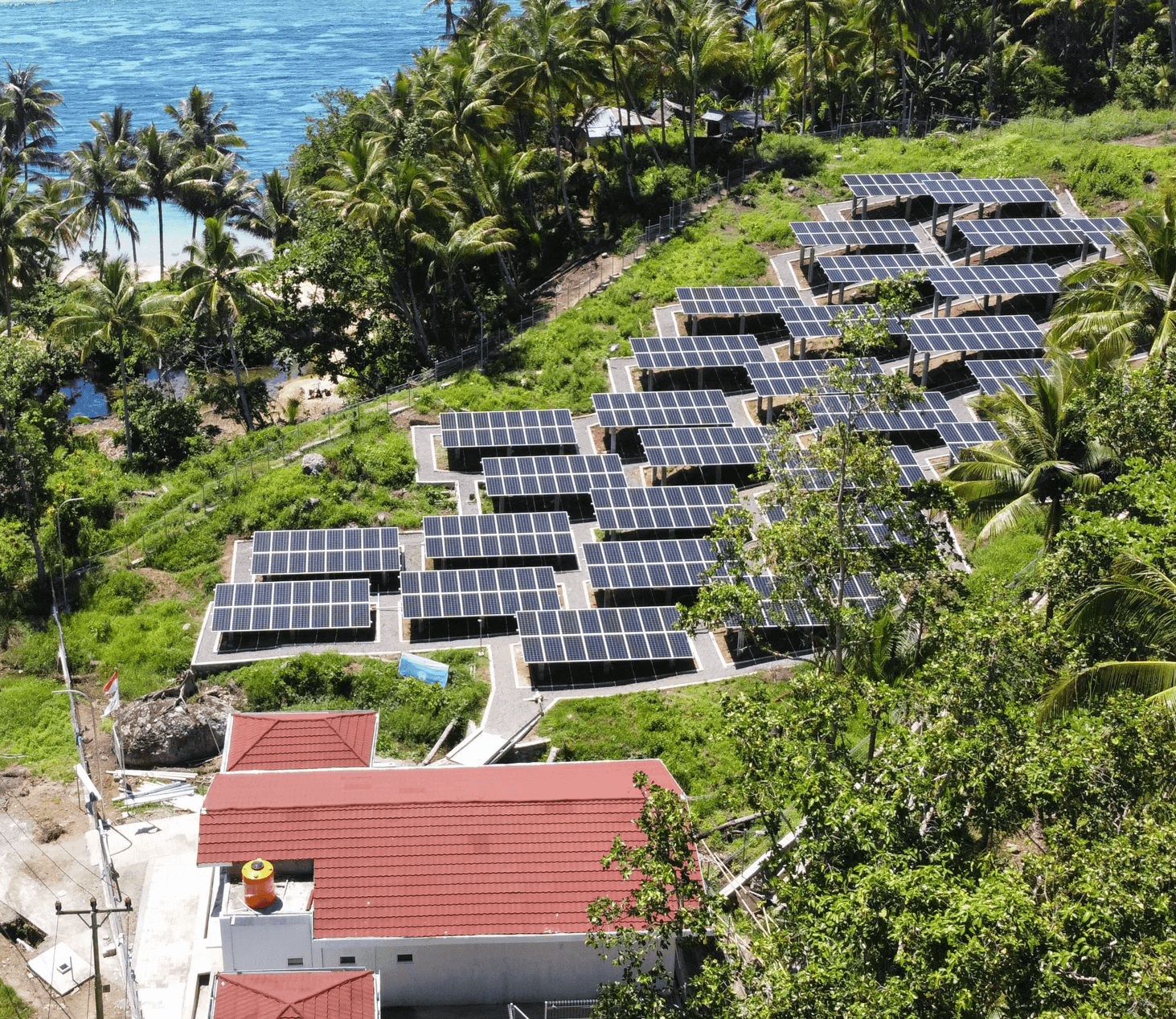

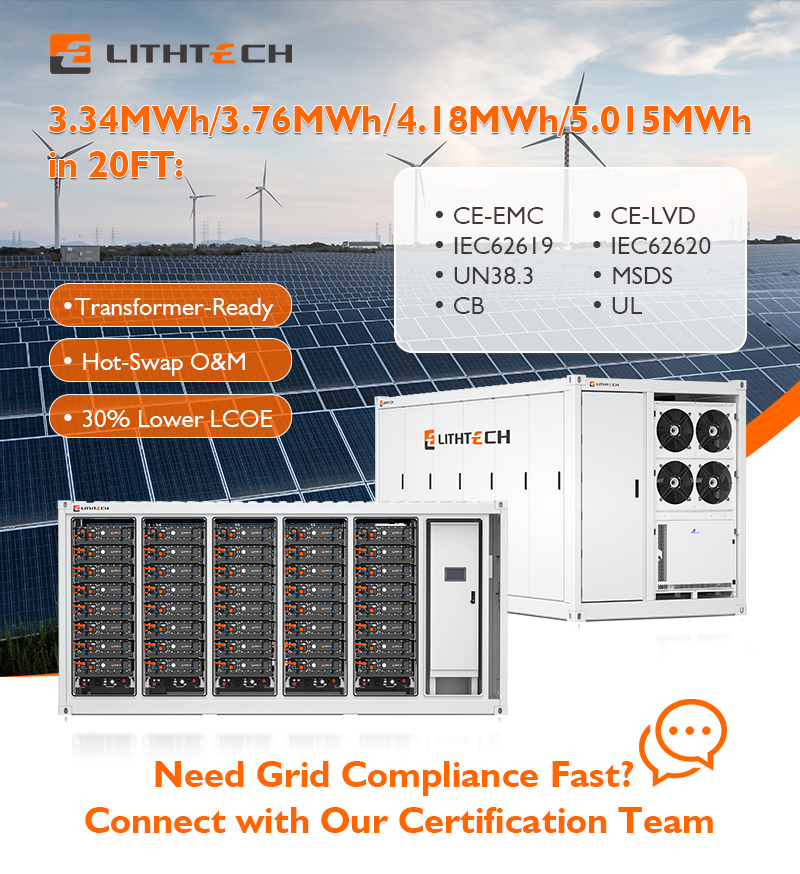

1000Wh ESS 1MW 2MW 3MW 500KW EMS System BESS 1 MWH LifePO4 Battery Energy Storage System Container Micro Grid Systems

Product Description

Energy Storage System
Battery System Overview
Battery Cell Detail
Product Spec Left

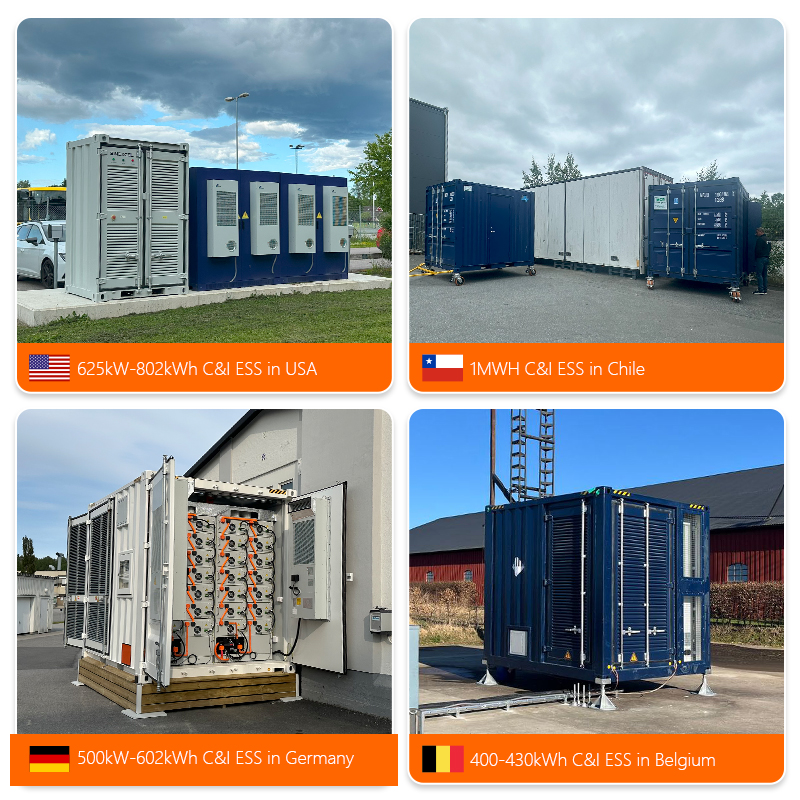

Product Spec Right
Products Description

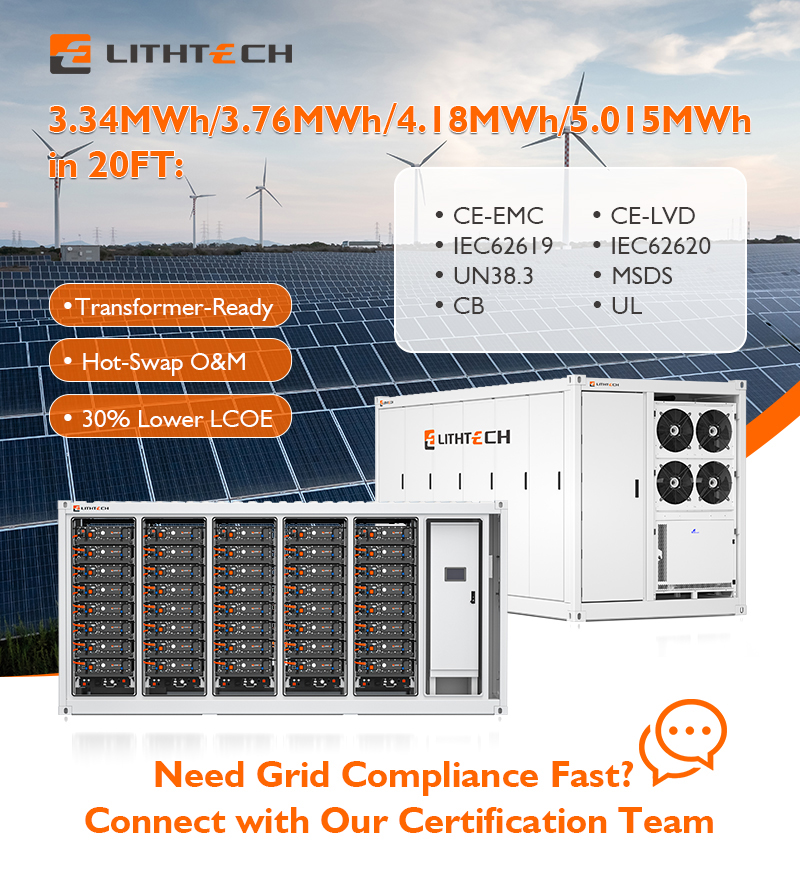

Product Architecture
System Specifications
PERFORMANCE SPECIFICATIONS
Model LTS1331314L-01 LTS1331314L-02 LTS1331314L-03 LTS1331314L-04
Energy System 0.5C - 1C
DC Side
Nominal Voltage 1331.2V
Nominal Capacity 3140Ah
Nominal Energy 3340kWh 3760kWh 4180kWh 5015kWh
System Configuration 8P416S 9P416S 10P416S 12P416S
Cell Type 3.2V 314Ah
Chemistry LiFePO4
Cycle life 8000 Cycles - 10000 Cycles
Battery Module 166.4V (1P52S)
Battery Cluster 1331.2V (1P416S)
Number Of Clusters 8P 9P 10P 12P
AC Side (Outside The Container)
Max Output Power 1670kW 1880kW 2090kW 2507.5kW
Rated Output Voltage 690V
AC Access Method 3-Phase 3-Wire
Rated Grid Frequency 50Hz/60Hz
Conversion Efficiency ≥98.5%
General Data
Cooling Method Liquid
Communication RS485, Ethernet, CAN
Waterproof IP54(System) / IP65(Module)
Corrosion Level C4 / C5 (Optional)
Noise Level <80dB
Charge Temperature 0°C to 60°C (32°F to 140°F)
Discharge Temperature -30°C to 60°C (-22°F to 140°F)
Storage Temperature 0°C to 35°C (32°F to 95°F)
Altitude ≤4000m
Certification IEC 61000-6-2 / 61000-6-4 / 62477-1 / 62619 / UN3536
Warranty 5 Years / 10 Years (Optional)
Dimensions [L*W*H] 6058*2438*2896mm
Weight 31.1T 34.3T 37.5T 43.9T

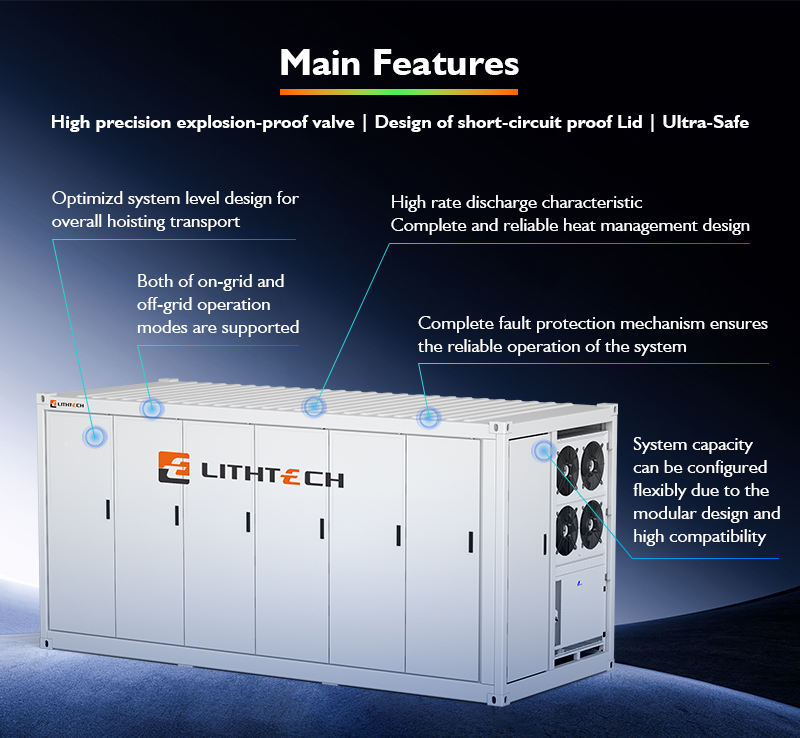

Cabinet Internals

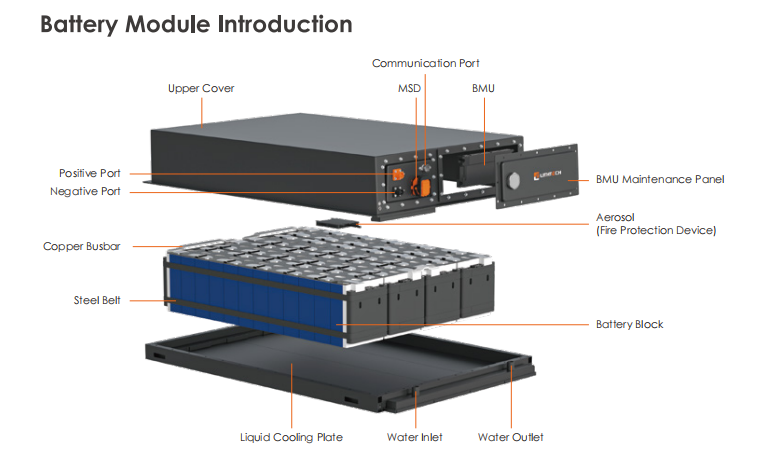

System Layout Design
Production View 1

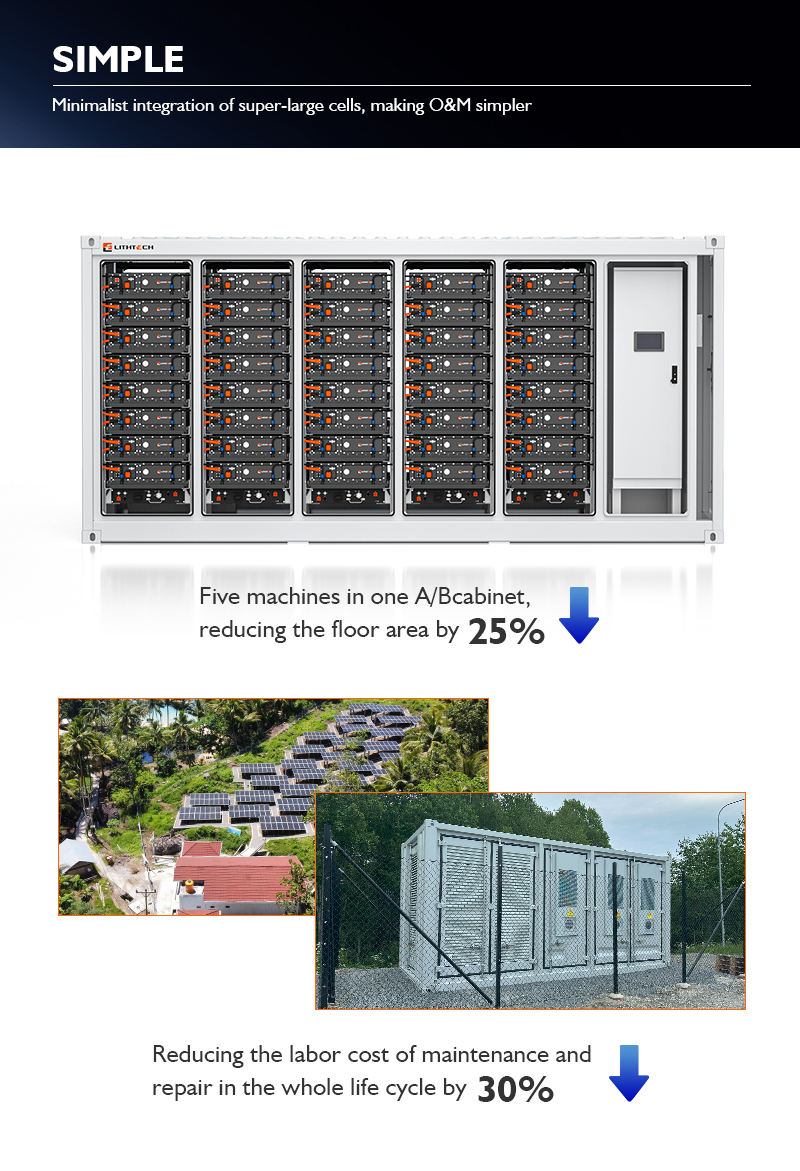

Production View 2
Production View 3

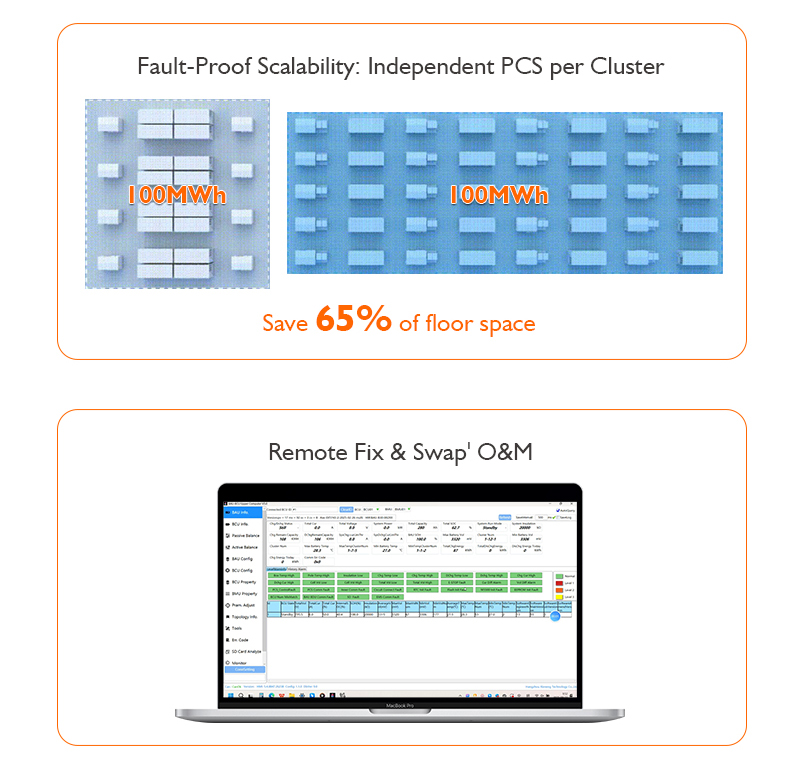

Production View 4

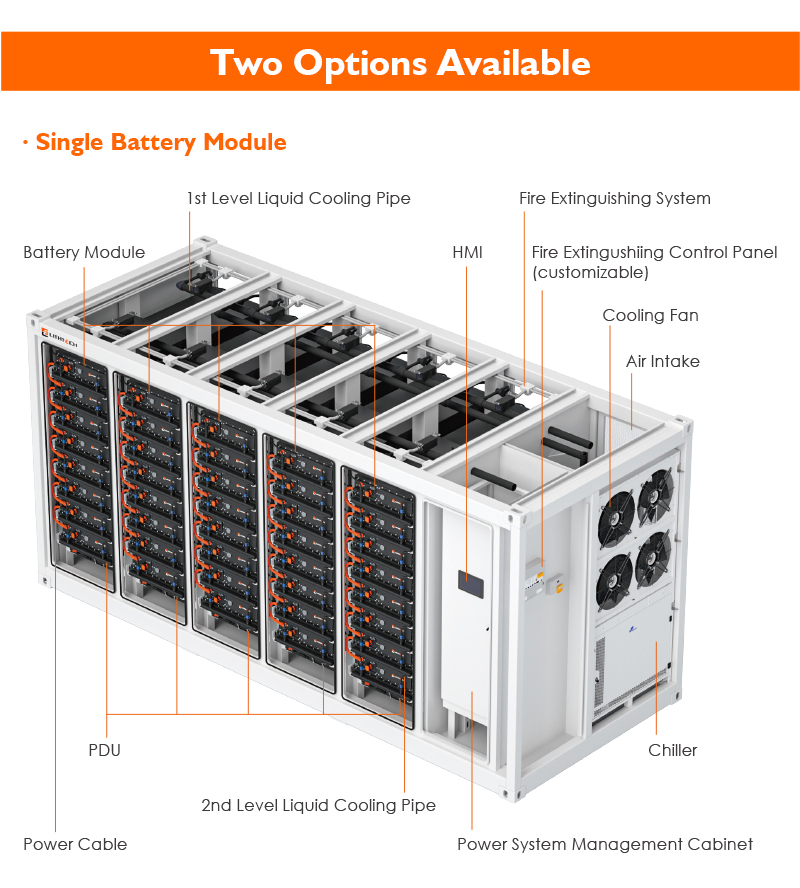

Two Product Configuration Options
Configuration Options
Single Battery Module (Modular Scalability)
3.34MWh / 3.76MWh / 4.18MWh / 5MWh String PCS enables independent battery cluster operation, eliminating circulation losses and boosting efficiency by 3-5%. Pre-integrated container design ensures rapid deployment and flexible expansion, reducing lifecycle costs.

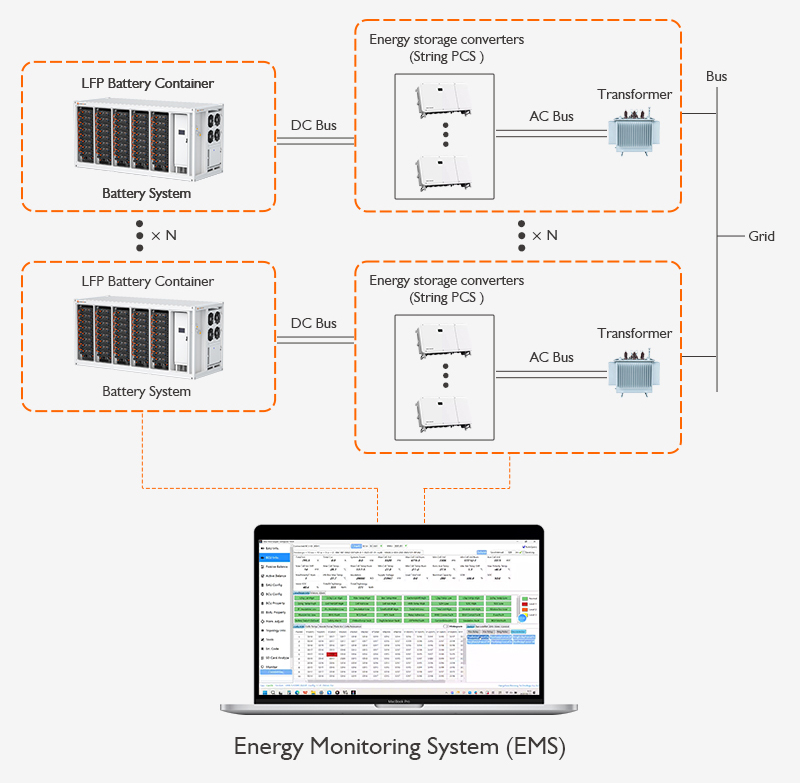

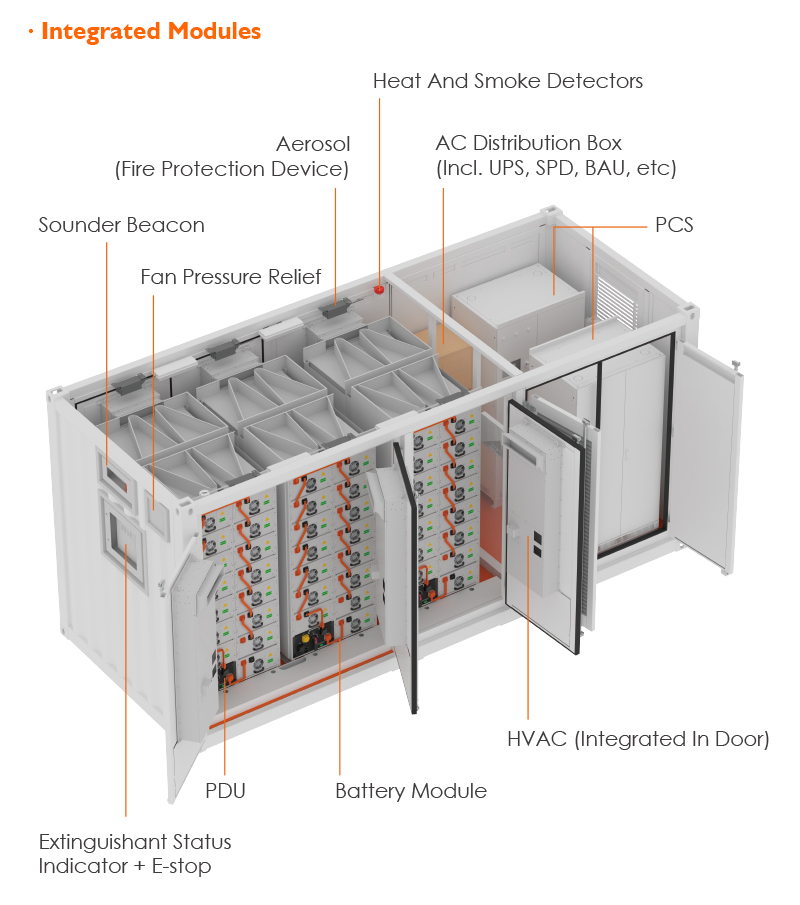

Integration Schematic
All in One Integration
LiFePO4 lithium Battery Module, BMS, PCS, EMS, SCADA etc. All-in-one pre-integrated design ensures seamless operation, faster deployment, and lower lifecycle costs.
Delivery Time
Item 1-10 PCS 10-50 PCS 50-100 PCS 100+ PCS
Dangerous Goods Transport Certificate Required 30 days 30-45 days 45-60 days 60+ days
Dangerous Goods Transport Certificate Not Required 30 days 30-45 days 45-50 days 50+ days
After Sales Response Time
Beijing Time (9:00 - 22:00) Weekday Saturday Sunday Chinese Statutory Holidays
Sales Team Support ≤1 Hour ≤2 Hours ≤4 Hours /
Executive Support ≤1 Hour ≤2 Hours ≤4 Hours ≤1 Day
Available Certificates: MSDS, UN38.3, CE, UL, RoHS, IEC62619 and more.
Product Certifications
If you want to get a complete solar energy storage system solution, please contact our customer manager for further details on our systems.
Why Choose Us
Factory Advantage 1
Factory Advantage 2

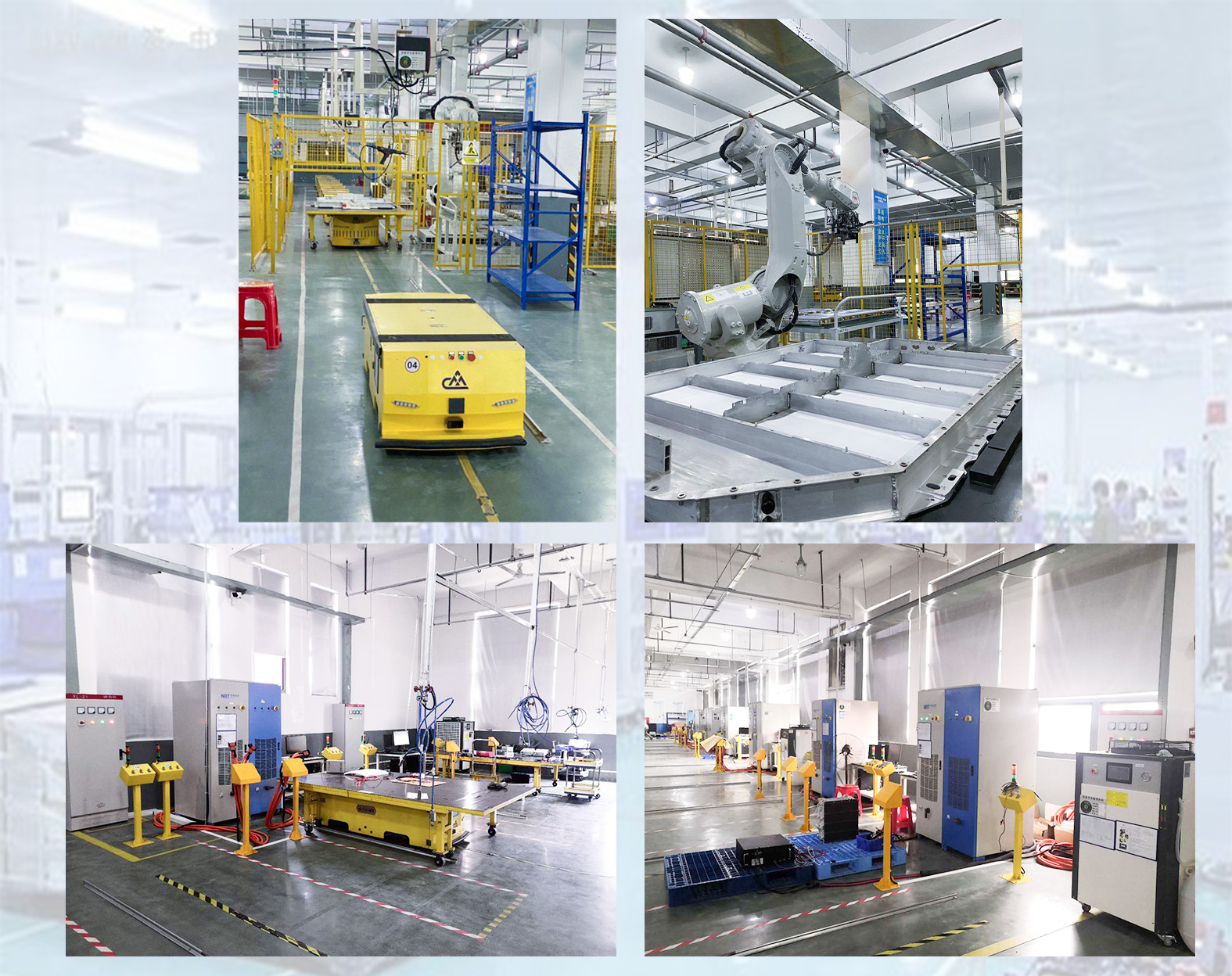

Factory Advantage 3

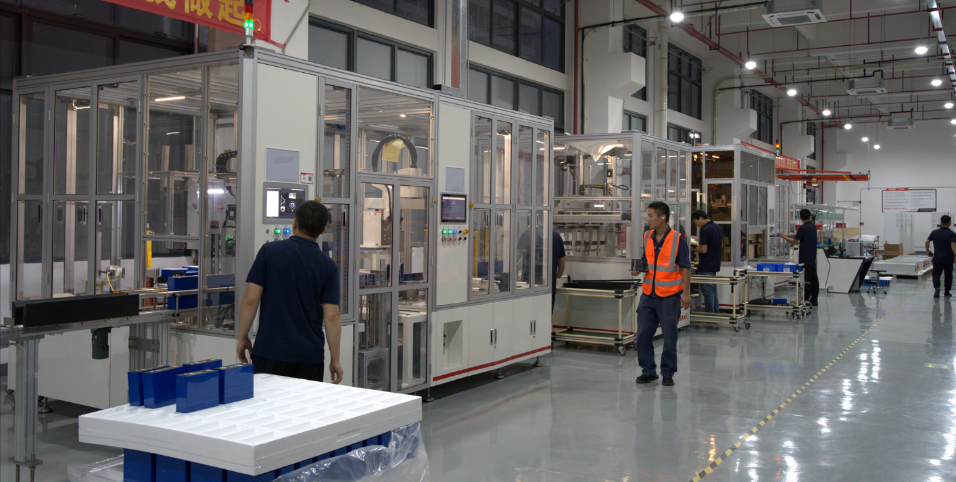

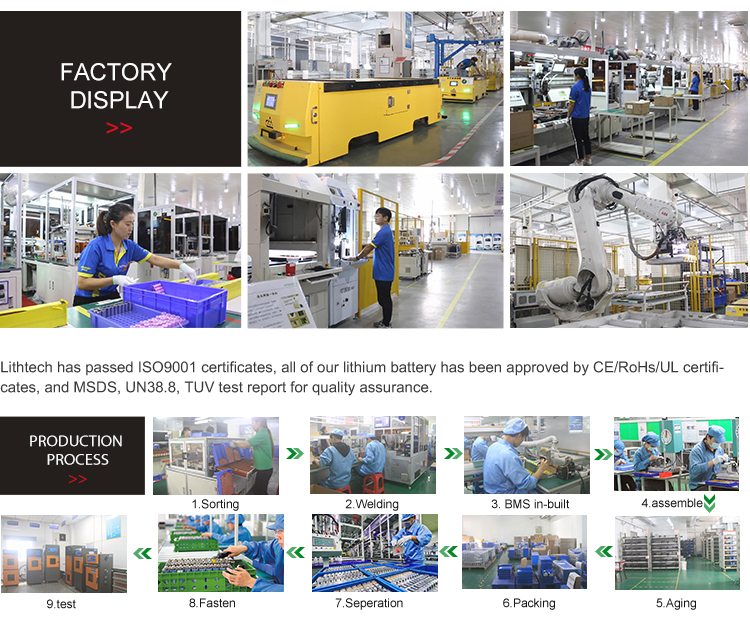

Quality Standard 1
Quality Standard 2
Quality Standard 3
Regional Agent
Global Distribution Map
Our Exhibition & Customers
Exhibition View 1
Exhibition View 2
Frequently Asked Questions
1. Q: How long is the delivery time of your products?
A: For overseas warehousing, shipping takes up to 2 days for delivery. For shipments departing from China, the process usually takes about 15 days.
2. Q: What kind of certificates do your products have?
A: Our energy battery products have successfully acquired UN38.3, CE, FCC, UL, MSDS, and other major standard certifications, satisfying the import regulations and requirements of most countries.
3. Q: Can you supply OEM & ODM services?
A: Yes, we provide both OEM and ODM custom solutions. Please note that minimum order quantities (MOQ) apply for customized orders.
4. Q: Can you ship your battery products by sea or by air?
A: Yes, we work closely with long-term, specialized logistics forwarders who are highly experienced in handling safe battery shipments by both sea and air transport.
5. Q: How long is the product warranty?
A: We offer a robust product warranty coverage ranging from 5 to 15 years, depending on your system configuration.
6. Q: How do you provide after-sales service?
A: Our network of overseas branches allows us to efficiently provide quick technical support, repair, and replacement services.
