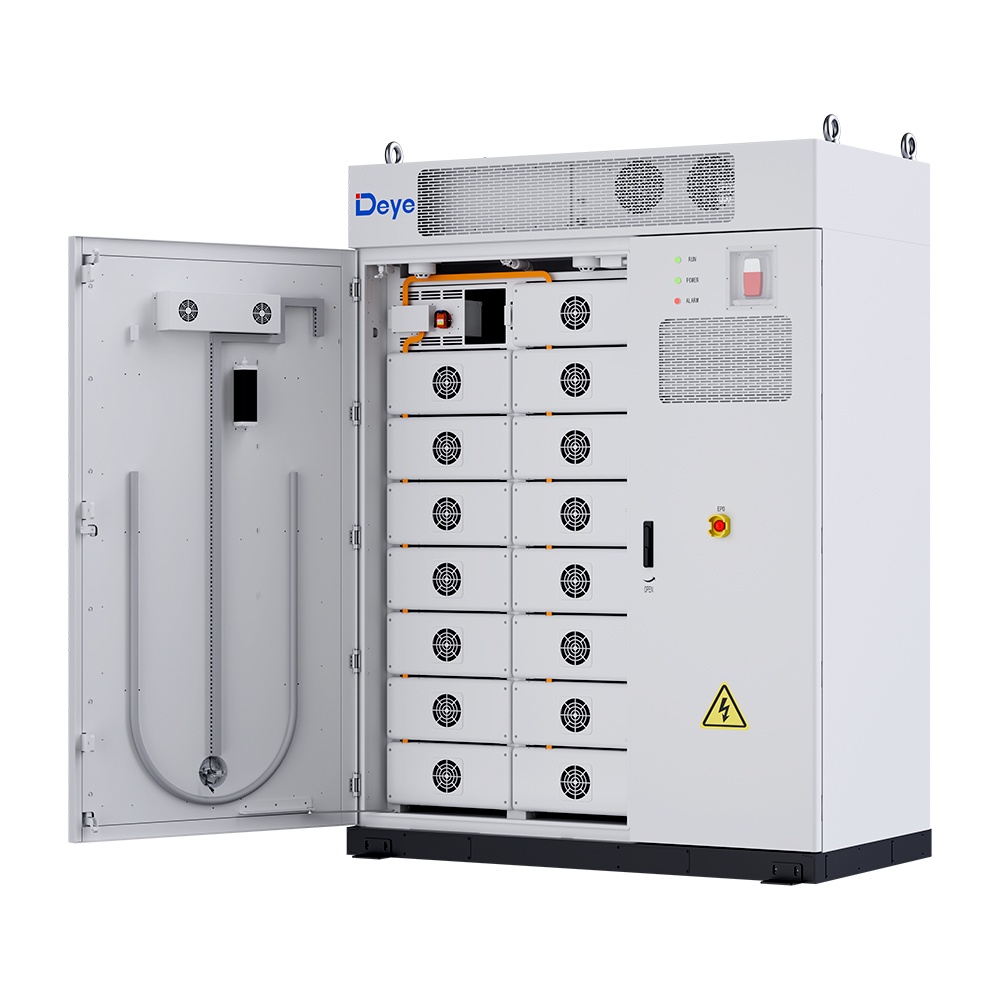

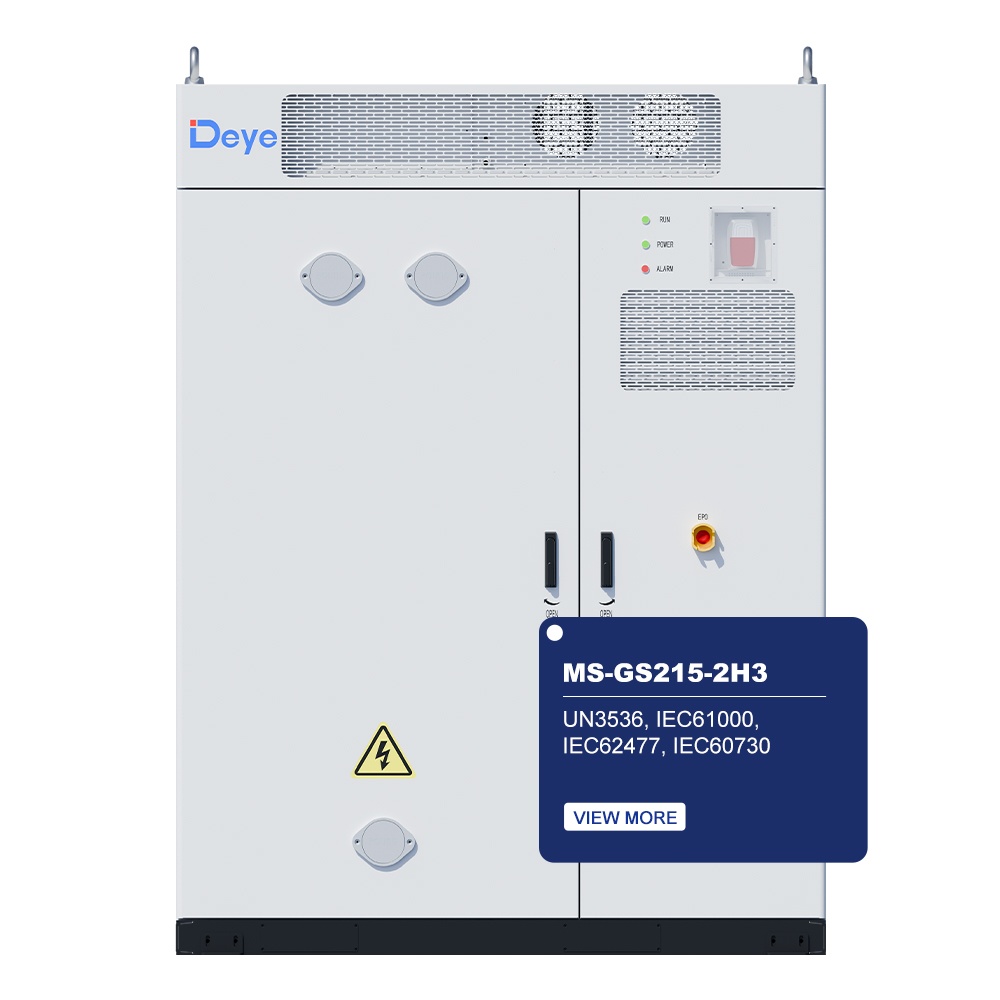

| Model | MS-G215-2H3 |
| AC Output Power | 100 kW |
| Battery Capacity | 215 kWh |
| Battery Operating Voltage Range | 660–864 V |
| Battery Operating Voltage (Grid) | DC: 600–935 V (on-grid) / DC: 700–935 V (off-grid) |
| Max Efficiency (RTE) | 88% |
| IP Rating | IP54 |
| Operating Temperature | -20°C to 50°C (>45°C derating) |
| Max Altitude | 3000 m |
| Anti-Corrosion Grade | C5 |
| System Certifications | UN3536 |
| Warranty | 10 Years or ≥6000 Cycles (@25±2°C, 70% EOL) |
| AC Output Rated Current | 152 A |
| Max AC Output Current | 167 A |
| Max Number of Parallel Units | 10 pcs (off-grid) |
| THD (Total Harmonic Distortion) | <3% |
| DC Injection Current | <0.5ln |
| Communication | CAN, RS485, ETH |
| Overvoltage Protection | DC Type II / AC Type II |
| Protection Level | Class 1 |
| Efficiency | 97.6% |
| Humidity Range | 15%–85% (No Condensing) |
| Dimensions (W × D × H) | 506 mm × 772 mm × 310 mm |
