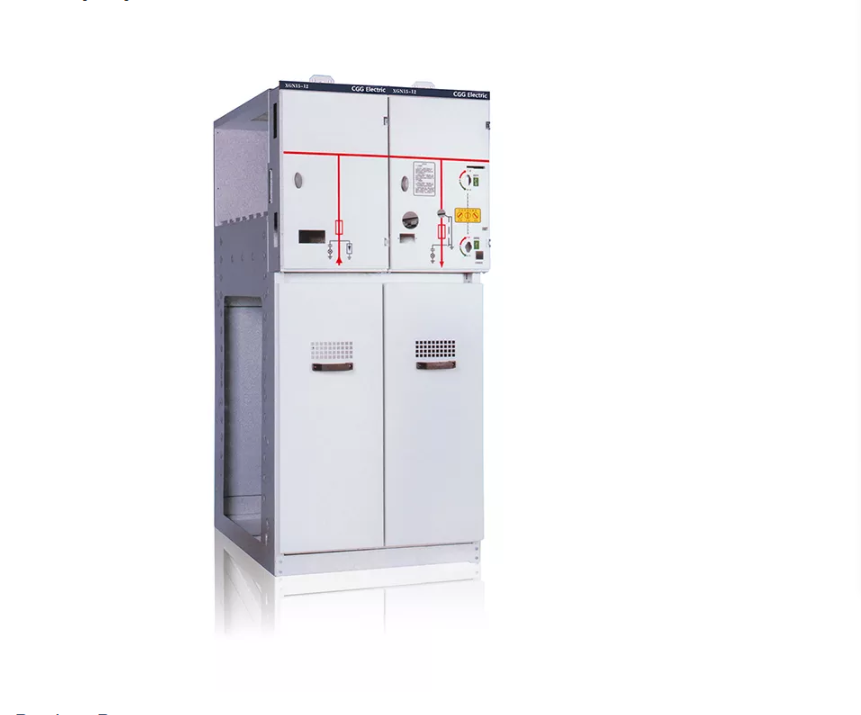

CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
1 / 5
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit
CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit

CNKEEYA XGN15-12(F) SF6 Metal-Clad Enclosed Ring Main Unit 12kv AIS RMU Air Insulated Switchgear Medium Voltage Ring Main Unit

Send Inquiry

Product Description

Product Description

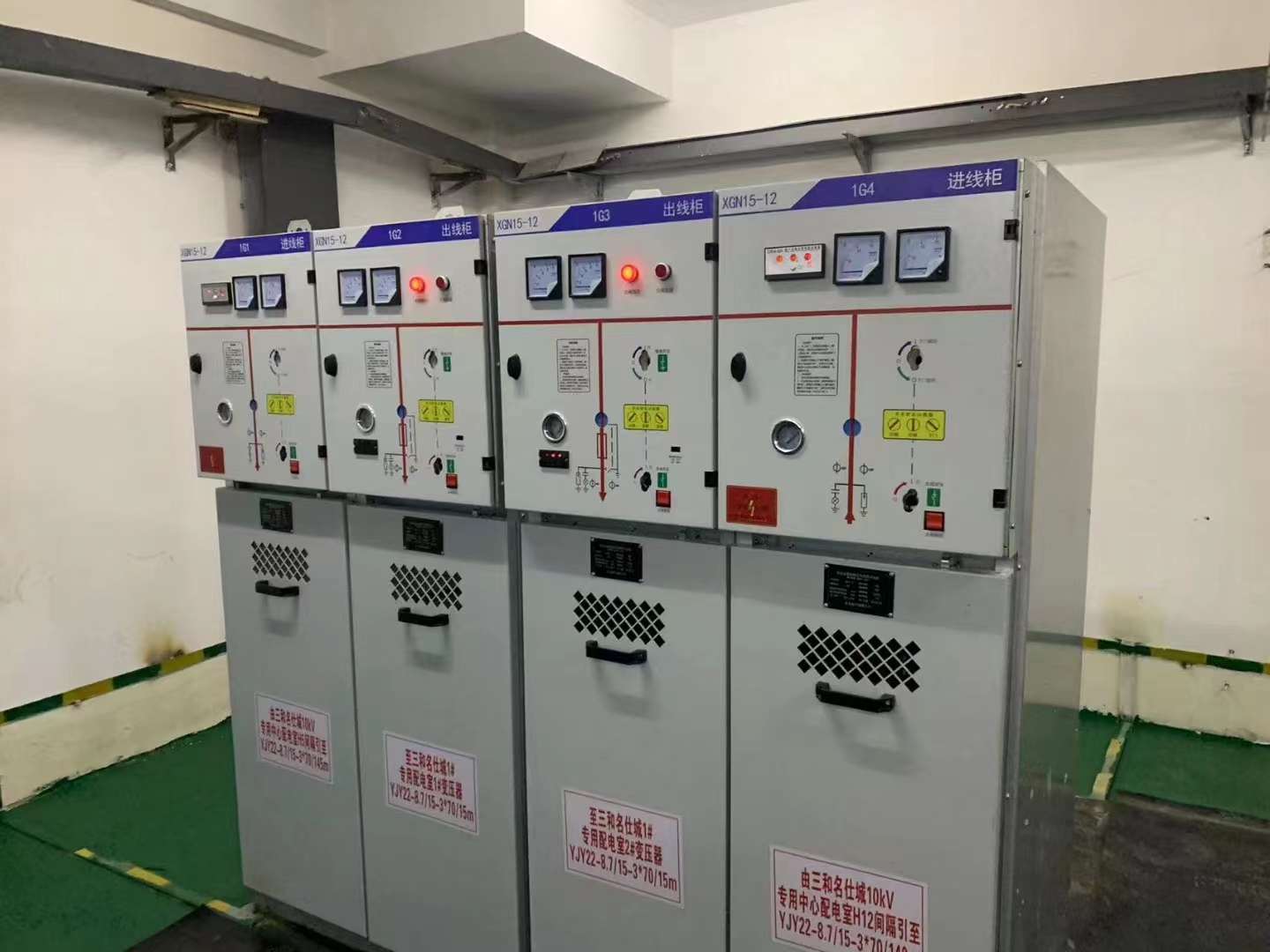

Product Image 1

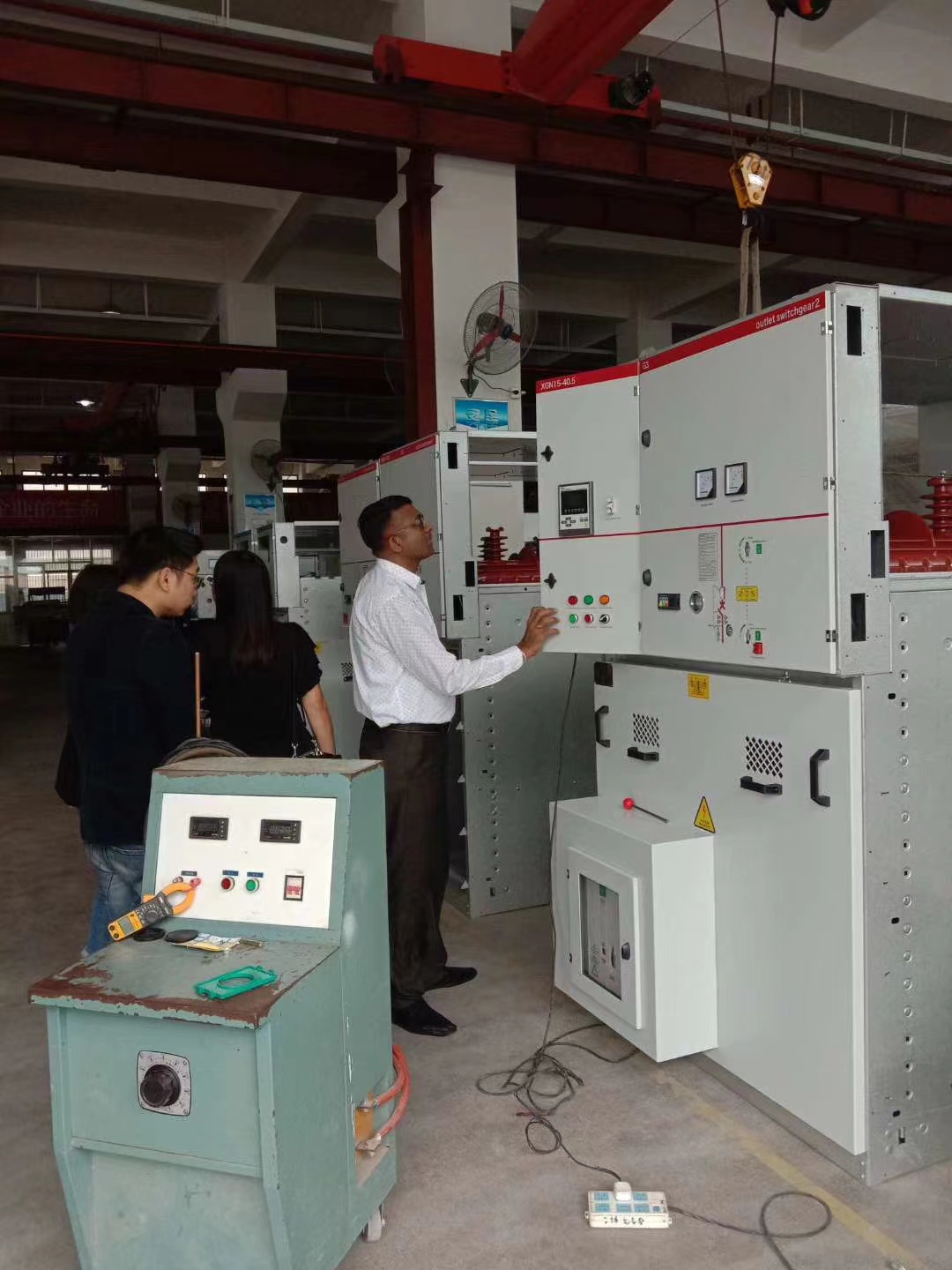

Product Image 2

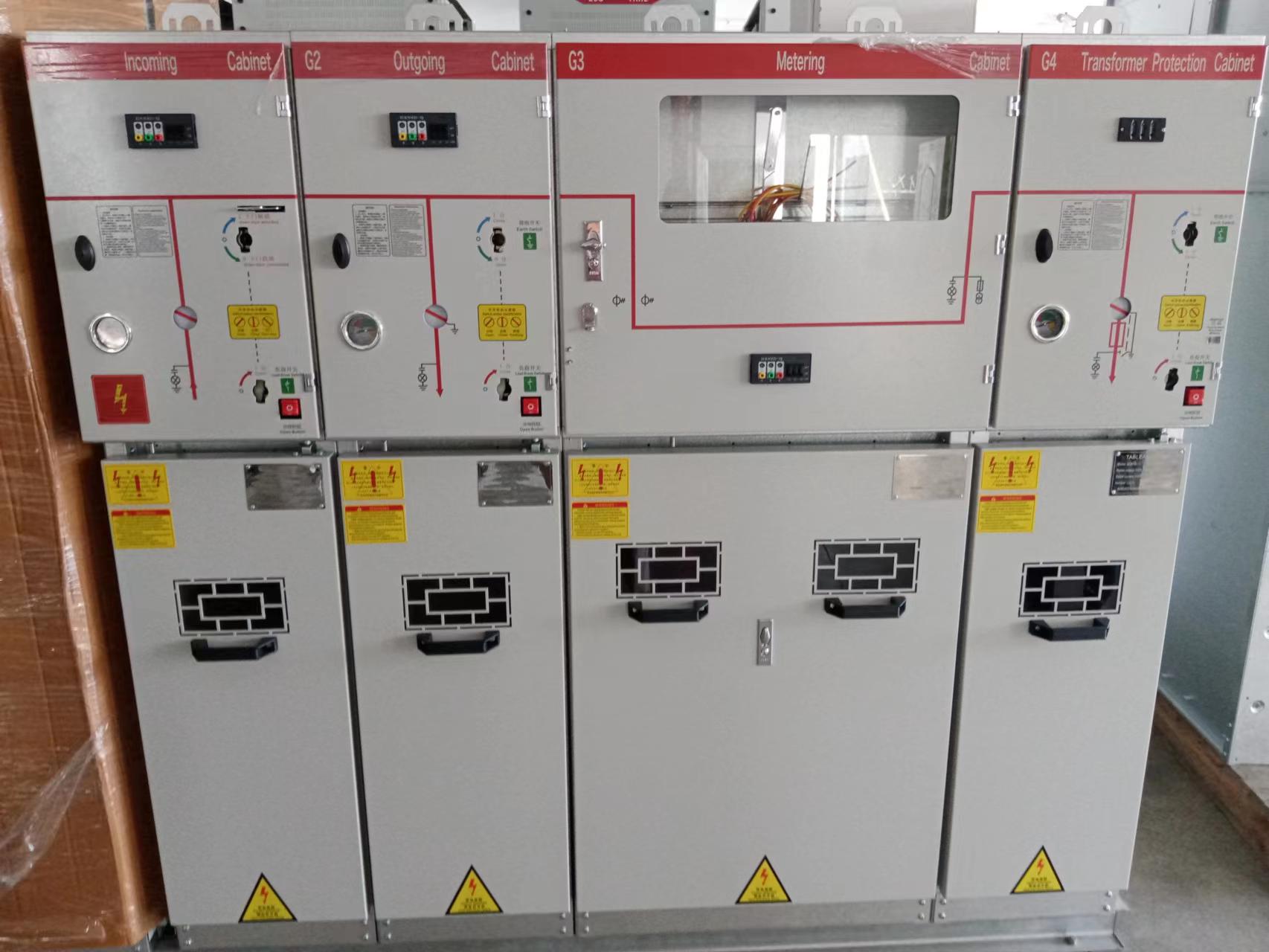

Product Image 3

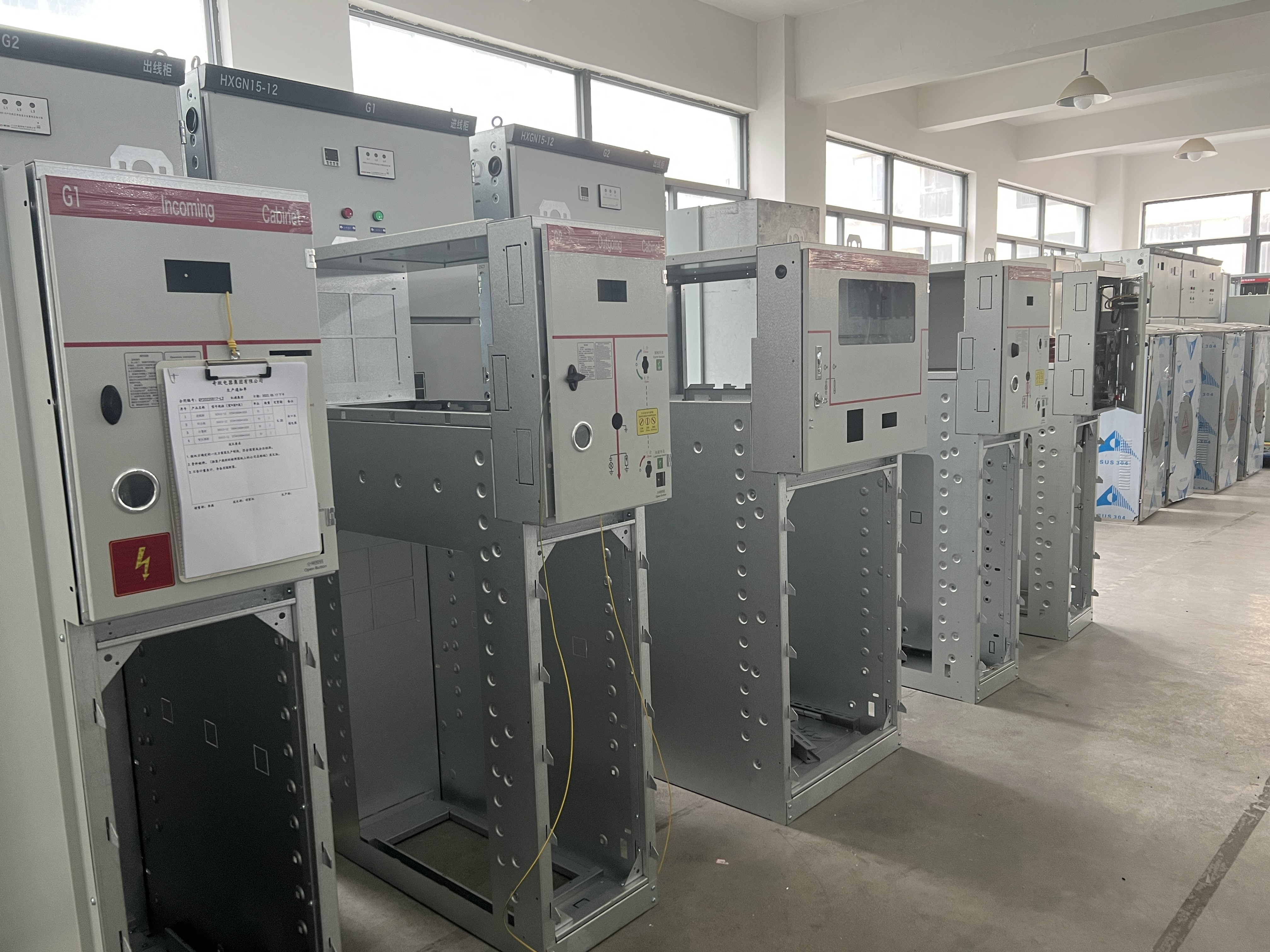

Product Detail Image 1

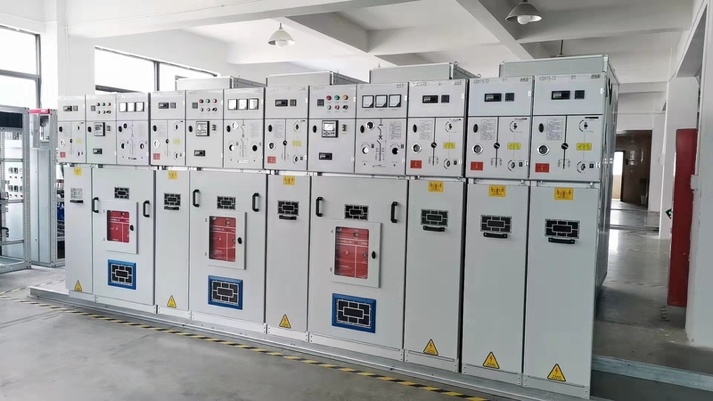

Product Detail Image 2
Specification
Item Value
Place of Origin China, Zhejiang
Model Number XGN15-12
Color white
Voltage 10
Current 630
Material Stainless Steel
Size 950, 500, 1600
Rated voltage 3kV-40.5kV
Rated current up to 1250A
Breaking Capacity 40kav
Rated frequency 50/60Hz
Protection Level Enclosure IP4X
Application Indoor, outdoor, substation
Certificate CE ISO CCC IEC
Structural Features
1
XGN15-12 switchgear is a metal-enclosed box structure, and the cabinet frame is welded by angle steel and copper plate.
2
The cabinet is divided into a circuit breaker room, bus room, cable room and relax room, and each room is separated by a steel plate.
3
The front and rear doors of the switchgear are installed off the wall and maintained on both sides.
4
There is a pressure relief channel on the top of the switch cabinet. In case of an internal arc fault, the pressure and gas can be released from the pressure relief channel to ensure the safety of operators.
5
The switchgear has perfect and mature "mechanical five prevention" and simple and clear operation procedures.
6
ZN28A-12, ZN63A-12, VS1 and other series vacuum circuit breakers are used as the main circuit breaker of the switch cabinet. Other types of circuit breakers can also be equipped as required Ct19 spring operating mechanism.
7
The disconnector adopts gn30-10 rotary disconnector and gn22-10 high current disconnector.
Product Details Gallery
Structural Image 1
Structural Image 2
Structural Image 3
Structural Image 4
Frequently Asked Questions
What are the primary applications of the XGN15-12 switchgear?
The XGN15-12 switchgear is highly versatile and designed for indoor, outdoor, and substation environments to provide secure, stable power distribution.
What material is used for the cabinet construction?
The cabinet frame is welded using angle steel and copper plate, and the overall construction utilizes premium stainless steel for enhanced protection and durability.
What type of circuit breakers can be equipped?
It features series vacuum circuit breakers such as ZN28A-12, ZN63A-12, and VS1 as the main circuit breaker. Other types of circuit breakers can also be equipped based on requirements.
What safety mechanisms are built into the switchgear?
It is equipped with a pressure relief channel at the top of the cabinet to release pressure and gas during internal arc faults. It also incorporates a complete "mechanical five prevention" safety system.
What protection level and certifications does this switchgear have?
The switchgear enclosure meets the IP4X protection level. It is fully certified under CE, ISO, CCC, and IEC standards, ensuring reliable compliance.
