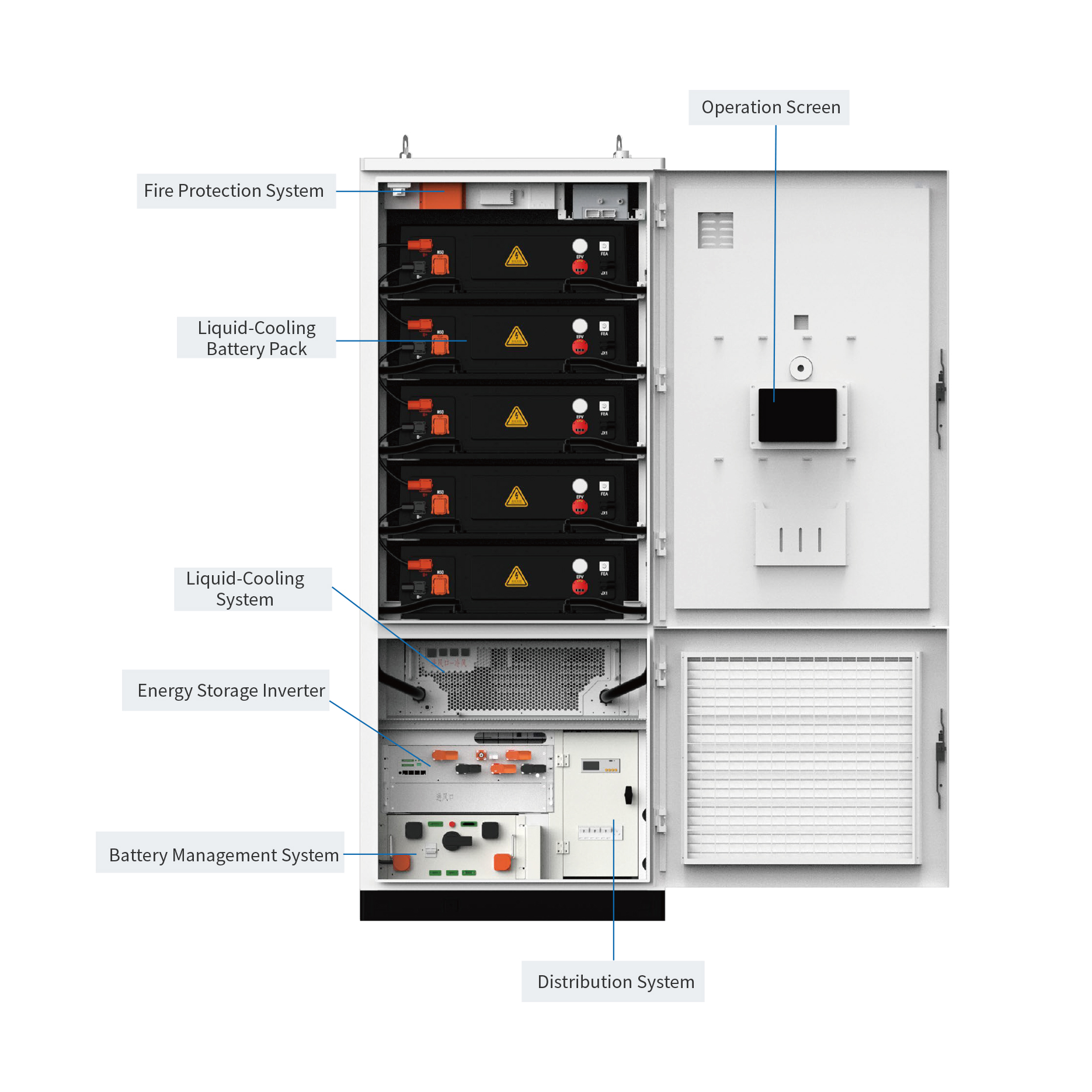

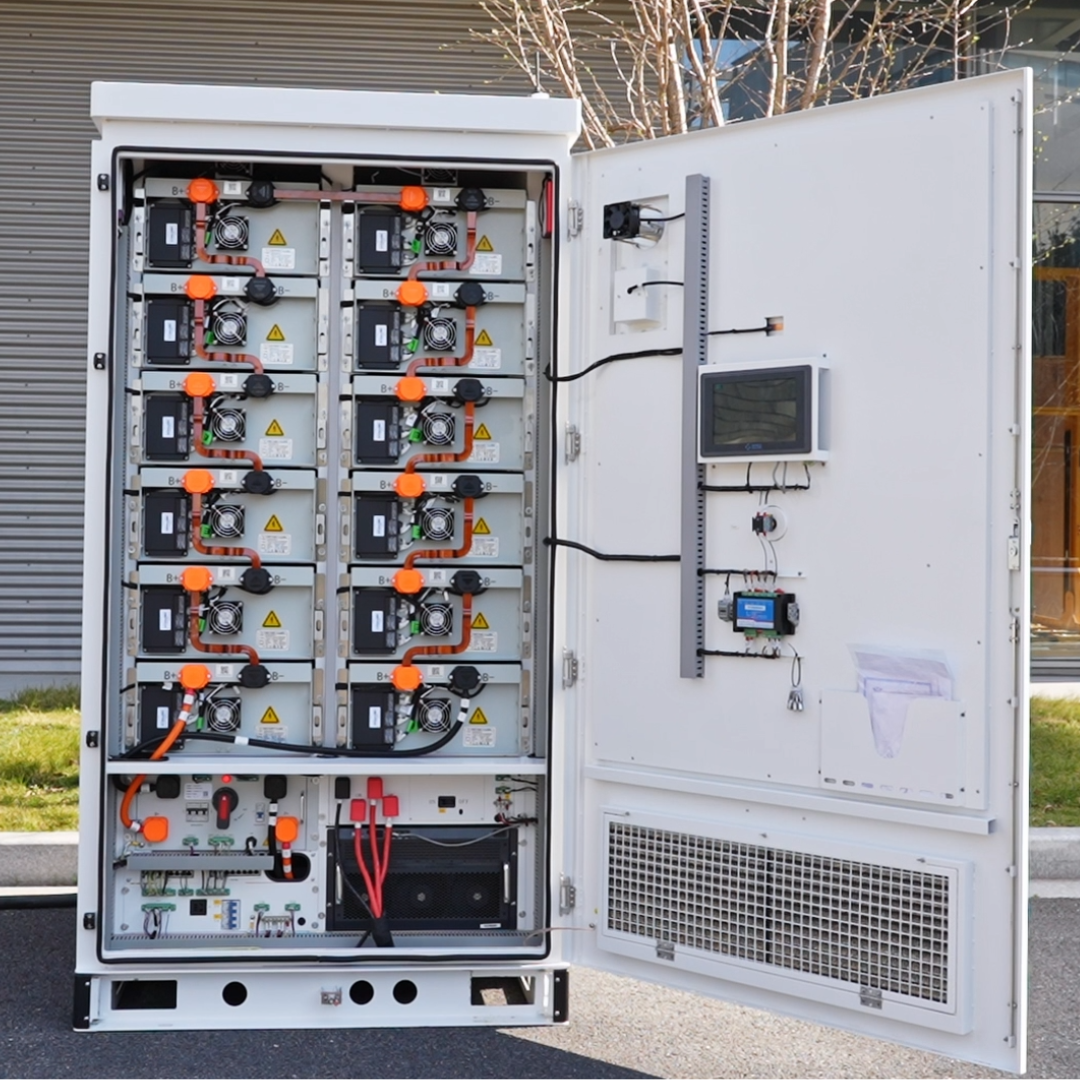

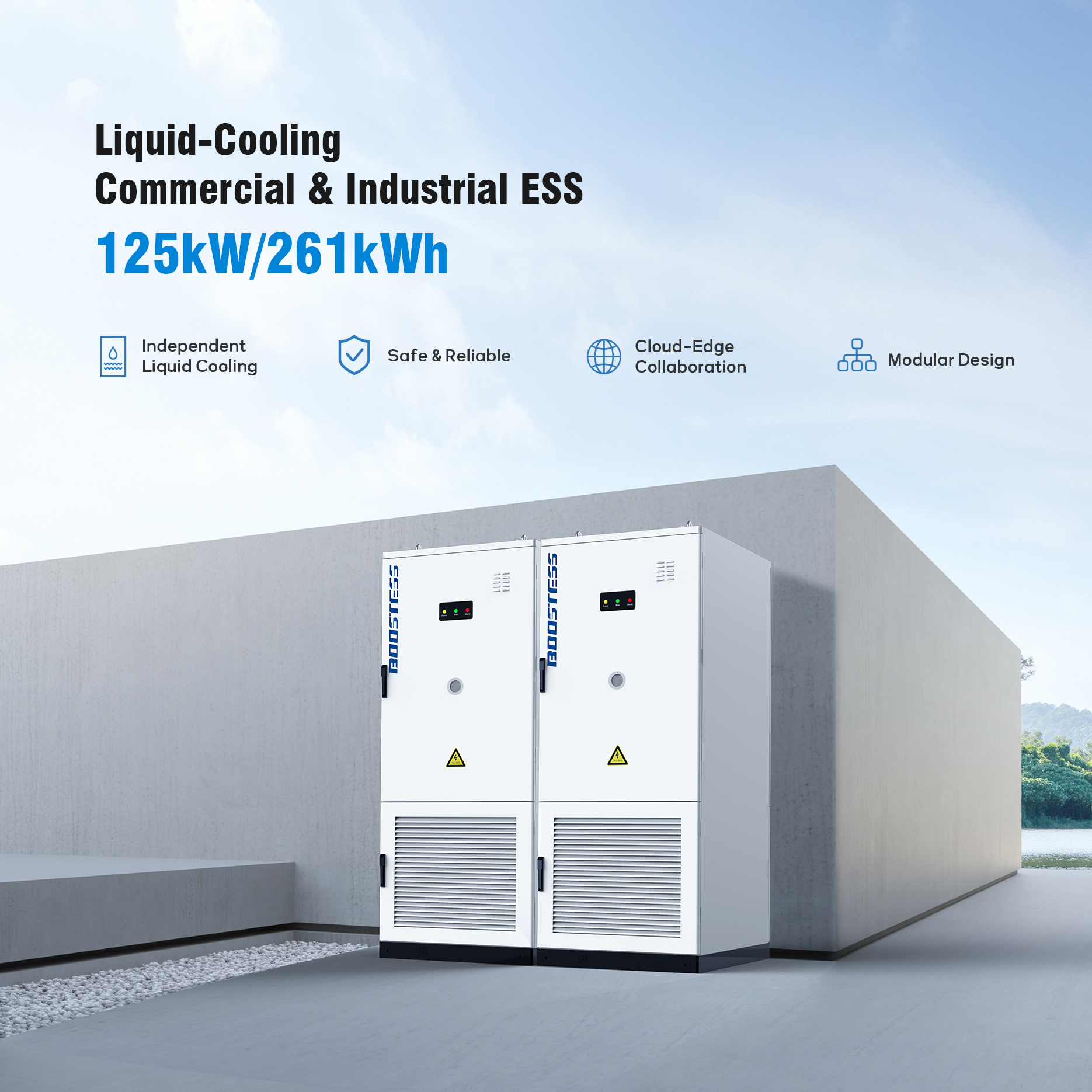

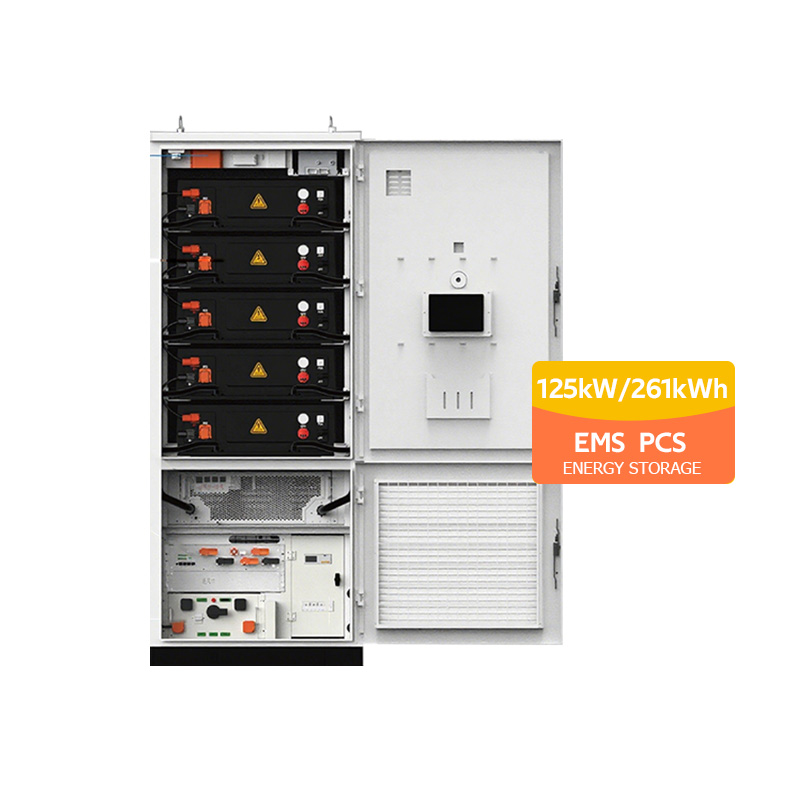

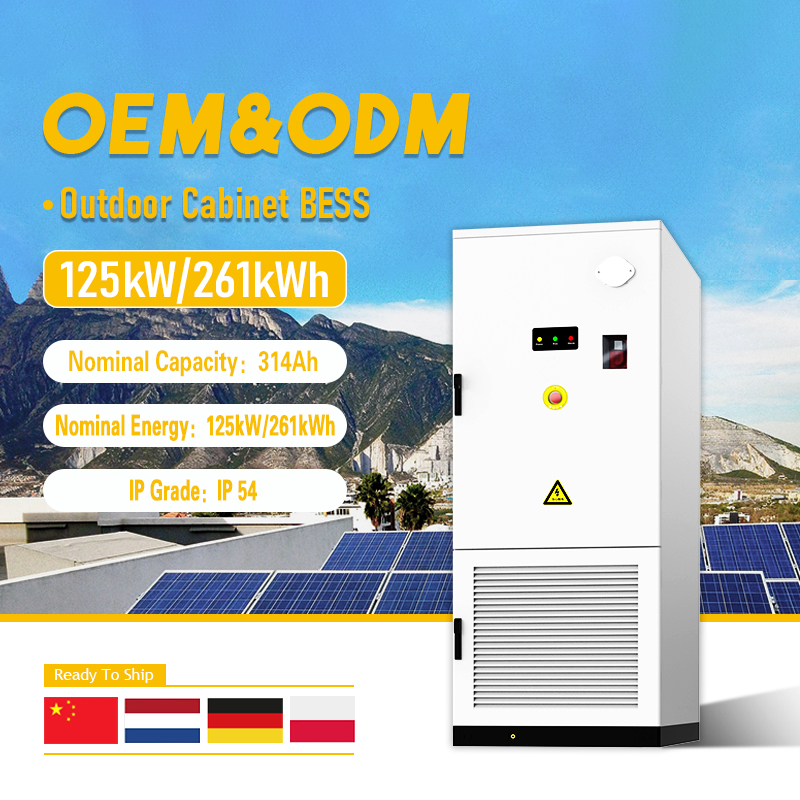

| Product Technical Specifications | |||
|---|---|---|---|
| DC Parameters | |||
| Battery Type | LFP | Operating Voltage Range | 728V~936V |

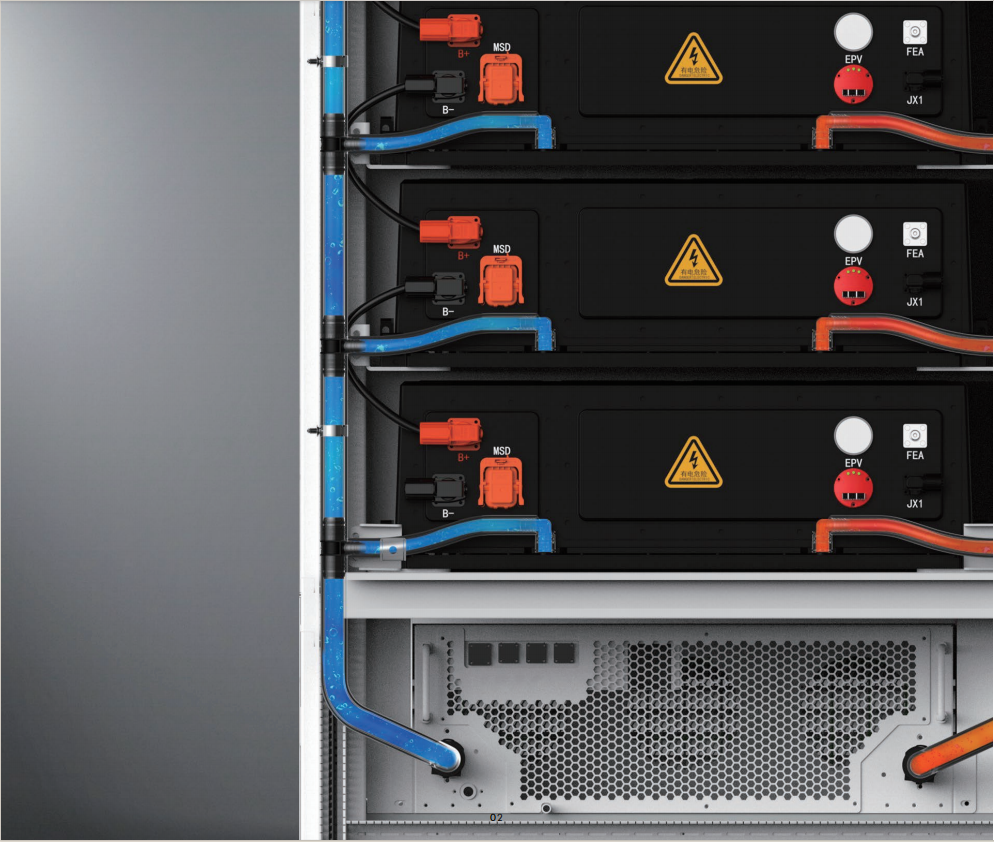

| Combination Mode | 1P260S | Cooling Mode | Liquid cooling |
| Rated Capacity | 314Ah | Coolant | Ethylene glycol : water (50%:50% v) |
| Rated Energy | 261kWh | Cycle Number | 8000 |
| Rated Voltage | 832V | Fire Protection System | Aerosol Extinguishing*6, water |
| Rated Power | 125kW | Detector Type | CO, smoke, temperature, water leak |
| Rated Charge/Discharge C-rate | 0.5P | ||
| AC Parameters | |||
| Rated Output Power | 125kW | AC Overload Capability | 137.5 kW |
| Wiring Method | Three-phase Three-wire / Three-phase Four-wire | Allowed Grid Voltage | 380V/400V (-15% ~ +15%) |
| Allowed Grid Frequency | 50Hz/60Hz ± 2.5Hz | Total Harmonic Distortion (THD) | ≤ 3% (at full load) |
| Power Factor | -0.99 / -1 ~ 1 | DC Component in Current | ≤ 0.5% |
| Charge/Discharge Conversion Time | < 100ms | ||
| System Parameters | |||
| Operating Environment | -20°C to 50°C (de-rated operation above 45°C) | Noise Level | ≤ 75dB |

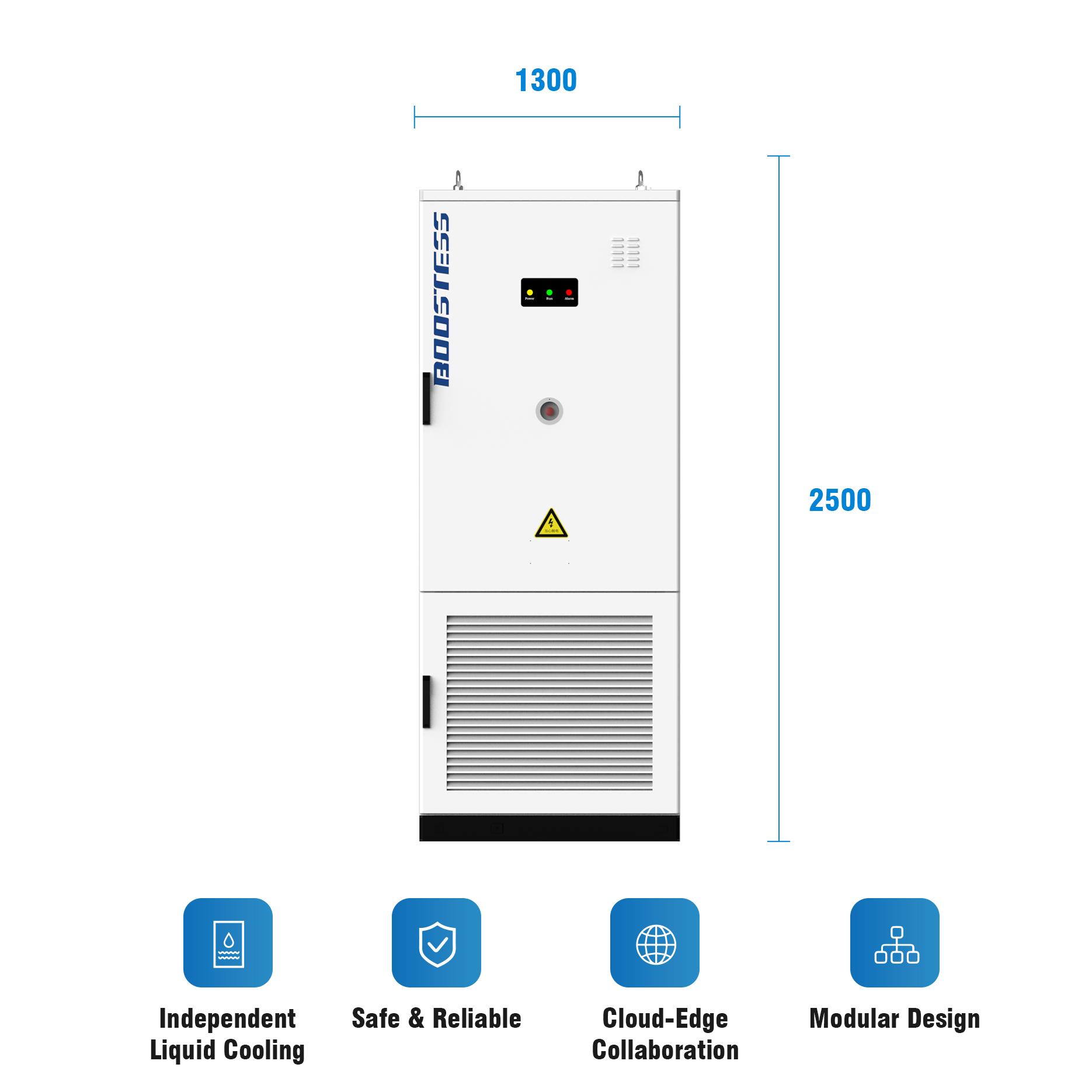

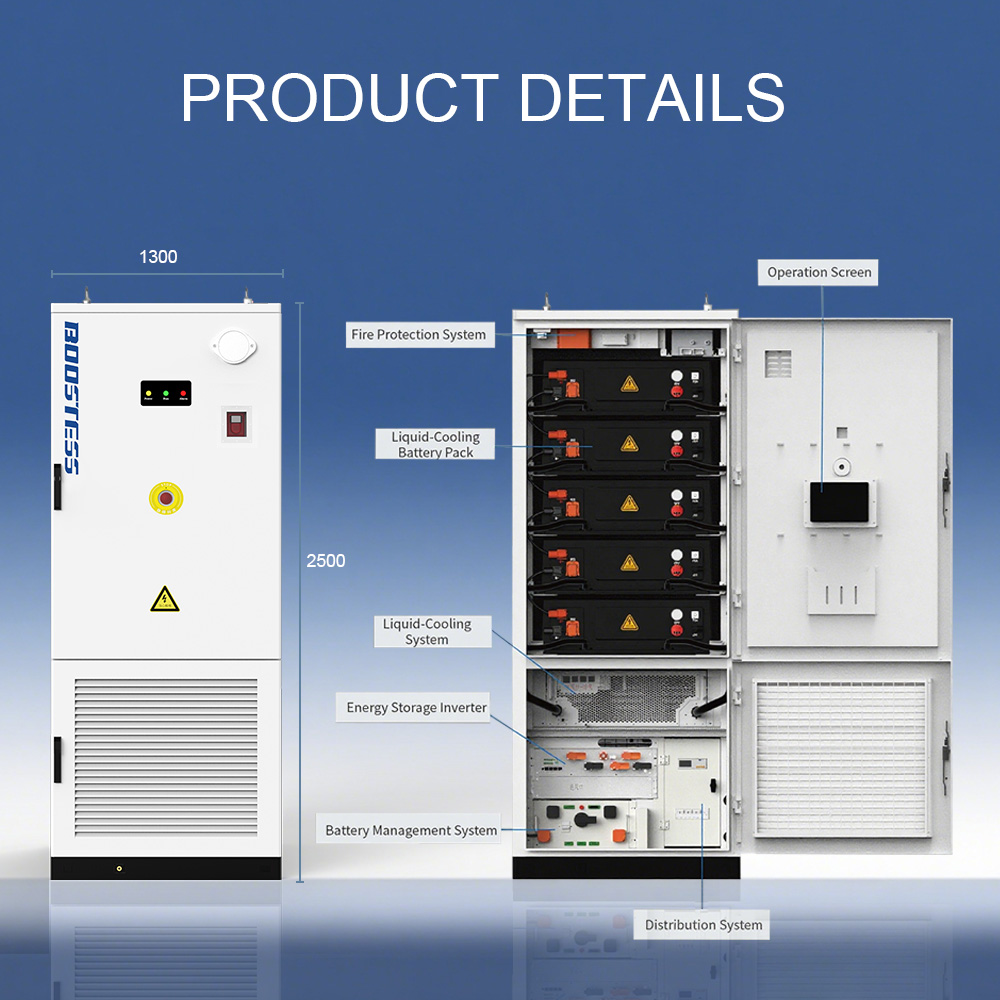

| Dimensions | 1000*1300*2320mm | Weight | ~2.5 tons |
| Water Resistance Rating | Battery compartment: IP67, Electrical compartment: IP54 | Allowed Relative Humidity | 0-95% (non-condensing) |
| Maximum Altitude | ≤ 4000m (de-rating above 2000m) | Communication Interface | Ethernet |
| Communication Protocol | Modbus TCP/RTU | System Operation Mode | Peak shaving, VPP, Solar regulate, Off-grid |
| Certification Standard | IEC62619, EN62477, IEC 63056, IEC 61000, UN38.3, EN 50549-1, EN 50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE-AR-N 4120, UNE 217001, UNE 217002, NTS631-A, NTS631-B, NRS 097, IEC 61727 & 62116, MEA & PEA | ||

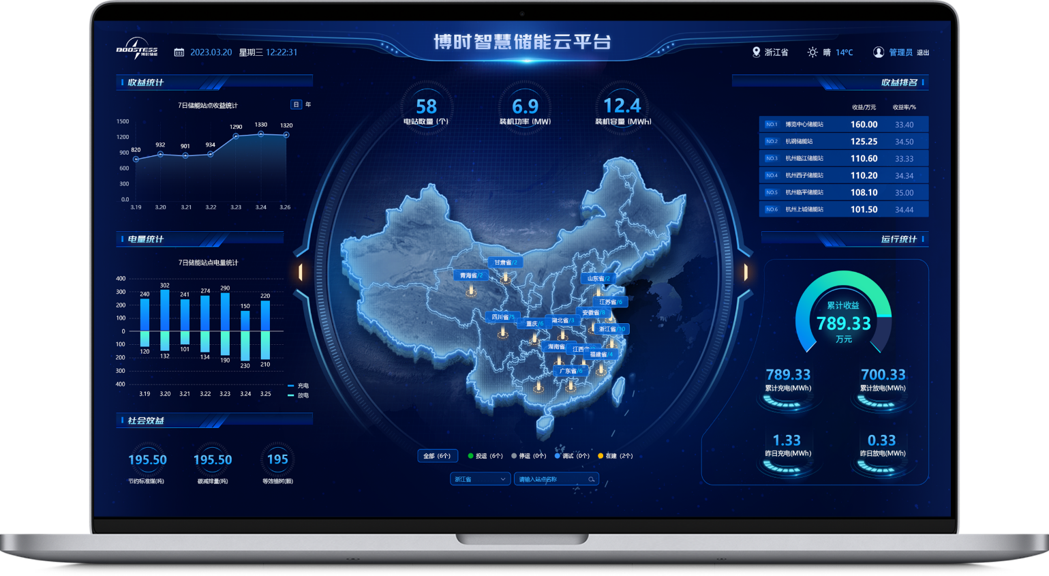

Cloud Remote Operation and Maintenance:
The system monitors local device data and evaluates status to dynamically allocate output power to each energy storage device, coordinate power between multiple devices, optimize operating modes, and ensure the highest system efficiency and maximum benefits.
7X24 hours cloud real-time monitoring, analyze the consistency and safety of the battery pack, predict the algorithm in advance, potential risks, real-time warning, ensure the safety of the battery and equipment, and quickly send and repair orders in case of system failure.
Through the system, check the equipment operation status, peak and valley power, load power and energy storage revenue in real time. Realize the remote control of equipment and online update of the system, optimize the operation strategy of equipment, provide peak load shifting, demand control, emergency control, load tracking and other strategies, and improve the overall economic benefits.
System information is clear at a glance, the operation is convenient and fast, the operation, virtual scene dynamic display, different sites, the location is more clear, equipment monitoring information, site information graphical control.

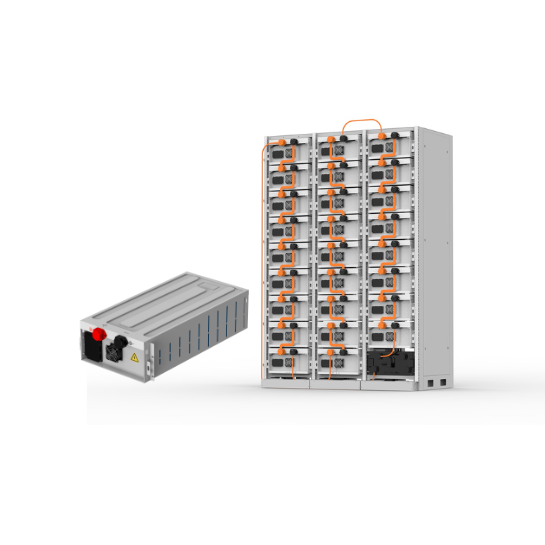

Based on technology accumulation, the system capacity and performance index are greatly improved.

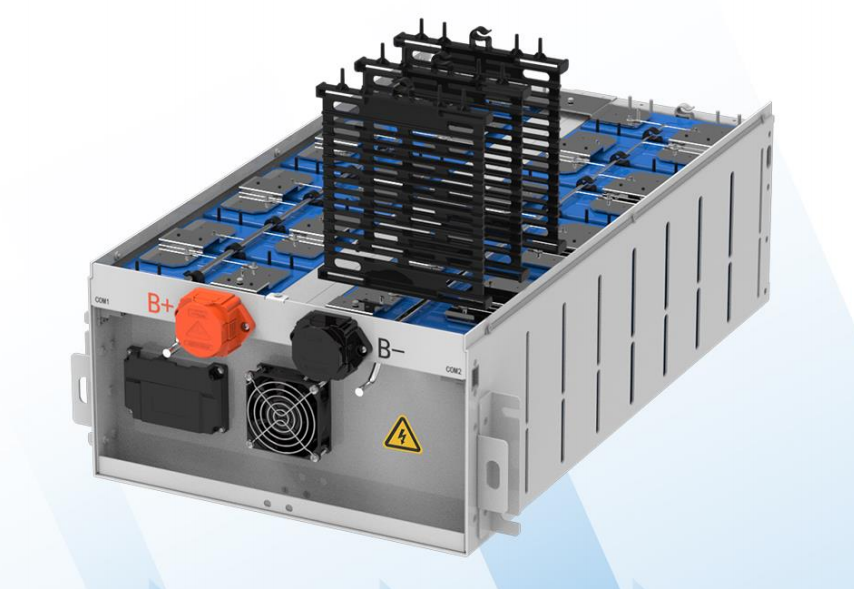

New type of battery management system testing and development.
Customize various system specifications according to actual application scenario requirements.

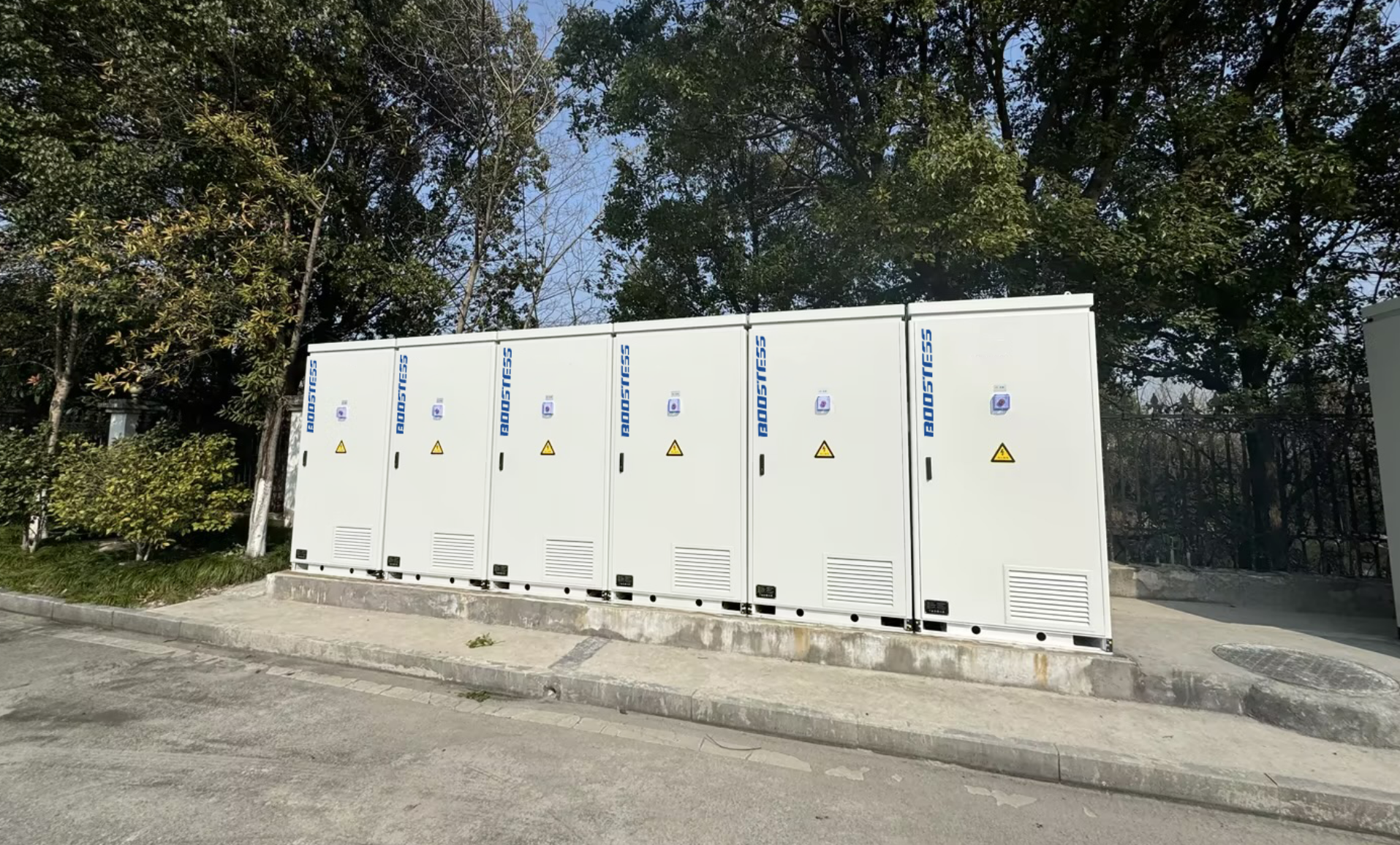

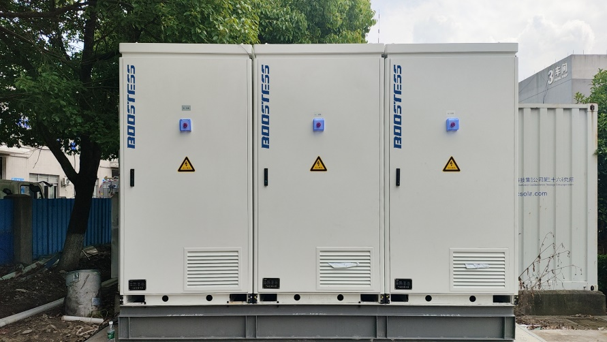

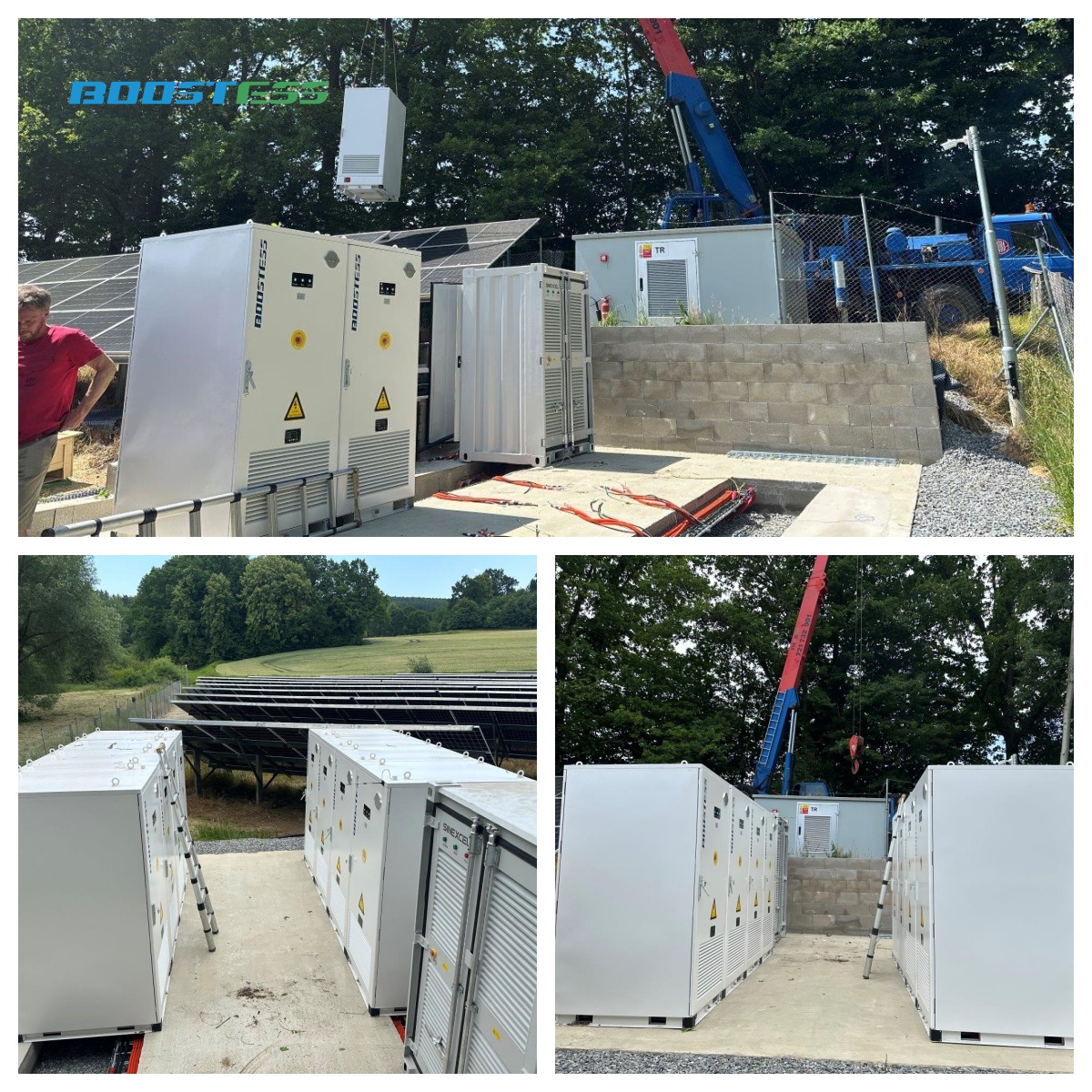

Energy storage capacity: 300kW / 600kWh
Purpose: Peak shaving and valley filling, off-grid backup

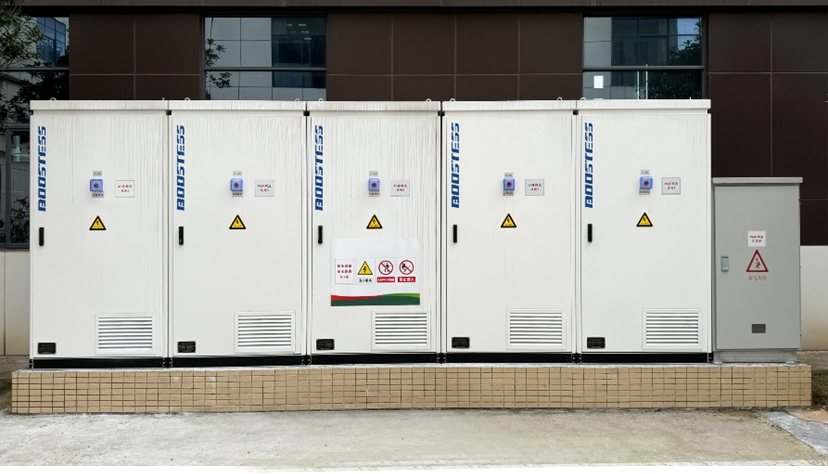

Energy storage capacity: 1.05MW / 2.15MWh
Purpose: Peak shaving and valley filling, off-grid backup
Energy storage: 300kW/600kWh
Purpose: Peak shaving and valley filling, off-grid backup
Energy Storage: 630kW/1.29MWh
Purpose: Peak shaving and valley filling, off-grid backup

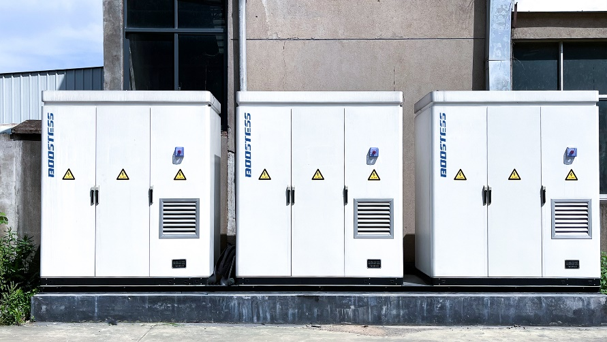

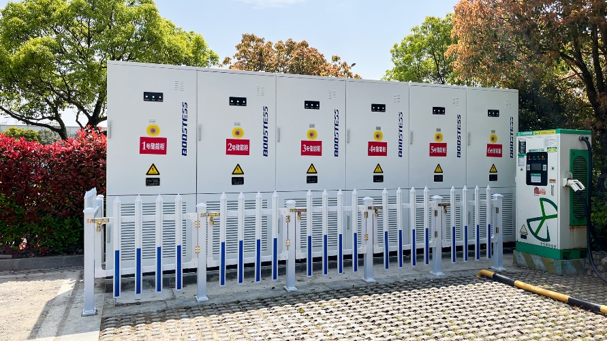

Energy storage: 300kW/600kWh
Purpose: Peak shaving and valley filling, off-grid backup

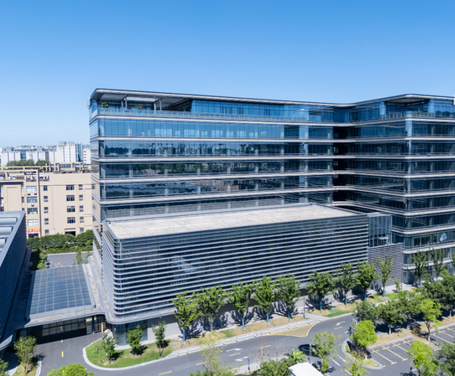

Founded in 2015, the company is a national high-tech enterprise specializing in the design, development, manufacturing and sales of new energy storage products. The company has gathered a group of high-quality R&D, sales and overseas high-level talent team.

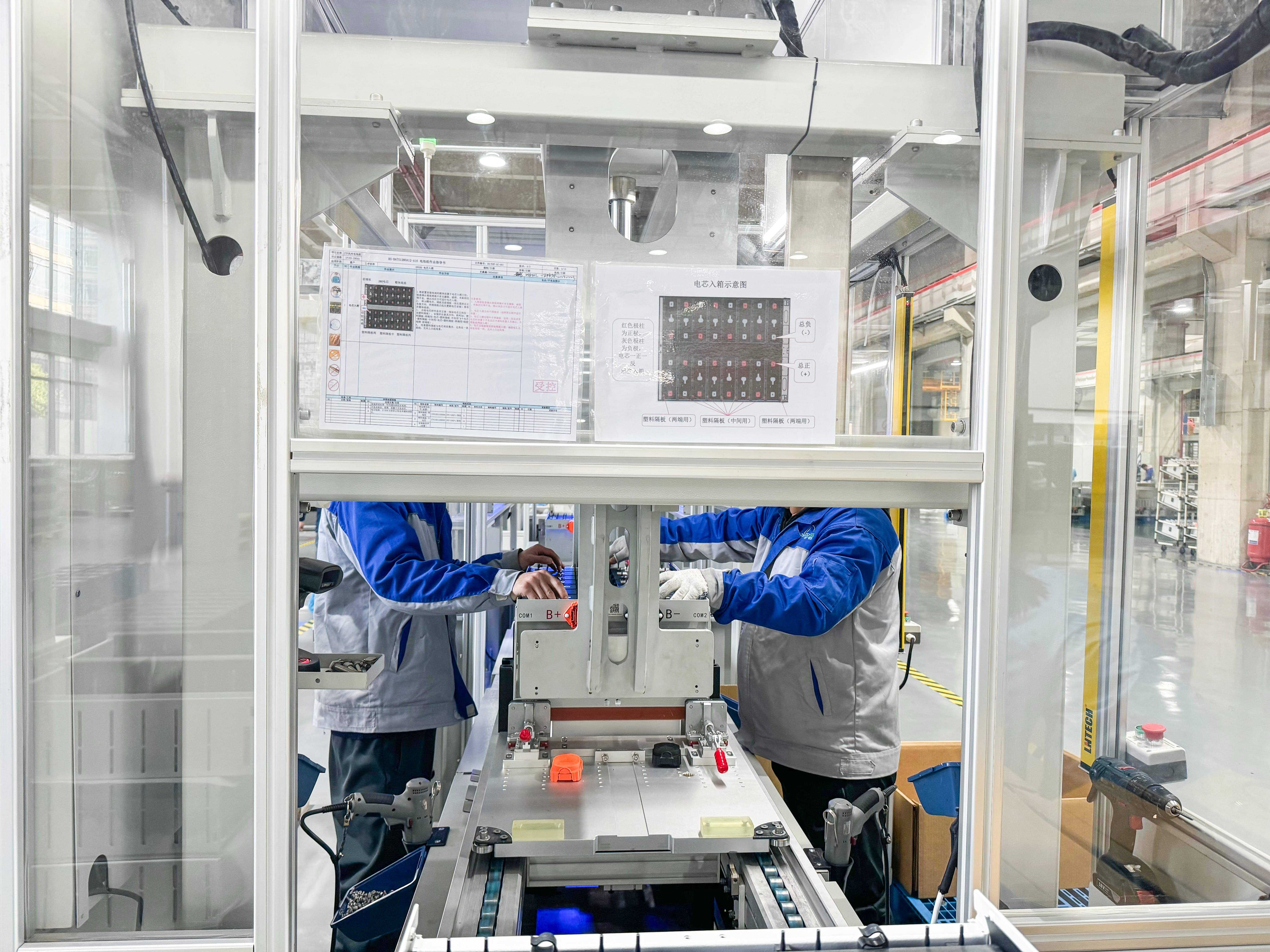

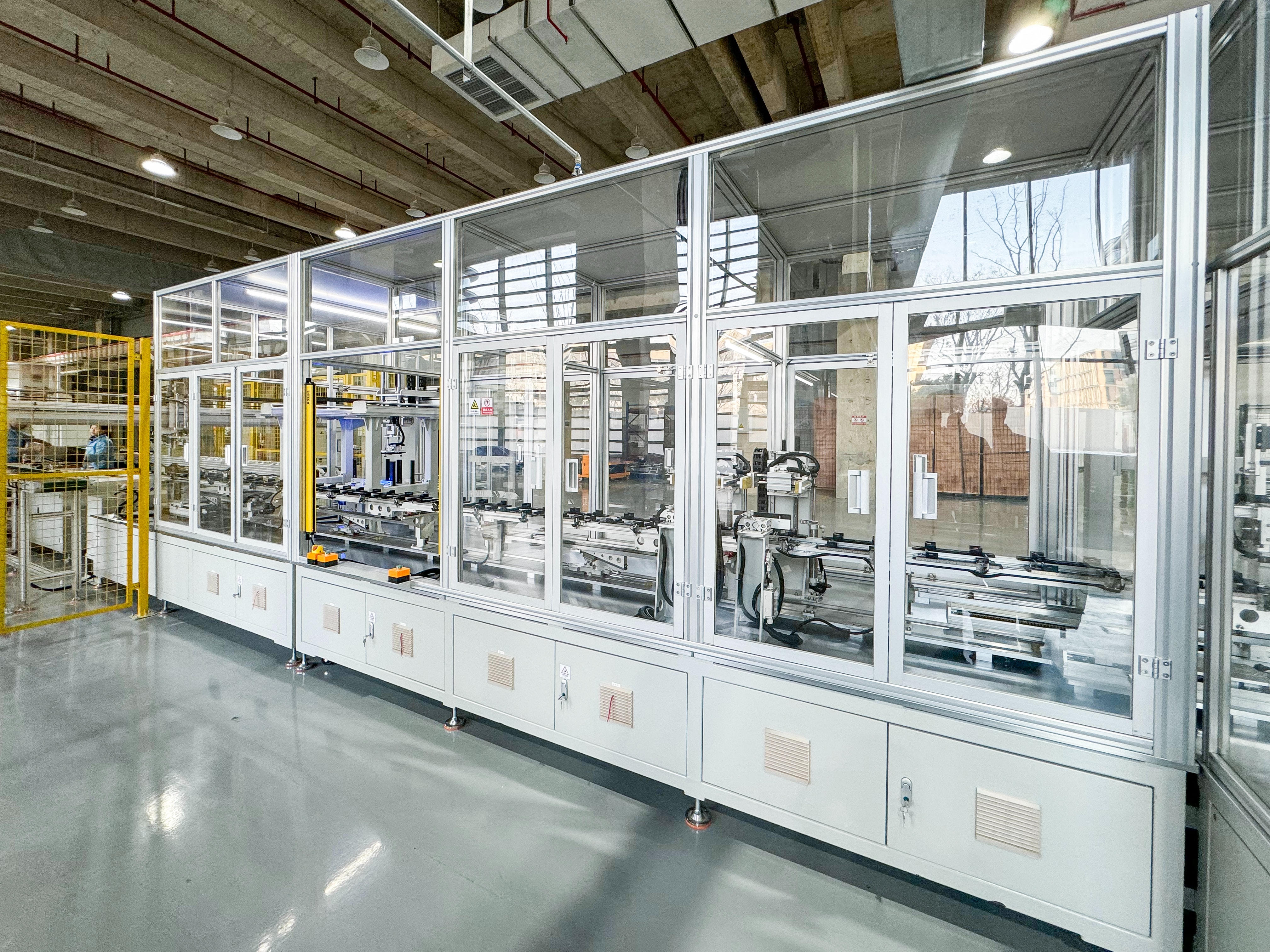

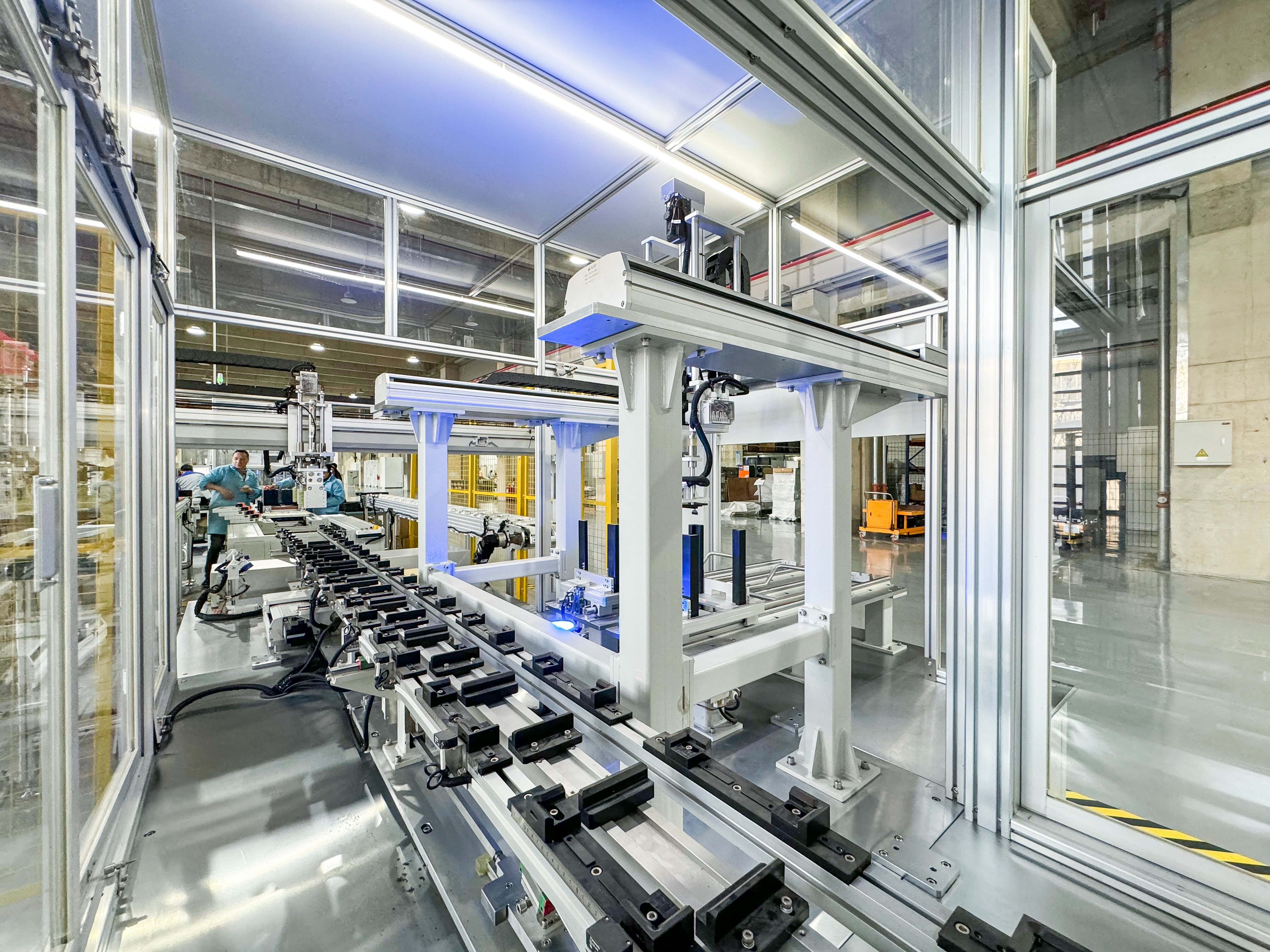

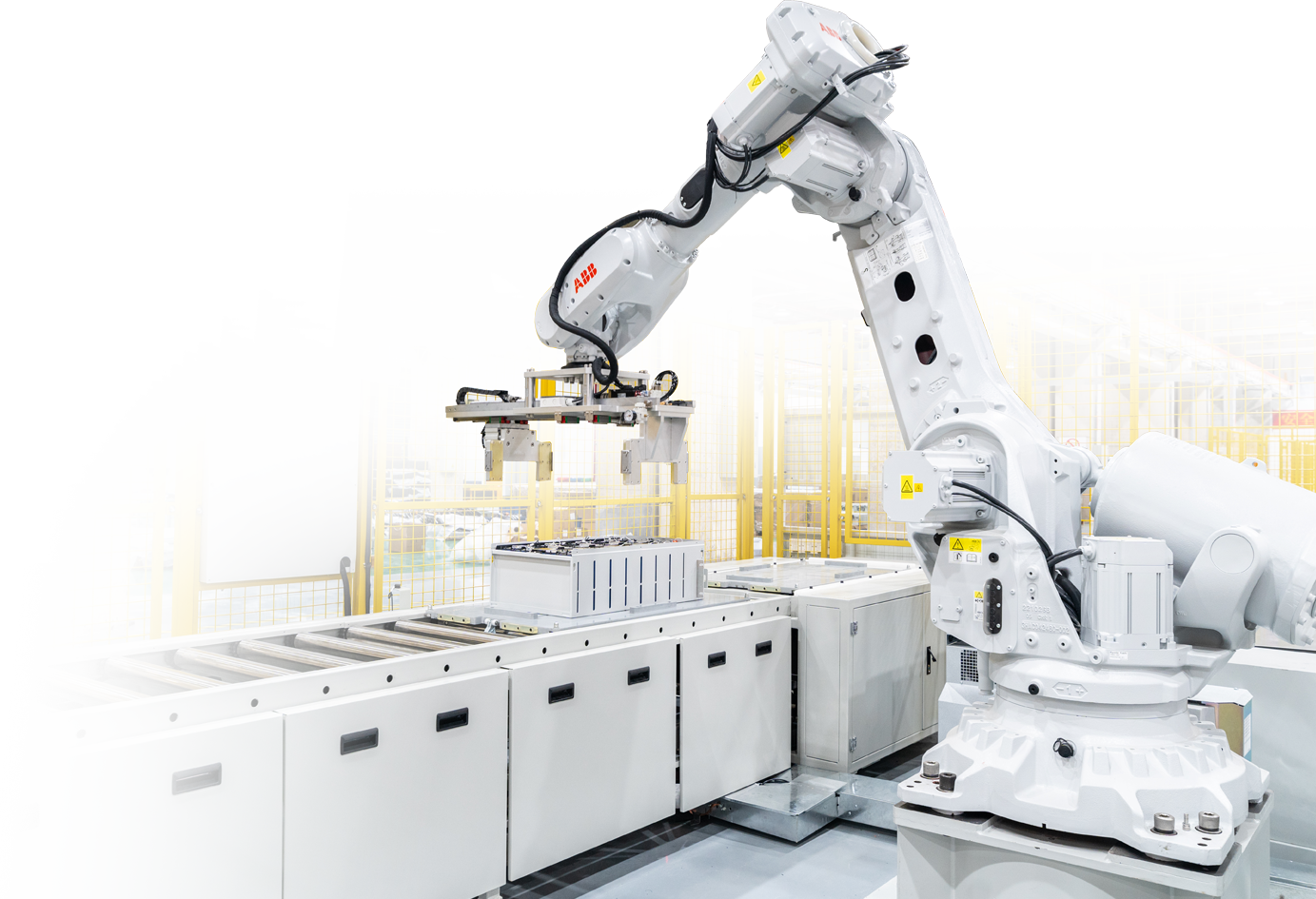

The Intelligent Manufacturing Factory is currently equipped with a complete automated air-cooled PACK production line and a liquid-cooled battery PACK production line to meet the production and OEM needs of all categories, including large-scale energy storage, industrial and commercial integrated cabinets, etc.

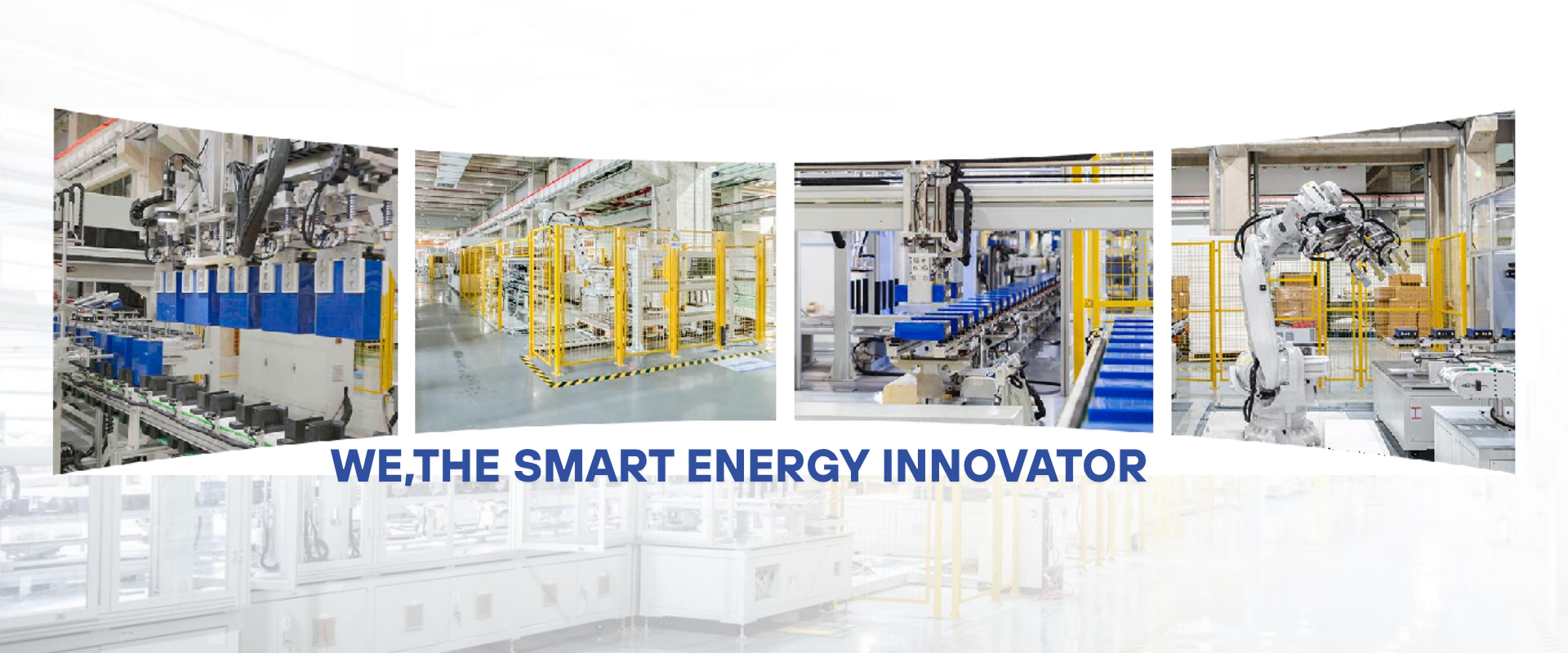

Efficient and stable production capacity output is the premise for project establishment. The facility is equipped with multiple automated battery PACK production lines to meet the needs of GWh-level energy storage projects.
Strict control and inspection on the quality of energy storage products. At the same time, we adopt advanced production technology to ensure product stability and long-term reliability.

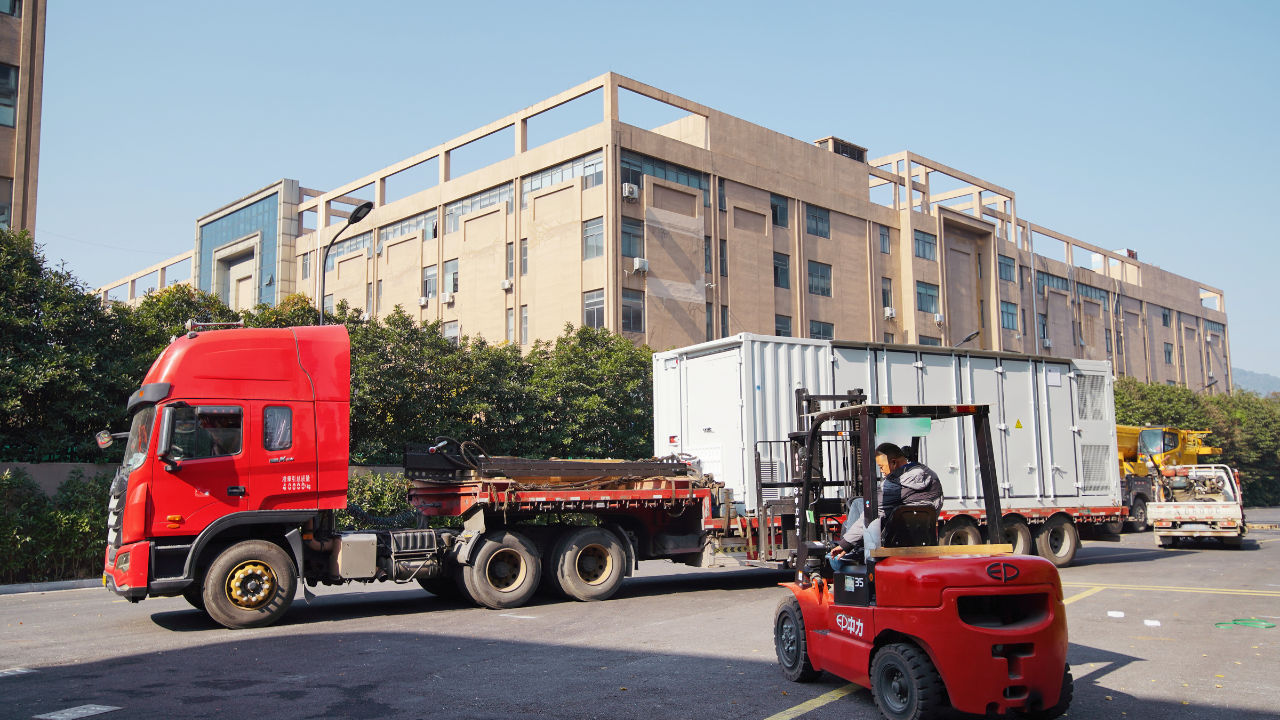

With automated production lines and flexible supply chain management, we can flexibly respond to changes in demand and deliver products efficiently within a reasonable time.
