Lifepo4 Battery 100Kw 230Kwh 241kwh Industrial and Commercial Energy Storage Cabinet High Voltage C&I Solar Solutions
⚡
1. Versatile Application Scenarios
Suitable for grid-tied, hybrid, and microgrid systems. Capable of peak shaving, backup power, and diesel reduction.
🔄
2. Uninterrupted Power Supply
Integrated Static Transfer Switch (STS) ensures seamless power switching in under 10-20ms. Guarantees continuous power for critical loads during grid fluctuations or outages.
🛡️
3. High Safety & Reliability
Utilizes high-stability Lithium Iron Phosphate (LFP) cells with a thermal runaway temperature of 800°C. Dual-level fire protection system (module and cabinet level) with aerosol extinguishing technology.
💻
4. Intelligent Operation & Maintenance
Equipped with a local EMS for real-time strategy management (peak shaving, demand control). Cloud-based monitoring platform allows users to view real-time data and system status remotely.
🌤️
5. Strong Environmental Adaptability
IP55-rated enclosure for reliable outdoor installation, offering dustproof and waterproof protection. Industrial-grade air conditioning / Liquid cooling system enables operation in extreme temperatures (-25°C to 60°C) and high humidity.
🔋
6. Long Lifespan & High Performance
Battery cells with a cycle life ≥ 8000 times and a service life of over 20 years. Supports VSG technology and allows up to 8 units for Grid-tied (6 units off-grid) parallel operation (up to 1290kW/2508kWh).
⚙️
7. Easy Installation & Scalability
Modular, all-in-one design with factory pre-assembly for quick on-site setup. Economical expansion with AC side parallel connection, allowing for capacity scaling as needed.
🍃
8. Economic & Environmental Value
Reduces electricity costs through peak shaving and renewable energy integration. Lowers diesel consumption and reduces noise pollution in generator-dependent sites. Promotes clean energy use and reduces greenhouse gas emissions.
🛡️ Safety in Every Detail
IP68/IP54 protection against dust and water.
Q235A high-strength carbon steel enclosure (500 MPa tensile) for robust durability.
Smart fire suppression and real-time alerts ensure operational safety.
❄️ Reliable in Any Conditions
Operates from -25°C to 60°C with advanced liquid cooling, keeping cell temperature differences within 3°C for steady and efficient power.
🔧 Simple to Install
All-in-one cabinet integrates PCS, solar input, STS, and batteries. Connect to grid and load for instant operation.
📈 Flexible and Scalable
Easily parallel multiple units with automatic grid/off-grid switching. Configure capacity to meet exact operational requirements.
| ES60 Technical Specifications |
| PV Side |
Battery Side |
| Max. Input Power |
38.4kW+38.4kW |
Battery Type |
LiFePO4 |
| Operating Voltage |
200V to 800V |
Rated Capacity |
128KWh |
| Max. Input Voltage |
850V |
Battery Voltage |
358.4V to 460.8V |
| No. of MPP Trackers/Strings |
2/2 |
Configuration |
1P*64S*2S |
| Max. Input Current |
64 A per string(*2) |
Max. Charge/Discharge Current |
150A (subject to BMS strategy) |
| - |
- |
Battery Certifications |
UN 38.3, IEC 62619, EMC |
| AC Side (On-Grid) |
AC Side (Off-Grid) |
| Rated AC Power |
60KW |
Rated Output Power |
60kW |
| Rated AC Current |
87A |
Rated Output Current |
87A |
| Max. Output Power |
66kW |
Max. Output Power |
66KW |
| Max. Output Current |
95.7A |
Max. Output Current |
95.7A |
| Grid Voltage |
400V, 3W+N+PE / 3W+PE |
Output Voltage |
400V, 3W+N+PE / 3W+PE |
| Grid Frequency |
50/60Hz |
Output Frequency |
50/60Hz |
| Power Factor |
-1 leading to +1 lagging |
THDu (Linear Load) |
<3% |
| THDi |
<3% (at load >30%) |
Overload Capability |
1.1 times rated power (continuous)
1.25 times rated power for 100s |
| - |
- |
On-Grid/Off-Grid Switchover |
<20ms |

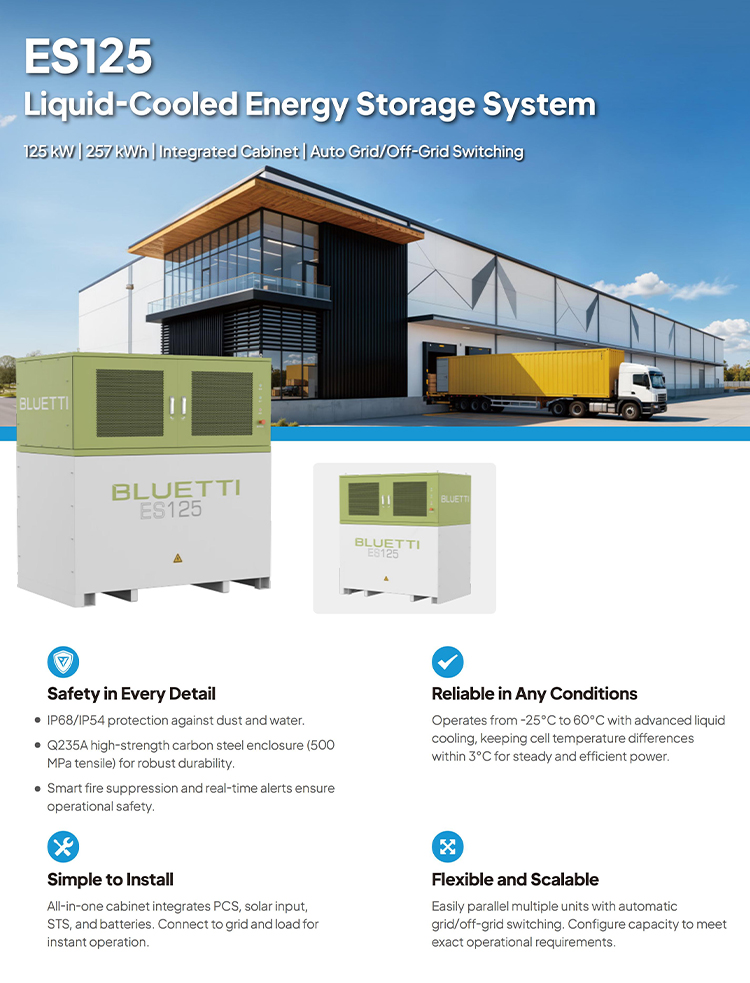

🛡️ Safety in Every Detail
IP68/IP54 protection against dust and water.
Q235A high-strength carbon steel enclosure (500 MPa tensile) for robust durability.
Smart fire suppression and real-time alerts ensure operational safety.
❄️ Reliable in Any Conditions
Operates from -25°C to 60°C with advanced liquid cooling, keeping cell temperature differences within 3°C for steady and efficient power.
🔧 Simple to Install
All-in-one cabinet integrates PCS, solar input, STS, and batteries. Connect to grid and load for instant operation.
📈 Flexible and Scalable
Easily parallel multiple units with automatic grid/off-grid switching. Configure capacity to meet exact operational requirements.
| ES125 Technical Specifications |
| PV Side |
Battery Side |
| Rated Input Power |
126kW |
Battery Type |
LiFePO4 |
| Max. Input Power |
140kW |
Rated Capacity |
257kWh |
| Operating Voltage |
394V to 686.8V |
Battery Voltage |
716.8V to 921.6V |
| Max. Input Voltage |
900V |
Configuration |
1P*64S*4S |
| No. of MPP Trackers/Strings |
2/2 |
Max. Charge/Discharge Current |
157 A (subject to BMS strategy) |
| Max. Input Current |
160 A per string(*2) |
Battery Certifications |
UN 38.3, IEC 62619, EMC |
| AC Side (On-Grid) |
AC Side (Off-Grid) |
| Rated AC Power |
125kW |
Rated Output Power |
125kW |
| Rated AC Current |
180A |
Rated Output Current |
180 A |
| Max. Output Power |
137.5kW |
Max. Output Power |
137.5kW |
| Max. Output Current |
200A |
Max. Output Current |
200A |
| Grid Voltage |
400V, 3W+N+PE / 3W+PE |
Output Voltage |
400V, 3W+N+PE / 3W+PE |
| Grid Frequency |
50/60Hz |
Output Frequency |
50/60Hz |
| Power Factor |
-1 leading to +1 lagging |
THDu (Linear Load) |
<3% |
| THDi |
<2% (at rated power) |
Overload Capability |
1.1 times rated power (continuous) |
| - |
- |
On-Grid/Off-Grid Switchover |
<20ms |

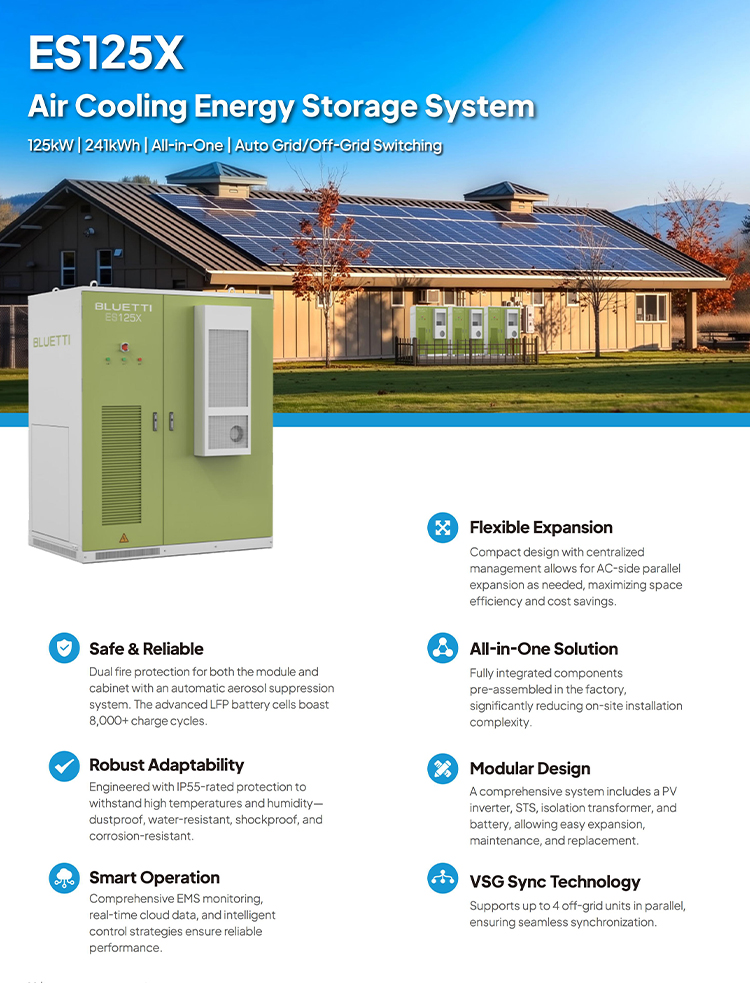

🛡️ Safe & Reliable
Dual fire protection for both the module and cabinet with an automatic aerosol suppression system. The advanced LFP battery cells boast 8,000+ charge cycles.
📦 All-in-One Solution
Fully integrated components pre-assembled in the factory, significantly reducing on-site installation complexity.
⚙️ Robust Adaptability
Engineered with IP55-rated protection to withstand high temperatures and humidity—dustproof, water-resistant, shockproof, and corrosion-resistant.
🧩 Modular Design
A comprehensive system includes a PV inverter, STS, isolation transformer, and battery, allowing easy expansion, maintenance, and replacement.
💡 Smart Operation
Comprehensive EMS monitoring, real-time cloud data, and intelligent control strategies ensure reliable performance.
🔄 VSG Sync Technology
Supports up to 4 off-grid units in parallel, ensuring seamless synchronization.
| ES125X Technical Specifications |
| PV Side |
Battery Side |
| Max. Input Power |
120 kW |
Battery Type |
LiFePO4 |
| Operating Voltage |
200V to 650V |
Rated Capacity |
241kWh |
| MPPT Voltage (@ Full Load) |
375V to 550V |
Rated Voltage |
768V |
| No. of MPP Trackers/Strings |
4/4 |
Cell Capacity |
314Ah |
| Max. Input Current |
80A per string(*4) |
Configuration |
1P*16S*15S |
| AC Side (On-Grid) |
General |
| Rated AC Output Power |
125kW |
Protection Rating |
IP55 |
| Rated AC Output Current |
180A |
Operating Temperature |
-30°C to 60°C (derating above 45°C) |
| Output Voltage |
400V, 3W+N+PE / 3W+PE |
Operating Altitude |
≤3,000m (derating above 3,000m) |
| THDi (@ rated power) |
<3% |
Communication Interfaces |
RS485 / CAN2.0 / Ethernet / Dry Contacts |
| Power Factor |
-1 lagging to +1 leading |
Dimensions |
1,800*1,200*2,300mm |
| AC Side (Off-Grid) |
General (Cont.) |
| Switchover Time |
≤10ms |
Fire Suppression |
Aerosol |
| Isolation Transformer |
Included |
Cooling |
Air cooling |
| Max. Parallel Units |
4 |
Weight |
Approx. 3,250 kg |
| - |
- |
Warranty |
5 years |

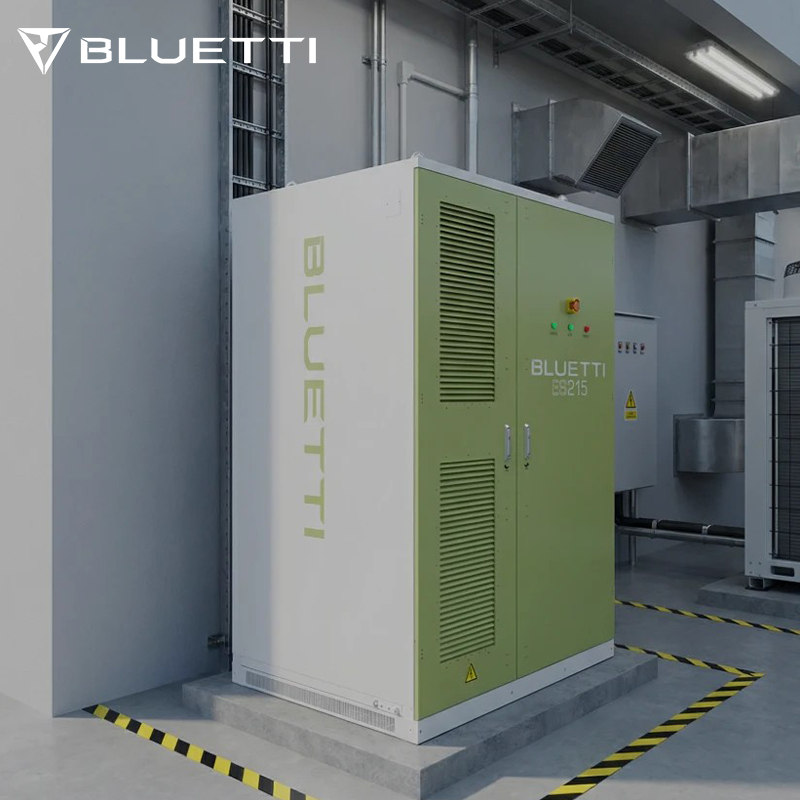

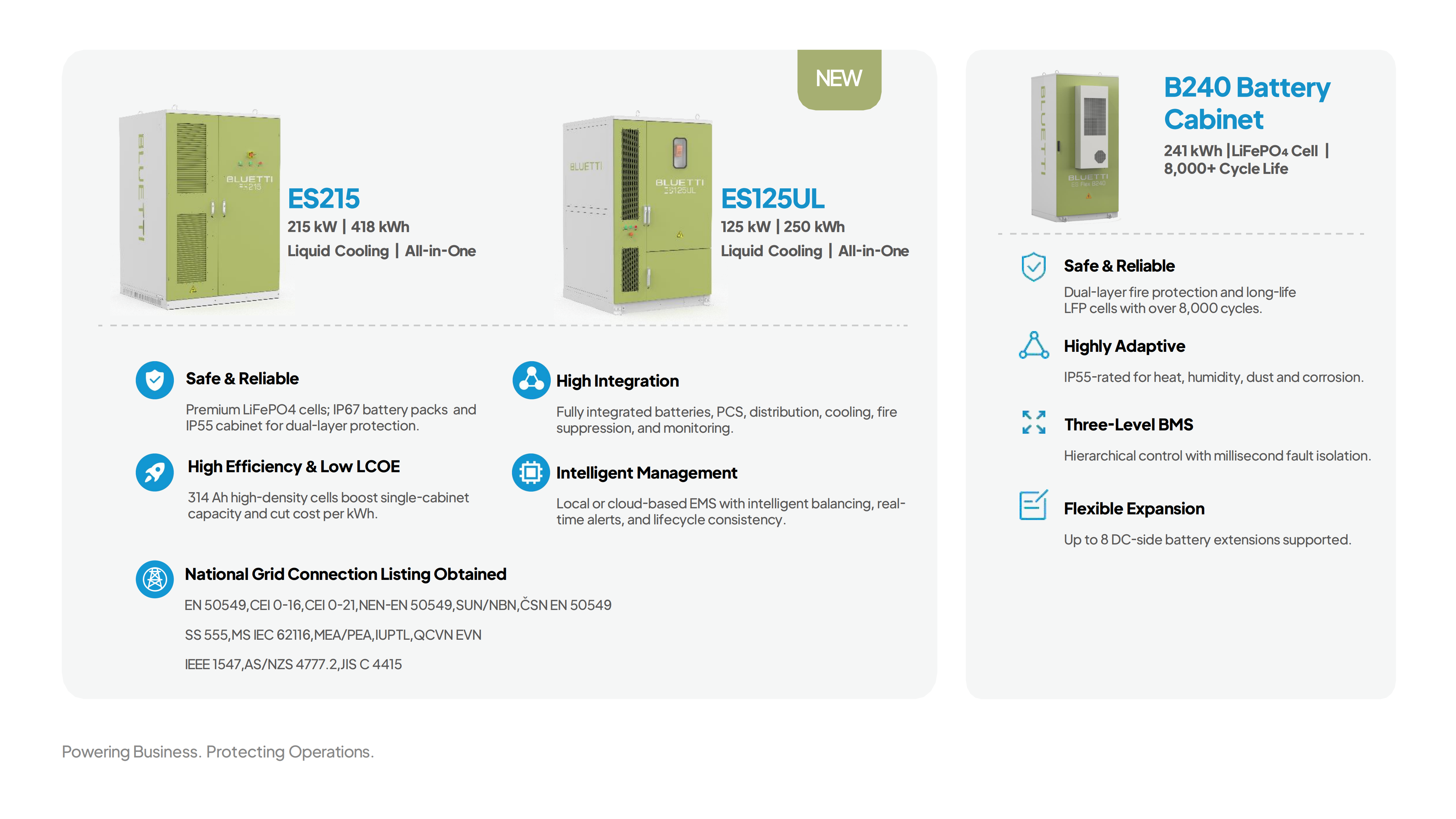

ES215
215 kW | 418 kWh
Liquid Cooling | All-in-One
🌍 National Grid Connection Listing Obtained
EN 50549, CEI 0-16, CEI 0-21, NEN-EN 50549, SUN/NBN, ČSN EN 50549
SS 555, MS IEC 62116, MEA/PEA, IUPTL, QCVN EVN
IEEE 1547, AS/NZS 4777.2, JIS C 4415
🛡️ Safe & Reliable
Premium LiFePO4 cells; IP67 battery packs and IP55 cabinet for dual-layer protection.
📈 High Efficiency & Low LCOE
314 Ah high-density cells boost single-cabinet capacity and cut cost per kWh.
| ES215 Technical Specifications |
| Model |
ES215-H8 |
ES215-H6 |
| Battery Rated Capacity |
418kWh |
| Battery Nominal Voltage |
1,331.2V |
| Battery Voltage Range |
1,164.8V to 1,497.6V |
| Battery Chemistry |
LiFePO4 |
| Cell Capacity |
314Ah |
| Battery Pack Configuration |
IP*52S*8S |
| Max. Charge/Discharge Current |
157A |
| Rated AC Power |
215kW |
| Rated AC Current |
155.2A |
| Rated AC Voltage |
800 Vac, 3W+PE |
690 Vac, 3W+PE |
| Rated AC Frequency |
50/60Hz |
| THDi |
<3% (at rated power) |
| Power Factor |
-1 (lagging) to +1 (leading) |
| THDu (Linear Load) |
<3% (linear load) |
| Protection Rating |
IP55 |
| Isolation Type |
None |
| Self-Consumption |
<0.1% of rated power (excluding transformer) |
| Display |
Touch LCD |
| Relative Humidity |
0 to 95% (non-condensing) |
| Operating Temperature |
-25°C to 60°C (derating above 45°C) |
| Cooling Method |
Liquid cooling |
| Operating Altitude |
≤4,000m (derating above 2,000m) |
| BMS Communication |
CAN |
| EMS Communication |
Ethernet/RS485 |
| Dimensions (W*D*H) |
1,600*1,350*2,300mm |
| Weight |
Approx. 3,900kg |
| Note: Specifications are subject to change without notice. |

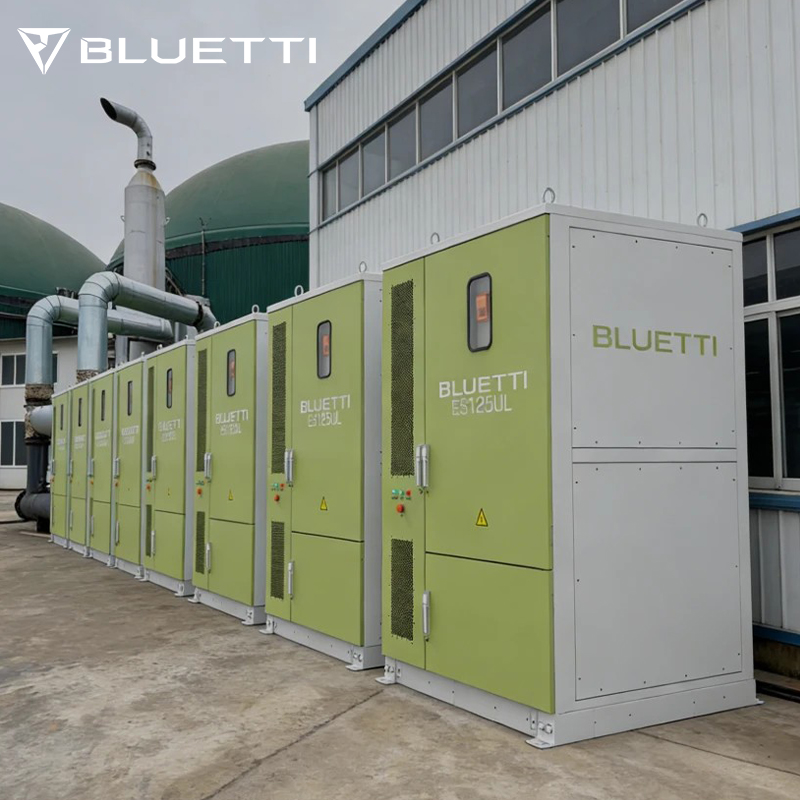

ES125UL
125 kW | 250 kWh
Liquid Cooling | All-in-One
🧩 High Integration
Fully integrated batteries, PCS, distribution, cooling, fire suppression, and monitoring.
💡 Intelligent Management
Local or cloud-based EMS with intelligent balancing, real time alerts, and lifecycle consistency.
| ES125UL Technical Specifications |
| Battery Side |
General |
| Configuration |
1P*260S |
Operating Temperature |
-30°C to 55°C (derating below -15°C or above 45°C) |
| Nominal Capacity |
250 kWh |
Operating Humidity |
0 to 95% |
| Nominal Voltage |
832 V |
Storage Temperature |
-30°C to 55°C |
| Voltage Range |
728V to 936V |
Operating Altitude |
≤4,000m (derating above 2,000m) |
| Life Cycle |
≥8,000 cycles |
Noise |
≤75dB |
| AC Output |
General (Cont.) |
| Rated Power |
125kW |
Dimensions (W*D*H) |
1,350*1,400*2,250(2,340)mm (53.15*55.12*88.58(92.13)in) |
| Rated AC Voltage |
480V |
Weight |
Approx. 3,500kg |
| Rated Current |
150A |
Protection Rating |
IP65 (PCS cabinet) / IP67 (battery pack) |
| Output Voltage Range |
-10% to +5% |
Protocol |
CAN / Modbus TCP/RTU |
| Rated Frequency |
60Hz |
Fire Suppression System |
Aerosol |
| Allowable Frequency Deviation |
±3Hz |
Cooling Method |
Liquid-Cooling |
| AC Output (Cont.) |
Warranty |
| Charge/Discharge Conversion |
<20ms |
Standard Warranty |
5 years (included) |
| THDi |
<3% (at rated power) |
Extended Warranty |
5 or 10 years |
| DC Component |
<0.5% |
Note: Specifications are subject to change without notice. |
🛡️ Safe & Reliable
Dual-layer fire protection and long-life LFP cells with over 8,000 cycles.
⚙️ Highly Adaptive
IP55-rated for heat, humidity, dust and corrosion.
💡 Three-Level BMS
Hierarchical control with millisecond fault isolation.
📈 Flexible Expansion
Up to 8 DC-side battery extensions supported.

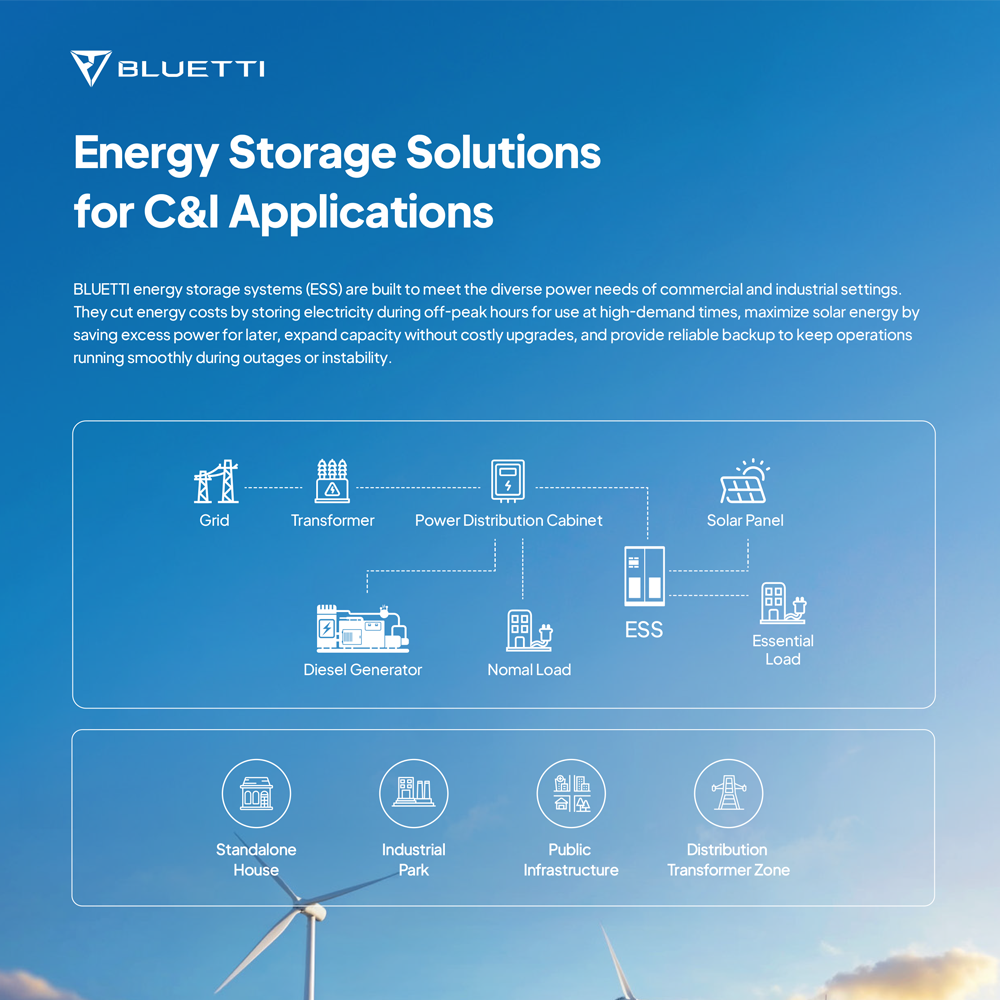

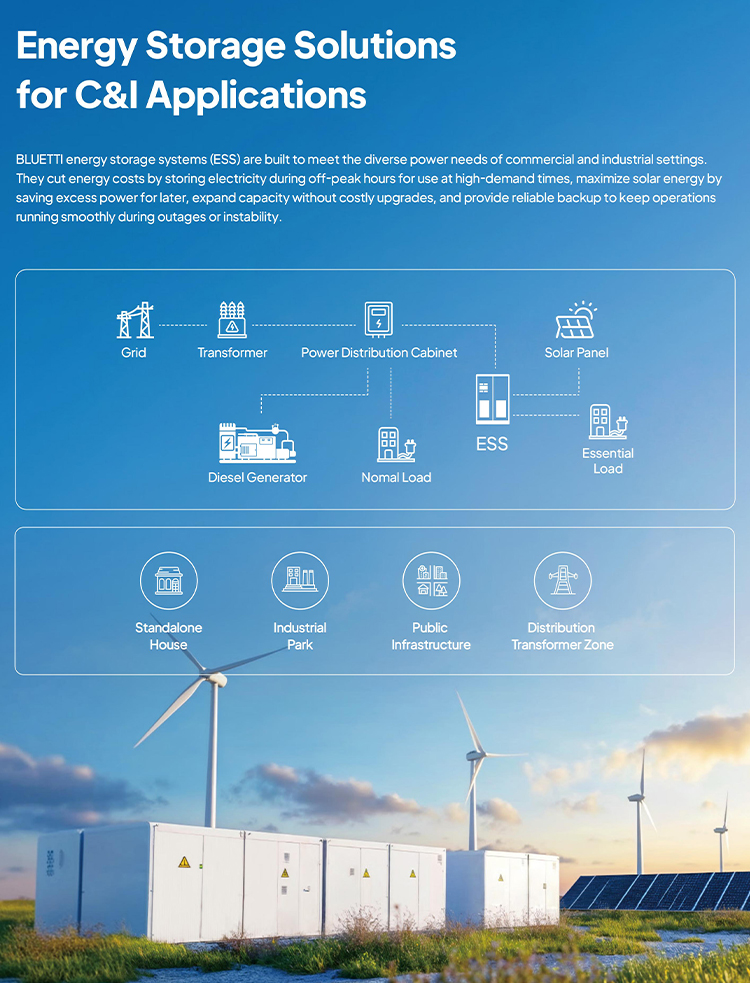

Energy Storage Solutions for C&I Applications
Our energy storage systems (ESS) are built to meet the diverse power needs of commercial and industrial settings. They cut energy costs by storing electricity during off-peak hours for use at high-demand times, maximize solar energy by saving excess power for later, expand capacity without costly upgrades, and provide reliable backup to keep operations running smoothly during outages or instability.
Key Benefits and Scenarios
Versatile Application Scenarios
Suitable for grid-tied, hybrid, and microgrid systems. Capable of peak shaving, backup power, and diesel reduction.
Uninterrupted Power Supply
Integrated Static Transfer Switch (STS) ensures seamless power switching in under 10-20ms. Guarantees continuous power for critical loads during grid fluctuations or outages.
High Safety & Reliability
Utilizes high-stability Lithium Iron Phosphate (LFP) cells with a thermal runaway temperature of 800°C. Dual-level fire protection system (module and cabinet level) with aerosol extinguishing technology.
Intelligent Operation & Maintenance
Equipped with a local EMS for real-time strategy management (peak shaving, demand control). Cloud-based monitoring platform allows users to view real-time data and system status remotely.
Strong Environmental Adaptability
IP55-rated enclosure for reliable outdoor installation, offering dustproof and waterproof protection. Industrial-grade air conditioning /Liquid cooling system enables operation in extreme temperatures (-25°C to 60°C) and high humidity.
Long Lifespan & High Performance
Battery cells with a cycle life ≥ 8000 times and a service life of over 20 years. Supports VSG technology and allows up to 8 units for Grid-tied (6 units off-grid) parallel operation (up to 1290kW/2508kWh).
Easy Installation & Scalability
Modular, all-in-one design with factory pre-assembly for quick on-site setup. Economical expansion with AC side parallel connection, allowing for capacity scaling as needed.
Significant Economic and Environmental Value
Reduces electricity costs through peak shaving and renewable energy integration. Lowers diesel consumption and reduces noise pollution in generator-dependent sites. Promotes clean energy use and reduces greenhouse gas emissions.
Smart Energy Storage for Home & Business
We are a global innovator in energy storage, dedicated to delivering intelligent, reliable, and sustainable power solutions for homes and businesses. With over 15 years of expertise, we hold 1,024 filed patents and operate advanced manufacturing facilities, ensuring premium quality and scalability.
Our core technology integrates a smart four-layer ecosystem—BLUE PEAK™ Innovation Hub, BLUE LINK™ Energy Network, our proprietary BMS, and Smart EMS—enabling 24/7 energy monitoring, AI-powered safety management, and seamless device connectivity for a truly intelligent energy experience.
For residential needs, we offer versatile solutions like the EnergyPro series (6K, 13K, 5K/EP760) and EP2000 three-phase system. These modular systems support solar integration, provide whole-home backup, and significantly reduce electricity bills, with capacities scaling from 5.12 kWh to over 57.6 kWh.
For commercial and industrial applications, our robust C&I ESS products (ES125, ES60, ES125X) feature high capacity (up to 257 kWh), IP55/IP67 protection, liquid cooling, and flexible parallel expansion. They ensure reliable operation in harsh conditions, supporting zero-carbon communities, industrial parks, and more.
Backed by global service networks, co-marketing support, and professional training, we empower partners and users worldwide to achieve energy independence, resilience, and sustainability.
Frequently Asked Questions
What application scenarios are these C&I energy storage cabinets suitable for?
These cabinets are designed for grid-tied, hybrid, and microgrid systems. They are highly effective for peak shaving, demand control, backup power supply, and reducing diesel generator dependency.
How does the system guarantee uninterrupted power supply during grid outages?
The integrated Static Transfer Switch (STS) automatically detects grid fluctuations or failures, triggering a seamless power transition to battery storage within 10 to 20 milliseconds to secure critical loads.
What measures are implemented to ensure battery safety?
The systems use premium Lithium Iron Phosphate (LFP) cells that resist thermal runaway up to 800°C. Additionally, they incorporate a dual-level fire protection system (covering both the module and the cabinet level) with advanced aerosol suppression technology.
Can the energy storage cabinet withstand harsh outdoor environmental conditions?
Yes. The enclosures carry IP55/IP65 protection ratings, rendering them dustproof, waterproof, shockproof, and corrosion-resistant. They also feature industrial-grade air conditioning or liquid cooling to ensure reliable operation in temperatures from -25°C to 60°C.
How scalable are these commercial and industrial energy storage systems?
The systems feature a modular design that supports AC-side parallel connection for quick expansion. They allow parallel configurations for up to 8 units in grid-tied setups and up to 6 units in off-grid setups, reaching capacities up to 1290kW/2508kWh depending on the model.
What is the expected lifespan and cycle life of the battery cells?
The battery cells boast a cycle life of 8,000 times or more and are engineered for a service lifespan exceeding 20 years under standard operating conditions.
Zeno Electric
