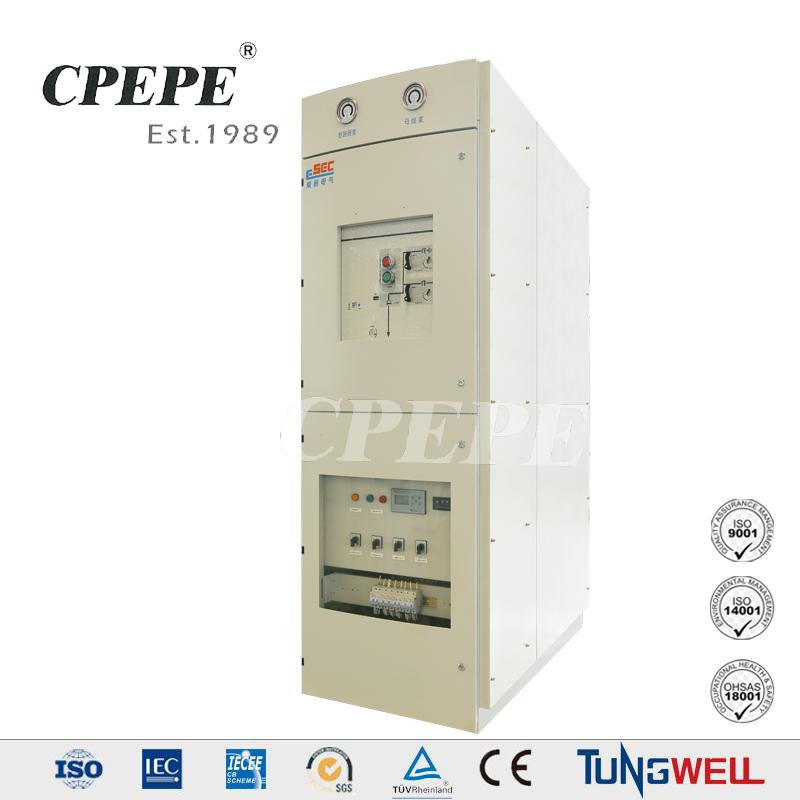

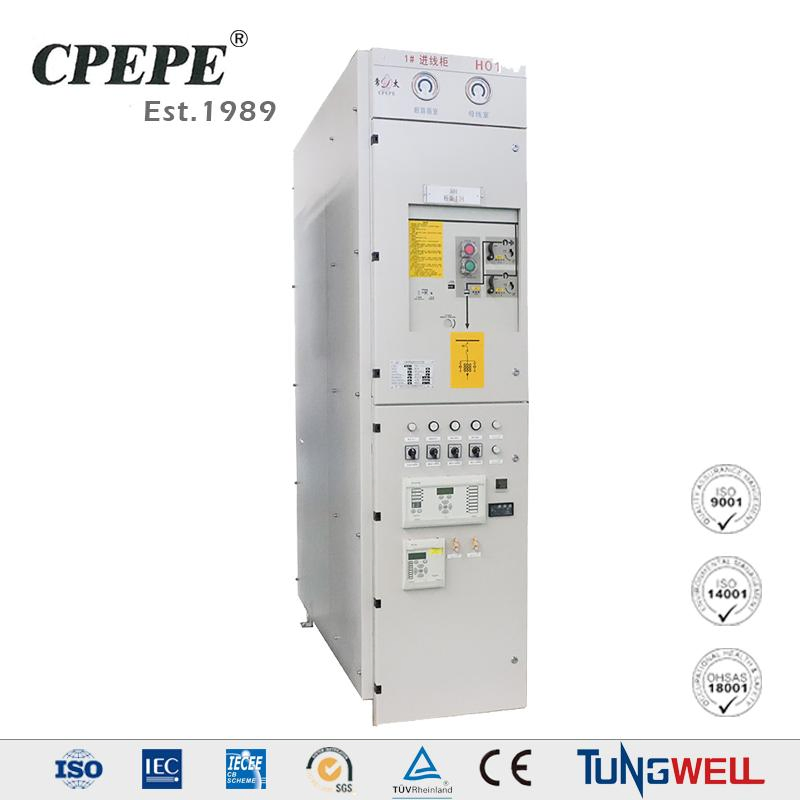

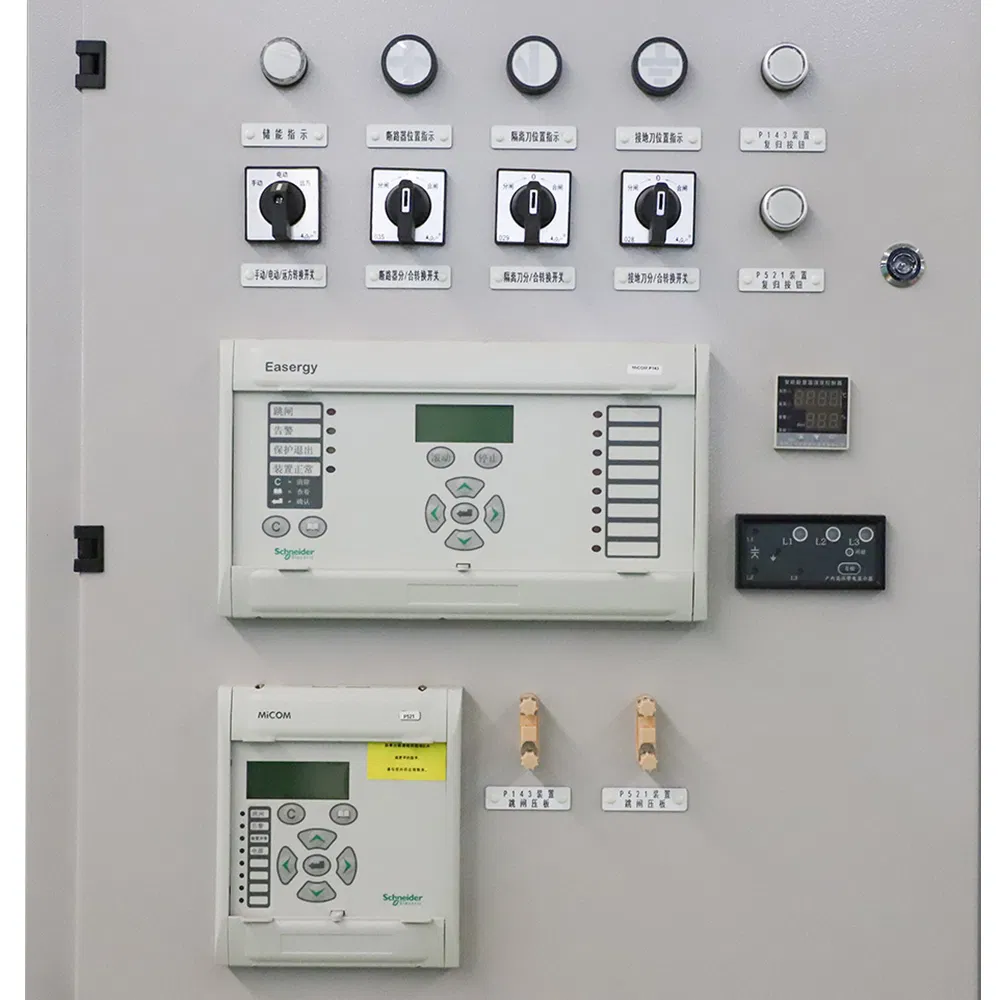

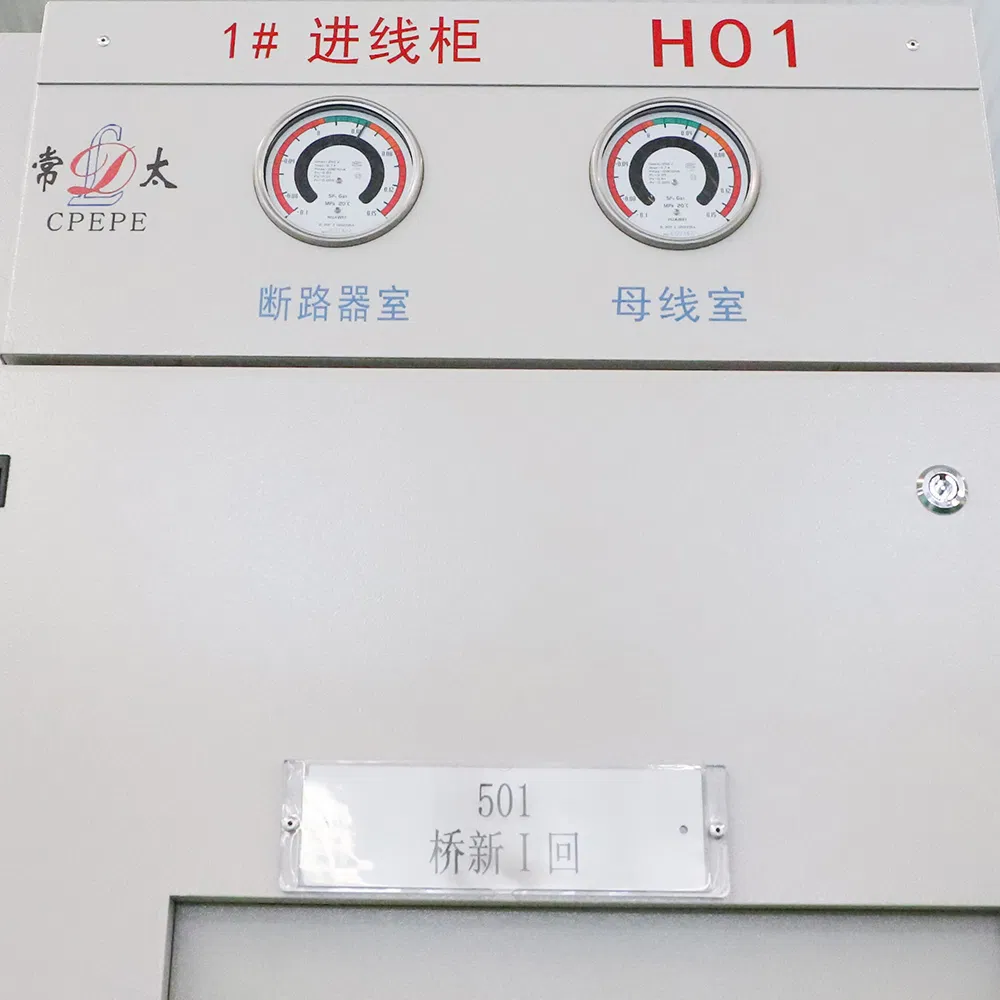

Model Xgn80-40.5kv Medium Voltage Switchgear, Electrical Power Gas Insulated Switchboard

1 / 5

Model Xgn80-40.5kv Medium Voltage Switchgear, Electrical Power Gas Insulated Switchboard

Customization:	Available
Type:	High-voltage
Structure:	Single-column Disconnector

Send Inquiry

Product Description

Basic Info

Model NO.XGN80-40.5

InstallationIndoor High-voltage

OperationElectric

Grounding ModeGrounding

Movement ModeVertical Rotary Type

Number of PolesThree Pole

GroundingSingle Ground

SeriesFour

RunVertical Rotation

Switching ModeSingle Throw-in

Common ModelVR

Structure of OperatingElectric

CertificationISO, GS, RoHS, CE, IS9001, ISO9001, ISO9002

TermsFob, CIF

PriceNegotiable

PackageStandard Export Package

MOQ1

DeliveryExpediting

Transport PackageStandard Export Package

Specification600*1400*2400mm

OriginChina

Production Capacity5000PCS/Year

Packaging & Delivery

Package Size160.00cm * 140.00cm * 240.00cm

Package Gross Weight1150.000kg

Product Description

Important Features

⚡ Safe

Vacuum interrupt technology & low pressure gas insulation technology
Metal-enclosed to protect against accidental contact
Unaffected by the climate and environment condition
Safe operation

🛡️ Reliable

Compact and synoptically design
Standard components application
Advanced manufacture equipment and process
Strict quality control procedure
Leakage rate <0.5%/y, 95KV/5Min under zero relative pressure

💰 Economical

Small space and volume requirement
Short installation time needed
Long service period
Virtually maintenance free

🔧 Extension

Easy to extent from both side

👍 Convenient

Easy installation
Light weight
Good accessibility to all function units
Friendly operation interface
Comfortable and simple operation

Technical Specification

Item	XGN80-12	XGN80-24	XGN80-40.5
Rated Voltage	12 kV	24 kV	40.5 kV
Power Frequency Withstand Voltage	65kV	65 kV	120 kV
Lightning Impulse Withstand Voltage	125 kV	125kV	220 Kv
Rated Frequency	50Hz	50Hz	50Hz
Rated Current	2500A	2500A	2500A
Rated Short Circuit Breaking Current	40kA	31.5 kA	31.5 kA
Rated Short Time Withstand Current/ 4s	40kA	31.5 kA	31.5 kA
Rated Peak Withstand Current	100 kA	80 kA	80 kA
Power Frequency Withstand Voltage For 5 Min.(Relative Pressure Is Zero)	65kV	65kV	95Kv
Mechanical Life Of VCB	20000 times	20000 times	30000 times
Insulated Gas	N2/SF6	N2/SF6	SF6
Rated Filling Pressure(Relative)	0.05 Mpa	0.05 Mpa	0.03 Mpa
Leakage Rate	<0.1%/y	<0.1%/y	<0.1%/y
Protection Degree	IP65	IP65	IP65
Internal Arc Test	31.5kA/0.5s	31.5kA/1s

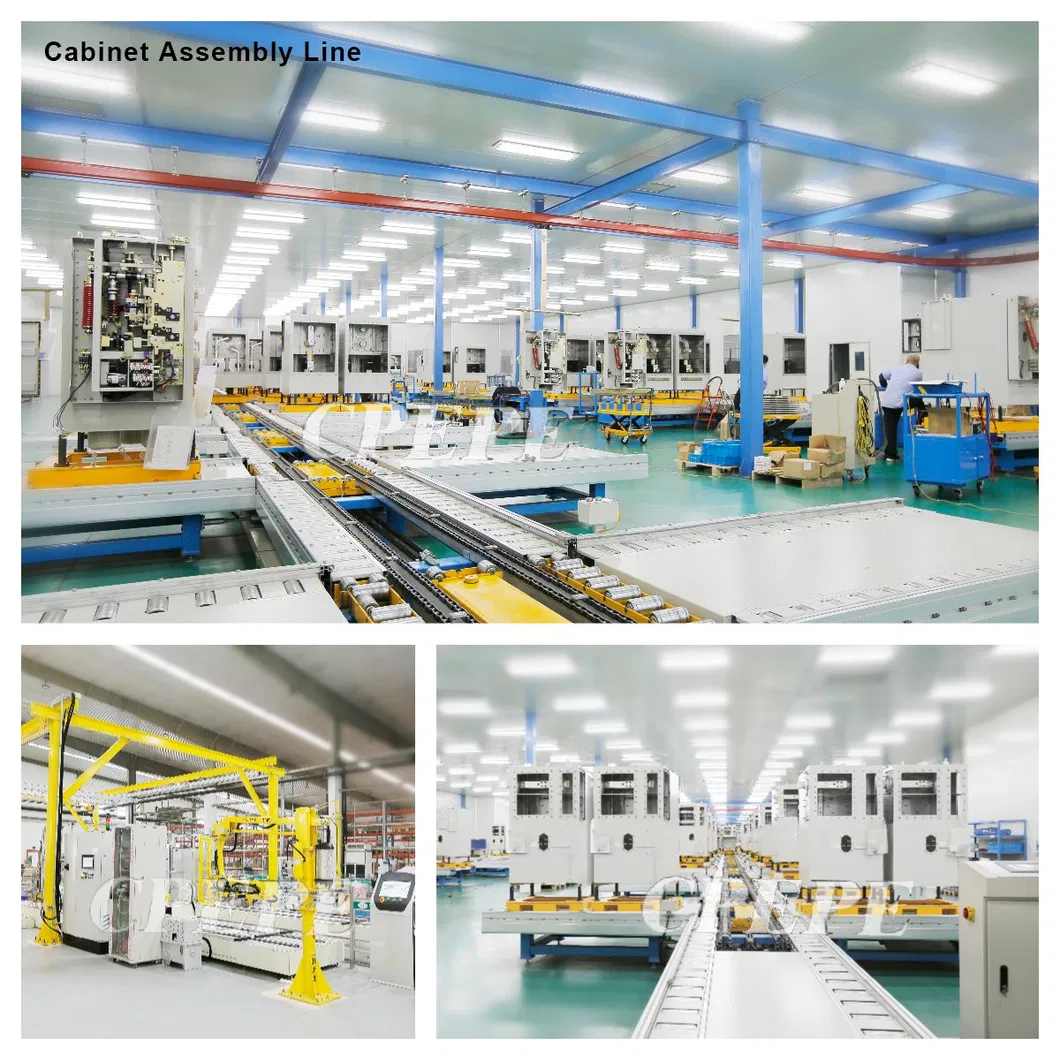

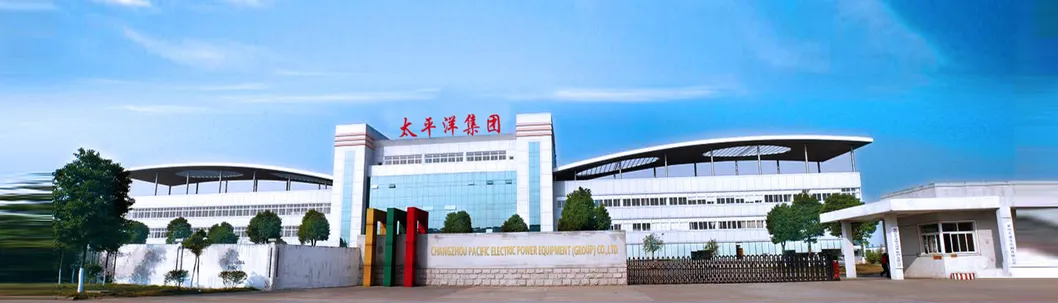

Workshops & Production Lines

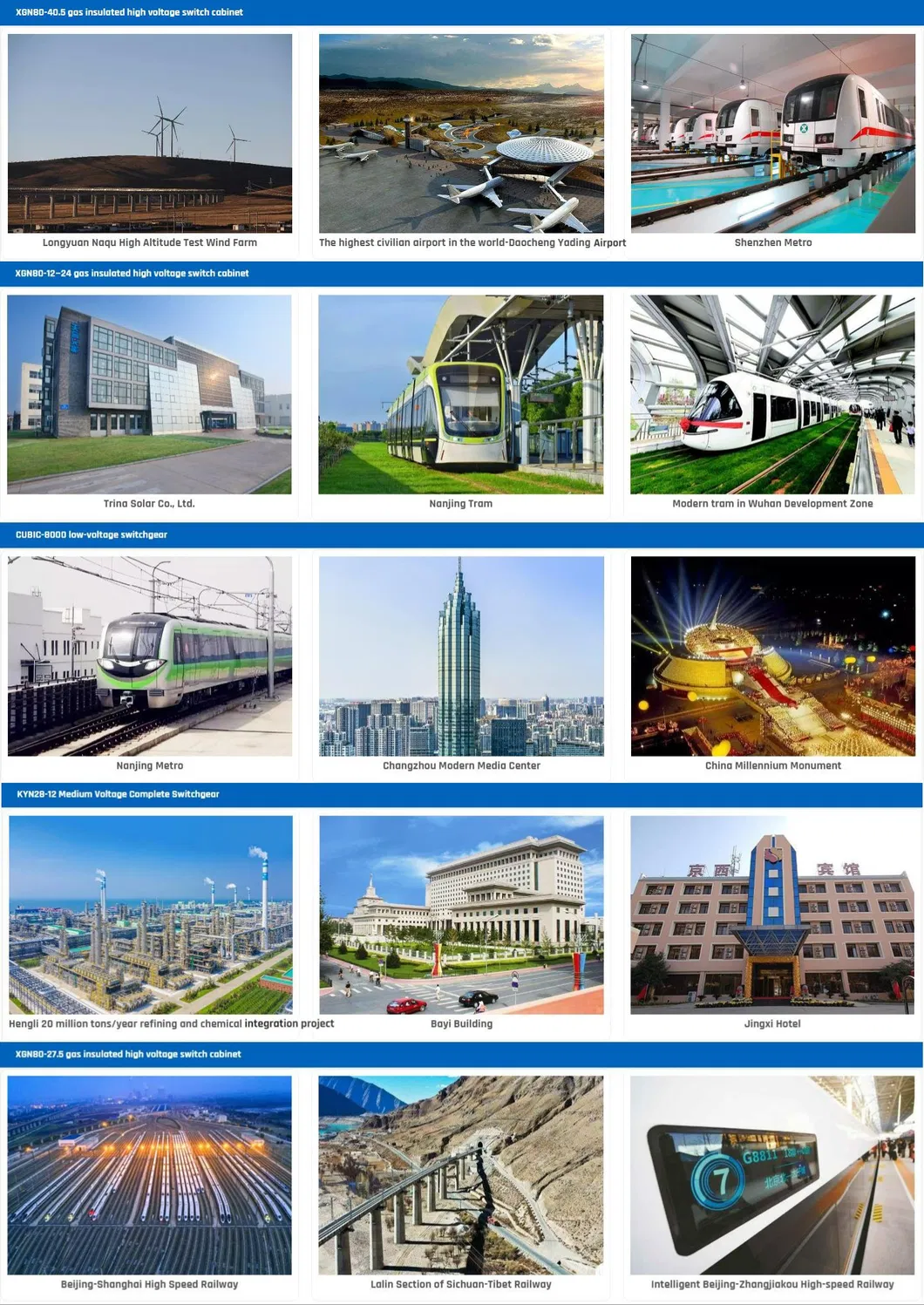

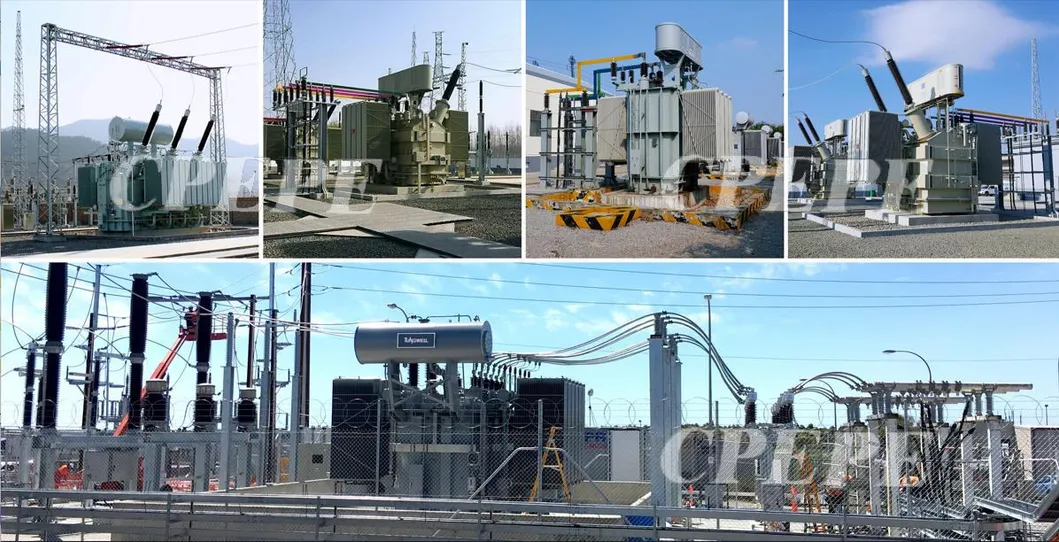

Typical Projects & Applications

🚇 Subway Industry

Shenzhen Metro, Changsha Metro, Nanning Metro, Foshan Metro, Shijiazhuang Metro, Hefei Metro, Xi'an Metro, Chengdu Metro, Nanjing Metro, Chongqing Metro, Tianjin Metro, Changzhou Metro, Xuzhou Metro, Suzhou Metro, etc.

🛢️ Petrochemical Industry

Jiangsu Hengli Chemical Fiber, Jiangsu Jurong Petrochemical, Hengli Petrochemical, Juxian Synthetic Materials, Juhua Group, Qinghai Salt Lake Haina Chemical Industry, Tianjin Bohai Chemical Industry, Tianjin Bohua Chemical Industry, etc.

🔌 Power Grid & Thermal Power

Harbin Thermal Power, Tianjin Junliangcheng Power Generation, Jiangxi Jingdezhen Power Generation, Guizhou Panxian Power Plant, Tianjin Wuqing Thermal Power, Jiangsu Qinli Thermal Power, Tianjin Dagang Power Plant, etc.

🍃 Renewable Energy (Wind/Hydropower/PV)

Weng'an 110kV Yinzhan Substation, Naqu High Altitude Test Wind Power Plant in Tibet, Qinxi 220kV Substation, Ningxia Datang International 100MW Wind Farm, China Resources Guangxi Cangwu Liubao Phase I 50MW Wind Power, Qianzhi Changji Mulei Laojunmiao Wind Farm 150MW, Nanchuan Phase II Wind Power, Dongdongtan 50MW Photovoltaic Power Generation, etc.

🏗️ Metallurgy Industry

China National Nonferrous Metals Construction Group, Beijing Iron and Steel Group, Baosteel, Nanjing Iron and Steel, Shanghai Meishan Iron and Steel, Jinan Iron and Steel, Northeast Special Steel, Zhongtian Iron and Steel, Jiuquan Iron and Steel, etc.

🧱 Cement Industry

Anhui Conch, Binhai Renzhou Cement, TCC, Guangan Changxing Cement.

Oversea Projects

🌐 Global Markets

Projects in oversea markets: Indonesia, Sudan, Zambia, Ethiopia, Myanmar, Russia, Kuwait, Malaysia, Iraq, Cambodia, Mozambique, Vietnam, Japan, Pakistan, Laos, Philippines, Montenegro, South Africa, Cuba, Yemen, Ghana, Senegal, Congo, Mexico, etc.

Frequently Asked Questions

❓ What are the available trade and payment terms?

We offer FOB, CIF, and EXW trade terms, which are negotiable. Payment is typically accepted via T/T with a 30% deposit and 70% balance due before shipment.

❓ What is the mechanical life of the Vacuum Circuit Breaker (VCB)?

The mechanical life of the VCB varies by model: 20,000 times for the XGN80-12 and XGN80-24 models, and up to 30,000 times for the XGN80-40.5 model.

❓ What kind of insulating gas is used in the switchgear?

The XGN80-12 and XGN80-24 models utilize a combination of N2/SF6, while the high-voltage XGN80-40.5 model is insulated with SF6.

❓ What is the protection degree and safety rating?

The switchgears are built to a high standard, holding an IP65 protection degree rating. They also feature metal-enclosed construction to prevent accidental contact.

❓ What is the typical delivery timeframe and port of loading?

The standard delivery timeframe is 10 to 30 days following deposit confirmation. Shipments are commonly loaded at Shanghai, Ningbo, or Tianjin ports.

❓ Is customized OEM/ODM service available?

Yes, OEM/ODM services are fully supported, allowing the configurations to align perfectly with specific system parameters and project needs.
