Variable-Frequency Resonant Test Solution for Gis AC Withstand Voltage Test

1 / 5

Variable-Frequency Resonant Test Solution for Gis AC Withstand Voltage Test

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Send Inquiry

Product Description

Basic Info.

Model NO.

SXBP

Max Diameter of Workpiece

900mm

Mass Scope of Workpiece

<900kg

Type

Strength Testing Machine

Max Capacity

<1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Display

LCD Display

Power Source

AC380V

Production Capacity

100 Units/Month

Product Description

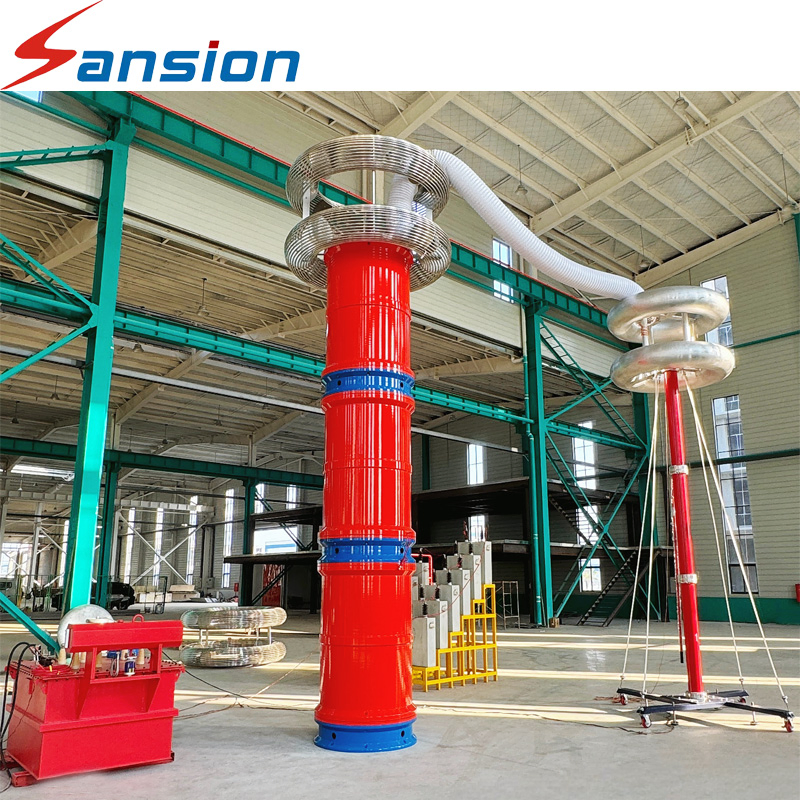

Variable-Frequency Resonant Test Solution for GIS AC Withstand Voltage Test

The Series Resonant Test Set (RTS) is specially designed for AC withstand test for electric equipments of substation at 10kV~500kV or below.

Main Features:

Small size, portable for operating.
Screen to show the test data, status and display operation step by real-time.
Small temperature rising at rated load. Dry-type epoxy cast, high mechanical strength and good insulation ability.
220V or 380V single phase power source is suitable for on-site sourcing.
Different type reactors for optional realize the multipurpose.
With over current, over voltage, IPM and discharge protection function.
Test result can be printed.

Applications:

Transformer & Cables
GIS System & Insulator
CT/PT & Other electric devices

Common Configuration

Model	Test Object	AC Power Source	Reactor	Voltage Divider
SXBP-27/54/108-108	31500kVA/35KV Transformer, 10KV/35KV Cable	10KW 1 unit	27KV/1A 4 Units	120KV
SXBP-54/108/216-216	110KV GIS, 110KV Transformer, 10KV/35KV Cable	15KW 1 unit	65KV/2A 4 Units	300KV
SXBP-65/130/260-520	110KV Circuit Breaker, 110KV Cable, GIS	30KW 1 Unit	45KV/1A 6 Units	200KV

Note: SXBP model nomenclature indicates voltage of one reactor / series connection voltage / total capacity. Configuration can be customized with additional reactors or dividers to match specific capacity and voltage requirements.
