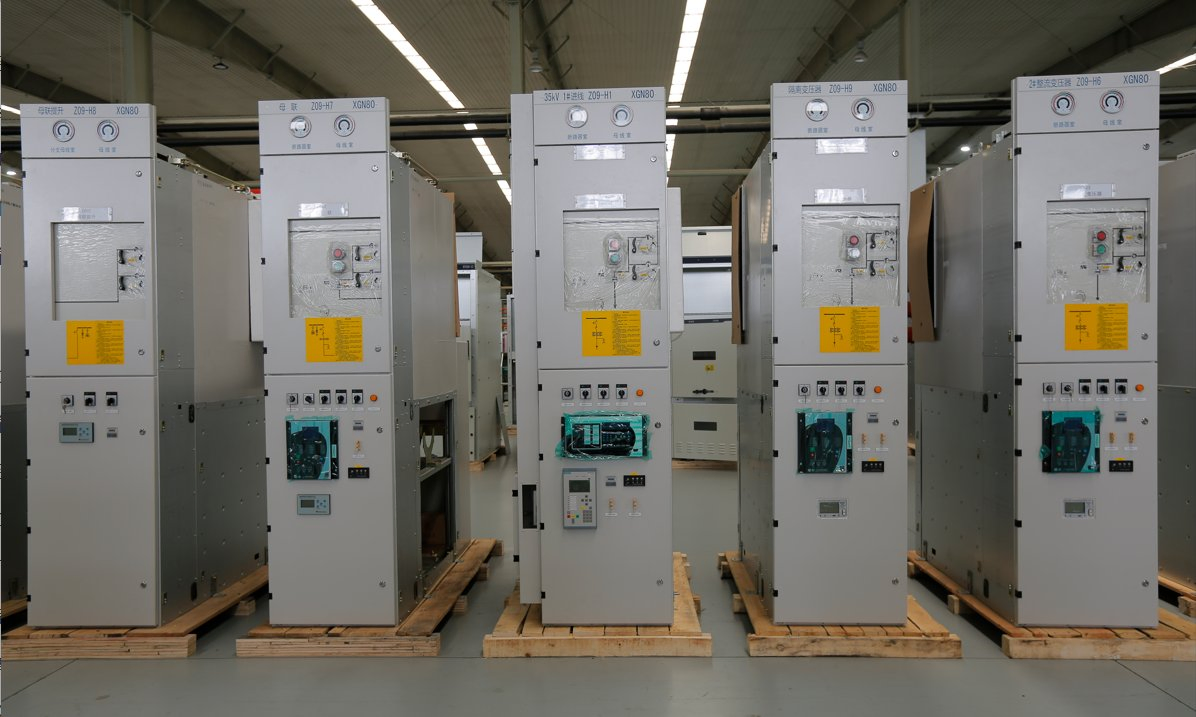

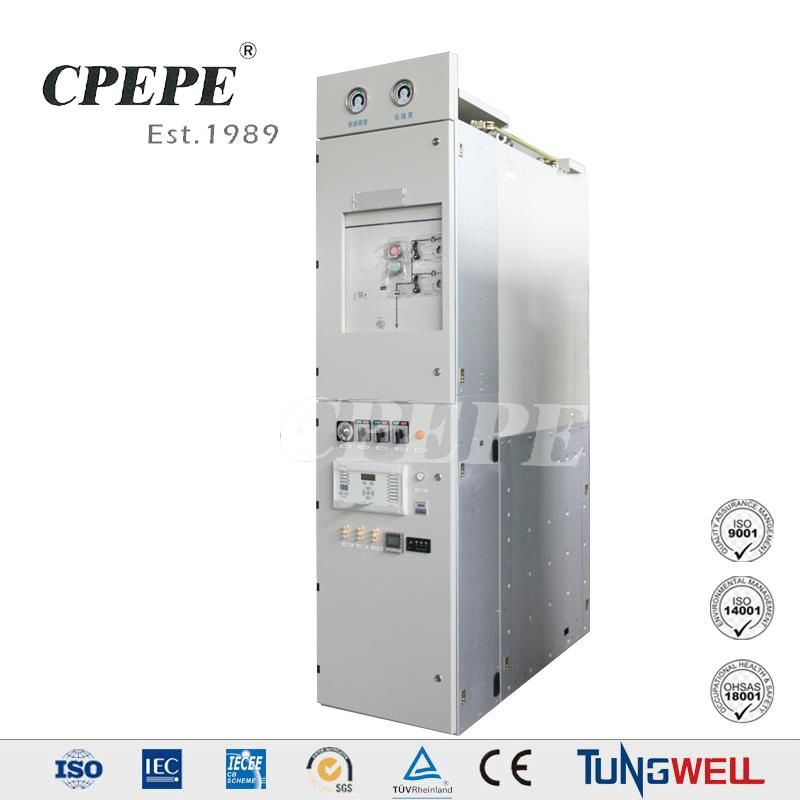

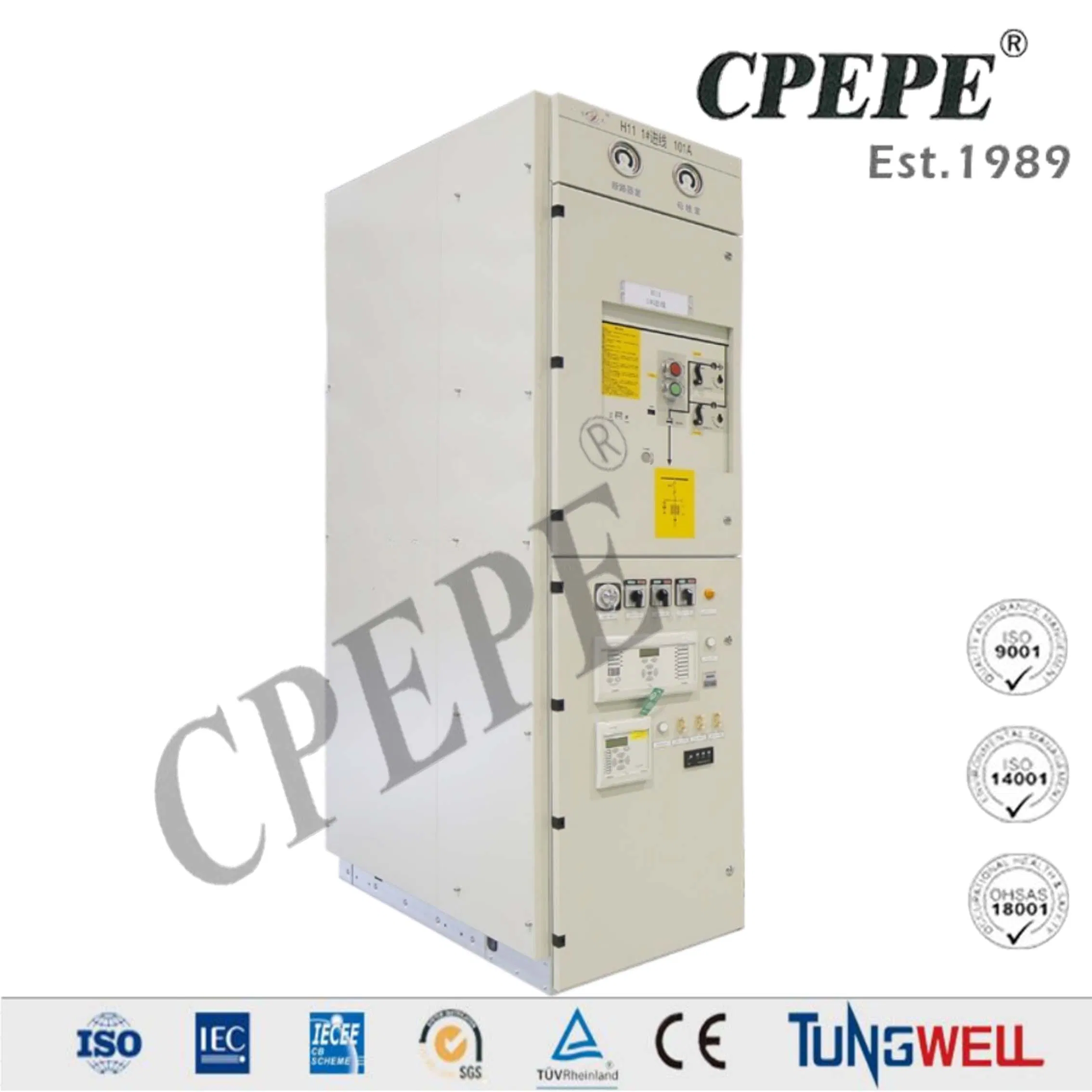

Smart Gis 12– 40.5kv, CE Approved, for Transformer Substation Applications

1 / 5

Smart Gis 12– 40.5kv, CE Approved, for Transformer Substation Applications

Customization:	Available
Type:	High-voltage
Structure:	Single-column Disconnector

Send Inquiry

Product Description

Basic Info.

Model NO.

XGN80-40.5

Installation

Indoor High-voltage

Operation

Electric

Grounding Mode

Grounding

Movement Mode

Vertical Rotary Type

Number of Poles

Three Pole

Grounding

Single Ground

Series

Four

Run

Vertical Rotation

Switching Mode

Single Throw-in

Common Model

Structure of Operating

Electric

Certification

ISO, GS, RoHS, CE, IS9001, ISO9001, ISO9002

Terms

EXW, Fob, CIF

Price

Negotiable

MOQ

Package

Standard

Delivery

on Time

Transport Package

Standard Export Package

Specification

optional

Origin

China

Production Capacity

50000PCS/Year

Packaging & Delivery

Package Size

230.00cm * 150.00cm * 80.00cm

Package Gross Weight

1150.000kg

Important Features

Safe

Vacuum interrupt technology & low pressure gas insulation technology
Metal-enclosed to protect against accidental contact
Unaffected by the climate and environment condition
Safe operation

Reliable

Compact and synoptically design
Standard components application
Advanced manufacture equipment and process
Strict quality control procedure
Leakage rate <0.5%/y, 95KV/5Min under zero relative pressure

Economical

Small space and volume requirement
Short installation time needed
Long service period
Virtually maintenance free

Extension

Easy to extend from both sides

Convenient

Easy installation
Light weight
Good accessibility to all function units
Friendly operation interface
Comfortable and simple operation

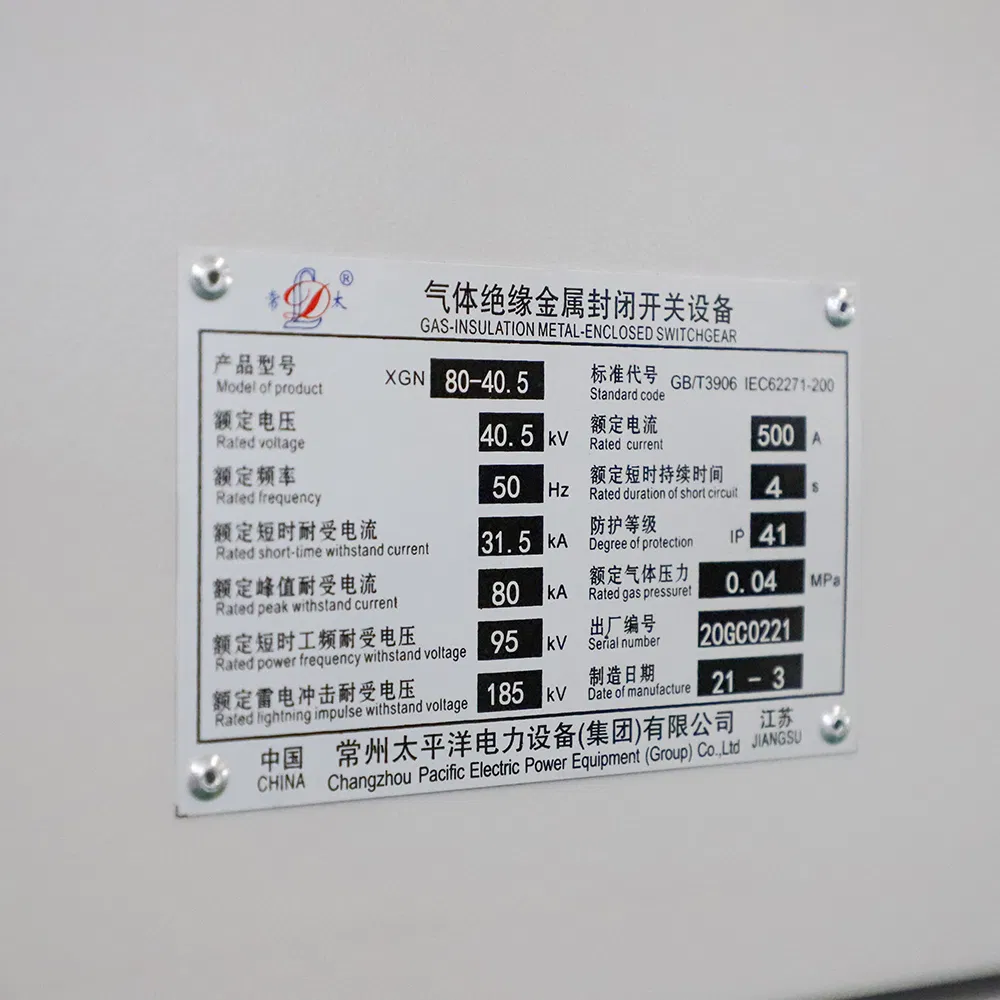

Technical Specification

Item	XGN80-12	XGN80-24	XGN80-40.5
Rated Voltage	12 kV	24 kV	40.5 kV
Power Frequency Withstand Voltage	65kV	65 kV	120 kV
Lightning Impulse Withstand Voltage	125 kV	125kV	220 Kv
Rated Frequency	50Hz	50Hz	50Hz
Rated Current	2500A	2500A	2500A
Rated Short Circuit Breaking Current	40kA	31.5 kA	31.5 kA
Rated Short Time Withstand Current/ 4s	40kA	31.5 kA	31.5 kA
Rated Peak Withstand Current	100 kA	80 kA	80 kA
Power Frequency Withstand Voltage For 5 Min.(Relative Pressure Is Zero)	65kV	65kV	95Kv
Mechanical Life Of VCB	20000 times	20000 times	30000 times
Insulated Gas	N2/SF6	N2/SF6	SF6
Rated Filling Pressure(Relative)	0.05 Mpa	0.05 Mpa	0.03 Mpa
Leakage Rate	<0.1%/y	<0.1%/y	<0.1%/y
Protection Degree	IP65	IP65	IP65
Internal Arc Test	31.5kA/0.5s	31.5kA/1s

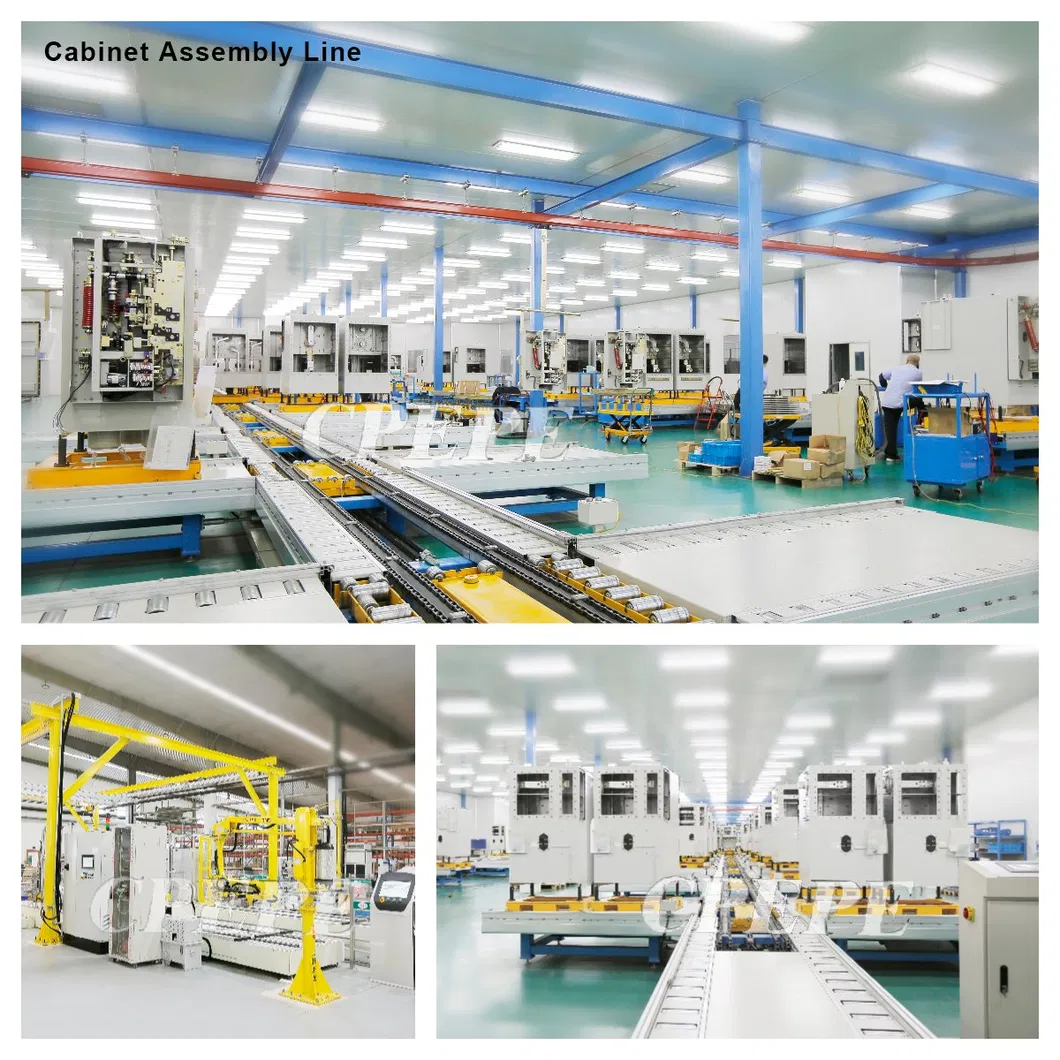

Workshops & Production Lines

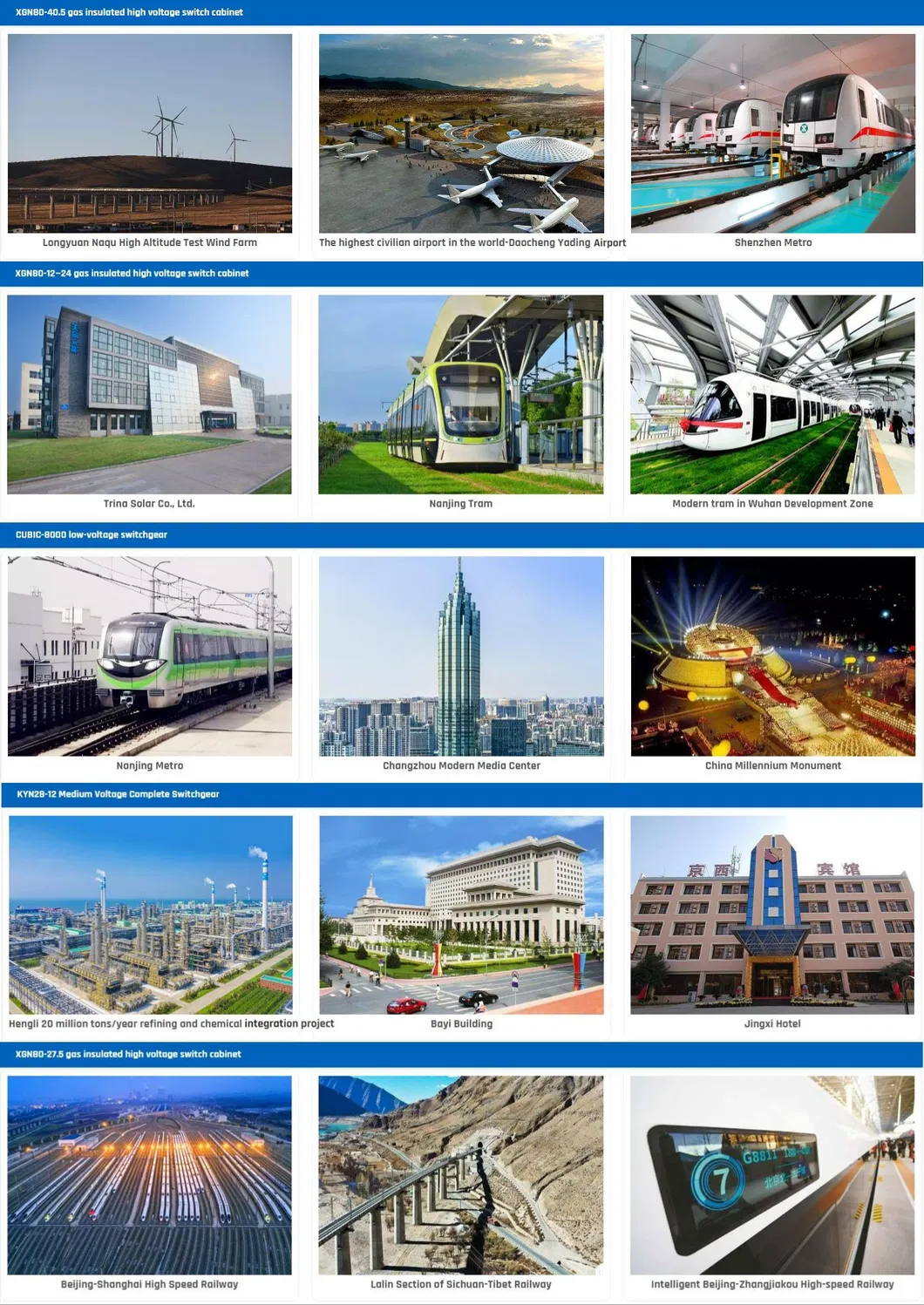

Typical Industry Projects

Subway Industry

Typical Projects: Shenzhen Metro, Changsha Metro, Nanning Metro, Changsha Metro, Foshan Metro, Shijiazhuang Metro, Hefei Metro, Xi'an Metro, Chengdu Metro, Nanjing Metro, Chongqing Metro, Tianjin Metro, Changzhou Metro, Xuzhou Metro, Suzhou Metro, etc.

Petrochemical Industry

Typical Projects: Jiangsu Hengli Chemical Fiber, Jiangsu Jurong Petrochemical, Hengli Petrochemical, Juxian Synthetic Materials, Juhua Group, Qinghai Salt Lake Haina Chemical Industry, Tianjin Bohai Chemical Industry, Tianjin Bohua Chemical Industry, etc.

Power Grid (Thermal Power & Others)

Typical Projects: Harbin Thermal Power, Tianjin Junliangcheng Power Generation, Jiangxi Jingdezhen Power Generation, Guizhou Panxian Power Plant, Tianjin Wuqing Thermal Power, Weng'an 110kV Yinzhan Substation, Naqu High Altitude Test Wind Power Plant in Tibet, Ningxia Datang International 100MW Wind Farm, etc.

Metallurgy Industry

Typical Projects: China National Nonferrous Metals Construction Group, Beijing Iron and Steel Group, Baosteel, Nanjing Iron and Steel, Shanghai Meishan Iron and Steel, Jinan Iron and Steel, Northeast Special Steel, Zhongtian Iron and Steel, Jiuquan Iron and Steel, etc.

Cement & Oversea Projects

Typical Projects: Anhui Conch, Binhai Renzhou Cement, TCC. International projects in Indonesia, Sudan, Zambia, Ethiopia, Myanmar, Russia, Kuwait, Malaysia, Iraq, Cambodia, Mozambique, Vietnam, Japan, Pakistan, Laos, Philippines, Montenegro, South Africa, Cuba, Yemen, Ghana, Senegal, Congo, Mexico, etc.
