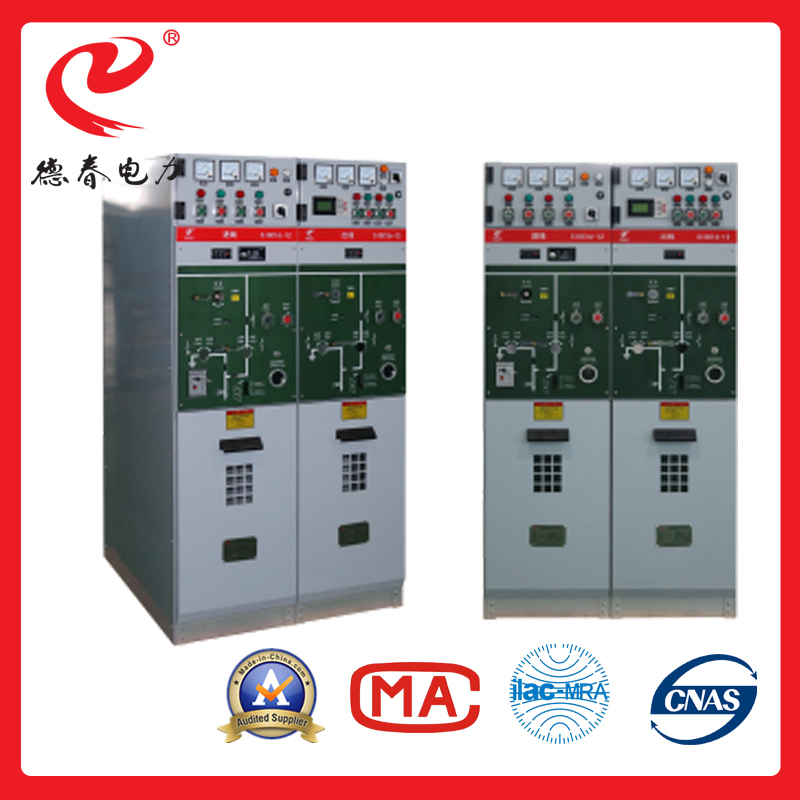

Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
1 / 5
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage
Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage

Sidc16-12 Environment Protection Compact Solid Insulated Ring Network Switchgear Equipment for Medium Voltage

Customization: Available
Certification: CCC, ISO9001
Shell Material: Cold Plate
Send Inquiry

Product Description

Basic Information
Model NO.
SIDC16-12
Voltage Level
Medium Voltage
Installation
Removable
Current
AC
Altitude
<=2000m
Ambient Temp.
-35c to +40c
Seismic Capacity
8 Degree Level
Transport Package
Wooden Cases
HS Code
8537209000
Product Description

SIDC 16 Solid Insulated Switchgear is a 12KV three-phase AC 50Hz distribution unit. Utilizing advanced solid insulation technology, the vacuum arcing chamber is integrated with the primary loop to achieve a fully insulated, fully sealed, and maintenance-free design. Its modular, SF6-free construction meets strict environmental protection standards.

Technical Specifications
Load Switchgear Parameters
No. Item Unit Parameter
1Type of interrupter-Vacuum
2Rated currentA630
3Rated short time withstand currentKA25
4Rated short durationS4
5Rated peak withstand currentKA63
10Opening average speedm/s1.1±0.2
18Mechanical lifeTime10000
Breaker Parameters
No. Item Unit Parameter
1Type of interrupter-Vacuum
2Rated currentA630
3Rated short circuit breaking currentKA20/25
11Closing timems30-70
19Mechanical lifeTime10000
Key Features
● Eco-Friendly: 100% SF6 gas-free, reducing environmental impact.
● Durable: Resistant to harsh environments, condensation, frost, and salt contamination.
● Compact Design: Small footprint for easy installation in restricted spaces.
● Smart Ready: Compatible with smart grid automation terminals.
Operating Conditions
Altitude
≤ 2000m
Ambient Temp
-35ºC to +40ºC
Daily Humidity
≤ 95%
Monthly Humidity
≤ 90%
Product Showcase
Solid Insulated Ring Network Switchgear

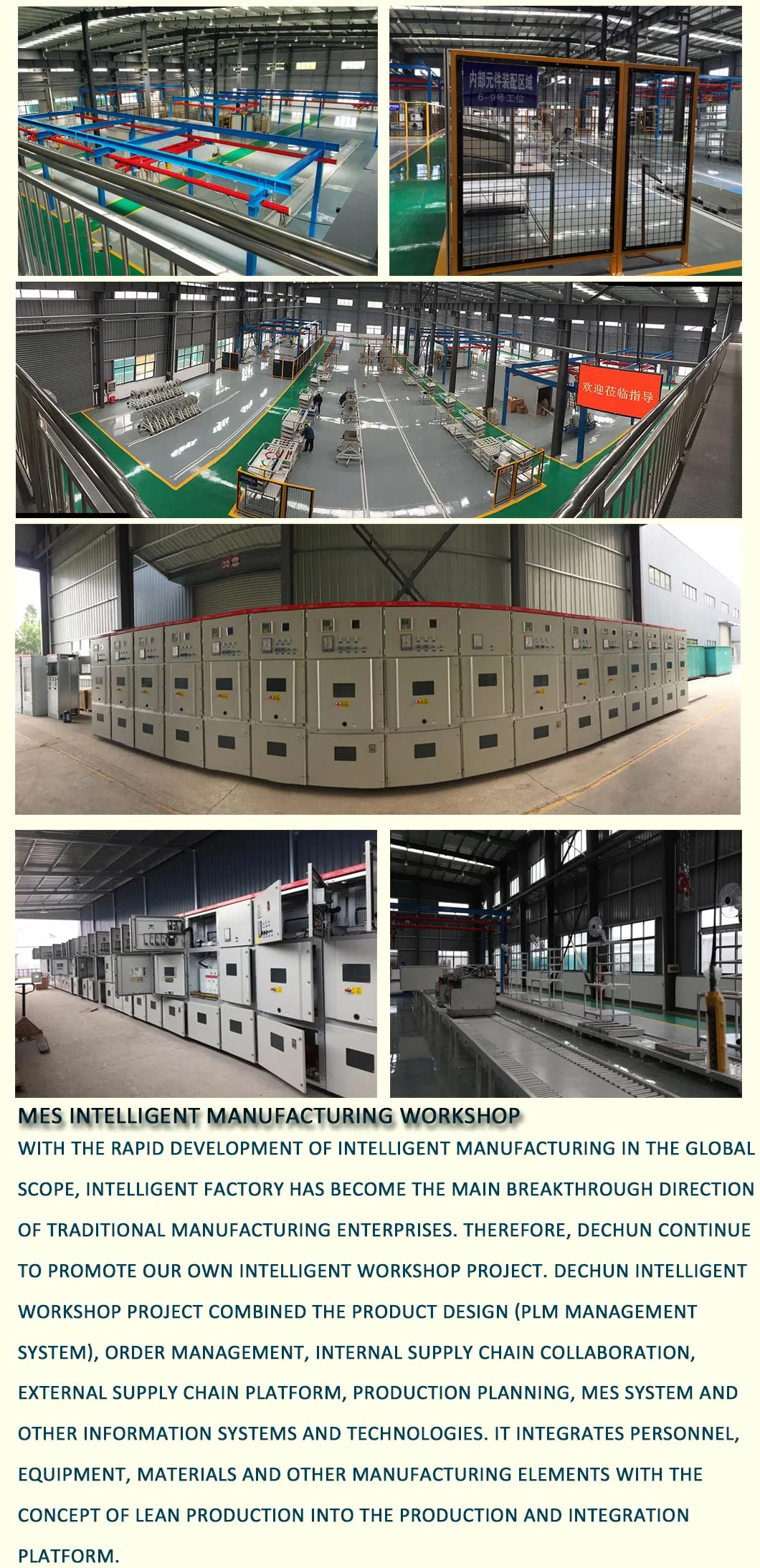

Medium Voltage Switchgear Equipment

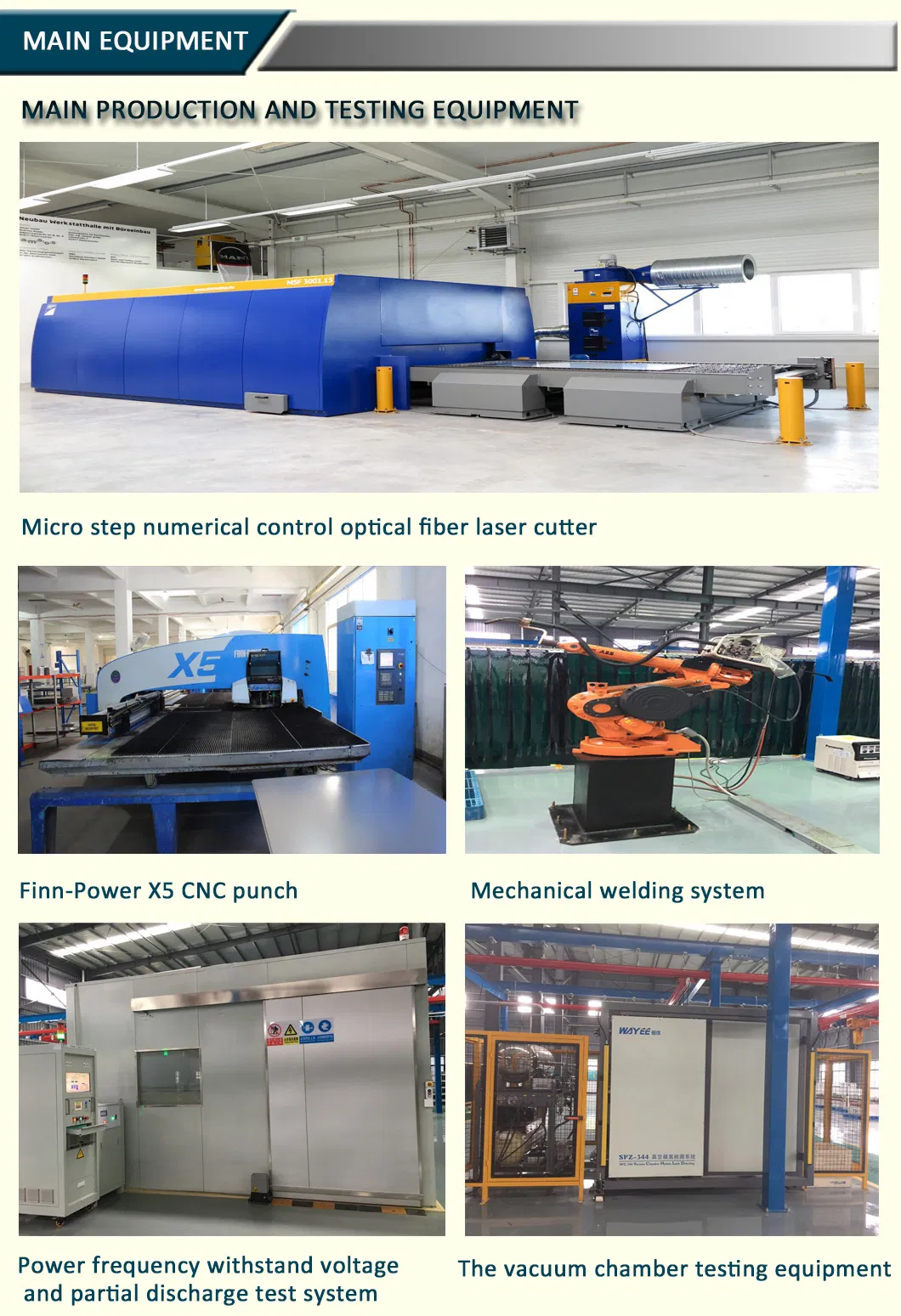

Insulated Switchgear Details
Solid Insulated Distribution Unit

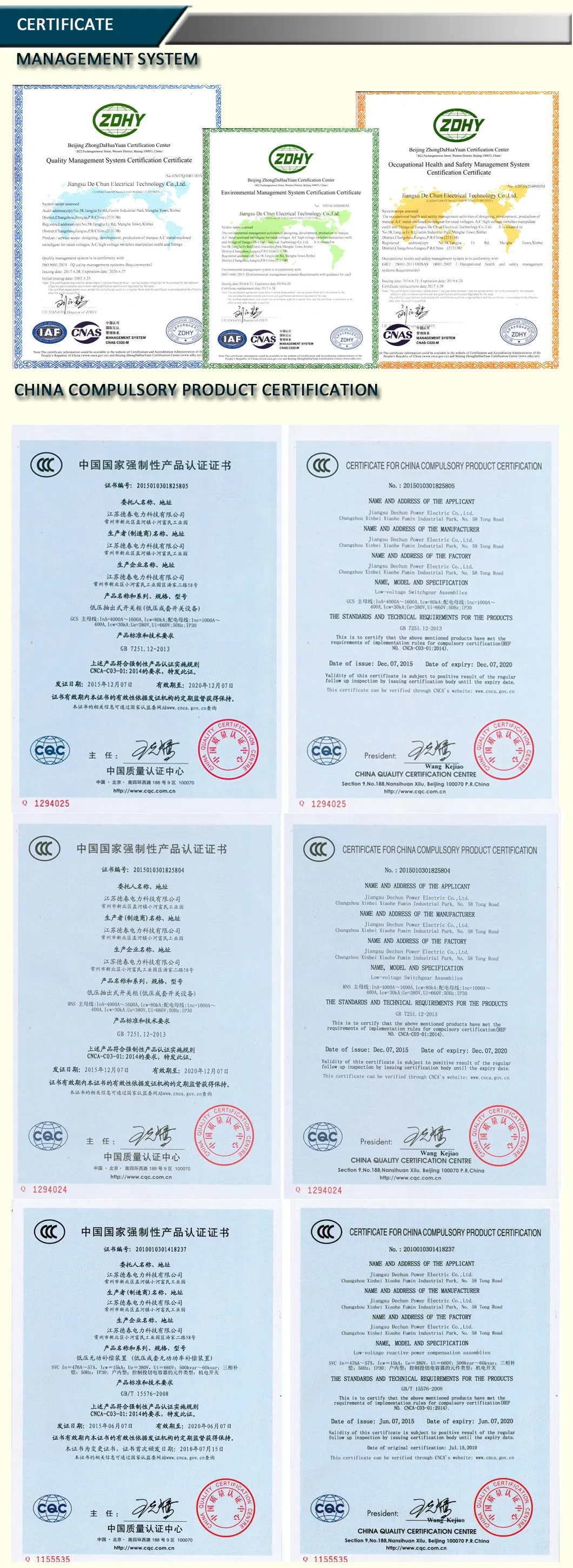

Ring Network Equipment Showcase

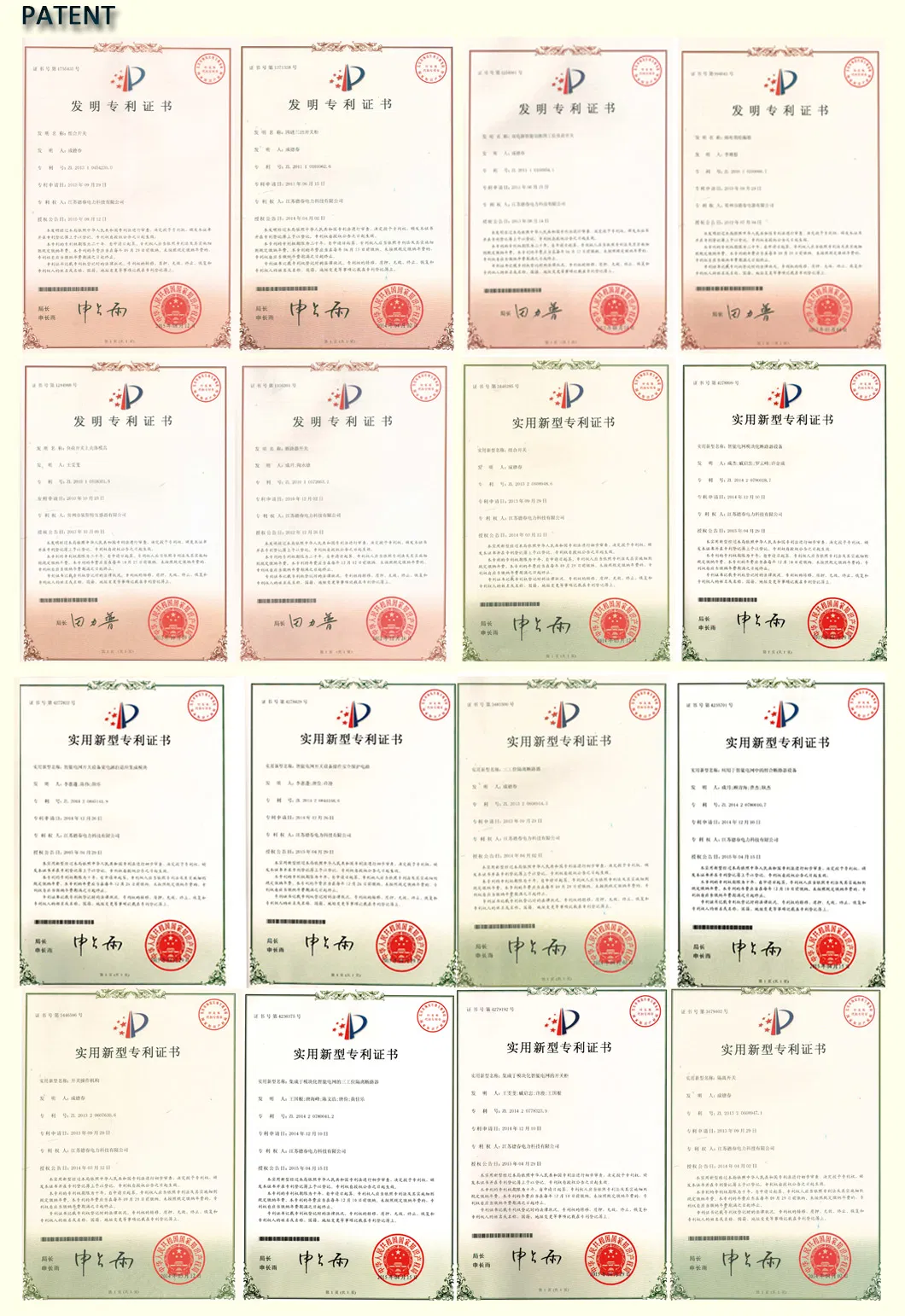

Technical Design Switchgear
Frequently Asked Questions
What is solid insulated switchgear?
It is a type of switchgear where the primary high-voltage components are encapsulated in solid insulating materials, making it fully sealed and insulated.
Is this equipment environmentally friendly?
Yes, the SIDC16-12 model does not use SF6 gas, which is a potent greenhouse gas, making it a green choice for power distribution.
Can it be used in high-altitude areas?
The standard model is designed for operation at altitudes up to 2000 meters.
Is the maintenance requirement high?
No, the fully sealed design and vacuum arcing chamber ensure that the unit is virtually maintenance-free throughout its service life.
Does it support smart grid integration?
Yes, it features a modular design that can be equipped with optional automation terminals to meet smart grid requirements.
What is the mechanical life of the interrupter?
The load switchgear and breakers are designed for a mechanical life of up to 10,000 operations.
