Product Description

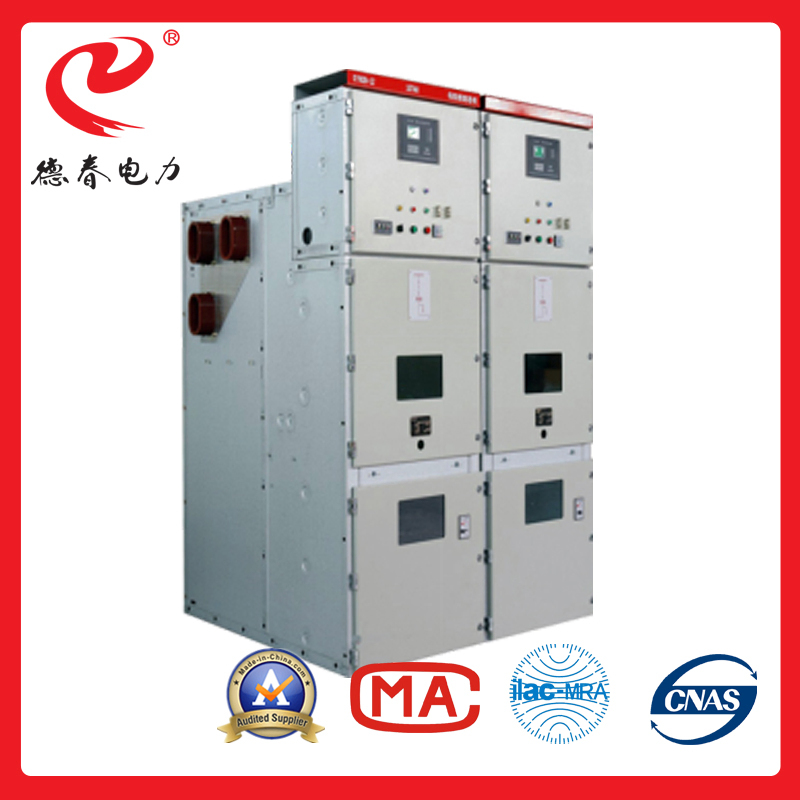

XGN15-12/24 AC Metal Enclosed Switchgear
| Rated voltage |
KV |
3.6, 7.2/12 |
| Rated frequency |
Hz |
50 |
| Rated current of breaker |
A |
630, 1250, 1600, 2000, 2500, 3150 |
| Rated breaking active load current |
A |
630, 1250, 1600, 2000, 2500, 3150 |
| Rated closed loop breaking current |
KA |
20, 25, 31.5, 40 |
| Rated current under the cable charging breaking current |
KA |
50, 63, 80, 100 |
| Rated short-circuit closing current(peak) |
KA |
20, 25, 31.5, 40 |
| Rated short-circuit breaking current |
KA |
50, 63, 80, 100 |
| Rated insulation level |
1 min frequency withstand voltage |
Pole, the pole pair |
KV |
24, 32, 42 |
| break between |
KV |
24, 32, 48 |
| Lighting impulse withstand voltage(peak) |
Pole, the pole pair |
KV |
40, 60, 75 |
| break between |
KV |
46, 70, 85 |
| Degree of protection |
KV |
Enclosure IP4X, compartment circuit breaker door open when IP2X |
XGN type is the newest AC metal enclosed HV ring main unit with the SF6, which is suitable for distribution automation, compact and extensible, simple structure, flexible operation, reliable interlocking, and modular design to realize any combination, meet all kinds of connection mode.
Features
- The device has the advantages of simple structure, flexible operation, reliable interlocking, convenient installation, etc.
- Compact structure, small size, easy to install;
- Modular design, flexible expansion;
- Smart grid compatible, optional automation terminal, to meet the requirements of smart grid upgrade.
Applicable Conditions
- Altitude: ≤ 2000m
- Ambient temperature: -35ºC ~ +40ºC
- Relative humidity: Daily average ≤ 95%, Monthly average ≤ 90%
- Seismic capacity: 8 degrees
Frequently Asked Questions
What is the rated voltage of the XGN15-12/24 switchgear?
The rated voltage parameters for the XGN15-12/24 switchgear range from 3.6 kV to 7.2/12 kV.
What are the environmental limits for installing this equipment?
It is designed for operation at altitudes of 2000m or less, and within an ambient temperature range of -35ºC to +40ºC.
What degree of environmental protection does the enclosure offer?
The equipment features an IP4X rating for the general enclosure, and an IP2X rating when the compartment circuit breaker door is open.
Is the XGN switchgear compatible with modern smart grids?
Yes, it features a modular design that is smart grid compatible, with an optional automation terminal to support seamless smart grid upgrades.
What type of package is used for international transport?
The switchgear is securely packed in robust wooden cases to ensure safe transport and prevent damage during delivery.
What is the seismic capacity rating of this switchgear?
The switchgear is built to withstand seismic activity up to a capacity level of 8 degrees.
