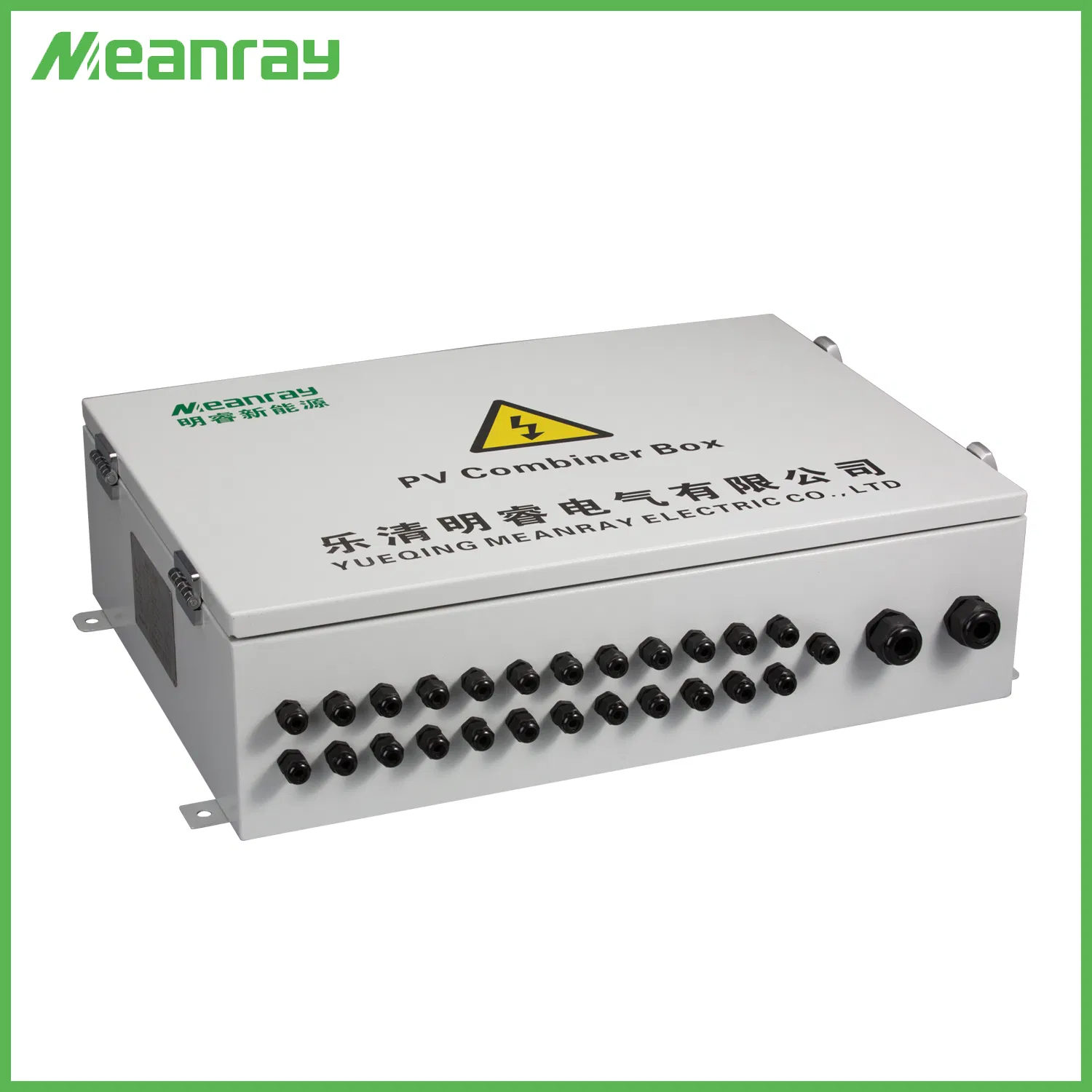

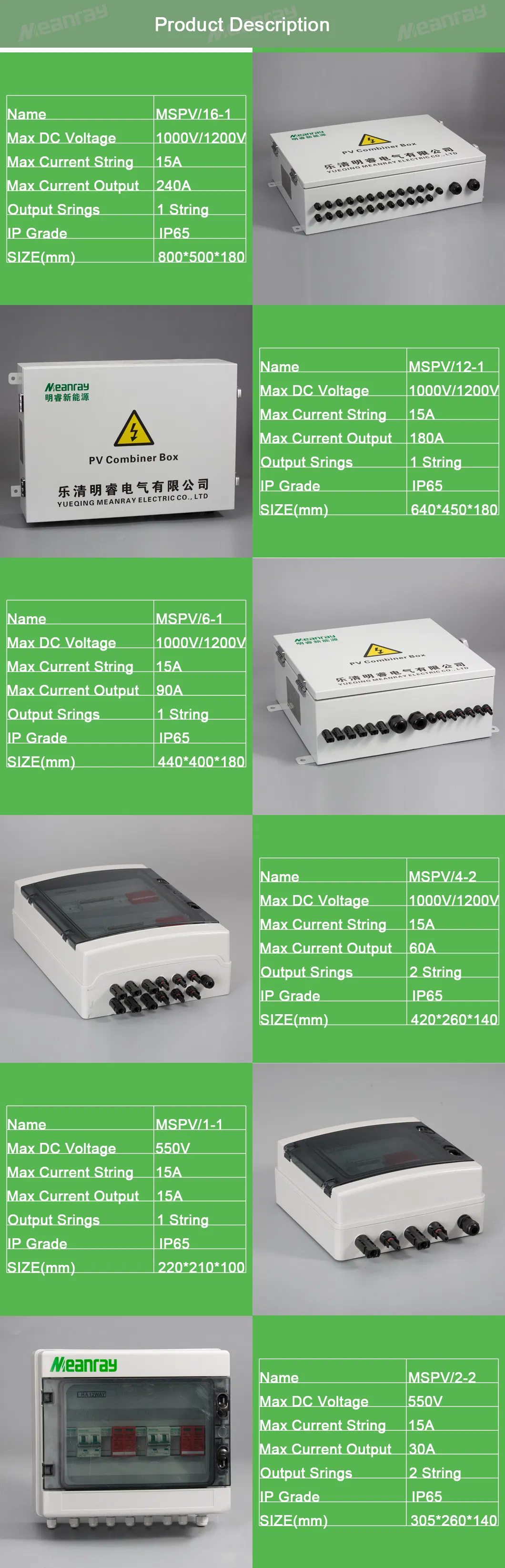

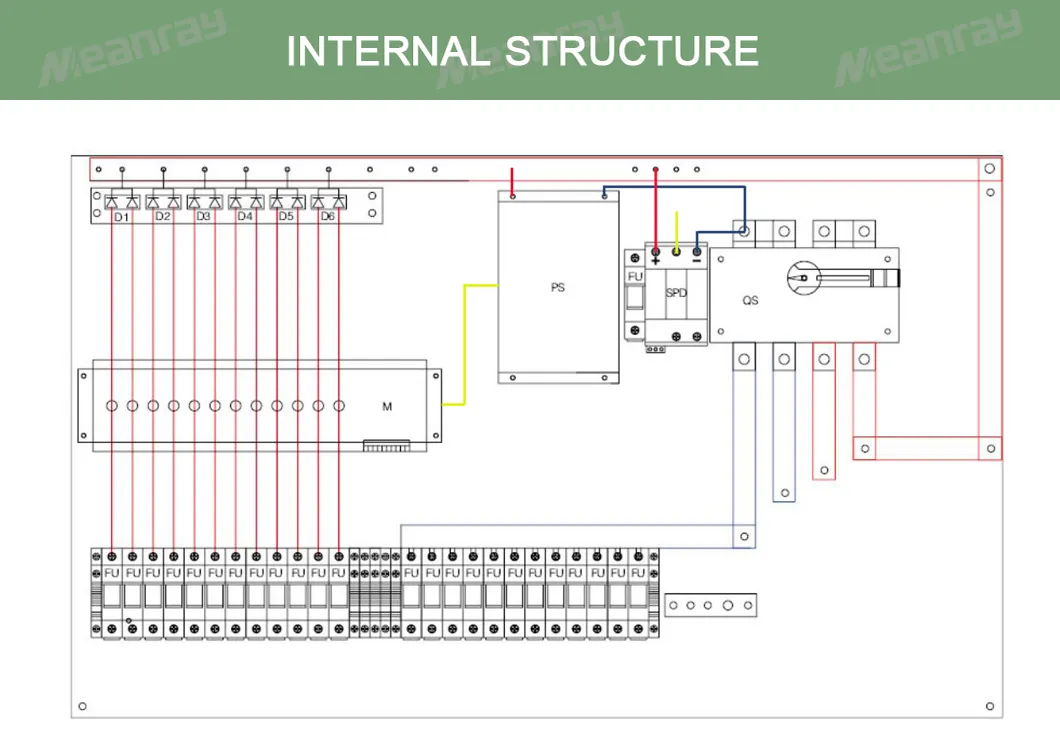

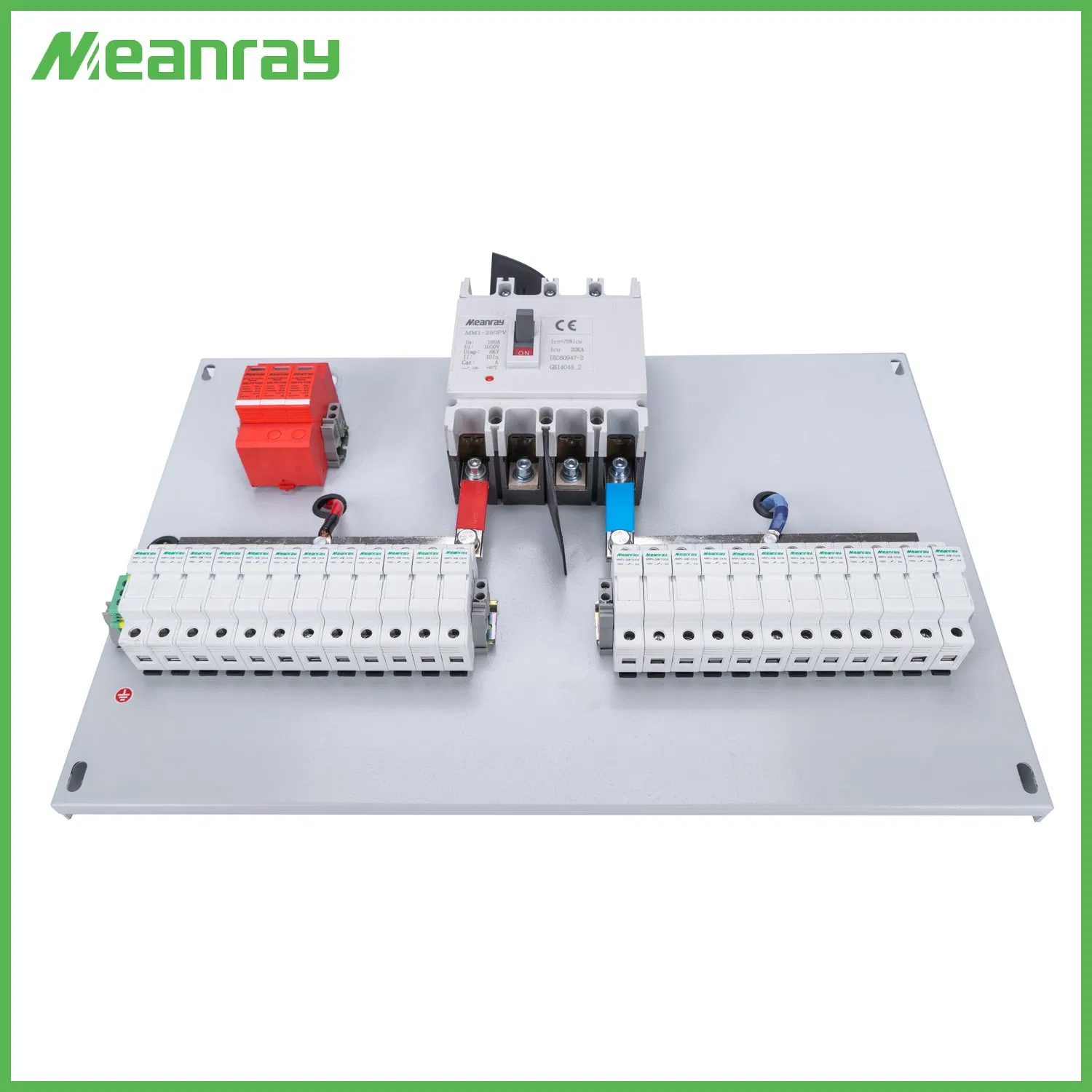

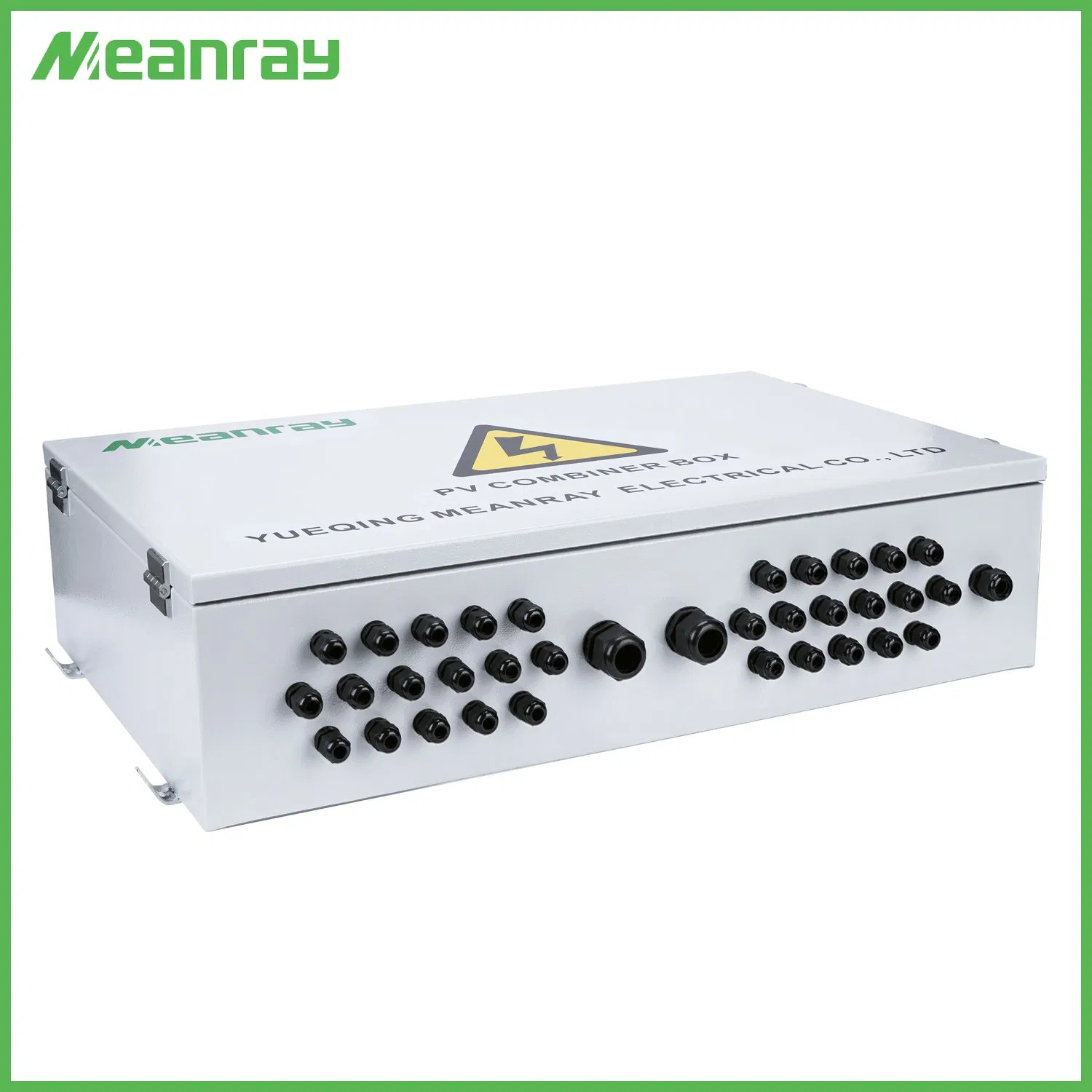

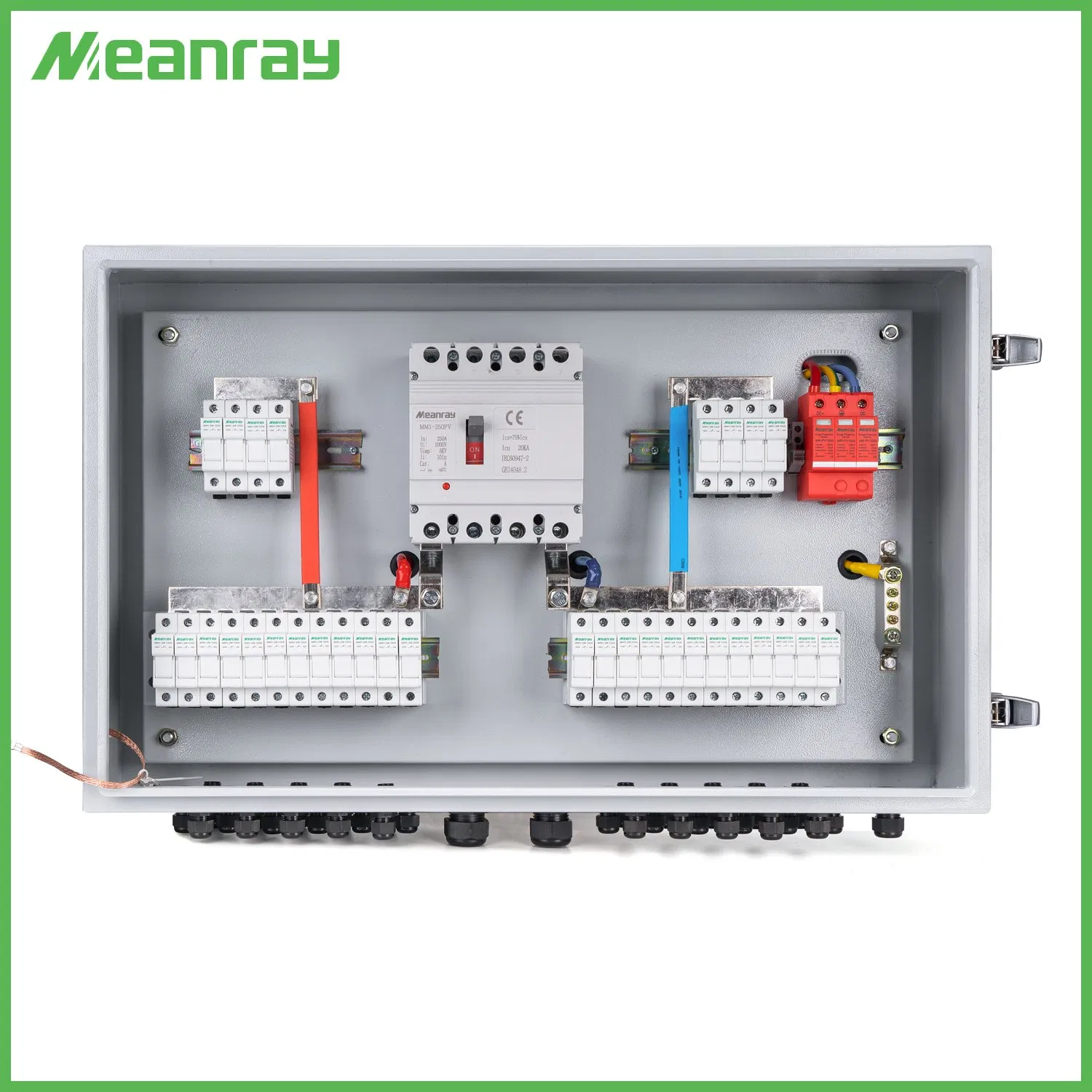

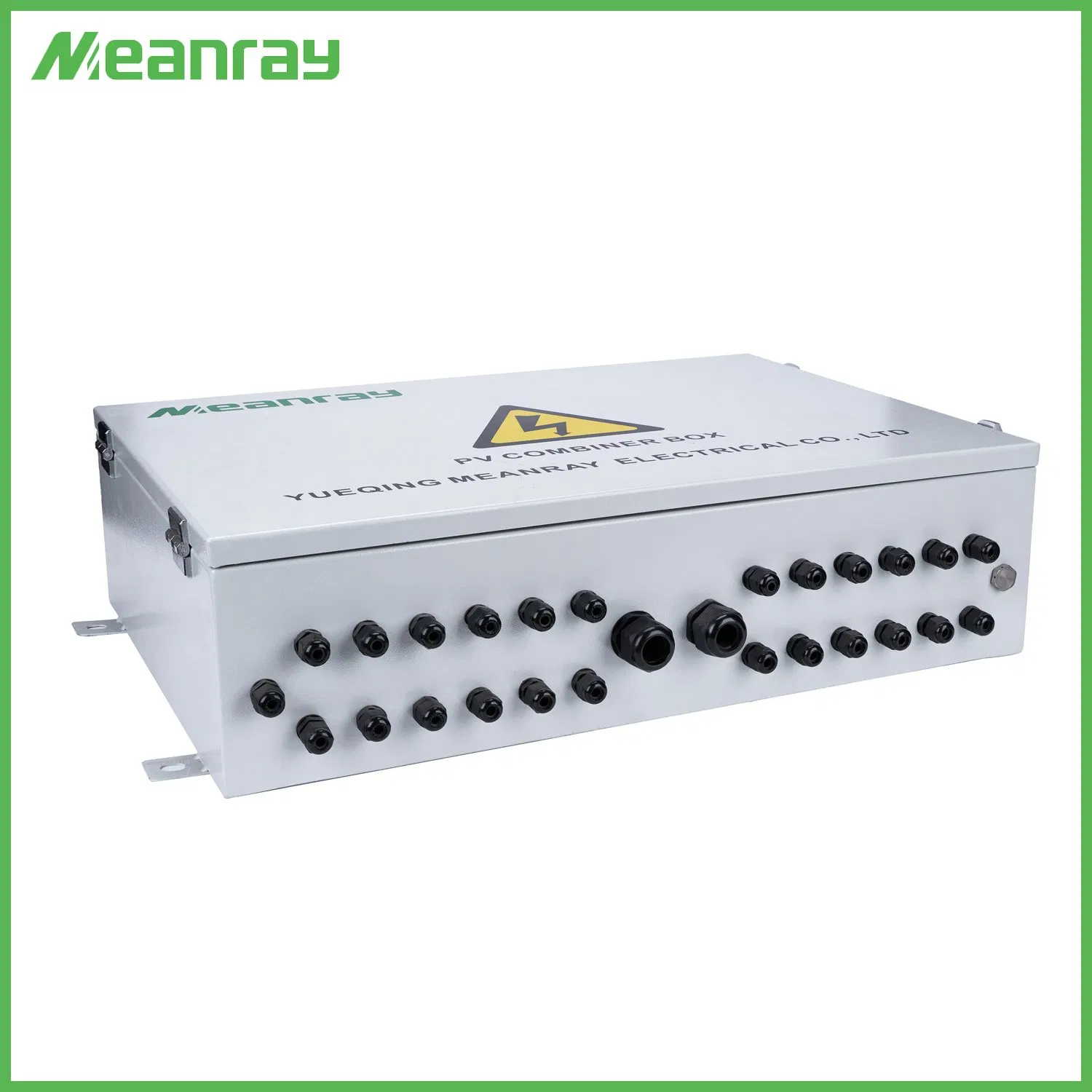

MSPV/12-1 solar combiner box is suitable for inverter (MAX input voltage DC1000V, 8 PV input channel, 2 output channel, double MPPT inverter). Box body is made of PVC engineering materials, with test for fire retardant, temperature rise, anti impact, anti ultraviolet, and other testing. IP65 protection grade. Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014. Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
| Products Name | MSPV/12-1 Combiner Box DC |
| Electric parameter | |
| System maximum dc voltage | 1000/1200v |
| Maximum input current for each string | 15A |
| Maximum inputs strings | 12 |
| Maximum output switch current | 180A |
| Number of inverter MPPT | 1 |
| Number of output strings | 1 |
| Lightning protection | |
| Category of test | 2 grade protection |
| Nominal discharge current | 20kA |
| Maximum discharge current | 40kA |
| Voltage protection level | 3.8kV |
| Maximum continuous operating voltage Uc | 1050V |
| Poles | 3P |
| Structure characteristic | Plug-push module |
| System | |
| Protection grade | IP65 |
| Output switch | DC isolator switch(standard)/DC circuit breaker(optional) |
| MC4R waterproof connectors | Standard |
| PV DC fuse | Standard |
| PV surge protector | Standard |
| Monitoring module | Optional |
| Preventing diode | Optional |
| Box material | PVC |
| Installation method | Wall mounting type |
| Operating temperature | -25ºC-+55ºC |
| Elevation of temperature | 2000m |
| Permissible relative humidity | 0-95%, no condensation |
| Mechanical parameter | |
| Width*High*Depth | 640mm*450mm*180mm |
