Secure Outdoor Stainless Steel Photovoltaic and Net Cage for Energy Systems with Waterproof Seal, 400X650X180mm

Product Description

Product Description

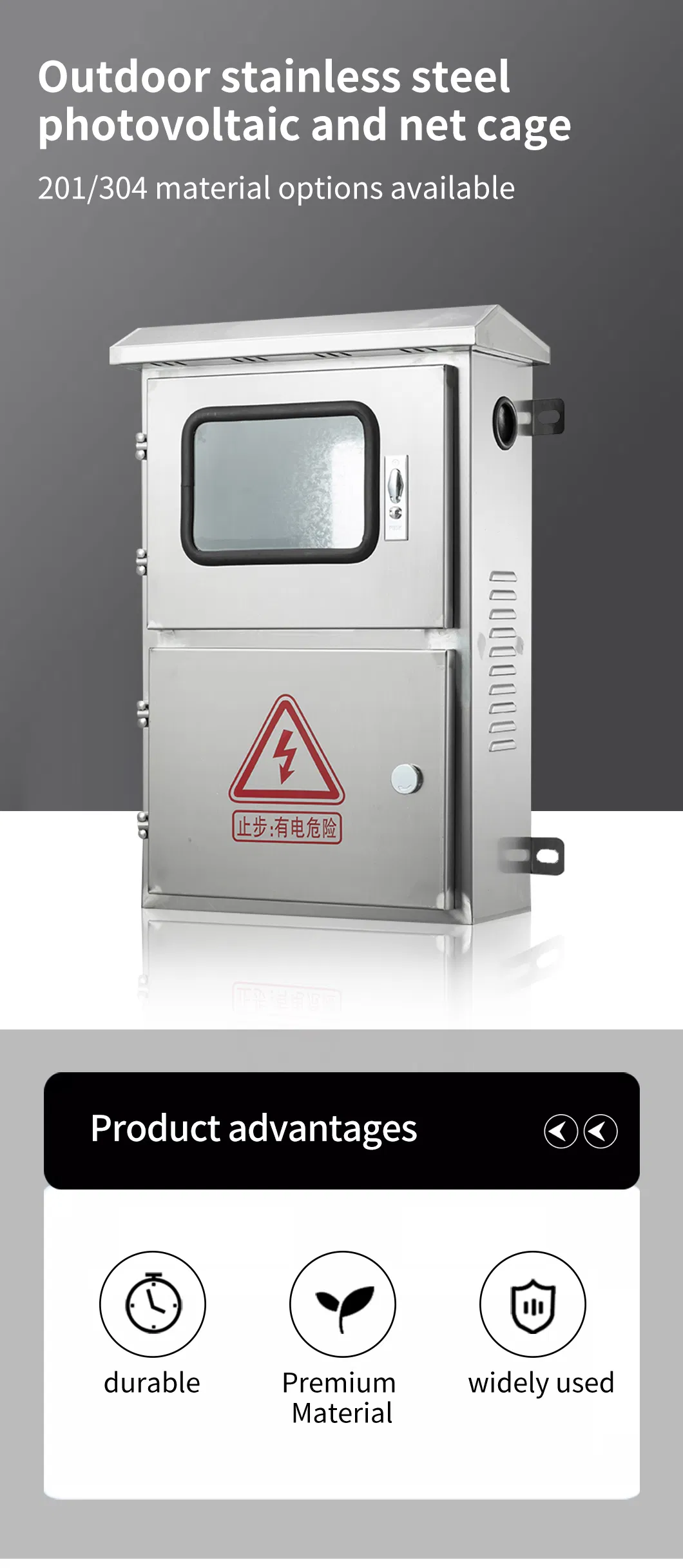

Secure Outdoor Stainless Steel Photovoltaic and Net Cage for Energy Systems with Waterproof Seal
Photovoltaic System Specifications Detail

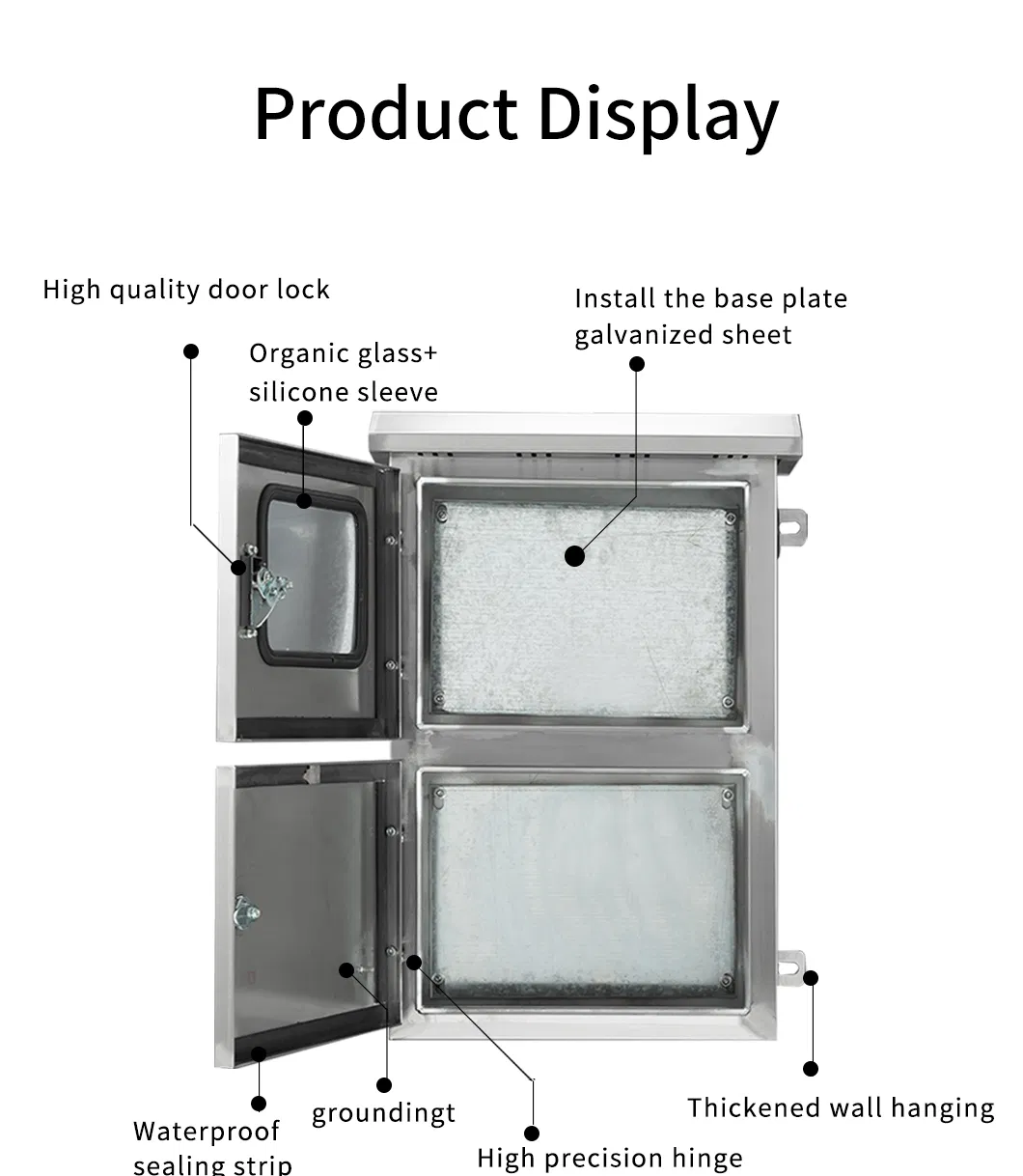

Waterproof Seal and Build Structure

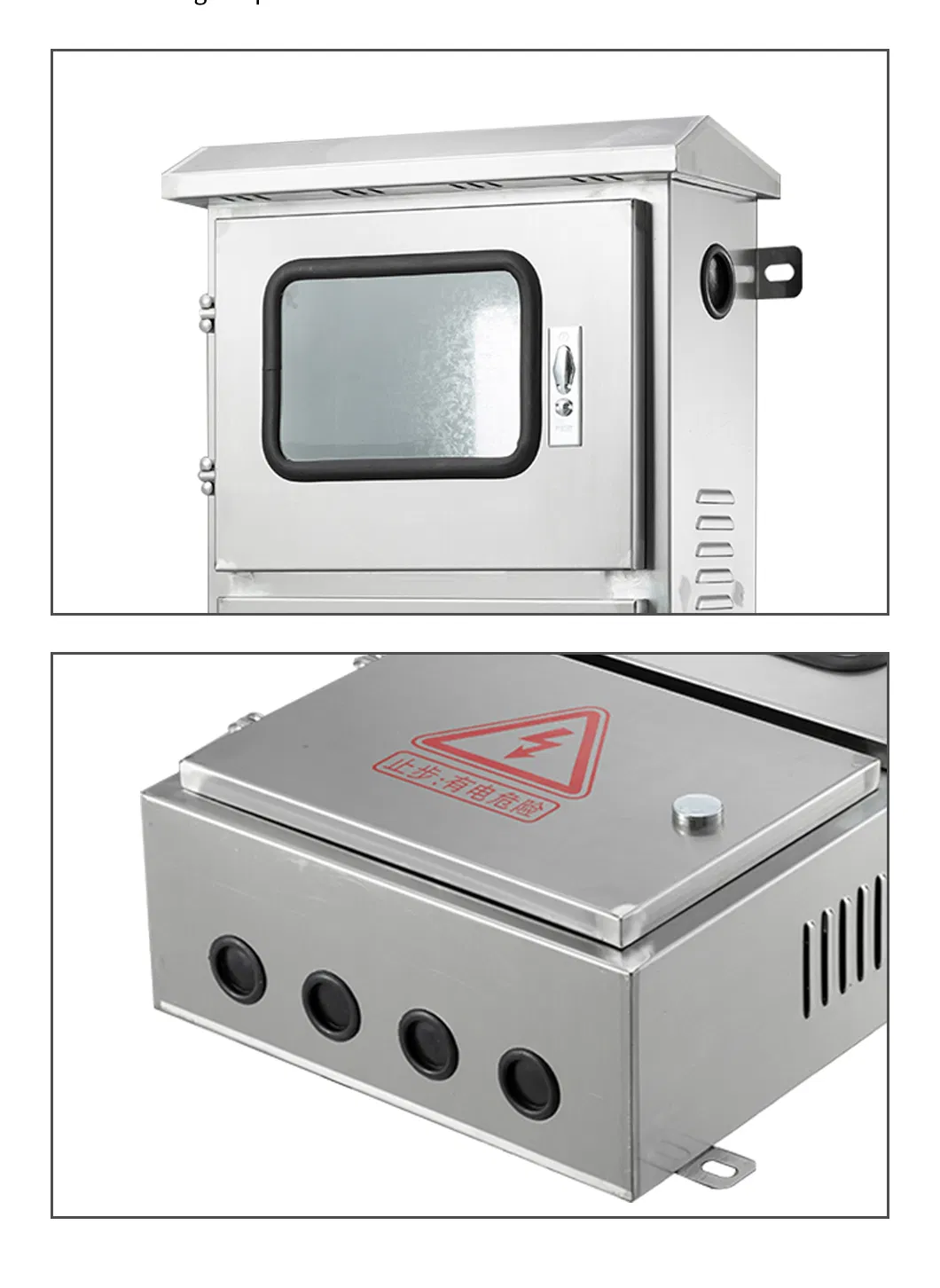

Stainless Steel Net Cage Construction

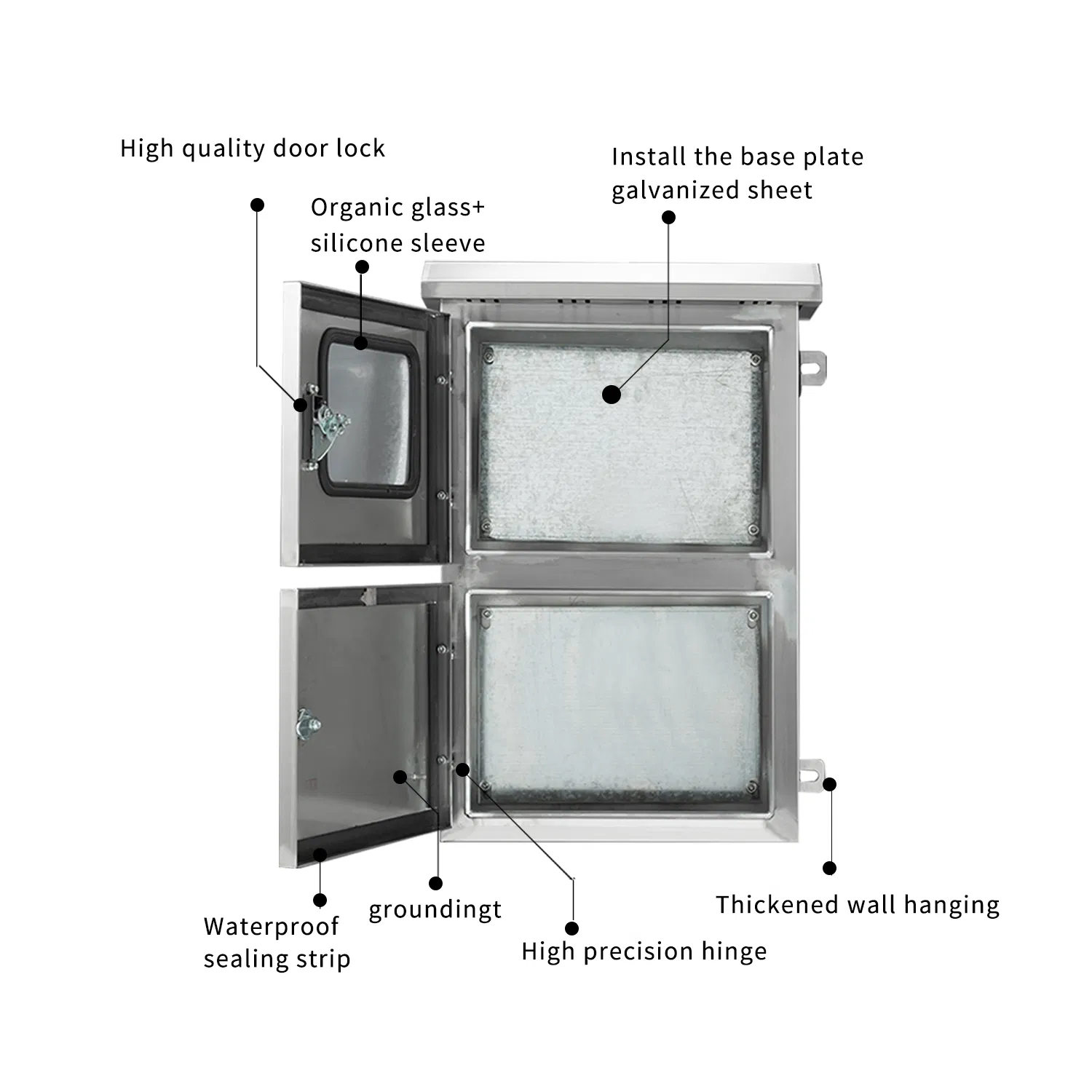

Photovoltaic Enclosure Internal Layout
Secure Outdoor Net Cage Dimensions
Model No. External Dimensions (W x H x D, mm) Key Design Features Material Protection Rating

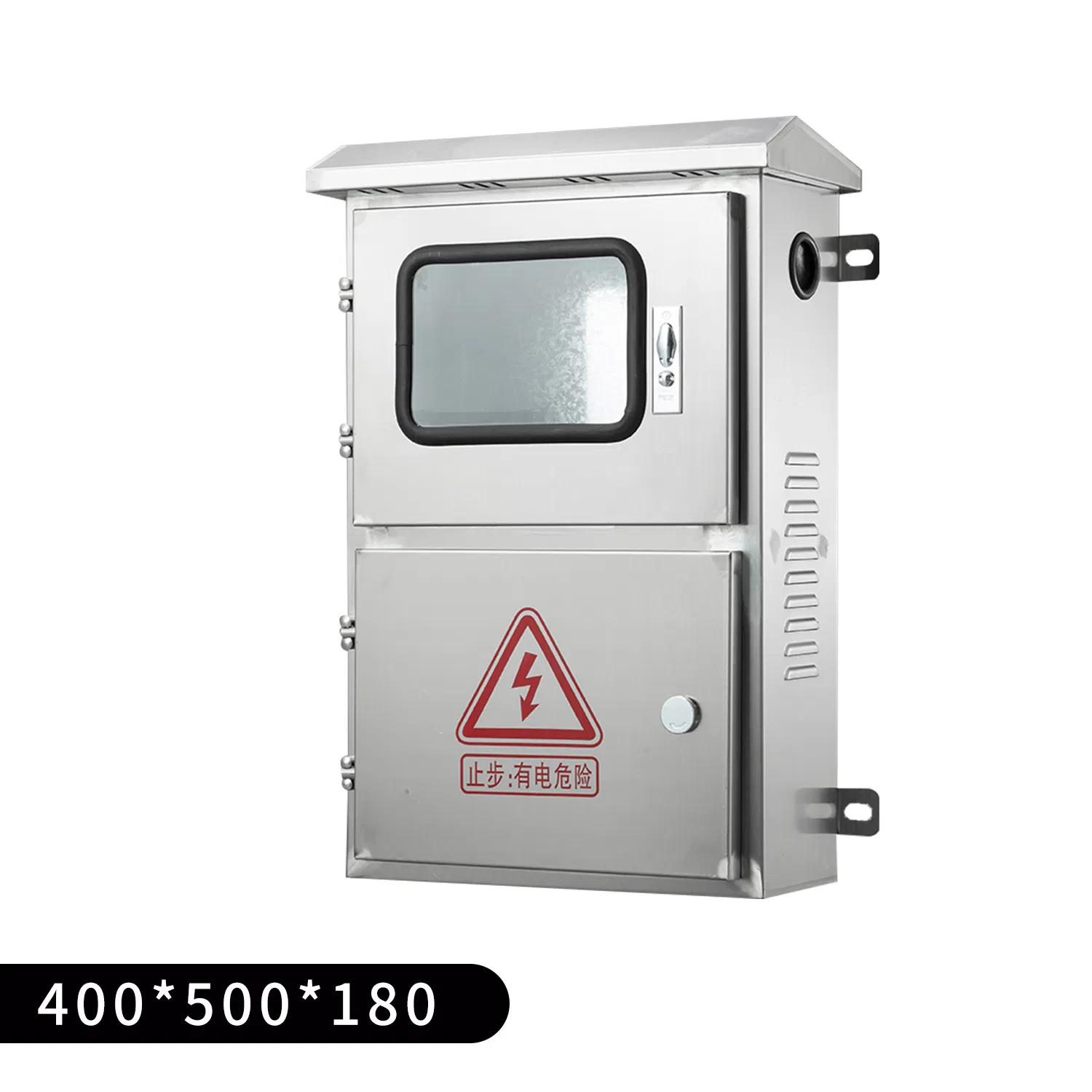

JXF-PV-4050018 400 x 500 x 180 Compact design for small residential PV systems SUS 304 IP65
JXF-PV-4065018 400 x 650 x 180 Taller version for string combiners with surge protection SUS 304 IP65
JXF-PV-5075018 500 x 750 x 180 Medium capacity for commercial PV string monitoring & AC/DC distribution SUS 304 IP65
JXF-PV-6080020 600 x 800 x 200 Full-size cabinet for inverter integration & grid connection SUS 304 IP65

Main Products

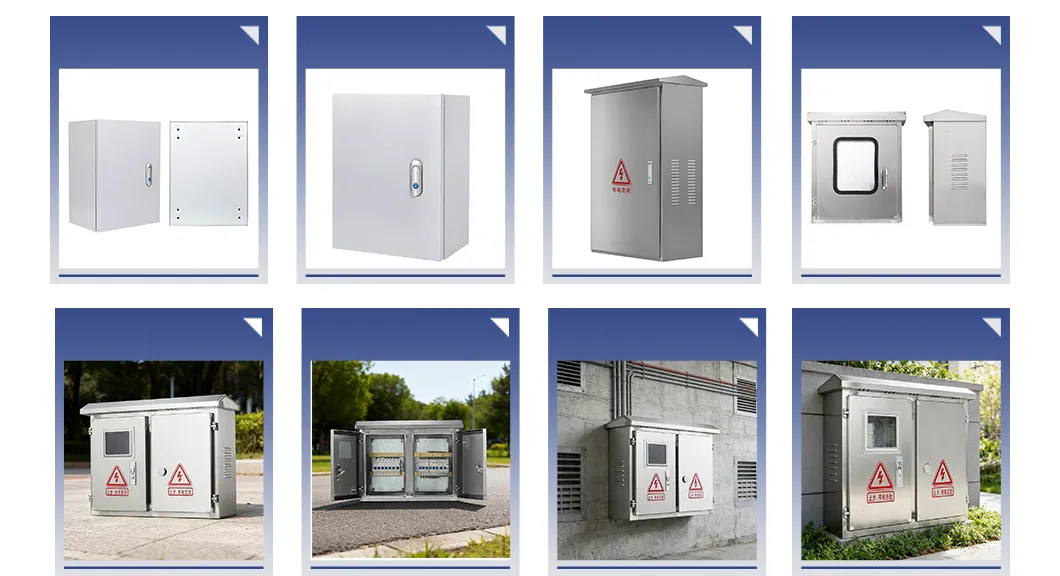

Main Power Distribution Products Range

Company Profile

Manufacturing Plant and Production Facilities

We have been deeply engaged in the power and electrical field, specializing in the research and development, production, customization and integrated engineering services of high-end power distribution equipment. We are committed to providing safe, reliable, efficient and energy-saving overall power system solutions for customers in multiple fields such as new energy power generation, industrial manufacturing and infrastructure construction.

Our core product range includes: high and low voltage distribution cabinets, complete distribution boxes, photovoltaic grid connection boxes/cabinets, photovoltaic prefabricated cabins, photovoltaic energy storage complete equipment, box-type substations and other full series of power distribution equipment. All products strictly follow domestic and international authoritative standards such as GB and IEC, and have undergone rigorous performance tests and quality control to ensure stable operation under complex working conditions, providing a solid core support for the safe and efficient operation of power systems.

In the field of new energy, relying on profound technical accumulation and rich project experience, we provide an integrated solution from photovoltaic grid connection equipment to energy storage systems for the entire life cycle of photovoltaic power stations, covering the modular design of photovoltaic prefabricated cabins and the integrated research and development of photovoltaic energy storage equipment. It can precisely match the grid connection and energy storage needs of photovoltaic power stations of different scales, helping new energy projects achieve efficient grid connection, stable energy storage and economic operation.

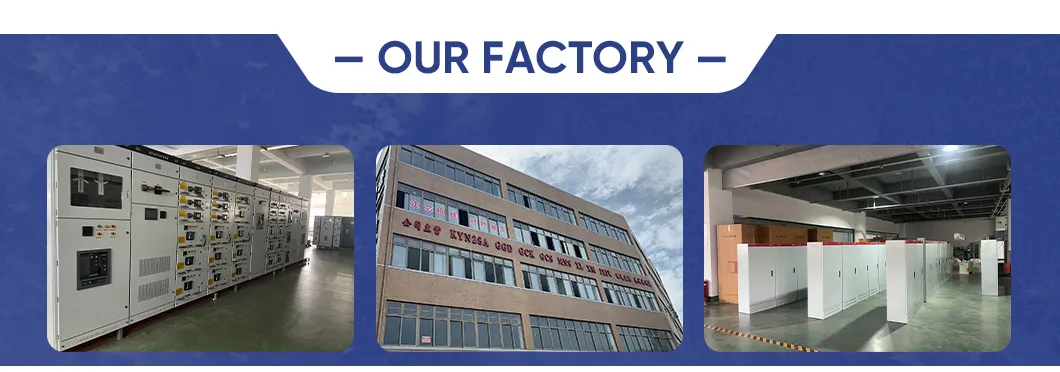

Advanced Production Line Equipment

Certifications

Quality Compliance and Industrial Certifications

Packaging & Shipping

Secure Packaging and Global Shipping Preparation

Exhibition

Trade Show and Industry Exhibition Highlights

Frequently Asked Questions

Q1 Is a stainless steel meter box never going to rust?
Not absolutely rust-proof. Stainless steel relies on a passive film to prevent rust; corrosion may occur if the film is damaged or in harsh environments. Selection recommendation: For inland areas, choose 304 stainless steel; for high-corrosion environments like coastal or industrial areas, choose 316/316L stainless steel.
Q2 How to determine if the purchased stainless steel meter box is made of genuine 304/316 material?
Three reliable identification methods:
  • Magnet test: 304/316 stainless steel is mostly non-magnetic—strong magnetic attraction indicates inferior quality.
  • Request a formal material test report from the manufacturer.
  • Check surface smoothness and weld uniformity for premium craftsmanship.
Q3 What protection rating should be chosen for an outdoor-installed meter box?
Select the protection rating according to your deployment environment:
  • Ordinary outdoor use requires at least IP54.
  • For rainy or spray-prone areas, choose IP55/IP65.
  • For high-pressure washing or dusty areas, select IP66 or higher. This default model is rated IP65, suitable for most outdoor environments.
Q4 What should be noted during the installation of outdoor stainless steel meter boxes?
Important installation pointers:
  • Choose a location that is shaded, vibration-free, away from flammable materials, and easy to access for maintenance.
  • The bottom of the box should be positioned at least 1.8 meters above ground level.
  • Install vertically, protect incoming and outgoing wires, seal any gaps, and ensure reliable grounding for the metal box structure.
  • Confirm parameters such as cut-out dimensions and spacing requirements in advance.
Q5 How to select the correct size of the meter box?
Size selection guidelines: Choose standard single-meter size for single households; for multiple households, select based on the total number of users while reserving 2-3 extra slots for future expansion. Choose a model with ample internal depth and clearance space if additional monitoring components need to be integrated. Consult customer support with your detailed requirements for precise selection.
Q6 Are custom designs and specifications available for specialized engineering needs?
Yes. We specialize in the research, development, production, and customization of high-end power distribution equipment. We can customize dimensions, layouts, internal distribution systems, and specific IP ratings to match the unique requirements of your new energy power generation or infrastructure projects.
