PV combiner box in the on grid solar system
PV combiner box in the off grid solar system
PV combiner box in the solar pump system
1

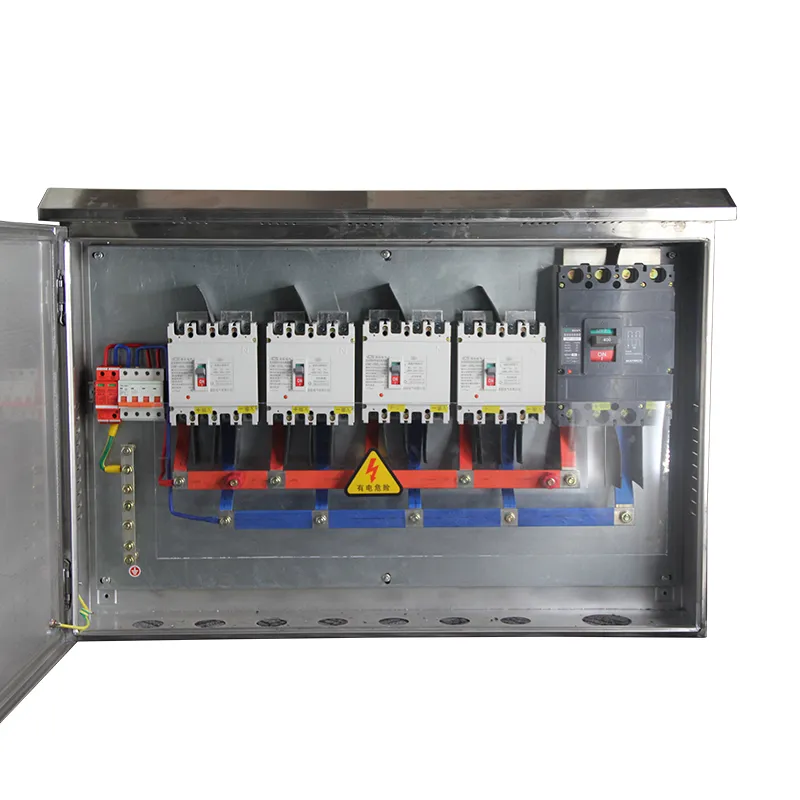

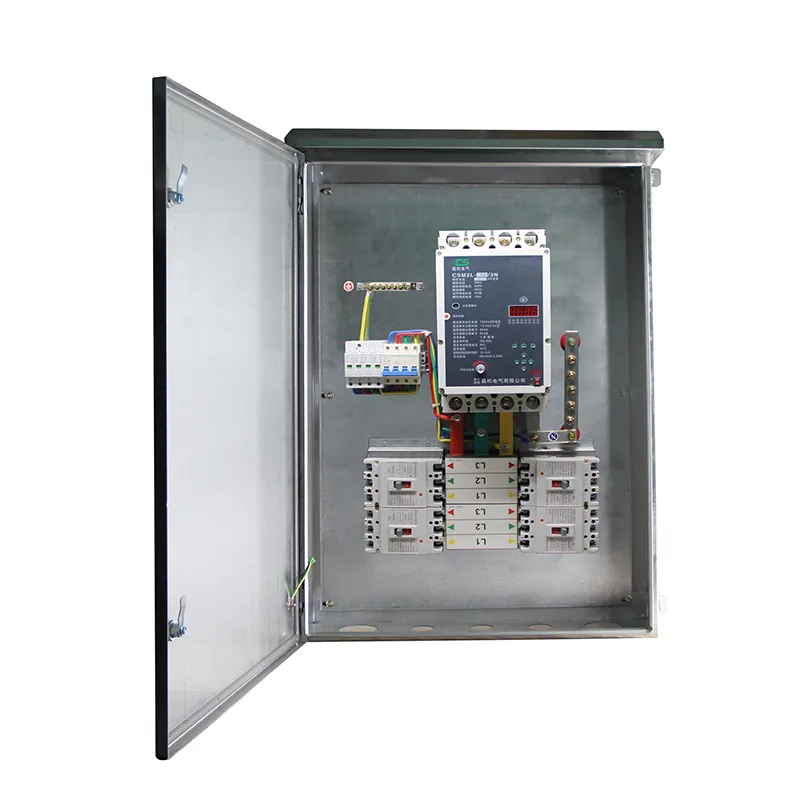

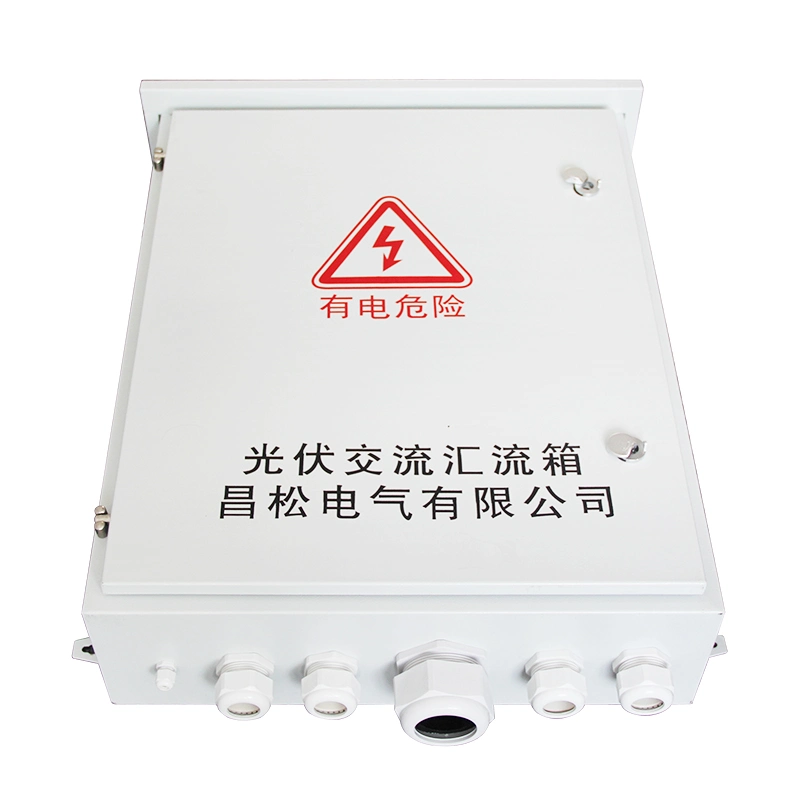

In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system structure, improving the safety and reliability of items, the PV combiner box is usually in need between the solar panels and inverter.
2
Except the PV junction function, the pc combiner box should also have reverse current prevention, over-current protection, over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection, leakage detection (optional) and so on.
3
The PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.
4

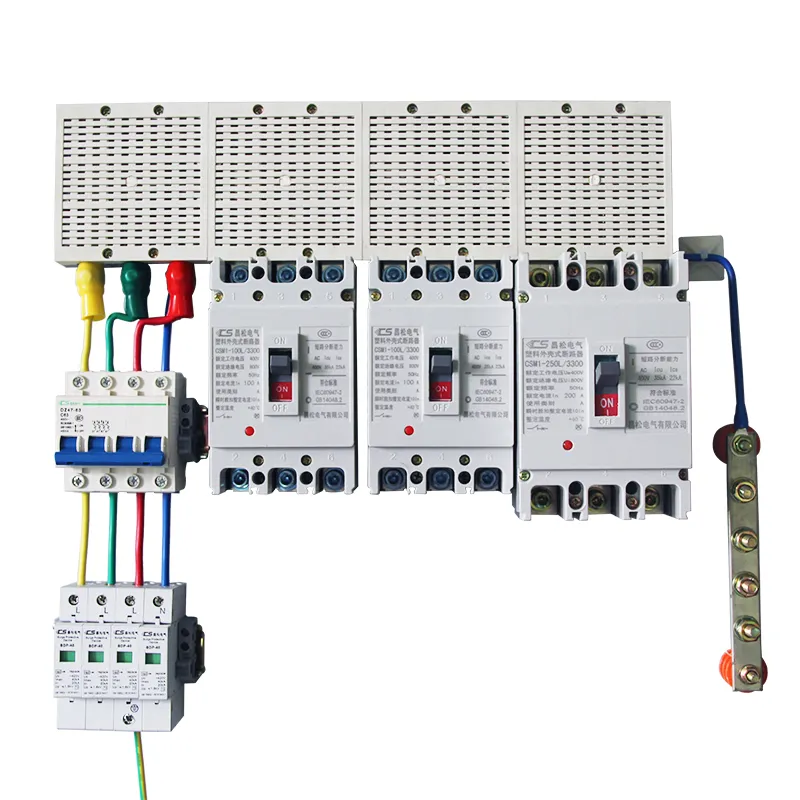

When choose the pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.
✓
Conform to CGC/GF002:2010, PV Array Junction Box Technical Specifications.
✓
Allowable maximum 24 strings panels to connect, Nominal voltage of each string is 10A, maximum 15A.
✓
Total output current is 250A, the maximum voltage is 1000Vdc.
✓
For each string, high voltage fuse protection and anti-connection protection.
✓
Equipped with pv high voltage arrester protection.
✓
PV high voltage circuit breaker control the output, pressure-resistant DC1200V, fusing current is optional.
✓

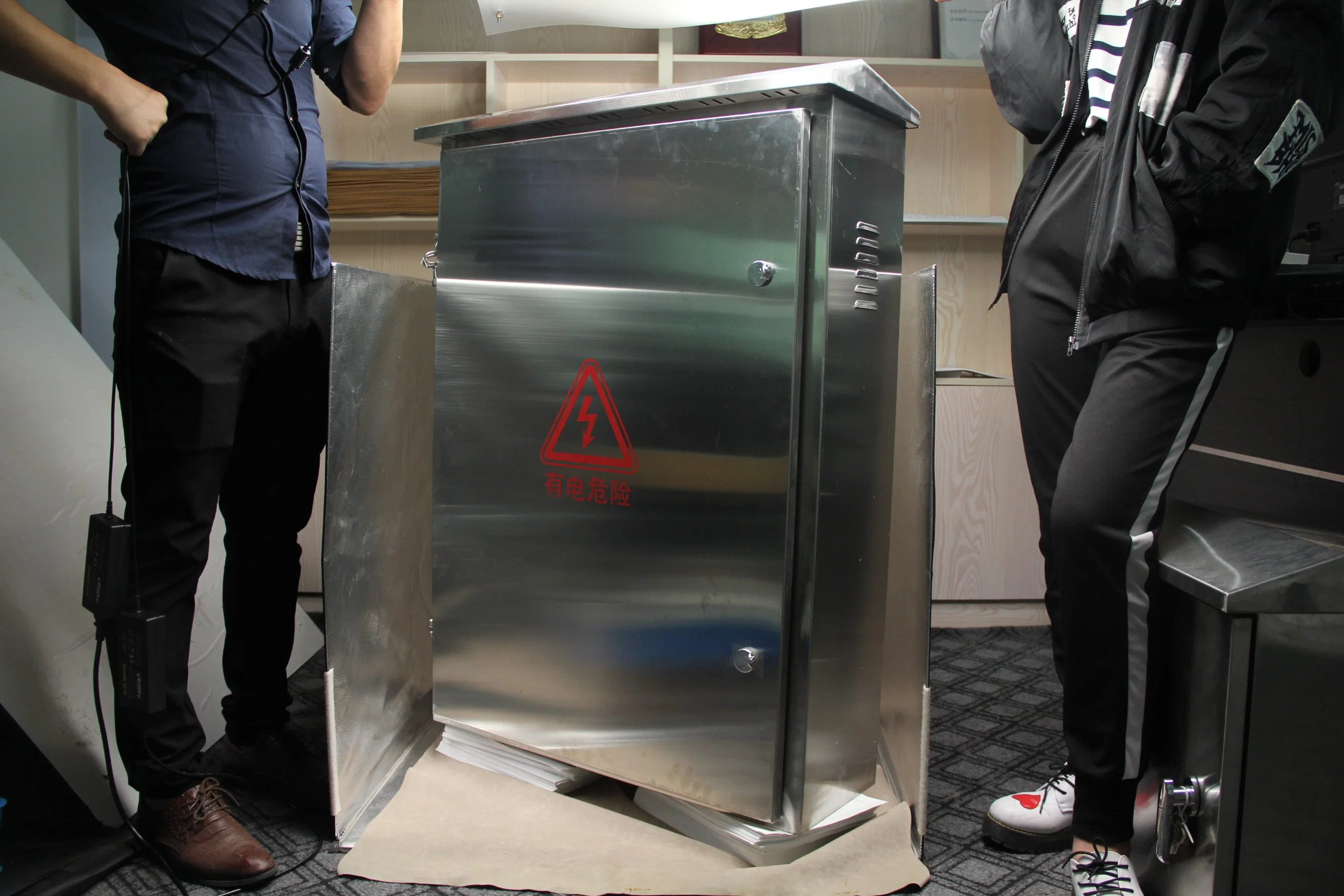

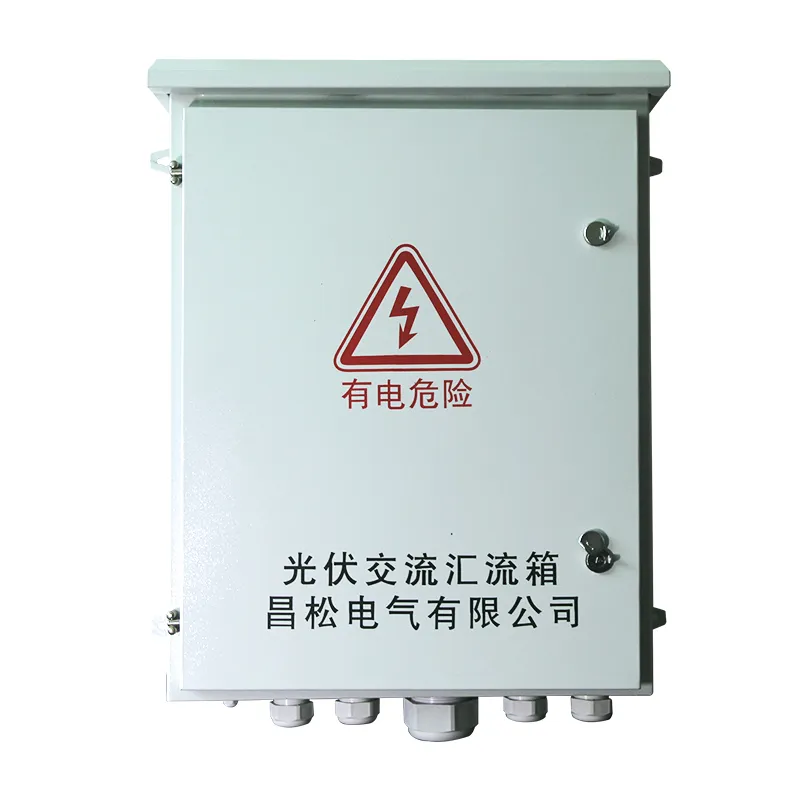

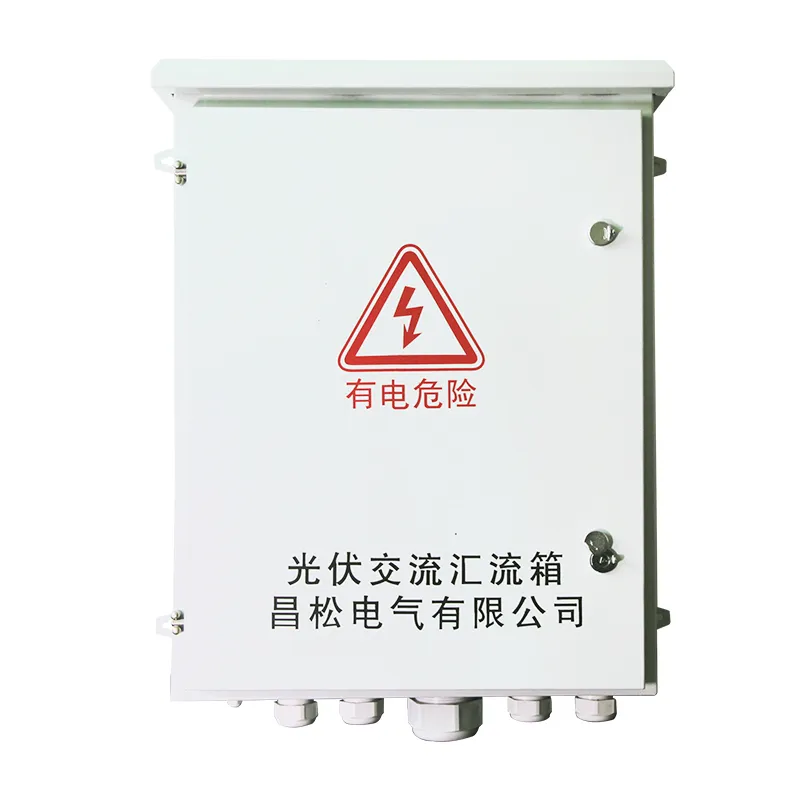

In line with outdoor installation, protection class IP65.
✓
Isolate RS485 port used for remote data communication, support MODBUS-RTU protocol.
✓
Built-in comprehensive protection alarm function, not only the various of alarm parameters are programmable set, but also each alarm function can be set "On" Or "Off".
✓
Real-time the harmful arc in the DC circuit, once there is the harmful arc, alarm will work and directly make the trip switch and cut off fault circuit, accordingly, prevent the fire disaster etc from the arc.
Frequently Asked Questions
Q:
What is the primary function of this PV combiner box in a solar power system?
The PV combiner box converges multiple solar panel strings to simplify connecting lines, ease maintenance, reduce power losses, optimize system structure, and improve safety and reliability between the solar panels and the inverter.
Q:
What protection features are built into this solar junction box?
This unit offers comprehensive protection, including reverse current prevention, over-current protection, over-voltage protection, lightning protection, DC circuit breaker control, and advanced DC arc detection to prevent electrical fires.
Q:
Can this PV combiner box be installed outdoors?
Yes, this combiner box is designed for outdoor installation with an IP65 protection rating, ensuring it is dustproof and resistant to water jets.
Q:
Does the system support remote monitoring and communication?
Yes, it features an isolated RS485 port used for remote data communication, supporting the MODBUS-RTU protocol to monitor the status of the PV array.
Q:
What are the maximum voltage and current capacities for this combiner box?
The total output current capacity is 250A with a maximum voltage rating of 1000Vdc. It supports a maximum configuration of 24 input strings.
Q:
How does the built-in arc detection feature work?
It monitors the DC circuit in real-time. If a harmful electrical arc is detected, the alarm triggers and automatically activates the trip switch to isolate the faulty circuit and prevent fire hazards.
