Product Description

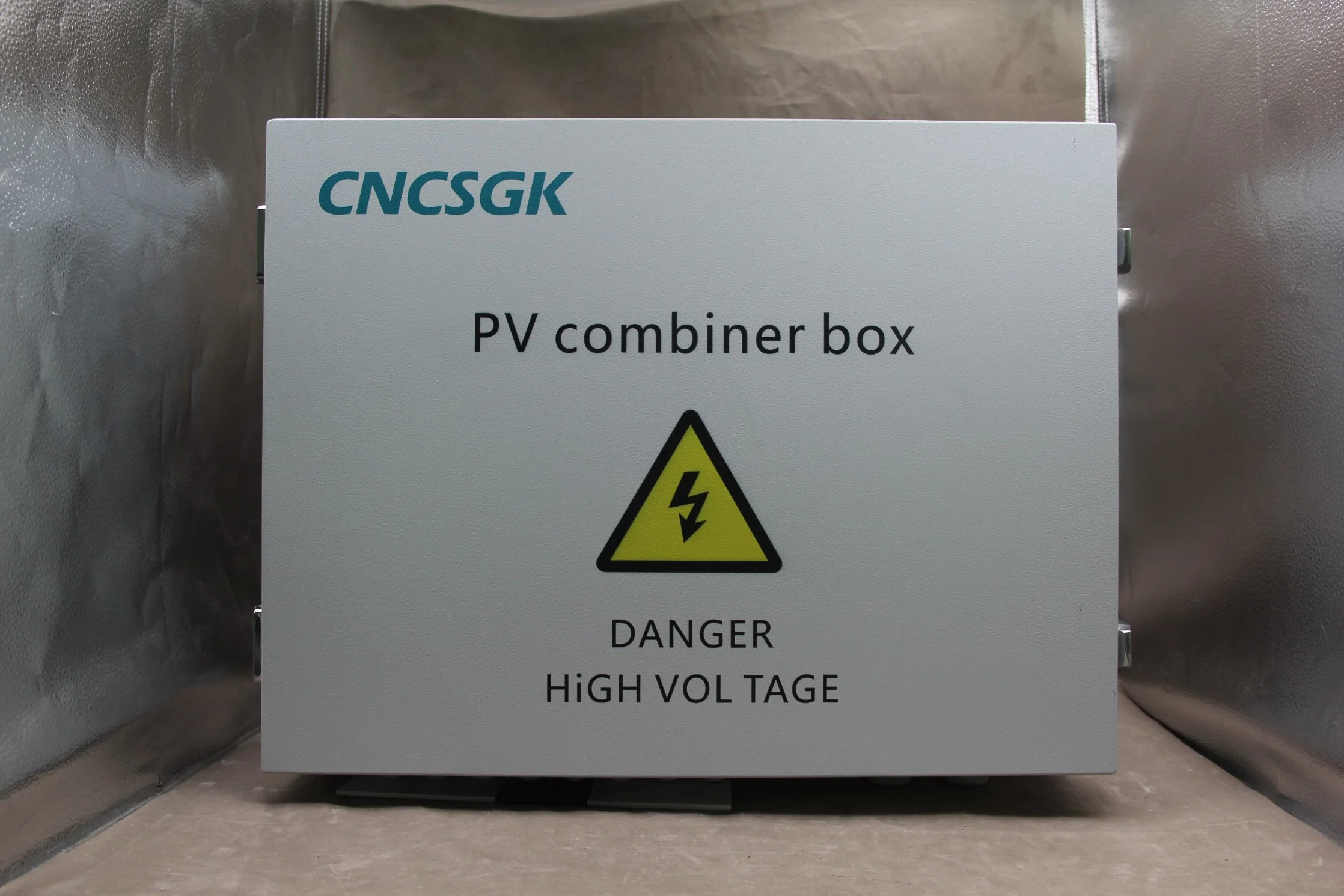

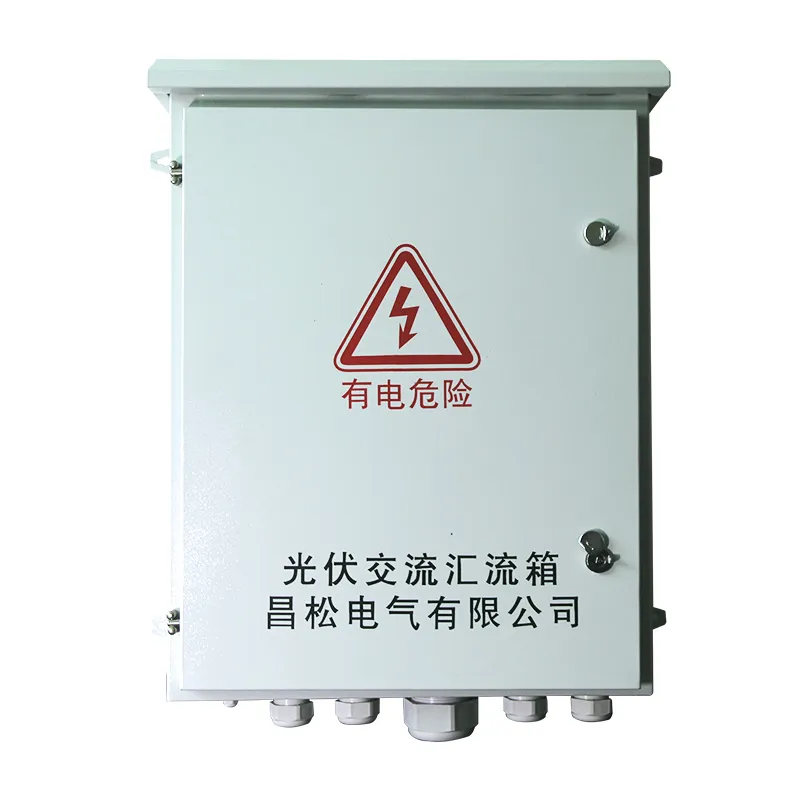

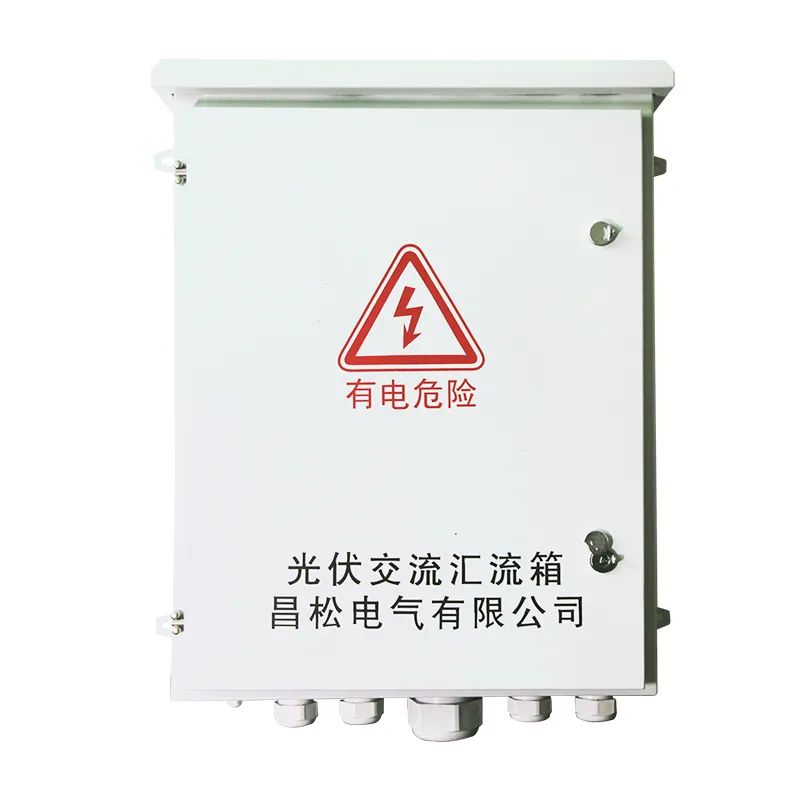

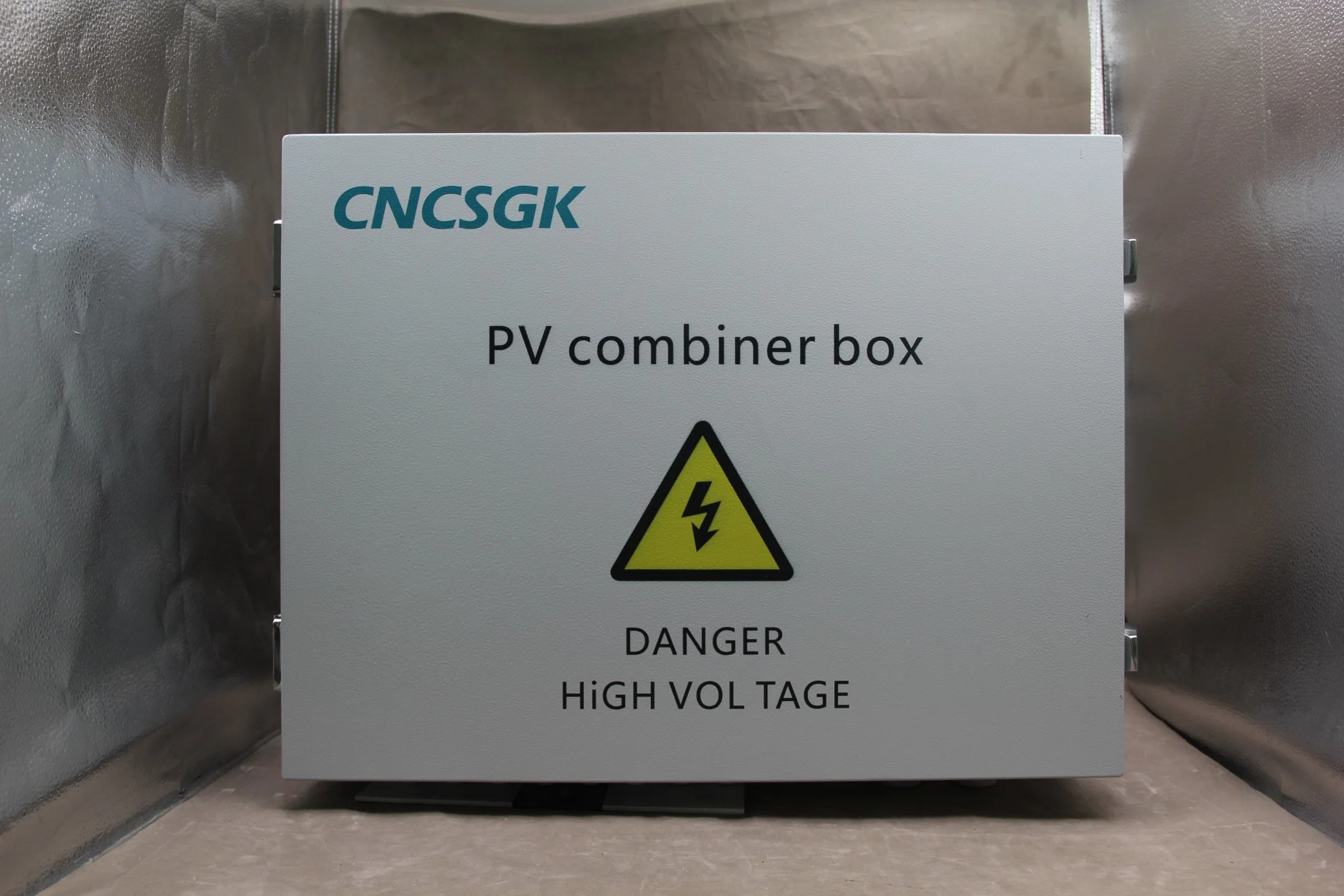

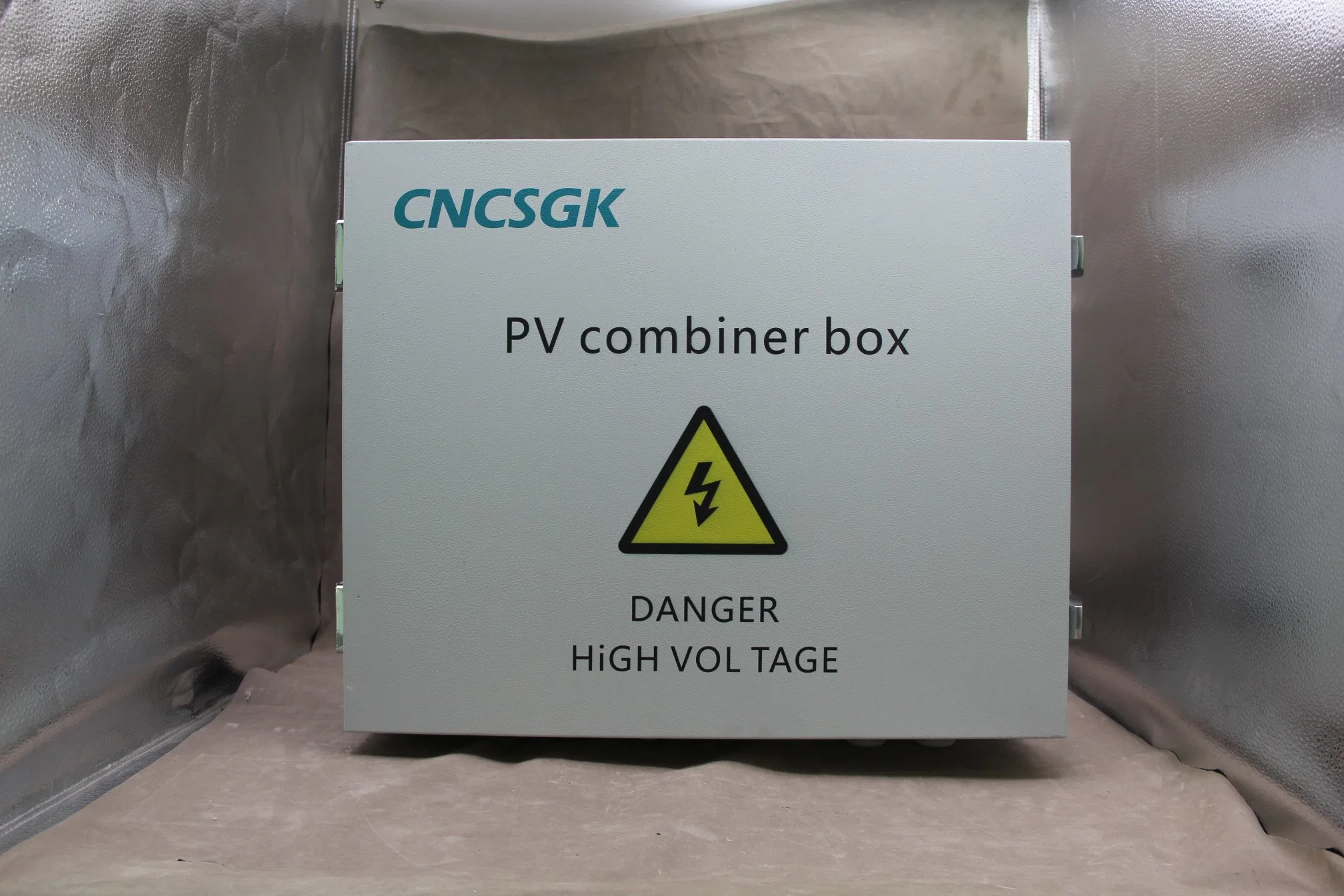

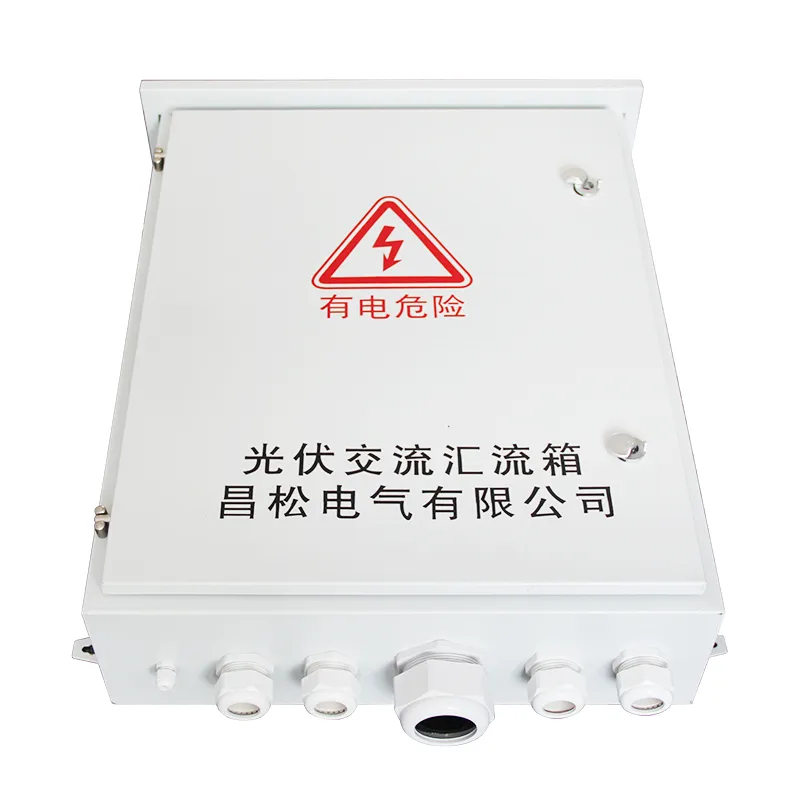

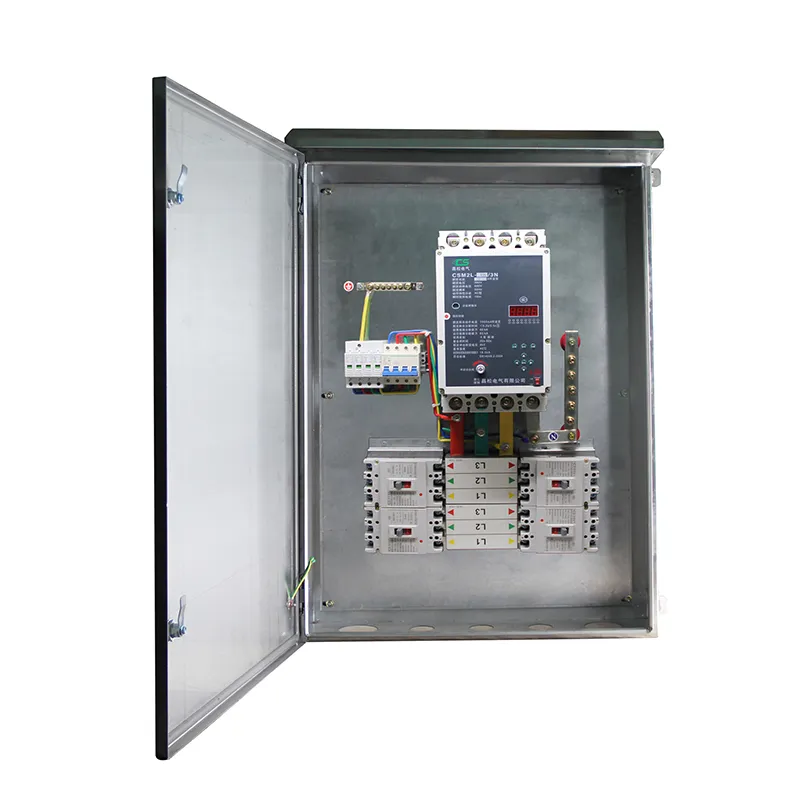

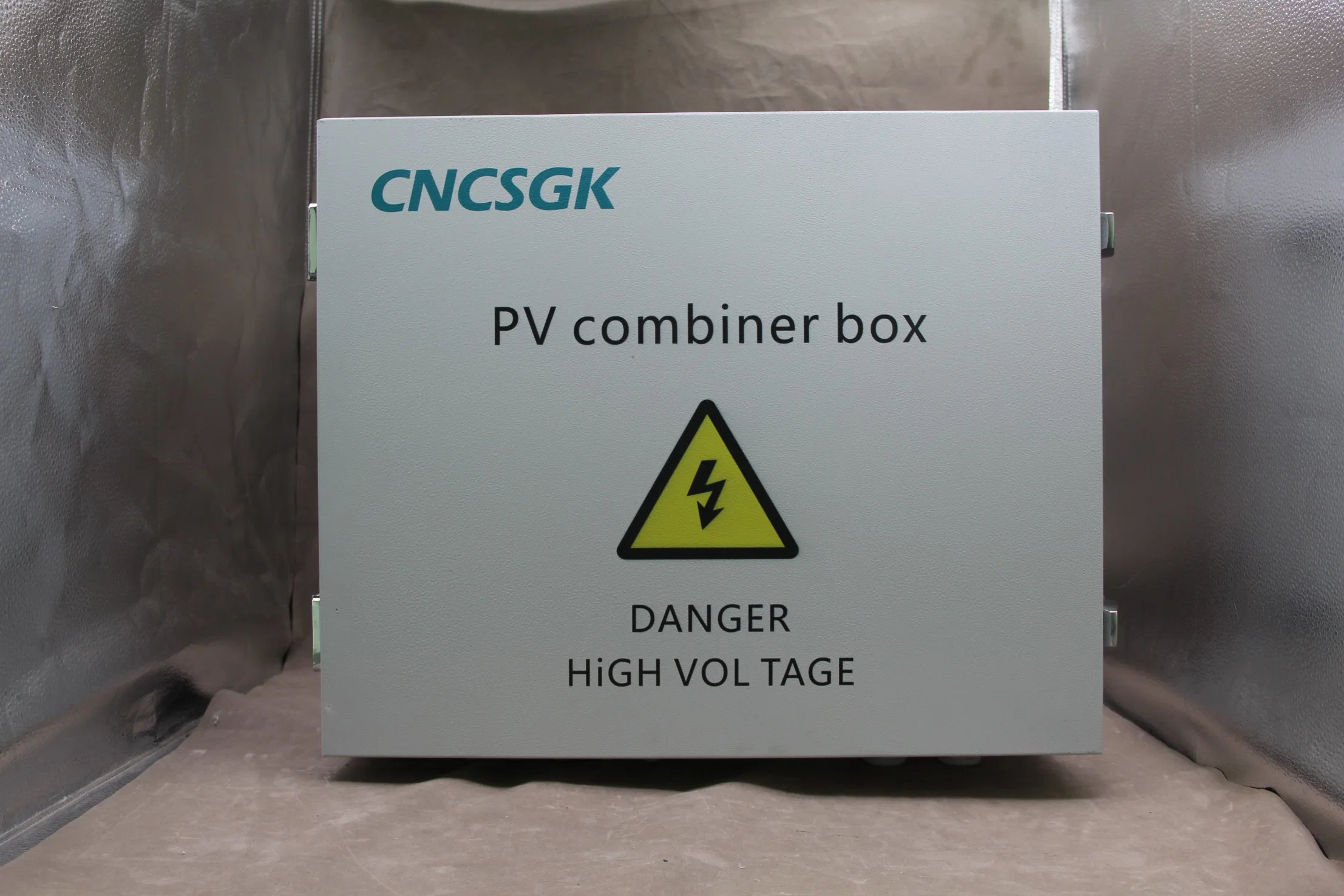

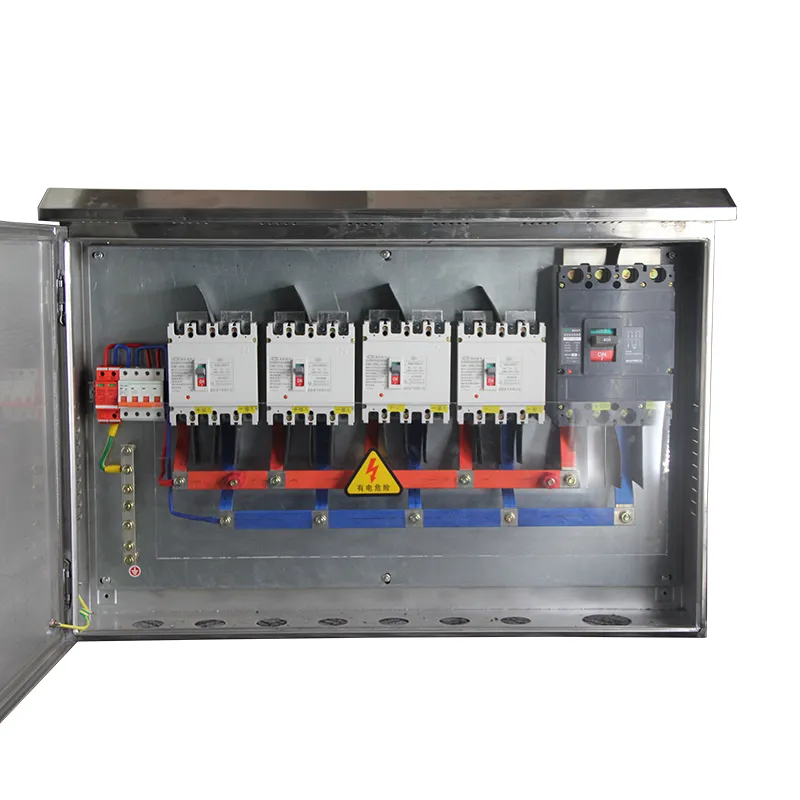

CE Approved 6 Strings Combiner Box PV Array Combiner Box 6 Into 1 Solar Junction Box

Product Introduction of 6 Strings Combiner Box PV Array Combiner Box 6 Into 1 Solar Junction Box

• 1
  In the solar power system, in order to decrease the connecting line, simplify maintenance, reduce losses, optimize system structure, and improve safety and reliability, the PV combiner box is typically required between the solar panels and the inverter.
• 2
  Beyond basic junction capabilities, the PV combiner box provides reverse current prevention, over-current protection, over-voltage protection, lightning protection, and other essential safeguard functions. It also monitors operations, including voltage, current, power collection after junction, arrester status, DC circuit breaker status, arc detection, and optional leakage detection.
• 3
  Our manufactured PV combiner box features all the functions mentioned above and configures seamlessly with both on-grid and off-grid solar inverters to establish a complete solar power system.
• 4

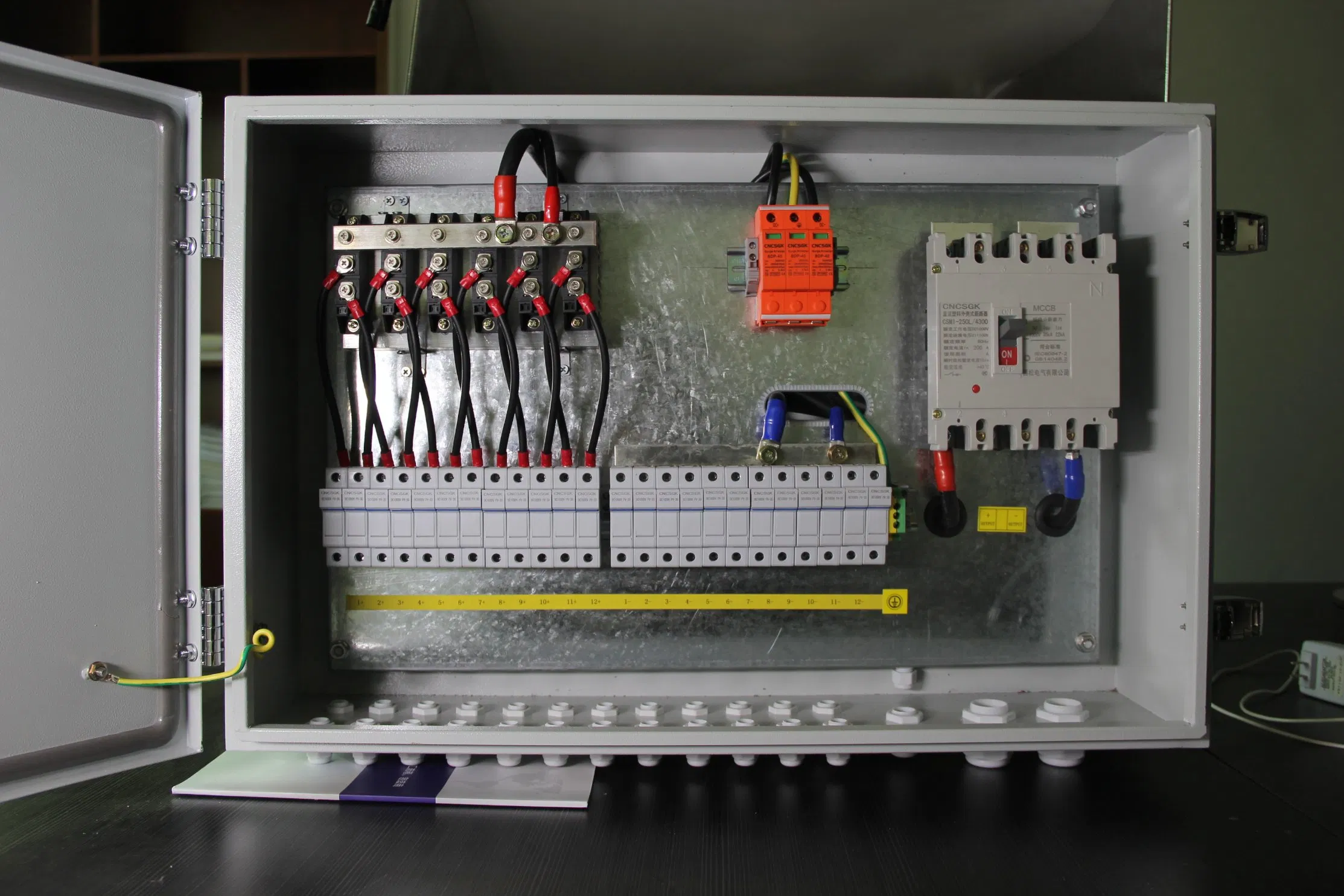

  When selecting a PV combiner box based on the input DC voltage range and output power of the inverter, a specified quantity of panels connects in series as a string. Several of these strings then connect in parallel to the PV combiner box for junction control, routed through circuit breakers and surge protection before feeding into the inverter.
