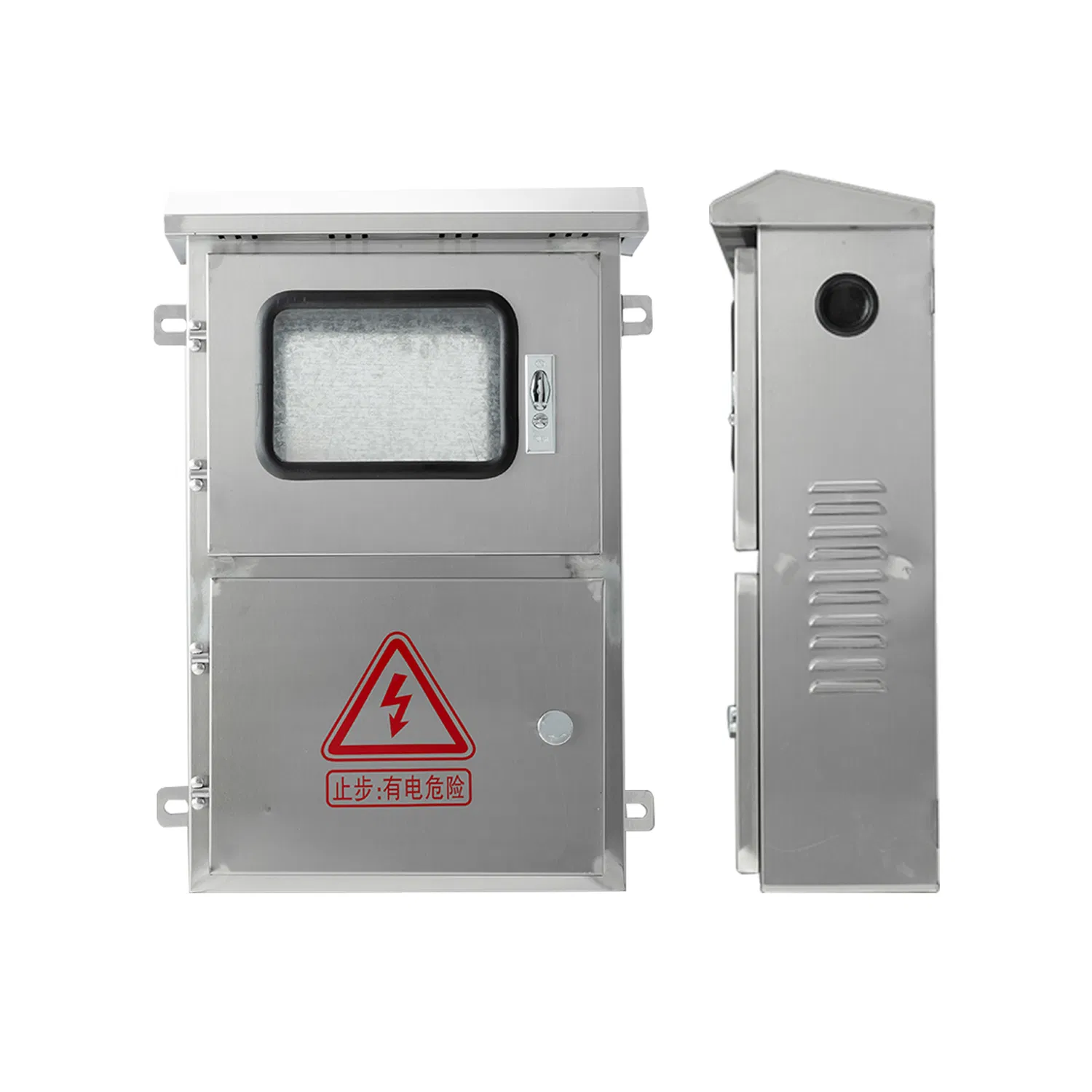

Outdoor Stainless Steel Photovoltaic and Net Cage for Secure Solar Equipment

Product Description

Outdoor Stainless Steel Photovoltaic and Net Cage for Secure Solar Equipment

Product Description

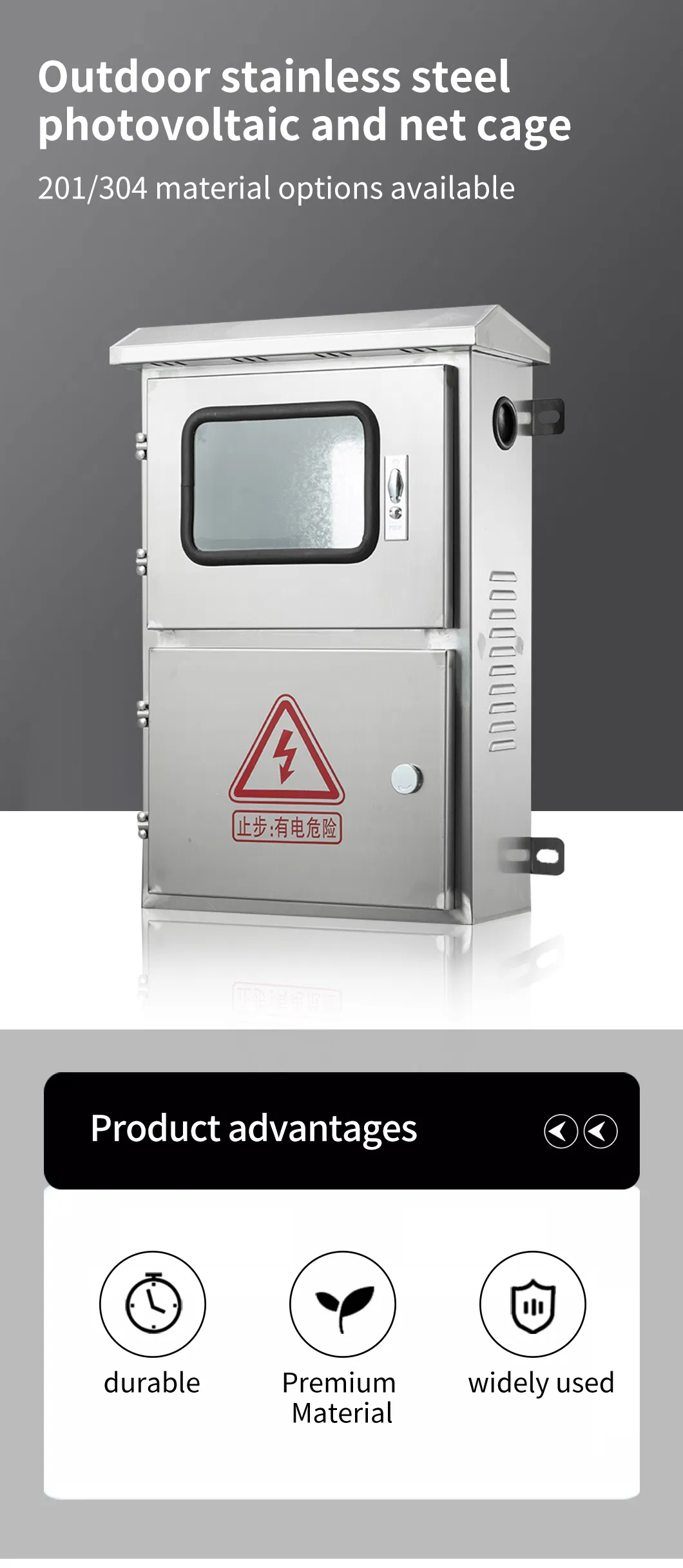

Outdoor Stainless Steel Photovoltaic and Net Cage Detail 1

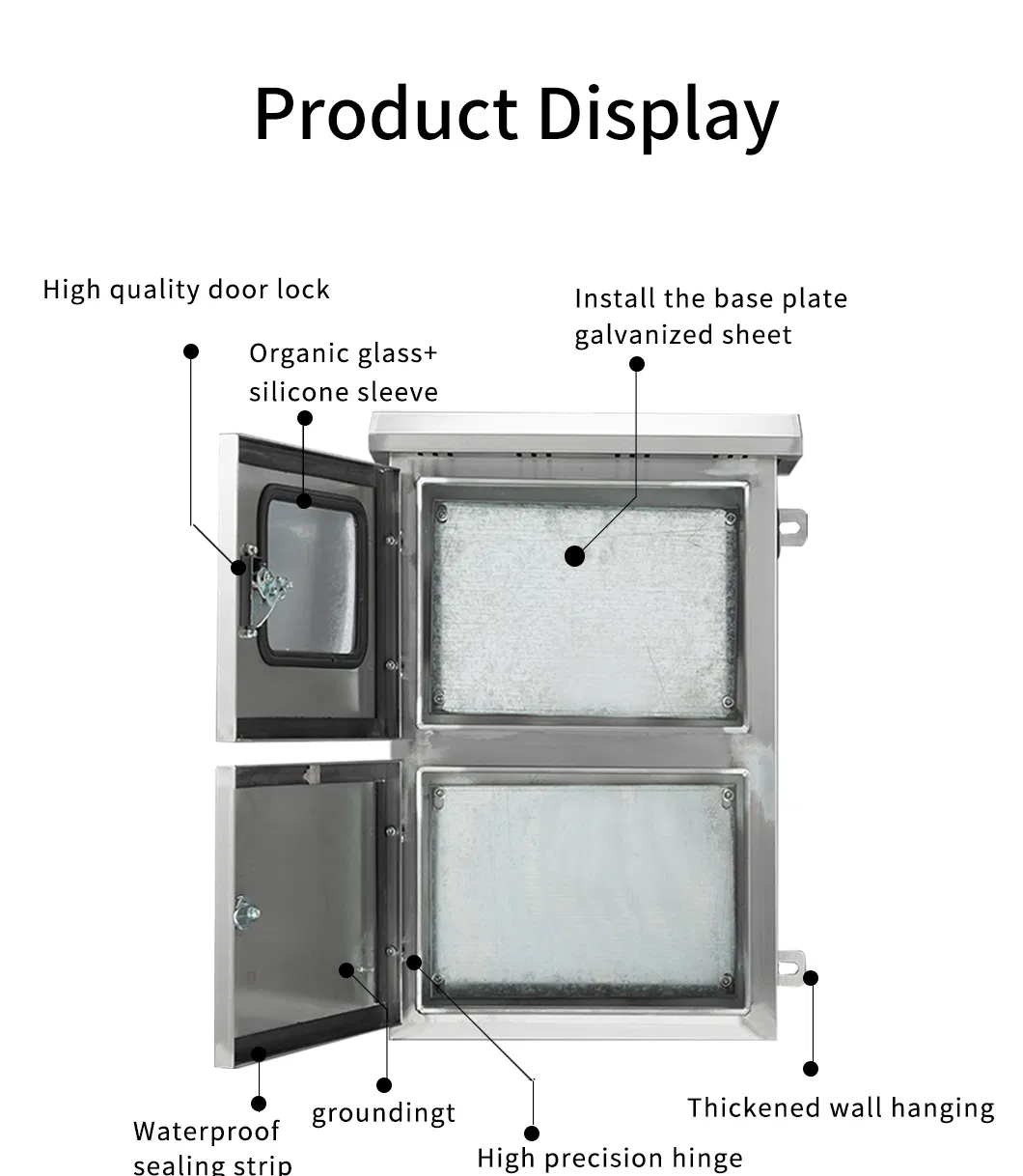

Outdoor Stainless Steel Photovoltaic and Net Cage Detail 2

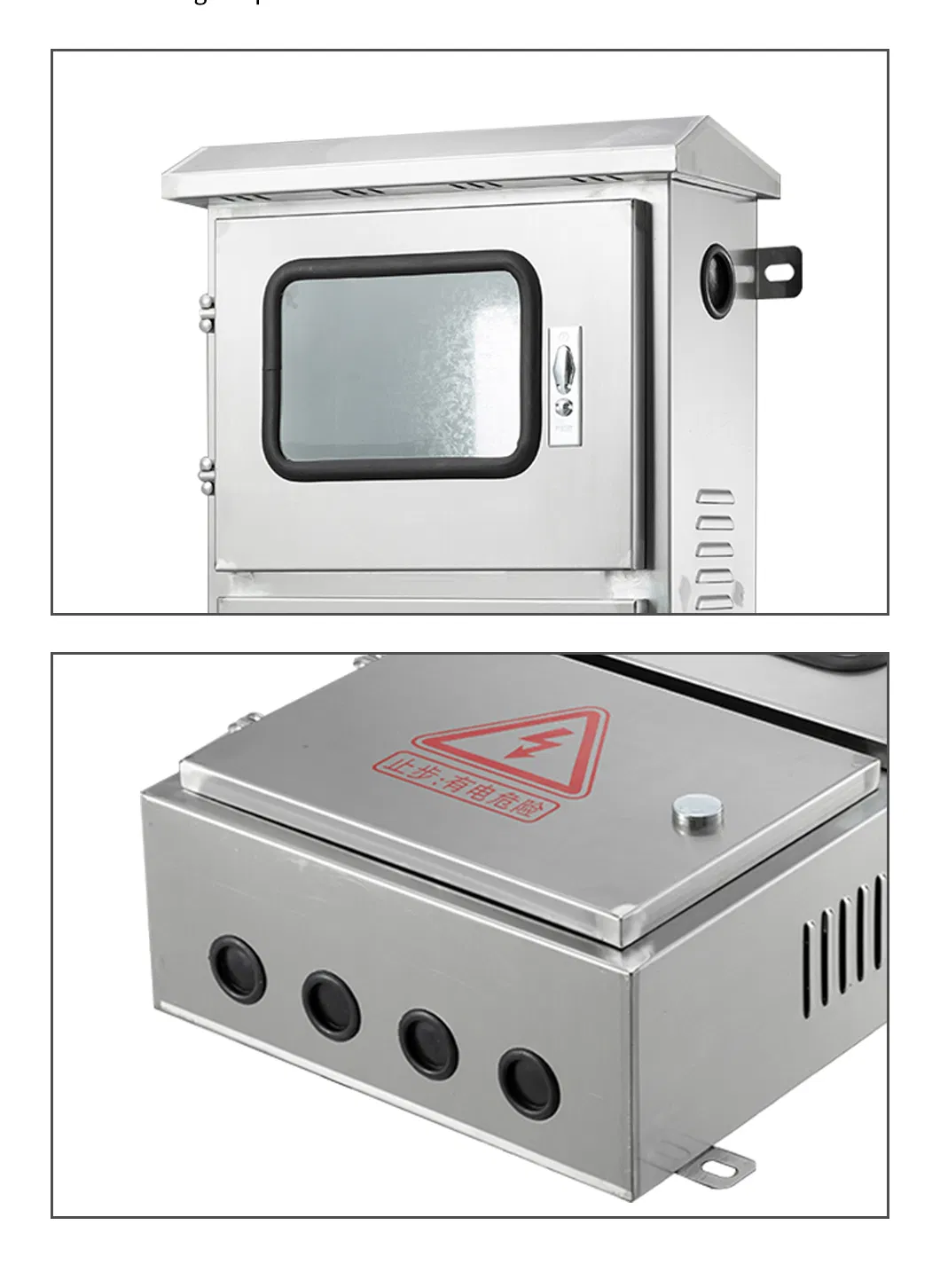

Outdoor Stainless Steel Photovoltaic and Net Cage Detail 3
Outdoor Stainless Steel Photovoltaic and Net Cage Detail 4

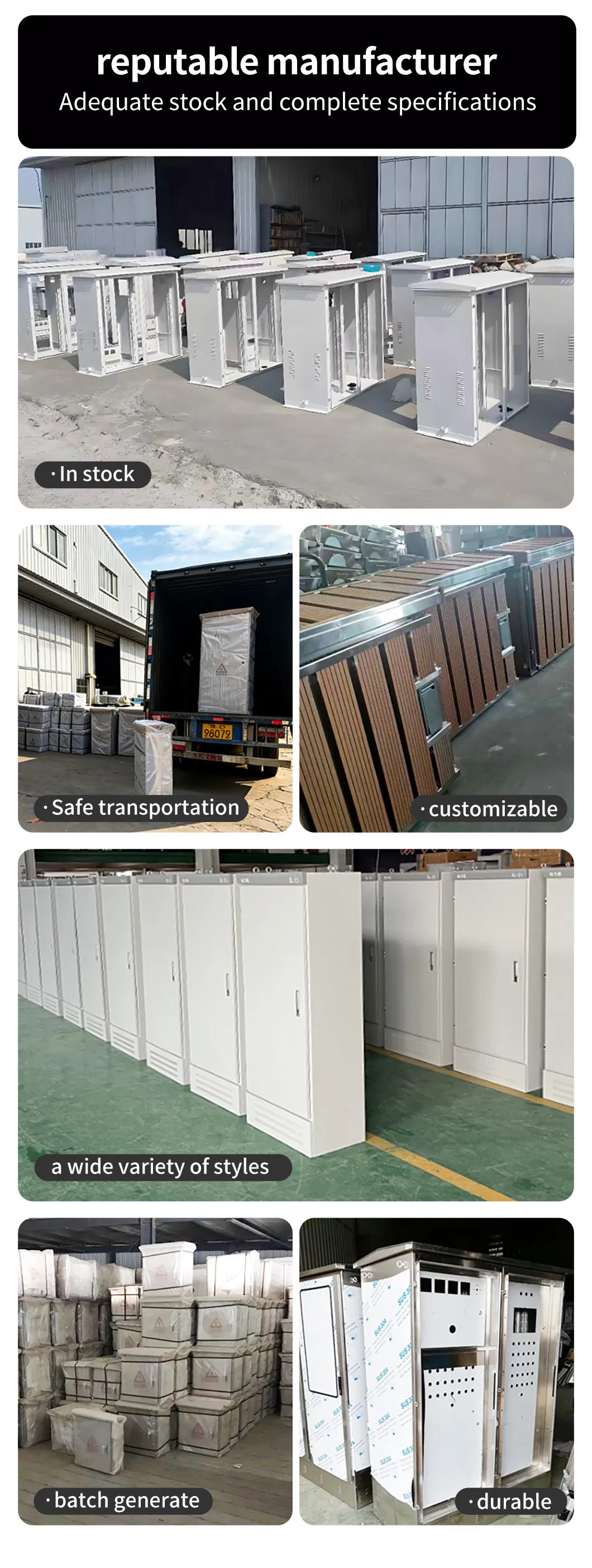

Outdoor Stainless Steel Photovoltaic and Net Cage Detail 5
Model No. External Dimensions (W x H x D, mm) Key Design Features Material Protection Rating

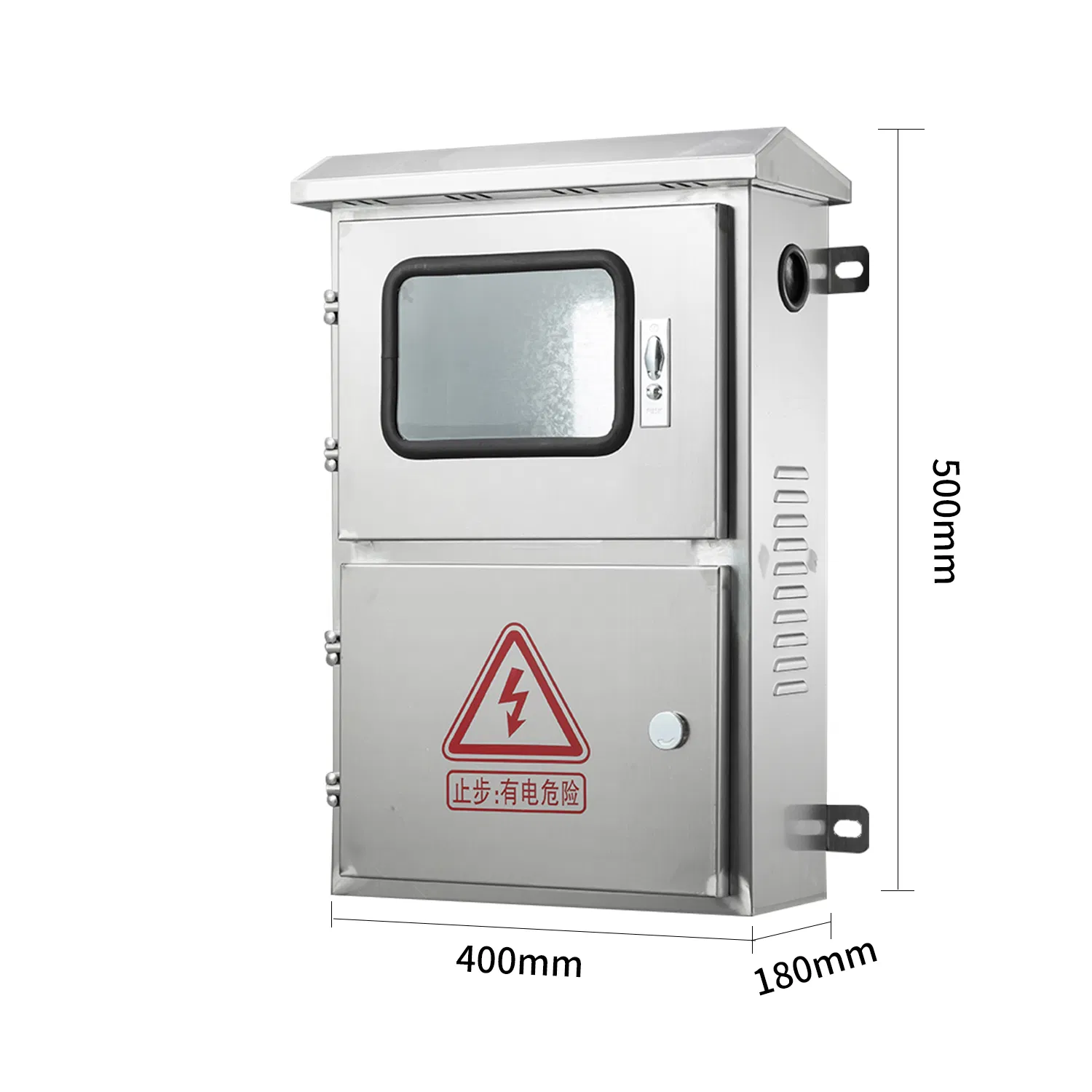

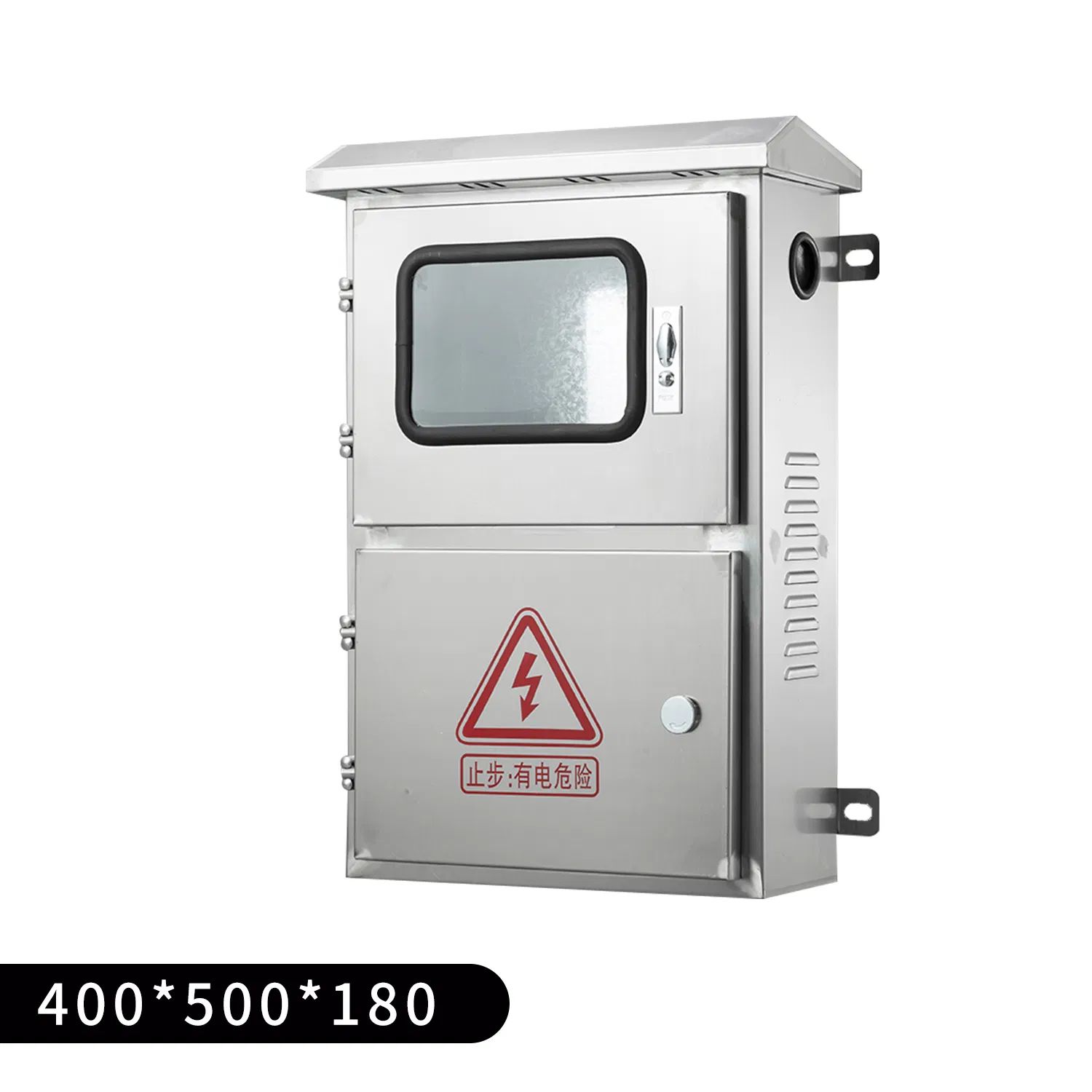

JXF-PV-4050018 400 x 500 x 180 Compact design for small residential PV systems SUS 304 IP65
JXF-PV-4065018 400 x 650 x 180 Taller version for string combiners with surge protection SUS 304 IP65
JXF-PV-5075018 500 x 750 x 180 Medium capacity for commercial PV string monitoring & AC/DC distribution SUS 304 IP65
JXF-PV-6080020 600 x 800 x 200 Full-size cabinet for inverter integration & grid connection SUS 304 IP65
🛠️

Main Products

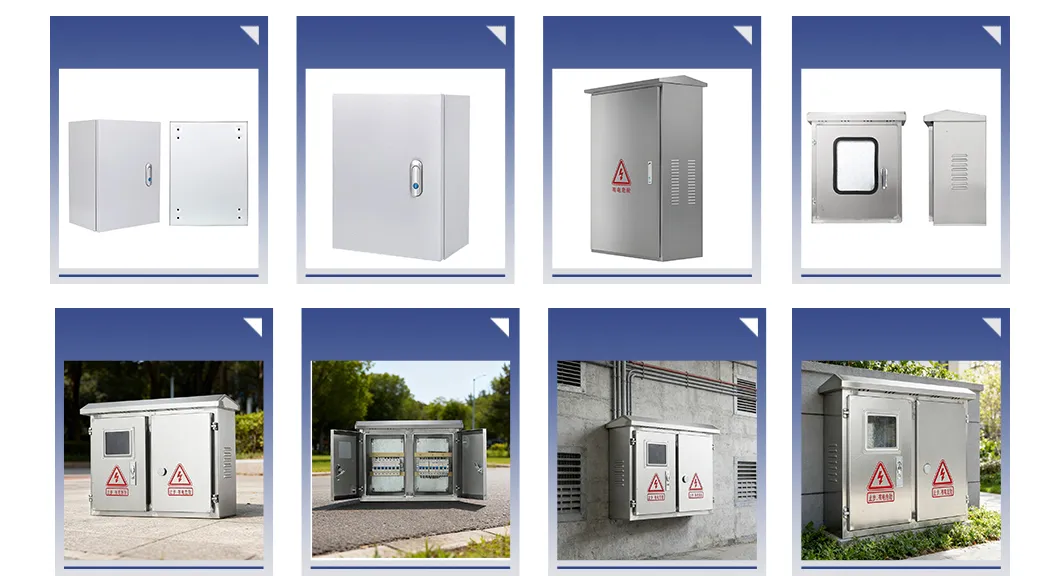

Main Power Distribution Products Showcase
🏢

Company Profile

Professional Manufacturing Facility Overview
We have been deeply engaged in the power and electrical field, specializing in the research and development, production, customization and integrated engineering services of high-end power distribution equipment. We are committed to providing safe, reliable, efficient and energy-saving overall power system solutions for customers in multiple fields such as new energy power generation, industrial manufacturing and infrastructure construction.
Our core product range includes: high and low voltage distribution cabinets, complete distribution boxes, photovoltaic grid connection boxes/cabinets, photovoltaic prefabricated cabins, photovoltaic energy storage complete equipment, box-type substations and other full series of power distribution equipment. All products strictly follow domestic and international authoritative standards such as GB and IEC, and have undergone rigorous performance tests and quality control to ensure stable operation under complex working conditions, providing a solid core support for the safe and efficient operation of power systems.
In the field of new energy, relying on profound technical accumulation and rich project experience, we provide an integrated solution from photovoltaic grid connection equipment to energy storage systems for the entire life cycle of photovoltaic power stations, covering the modular design of photovoltaic prefabricated cabins and the integrated research and development of photovoltaic energy storage equipment. It can precisely match the grid connection and energy storage needs of photovoltaic power stations of different scales, helping new energy projects achieve efficient grid connection, stable energy storage and economic operation.

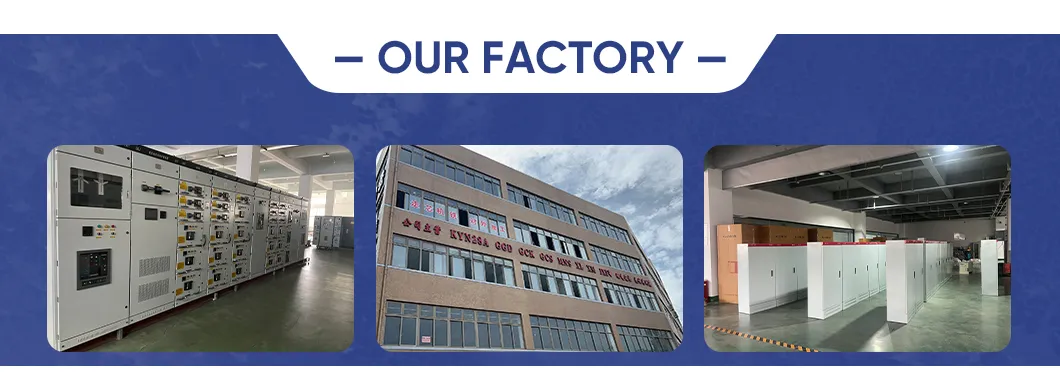

Production Workshop and Equipment
📜

Certifications

Industry Quality and Safety Certifications
📦

Packaging & Shipping

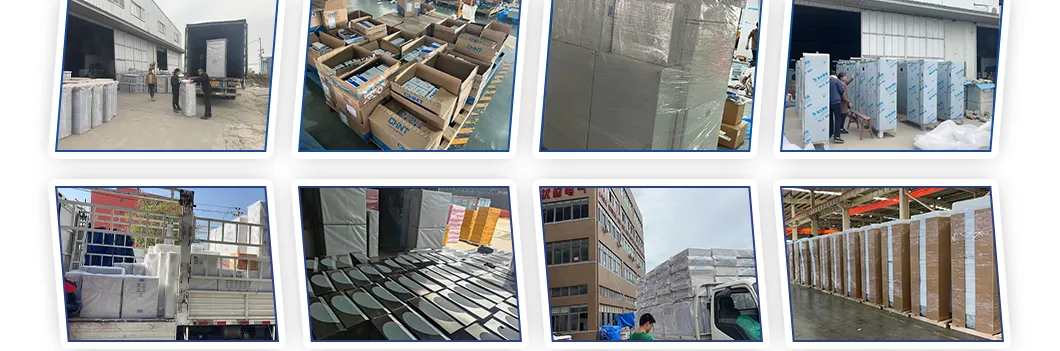

Professional Packaging and International Shipping Logistics
🤝

Exhibition

Global Trade Shows and Exhibitions

Frequently Asked Questions

Q1Is a stainless steel meter box never going to rust?
A: Not absolutely rust-proof. Stainless steel relies on a passive film to prevent rust; corrosion may occur if the film is damaged or in harsh environments. Selection recommendation: For inland areas, choose 304 stainless steel; for high-corrosion environments like coastal or industrial areas, choose 316/316L stainless steel.
Q2How to determine if the purchased stainless steel meter box is made of genuine 304/316 material?
A: Three identification methods:
1. Magnet test: 304/316 stainless steel is mostly non-magnetic—strong magnetic attraction indicates inferior quality;
2. Request a material test report;
3. Check surface smoothness and weld uniformity.
Q3What protection rating should be chosen for an outdoor-installed meter box?
A: Select the protection rating according to the environment:
- Ordinary outdoor use requires at least IP54;
- For rainy or spray-prone areas, choose IP55/IP65;
- For high-pressure washing or dusty areas, select IP66 or higher. This model is IP65 by default, suitable for most outdoor environments.
Q4What should be noted during the installation of outdoor stainless steel meter boxes?
A: Installation points:
1. Choose a location that is shaded, vibration-free, away from flammable materials, and easy to maintain;
2. The bottom of the box should be at least 1.8 meters above ground;
3. Install vertically, protect incoming and outgoing wires, seal any gaps, and ensure reliable grounding for the metal box;
4. Confirm parameters such as cut-out dimensions in advance.
Q5How to select the size of the meter box?
A: Size selection: Choose standard single-meter size for single households; for multiple households, select based on the number of users, reserving 2-3 extra slots for expansion; choose a model with ample internal space if additional components need to be installed. Consult customer service for precise selection.
Q6Can these photovoltaic net cages and enclosures be customized?
A: Yes. We offer comprehensive customization options including specific dimension changes, tailored cut-outs for wiring, integration of internal mounting plates, ventilation arrangements, and specialized lock options to meet local grid integration requirements.
