Maintenance-Free Gis Xgn80-24kV for Distribution Network

Product Description

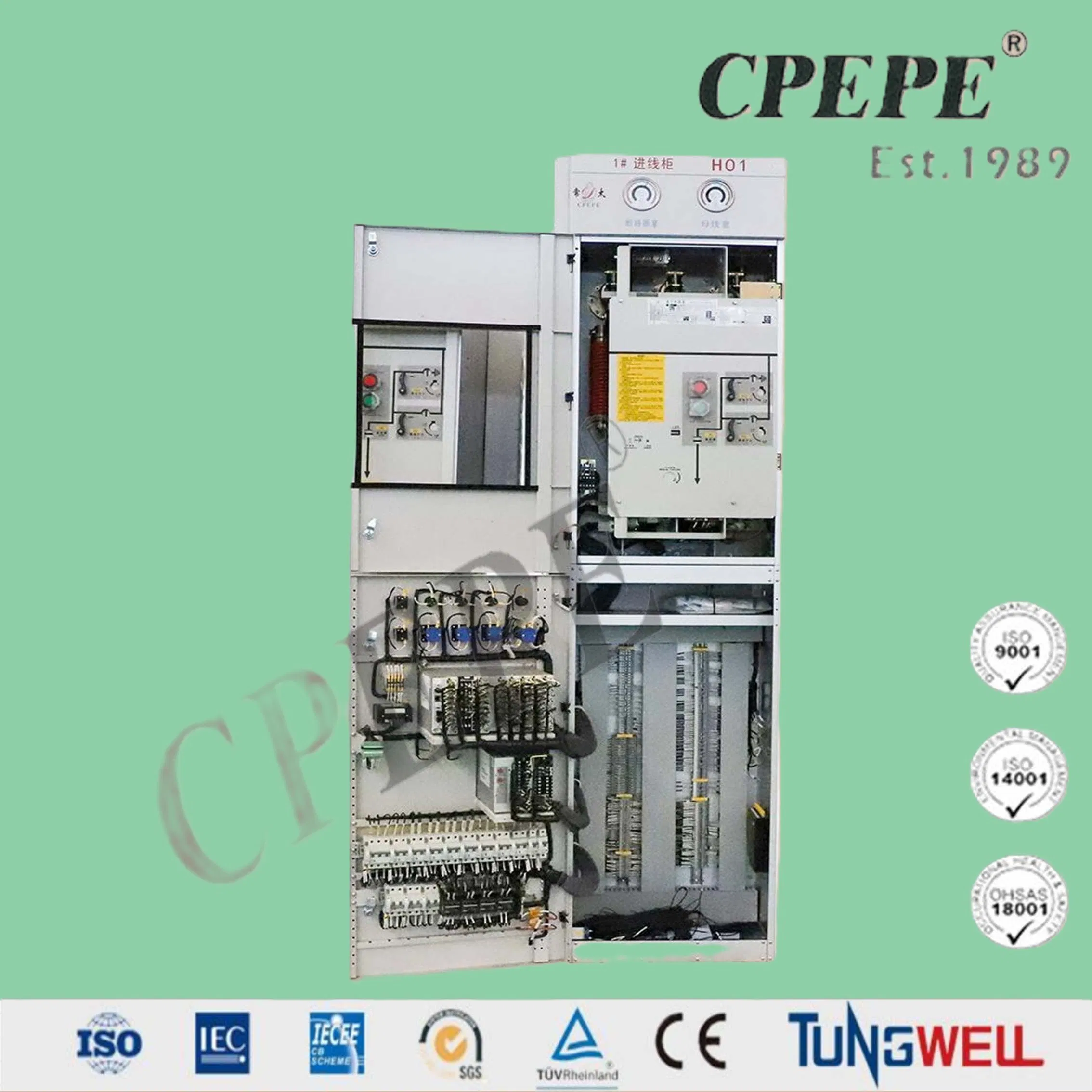

Maintenance-Free Gis Xgn80-24kV for Distribution Network
Spacer Line
Important Features
Safe
  • Vacuum interrupt technology & low pressure gas insulation technology
  • Metal-enclosed to protect against accidental contact
  • Unaffected by the climate and environment condition
  • Safe operation
Reliable
  • Compact and synoptically design
  • Standard components application
  • Advanced manufacture equipment and process
  • Strict quality control procedure
  • Leakage rate <0.5%/y, 95KV/5Min under zero relative pressure
Economical
  • Small space and volume requirement
  • Short installation time needed
  • Long service period
  • Virtually maintenance free
Extension & Convenient
  • Easy to extend from both sides
  • Easy installation and light weight
  • Good accessibility to all function units
  • Friendly operation interface
  • Comfortable and simple operation
Technical Specification
Item XGN80-12 XGN80-24 XGN80-40.5
Rated Voltage 12 kV 24 kV 40.5 kV
Power Frequency Withstand Voltage 65kV 65 kV 120 kV
Lightning Impulse Withstand Voltage 125 kV 125kV 220 Kv
Rated Frequency 50Hz 50Hz 50Hz
Rated Current 2500A 2500A 2500A
Rated Short Circuit Breaking Current 40kA 31.5 kA 31.5 kA
Rated Short Time Withstand Current/ 4s 40kA 31.5 kA 31.5 kA
Rated Peak Withstand Current 100 kA 80 kA 80 kA
Power Frequency Withstand Voltage For 5 Min.(Relative Pressure Is Zero) 65kV 65kV 95Kv
Mechanical Life Of VCB 20000 times 20000 times 30000 times
Insulated Gas N2/SF6 N2/SF6 SF6
Rated Filling Pressure(Relative) 0.05 Mpa 0.05 Mpa 0.03 Mpa
Leakage Rate <0.1%/y <0.1%/y <0.1%/y
Protection Degree IP65 IP65 IP65
Internal Arc Test 31.5kA/0.5s 31.5kA/1s
Spacer Line
Production Process Banner

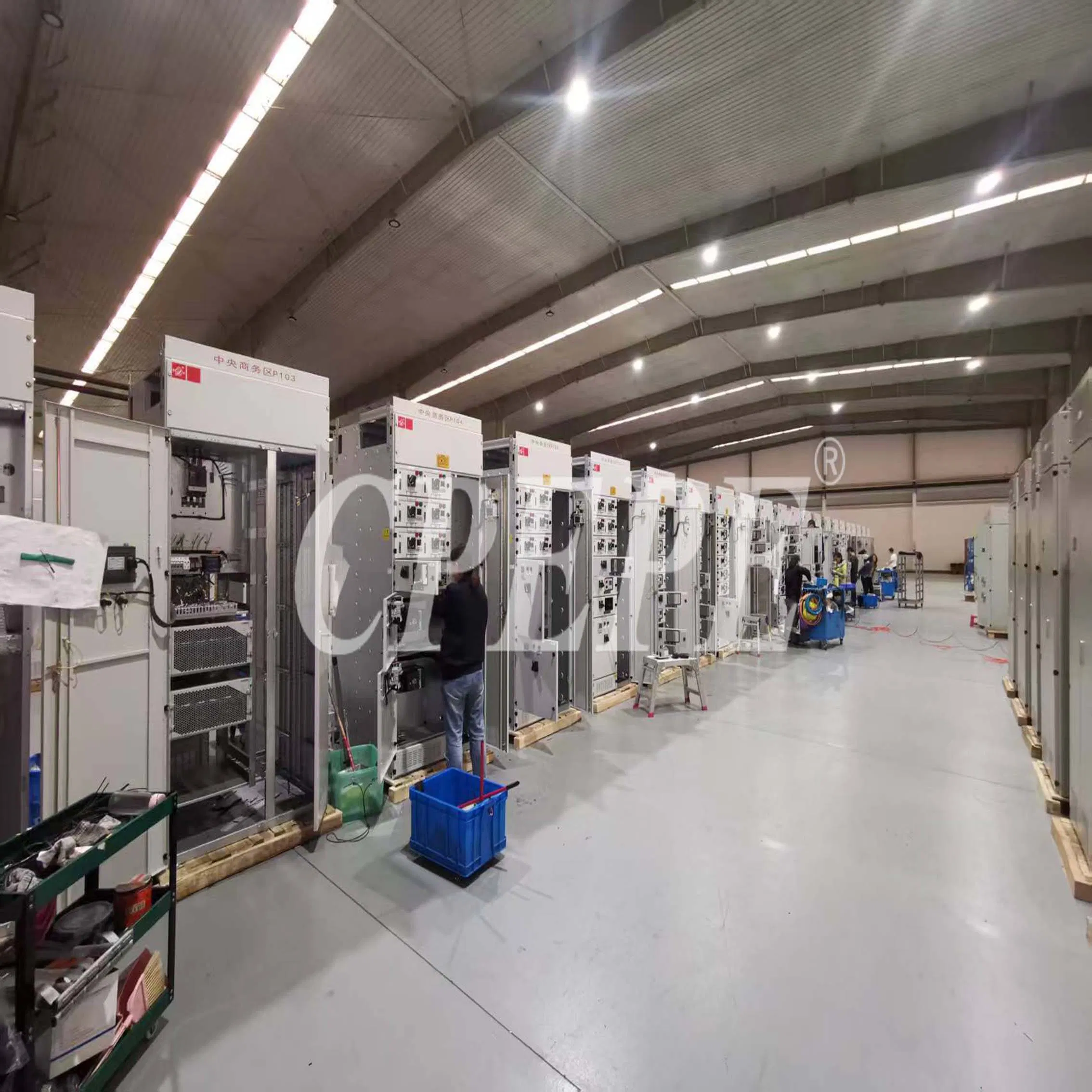

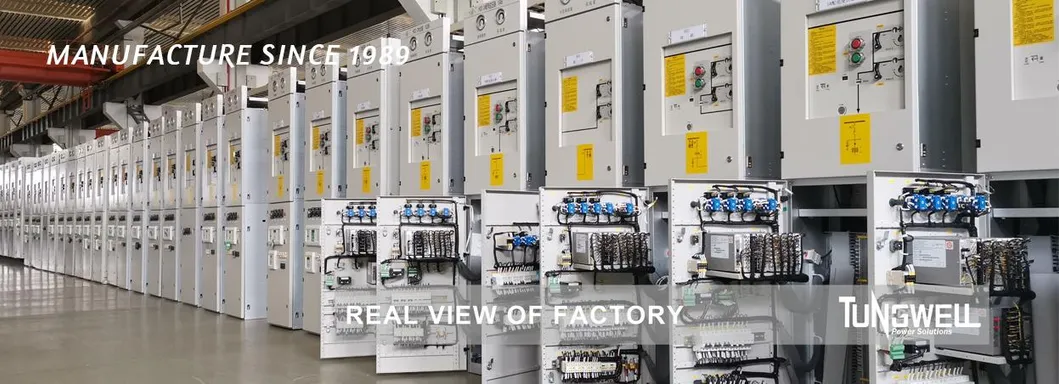

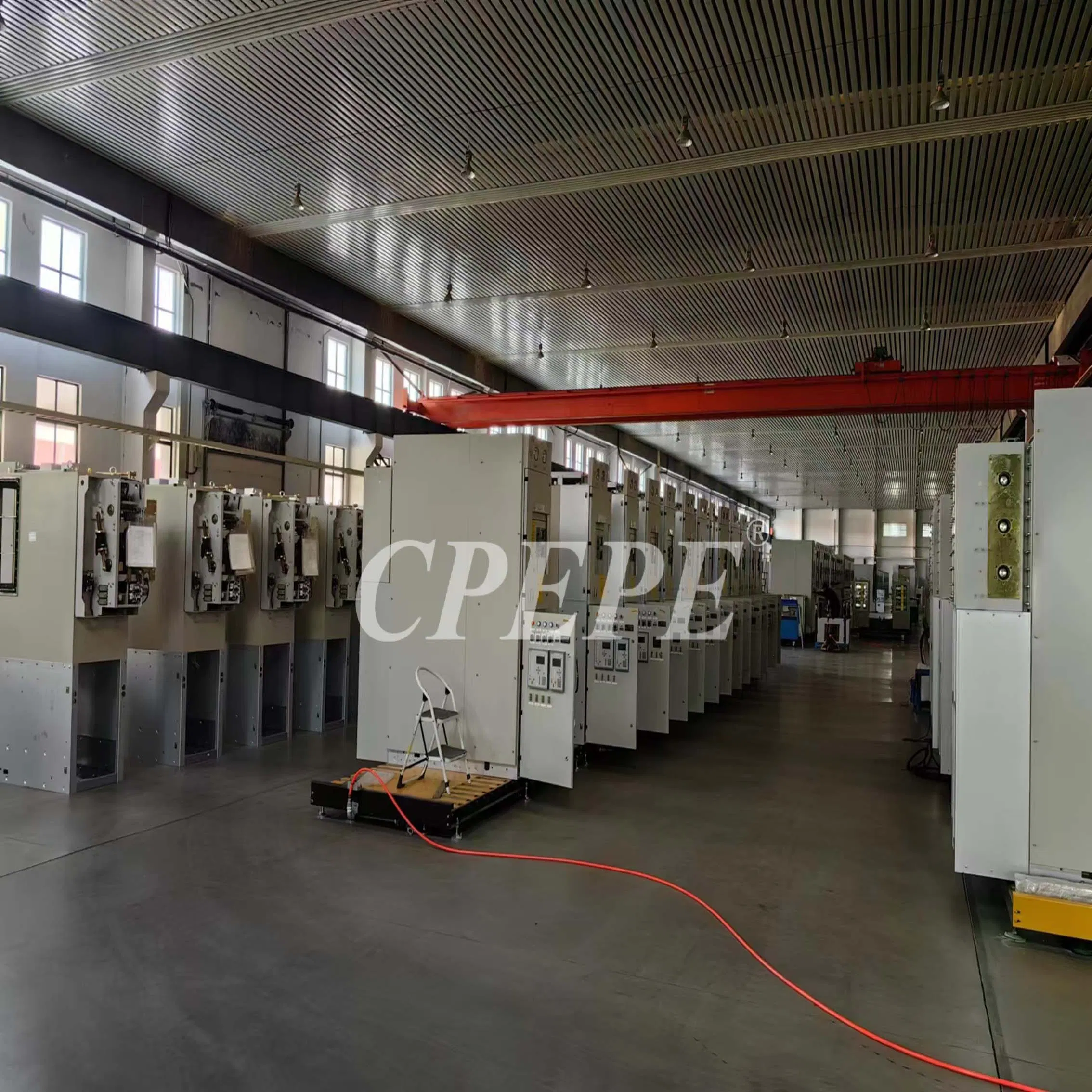

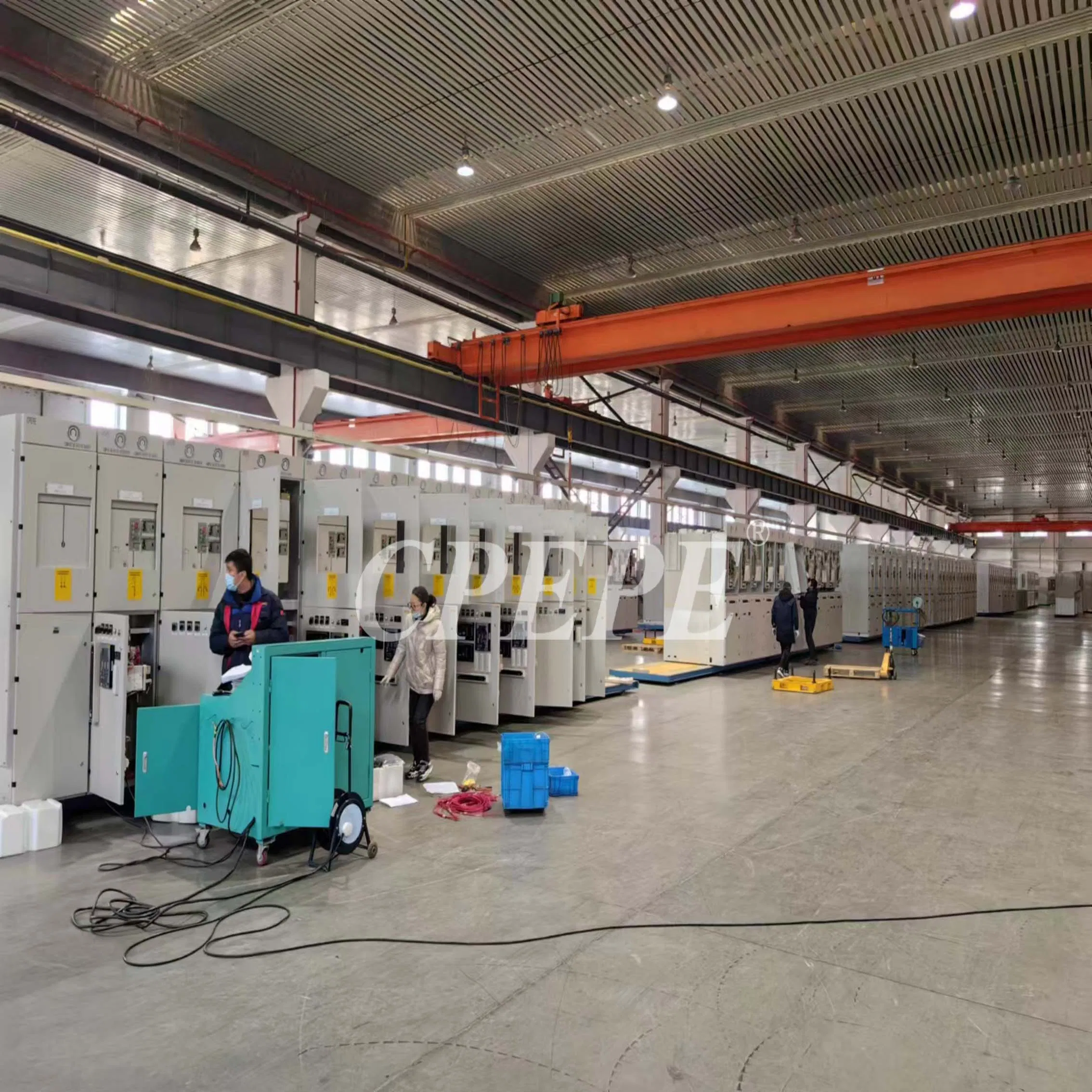

Workshops & Production Lines
