Basic Info.
Voltage Level
Medium Voltage
Ambient Temp.
-35c to +40c
Seismic Capacity
8 Degree
Transport Package
Wooden Cases
Product Description

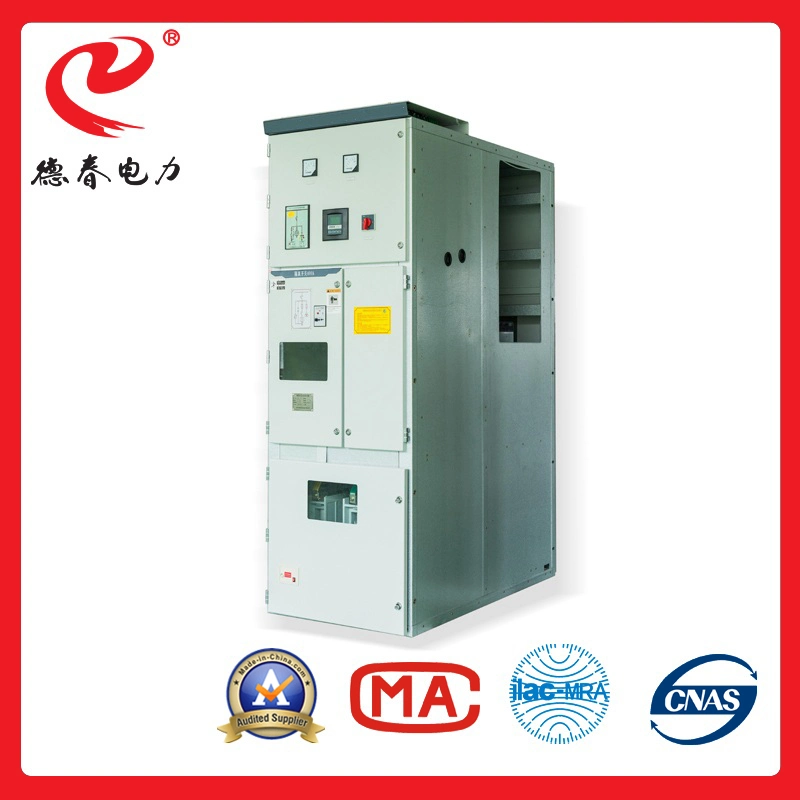

XGN15-12/24 AC Metal Enclosed Switchgear
XGN type is the newest AC metal enclosed HV ring main unit with SF6, which is suitable for distribution automation, compact and extensible. It features a simple structure, flexible operation, reliable interlocking, and a modular design to realize any combination and meet all kinds of connection modes.
| Rated voltage |
KV |
3.6, 7.2 / 12 |
| Rated frequency |
Hz |
50 |
| Rated current of breaker |
A |
630, 1250, 1600, 2000, 2500, 3150 |
| Rated breaking active load current |
A |
630, 1250, 1600, 2000, 2500, 3150 |
| Rated closed loop breaking current |
KA |
20, 25, 31.5, 40 |
| Rated current under the cable charging breaking current |
KA |
50, 63, 80, 100 |
| Rated short-circuit closing current (peak) |
KA |
20, 25, 31.5, 40 |
| Rated short-circuit breaking current |
KA |
50, 63, 80, 100 |
| Rated insulation level |
1 min frequency withstand voltage |
Pole, the pole pair |
KV |
24, 32, 42 |
| break between |
KV |
24, 32, 48 |
| Lighting impulse withstand voltage (peak) |
Pole, the pole pair |
KV |
40, 60, 75 |
| break between |
KV |
46, 70, 85 |
| Degree of protection |
KV |
Enclosure IP4X, compartment circuit breaker door open when IP2X |
Key Features
- Simple structure, flexible operation, and convenient installation.
- Compact structure and small size for space-saving installations.
- Modular design allows for highly flexible and convenient expansion.
- Smart grid compatible with an optional automation terminal to support seamless smart grid upgrading.
Applicable Conditions
- Altitude: ≤ 2000m
- Ambient temperature: -35ºC to +40ºC
- Relative humidity: Daily average ≤ 95%, Monthly average ≤ 90%
- Seismic capacity: 8 degrees
Product Gallery
Frequently Asked Questions
What are the primary applications of XGN15-12/24 switchgear?
It is designed as an AC metal-enclosed high voltage ring main unit filled with SF6 gas. It is highly suitable for distribution automation in compact space settings, modular distribution networks, and various substation designs.
What is the IP protection rating of this metal-enclosed switchgear?
The enclosure offers an IP4X protection rating. When the compartment circuit breaker door is open, the protection level is rated at IP2X.
Can this switchgear handle smart grid upgrades?
Yes, it is designed with smart grid compatibility. It features an optional automation terminal to seamlessly meet upgrade specifications for modern power grids.
What ambient environments is the switchgear compatible with?
It operates reliably at altitudes up to 2000 meters, under temperatures ranging from -35ºC to +40ºC, and is resistant to seismic activity up to 8 degrees.
What are the transportation safety parameters for this equipment?
The equipment is packaged securely in robust wooden cases to ensure shock resistance and protection against moisture and environmental variables during logistics and transport.
