Gas Insulation Metal-Clad Switchgear Gis Zf29-72.5/126/145 Sf6 Gas Insulated Metal Fully Enclosed Switchgear

1 / 5

Gas Insulation Metal-Clad Switchgear Gis Zf29-72.5/126/145 Sf6 Gas Insulated Metal Fully Enclosed Switchgear

Customization:	Available
Type:	High-voltage
Structure:	Three-column Disconnector

Send Inquiry

Product Description

Overview Product Description Product Parameters Detailed Photos FAQs

Basic Info.

Model NO.

ZFW-126/T2500-40; ZHW-126(L)/T3150-40; zf29-72.5

Installation

Indoor High-voltage

Operation

Electric

Grounding Mode

Grounding

Movement Mode

Horizontal Rotary Type

Number of Poles

Three Pole

Grounding

Double Ground

Series

Three

Run

Vertical Rotation

Switching Mode

Double-Throw Type

Common Model

Zf29

Structure of Operating

Electric

Certification

RoHS

Insulation Material

Sf6

Voltage

126kv

Standard

IEC CE, ISO

Phase

Transport Package

Bulk; Wooden Cases

Specification

According to specification

HS Code

8504109000

Production Capacity

5000 Sets/Year

Product Description

Product Introduction

It is composed of a circuit breaker, DS/ES, FES, current transformer, PT, lightning arrester, busbar, DSG or CSG etc. It adopts the technology of three phases in one box, three positions isolation earth and full aluminium alloy enclosure. The characteristic of ZFW-126/T2500-40 is flexible and convenient and can meet the various main wiring requirements of users.

ZF29 series SF6 gas insulated metal enclosed switchgear (GIS): It is a combination electrical product featuring a fully three-phase common box structure with a modular design. It meets various wiring methods and is suitable for rated voltages of 72.5kV. Suitable for switching, protection, and control of power lines in 126kV and 145kV power systems for measurement purposes.

ZHW-126(L)/T3150-40 SF6 Gas Insulated Combined Apparatus: Composed of Circuit Breaker, DES, CT and BSG. According to customer requirements, combinations of Fast Earthing Switch, Potential Transformer and Lightning Arrester can be conveniently arranged.

Product Parameters

No.	Parameter Details	Unit	Specification Limit
1	Installation site	-	Indoor or outdoor
2	Altitude	M	≤1000
3	Ambient temperature	ºC	-25 ~ +40
4	Max daily temperature difference	K	25
5	Max solar radiation intensity	W/m²	1000
6	Relative humidity (Daily Average)	%	≤95
6	Relative humidity (Monthly Average)	%	≤90
7	Max wind speed	M/s	34
8	Earthquake intensity	G	≤9

Detailed Photos

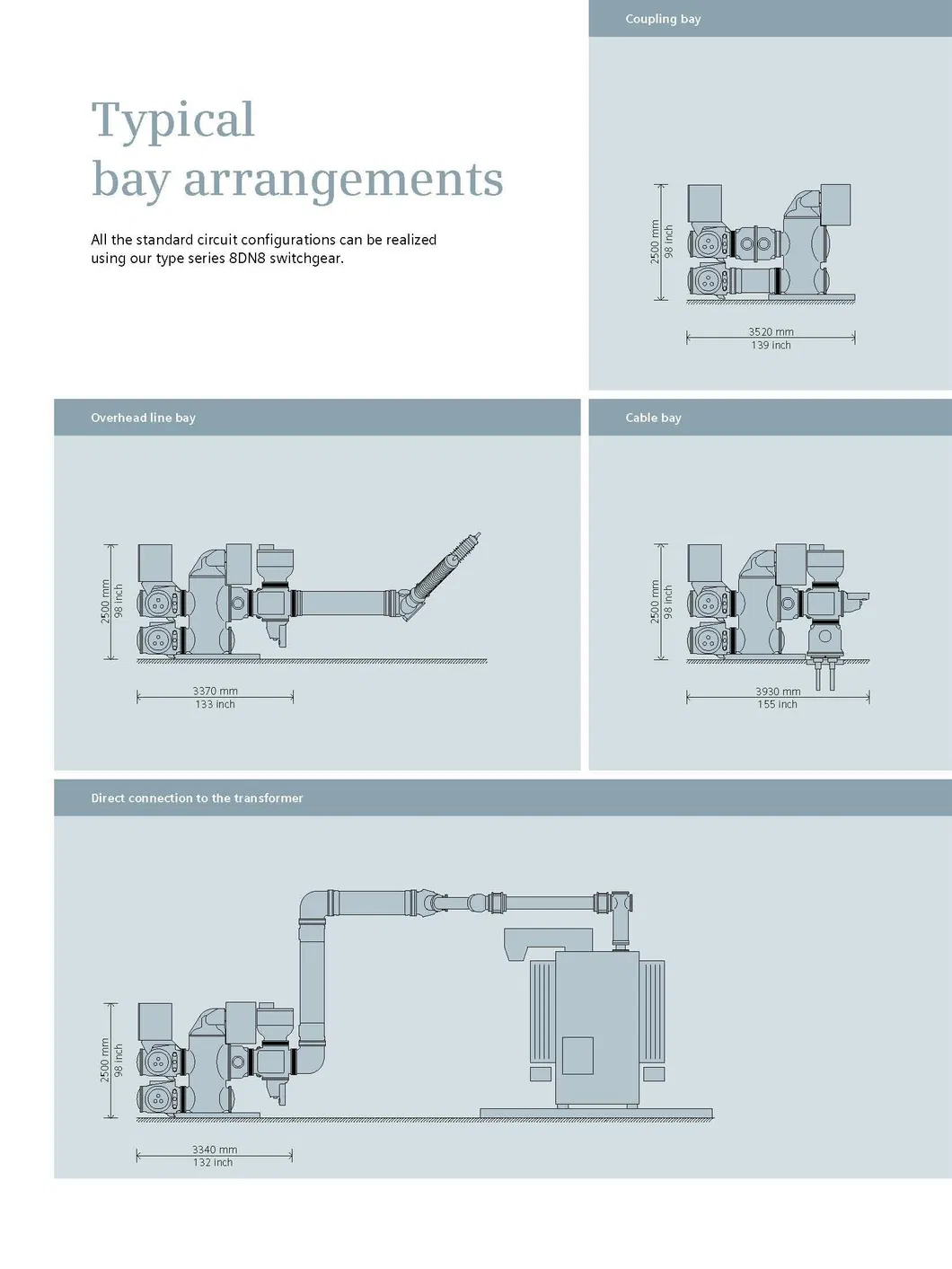

Gas Insulation Metal-Clad Switchgear Gis Details

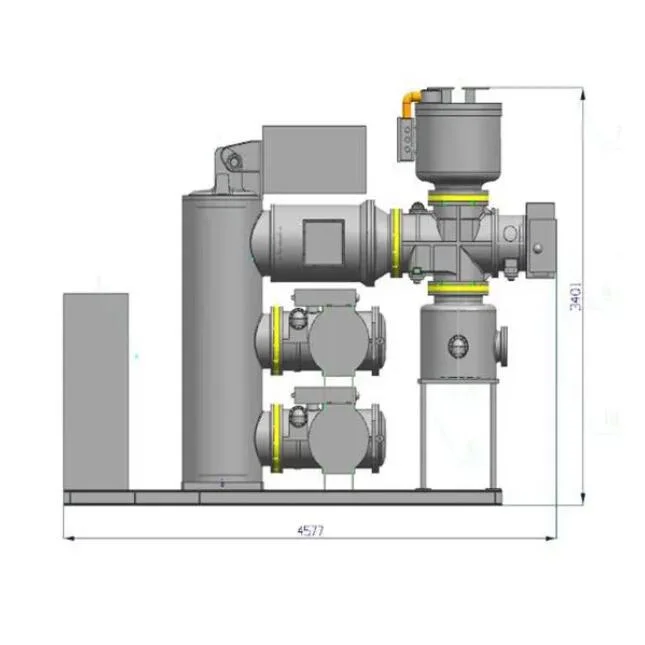

SF6 Gas Insulated Metal Fully Enclosed Switchgear Configuration

Gas Insulation Switchgear Assembly Schema

Detailed Technical Data Sheets of Gas Insulation Metal-Clad Switchgear

Frequently Asked Questions

What are the primary components of this SF6 gas-insulated switchgear (GIS)?

The GIS is composed of critical components including a circuit breaker, disconnector/earthing switch (DS/ES), fast earthing switch (FES), current transformer (CT), potential transformer (PT), lightning arrester, busbar, and DSG/CSG.

What are the key advantages of the three-phase in one box structure?

This structure features a fully three-phase common box configuration with a modular design. It significantly reduces the installation footprint, lowers the risk of gas leakage, and improves overall mechanical reliability.

In what systems and ratings can this switchgear be applied?

It is designed for switching, protection, control, and measurement of power lines in 72.5kV, 126kV, and 145kV electrical power transmission and distribution systems.

What certifications and standards do these products meet?

The switchgear complies with international standards such as IEC, CE, and ISO, and holds RoHS certification to ensure environmental safety and high-performance quality control.

What are the typical operating environmental limits for this GIS?

It is designed for altitudes up to 1000m, ambient temperatures ranging from -25ºC to +40ºC, max wind speed of 34 m/s, and earthquake intensities up to 9G, making it suitable for both indoor and outdoor installations.

What is the production capacity and packaging type for this equipment?

The production capacity is up to 5000 sets per year. For delivery, it is securely packaged either in bulk or in durable wooden cases to prevent damage during transportation.
