Product Description
This outdoor switchgear is mainly used in AC 3-36KV three-phase 50/60Hz power systems in urban power grids and renovation projects, factories and mining enterprises, high-rise buildings, and public facility construction, to receive and distribute electricity.

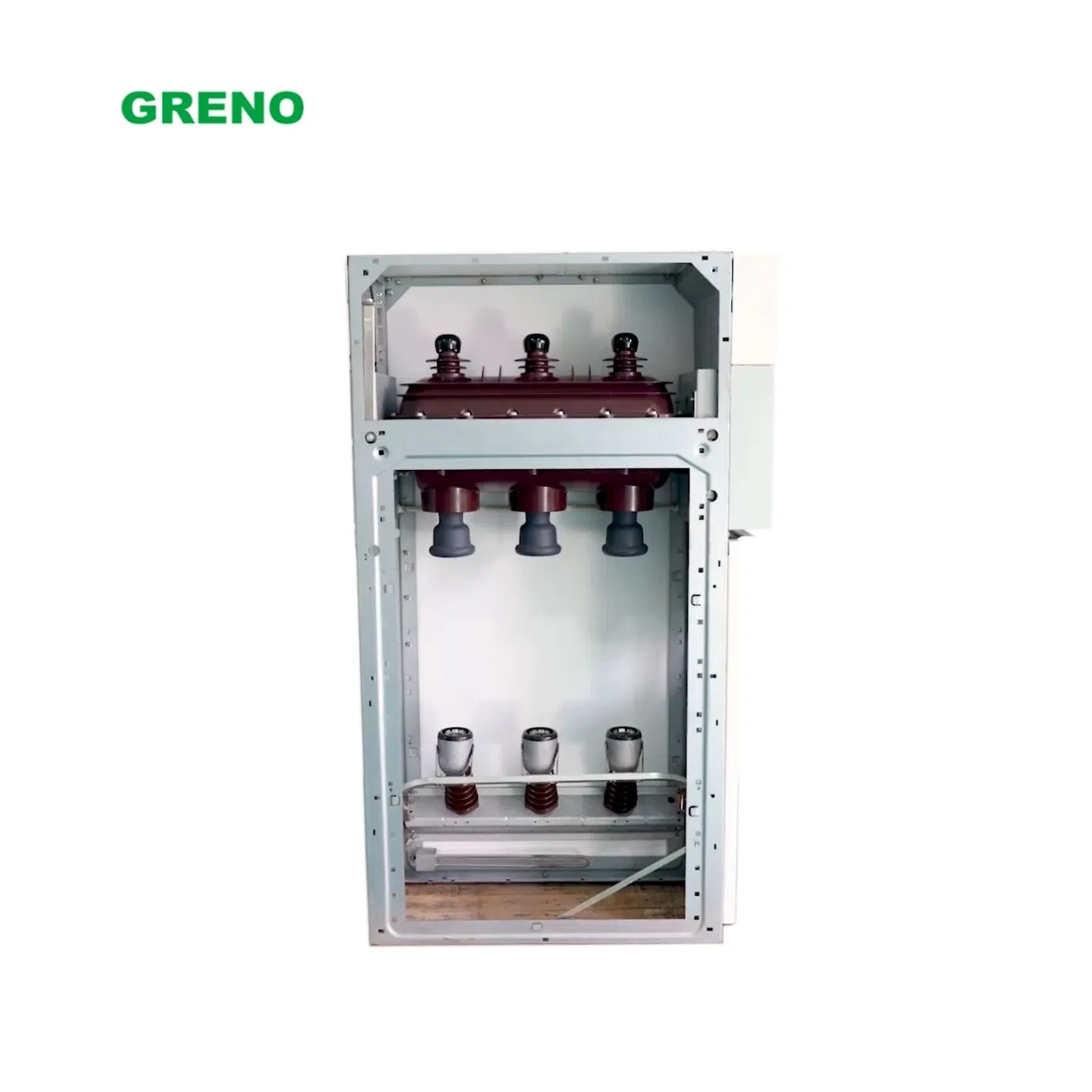

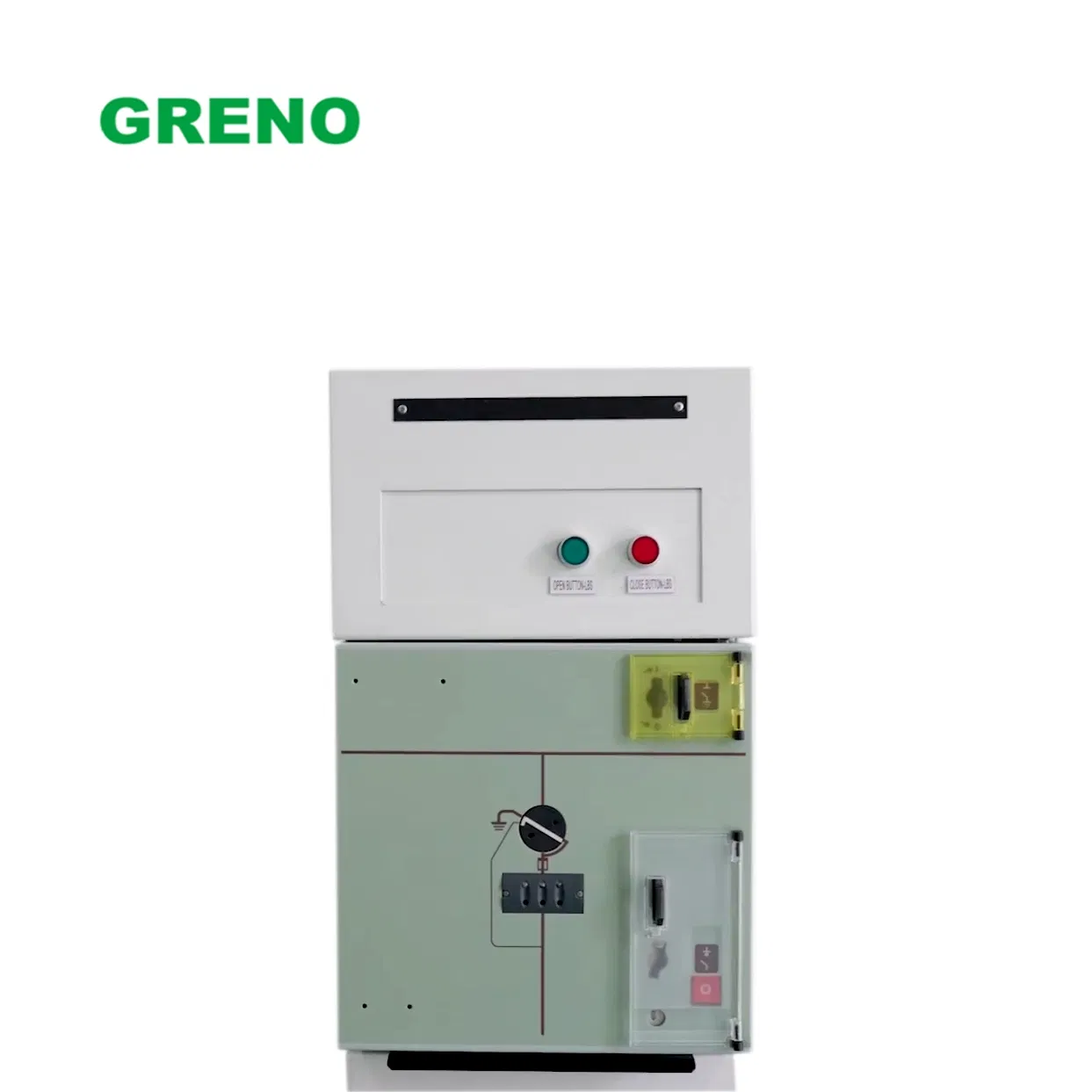

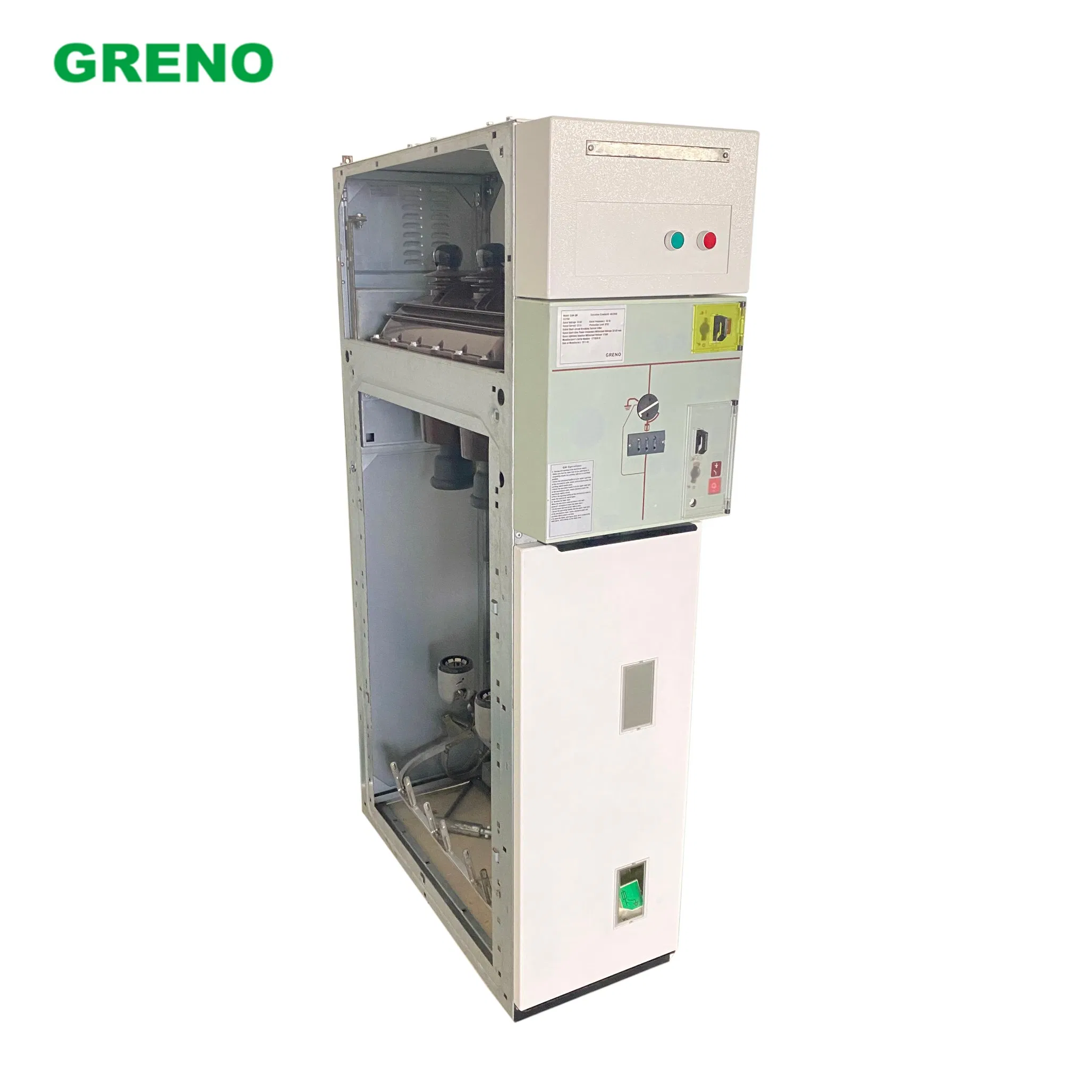

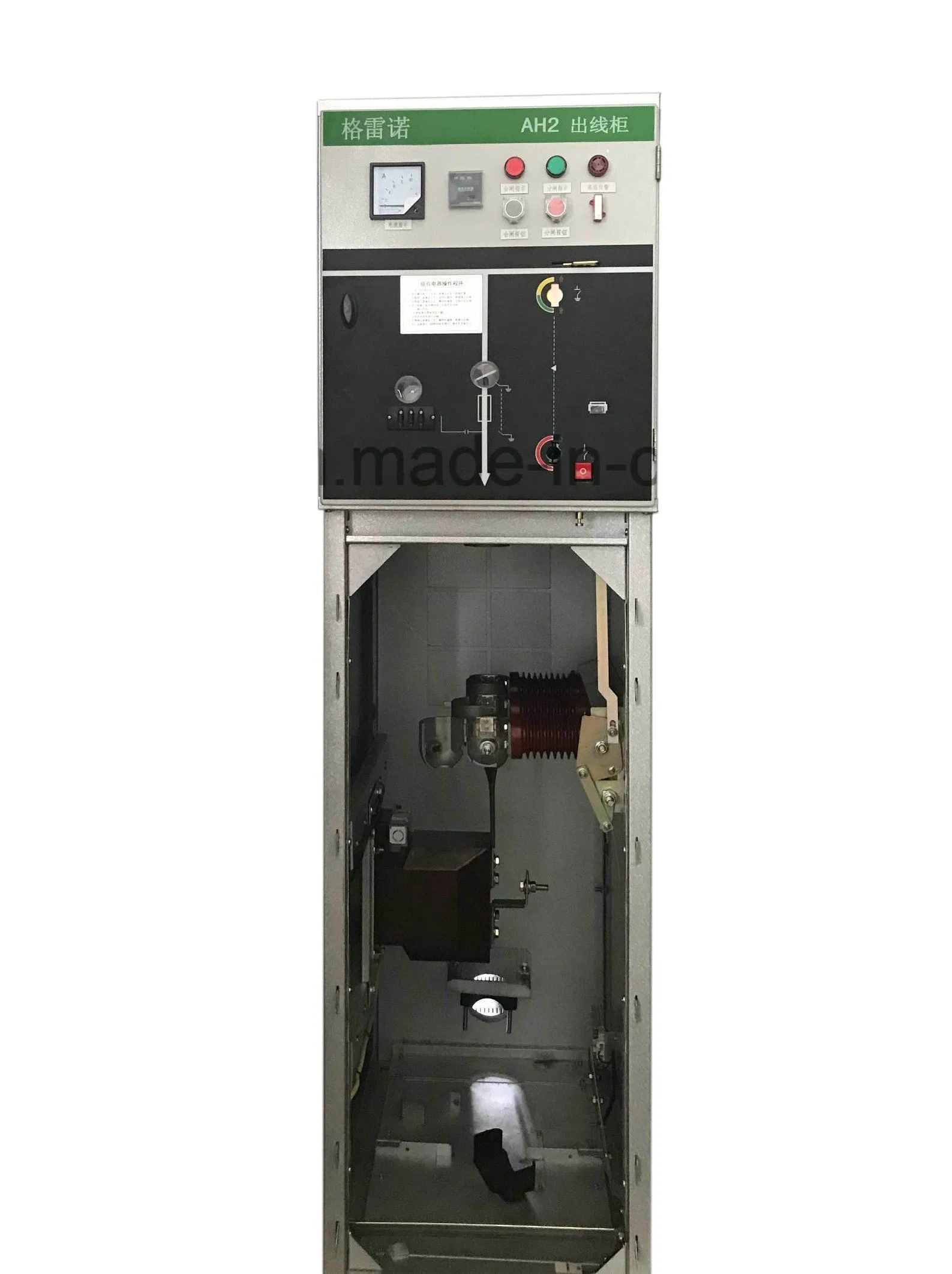

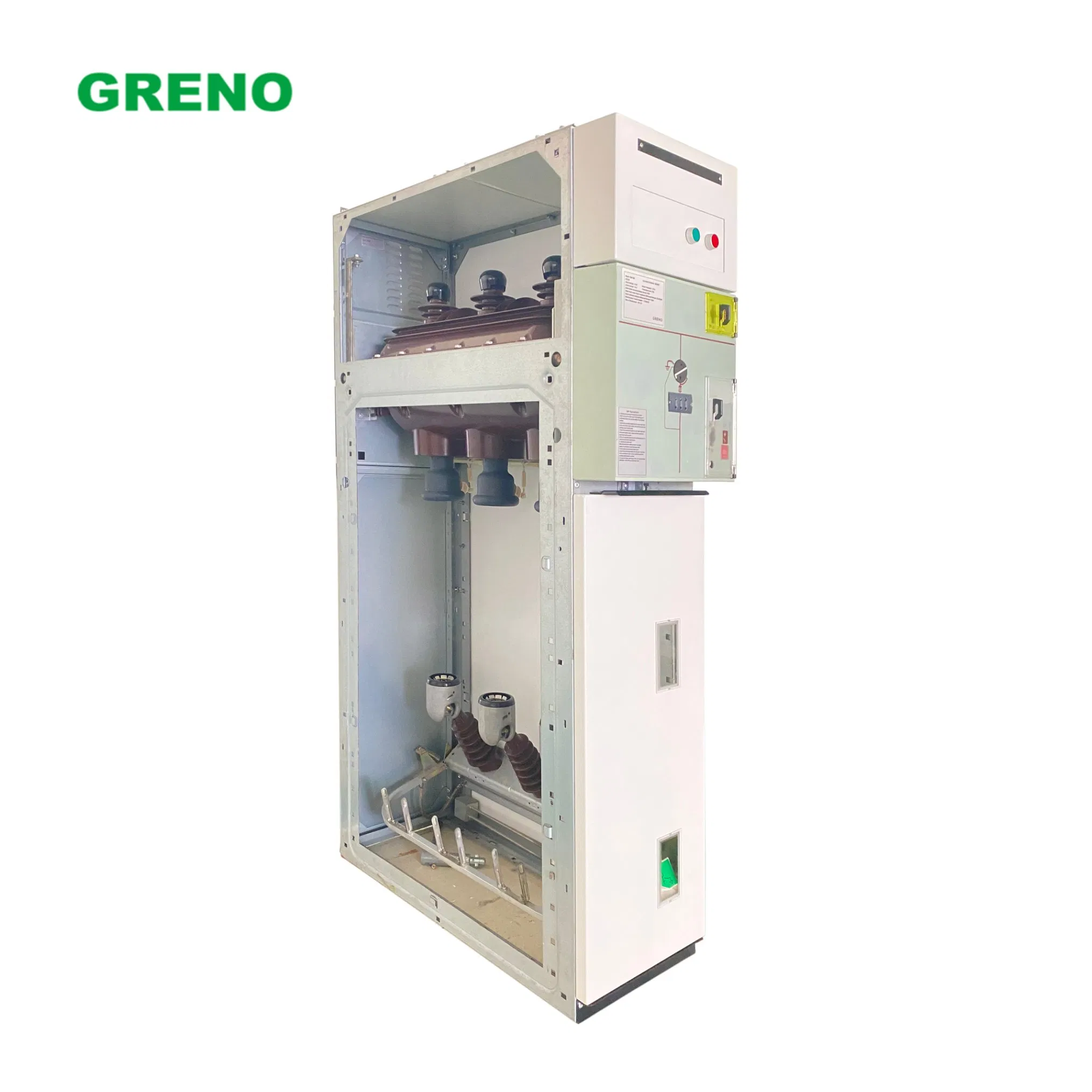

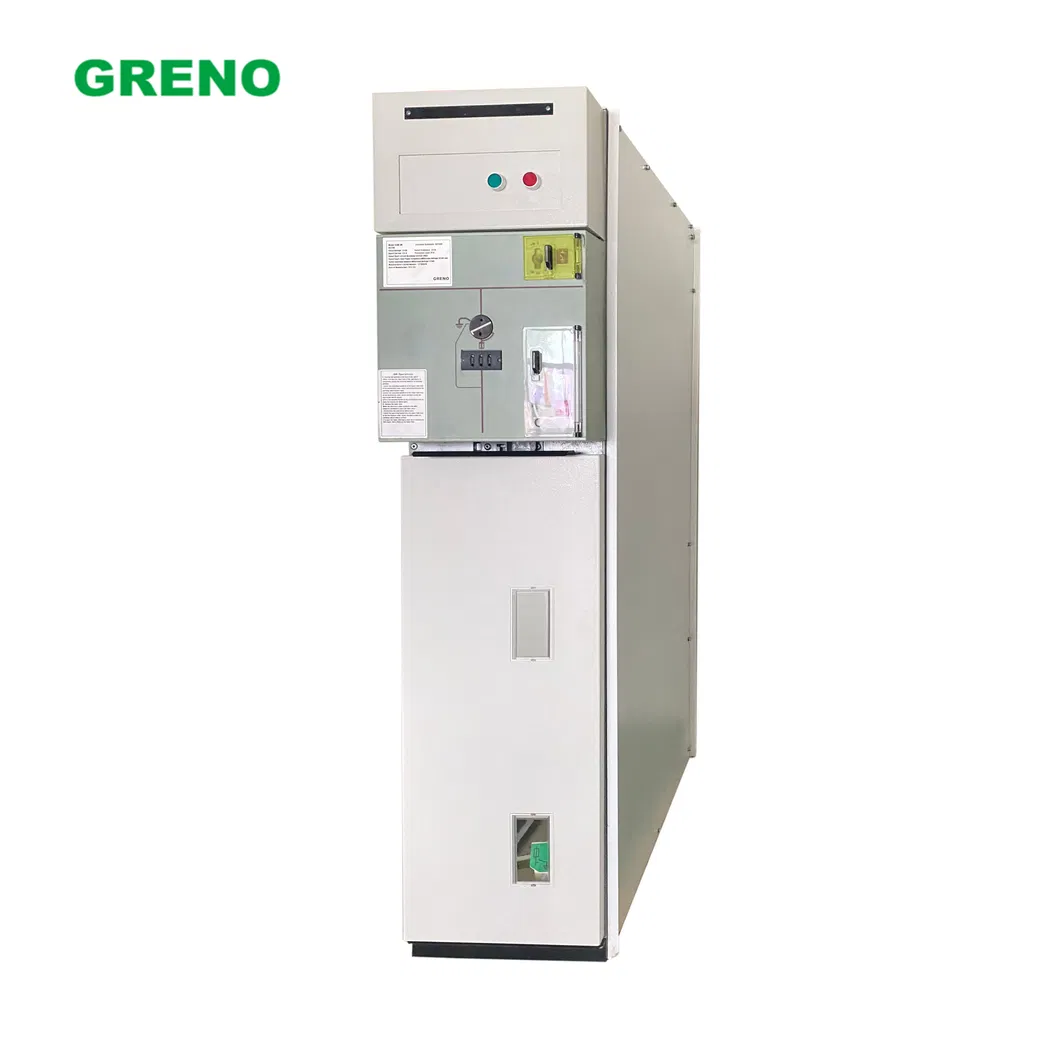

Load break switch panel is used for switching connection between in/out cable and bus bar, make cable earthed, with short circuit making capacity.
Standard Configuration
- Busbar 630A
- Three-position load break switch
- Single spring operating mechanism with three positions, independent shaft for LBS and ES
- LBS and ES position indicator
- Cable bushing 630A, with function of sensor, front mounted horizontally
- Padlock on faceplate for every switch
- SF6 gauge (only one in block version)
- Earthing busbar
- Interlocks between lower front door and ES/operating shaft
Frequently Asked Questions (FAQ)
What are the primary applications of this outdoor switchgear?
This outdoor switchgear is designed for AC 3-36KV three-phase 50/60Hz power systems. It is commonly utilized in urban power grids, infrastructure renovation projects, factories, mining enterprises, high-rise buildings, and public facilities to receive and distribute electricity safely.
What certifications does this switchgear hold?
Our switchgear complies with stringent international quality and safety standards. It holds RoHS, CCC, ISO:9001, and CE certifications, ensuring reliability and high performance.
Can the color and materials of the unit be customized?
Yes, customization options are available. While the default configuration features a steel sheet coated with aluminum-zinc alloy in a grey-white finish, we can accommodate specific custom colors and design adaptations based on your specifications.
What components are included in the standard configuration?
The standard configuration features a 630A busbar, a three-position load break switch (LBS), a single spring operating mechanism, LBS & ES position indicators, a 630A cable bushing with built-in sensor, faceplate padlocks, an SF6 pressure gauge, an earthing busbar, and safety interlocks between the lower front door and operating shaft.
What is the mechanical lifespan and protection degree of this equipment?
The switchgear is built for long-term durability with a mechanical lifetime of 5,000 operations. It features an IP4X protection rating to guard against external objects and ensure operational safety.
What standard warranty do you provide?
We offer a 12-month comprehensive warranty on all products and accessories. Additionally, we provide free online professional technical support to help optimize your electrical solutions.
