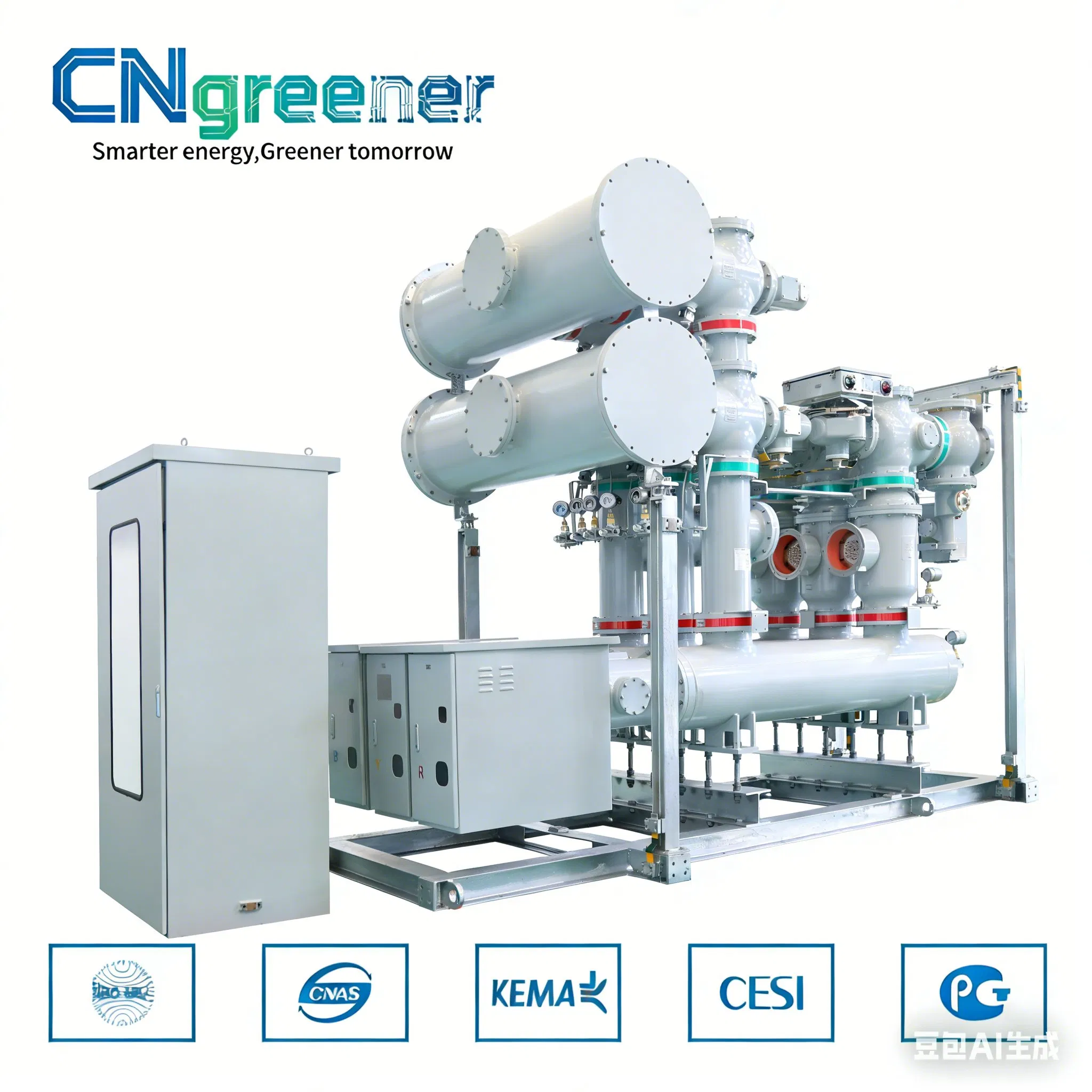

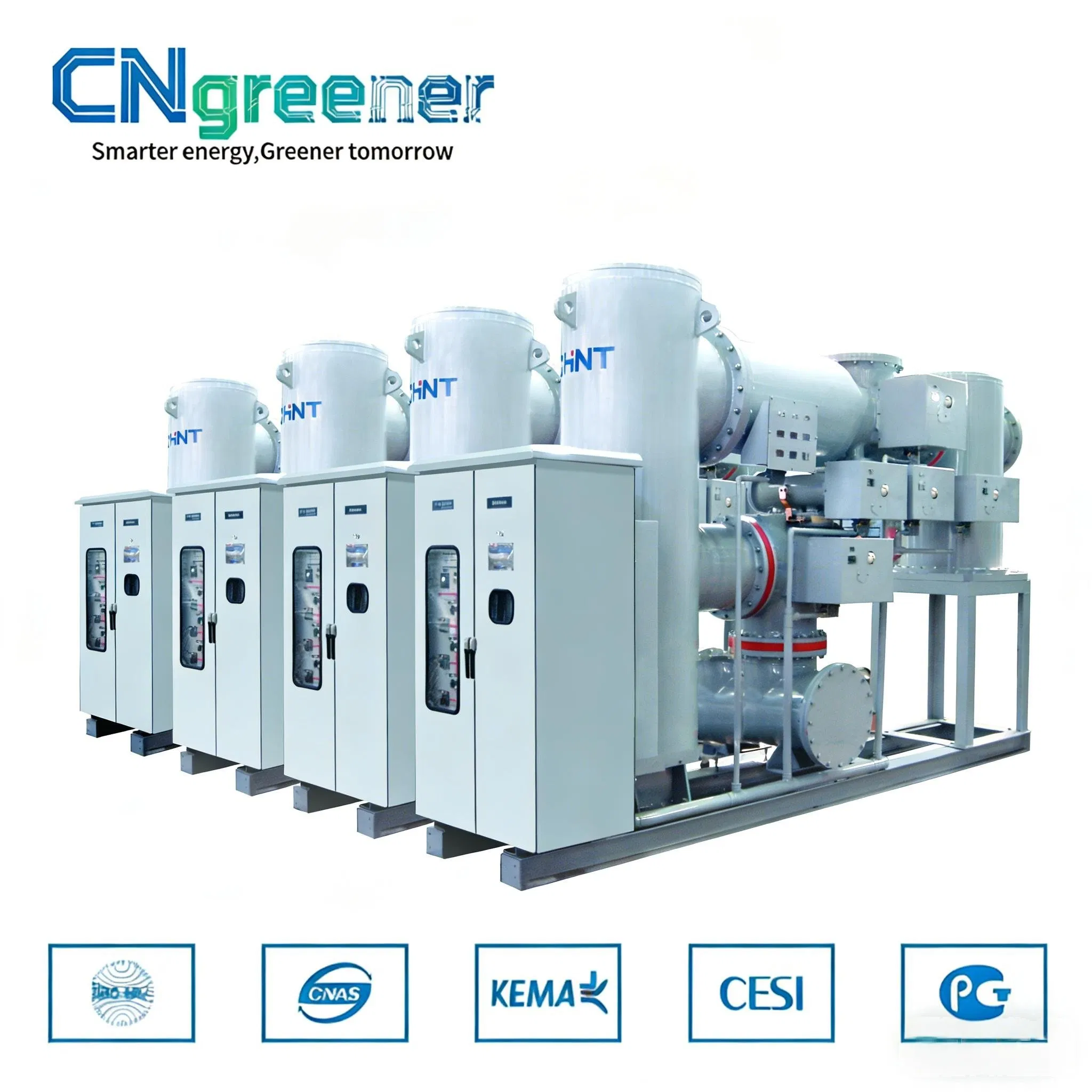

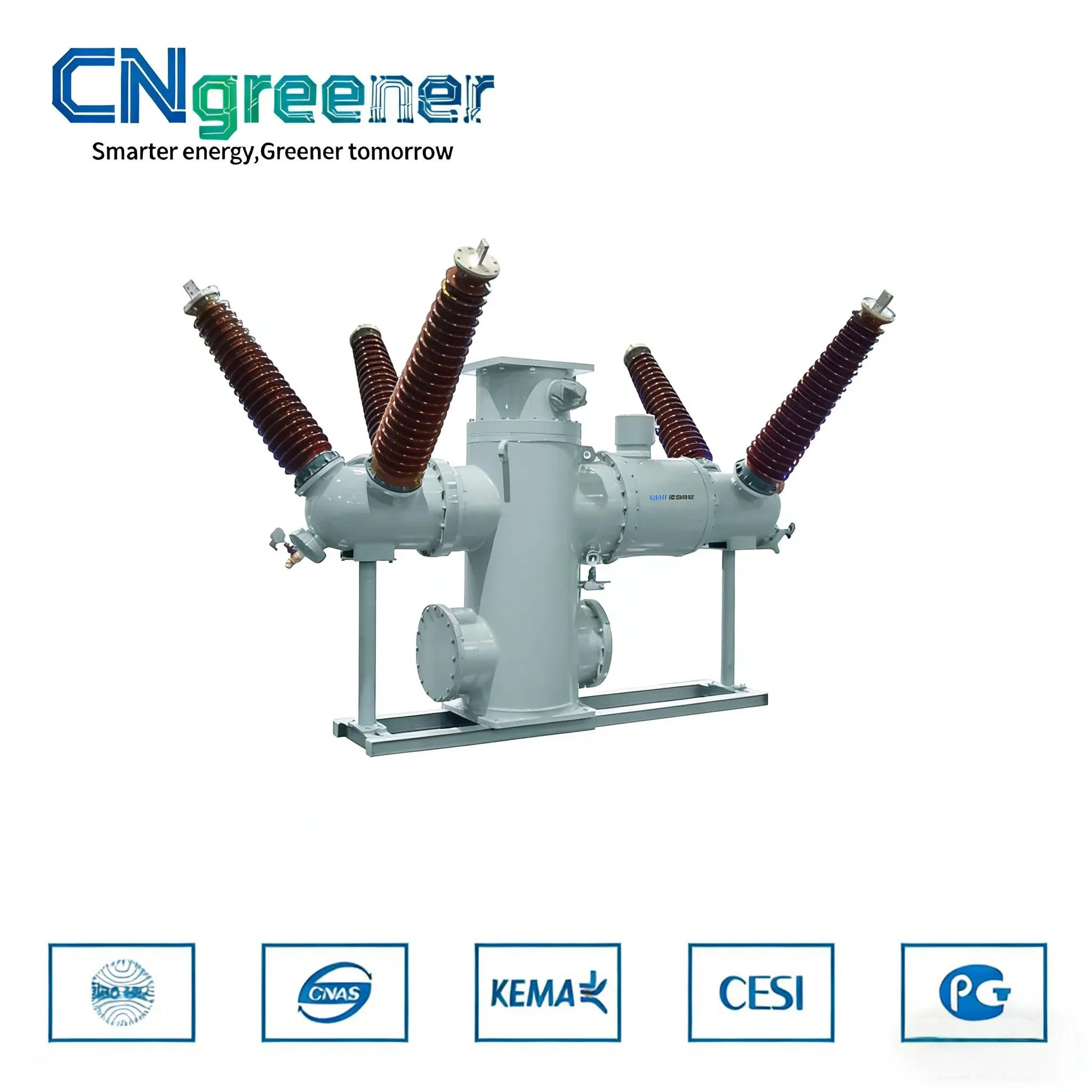

252kv Customized Gis Switchgear for Substation Engineering Projects

1 / 5

252kv Customized Gis Switchgear for Substation Engineering Projects

Customization:	Available
Type:	High-voltage
Structure:	Three-column Disconnector

Send Inquiry

Product Description

Basic Info

Parameter	Details
Model NO.	GIS
Installation	Outdoor High-voltage
Operation	Electric
Grounding Mode	Grounding
Movement Mode	Vertical Rotary Type
Number of Poles	Unipolar
Grounding	Single Ground
Series	Single-Stage
Run	Vertical Rotation
Switching Mode	Single Throw-in
Common Model	Gw
Certification	ISO9001, KEMA
Transport Package	Wooden Cartons
Specification	6, 100 × 4, 900 × 5, 000mm
Origin	China
HS Code	8537201000
Production Capacity	2.7 Billion

Packaging & Delivery

Package Size	610.00cm * 490.00cm * 500.00cm
Package Gross Weight	35000.000kg

Certifications

Product Description

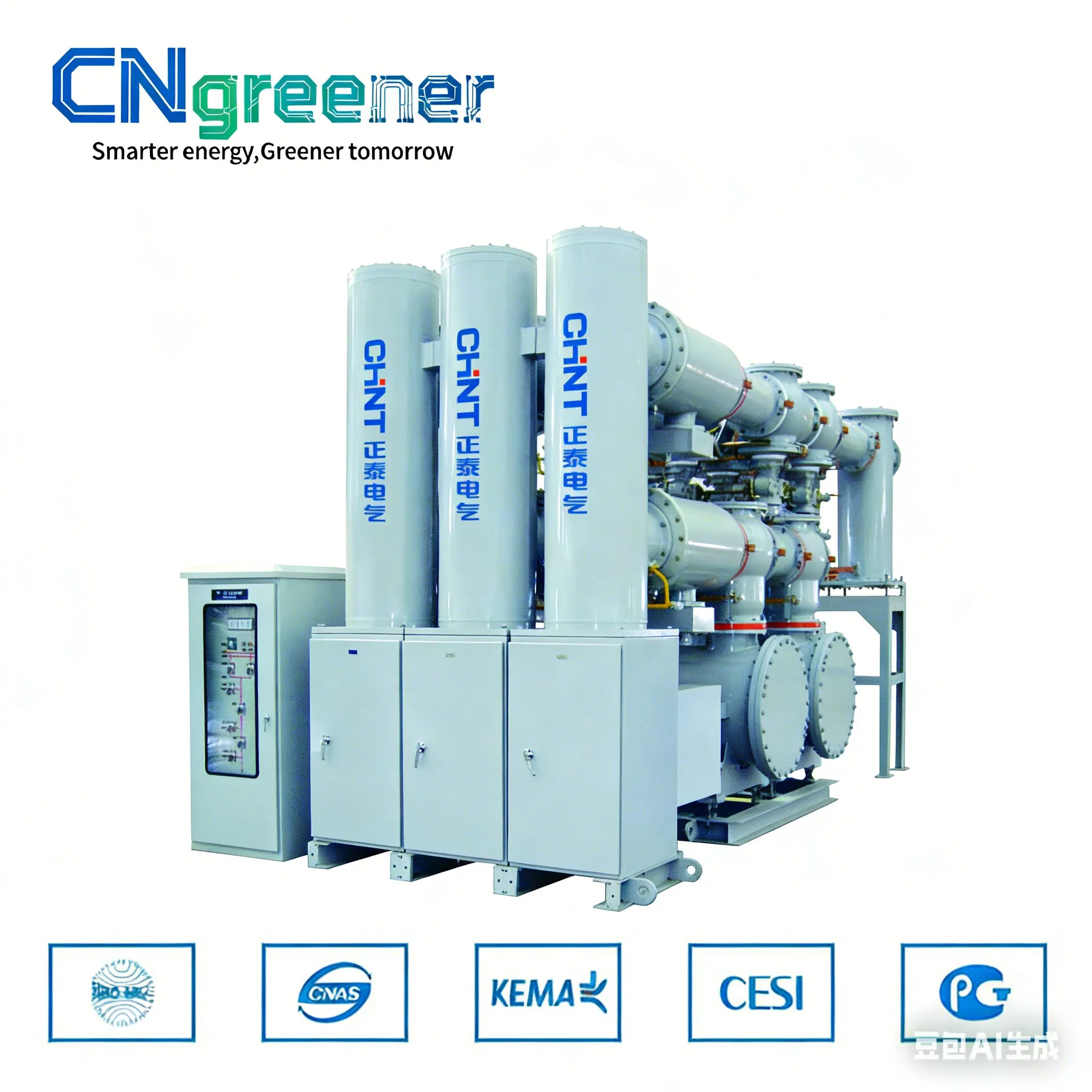

Product Info High Voltage GIS Gas Insulated Switchgear

(72.5kV / 110kV / 145kV / 220kV / 252kV GIS Substation)

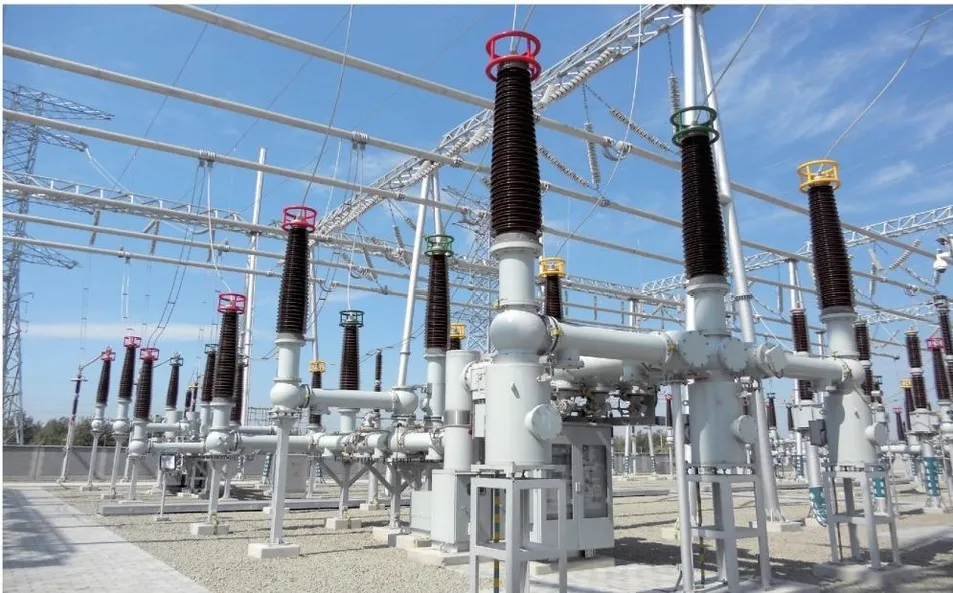

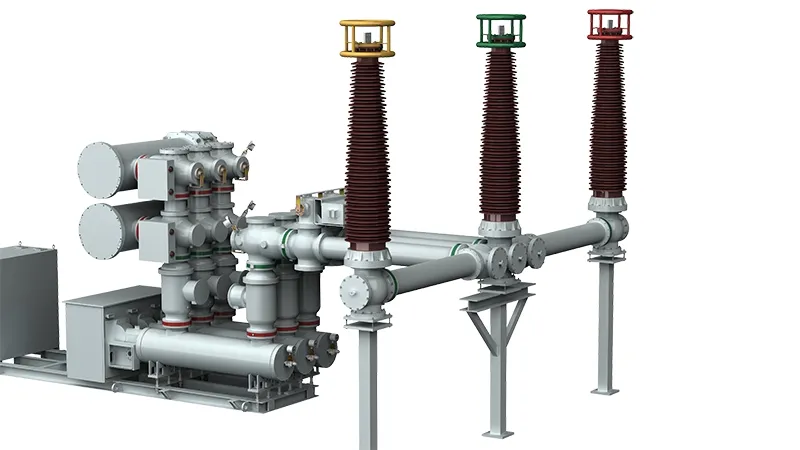

252kv Customized Gis Switchgear Installation

Our GIS Gas Insulated Switchgear is a compact, fully enclosed high-voltage switchgear system using SF6 gas as the insulating and arc-quenching medium.

It is designed for reliable operation in urban substations, industrial plants, power utilities, renewable energy projects, and harsh environments where space saving and high safety are required.

The system integrates circuit breaker, disconnector, earthing switch, busbar, and instrument transformers into a sealed metal enclosure, ensuring high reliability, long service life, and minimal maintenance.

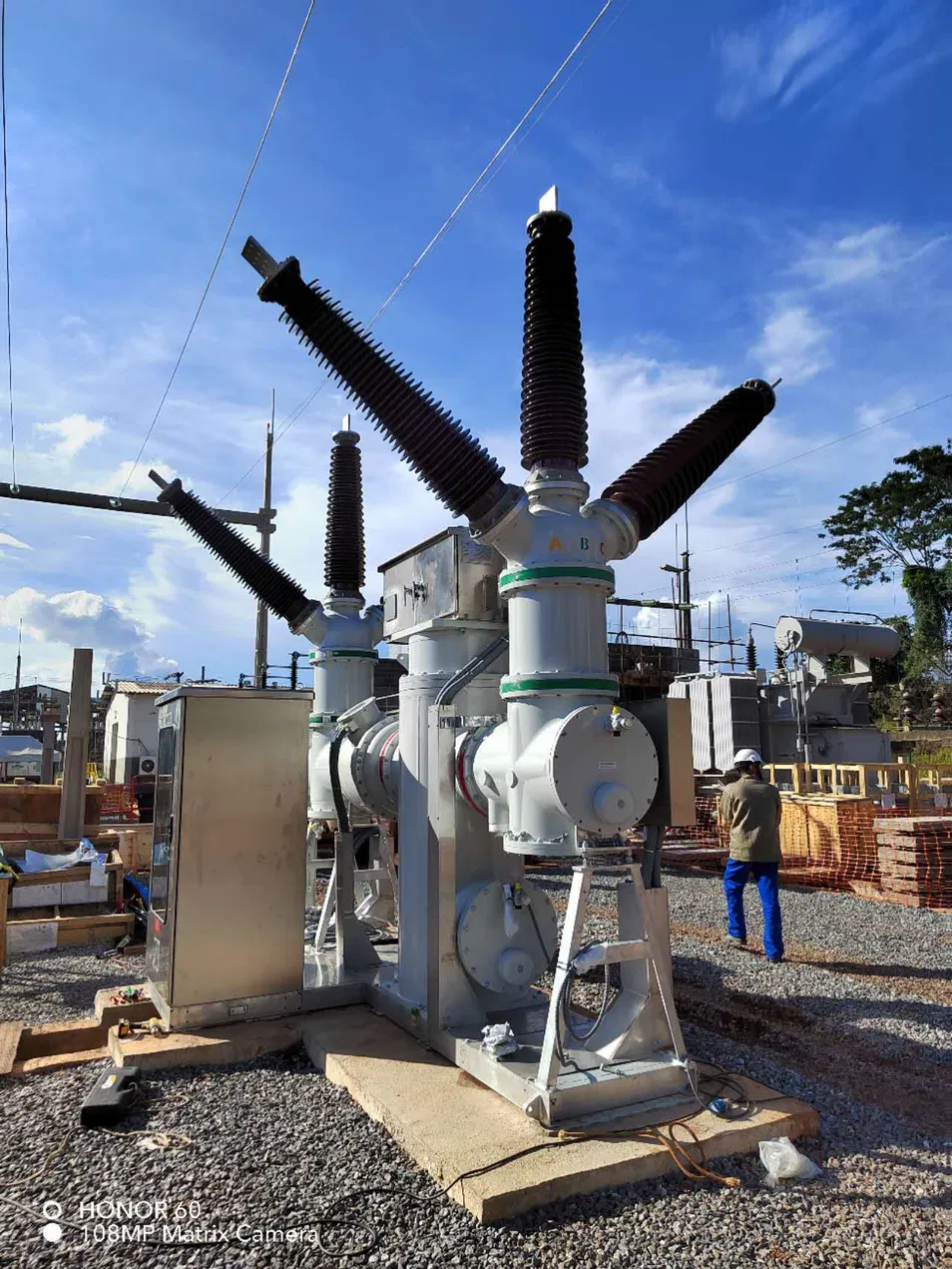

Key Features

Compact design, saving up to 70% substation space
Fully sealed structure, dust-proof, moisture-proof, corrosion-resistant
High operational safety and long maintenance intervals
Modular design, flexible for extension and customization
Stable performance in high altitude, coastal, and polluted environments
Suitable for EPC projects and turnkey substations

Technical Specifications

Item	Specification
Rated Voltage	72.5kV / 110kV / 145kV / 220kV / 252kV
Rated Current	1250A / 2000A / 2500A / 3150A
Short Circuit Current	31.5kA / 40kA / 50kA
Insulation Medium	SF6 Gas
Installation	Indoor / Outdoor
Cooling Method	Natural Air / Forced Air
Standards	IEC 62271 / GB / ANSI (optional)

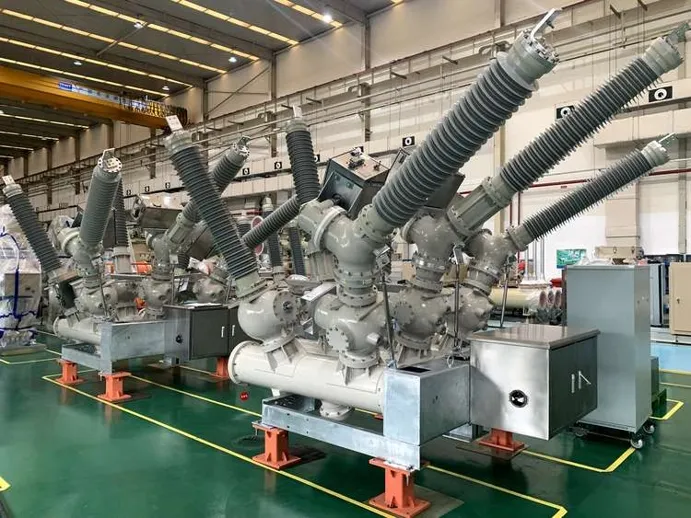

Typical Applications

Power Transmission & Distribution Substations
Urban & Underground Substations
Industrial Power Systems
Renewable Energy (Wind / Solar / Hydro)
Mining, Petrochemical, Data Centers, Infrastructure Projects

Main Components

SF6 Circuit Breaker
Disconnector & Earthing Switch
Gas Insulated Busbar
Current Transformer (CT)
Voltage Transformer (VT)
Local Control Cabinet & Protection System

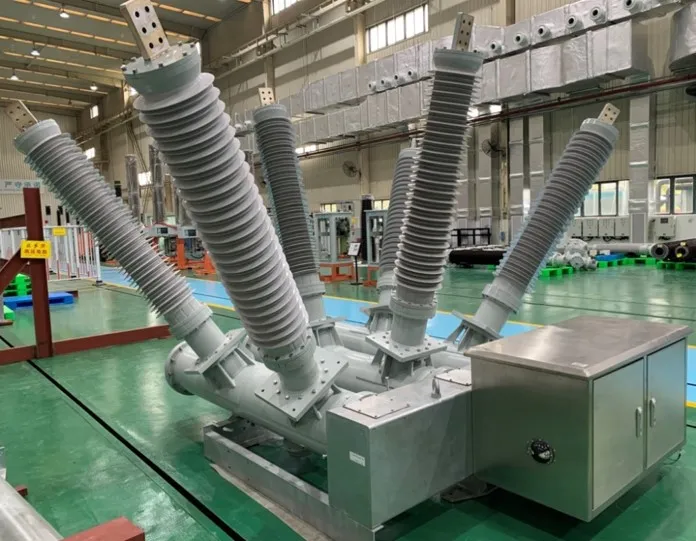

Why Choose Us

Over 20 years experience in high voltage power equipment
Strong engineering support for EPC & turnkey projects
Custom design based on single-line diagram (SLD)
Complete solution: GIS + Transformer + Protection + LV/MV equipment
Professional overseas service and technical support

Quality Control & Testing

Routine Test
Type Test
Partial Discharge Test
Gas Leakage Test
Factory Acceptance Test (FAT)

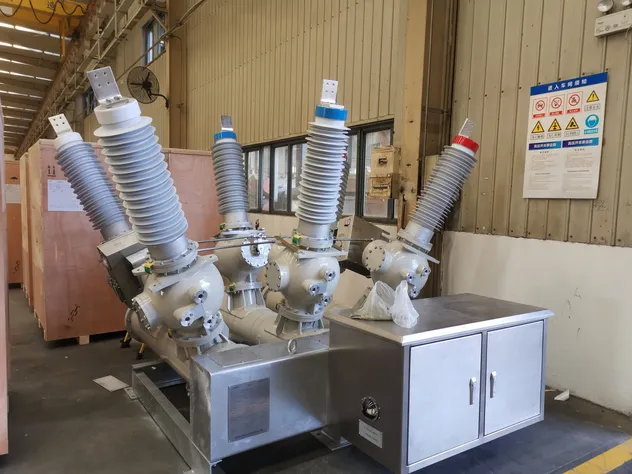

Packing & Delivery

Export standard seaworthy packaging
Flexible delivery schedule
On-site installation guidance available

After-Sales Service

Installation supervision & commissioning support
Technical training for operators
Long-term spare parts supply
Fast response for overseas projects

Company Profile

We are a power transmission and distribution integrated solution provider, dedicated to supplying reliable electrical equipment and system solutions for global markets.

With transformer manufacturing as our core business, we offer a complete product range covering power transmission, distribution, and low-voltage electrical systems, serving utilities, industrial projects, EPC contractors, and energy developers worldwide.

Main Products

Power Transformers and Substation Products

Application

Our Advantages

Packaging & Shipping

Frequently Asked Questions

Q1 Can you customize the equipment according to our project requirements?

Yes. We provide OEM and ODM services and can customize voltage level, capacity, frequency, protection level, cooling method, enclosure design, and technical specifications according to your project requirements and local standards.

Q2 Which international standards do your products comply with?

Our products can be manufactured according to IEC, ANSI, IEEE, GB, and other international standards. Third-party testing and certification services are also available upon request.

Q3 What technical information is required before quotation?

To provide an accurate quotation, please share key parameters such as voltage level, rated capacity, frequency, installation environment, application purpose, and any special technical requirements. Our engineering team will recommend the most suitable solution.

Q4 What is your production lead time?

Standard products usually require 15–45 days depending on the product type and order quantity. For customized equipment such as power transformers, substations, or GIS switchgear, the lead time is typically 45–120 days. The exact schedule will be confirmed after order approval.

Q5 Do you provide installation guidance and after-sales support?

Yes. We provide technical documentation, drawings, factory test reports, online technical support, commissioning guidance, and after-sales services to ensure smooth project execution and long-term equipment reliability.

Q6 Can you supply a complete power transmission and distribution solution?

Yes. We provide one-stop procurement services for transformers, substations, switchgear, GIS, RMU, cables, protection systems, and other electrical equipment. This helps customers reduce sourcing costs, simplify supplier management, and improve project efficiency.
